Aercus WH51 User manual

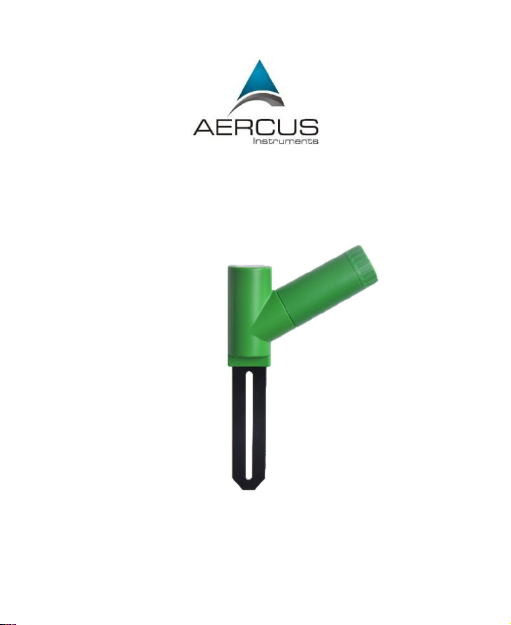

WH51 SOIL MOISTURE SENSOR

Aercus Instruments™ - WH51 2 | P a g e
WH51 Soil Moisture Sensor
Contents
1. Introduction ................................................... 3
2. Get Started ..................................................... 4
3. Overview ........................................................ 5
3.1 Features................................................
4. Setup Guide .................................................... 7
5. Connecting to your WeatherMaster .............. 9
. Advanced Mode ........................................... 10
7. Specification ................................................. 11
8. Contact Information ..................................... 12

Aercus Instruments™ - WH51 3 | P a g e
1. Introduction
Mode d'em loi en français
Téléchargez ce manuel d'instructions en français
sur aercusinstruments.com/manuals/
Manuale O erativo in italiano
Scarica questo manuale di istruzioni in italiano da
aercusinstruments.com/manuals/
Thanks for purchasing this WH51 soil moisture
sensor. This device measures soil moisture
expressed as a percentage and humidity and
operates on one of 8 channels, meaning you can
measure eight distinct areas. The data can be
viewed on a WeatherMaster HP2550 weather
station console or can be streamed by GW1000
Wi-Fi Gateway and can be viewed on the WS View
App after configuration.

Aercus Instruments™ - WH51 4 | P a g e
Please read this manual and retain it for future
reference.
2. Get Started
One Soil Moisture sensor
One User Manual

Aercus Instruments™ - WH51 5 | P a g e
3. Overview
(1) LED indictor (RF Transmission)
(2) Battery Cap
(3) Soil Moisture Probe

Aercus Instruments™ - WH51 | P a g e
3.1 Features
When aired with a WeatherMaster
Console:
 View soil moisture data in real-time on the
Console
 Up to 8 channels supported.
When u loaded to Ecowitt Weather Server:
 View current soil moisture data, history records
and graphs on the website
 Set and receive email alerts from the server
When aired with a GW1000 Wi-Fi Gateway:
Advanced Mode: with 0%AD and 100%AD
manual calibration of low/high moisture value so
that you can get more accurate result for different
soil types. This mode can only be activated
through WS View app and in live data display
mode

Aercus Instruments™ - WH51 7 | P a g e
4. Setu Guide
1. Open the battery cap of the soil
moisture sensor.
2. Insert one AA battery and close battery
cap.
3. After inserting the battery, the remote
sensor LED indicator will light for 4
seconds, and then flash once per 70
second thereafter. Each time it flashes,
the sensor is transmitting data.

Aercus Instruments™ - WH51 8 | P a g e
4. Before installing the sensor into its
permanent location, we would suggest
test the sensor in air, and see if moisture
reading is 0. Secondly, put the sensor
into a cup of water, the sensor should
have its reading increased to
90% or above. Once sensor detected a
significant data change, sensor will
transmit every 10s. Once sensor has
been confirmed working correctly, then
you can go to next step.
5. Insert the sensor totally into the soil of
your desired measurement location.
Please do not use excessive force to
push the sensor into the soil to avoid
damaging it.

Aercus Instruments™ - WH51 9 | P a g e
5. Connecting to your WeatherMaster
The WH51 sensor does not have its own screen
and must be used with a compatible device such
as a Weather Master console or other compatible
device.
If you have never connected a WH51 to your
WeatherMaster HP2550, it should automatically
be seen by the console once data is transmitted.
For other devices such as the GW1000, please
refer to your manual for those.
Once you have connected to your WeatherMaster,
you can view the data using the WS View App.

Aercus Instruments™ - WH51 10 | P a g e
6. Advanced Mode
The sensor can be calibrated for different soil
types. This process requires a GW1000 gateway
and instructions can be found with this device.

Aercus Instruments™ - WH51 11 | P a g e
7. S ecification
Power: 1 AA batteries (not included)
Frequency: 915 (AU/NZ), 8 8 (EU/UK)
Moisture range: -0% to 100%
Moisture resolution: 1%
0%AD setting range: 0-200
100%AD setting range: 0%AD+10-1000
Sensor reporting interval: 70 seconds
IP Waterproof

Aercus Instruments™ - WH51 12 | P a g e
8. Contact Information
We warrant our products to be free of defects in
components and workmanship, under normal
use and service, for one year from the date of
original purchase. For product support and
warranty claims please contact the following:
Purchased in UK/EU: Please contact our local
distributor Greenfrog Scientific
greenfrogscientific.co.uk and their team will be
happy to help.
Purchased in AUSTRALIA: Please contact our
local distributor Monax Test & Weather
monaxtestandweather.com.au and their team
will be happy to help.
Purchased in NEW ZEALAND: Please contact
our local distributor Scientific Sales

Aercus Instruments™ - WH51 13 | P a g e
scientificsales.co.nz and their team will be happy
to help.
For all others, please contact the retailer who
sold you this item.
This handbook may contain mistakes and printing errors. The
information in this handbook is regularly checked and
corrections made in the next issue. We accept no liability for
technical mistakes or printing errors - or their consequences.
Manual version: 2021/1.1

Aercus Instruments™ - WH51 14 | P a g e
EU DECLARATION OF CONFORMITY
Hereby, Aercus Instruments, declares that this Wireless
Weather Station (Model: WH51) is in compliance with the
essential requirements and other relevant provisions of
Directive 1999/5/EC. A copy of the signed and dated
Declaration of Conformity is available on request from
[e-mail].
COUNTRIES RTTE
APPROVAL COMPLIED
All EU countries
DECLARATION DE CONFORMITE UE
Par la présente, Aercus Instruments, déclare que cette station
météo sans fil (Modèle : WH51) est conforme aux exigences
essentielles et autres dispositions pertinentes de la Directive
1999/5/CE. Une copie de la Déclaration de conformité
datée et signée est disponible sur simple demande auprès de
[e-mail].
CONFORMITE AUX
EXIGENCES NATIONALES RTTE
Tous les pays de l’Union
européenne

Aercus Instruments™ - WH51 15 | P a g e
DICHIARAZIONE DI CONFORMITÀ UE
Con la presente, Aercus Instruments dichiara che questa
Stazione Meteorologica Wireless (modello: WH51) è
conforme ai requisiti essenziali e alle altre disposizioni
pertinenti della Direttiva 1999/5 / CE. Una copia della
Dichiarazione di Conformità, firmata e datata, è disponibile su
richiesta all'indirizzo [e-mail].
PAESI RTTE DI COMPLETATA
OMOLOGAZIONE
Tutti i paesi dell'UE
UK DECLARATION OF CONFORMITY
Hereby, Aercus Instruments, declares that this Wireless
Weather Station (Model: WH51) is in compliance with the
essential requirements and other relevant provisions of the
Electromagnetic Compatibility Regulations 201 . A copy of
the signed and dated Declaration of Conformity is available on
request from [e-mail].
COUNTRIES RTTE APPROVAL
COMPLIED
UK
