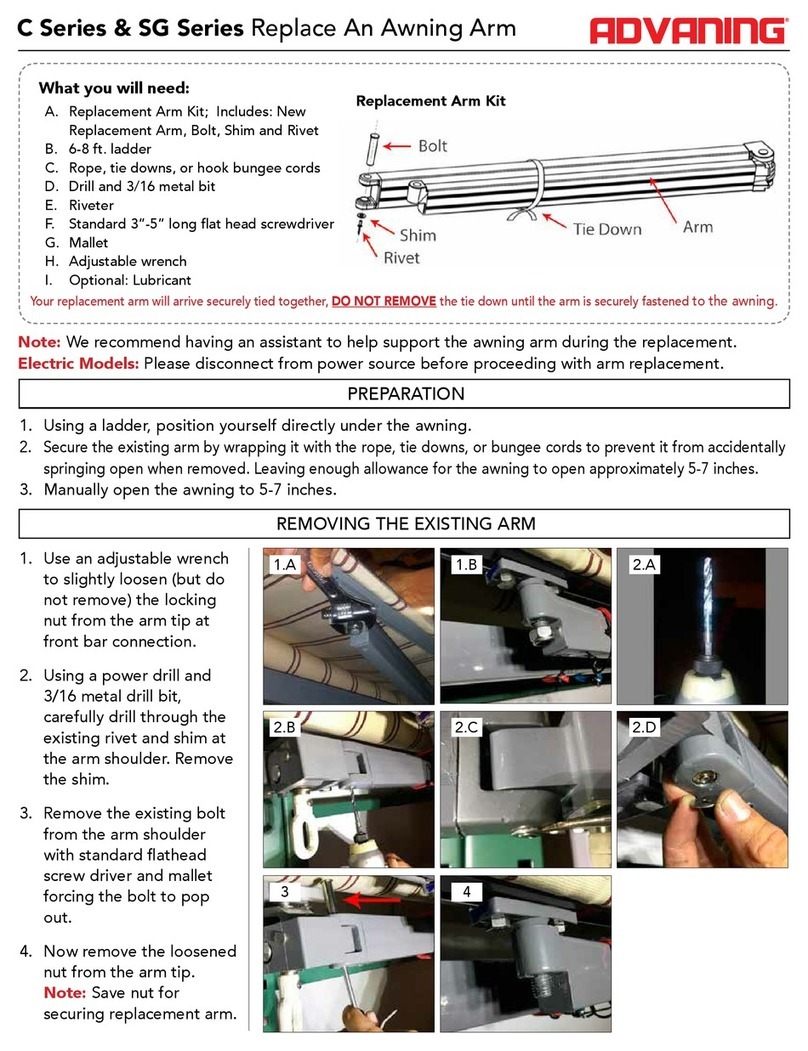

C Series & SG Series Replace An Awning Arm
1. Use an adjustable wrench to slightly
loosen (but do not remove) the
locking nut from the arm tip at front
bar connection.
2. Using a power drill and 3/16 metal
drill bit, carefully drill through the
existing rivet and shim at the arm
shoulder. Remove the shim.
1. Using a ladder, position yourself directly under the awning.
2. Secure the existing arm by wrapping it with the rope, tie downs, or bungee cords to prevent it from accidentally springing
open when removed. Leaving enough allowance for the awning to open approximately 5-7 inches.
3. Manually open the awning to 5-7 inches.
REMOVING THE EXISTING ARM
PREPARATION
What you will need:
A. Replacement Arm Kit; Includes: New
Replacement Arm, Bolt, Shim and Rivet
B. 6-8 ft. ladder
C. Rope, tie downs, or hook bungee cords
D. Drill and 3/16 metal bit
E. Riveter
F. Standard 3”-5” long at head screwdriver
G. Mallet
H. Adjustable wrench
I. Optional: Lubricant
1.A
2.B
1.B
2.C
2.A
2.D
Note: We recommend having an assistant to help support the awning arm during the replacement.
Electric Models: Please disconnect from power source before proceeding with arm replacement.
Your replacement arm will arrive securely tied together, DO NOT REMOVE the tie down until the arm is securely fastened to the awning.
Replacement Arm Kit

www.advaning.com Toll Free (US): [phone]
6.B
Our team prides itself on quality in product and service.
Should you have any concerns or questions, do not hesitate to reach us at [email protected].
1. Insert the new arm shoulder into the
existing Easy Pitch mechanism.
2. Insert the new bolt securing the arm
shoulder to Easy Pitch mechanism.
3. Combine the new shim and the new
rivet.
4. Insert shim and rivet into riveter.
5. Using the riveter, install the shim and
rivet into the arm shoulder.
6. Insert the arm tip to front bar
connection and securely tighten the
locking nut on the arm tip.
7. Inspect the arm shoulder and arm
tip connection, and remove the tie
before test operation.
3. Remove the existing bolt from the
arm shoulder with standard athead
screw driver and mallet forcing the
bolt to pop out.
4. Now remove the loosened nut from
the arm tip.
Note: Save nut for securing
replacement arm.
5. Remove the existing arm.
Note: Ensure that the existing arm
is securely tied before removing to
prevent the spring mechanism from
activating.
INSTALLING THE NEW ARM
13
4 5.A 5.B
6.A 7
2
3
5.A
4
5.B
Note: DO NOT REMOVE the tie down on new arm until the arm is securely fastened to the awning.
Additional Notes:
• It is recommended to properly lubricate the new arm before operating. Lubricating instruction are available at
www.advaning.com/kcnder/upload/les/Lubricating_instruction.pdf.
• While replacing the arm, the pitch of the awning may move and will sometimes require adjustment.
• Electric Models: Please ensure that you test the new arm function and pitch manually 3-5 times before
connecting to power source.
