Aetina DeviceEdge Mini Series User manual

i
Document Change History
Version
Date
Description
Authors
V1
2022/2/14
Initial Release.
Rick Chiu

ii
Packing List
Before setting up the system, please confirm that the following items are included with the
product：
1 x DB9 female to 15 pin-connector cable
1 x HDMI Type-D male to Type-A female cable
1 x 60W(12V @ 5A) power adapter
1 x Power cord
1 x Mounting bracket(VESA)
4 x Countersunk screw flat head + 4 x truss head screw
1 x Quick reference guide
If any item is missing or damaged, please contact your dealer immediately.

iii
Contents
1. Introduction..............................................................................................................................................................- 1 -
2. Product Features and Specifications .......................................................................................................................- 1 -
3. Product Overview.....................................................................................................................................................- 3 -
3.1 Front view....................................................................................................................................................- 3 -
3.2 Rear view .....................................................................................................................................................- 3 -
3.3 External Connector Summary......................................................................................................................- 4 -
3.3.1 External I/O Introduction ........................................................................................................................- 4 -
3.4 Instruction ...................................................................................................................................................- 7 -
3.4.1 Boot up....................................................................................................................................................- 7 -
3.4.2 Recovery mode........................................................................................................................................- 7 -
3.5 Mechanical dimensions...............................................................................................................................- 8 -

- 1 -
1. Introduction
Mini series –M1 is a standard system, supporting for NVIDIA® Jetson Nano™,NVIDIA®
Jetson Xavier™ NX, and NVIDIA® Jetson™ TX2 NX. It features build-in PoE Powered Devices
function which simplifies design and installation, reducing cost of materials and labor. Its
palm-size appearance specifically designed for high performance and low power
consumption to fit in limited space. With smart button for one-key recovery function to
address critical system failure and real-time monitoring for status of device through the
AIM (Aetina Intelligent Management), M1 is suitable for diverse applications such as smart
city, AGV in intelligent warehousing and so on.
2. Product Features and Specifications
Specifications
Product Name
AIE-CO11-A0
AIE-CN11-A0
AIE-CT41-A0
Module Compatibility
Nvidia Jetson Nano
Nvidia Jetson Xavier NX
Nvidia Jetson TX2 NX
CPU
Quad-core ARM
Cortex-A57 MPCore
processor
6-core NVIDIA Carmel
ARM®v8.2 64-bit CPU
6MB L2 + 4MB L3
Dual-core NVIDIA
Denver 2 64-bit CPU
and quad-core Arm®
Cortex®-A57 MPCore
processor complex
GPU
NVIDIA Maxwell™
with 128 NVIDIA
CUDA® cores
NVIDIA Volta™ with 384
CUDA® cores and 48
Tensor Cores
Nvidia PascalTM with
256 CUDA® cores
AI Performance
0.5 TFLOPS (FP16) at
5-10W
14 TOPS (INT8) at 10W ,
21 TOPS (INT8) at 15W
1.33 TFLOPS at
7.5-15W
System Memory
4 GB 64-bit LPDDR4
8 GB 128-bit LPDDR4
4 GB 128-bit LPDDR4
Storage
-16GB eMMC 5.1 Flash
Display
-1x HDMI 1.4 with microHDMI D Type connector
Audio
-HDMI Integrated
LAN
-2x RJ-45 for GbE (1 for PoE PD 802.3 at)
Expansion
-1x M.2 M-key 2242 : NVMe 128G SSD (build-in)
-1x M.2 E-key 2230 : WiFi/BT function
USB
-2x USB 3.2 Gen1 Type A
-1x USB Type-C (OTG only)
MISC. External
Interfaces
-1x AI button (iTons)
-1x Power button

- 2 -
-1x Recovery button
-1x Reset button
-1x DB15 female connector (5x GPIO, 1x UART, 1x I2C, 1x CAN bus)
-2x Antenna (optional)
Power Input
-DC-in 12V~24V (DC Jack 4pin)
Dimension
-132.6 x 88.7 x 63.55mm (WxDxH)
Mounting
-Deskmount
Net Weight
-970g
Operating
Temperature
--20°C ~ +50°C
Operating Humidity
-10% ~ 90%
Storage Temperature
--40°C ~ +85°C
Certification
-CE/FCC

- 3 -
3. Product Overview

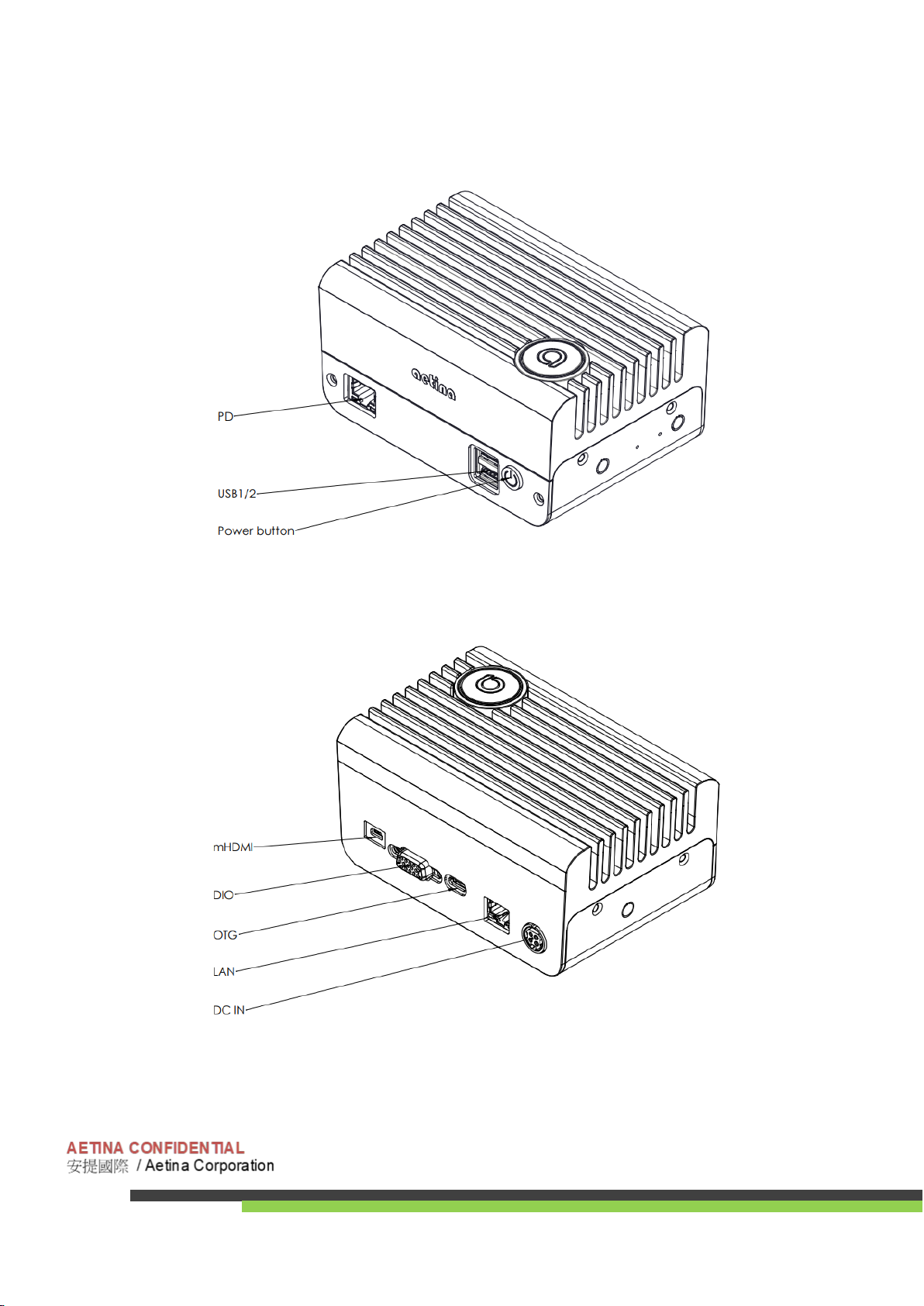

3.1 Front view
3.2 Rear view

- 4 -
3.3 External Connector Summary
Location
External Connector
Description
Front
LAN
-RJ-45 Gigabit Ethernet connector (PoE PD
function)
USB ports
-Dual USB3.2 Gen1 Type-A connector
Power on
-Power pushbutton
Back
OTG
-USB Type-C OTG connector
Expansion I/O
-DB15 female connector
HDMI
-HDMI 1.4 with microHDMI Type-D connector
LAN
-RJ-45 Gigabit Ethernet connector
Power input
-12V to 24V 4-pin DC Jack power input
Top
AI button
-One-key recovery pushbutton
Side
Recovery
-Recovery pushbutton
Reset
-Reset pushbutton
Antenna performed socket
-Dual socket for antennas
3.3.1 External I/O Introduction

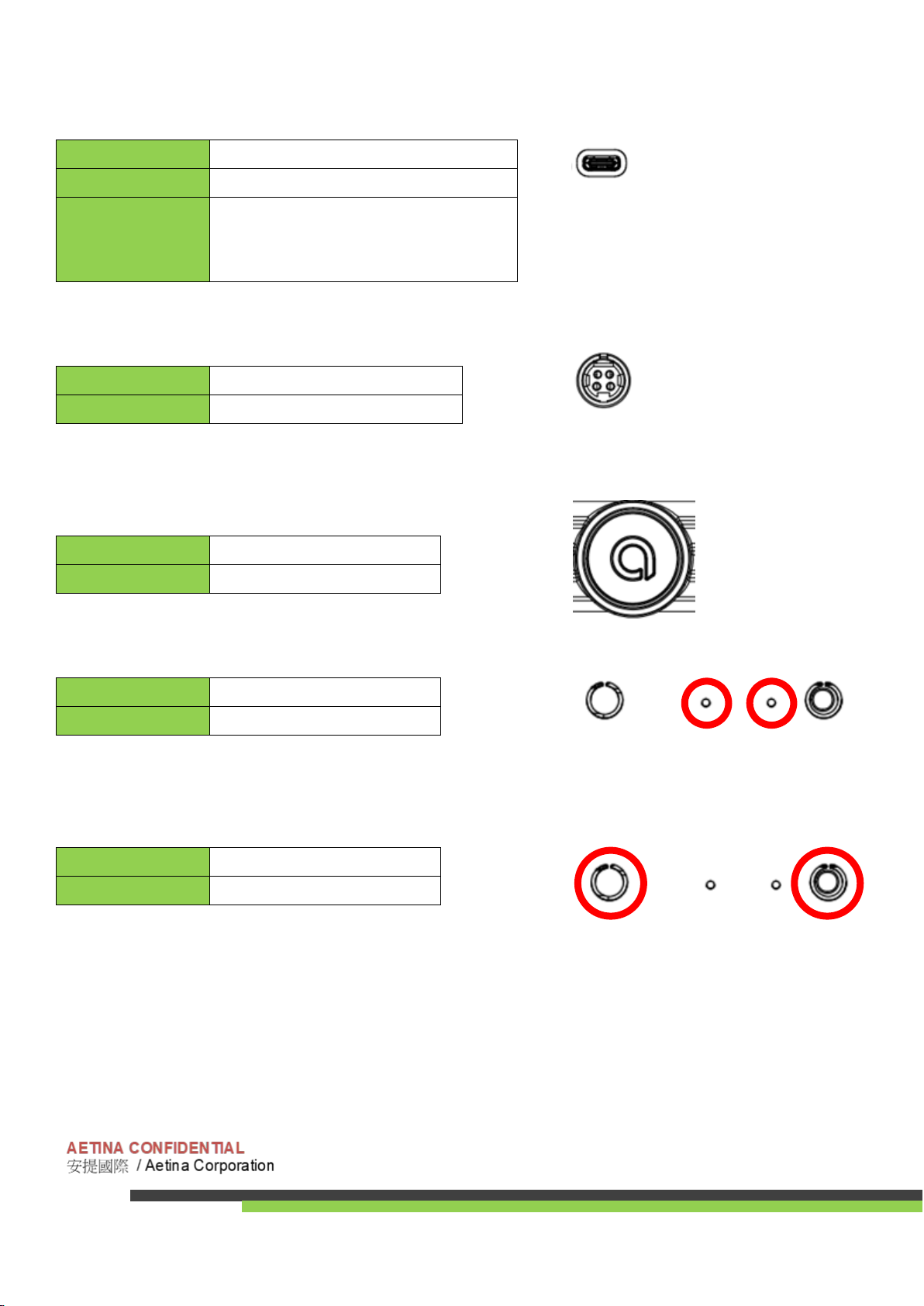

•10/100/1000 Ethernet connector (PoE PD function)
Location
Front
Type
RJ-45 Connector
Pin
Refer to Ethernet Standard
Description
Support for IEEE 802.3 at
•10/100/1000 Ethernet connector
Location
Rear
Type
RJ-45 Connector
Pin
Refer to Ethernet Standard

- 5 -
•Dual USB3.2 Gen1 Type-A connector
Location
Front
Type
Type-A USB connector
Pin
Refer to USB Standard
•Power pushbutton
Location
Front
Type
Pushbutton
•HDMI 1.4 with microHDMI Type-D connector
Location
Rear
Type
HDMI horizontal connector
Pin
Refer to microHDMI Type-D Standard
•GPIO connector : DB15 female connector
Location
Rear
Type
GPIO
Pin No.
Description
SOM Pin assignment
1
GPIO 3
GPIO07
2
GND
GND
3
GND
GND
4
UART 1 TxD
UART1 TxD
5
CAN0L
CAN0 (not for Nano)
6
GPIO 1
GPIO01
7
GPIO 4
GPIO12
8
SCL
I2C0_SCL
9
5V (2A)
N/A
10
UART 1 RxD
UART1 RxD
11
GPIO 2
GPIO06
12
GPIO 5
GPIO13
13
SDA
I2C0_SDA
14
3V3 (2A)
N/A
15
CAN0H
CAN0 (not for Nano)

- 6 -
•USB Type-C (OTG only)
Location
Rear
Type
Type-C USB connector
Pin
D- / D+ / VBUS / CC1 / GND
(Refer to USB Type-C standard,
but only use these five pin)
•Power input connector
Location
Rear
Type
12V to 24V 4-pin DC Jack
•AI button (One-key recovery pushbutton)
Location
Top
Type
Pushbutton
•Reset & Recovery button
Location
Side
Type
Pushbutton
•Antenna performed socket
Location
Side
Type
Performed socket
Reset
Recovery

- 7 -
3.4 Instruction
3.4.1 Boot up
a) Press the power button to power on the device and boot up when
plugging in the power cable.
3.4.2 Recovery mode
a) Press the iTons (AI button) first and hold it before the device is on.
b) Press the power button to power on the device and boot up when
plugging in the power cable.
c) Hold the iTons (AI button) continually and wait for seconds to see the
scene as shown below.
d) Wait for completion and the system will reboot.

- 8 -

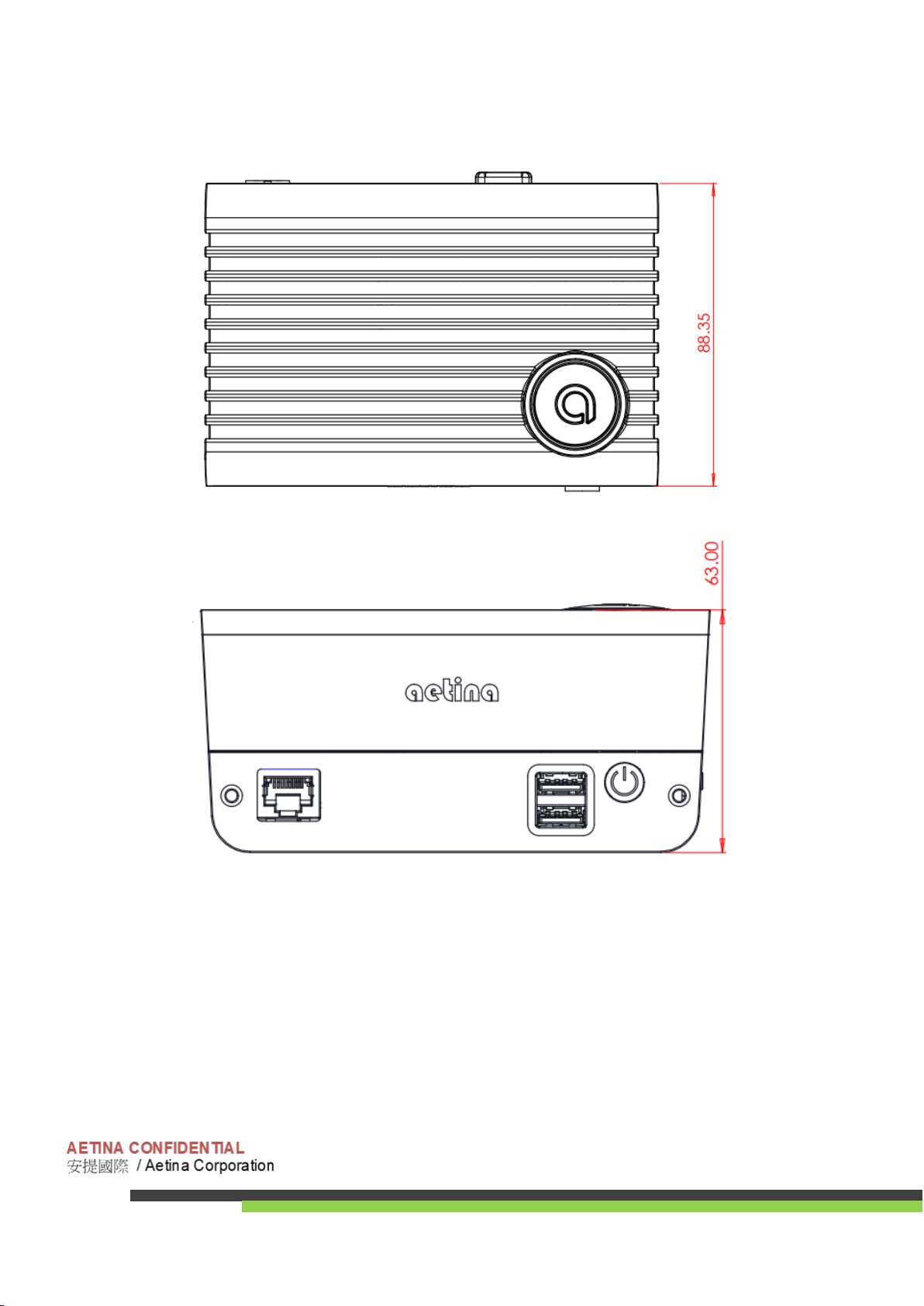

3.5 Mechanical dimensions

- 9 -

- 10 -
