Afag CS 8 Series User manual

Compact Slide
CS 8 / CS 12
- Declaration of Incorporation
- Module Information
- Montage Instructions
- Maintenance Instructions
„Translation“ of the Original Montage Instructions
© Copyright by Afag Automation AG

2 CS8-CS12-OI-vers.-3.6 gb. 21.07.14
These Montage instructions apply to:
Type
Order No. Type Order No.
CS 8/10-SD
50036720 CS 12/30-SD 50048476
CS 8/30-SD
50035820 CS 12/60-SD 50050602
CS 8/60-SD
CS 8/10-ED
CS 8/30-ED
CS 8/60-ED
50035829 CS 12/90-SD 50050825
50300525 CS 12/30-ED 50300528
50300526 CS 12/60-ED 50300529
50300527 CS 12/90-ED 50300530
Version of this documentation: CS8-CS12-OI-vers.-3.6 gb. 21.07.14
Symbols:
Assembly and initial start-up must be carried out by qualified Personnel only and
according to these Montage Instructions.
WARNING
Indicates a possible dangerous situation.
Non-compliance with this information can result in death or
serious personal injuries (invalidity).
CAUTION
Indicates a possible dangerous situation.
Non-compliance with this information can result in damage to
property or light to medium personal injuries.
NOTE
Indicates general notes, useful operator tips and operating
recommendations which don’t affect safety and health of the
personnel.

CS8-CS12-OI-vers.-3.6 gb. 21.07.14
3
Table of Contents:
1.0.0 Declaration of Incorporation Page 5
1.1.0 Declaration of Incorporation according to the Machinery Directive
2006/42/EG Page 5
2.0.0 Module Information Page 6
2.1.0 Transport and storage (packing and unpacking) Page 6
2.1.1 Possibilities of fastening Page 7
2.1.2 Centering bushings and hole matrix Page 8
2.1.3 Tightening torques for screws Page 9
2.1.4 Slide unit load factors CS 8 Page 10
2.1.5 Traversing time by CS 8 with shock absorber hydraulic Page 10
2.1.6 Traversing time by CS 8 with shock absorber elastomer Page 11
2.1.7 Preferred combinations CS 8 Page 12
2.1.8 Slide unit load factors CS 12 Page 13
2.1.9 Traversing time by CS 12 with Shock absorber hydraulic Page 13
2.2.0 Traversing time by CS 12 with shock absorber elastomer Page 14
2.2.1 Preferred combinations CS 12 Page 15
3.0.0 Montage Instructions Page 16
3.1.0 Manufacturer address Page 16
3.1.1 Symbols Page 17
3.1.2 General description Page 17
3.1.3 Description of the module Page 18
3.1.4 Scope of supply Page 19
3.1.5 Designated use Page 19
3.1 6 Warranty Page 20
3.1.7 Areas of application Page 20

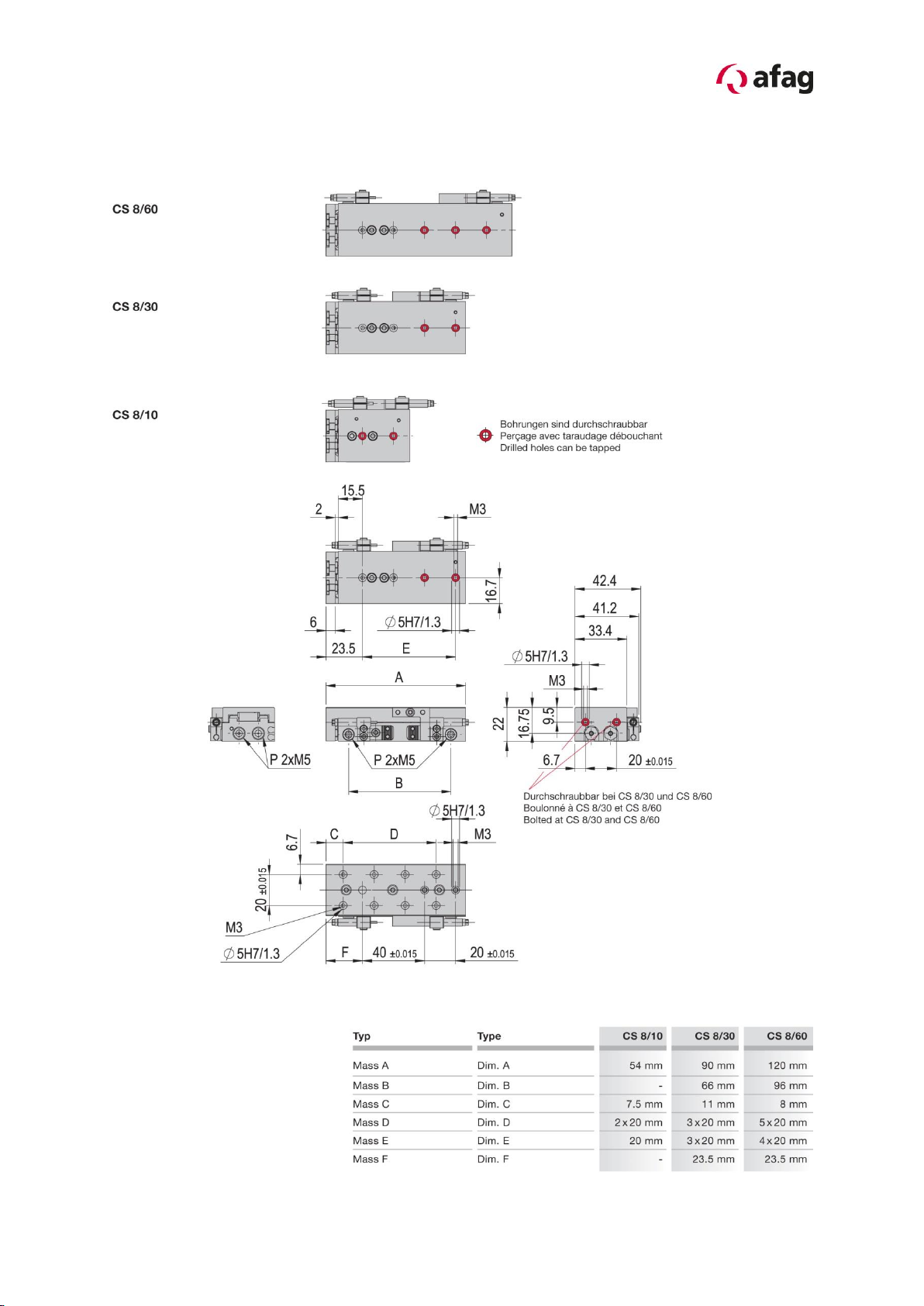

3.1.8 Dimensions CS 8 Page 21
3.1.9 Technical data CS 8 Page 22
3.2.0 Dimensions CS 12 Page 23
3.2.1 Technical data CS 12 Page 24
3.2.2 Pneumatic connection Page 25
3.2.3 Preparation for start-up Page 26
3.2.4 Note for shock absorber elastomer Page 27
3.2.5 Installation of the sensor Page 28
3.2.6 Accessories Page 28
3.2.7 Fitting the proximity switch in the module grooves Page 29
3.2.8 Start-up of the CS compact slide Page 30

4 CS8-CS12-OI-vers.-3.6 gb. 21.07.14
4.0.0 Maintenance Instruction Page 31
4.1.0 Maintenance and servicing of the CS 8/ CS 12 Compact slide Page 31
4.1.1 Servicing Page 32
4.1.2 Faults during operation Page 33
4.1.3 Expendable part for elastomer shock absorber Page 34
4.1.4 Adjusting the elastomer shock absorbers Page 34
4.1.5 Disassembly and repair Page 35
4.1.6 Accessories and spare parts CS 8 / CS 12 Page 36
5.0.0 Disposal Page 37

CS8-CS12-OI-vers.-3.6 gb. 21.07.14
5
1.0.0 EC Declaration for Incorporation
1.1.0 According to 2006/42/EC dated 09. June 2006, Appendix II B VI for
incorporation of partly completed machinery.
The manufacturer: Afag Automation AG, Fiechtenstrasse 32, CH-4950 Huttwil
Tel. [phone], www.afag.com
As manufacturer of the partly completed machine we declare that:
-The specified machine corresponds to the listed essential requirements of the
directive 2006/42/EG, wehere applicable the other directives and standards
listed below.
-
Designation: Compact Slide (pneumatic)
Type: CS 8 / CS 12
Sequential series: Nr.50xxxxxx
-EC Directive 2006/42/EC
-The relevant technical documentation is compiled in accordance with part B of
Annex VI
-The relevant technical documentation in accordance with part B of Annex VI
will be transmitted in response to a reasonable request by the national
authorities in printed from or in electronic from (pdf).
Applied and fulfilled essential requirements:
-1.1; 1.1.1; 1.1.2; 1.2.3; 1.3.3; 1.3.6; 1.3.7.1.4.1; 1.5; 1.6; 1.6.1;
1.6.2; 1.6.4; 1.7; 1.7.4; 1.7.4.2;
-Increase of the harmonized standards applied:
-EN 349; EN ISO 12100-1; EN 12100-2 partly fulfilled
This partly completed machinery must not be put into service until the final machinery
into which it is to be incorporated has been declared in conformity with the provisions
of this Directive 206/42/EG, where appropriate.
Name and address of the person authorised to compile the relevant technical
documentation: Lanz Beat, PM & Marketing-services, Afag Automation AG
Place, Date: Huttwil, 21. Juli 2014
Siegfried Egli Markus Werro
Head of HT Managin Director
Afag Automation AG Afag Automation AG

6 CS8-CS12-OI-vers.-3.6 gb. 21.07.14
2.0.0 Module Information
2.1.0 Transport and storage (packing and unpacking)
CAUTION
The CS module is packed in the original cardboard box, if the
module is not handled property it may fall out of the box when
unpacking and cause injuries to limbs or squeeze your fingers.
NOTE
Consider please! With each module security is settled a technical
newspaper. This newspaper is to be reas busily by each person with
the module.

CS8-CS12-OI-vers.-3.6 gb. 21.07.14
7

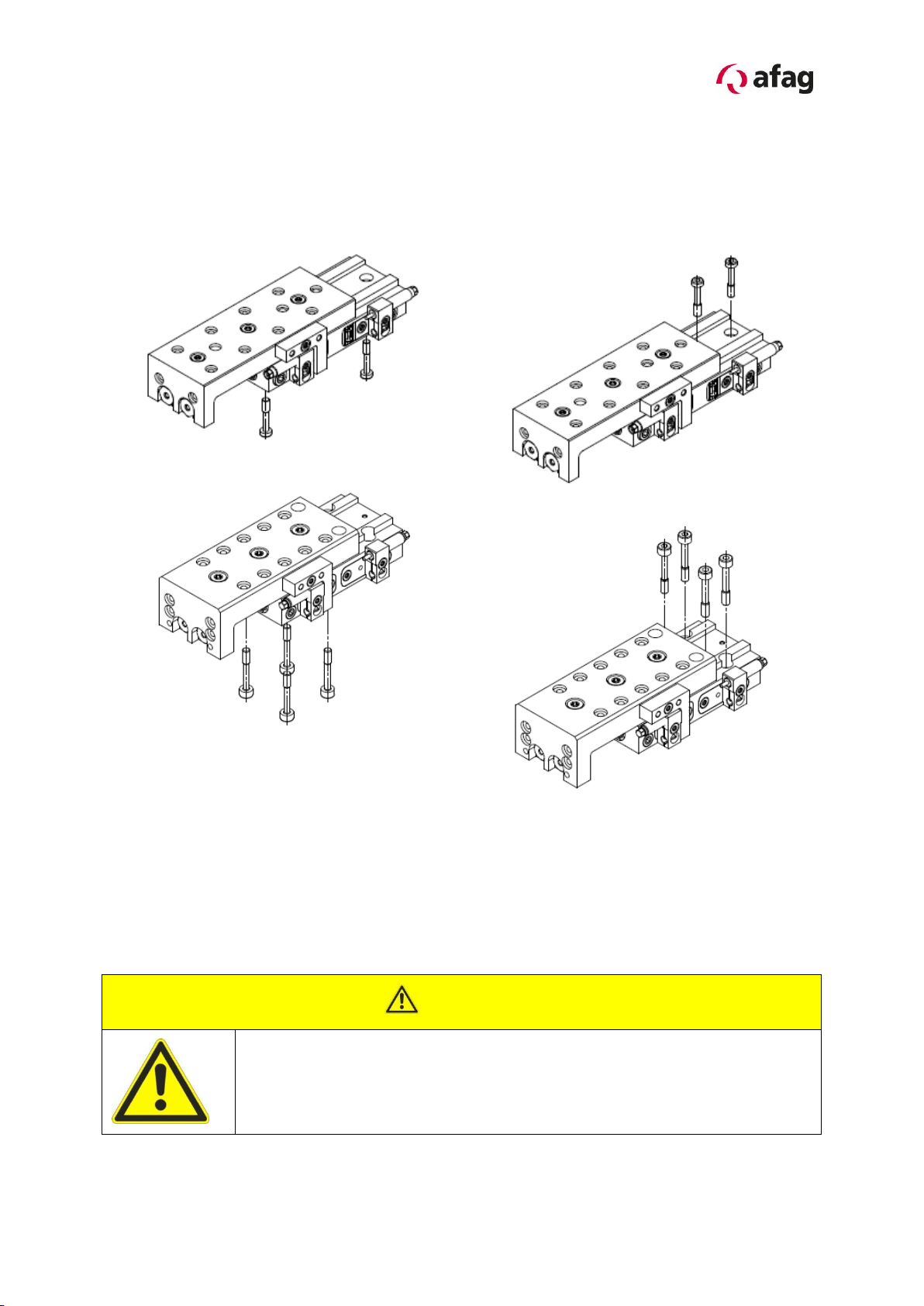

2.1.1 Possibilities of fastening the CS 8 / CS 12
(Mounting the Module)
CS 8
CS 12
Installation of the bottom of the base
body with
Installation of base body, through
bolted with
(CS 8 Special screws M3x16/6)
(CS 12 Special screws M4x25/8)
CAUTION
When the module is installed in a vertical position, the slide
should always be moved, before the installation, into the
lowermost position, since masses that move suddenly can
cause injury.

8 CS8-CS12-OI-vers.-3.6 gb. 21.07.14

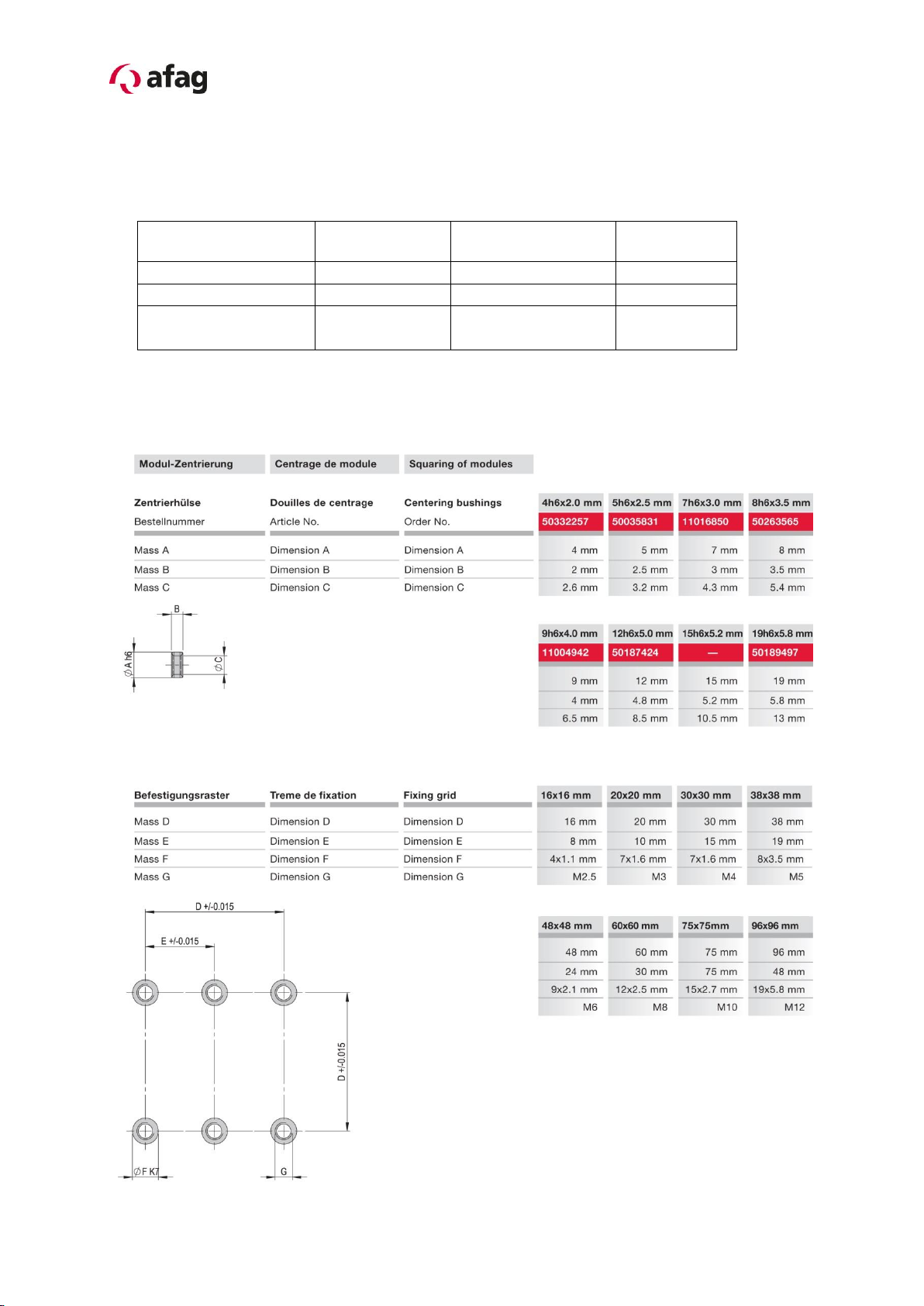

2.1.2 Centering bushings and hole matrix
Hole matrix at the CS 8 / CS 12 Compact slide
CS 8
CS 12
Hole matrix
20x20 mm
Hole matrix
30x30 mm
Thread / bore hole
M3
Thread/bore hole.
M4
Centering
bushings (H7)
5x2.5 mm
Centering
bushings (H7)
7x3 mm
Use the centering bushings included in the scope of supply for positioning and insert
these sleeves in the diagonally opposite bore holes of the mounting grid.

CS8-CS12-OI-vers.-3.6 gb. 21.07.14
9
2.1.3 Tightening torques moments for screw
The screws to be used for assembly must at least satisfy the following conditions:
Standard: VDI 2230
Strength: class 8.8
Surface: galvanized blue, oiled or greased
Thread
Tightening moments
M3
1,1 … 1,4 Nm
M4
2,6 … 3,3 Nm
M5
5,2 … 6,5 Nm
M6
9,0 ... 11,3 Nm
M8
21,6 … 27,3 Nm
This is an incomplete machine
Assembly of the CS 8 / CS 12 Compact Slide in a system
The series of the CS module is used for the linear, smooth movement of rigidly
mounted loads under the ambient and operating conditions defined for this module,
see Technical data. The CS module can be installed in the horizontal or vertical
position.
NOTE
These Montage Instructions should be read carefully before carrying
out any activity on or with the CS module. The CS module may only
be deployed in accordance with the intended use.
NOTE
Safety instructions
Modifications on the CS module that are not described in these
Montage Instructions or have not been approved in writing by Afag
Automation AG are not permitted. In case of improper changes or
assembly, installation, operation and maintenance or repairs Afag
rejects all liability.

10 CS8-CS12-OI-vers.-3.6 gb. 21.07.14
2.1.4 Slide unit load factors CS 8

CS8-CS12-OI-vers.-3.6 gb. 21.07.14
11
2.1.5 Preferred combinations CS 8

12 CS8-CS12-OI-vers.-3.6 gb. 21.07.14
2.1.6 Slide unit load factors CS 12

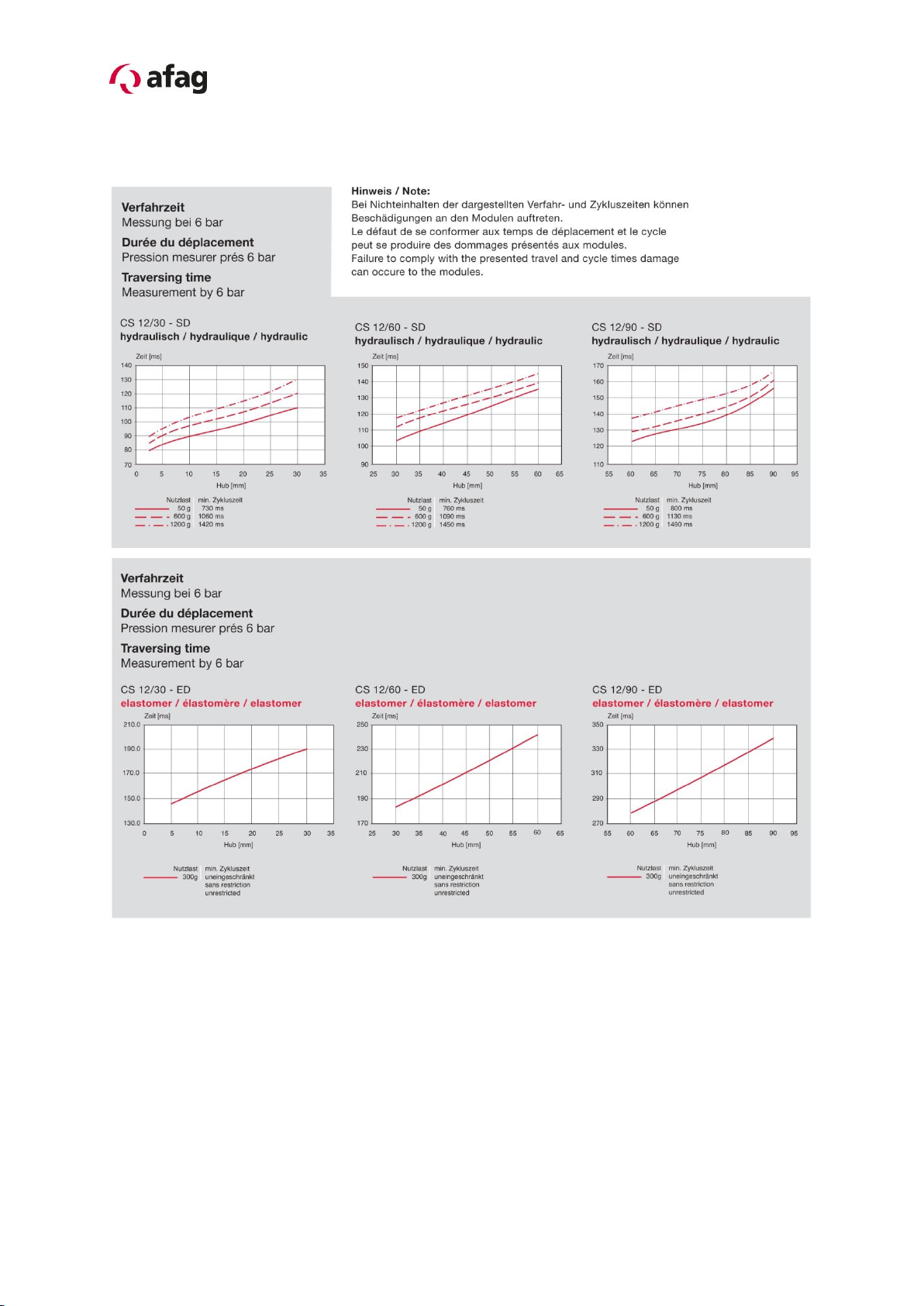

CS8-CS12-OI-vers.-3.6 gb. 21.07.14
13
2.2.7 Preferred combinations CS 12

14 CS8-CS12-OI-vers.-3.6 gb. 21.07.14
3.0.0 Montage Instructions
3.1.0 These Montage Instructions are valid for:
These operating instructions apply to:
Producte name: Compact Slide (pneumatic)
Types: CS 8/10-SD; CS 8/30-SD; CS 8/60-SD
CS 8/10-ED; CS 8/30-ED; CS 8/60-ED
CS 12/30-SD; CS 12/60-SD; CS 12/90-SD
CS 12/30-ED; CS 12/60-ED; CS 12/90-ED
Consecutive Series: No. 50xxxxxx
The manufacturer: Afag Automation AG, Fiechtenstrasse 32, CH-4950 Huttwil
Tel. [phone], www.afag.com
This is an incomplete machine
This partly completed machinery must not be put into service until the final machinery
into which it is to be incorporated has been declared in conformity with the provisions
of this Directive 206/42/EG, where appropriate.
Name and address of the person authorised to compile the relevant technical
documentation: Lanz Beat, PM & Marketing-Services, Afag Automation AG

CS8-CS12-OI-vers.-3.6 gb. 21.07.14
15
3.1.1 Symbols
Assembly and initial start-up must be carried out by qualified personnel only and
according to these Instructions.
CAUTION
Indicates a possibly dangerous situation.
Non-compliance with this information can result in damage to
property or light to medium personal injuries.
NOTE
Indicates general notes, useful operator tips and operating
recommendations which don't affect safety and health of the
personnel.
3.1.2 General description
This is an incomplete machine
The series of the CS-module is used for the linear, smooth movement of rigidly
mounted loads under the ambient and operating conditions defined, see Technical
data.
The CS-module can be installed in the horizontal or vertical position.
Modifications on the CS-module that are not described in these Montage Instructions
or have not been approved in writing by Afag Automation AG are not permitted. In
case of improper changes or assembly, installation, operation, maintenance or
repairs, Afag Automation AG rejects all liability.

16 CS8-CS12-OI-vers.-3.6 gb. 21.07.14
3.1.3 Description of the module
1
Base body
3
Stop screw with integrated shock
absorber
2
Slide
4
5
Sensor nuts
Air connection
The CS 8/12 consists of the base body (1) with pneumatic connections and cylinder
and the moveably mounted slide (2).
The stop positions are set by means of a stop screw with integrated shock absorber
(3). The stop positions are queried either by.
▪ a d 3 mm inductive switch (accessories : not included in the scope of supply),
mounted under the stop screw, or.
▪ a proximity switch (accessories : not included in the scope of supply), fastened in
the sensor groove.
The movement in the stop positions is absorbed by a shock absorber (3) or a steel
stopper (accessories : not included in the scope of supply).
CAUTION
The shock absorbers installed in the CS modules are precision-
mechanical parts. If the fastening screw is tightened to strongly
the shock absorber can be damaged.
Torque recommended 0,63. ..1,1 Nm
3.1.4 Scope of Supply
Description Description
1
Module CS 8 1 Module CS 12
2
Stop screw/shock absorber ASED M5x0.5-1 2 Stop screw/ shock absorber
ASED M6x0.5-1
2
Centering bushings 5x2.5 mm 2 Centering bushings 7x3 mm
2
Special screw M3x16 mm 4 Special screw M4x20 mm
CS 12
CS 8
1
3
5
2
4

CS8-CS12-OI-vers.-3.6 gb. 21.07.14
17
3.1.5 Designated use
The series of the compact slides CS-Modules is used for the linear movement of
rigidly mounted loads in non-explosion harzadous ambient and operating conditions
that are specified for this Module; see catalogue.
NOTE
Montage Instructions should be read carefully before carrying out
any activity on or with the module.
The module may only be deployed in accordance with the intended
use.
Modifications on the module that are not described in these Montage
Instructions or have not been approved in writing by Afag are not
permitted. In case of improper changes or assembly, installation,
operation, maintenance or repairs, Afag rejects all liability.
CAUTION
Connection of compressed air and operation of pneumatic
systems may cause unpredictable movement which may result
in personal injury or damage to property.
When connecting compressed air for the first time make sure that all air chokes are
closed. Ventilate the system slowly.
3.1.6 Warranty
The module is designed for 40 million load alternations* under the ambient conditions
and conditions of use defined for this module, see catalogue. Wearing parts (shock
absorbers and stop screws) are excluded from the warranty. The warranty includes
repair or replacement of faulty Afag parts.
*whichever comes first
When repairs are carried out by the customer without prior training or instruction by
Afag AG the warranty will become void. Any additional claims are excluded.

18 CS8-CS12-OI-vers.-3.6 gb. 21.07.14
3.1.7 Areas of application
The CS Compact Slides are exclusively designed for the linear movement of load
capacities of up to 0,3 –0.7 –3.0 kg (CS 8); (CS 12 to 1,2 kg), in any position on the
slide and maximum 0.3-0.4 kg (CS 8); (CS 12 to 0.7 kg) at the face side of the
module; the load capacities should not affect persons, property or the environment.
They can also be used in combination with other modules than Pick&Place
machines, the permissible load capacities should, however, not be exceeded.
Any other use is regarded as inadequate.
NOTE
The manufacturer does not accept any liability for damage resulting
from such use. The risk is that of the user alone.
Intended use also includes paying attention to the Montage Instructions and
observing the maintenance and repair instructions specified by the manufacturer.
The CS module may only be operated and serviced by correspondingly trained
personnel who have also profound knowledge of the dangers.
CAUTION
The applicable regulations for prevention of accidents and the
other generally accepted safety-relevant and occupational
safety and health regulations are to be followed.

CS8-CS12-OI-vers.-3.6 gb. 21.07.14
19
3.1.8 Dimension CS 8

20 CS8-CS12-OI-vers.-3.6 gb. 21.07.14
3.1.9 Technical data CS 8
