Affirmative 2722 User manual

YEStation MAX II
The YEStation MAX II is the high performance member of the
Affirmative family of thin clients featuring wired, wireless, fixed and
portable devices for midrange budgets. All MAX II models support
PC peripherals such as printers, modems, monitors, keyboards, wireless
adaptors and pointing devices. Windows models include a local
Internet Explorer 6 browser, while Linux models include a Mozilla
browser. Affirmative thin clients are ideal terminal replacements and
less costly, more reliable alternatives to PCs. There are no moving
parts, giving the MAX II an impressive MTBF of well over 12 years.
The YEStation MAX II thrives in harsh environments where dust and
airborne contaminants are a problem for PCs, but they are equally at
home in office environments where attractive styling and silent
operation are important. The MAX II’s exceptionally small footprint,
with its vertical orientation, frees up valuable desk or bench space.
The MAX II’s standard colors are black and silver, matching the current
trend toward black monitors. Affirmative also offers matching input
devices including mice and specialty keyboards with dual color-coded
key caps that enhance user productivity when switching between
5250/3270 legacy applications and Windows/browser applications.
Why thin clients?
Thin clients (TC) are an alternative to PCs and workstations widely
deployed in business operations. They are somewhat less expensive
to buy, but enormously less expensive to maintain. There are no disk
drives to crash, no viruses, no productivity-robbing games or movies
and no way for a user to transfer files without authorization.
A TC is a display terminal that can also support a local printer and
other PC peripherals, such as modems and wireless LAN adapters.
Display terminals allow the user to work with Windows, Web browsers,
UNIX and IBM mainframe applications without moving any files to the
desktop. This eliminates the need for users to backup their hard drives,
eliminates unauthorized applications and improves user productivity.
All Affirmative thin clients feature a built-in VNC server, allowing
administrators to ‘shadow’ the terminal and take control, as if they
were sitting at the user’s workstation, from anywhere with
network access.
Work Smarter with Cost-Effective, Feature-Packed Thin Clients

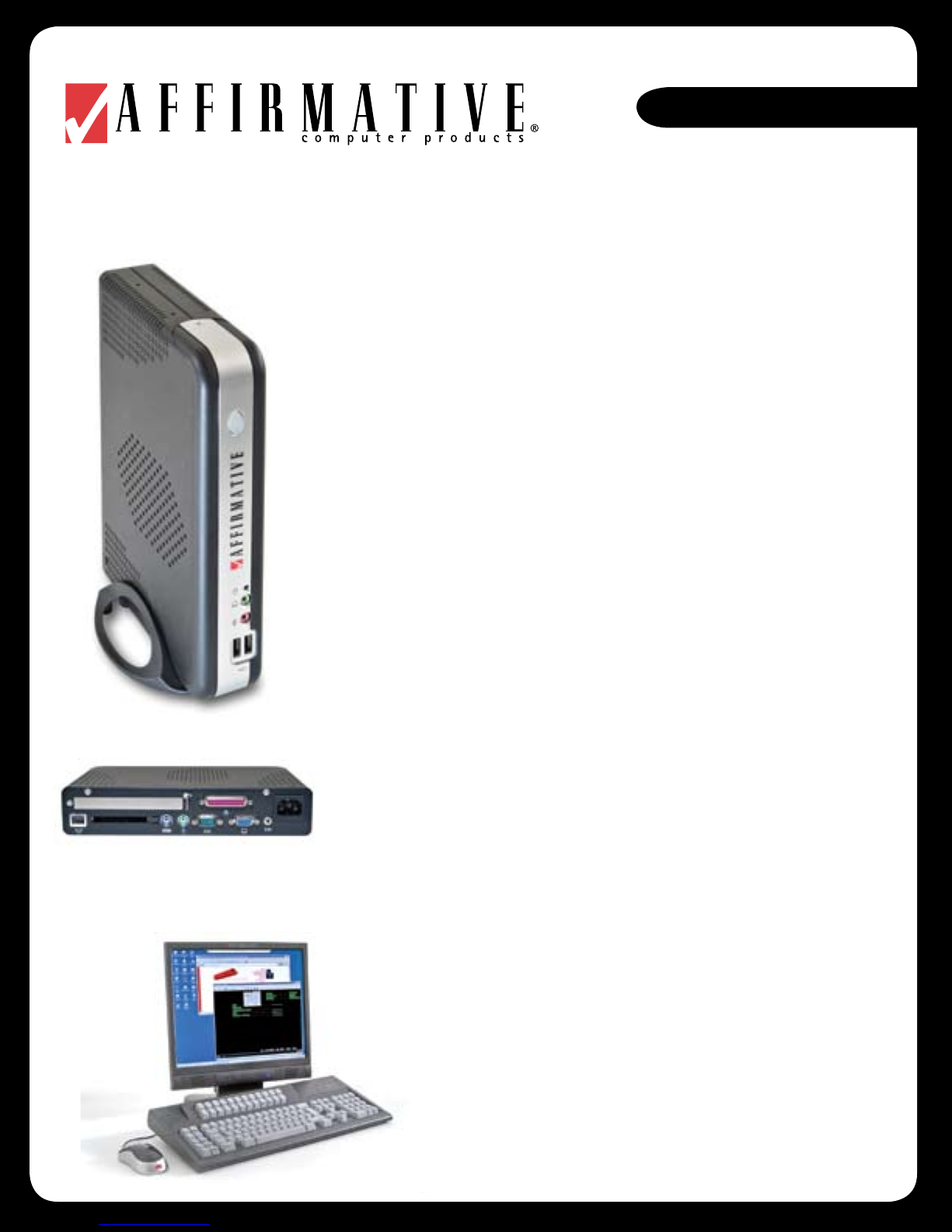

272X modular chassis
A complete array of
ports and slots makes
the platform versatile
t
t
76XX Integrated TFT display/thin client
(just add keyboard and mouse)
t

202 South River Drive • Tempe, Arizona 85281 • Toll-free: 888.353.5250 • Phone: [phone] • Fax: [phone] • eMail: [email protected] • Web: www.affirmative.net
© 2007 Affirmative Computer Products. YEStation and YESboard are trademarks of Affirmative Computer Products. All other trademarks or registered trademarks are the property of their respective holders.
Pricing and specifications subject to change without notice. 06/07 07-ACP-07078
Items Specifications
Processor VIA 1.2GHz
Input / Output Connector Support Six USB ports (2.0)
Two serial ports, COM1 standard, 4 ports optional
Parallel printer port
Two PS/2 ports for keyboard and mouse
PCI slot
PCMCIA card slot supports wireless LAN adapter
Audio in/out ports
10/100/1000 MB Ethernet port, auto sensing
Display Resolution &Colors DVI+VGA video, up to 1,600 x 1,200-dpi resolution, 32bit color, dual
monitor support. Choose 1280 by 800 or 1920 by 1080 resolution for wide
screen monitors.
Memory Support DDR2 – 256 MB (max. 1 GB)
Flash memory: Compact Flash 32 MB standard (max. 4 GB)
Environment
Temperature Operating: 5º C to 35º C (41º F to 95º F)
Storage: -10º C to 60º C (14º F to 140º F)
Relative Humidity 90% maximum, non-condensing
Power Internal power supply, 90–240 Volts AC, 50–60 Hz
Regulatory Compliance FCC, CE, UL-approved, ROHS
Physical Characteristics
Dimensions (WxDxH) 9.25 x 6.5 x 1.5 (inches)
Weight 3 Pounds
