Ag Leader AgXcel GX2 User manual

WWW.AGXCEL.COM 877-218-1981 Rev 5/9/2016 [e-mail]
PO Box 1611
Kearney, NE 68848
877.218.1981
www.agxcel.com
AgXcel GX2


GX2B
NOTE: This is only a guide! Please consult your AgLeader
dealer for detailed instructions or troubleshooting!
ImplementSizeinRows 8 12 16 24
GPA(Max) 20 13 10 5
AgXcelGX2DualElectricPumpGPASpecifications
Note:Dual5.3GPMelectricpumpscanonlyachieveamaximumof6.0GPM.Howeverpumpsshouldnotbeused
attheirhighestcapacityasthiswilldrasticallyreducethelifeofthepumps
ThischartrepresentsthemaximumGPAon30"centersat6MPH
©Agxcel

©Agxcel

WWW.AGXCEL.COM 877-218-1981 [e-mail]
3
Thank you for purchasing an AgXcel Precision Liquid Ferlizer Applicaon System (FAS) for your liquid place-
ment requirements. The AgXcel FAS system can be integrated into the following OEM controllers:
• Ag Leader
• John Deere Green Star
• Trimble
• Raven
• Top Con
• Outback
This integraon into these displays will require each of the OEM’s Liquid Control Module which will need to be
purchased from your local OEM dealer. The rate controller will provide the data required to manage the speed
of the AgXcel electric or hydraulic pumps based on the ow response of the ow meter and the vehicle speed.
The FAS system is also capable of managing secon controls, also referred to as swath control, to minimize
overlap areas with oponal secon control valves.

1. Install the OEM display and Liquid Control Module per OEM instrucons.
2. Open the AgXcel FAS packages. Layout and familiarize yourself with the components.
3. Mount the AgXcel FAS GX system on your equipment.
4. Plumb the tank to the GX lter inlet. All FAS systems are plumbed with dual lters, 50 and 80 mesh, and
the inlet should always be the 50 mesh.
5. Install the manifold system. This is a GX2 chassis base bracket that have oang ball indicators. These will
mount on the toolbar. Check valves should be mounted according to the mounng instrucons provided
and plumbing to each row unit delivery point from the oang ball indicators.
6. Aach the ow meter outlet to secon valve or manifold inlet. If using secon valves, aach secon valve
outlets to the corresponding oang ball indicator inlets.
7. Aach harnesses to the appropriate OEM liquid rate controller.
8. Setup OEM controller to manage the AgXcel FAS according to the aached conguraon details.
9. Fill system with water and conduct inial operaon and tests to ensure all seng and calibraons are
correct.
10. Winterize system with RV anfreeze if freezing temperatures are expected.

(Read Instrucons Completely Before Beginning Installaon)
©Agxcel

WWW.AGXCEL.COM 877-218-1981 [e-mail]
4
RATE CONTROLLER








AGXCEL INTEGRATION INTO AGLEADER WITH DIRECT COMMAND
(Read Instructions Completely before Beginning Installation)





 













©Agxcel

WWW.AGXCEL.COM 877-218-1981 [e-mail]
5
AGXCEL INTEGRATION INTO AGLEADER WITH DIRECT COMMAND
System Overview - Example with GX2 Electric System
Can Bus Harness
E. AgXcel Control Harness
(Connects to PWM)
C. AgXcel Integration Harness
D. Section Valve Harness
3/4 hose from owmeter to section
valves or straight to manifolds
3/4” feed hose from tank
to pump system In-line Check Valve
Feed to SS Tube, Rebounders or
other applicators
A
B
F
A. Ag Leader Liquid Product Control Module
B. Ag Leader Integra with Direct Command
C. AgXcel Integraon Harness - Part #53514
D. AgXcel Secon Valve Harness - Part #53594 (12 secon harness also available)
E. AgXcel Control Harness - Part #53697
F. AgXcel GX2 Electric Dual Pump System
Wilgers






©Agxcel

WWW.AGXCEL.COM 877-218-1981 [e-mail]
6
AGXCEL INTEGRATION INTO AGLEADER WITH DIRECT COMMAND
(Read Instructions Completely before Beginning Installation)
The image below shows the output funcons by pin locaons on the AgLeader Liquid Product Control Module.
Use this informaon to verify if the AgLeader system is providing the correct output. If it is not, contact your
AgLeader dealer to check and repair the module. Also review the sengs on the AgLeader display to verify the
system is setup properly.
AgLeader Liquid
Control Module
Status Light
Green - OK
Red - Problem AgLeader CAN BUS
8-Pin Connector
Pins 2 & 7 - PWM Signal
Pin 3 - Flow Signal
Pin 4 - Flow Ground
12-Pin Connector
Pins 4 - Pressure Signal
Pins 10 & 12 -
Implement Switch
Pin 8 - Aux Valve
Pin 11 - Pressure 2 (AUX)
12 Pin Connector
Pins 1 - 12 are for
secons 1-12
PWM Signal to Pump: Pins 2 -7 should have 0-12 volts to turn the pump on. Use manual mode  increase the
signal. You should get up to 12 volts aer holding the increase buon.
Flow Meter Tap Test: Pins 3 and 4 (on the 8-pin connector) are Signal and Ground. If no ow is registering on
the display you can tap between these two pins with a short wire or paper clip. This produces a pulse. The
display should indicate a ow when this is done rapidly.

©Agxcel

WWW.AGXCEL.COM 877-218-1981 [e-mail]
7
AGXCEL INTEGRATION INTO AGLEADER WITH DIRECT COMMAND
(Read Instructions Completely before Beginning Installation)
This secon will guide you through the necessary steps to setup your AgLeader display to control your AgXcel
Precision Liquid Ferlizer System. Follow the general direcons in your AgLeader Insight User Manual (under
Setup and Applicaon) or Integra Operators Manual (under Conguraon and Liquid Rate Control). This guide
will show you the specic values and sengs to use with your AgXcel system.

Home
Setup
Run Screen

In the Setup menus will set the AgLeader display to work properly with your AgXcel system. Carefully follow
these steps to insure the proper sengs are entered. Then test the system using the tests shown in this guide
to verify your system is ready to go in the eld.
1. From the Home screen choose  (wrench icon)
2. The Setup screen below will appear. Choose 
©Agxcel

WWW.AGXCEL.COM 877-218-1981 [e-mail]
8
AGXCEL INTEGRATION INTO AGLEADER WITH DIRECT COMMAND
(Read Instructions Completely before Beginning Installation)


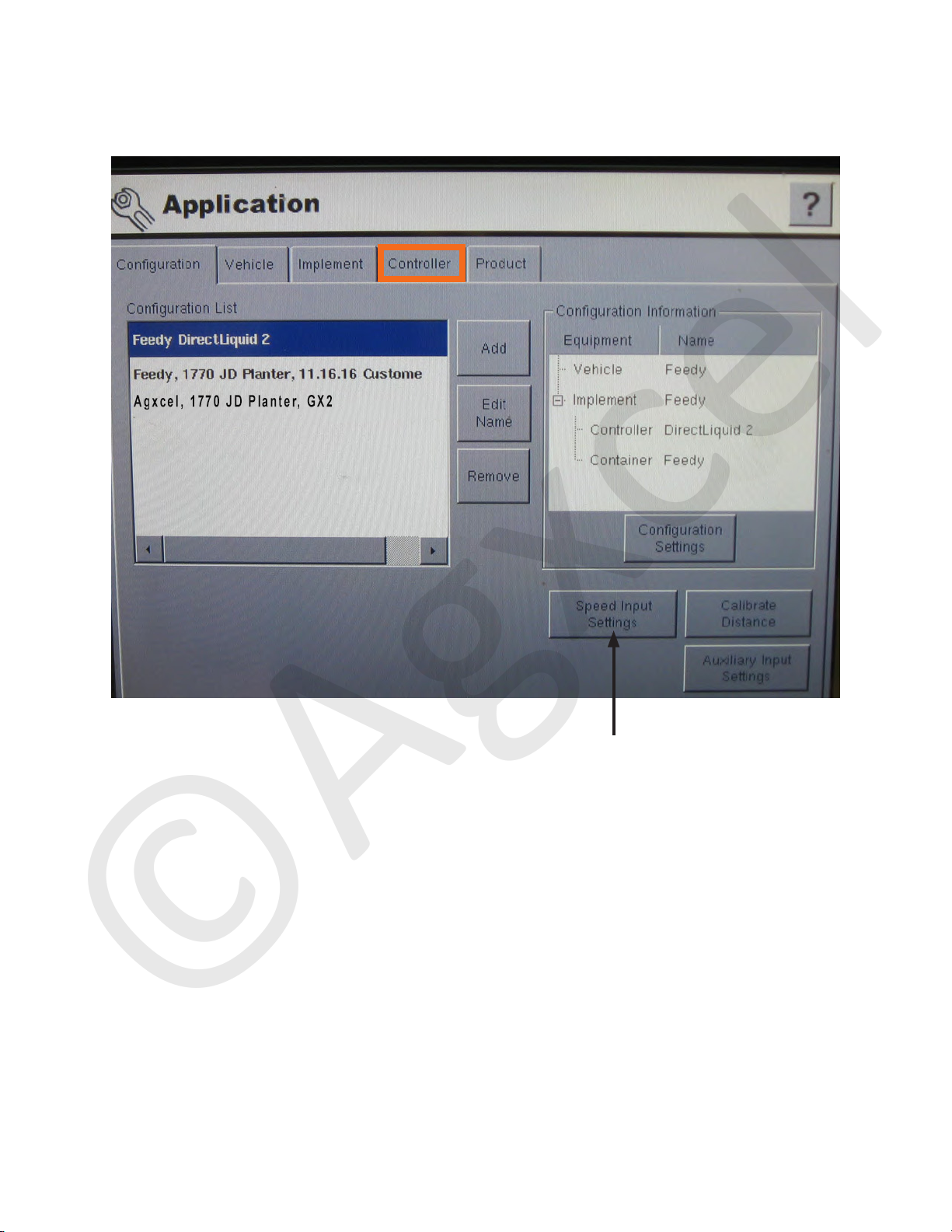

1. From this menu choose the  tab. This will en-
ter the Controller menu shown on the next page.
The AgLeader is capable of storing mulple conguraons.
The controller sengs used for each conguraon are
listed on the right side of this screen. Use 
 to change these values.
You will want to set values in the Vehicle, Implement and
Product screens. Consult your manual or AgLeader dealer
for assistance with these sengs.
Use the  buon to
set a manual ground speed. This is helpful
for troubleshoong and when running
the inial operaon procedure outlined
later in this guide.
©Agxcel

WWW.AGXCEL.COM 877-218-1981 [e-mail]
9
AGXCEL INTEGRATION INTO AGLEADER WITH DIRECT COMMAND
(Read Instructions Completely before Beginning Installation)

1. From the , select the
controller you want to change, or use the
Add buon to create a new controller.
2. Select  on the right.
This will open the screen on the next page.

The AgXcel harnesses include a connecon
for 2 pressure sensors. The sensors are iden-
ed as  or  in the
AgLeader display.
1. From the above screen choose 

2. Choose , then 
3. Choose  again to
enter pressure setup.
4. Set (same sengs for InSight or Integra)


Repeat the steps of using Aux Pressure (2)
©Agxcel

WWW.AGXCEL.COM 877-218-1981 [e-mail]
10
AGXCEL INTEGRATION INTO AGLEADER WITH DIRECT COMMAND
(Read Instructions Completely before Beginning Installation)

Controller Sengs are the parameters that must be set to accurately control your AgXcel system
1. : See Chart
For Micro-Trak Flowmeter - 
2. : PWM 12 Volt
3. : 0
4. : Checked
5. : 100
6. : 9999 (AgXcel has found the highest gain possible is best
for electric pump system)
7. : 15 (Can be set higher if system is slow to get to Tar-
get Rate when starng. Can be set lower if pump will not go slow enough
for low rates)
8. : 15 (Not used if “Close ow control valve when rate
o” is checked above, but sll needs to be set)
9. : 2% (AgLeader default)
Flowmeter
Model
Calibraon
Number
0.8 - 1.6 4731
0.13 - 2.6 2839
0.3 - 5 1419
0.6-13 4542
1.3 - 26 2271
2.6 - 52 1135

©Agxcel

WWW.AGXCEL.COM 877-218-1981 [e-mail]
11
AGXCEL INTEGRATION INTO AGLEADER WITH DIRECT COMMAND
(Read Instructions Completely before Beginning Installation)

See Flowmeter
Chart on previous
page
Not used if Flow Control Valve
is set to Close, but sll needs
to be set
Can be set higher if system is slow
to reach Target Rate when starng.
Can be set lower if pump will not go
slow enough for low rates
©Agxcel

WWW.AGXCEL.COM 877-218-1981 [e-mail]
12

AGXCEL INTEGRATION INTO AGLEADER WITH DIRECT COMMAND
(Read Instructions Completely before Beginning Installation)
AgXcel highly recommends that you perform these exact steps with water to verify the system is correctly
installed and ready for eld use.

will take you to informaon in-
cluding Liquid Diagnoscs. Here
you can see the Main and Auxil-
iary Pressure readings, PWM Duty
Cycle, and Flowmeter signal fre-
quency and pulse count.
Manual ground speed
will be shown here if in
the setup screens
Push this buon to
enter the Rate Control
Details screen, shown
on next page

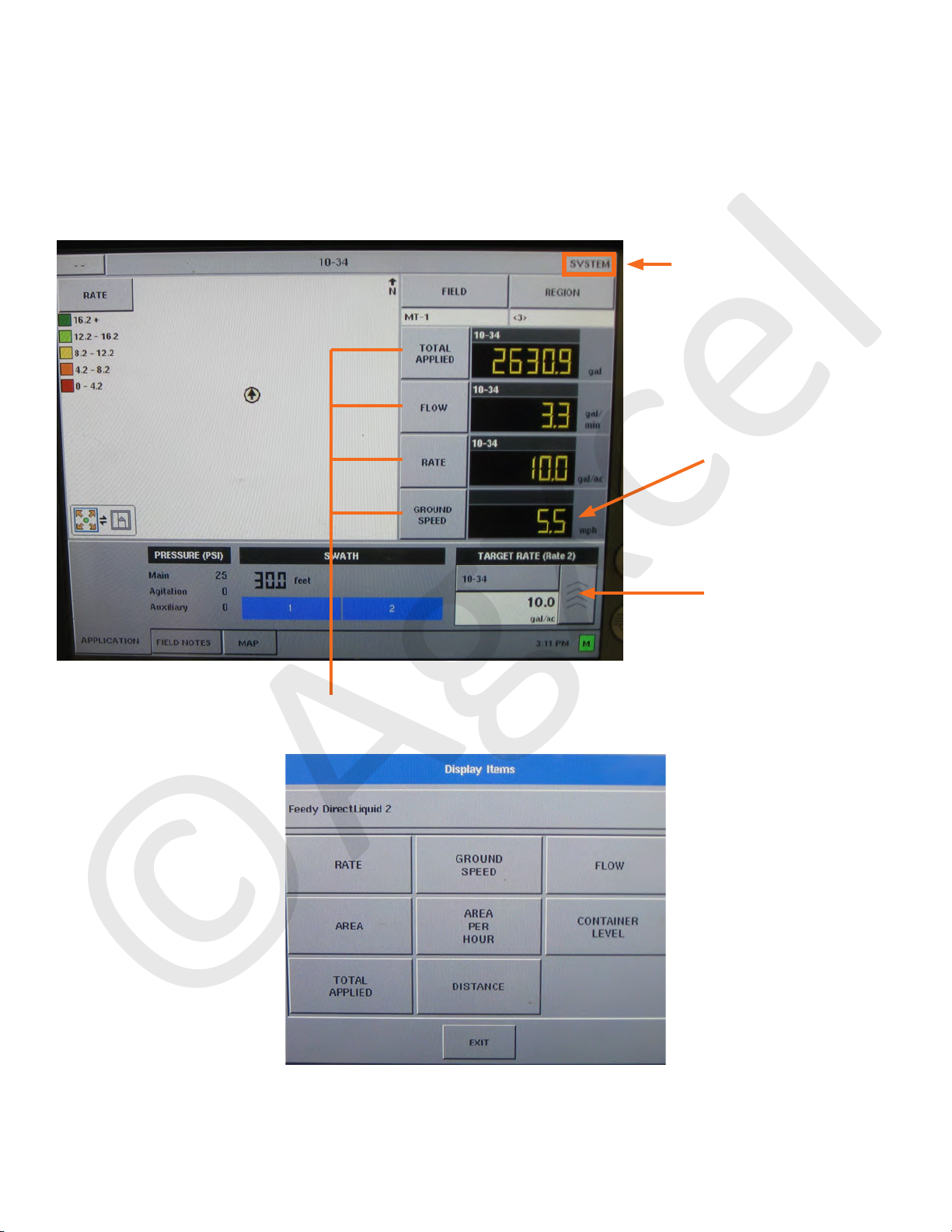

These 4 elds allow the user to select which items to display. Pushing any
of the four buons brings up the screen below, where you can choose the
other items to display.
©Agxcel

WWW.AGXCEL.COM 877-218-1981 [e-mail]
13
AGXCEL INTEGRATION INTO AGLEADER WITH DIRECT COMMAND
(Read Instructions Completely before Beginning Installation)

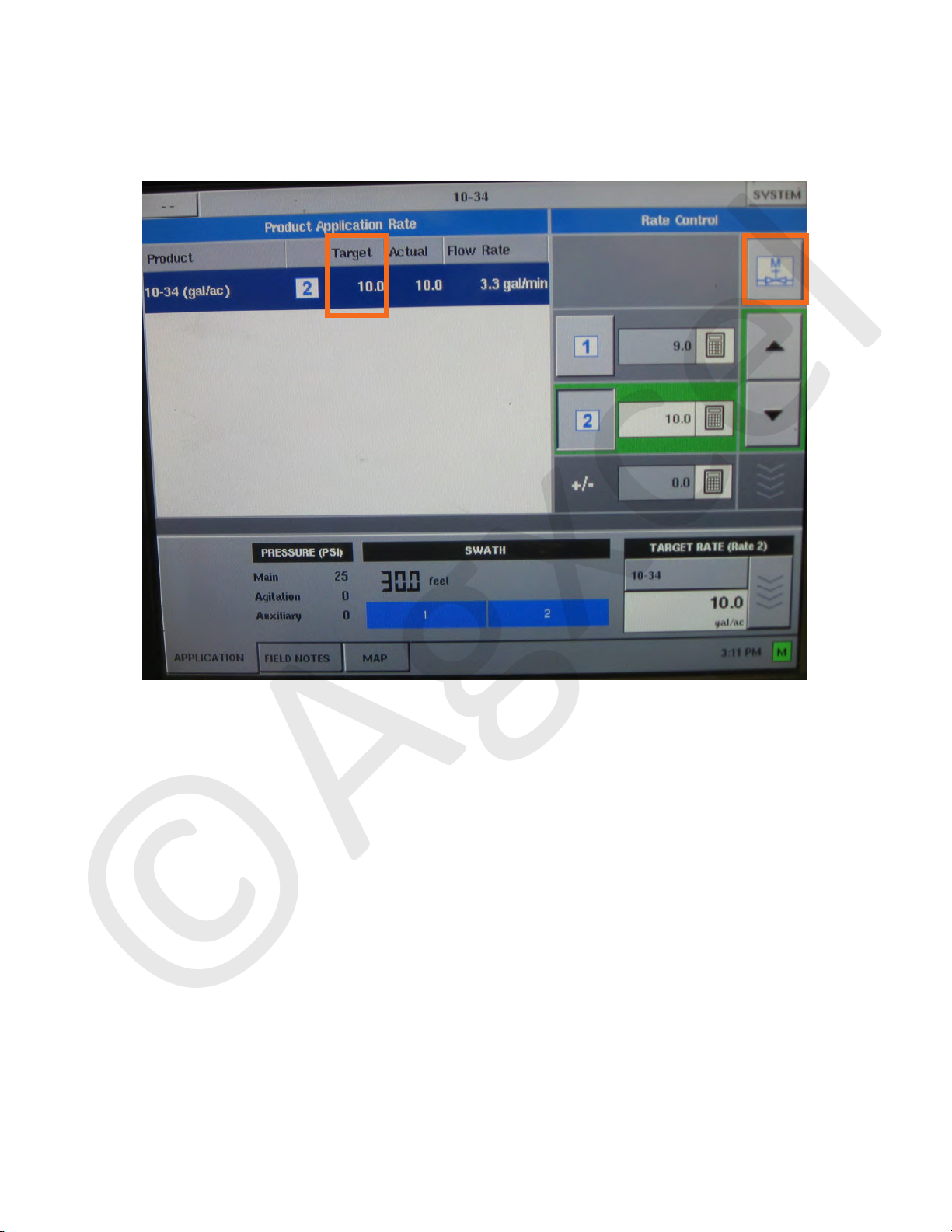

1. Enter manual mode by pushing the “” buon in the upper right corner of the screen. You can idenfy
that you are in manual mode when the  says .
2. If using an implement switch, move implement to lowered posion. If not using an implement switch, a
jumper must be installed (See wiring diagram).
3. On the Switch Box, turn the Master switch on. Turn secon switches on and o to check proper secon
valve operaon. Leave all secon valves on.
4. Use the Up arrow on the right side of the screen to increase ow. Does Flow Rate display a ow rate? Is it
stable and the system is primed? Do increase and decrease buons increase and decrease ow?
5. When you can increase and decrease ow using the arrows, you are ready to move to the next step.
6. Conduct a catch test to verify the owmeter calibraon is correct. It is unusual if the Flow Calibraon num-
ber needs to be changed. The most accurate method to measure the volume of water is to place a mea-
suring cup under every nozzle and add together the amount from each nozzle. This assures that 100% of
the water is collected and that all rows are equal. At a minimum, collect water from 4-6 row. 
. It is important to perform this procedure at a ow rate similar to that
which will be used in the eld.

©Agxcel

WWW.AGXCEL.COM 877-218-1981 [e-mail]
14
AGXCEL INTEGRATION INTO AGLEADER WITH DIRECT COMMAND
(Read Instructions Completely before Beginning Installation)
1. Push the buon in the lower right corner to return to the main run screen. Verify a speed in MPH is shown.
If not, return to setup and enter a manual ground speed.
2. Return to the Rate Control Detail screen. Push the  buon in the upper corner to enter auto mode. You
can tell you are in auto more when a rate is displayed under .
3. Turn on Master and Secons switches. The system should begin to pump liquid in automac control mode.
Is the ow in GPM stable? Is it applying at the correct rate? (actual rate = target rate?)
4. Change rate using screen buons for rate 1 and rate 2. Does acutal rate change to equal new target rate?
5. Close 1 secon valve. Does ow decrease? Does applied rate sll equal target rate?
6. Change speed and target rate to minimum and maximum values. Deos system perform at these values?
Does the system pressure seem reasonable? (Remember ferlizer will increase pressure over water)

©Agxcel

WWW.AGXCEL.COM 877-218-1981 [e-mail]
15
AGXCEL INTEGRATION INTO AGLEADER WITH DIRECT COMMAND
(Read Instructions Completely before Beginning Installation)
The Grid buon in the lower le corner of the screen brings up the Map screen for Run Time Operaons.
The Product Tabs are shown in the upper right corner of the Map.
Ground Speed

Press the   buon, then
highlight the item marked  , then
press the  buon. The Liquid Diag-
noscs screen contains the Acve Controller
Name and Serial Number of the module. Also
included are Main and Aux Pressure readings,
PWM Duty Cycle, and Flowmeter Signal Fre-
quency and Pulse count. This can somemes
be useful troubleshoong informaon.
Press the  to bring up an extended
view as shown on the next page.

©Agxcel

WWW.AGXCEL.COM 877-218-1981 [e-mail]
16

AGXCEL INTEGRATION INTO AGLEADER WITH DIRECT COMMAND
(Read Instructions Completely before Beginning Installation)
1. Enter manual mode by pushing the “” buon in the upper right corner of the screen. You can idenfy
that you are in manual mode when the  says .
2. If using an implement switch, move implement to lowered posion. If not using an implement switch, a
jumper must be installed (See wiring diagram).
3. On the Switch Box, turn the Master switch on. Turn secon switches on and o to check proper secon
valve operaon. Leave all secon valves on.
4. Use the Up arrow on the right side of the screen to increase ow. Does Flow Rate display a ow rate? Is it
stable and the system is primed? Do increase and decrease buons increase and decrease ow?
5. When you can increase and decrease ow using the arrows, you are ready to move to the next step.
6. Conduct a catch test to verify the owmeter calibraon is correct. It is unusual if the Flow Calibraon num-
ber needs to be changed. The most accurate method to measure the volume of water is to place a mea-
suring cup under every nozzle and add together the amount from each nozzle. This assures that 100% of
the water is collected and that all rows are equal. At a minimum, collect water from 4-6 row. 
. It is important to perform this procedure at a ow rate similar to that
which will be used in the eld.
Device Informaon
Buon (Diagnosc)
©Agxcel

WWW.AGXCEL.COM 877-218-1981 [e-mail]
17
AGXCEL INTEGRATION INTO AGLEADER WITH DIRECT COMMAND
(Read Instructions Completely before Beginning Installation)

1. Push the Grid buon in the lower le corner to return to the main run screen. Verify a speed in MPH is
shown. If not, return to setup and enter a manual ground speed.
2. Look at the Extended Product Tab in the upper right corner. Press the Rate 1 or Rate 2 buon to enter Auto
Mode. Auto Mode can be idened when a rate is displayed under Target.
3. Turn on Master and Secons switches. The system should begin to pump liquid in automac control mode.
Is the ow in GPM stable? Is it applying at the correct rate? (actual rate = target rate?)
4. Change rate using screen buons for rate 1 and rate 2. Does actual rate change to equal new target rate?
5. Close 1 secon valve. Does ow decrease? Does applied rate sll equal target rate?
6. Change speed and target rate to minimum and maximum values. Does system perform at these values?
Does the system pressure seem reasonable? (Remember ferlizer will increase pressure over water)
©Agxcel

WWW.AGXCEL.COM 877-218-1981 [e-mail]
18
Pumps run for a few seconds then turn off
This symptom is due to the pumps drawing more current than the 40 amp limit of the EPD.
1. Unplug the EPD connector going to the battery for 2-3 seconds. Removing power from the EPD
resets it.
2. Go to Diagnostics, Section Test to investigate this issue.
3. In Section Test, hold down “+” button for a few seconds. A single tap of this button produces a
very small change in signal to the valve, so you must hold it.
4. Increase the ow slowly, checking the “1,2,3” screen to see you ow in GPM. Find the ap-
proximate ow where the EPD kicks out. If this is
below the ow you need you will need to reduce
system pressure by:
• Look for any unintended restrictions or
plugged rows
• Increase orice size
• Reduce ground speed
• Reduce application rate
Electric pumps will not turn on
Connect pumps directly to battery
1. Find the EPD (electric pump driver) shown at
right. Connect the two connectors circled to each
other (bypass the module and supply 12 volts di-
rectly to pumps)
2. Do the pumps run? If not, check the 40 amp
fuse in the EPD harness near the tractor battery.
Inspect harnesses and connections.
3. If 2 pump system, plug pumps in by themselves to check both.
Electric pumps only run w/ 12 volts direct from battery
Connect pumps and power harness back to EPD.
1. Go to Rate Control Detail screen to investigate this issue.
2. Turn system on and press the increase button.
3. Remove PWM valve connector and check voltage. You will need 1-12 volts to turn pumps on.
4. If 1-12 volts is not present, check harnesses and review control valve type setup.
5. Go back to the Liquid Product Control Module. Check voltage between pins 2 & 7 on the 8-pin
connector. There should be between 6-12 volts while in section test after holding increase but-
ton in Manual mode.
6. If you cannot get voltage at pins 2 & 7, contact your AgLeader dealer for further assistance.
TROUBLESHOOTING
(Read Instructions Completely before Beginning Installation)
©Agxcel

WWW.AGXCEL.COM 877-218-1981 [e-mail]
19

1.  to invesgate this issue.
2. on the switch box on and o. Do you have a problem with one or all
of the valves?.
3. connecon to that valve. (See wiring diagrams)
4. on Pin A to Pin B. There must be 12 volts.
If not, go back to 2-Pin power connector on the AgXcel
harness and check voltage.
5.  is present on Pins A & B on the 3-Pin connec-
on to the valve, then check Pin C to Pin B. This should be
12 volts when the valve is commanded on or open, this
should be zero volts when valve is o or closed.
6.    is not present to open valve, use the
wiring diagrams to check at the 16-Pin, then the 12-Pin on
the AgLeader Liquid Product Control Module for voltage
on the proper pin for that secon.
7.    (Pins A & B) and switched voltage
(Pins C & B) are present, inspect, repair or replace the
valve.
AB
C
PIN FUNCTION
A+ 12 V Constant
BGND
C+ 12 V Signal
TROUBLESHOOTING
(Read Instructions Completely before Beginning Installation)
©Agxcel

WWW.AGXCEL.COM 877-218-1981 [e-mail]
20
Light on steady
Steady ashing
1 Flash/pause
2 Flash/pause
3 Flash/pause
4 Flash/pause
5 Flash/pause
Unit is on and operang normally
Unit in HOLD. Check Run/Hold jumper or remote switch for correct operaon.
Open circuit detected. Check motor for open connecons or circuits.
Output short circuit detected. Check motor wiring.
Overcurrent condion. Check total load.
Input power fault. Check input wiring.
Input frequency out of range (PWM models only)

PWM Signal
To Pumps
Power Supply
Status LED Control Signal LED’s
EDP Status Lights
The status LED on the PWM is a good indica-
tor to determine if there’s a problem with the
system. It is especially helpful if you are calling
in for tech support.
TROUBLESHOOTING
(Read Instructions Completely before Beginning Installation)
©Agxcel
