HIP-Series (HIP-T + HIP-R)
HDMI Unlimited LAN Extender
Installation Manual

Contents
Chapter 1: GETTING STARTED.........................................................................................................1
1.1 IMPORTANT SAFEGUARDS............................................................................................................ 1
1.2 SAFETY INSTRUCTIONS................................................................................................................. 1
1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC) .......................... 2
Chapter 2: INTRODUCTION................................................................................................................4
2.1 PACKAGE CONTENTS..................................................................................................................... 4
2.2 BEFORE INSTALLATION.................................................................................................................. 4
2.3 DEVICE DESCRIPTION & LAYOUT................................................................................................. 7
2.3.1 Front Panel & Rear Panel (Transmitter, HIP-T) ....................................................................... 7
2.3.2 Front Panel & Rear Panel (Receiver, HIP-R) .......................................................................... 7
Chapter 3: INSTALLATION..................................................................................................................8
Chapter 4: GENERAL TROUBLESHOOTING...............................................................................8
Chapter 5: SPECIFICATIONS.............................................................................................................9
Chapter 6: PIN & WIRING STANDARD DEFINITION.................................................................10
TABLE OF CONTENTS

GETTING STARTED
1.1 IMPORTANT SAFEGUARDS
Please read all of these instructions carefully before you use the device. Save this manual for future
reference. What the warranty does not cover
• Any product, on which the serial number has been defaced, modied or removed.
• Damage, deterioration or malfunction resulting from:
• Accident, misuse, neglect, re, water, lightning, or other acts of nature, unauthorized product
modication, or failure to follow instructions supplied with the product.
• Repair or attempted repair by anyone not authorized by us.
• Any damage of the product due to shipment.
• Removal or installation of the product.
• Causes external to the product, such as electric power uctuation or failure.
• Use of supplies or parts not meeting our specications.
• Normal wear and tear.
• Any other causes which does not relate to a product defect.
• Removal, installation, and set-up service charges.
1.2 SAFETY INSTRUCTIONS
The HIP-Series, HDMI Extender has been tested for conformity to safety regulations and
requirements, and has been certied for international use. However, like all electronic equipment’s, the
HIP-Series should be used with care. Read the following safety instructions to protect yourself from
possible injury and to minimize the risk of damage to the unit.
Do not dismantle the housing or modify the module.
Dismantling the housing or modifying the module may result in electrical shock or burn.
Refer all servicing to qualied service personnel.
Do not attempt to service this product yourself as opening or removing housing may expose
you to dangerous voltage or other hazards
Keep the module away from liquids.
Spillage into the housing may result in re, electrical shock, or equipment damage. If an object
or liquid falls or spills on to the housing, unplug the module immediately.
Have the module checked by a qualied service engineer before using it again.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
1

GETTING STARTED
2
1.3 Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation.
Any changes or modications made to this equipment may void the user’s authority to operate this
equipment.
Warning symbo Description
ONLY USE THE PROVIDED POWER CABLE OR
POWER ADAPTER SUPPLIED. DO NOT TAMPER
WITH THE ELECTRICAL PARTS. THIS MAY
RESULT IN ELECTRICAL SHOCK OR BURN.
DO NOT TAMPER WITH THE UNIT. DOING SO
WILL VOID THE WARRANTY AND CONTINUED
USE OF THE PRODUCT.
THE VIDEO BOARDS ARE VERY SENSITIVE TO
STATIC. PLEASE ENSURE IF RACK MOUNTED
OR INSTALLED ON A SURFACE, IT SHOULD BE
IN A GROUNDED ENVIROMENT.

INTRODUCTION
The HIP-Series, HDMI extender set is designed to extend your HD display with the resolutions of
1080p/60Hz up to 330 feet (100 meters) away from your HDMI or DVI-D source. Thanks to the use of
the TCP/IP protocol, you can transfer your high-denition video over an existing TCP/IP network. See
below three examples:
A: The Tx and Rx units can extend 100 meters over a single CAT5/6 cable connection point to
point.
B: The Tx can be connected to a Gigabit switch to establish a IP address therefore sending
1080p video signals to multiple Rx connected to the Gigabit switch and the HDMI displays.
C: Multiple Tx’s can be connected to a Managed Gigabit switch with VLAN/IGMP support
therefore sending 1080p video signals to Rx connected to the Gigabit switch to show different
sources on the HDMI displays.
• Extends HDMI up to 95m/100m over single CAT5E/6
• Supports HDMI, EDID, Support HDCP
• Supports resolution HDTV / 1080Pp/60Hz, Vesa (1920 x 1080)
• Supporting the point to point transmission function currently which can be expanded to the
multi-point to point transmission function.
• Requires a managed Gigabit switch with VLAN/IGMP support to have a soultion with multiple
sources (Transmitters). Standard Gigabit switch can only support one transmitter.
• The managed switch must support port based IEEE 802.1Q VLAN, IGMP, and to allow
duplicate IP addresses across the VLAN domains.
• Each VLAN acts as independent HDMI over IP Channel on the network.
• Number of Tx and Rx that can be used is dependent on bandwidth of the switch
(Recommended Gigabit switch 10/1000).
• Managed switches can be cascaded up to 3 levels, allowing the farthest display to be located
up to 300 meters away from the source device. Each receiver can be located up to 100 meters
away.
• Uses M-JPEG technology to process image compression on a xed bandwidth.
3

INTRODUCTION
2.1 PACKAGE CONTENTS
Before you start the installation of HIP-Series, please check the A. STANDARD package contents.
1
HDMI TRANSMITTER X 1
HDMI RECEIVER X 1
2 POWER ADAPTER (5VDC) X 2
3USER’S MANUAL X 1
2.2 BEFORE INSTALLATION
• Put the product in an even and stable location. If the product falls down or drops, it may cause
an injury or malfunction.
• Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C)
or high humidity.
• Use the DC power adapter with correct specications. If inappropriate power supply is used
then it may cause a re.
1
HIP-Series (HIP-T + HIP-R)
HDMI Unlimited LAN Extender
Installation Manual
4

INTRODUCTION
HIP-T
HDMI Source
HIP-R
HDMI Display
Cable Index
Input / Output HDMI
CAT-5e/6
At Remote Location
HIP-R
HDMI Display
HIP-R
HDMI Display
HIP-R
HDMI Display
Managed Gb Switch with VLAN / IGMP
To max 150 outputs
HIP-R
HIP-T
HDMI Source
HDMI Display
At Remote Location
Cable Index
Input / Output HDMI
CAT-5e/6
5

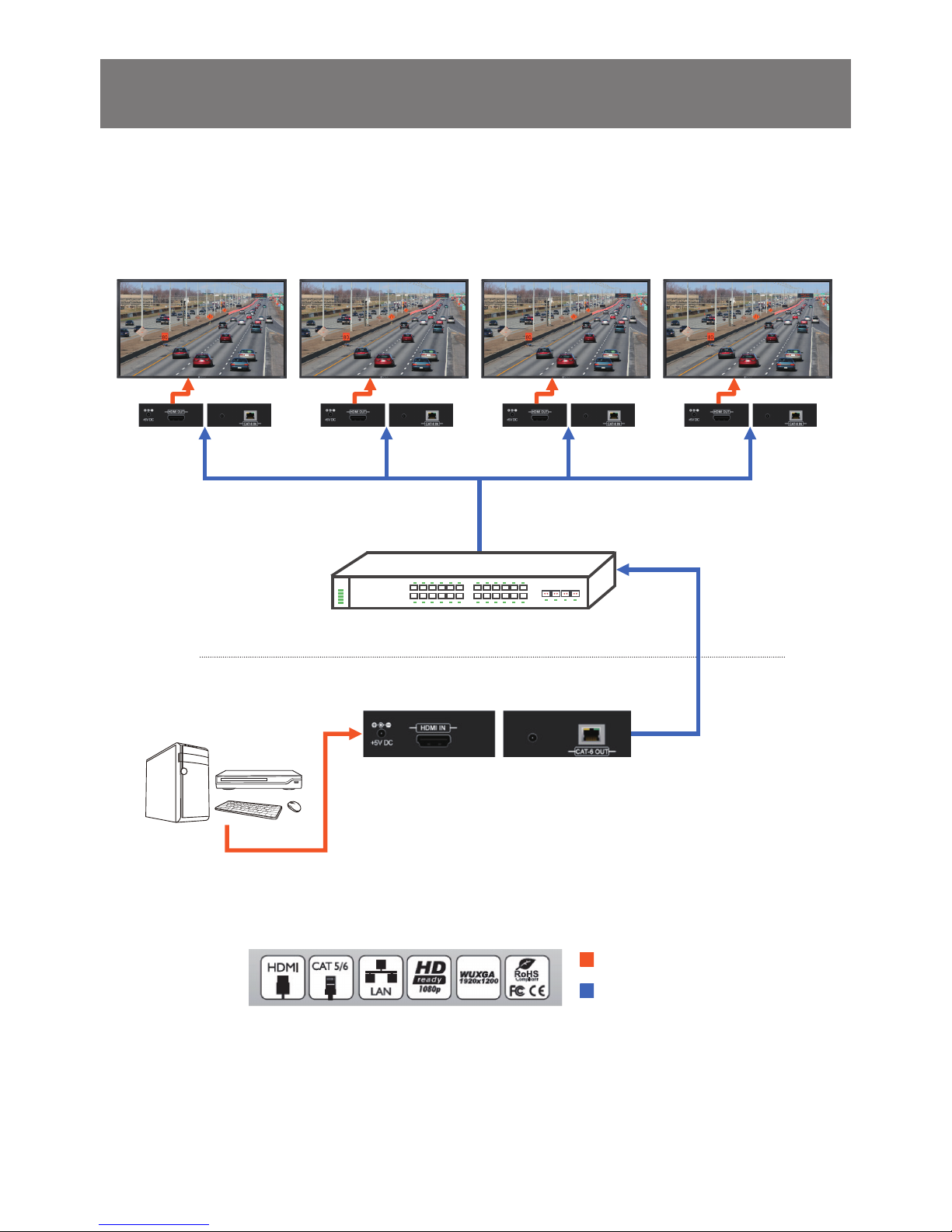

Application Diagram 1
POINT TO POINT

INTRODUCTION
HIP-T
HDMI Source
HIP-R
HDMI Display
Cable Index
Input / Output HDMI
CAT-5e/6
At Remote Location
HIP-R
HDMI Display
HIP-R
HDMI Display
HIP-R
HDMI Display
Managed Gb Switch with VLAN / IGMP
To max 150 outputs
HIP-R
HIP-T
HDMI Source
HDMI Display
At Remote Location
Cable Index
Input / Output HDMI
CAT-5e/6
6
Application Diagram 2
ROUTER CONNECTION

INTRODUCTION
2.3 Device Description & Layout
This product is composed of a Transmitter and a Receiver.
2.3.1 Front Panel & Rear Panel (Transmitter, HIP-T)
1 CAT5E/6: Plug in a Cat-5E/6 cable that
needs to be linked to the receiving unit
3 +5V DC: Connect to 5V DC power supply.
2 SELECT: To pair with the corresponding
Transmitter unit.
4 HDMI IN: Connects to a HDMI source with
a HDMI male-male cable.
2.3.2 Front Panel & Rear Panel (Receiver, HIP-R)
1 CAT5E/6: Plug in a Cat-5E/6 cable that
needs to be linked to the receiving unit
3 +5V DC: Connect to 5V DC power supply.
2 SELECT: To pair with the corresponding
Transmitter unit.
4 HDMI OUT: Connects to a HDMI source
with a HDMI male-male cable.
NOTES: Each Transmitter and Receiver after pairing support only point to point operation. It cannot support
signals broadcasting by HDMI.
Important before starting the insulation please ensure that all devices are powered OFF
7

PROBLEM POSSIBLE SOLUTION
NO IMAGE • Check if connection to the source and the display are correct.
• Ensure that display device supports 480p, 720p and 1080p resolution
SCREEN DEFECTS
APPEAR • Check the DVI and HDMI connection
YELLOW LIGHT ON LAN
PORT FLASHING SLOW
• Check both units and make sure the TX and RX are not Reversed
• Check the source device is powered ON
YELLOW LIGHT ON LAN
PORT FLASHING FAST/
NO IMAGE
• Check Graphics card on PC. This product supports up to 1080p
(1920x1080) resolution.
NO YELLOW LIGHT ON
LAN PORT
• Check Network cable only use TIA-568B Standard
• Network cable run is out of range
INSTALLATION
Please ensure all the package contents are all received.
To setup the HIP-Series follow these steps for connecting to a device:
1. Connect your HDMI source (such as a Blu-ray Disc player) to Transmitter (HIP-T).
2. Connect your HDMI display (such as a LCD TV) to the receiving unit HIP-R.
3. Connect your CAT-5E/6 follow the standards of TIA-568BLAN cable between the transmitting
and receiving units.
4. Make sure CAT-5E/6 LAN cable is tightly connected and not loose.
5. Plug in 5V DC power cord to the power jack of the transmitting unit HIP-T
6. Plug in 5V DC power cord to the power jack of the receiving unit HIP-R.
GENERAL TROUBLESHOOTING
8

SPECIFICATIONS
ITEM DESCRIPTION
UNITS HIP-T HIP-R
UNIT DESCRIPTION HDMI Transmitter HDMI Receiver
HDMI COMPLIANCE Full HD
HDCP COMPLIANCE Yes
VIDEO BANDWIDTH M-JPEG technology to process image compressing GIGABIT
(10/1000) OVER LAN
SUPPORTED RESOLUTIONS 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz,
720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
RESOLUTION AND DISTANCE
(24-BIT)
Full HD: (1080p)-95meter (295feet) (CAT5e) / 100meter (328feet)
(CAT6)
AUDIO SUPPORT Surround Sound (up to 7.1 Ch) or Stereo Digital Audio
IR PASS-THRU No
RS-232 SUPPORT No
INPUT 1x HDMI 1x RJ45
OUTPUT 1x RJ45 1x HDMI + 1x 3.5mm
HDMI CONNECTOR Type A (19 pin female)
RJ45 CONNECTOR WE/SS 8P8C with 2 LED indicators
POWER ADAPTER 2 X DC 5V/1A
POWER CONSUMPTION 3W Max Each
DIMENSION L X W X H (Tx: 4.3” Rx: 4.3”) x (Tx: 2.2” Rx: 2.2”) x (Tx: 1” Rx: 1”)
WEIGHT 245g
Environmental
OPERATING TEMPERATURE 32˚ ~ 104˚F (0˚ to 40˚C)
STORAGE TEMPERATURE -4˚ ~ 140˚F (-20˚ ~ 60˚C)
RELATIVE HUMIDITY 20~90% RH (no condensation)
PERFORMANCE GUIDE FOR HDMI OVER CATEGORY CABLE TRANSMISSION
PERFORMANCE RATING TYPE OF CATEGORY CABLE
WIRING SHIELDING CAT5 CAT5E CAT6
SOLID UNSHIELDED (UTP)
SHIELDED (STP)
  
  
STRANDED UNSHIELDED (UTP)
SHIELDED (STP)
  
  
TERMINATION PLEASE USE EIA/TIA-568-B TERMINATION (T568B) AT ANY TIME
9

PIN & WIRING STANDARD DEFINITION
Type A (Receptacle ) HDMI
Pin 1 TMDS Data2+ Pin 11 TMDS Clock Shield
Pin 2 TMDS Data2 Shield Pin 12 TMDS Clock–
Pin 3 TMDS Data2– Pin 13 CEC
Pin 4 TMDS Data1+ Pin 14 Reserved (N.C. on device)
Pin 5 TMDS Data1 Shield Pin 15 SCL
Pin 6 TMDS Data1– Pin 16 SDA
Pin 7 TMDS Data0+ Pin 17 DDC/CEC Ground
Pin 8 TMDS Data0 Shield Pin 18 +5V Power
Pin 9 TMDS Data0– Pin 19 Hot Plug Detect
Pin 10 TMDS Clock+
