AG Neovo HVWIP-T User manual

1
HVWIP-Series (HVWIP-T + HVWIP-R)
HDMI LAN Video Wall Matrix Extender
Installation Manual

Contents
Chapter 1: GETTING STARTED.........................................................................................................1
1.1 IMPORTANT SAFEGUARDS............................................................................................................ 1
1.2 SAFETY INSTRUCTIONS................................................................................................................. 1
1.3 REGULATORY NOTICES FEDERAL COMMUNICATIONS COMMISSION (FCC) .......................... 2
Chapter 2: INTRODUCTION................................................................................................................3
2.1 PACKAGE CONTENTS..................................................................................................................... 4
2.2 BEFORE INSTALLATION.................................................................................................................. 4
2.3 APPLICATION DIAGRAM ................................................................................................................. 5
2.4 PANEL DESCRIPTION ..................................................................................................................... 8
2.4.1 INPUT PANEL (Transmitter, HVWIP-T) FRONT ..................................................................... 8
2.4.2 INPUT PANEL (Transmitter, HVWIP-T) REAR ........................................................................ 8
2.4.3 INPUT PANEL (Receiver, HVWIP-R) FRONT ......................................................................... 9
2.4.4 INPUT PANEL (Receiver, HVWIP-R) REAR ............................................................................ 9
Chapter 3: INSTALLATION (HVWIP-SERIES)..............................................................................10
3.1 INSTALLATION OF CONTROL SOFTWARE.................................................................................... 10
3.1.1 CONTROL SOFTWARE .......................................................................................................... 10
CONTROL SOFTWARE DEVICES.......................................................................................... 11
Chapter 4: SETTING DEVICE PARAMETERS..............................................................................13
MODIFY DEVICE SETTINGS........................................................................................14
Chapter 5: DEVICE SETTING WINDOW GUIDE..........................................................................15
Chapter 6: MATRIX SETTINGS..........................................................................................................16
CREATE SCENE WINDOW...........................................................................................17
SCENE AREA WINDOW................................................................................................17
Chapter 7: VIDEOWALL SETUP.......................................................................................................19
Chapter 8: RS232 REMOTE CONTROL.........................................................................................22
Chapter 9: CONFIGURATION FILE MANAGEMENT.................................................................23
Chapter 10: LOGS ................................................................................................................................24
Chapter 11: SPECIFICATIONS..........................................................................................................25
TABLE OF CONTENTS

GETTING STARTED
1.1 IMPORTANT SAFEGUARDS
Please read all of these instructions carefully before you use the device. Save this manual for future
reference. What the warranty does not cover
• Any product, on which the serial number has been defaced, modied or removed.
• Damage, deterioration or malfunction resulting from:
• Accident, misuse, neglect, re, water, lightning, or other acts of nature, unauthorized product
modication, or failure to follow instructions supplied with the product.
• Repair or attempted repair by anyone not authorized by us.
• Any damage of the product due to shipment.
• Removal or installation of the product.
• External causes to the product, such as electric power uctuation or failure.
• Use of supplies or parts not meeting our specications.
• Normal wear and tear.
• Any other causes which does not relate to a product defect.
• Removal, installation, and set-up service charges.
1.2 SAFETY INSTRUCTIONS
The HVWIP-Series, Videowall Matrix IP POE Extender with Audio, RS232 and KVM function has been
tested for conformance to safety regulations and requirements, and has been certied for international
use. However, like all electronic equipments, the HVWIP-Series should be used with care. Read the
following safety instructions to protect yourself from possible injury and to minimize the risk of damage
to the unit.
Do not dismantle the housing or modify the module.
Dismantling the housing or modifying the module may result in electrical shock or burn.
Refer all servicing to qualied service personnel.
Do not attempt to service this product yourself as opening or removing housing may expose
you to dangerous voltage or other hazards
Keep the module away from liquids.
Spillage into the housing may result in re, electrical shock, or equipment damage. If an object
or liquid falls or spills on to the housing, unplug the module immediately.
Have the module checked by a qualied service engineer before using it again.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
1

GETTING STARTED
1.3 Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation.
Any changes or modications made to this equipment may void the user’s authority to operate this
equipment.
Warning symbo Description
ONLY USE THE PROVIDED POWER CABLE OR
POWER ADAPTER SUPPLIED. DO NOT TAMPER
WITH THE ELECTRICAL PARTS. THIS MAY
RESULT IN ELECTRICAL SHOCK OR BURN.
DO NOT TAMPER WITH THE UNIT. DOING SO
WILL VOID THE WARRANTY AND CONTINUED
USE OF THE PRODUCT.
THE VIDEO BOARDS ARE VERY SENSITIVE TO
STATIC. PLEASE ENSURE IF RACK MOUNTED
OR INSTALLED ON A SURFACE, IT SHOULD BE
IN A GROUNDED ENVIROMENT.
2

INTRODUCTION
The HVWIP-Series, Matrix IP Extender with Audio, RS232 and KVM function provides extension of
high denition video and high quality audio. This device can be used into any solution with its unique
design allowing connection by the following:
Point to Point - (Direct Connection with CAT5/6) - 330ft
Point to Multi - Point with CAT5/6 requires a POE Network Switch which supports port based, IGMP
v2.0 or above protocol. For large application, we would recommend Dell Networking 5500 series,
which use 2 HDMI port or 2 SFP port to cascade.
Matrix Function - with CAT 5/6 cable without any signal loss add multiple Sources to multiple
TX which links via LAN by cascading any POE Gigabit Ethernet switches up to 3 levels, to the Rx
connected to the HD Monitors at different locations on the Network. Transporting Full HD 1080p
video and internally JPEG video compression adapts to available network bandwidth if needed while
retaining vivid picture with PCM audio.
Videowall Function - with CAT 5/6 cable without any signal loss add multiple Sources to multiple
TX and RX to the HD displays to achieve a Multi Input videowall conguration. The device ensures
exibility within any videowall design, layout and conguration. Its modular design allows example
1x2 ,2x2 3x3 up to 4x3. Easily controlled via the Control Software to manage and setup the bezel,
input and conguration of the Videowall. Optional IP control box to send commands via a third party
automation system through Telnet commands for simple presentation on the HD diplays.
Support USB 2.0, USB signal will be passed through with the HDMI signal
Having a small form factor and easily congurable via control software on any Windows PC the user
can set an IP on the Transmitter and choose the corresponding Receiver to match the same IP subnet.
• Support 1080P@60Hz up to 100meters in Point-to-Point mode.
• Support Seamless Switching in Many-to-Many mode.
• Support matrix switching control over LAN by PC software.
• Support cascading connection through POE Gigabit Ethernet Switch.
• HDMI local Pass-through out in transmitter.
• USB over IP supported for KVM application.
• HDMI de-embedded audio out.
• Support RS232 and web interface management.
NOTES: The QUALITY and TRANSMISSION of the video signals depends on the characteristics and quality of the
UTP cables and Network Infrastructure. We recommend any Network Switches with 10GB POE IGMP v2.0 support.
Tested and congured on the below models.
3

2.1 PACKAGE CONTENTS
Before you start the installation of HIP-S, please check the A. STANDARD package contents.
1 HVWIP-Series X 1
2POWER BRICK (+12V DC 2A) +
POWER CORD X1
3AVAILABLE ON REQUEST FOR
INTERNATIONA POWER
4USER’S MANUAL X 1
2.2 BEFORE INSTALLATION
• Put the product in a level and stable location. If the product falls, it may cause damage or
malfunction to components within the casing.
• Do not place the product in temperatures under 0˚C or over 50˚C. High humidity may also
cause the unit to malfunction.
• Use the DC power adapter with correct specications supplied with the unit. If the improper
power supply is used, this may result in malfunction of the unit and may cause re.
• Do not twist or pull by force the ends of the UTP cable. It will cause malfunction.
INTRODUCTION
1
HVWIP-Series (HVWIP-T + HVWIP-R)
HDMI LAN Video Wall Matrix Extender
Installation Manual
4

INTRODUCTION
2.3 APPLICATION DIAGRAM
POINT TO POINT KVM FUNCTION
5
INPUT / OUTPUT
AUDIO
CAT-5 / CAT-6
USB
RS232
CABLE INDEX
USB LOCAL
OUTPUT
HDMI
SOURCE
RS-232
CONTROL
AUDIO
100M
(330FT)
REMOTE
KEYBOARD MOUSE
HVWIP-T
HVWIP-R
1080p = 100m (330 feet) CAT5
1080p = 100m (330 feet) CAT6

IP LAN MATRIX FUNCTION
INTRODUCTION
6
Transmitters can be up to 100m (330ft) from the Network Switch
LOCAL OUTPUT
OUTPUT
INPUT / SOURCE
CABLE INDEX
HDMI Source 1 HDMI Source 2 HDMI Source 3
LOCAL OUTPUT
CONTROL SOFTWARE
CONFIGURATION
GIGABIT SWITCH with IGMP v2.0
Receivers can be up to 100m (330ft) to HD Display
HDMI
Source 1
HDMI
Source 2
HDMI
Source 3
HDMI
Source 3
HDMI
Source 3
HDMI
Source 1
HDMI
Source 1
HDMI
Source 2
HVWIP-T
HVWIP-R
FULL HD1080P (1920X1080) = 100m (330 feet) CAT5/6
WUXGA(1920X1200) = 100m (330 feet) CAT5/6

VIDEOWALL APPLICATION
INTRODUCTION
7
INPUT / OUTPUT
CAT5E / 6
CABLE INDEX
LAYER 1 HDTV 1
LAYER 2 HDTV 4
LAYER 3 HDTV 7
LAYER 4 HDTV 10
HDTV 2 HDTV 3
HDTV 5 HDTV 6
HDTV 8 HDTV 9
HDTV 11 HDTV 12
GIGABIT SWITCH
HDMI Source 2
HDMI Source 3
HDMI Source 1
HVWIP-T
HVWIP-T
HVWIP-T
Web GUI Control PC or Ipad

INTRODUCTION
2.4 PANEL DESCRIPTION
2.4.1 INPUT PANEL (Transmitter, HVWIP-T) Front
1Operation Mode: Normal Mode: Transmit Rs232 signal between Tx/Rx Debug Mode: Use for
Debug device
2 Power LED: Indicates Power active.
3 Link LED: Connection is made to the Rx at the HD Monitor
2.4.2 INPUT PANEL (Transmitter, HVWIP-T) Rear
4 Power Connector: 12V DC Power Supply 5 USB Port: Type B female USB connection
for PC KVM support.
6Ethernet Jack: HDMI signal and control data
out to RX 7HDMI IN: HDMI Female 19 Pin port for source device
8HDMI OUT: HDMI Female 19 Pin port for
local out HDMI Monitor 9RS-232 Jack : 3 pin Terminal Block Connector for serial control
8
4 5 6 7 8 9
1 2 3

INTRODUCTION
2.4.3 Input Panel (Receiver, HVWIP-R) Front
1Operation Mode: Normal Mode: Transmit Rs232 signal between Tx/Rx Debug Mode: Use for
Debug device
2 Power LED: Indicates Power active.
3 Link LED: Connection is made to the Rx at the HD Monitor
4 USB Port: Type A female USB 2.0 for connecting peripheral devices
5 USB Port: Type A female USB 2.0 for connecting peripheral devices
2.4.4 INPUT PANEL (Receiver, HVWIP-R) Rear
6 Power Connector: 12V DC Power Supply 7 USB Port: Type A female USB 2.0 for
connecting peripheral devices.
8USB Port: Type A female USB 2.0 for
connecting peripheral devices 9Ethernet Jack: HDMI signal and control data IN form TX
10 RS-232 Jack : 3 pin Terminal Block
Connector for serial control 11 Audio Jack : 3 pin Terminal Block Connector for 5.1 PCM audio out to speakers
12 HDMI OUT: HDMI Femaile 19 Pin port for local out HDMI Monitor
9
1 2 3 4 5
6 7 8 9 10 11 12

INSTALLATION (HVWIP-SERIES)
To setup HVWIP-Series please follow these steps for connecting to a device:
1. Turn off all devices including monitors / TV
2. Connect a HDMI source (such as a Blu-Ray Disc player or PC) to the Transmitter HVWIP-T
3. Connect USB cable to the PC (only if PC is the source and your extending KVM function)
4. Connect CAT5/6 from TX to RX CAT5/6 port HVWIP-R 330 feet away
5. Connect Combo USB Keyboard and Mouse Wireless dongle to control PC at Display end 330
feet away.
6. Ensure all cable connections are secure and not loose
7. Plug in 12V DC Power (supplied).
8. Power on HDMI Source
9. Power on the HDMI display
3.1 INSTALLATION OF CONTROL SOFTWARE
3.1.1 Control Software
The HVWIP-Series can be controlled via Windows based Laptop/PC by installing the software VWIP
ControlPro.exe
GENERAL INSTRUCTIONS
• Before you begin the installation of the control software ensure the both the HVWIP-Series is
connected to AC power.
• PC Requirements-Windows® XP/Windows Vista®/Windows® 7/Windows® 8
• Ensure the Laptop/PC is plugged in to AC power during the installation process. It is not
recommended to use only battery power during the installation. Do not remove power at any
time during the installation process as this could lead to incomplete results.
SOFTWARE INSTALLATION
• Insert the Installation Disc provided Optional or the Control software can be downloaded from
the AG Neovo website.
• After installation launch the Control software VWIPControlPro.exe
NOTES: If you run the ControlPro tool for the rst time on Windows Vista or a later version OS, the Windows
Security Alert dialog box is displayed after an attempt to search devices.
10

11
INSTALLATION (HVWIP-SERIES)
In this case, select both check boxes in the dialog box and click Allow access to resolve this issue. If
the search has timed out or failed, re-perform the search.
The Rx and Tx devices are assigned IP addresses in the Auto IP mode by default. The network
segment for their IP addresses is 169.254.x.x and the subnet mask is 255.255.0.0. If no device is
searched, check the computers IP address where the HDMI over IP tool is installed and if it resides
within the same network segment as the Rx and Tx devices, and whether the computer shares the
subnet mask 255.255.0.0.
CONTROL SOFTWARE DEVICES
GUI ELEMENT DESCRIPTION
IMPORT Allows the user to Import past saved FILE settings and layouts for easy setup and
Multiple same projects which require the same conguration.
EXPORT The user can easily Export the current FILE settings and layouts for easy recall
and future setup.
SERIAL
This enables the RS232 control POP up window and RS232 control function. The
USER can simply control the Source device or Monitor from the RS232 Library
listed within the Control Software from any PC.
INFORMATION This enables the Device Info Window to notify the USER Device Name:/Device
Type/IP address.
LOG This enables the Device Log Window to notify the USER date and time the unit
was searched and what function the unit is set to Single cast or Multicast.
HELP Information on the Control Software Version.

12
INSTALLATION (HVWIP-SERIES)

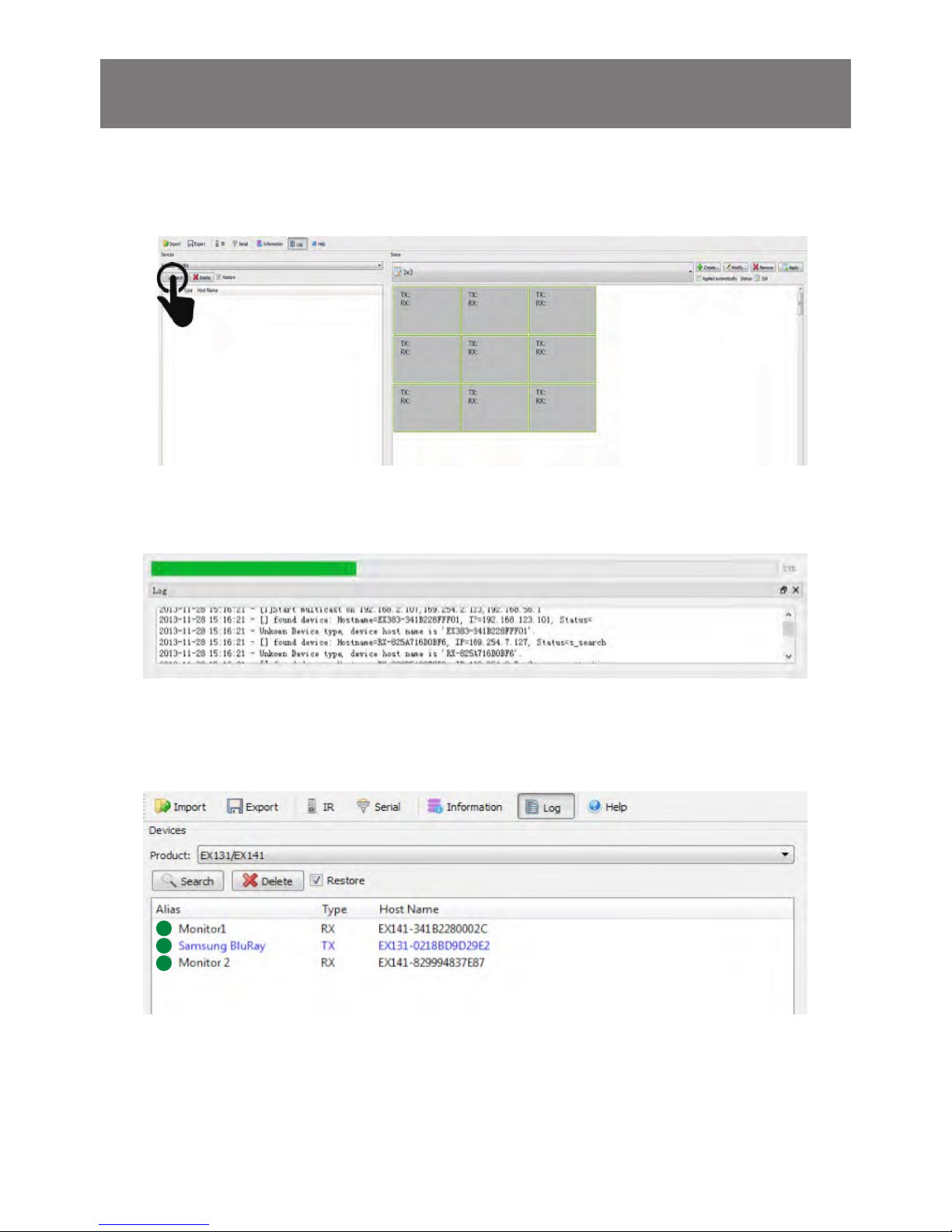

SEARCHING DEVICES
STEP 1: Click search as shown below in DEVICE LIST SECTION
STEP 2: All functions are disabled when in search is in progress
STEP 3: When search is completed the discovered devices are displayed in the device list window.
The devices will show active “Green Circles”.
NOTES: If the Rx and Tx devices have been congured before by this software tool, Check the Restore matrix after
search box.This would proceed to search the devices and set the previous matrix congurations automatically after
the restore search.

13
SETTING DEVICE PARAMETERS
To change or set the device parameters right-click on any device as shown below:
OPERATION DESCRIPTION
CONFIG User can congure the device parameters. Such as device name and IP
preference(AUTO DHCP STATIC).
UPDATE Update any changes made with-in the Cong.
DELETE Deletes the devices that have been searched and is listed below in the devices
column.
TURN ON OSD Displays ON Screen Display- Info This operation is valid only when a single
device is selected.
TURN OFF OSD Disables the On Screen Display Info This operation is valid only when a single
device is selected.
RESET DEFAULT
Restores the factory settings for devices. This operation is valid when one or
more devices are selected. When this operation is executed, restart the devices
for the factory settings to take effect, delete devices displayed in the device list,
and search the units again.
RESTART Restarts the devices.

SETTING DEVICE PARAMETERS
MODIFY DEVICE SETTINGS
When you right- click a device in the Device List and choose Modify the device setting dialog box is
displayed.
14

DEVICE SETTING WINDOW GUIDE
GUI ELEMENT ATTRIBUTE DESCRIPTION
DEVICES
PARAMETER
Indicates the current device on which you perform operations.
HOST NAME ID Indicates the host name ID, which is generated by the system
and cannot be changed.
NAME Indicates the user-dened device name that contains a
maximum of 80 characters.
IP ADDRESS Indicates the device IP address, which can be set only when the
static mode is selected.
NETMASK Indicates the subnet mask for the device, which can be set only
when the static mode is selected.
AUTO IP
OPTION
indicates a mode in which the device is assigned an IP address
automatically.
DHCP Indicates a mode in which the device is assigned an IP address
by using a router or switch.
STATIC indicates a mode in which the IP address is assigned manually.
OK
BUTTON
Saves current settings, applies them to the device, and closes
the Device settings dialog box.
CANCEL Cancels current settings and closes the Device settings dialog
box.
APPLY Saves current settings and applies them to the device without
closing the Device settings dialog box.
NOTES:
If any changes are made within the window –Example IP Address Settings change to Static, Auto IP or DHCP.
STEP1: Power cycle the device
STEP2: Search the device again within the Control Software
15

MATRIX SETTINGS
In the main GUI of the HDMI over IP tool, the Matrix area displays all the GUI elements related to
device connections.
GUI ELEMENT ATTRIBUTE DESCRIPTION
BUTTON
Creates a New Conguration.
Modies the current Conguration.
Deletes the current Conguration.
Applies the Conguration connection settings to the
connected devices.
OPTION
Species that settings are applied immediately after you
double-click the intersection between a row and column in
the lower part.
PARAMETER
Indicates the status of the matrix.
Indicates that the matrix created by devices is restored.
Indicates that the matrix settings are in progress.
Indicates that matrix settings are applies successfully.
Indicates that matrix settings fail to be applied.
16

MATRIX SETTINGS
CREATE SCENE WINDOW
After your click in the SCENE area, the Create dialog box is displayed
The user can change the conguration layout.
Modify Scene – The user can edit the Name or Change the Layout
SCENE AREA WINDOW
You can also right click to perform other operations in the Scene dialog box.
17

18
MATRIX SETTINGS
OPERATION DESCRIPTION
CHANGE TX User can select which TX (source to be displayed) from the search devices on each
Monitor- Matrix /Videowall Function .
CHANGE RX User can select which RX (Monitor) to be congured Matrix/Videowall Function.
REMOVE TX Deletes the TX source from the search devices below in the devices column.
REMOVE RX Deletes the RX Monitor from the search devices below in the devices column.
SELECT ALL This selects all the Cells in the Scene window dialog box.To perform quick and easy
split function (1) one TX to all Monitors.
COMBINE After all is selected this function combine al the cells to enable the Videowall Mode.
SPLIT This function cancels the combine function to re-enable the Matrix Mode and have
each monitor single.
The user can easily choose what SOURCE or MONITOR by simply choosing: Change TX or Change
RX as shown below:
