AG Neovo K-A19 User manual

P/C: KA19A0 Version 5.0, 20070720
Panel Panel Type TFT LCD
Panel Size 19.0" (483mm)
Max. Resolution WXGA 1440 x 900
Pixel Pitch 0.285mm
Brightness 300cd/m2 (Typical)
Contrast Ratio 850:1 (Typical)
Surface Treatments Hard Coating (3H), Anti-glare
Treatment
Viewing Angle (H/V) 170°/160°(Typical)
Display Color 16.2M
Response Time 3ms (GTG)
Frequency (H/V) H: 31kHz - 81kHz
V: 55Hz - 75Hz
Max. Pixel Clock 135MHz
Life Time 40,000hrs (Minimum)
Input Analog 15-Pin D-Sub
Connector Power 3-Pin AC Plug
Tilt Tilt -5°~ +25°
Mounting VESA FPMPMI Yes ( 75mm)
Regulation
Approval
Certifications &
Compliance
CB, FCC, UL, CUL, TUV, BSMI,
CE, EPA, GOST, TCO 99,
TUV/GS, WEEE, RoHS
VESA DDC 2B, DPMS
Power Power AC 100 - 240V, 50 - 60Hz
Consumption <40W (On)
<2W (Stand-by)
<1W (Off)
Dimensions Net (W x H x D) 440 x 352 x 207mm
(17.3" x 13.6" x 8.0")
Packing (W x H x D) 510 x 425 x 145mm
(19.7" x 16.4" x 5.6")
Weight Net Weight 4.0Kg (8.8lbs)
Gross Weight 5.0Kg (11.0lbs)
Packing 1 Pallet 80 Cartons
20’ Container 800 Sets
40’ Container 1,600 Sets
All specifications are subject to change without prior notice.
fSPECIFICATION
f19
”

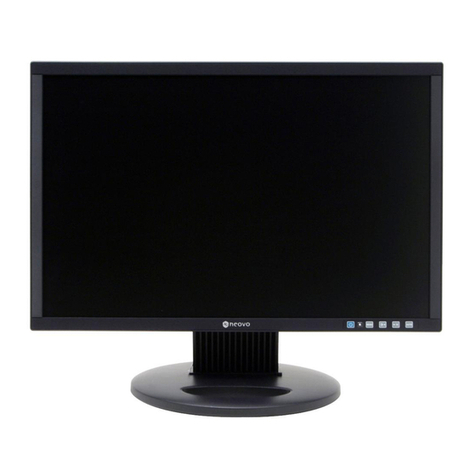

WIDE SCREEN LCD DISPLAY
K-A19
www.agneovo.com
Copyright © 2007 AG Neovo. All rights reserved.
The name AG Neovo is a trademark of Associated Industries China, Inc.
All other trademarks are the property of their respective owners.
fFEATURES
 19” wide screen format
 WXGA 1440 x 900 resolution
 Slim and sleek design
 Swift 3ms response time
 High 300 brightness
 Crisp 850 contrast ratio
 Up to 30°tilt angle
 Easy-to-use control buttons
 Kensingtonsecurity socket
 VESA standard wall mount
 Two available colors: Black; Silver
