AG Neovo FMA-01 User manual

FMA-01
Installation Manual
4.0 kg
(8.8 lb)
Soundbar Bracket for Touch
Display Floor Trolley and Wall Lift

Soundbar Bracket for Touch Display Floor Trolley and
Wall Lift
mounting with M4-M6
MOUNTING INSTRUCTIONS
1
2
3
MON.0220
2a | M4 | 2x
2b | M5 | 2x
2c | 25x45 | 2x
MON.0220
1

1
1a
a
b
1
Max. weight on FMA-01 is 4kg
2a | (optional) 2x
2b | (optional) 2x
CAUTION
2
2c | 2x
3
2

CAUTION
(bolt head and washer) and (bolt head and display)!
approximately 5/32" (4mm) clearance between
and the two lower bolts into your display yet, leave
NOTE: Do not fully turn the top two bolts with washer [1a]
your display!

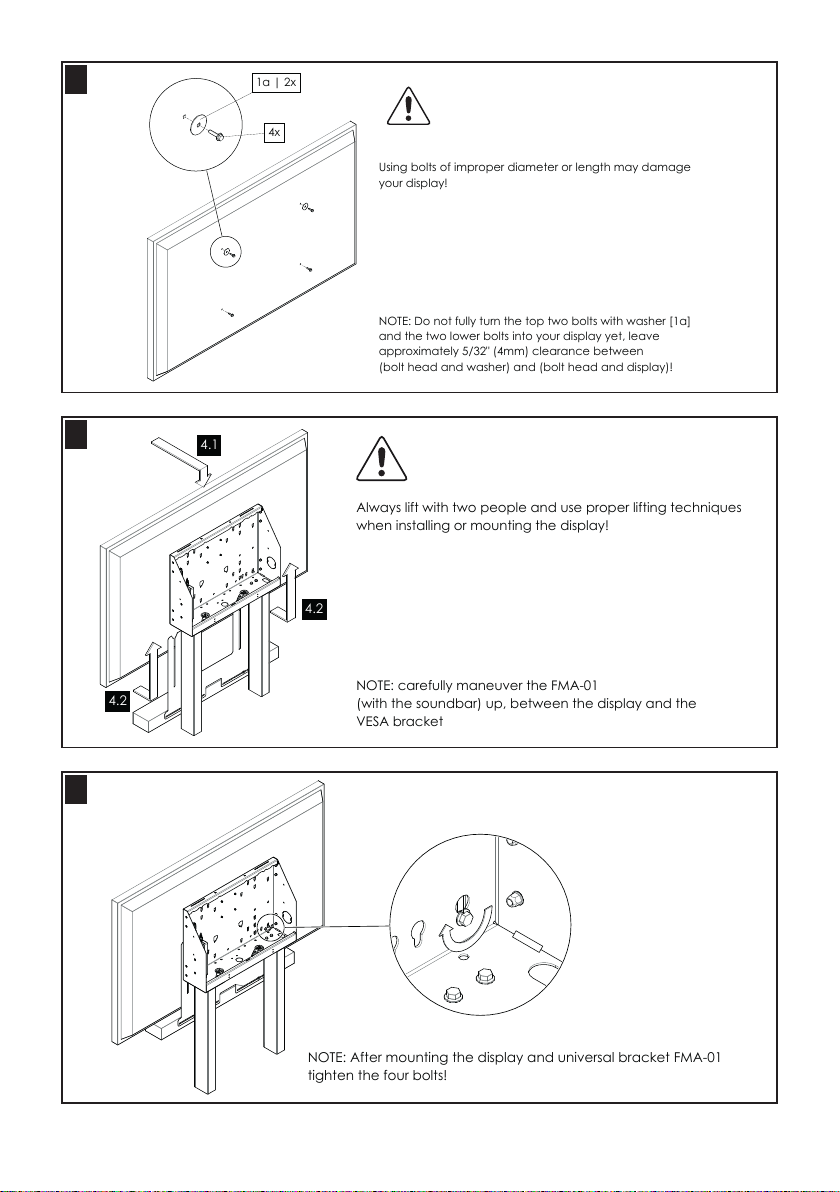

Using bolts of improper diameter or length may damage
1a | 2x
4x
4
VESA bracket
(with the soundbar) up, between the display and the
NOTE: carefully maneuver the FMA-01
when installing or mounting the display!
Always lift with two people and use proper lifting techniques
4.1
4.2
4.2
WARNING
5
tighten the four bolts!
NOTE: After mounting the display and universal bracket FMA-01
6
3

750
600
400
1.510 10 10
170
550
530
320
15
6.5
9076.75105 90
10
76.75 105
10
120
13.2513.25
60
4
FMA-01_User Manual_V010
