AGFA HE/001132 User manual

HE/001132 Page 1of 92
Document No.001132, Revision 2.0
NodeID Livelink : 14140190
Agfa HealthCare 14 June, 2007
L,
AGFA HEALTHCARE
DICOM Conformance Statement
"Workstation NX 2.0"
Status : Released
Revision 2.0
NodeID Livelink : 14140190

HE/001132 Page 2of 92
Document No. 001132, Revision 2.0
Agfa HealthCare NodeID Livelink : 14140190 14 June, 2007
Document Information
Service-related contact
information worldwide
All service-related contact information
is available on this URLà
http://www.agfa.com/en/he/support/support_service/index.jsp
Issued by:
Agfa HealthCare
SIV Connectivity
Septestraat 27
B-2640 Mortsel
Belgium
Agfa shall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance
or use of this publication. Agfa reserves the right to revise this
publication and to make changes to its content at any time, without
obligation to notify any person or entity of such revisions and changes.
This publication may only be used in connection with the promotion,
sales, installation and use of Agfa equipment.
tel: [phone]
email: [email protected]
Copyright ãJune, 07
Agfa HealthCare
All rights reserved

HE/001132 Page 3of 92
Document No.001132, Revision 2.0
NodeID Livelink : 14140190
Agfa HealthCare 14 June, 2007
Conformance Statement Overview
"Workstation", implements the necessary DICOM services to facilitate receiving of unprocessed CR images
from an AGFA Digitizer, performing image processing and sending the processed images to a remote
storage or print device over a Medical Imaging Systems network. "Workstation" may also acquire patient
information from a Radiology Information System (RIS) for use in identifying processed images.
The table below provides an overview of the network services supported by "Workstation"
Table 1.1-1: Network Services Supported
SOP Classes User of Service (SCU) Provider of Service (SCP)
Transfer
Computed Radiography Image Storage Option No
Digital X-Ray Image Storage –For Presentation Option No
Digital X-Ray Image Storage –For Processing Option No
Grayscale Softcopy Presentation State Storage SOP Class Option No
Digital Mammography Image Storage –For Presentation Option No
Digital Mammography Image Storage –For Processing Option No
Workflow Management
Storage Commitment Push Model SOP Class Option No
Modality Performed Procedure Step SOP Class Option No
Modality Worklist Information Model –FIND Option No
Print Management
Basic Grayscale Print Management Meta SOP Class Option No
Basic Film Session SOP Class Option No
Basic Film Box SOP Class Option No
Basic Grayscale Image Box SOP Class Option No
Printer SOP Class Option No
Print Job SOP Class Option No
Presentation LUT SOP Class Option No
"Workstation" does support Media Services.
Table 1.1-2: Media Services Supported
Media Storage Application Profile Write Files (FSC or FSU) Read Files (FSR)
Compact Disk -Recordable
General Purpose CD-R Yes No

HE/001132 Page 4of 92
Document No. 001132, Revision 2.0
Agfa HealthCare NodeID Livelink : 14140190 14 June, 2007
Table of Contents
1Introduction ............................................................................................7
1.1 Revision Record ................................................................................................... 7
1.2 Purpose and Intended Audience of this Document ................................................ 7
1.3 General Remarks ................................................................................................. 7
1.3.1 Integration and Validation Activities.................................................................. 7
1.3.2 Future Evolution .............................................................................................. 7
1.4 Acronyms and Abbreviations ................................................................................ 8
1.5 Related Documents .............................................................................................. 8
2Networking .............................................................................................9
2.1 Implementation Model .......................................................................................... 9
2.1.1 Application Data Flow Diagram........................................................................ 9
2.1.2 Functional Definitions of AE’s .......................................................................... 9
2.1.2.1 Functional Definition of DICOM Store Application Entity.............................. 9
2.1.2.2 Functional Definition of DICOM Print Application Entity ..............................10
2.1.2.3 Functional Definition of RIS Application Entity............................................10
2.1.2.3.1 DICOM Modality Worklist ......................................................................10
2.1.2.3.2 DICOM Modality Worklist query on Accession Number .........................10
2.1.2.4 Functional Definition of MPPS Application Entity........................................10

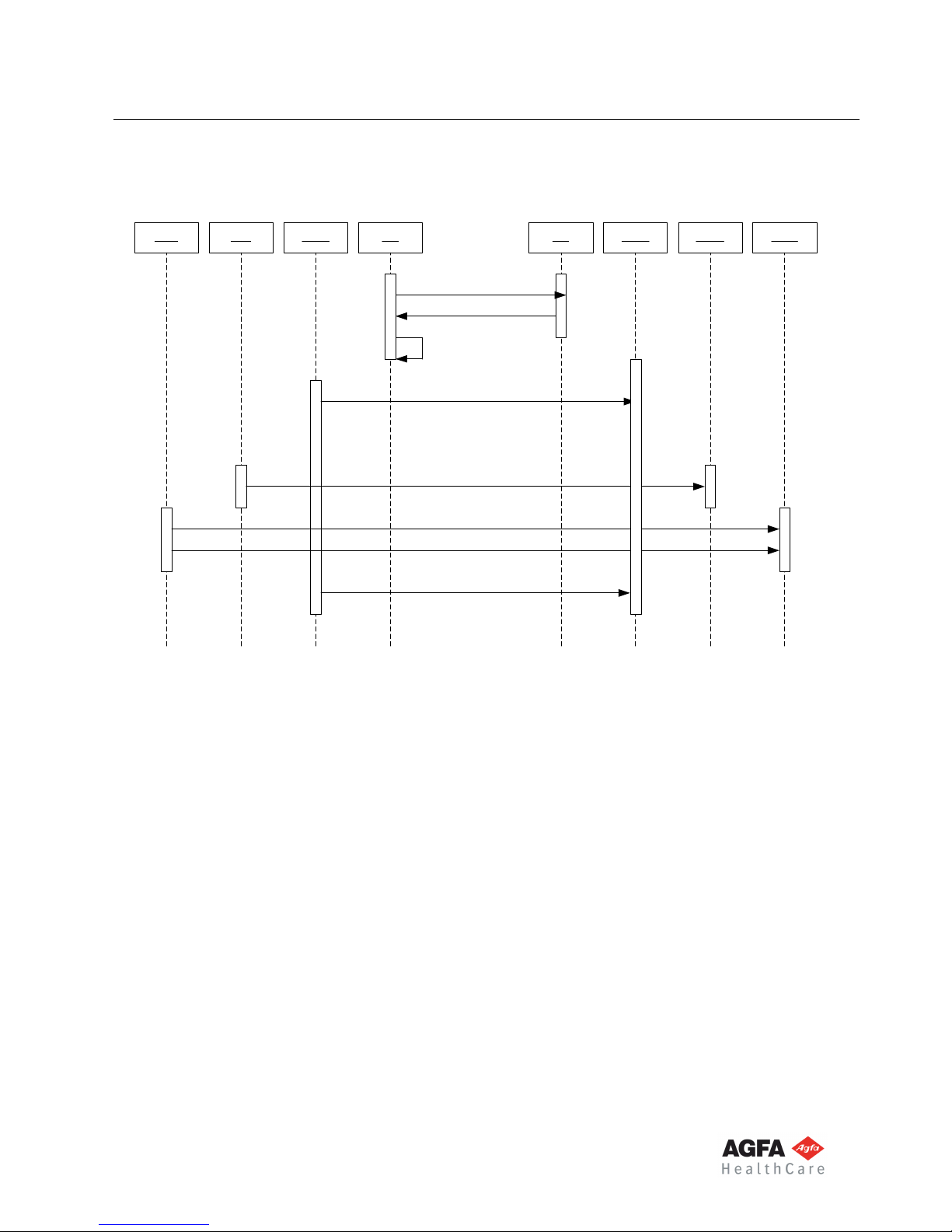

2.1.3 Sequencing of Real World Activities................................................................11
2.2 AE Specifications.................................................................................................12
2.2.1 DICOM Store Application Entity Specification .................................................12
2.2.1.1 SOP Classes Supported ............................................................................12
2.2.1.2 Association Establishment Policies ............................................................12
2.2.1.2.1 General ................................................................................................12
2.2.1.2.2 Number of Associations ........................................................................12
2.2.1.2.3 Asynchronous Nature ...........................................................................13
2.2.1.2.4 Implementation Identifying Information..................................................13
2.2.1.3 Association Initiation Policies .....................................................................13
2.2.1.3.1 Activity – Send Images .........................................................................13
2.2.1.3.1.1 Description and Sequencing of Activity 13
2.2.1.3.1.2 Proposed Presentation Contexts 15
2.2.1.3.1.3 SOP Specific Conformance 17
2.2.1.4 Association Acceptance Policies................................................................30
2.2.1.4.1 Receive Storage Commitment Response..............................................30
2.2.1.4.1.1 Description and Sequencing of Activity 30
2.2.1.4.1.2 Accepted Presentation Contexts 30
2.2.1.4.1.3 SOP Specific Conformance –Storage Commitment SOP Class
(1.2.840.10008.1.20.1) 31
2.2.1.4.1.4 SOP Specific Conformance –Verification SOP Class
(1.2.840.10008.1.1) 32
2.2.2 DICOM Print Application Entity Specification...................................................33
2.2.2.1 SOP Classes Supported ............................................................................33
2.2.2.2Association Establishment Policies ............................................................33
2.2.2.2.1 General ................................................................................................33
2.2.2.2.2 Number of Associations ........................................................................33
2.2.2.2.3 Asynchronous Nature ...........................................................................33
2.2.2.2.4 Implementation Identifying Information..................................................34
2.2.2.3 Association Initiation Policies.....................................................................34

HE/001132 Page 5of 92
Document No.001132, Revision 2.0
NodeID Livelink : 14140190
Agfa HealthCare 14 June, 2007
2.2.2.3.1 Activity – Print Images ..........................................................................34
2.2.2.3.1.1 Description and Sequencing of Activity 34
2.2.2.3.1.2 Proposed Presentation Contexts 36
2.2.2.3.1.3 SOP Specific Conformance -Basic Grayscale Print Management
Meta SOP Class36
2.2.2.3.1.4 SOP Specific Conformance Print Job SOP Class
(1.2.840.10008.5.1.1.14) 41
2.2.2.3.1.5 SOP Specific Conformance Presentation LUT SOP Class
(1.2.840.10008.5.1.1.23) 43
2.2.2.3.1.6 SOP Specific Conformance Verification SOP Class
(1.2.840.10008.1.1) 44
2.2.3 RIS Application Entity Specification.................................................................45
2.2.3.1 SOP Classes Supported ............................................................................45
2.2.3.2 Association Establishment Policies ............................................................45
2.2.3.2.1 General ................................................................................................45
2.2.3.2.2 Number of Associations ........................................................................45
2.2.3.2.3 Asynchronous Nature ...........................................................................45
2.2.3.2.4 Implementation Identifying Information..................................................45
2.2.3.3 Association Initiation Policies .....................................................................46
2.2.3.3.1 Activity – Query RIS..............................................................................46
2.2.3.3.1.1 Description and Sequencing of Activity 46
2.2.3.3.1.2 Proposed Presentation Contexts 46
2.2.3.3.1.3 SOP Specific Conformance –Modality Worklist SOP Class
(1.2.840.10008.5.1.4.31) 46
2.2.3.4 User defined fields.....................................................................................50
2.2.4 MPPS Application Entity Specification ............................................................51
2.2.4.1 SOP Classes Supported ............................................................................51
2.2.4.2 Association Establishment Policies ............................................................51
2.2.4.2.1 General ................................................................................................51
2.2.4.2.2 Number of Associations ........................................................................51
2.2.4.2.3 Asynchronous Nature ...........................................................................51
2.2.4.2.4 Implementation Identifying Information..................................................51
2.2.4.3 Association Initiation Policies .....................................................................52
2.2.4.3.1 Activity – Acquire Images, Print Images, ...............................................52
2.2.4.3.1.1 Description and Sequencing of Activity 52
2.2.4.3.1.2 Proposed Presentation Contexts 53
2.2.4.3.1.3 SOP Specific Conformance –MPPS (1.2.840.10008.3.1.2.3.3) 53
2.3 Network Interfaces...............................................................................................58
2.3.1 Physical Medium Support ...............................................................................58
2.3.2 Additional Protocols........................................................................................58
2.4 Configuration.......................................................................................................59
2.4.1 AE Title/ Presentation Address Mapping .........................................................59
2.4.1.1 Local AE Titles ..........................................................................................59
2.4.1.2 Remote AE Title/ Presentation Address Mapping .......................................59
2.4.1.2.1 Storage.................................................................................................59
2.4.1.2.1.1 Archive options 59
2.4.1.2.2 RIS.......................................................................................................61
2.4.1.2.2.1 Configuration of a RIS 61
2.4.1.2.2.2 Configuration of RIS Mapping 62
2.4.1.2.3 MPPS...................................................................................................63
2.4.1.2.4 Printing.................................................................................................63
2.4.1.3 Queue Management & Job description ......................................................63
2.4.1.4 DICOM Store AE .......................................................................................63
2.4.1.4.1 Queue description.................................................................................63

HE/001132 Page 6of 92
Document No. 001132, Revision 2.0
Agfa HealthCare NodeID Livelink : 14140190 14 June, 2007
2.4.1.4.2 Job description .....................................................................................64
2.4.1.5 DICOM Print AE ........................................................................................64
2.4.2 Parameters.....................................................................................................64
3Media Interchange................................................................................67
3.1 Implementation Model .........................................................................................67
3.1.2 Functional Definition of AEs............................................................................67
3.1.3 Sequencing of Real World Activities................................................................67
3.1.4 File Meta Information for Implementation Class and Version ...........................67
3.2 AE Specifications.................................................................................................68
3.2.1 Offline-Media Application Entity Specification..................................................68
3.2.1.1 Real World Activities..................................................................................68
3.2.1.1.1 Real World Activity -Export to CD-R.....................................................68
3.2.1.1.1.1 Media Storage Application Profile 69
3.3 Media Configuration ............................................................................................70
4Support for Extended Character Sets...................................................71
5Security ................................................................................................72
5.1 Security Profiles ..................................................................................................72
5.2 Association Level Security ...................................................................................72
5.3 Application Level Security....................................................................................72
6Annexes ...............................................................................................73
6.1 IOD Contents.......................................................................................................73
6.1.1 Created SOP Instances ..................................................................................73
6.1.1.1 Common Modules .....................................................................................73
6.1.1.2 CR.............................................................................................................79
6.1.1.2.1 CR Image IOD......................................................................................79
6.1.1.2.2 CR Modules..........................................................................................80
6.1.1.3 DX.............................................................................................................81
6.1.1.3.1 DX Image IOD ......................................................................................81
6.1.1.3.2 DX Modules..........................................................................................81
6.1.1.4 MG ............................................................................................................86
6.1.1.4.1 MG Image IOD .....................................................................................86
6.1.1.4.2 MG Modules .........................................................................................87
6.1.1.5 GSPS........................................................................................................87
6.1.1.5.1 GSPS IOD............................................................................................87
6.1.1.5.2 GSPS Modules.....................................................................................88
6.2 Attribute Mapping ................................................................................................90
6.3 Grayscale Image Consistency .............................................................................92

HE/001132 Page 7of 92
Document No.001132, Revision 2.0
NodeID Livelink : 14140190
Agfa HealthCare 14 June, 2007
1INTRODUCTION
1.1 Revision Record
Revision
Number Date Reason for Change
1.0 20/12/2006 Initial version NX2.0
2.0 21/03/2007 Updated for NX2.0.xxx
1.2 Purpose and Intended Audience of this Document
This document is a DICOM Conformance Statement for the DICOM Services of the "Workstation" product. It
is written according to part PS 3.2 of Digital Imaging and Communications in Medicine (DICOM) 3.0, NEMA
PS 3.1-3.16, 2004.
The user of this document is involved with system integration and/or software design. We assume that the
reader is familiar with the terminology and concepts that are used in the DICOM 3.0 standard and the IHE
Technical Framework.
Readers not familiar with DICOM 3.0 terminology should first read the appropriate parts of the DICOM
standard itself, prior to reading this conformance statement.
Although the use of this conformance statement in conjunction with the DICOM 3.0 standard is intended to
facilitate communication with Agfa ADC imaging equipment, it is not sufficient to guarantee, by itself, the
inter-operation of the connection.
1.3 General Remarks
1.3.1 Integration and Validation Activities
The integration of any device into a system of interconnected devices goes beyond the scope of the DICOM
3.0 standard and this conformance statement when interoperability is desired. The responsibility for
analyzing the applications requirements and developing a solution that integrates the Agfa equipment with
other vendors’ systems is the user’s responsibility and should not be underestimated.
In some circumstances it might be necessary to perform a validation to make sure that functional
interoperability between the Agfa equipment and non-Agfa devices works as expected. The user should
ensure that any non-Agfa provider accepts responsibility for any validation required for their connection with
the Agfa equipment.
1.3.2 Future Evolution
As the DICOM 3.0 standard evolves to meet the user’s growing requirements and to incorporate new
features and technologies, Agfa will follow the evolution of the standard. This evolution of the standard may
require changes to devices that have implemented DICOM 3.0. The user should ensure that any non-Agfa
provider, who connects with Agfa devices, also plans for future evolution of the DICOM standard. A refusal to
do so may result in the loss of functionality and/or connectivity between the different products.

HE/001132 Page 8of 92
Document No. 001132, Revision 2.0
Agfa HealthCare NodeID Livelink : 14140190 14 June, 2007
1.4 Acronyms and Abbreviations
Definitions, terms and abbreviations used in this document are defined within the different parts of the
DICOM standard. Abbreviations and terms are as follows:
ØAE DICOM Application Entity
ØAET Application Entity Title
ØACSE Association Control Service Element
ØCD-R Compact Disk Recordable
ØDICOM Digital Imaging and Communications in Medicine
ØFSC File-Set Creator
ØFSU File-Set Updater
ØFSR File-Set Reader
ØGSDF Grayscale Standard Display Function
ØGSPS Grayscale Softcopy Presentation State
ØIE Information Entity
ØIOD (DICOM) Information Object Definition
ØISO International Standard Organization
ØLUT Lookup Table
ØMPPS Modality Performed Procedure Step
ØMSPS Modality Scheduled Procedure Step
ØPDU DICOM Protocol Data Unit
ØSCU DICOM Service Class User (DICOM client)
ØSCP DICOM Service Class Provider (DICOM server)
ØSOP DICOM Service-Object Pair
ØUID Unique Identifier
ØVR Value Representation
1.5 Related Documents
ØACR-NEMA Digital Imaging and Communications in Medicine (DICOM) V3.0. 2004.
ØIHE Radiology Technical Framework Revision 6 – Final Text, May 2005

HE/001132 Page 9of 92
Document No.001132, Revision 2.0
NodeID Livelink : 14140190
Agfa HealthCare 14 June, 2007
2NETWORKING
2.1 Implementation Model
2.1.1 Application Data Flow Diagram
Request to send
images & GSPS
DICOM Store
Application Entity
Remote
Application Entity
Receives Images
& GSPS
DICOM Standard
Interface
Request to Print
film sheets
DICOM Print
Application Entity
Remote
Application Entity
Prints Film
Sheets
local remote
RIS
Application Entity
Query RIS
Acquire Images
Remote
Application Entity
Provides Worklist
Items
Remote
Application Entity
Receives MPPS
Create / Update
MPPS
Application Entity
Archive Images
Print Images
Query RIS by
AccessionNumber
Figure 2.1-1: Functional Overview –Application Data Flow
2.1.2 Functional Definitions of AE’s
2.1.2.1 Functional Definition of DICOM Store Application Entity
The DICOM Store Application Entity sends images and Presentation States to a remote AE (This can be a
configured Archiving station, a diagnostic workstation …). It is associated with the local real-world activity
“Send Images & GSPS”. If Storage Commitment is configured for the archive destination, the DICOM Store
AE will request Storage Commitment and a job will only be marked as successful when the commitment is

HE/001132 Page 10 of 92
Document No. 001132, Revision 2.0
Agfa HealthCare NodeID Livelink : 14140190 14 June, 2007
successfully obtained. An image that has been successfully sent to an archive cannot be sent to that archive
again.
2.1.2.2 Functional Definition of DICOM Print Application Entity
The DICOM Print Application Entity prints images on a remote AE (A configured Printer). It is associated with
the local real-world activity “Request to print film sheets”. A job will only be marked as “successful” when the
sheet is successfully printed.
2.1.2.3 Functional Definition of RIS Application Entity
The RIS Application Entity receives Worklist information from a remote AE. It is associated with the local
real-world activity “Query RIS”. This can be triggered manually by clicking the “Query RIS” button or triggered
automatically at a specified interval. When properly configured, the RIS can also be queried by Accession
Number.
The RIS query can be configured in different ways (for the possible configurations, see § 2.4.1.2.2.1). The
two that are relevant for DICOM are described in the following paragraphs:
2.1.2.3.1 DICOM Modality Worklist
The use of DICOM Modality Worklist (DMWL) queries the RIS by means of query keys. The query keys can
be changed by the user in the configuration tool (see § 2.4.1.2.2.1). Based on these keys, the worklist will be
populated during the next RIS query.
2.1.2.3.2 DICOM Modality Worklist query on Accession Number
By querying by Accession Number, only the worklist items that contain the specified Accession Number are
returned. These results are parsed, mapped and shown as a Worklist.
2.1.2.4 Functional Definition of MPPS Application Entity
The MPPS Application Entity sends MPPS information to a remote AE when MPPS reporting is configured.
The local real-world activities “Acquire Images”, “Archive Images” and “Print Images” can trigger the creation
of an MPPS instance. This can also be done by adding a new SOP Instance UID to a MPPS, by adding a
Dose to a MPPS or by adding a Print Sheet to a MPPS. The local real-world activity “Close Session” or the
modification of the session’s Accession Number will complete the MPPS. This happens completely
automatically and no user intervention is possible.

HE/001132 Page 11 of 92
Document No.001132, Revision 2.0
NodeID Livelink : 14140190
Agfa HealthCare 14 June, 2007
2.1.3 Sequencing of Real World Activities
Store Print MPPS PACSPrinterRIS
1. Query RIS (by
AccessionNumber)
2. Receive Worklist
3. Select Workitem (SPS)
4. Create MPPS
(when first image acquired)
5. Acquire Images
9. Complete MPPS
6. Print Acquired Images
7. Store Acquired Images
8. Commit Acquired Images
RIS MPPS
Figure 2.1-2: sequencing constraints
Under normal scheduled workflow conditions the sequencing constraints illustrated in Figure 2.1-2 apply:
1. Query RIS
2. Receive Worklist
3. Select Workitem
4. Create MPPS
5. Acquire Images
6. Print Acquired Images
7. Store Acquired Images (+ GSPS)
8. Commit Acquired Images
9. Finalize MPPS

HE/001132 Page 12 of 92
Document No. 001132, Revision 2.0
Agfa HealthCare NodeID Livelink : 14140190 14 June, 2007
2.2 AE Specifications
2.2.1 DICOM Store Application Entity Specification
2.2.1.1 SOP Classes Supported
This Application Entity provides Standard Conformance to the following SOP Class(es):
Table 2.2-1: SOP Class(es) for the DICOM Store Application Entity
SOP Class Name SOP Class UID SCU SCP
Computed Radiography Image Storage 1.2.840.10008.5.1.4.1.1.1 Yes No
Digital X-ray Image Storage –for presentation 1.2.840.10008.5.1.4.1.1.1.1 Yes No
Digital X-ray Image Storage –for processing 1.2.840.10008.5.1.4.1.1.1.1.1 Yes No
Digital Mammography Image Storage –For
Presentation
1.2.840.10008.5.1.4.1.1.1.2 Yes No
Digital Mammography Image Storage –For
Processing
1.2.840.10008.5.1.4.1.1.1.2.1 Yes No
Grayscale Softcopy Presentation State
Storage SOP Class
1.2.840.10008.5.1.4.1.1.11.1 Yes No
Storage Commitment Push Model SOP Class 1.2.840.10008.1.20.1 Yes No
2.2.1.2 Association Establishment Policies
2.2.1.2.1 General
The DICOM standard Application context is always proposed:
Table 2.2-2: DICOM Application Context
Application Context Name 1.2.840.10008.3.1.1.1
2.2.1.2.2 Number of Associations
"Workstation" initiates one association at a time for each destination to which a transfer request is being
processed in the active job queue list. Only one job per destination will be active at a time, the other remains
pending until the active job for that destination is completed or failed. There can however be several
simultaneous associations to different destinations.
Table 2.2-3: Number of Associations as an Association Initiator for DICOM Store AE
Maximum number of simultaneous associations initiated 1per destination
(32 max)
Table 2.2-4: Number of Associations as an Association Acceptor for DICOM Store AE
Maximum number of simultaneous associations accepted 1for storage
commit response

HE/001132 Page 13 of 92
Document No.001132, Revision 2.0
NodeID Livelink : 14140190
Agfa HealthCare 14 June, 2007
2.2.1.2.3 Asynchronous Nature
Table 2.2-5: Asynchronous Nature as an Association Initiator for DICOM Store AE
Maximum number of outstanding asynchronous transactions 1
The DICOM Store AE allows a single outstanding operation on any association. Therefore, it does not
support asynchronous operations window negotiation, other than the default as specified by the DICOM
specification.
2.2.1.2.4 Implementation Identifying Information
Table 2.2-6: DICOM implementation Class and Version for DICOM Store AE
Implementation Class UID 1.3.51.0.1.3
Implementation Version Name AGFA DTF1.0.XX 1
2.2.1.3 Association Initiation Policies
2.2.1.3.1 Activity –Send Images
2.2.1.3.1.1 Description and Sequencing of Activity
A user can select an image and request it to be sent to a destination The request is forwarded to the job
queue and then processed. An image can also be sentautomatically when closing an exam.
Note:
An image can only be sent to an archiving destination if it hasn’t been archived there yet.
The DICOM Store AE is then invoked by the queue that is responsible for processing network archival tasks
for a specific destination. The DICOM Store AE will attempt to initiate a new Association in order to issue a
C-STORE request. If the job contains multiple images, then multiple C-STORE requests will be issued over
the same Association. The association will be closed when the last image (or GSPS) is sent.
If the association cannot be opened, the job is set to a retry state. If after a configurable number of retries the
job still fails, it is set to an error state (“Failed”). It can then be restarted by the user through the job control
interface. If three successive jobs to a same destination fail, the queue for that destination will be stalled. It
will retry to process the job three (3) more times. If this fails, the queue for that destination will be stalled for a
longer time, meaning that it will only retry jobs to that destination every five (5) minutes.
When the association was rejected by the device due to a configuration issue, the queue for that device will
be stalled when three (3) successive jobs experience a device failure.
If the Remote AE is configured to support Storage Commit, the DICOM Store AE will send a Storage Commit
request (N-ACTION) over a new association and will then wait for an N-EVENT-REPORT.If the N-EVENT-
REPORT does not arrive within the waiting period, the AE closes the association and assumes that a
separate association will be set up for the N-EVENT-REPORT. If this report does not arrive within a
(configurable) amount of time, the job will be marked as FAILED.
1XX is the build version number.

HE/001132 Page 14 of 92
Document No. 001132, Revision 2.0
Agfa HealthCare NodeID Livelink : 14140190 14 June, 2007
"Workstation" does not foresee additional logic when the system is shut down, regarding storage
commitment time outs. In other words: when a storage commit reply does not reach "Workstation"
successfully, because "Workstation" was/is down at that point in time, the job will time out and go to FAILED.
A Possible sequence of iterations between the DICOM Store AE and an Image Manager is illustrated in
figure 2.2-1
Figure 2.2-1: Example of a Storage AE Sequencing Diagram (with Storage Commit)
The DICOM Store AE may reject the association attempts as shown in the table below:
Store PACS
2. C-STORE (CR Image)
1. Open Associa
tion
3. C-
STORE (GSPS)
5. C-
STORE (GSPS)
4. C-STORE (CR Image)
6. N-
ACTION (Storage Commit Rq)
7. N-EVENT-REPORT (Storage Commit Resp)
8. Close Association
6. Close Association
7. Open Association

HE/001132 Page 15 of 92
Document No.001132, Revision 2.0
NodeID Livelink : 14140190
Agfa HealthCare 14 June, 2007
Table 2.2-7: Association Reject Reasons
Result ResponseReason/Diag
The Dicom library refuses the association SCU Device not known
The Dicom library refuses the association Maximum number of association
processing threads exceeded
The Dicom library refuses the association A799 Dicom Library is not allowed to accept
C-STORE commands from this device
and therefore refuses the association.
The Dicom library refuses the association A0102 SOP Class is not found back in the
configuration
The Dicom library refuses the association A702 The Dicom library is unable to create the
Dicom media file due to the fact that the
disk is full
The Dicom library refuses the association A703 The Dicom library is unable to create the
Dicom media file due to resource
problems other than ‘disk is full’.
The Dicom library refuses the association A703 The Dicom library is unable to acquire
the complete C-STORE request due to
network problems.
The Dicom library refuses the association A701 The Dicom library is unable to acquire
the complete C-STORE request due to
network problems (time-out while
reading data from socket) 2.
2.2.1.3.1.2 Proposed Presentation Contexts
The DICOM Store AE is capable of proposing the Presentation Contexts shown in the following table:
2The time-out value is hard-coded in the Dicom library as being 60 seconds.

HE/001132 Page 16 of 92
Document No. 001132, Revision 2.0
Agfa HealthCare NodeID Livelink : 14140190 14 June, 2007
Table 2.2-8: Presentation Contexts Proposed by DICOM Store AE
Presentation Context Table
Abstract Syntax Transfer Syntax Role
Name UID Name List UID List
Extended
Negotiation
CR Image
Storage
1.2.840.1000
8.5.1.4.1.1.1
JPEG LLNH1 Encoded
(i.e. lossless)
JPEG LLNHF Encoded
(i.e. lossless)
JPEG Lossy 8 bit
JPEG Lossy 12 bit
Implicit VR Little Endian
Explicit VR Little Endian
1.2.840.10008.1.2.4.57
1.2.840.10008.1.2.4.70
1.2.840.10008.1.2.4. 50
1.2.840.10008.1.2.4.51
1.2.840.10008.1.2
1.2.840.10008.1.2.1
SCU None
Digital X-ray
Image Storage
–for
presentation
1.2.840.1000
8.5.1.4.1.1.1.
1
JPEG LLNH1 Encoded
(i.e. lossless)
JPEG LLNHF Encoded
(i.e. lossless)
JPEG Lossy 8 bit
JPEG Lossy 12 bit
Implicit VR Little Endian
Explicit VR Little Endian
1.2.840.10008.1.2.4.57
1.2.840.10008.1.2.4.70
1.2.840.10008.1.2.4.50
1.2.840.10008.1.2.4.51
1.2.840.10008.1.2.1
SCU None
Digital X-ray
Image Storage
–for processing
1.2.840.1000
8.5.1.4.1.1.1.
1.1
JPEG LLNH1 Encoded
(i.e. lossless)
JPEG LLNHF Encoded
(i.e. lossless)
JPEG Lossy 8 bit
JPEG Lossy 12 bit
Implicit VR Little Endian
Explicit VR Little Endian
1.2.840.10008.1.2.4.57
1.2.840.10008.1.2.4.70
1.2.840.10008.1.2.4.50
1.2.840.10008.1.2.4.51
1.2.840.10008.1.2
1.2.840.10008.1.2.1
SCU None
Digital
Mammography
Image Storage
–For
Presentation
1.2.840.1000
8.5.1.4.1.1.1.
2
JPEG LLNH1 Encoded
(i.e. lossless)
JPEG LLNHF Encoded
(i.e. lossless)
JPEG Lossy 8 bit
JPEG Lossy 12 bit
Implicit VR Little Endian
Explicit VR Little Endian
1.2.840.10008.1.2.4.57
1.2.840.10008.1.2.4.70
1.2.840.10008.1.2.4.50
1.2.840.10008.1.2.4.51
1.2.840.10008.1.2
1.2.840.10008.1.2.1
SCU None
Digital
Mammography
Image Storage
–For
Processing
1.2.840.1000
8.5.1.4.1.1.1.
2.1
JPEG LLNH1 Encoded
(i.e. lossless)
JPEG LLNHF Encoded
(i.e. lossless)
JPEG Lossy 8 bit
JPEG Lossy 12 bit
Implicit VR Little Endian
Explicit VR Little Endian
1.2.840.10008.1.2.4.57
1.2.840.10008.1.2.4.70
1.2.840.10008.1.2.4. 50
1.2.840.10008.1.2.4.511.2.
840.10008.1.2
1.2.840.10008.1.2.1
SCU None
Grayscale
Softcopy
Presentation
State Storage
SOP Class
1.2.840.1000
8.5.1.4.1.1.11
.1
Implicit VR Little Endian
Explicit VR Little Endian
1.2.840.10008.1.2
1.2.840.10008.1.2.1
SCU None

HE/001132 Page 17 of 92
Document No.001132, Revision 2.0
NodeID Livelink : 14140190
Agfa HealthCare 14 June, 2007
Presentation Context Table
Abstract Syntax Transfer Syntax Role
Name UID Name List UID List
Extended
Negotiation
Storage
Commitment
Push Model
SOP Class
1.2.840.1000
8.1.20.1
Implicit VR Little Endian 1.2.840.10008.1.2 SCU None
Depending on the configuration of "Workstation", either the CR Image Storage, the Digital X-ray Image
Storage –for processing or the Digital X-ray Image Storage –for presentation, the Digital Mammography
Image Storage –For Presentation or the Digital Mammography Image Storage –For Processing will be
proposed.
The Grayscale Softcopy Presentation State Storage SOP Class and the Storage Commitment Push Model
SOP Class will only be proposed if configured
2.2.1.3.1.3 SOP Specific Conformance
2.2.1.3.1.3.1 Image & Presentation State Storage
2.2.1.3.1.3.1.1 Computed Radiography Image Storage SOP Class
(1.2.840.10008.5.1.4.1.1.1)
The Computed Radiography Image Storage SOP class is a Storage Standard SOP Class that uses the CR
IOD (§6.1.1.2.1).
2.2.1.3.1.3.1.2 Digital X-ray Image Storage –for presentation SOP Class
(1.2.840.10008.5.1.4.1.1.1.1)
The Digital X-Ray Image Storage -For Presentation SOP Class uses the DX IOD (§6.1.1.3.1) with an
Enumerated Value of FOR PRESENTATION for Presentation Intent Type (0008, 0068).
2.2.1.3.1.3.1.3 Digital X-ray Image Storage –for processing SOP Class
(1.2.840.10008.5.1.4.1.1.1.1)
The Digital X-Ray Image Storage -For Processing SOP Class uses the DX IOD (§6.1.1.3.1)with an
Enumerated Value of FOR PROCESSING for Presentation Intent Type (0008, 0068).
As a SCU of the Digital X-Ray Image Storage -For Processing SOP Class, it also supports the Digital X-Ray
Image Storage -For Presentation SOP Class.
2.2.1.3.1.3.1.4 Digital Mammography Image Storage –for presentation SOP
Class (1.2.840.10008.5.1.4.1.1.1.2)
The Digital Mammography Image Storage -For Presentation SOP Class uses the MG IOD (§6.1.1.4.1) with
an Enumerated Value of FOR PRESENTATION for Presentation Intent Type (0008, 0068).
2.2.1.3.1.3.1.5 Digital Mammography Image Storage –for processing SOP Class
(1.2.840.10008.5.1.4.1.1.1.2.1)
The Digital Mammography Image Storage -For Processing SOP Class uses the MG IOD (§6.1.1.4.1)with an
Enumerated Value of FOR PROCESSING for Presentation Intent Type (0008, 0068).

HE/001132 Page 18 of 92
Document No. 001132, Revision 2.0
Agfa HealthCare NodeID Livelink : 14140190 14 June, 2007
2.2.1.3.1.3.1.6 Grayscale Softcopy Presentation State Storage SOP Class
(1.2.840.10008.5.1.4.1.1.11.1)
The Grayscale Softcopy Presentation State Storage SOP Class extends the functionality of the Storage
Service class to add the ability to convey an intended presentation state or record an existing presentation
state.
It includes capabilities for specifying:
·the output grayscale space in P-Values
·grayscale contrast transformations including modality and VOI LUT
·selection of the area of the image to display
·image and display relative annotations, including graphics, text and overlays
Note:
A GSPS always refers to exactly one (1) image. Since re-sending an image is prohibited in
"Workstation", an archived image can also have maximally one (1) GSPS that refers to it.
Depending on the configured SOP class to be used (CR (§ 2.2.1.3.1.3.1), DX for presentation (§2.2.1..3.2) or
MG for presentation (§ 2.2.1.3.1.3.4) annotations and shutters are stored in the GSPS or burned in the
image as described in the following table:
Table 2.2-9: Use of GSPS vs. Burning in the image
CR
DX for presentation
MG for presentation
DX for processing
(processing,W/L,collimation)
Processed pixels
+
LUTs
RAW pixels
Annotations GSPS or Burned in
Shutters GSPS or
when GSPS is not used:
In case of CR the shutter is
burned into the Pixel data.
In case of DX and MG the
shutter is described in the
shutter module of the image
header.
Zoom GSPS or discarded
Markers Always burned in
Ignored
The following paragraphs describe into detail how each annotation is embedded in the GSPS:
2.2.1.3.1.3.1.6.1 Text

HE/001132 Page 19 of 92
Document No.001132, Revision 2.0
NodeID Livelink : 14140190
Agfa HealthCare 14 June, 2007
Graphic Layer Module
(0070,0060) Graphic Layer Sequence
(0070,0002) >Graphic Layer ID123
(0070,0068) >Graphic Layer Description Text
Graphic Annotation Module
(0070,0001) Graphic Annotation Sequence
(0070,0002) > Graphic LayerID123
(0070,0008) > Text Object Sequence
(0070,0003) >> Bounding box annotation units PIXEL
(0070,0004) >> Anchor Point Annotation Units -
(0070,0006) >> Unformatted Text Value [value]
(0070,0010) >> Bounding Box Top Left Hand Corner [value]
(0070,0011) >> Bounding Box Top Right Hand Corner [value]
(0070,0012) >> Bounding Box Text Horizontal Justification LEFT
(0070,0014) >> Anchor Point -
(0070,0015) >> Anchor Point Visibility -
2.2.1.3.1.3.1.6.2 Arrow
A text is foreseen for each arrow, but it may be an empty string. The arrow consists of two polylines.
Graphic Layer Module
(0070,0060) Graphic Layer Sequence
(0070,0002) >Graphic Layer ID
(0070,0068) >Graphic Layer Description Arrow
Graphic Annotation Module
(0070,0001) Graphic Annotation Sequence
(0070,0002) > Graphic Layer [ID of the corresponding layer]
(0070,0008) > Text Object Sequence
(0070,0003) >> Bounding box annotation units PIXEL
(0070,0004) >> Anchor Point Annotation Units PIXEL
(0070,0006) >> Unformatted Text Value [value]
(0070,0010) >> Bounding Box Top Left Hand Corner [value]
(0070,0011) >> Bounding Box Top Right Hand Corner [value]
(0070,0012) >> Bounding Box Text Horizontal Justification LEFT
(0070,0014) >> Anchor Point [value of arrow point]
(0070,0015) >> Anchor Point Visibility N
(0070,0009) > Graphic Object Sequence
Arrow line
(0070,0005) >> Graphic Annotation Units PIXEL
(0070,0020) >> Graphic Dimensions 2
(0070,0021) >> Number of Graphic Points 2
(0070,0022) >> Graphic Data [values]
(0070,0023) >> Graphic Type POLYLINE
(0070,0024) >> Graphic Filled -
Arrow point

HE/001132 Page 20 of 92
Document No. 001132, Revision 2.0
Agfa HealthCare NodeID Livelink : 14140190 14 June, 2007
(0070,0001) Graphic Annotation Sequence
(0070,0005) >> Graphic Annotation Units PIXEL
(0070,0020) >> Graphic Dimensions 2
(0070,0021) >> Number of Graphic Points 3
(0070,0022) >> Graphic Data [values]
(0070,0023) >> Graphic Type POLYLINE
(0070,0024) >> Graphic Filled -
2.2.1.3.1.3.1.6.3 Rectangle
A rectangle is always provided with a corresponding text (for measurements). If the text is moved by
the operator, an extra text object is added to the GSPS.
Graphic Layer Module
(0070,0060) Graphic Layer Sequence
(0070,0002) >Graphic Layer ID
(0070,0068) >Graphic Layer Description Rectangle or Rectangle_SAL
Graphic Annotation Module
(0070,0001) Graphic Annotation Sequence
(0070,0002) > Graphic Layer [ID of the corresponding layer]
(0070,0008) > Text Object Sequence
(0070,0003) >> Bounding box annotation units PIXEL
(0070,0004) >> Anchor Point Annotation Units -
(0070,0006) >> Unformatted Text Value [value]
(0070,0010) >> Bounding Box Top Left Hand Corner [value]
(0070,0011) >> Bounding Box Top Right Hand Corner [value]
(0070,0012) >> Bounding Box Text Horizontal Justification LEFT
(0070,0014) >> Anchor Point -
(0070,0015) >> Anchor Point Visibility -
(0070,0009) > Graphic Object Sequence
(0070,0005) >> Graphic Annotation Units PIXEL
(0070,0020) >> Graphic Dimensions 2
(0070,0021) >> Number of Graphic Points 5
(0070,0022) >> Graphic Data [values]
(0070,0023) >> Graphic Type POLYLINE
(0070,0024) >> Graphic Filled N
2.2.1.3.1.3.1.6.4 Circle
A circle is always provided with a corresponding text (for measurements). If the text is moved by the
operator, an extra text object is added to the GSPS.
Graphic Layer Module
(0070,0060) Graphic Layer Sequence
(0070,0002) >Graphic Layer ID
