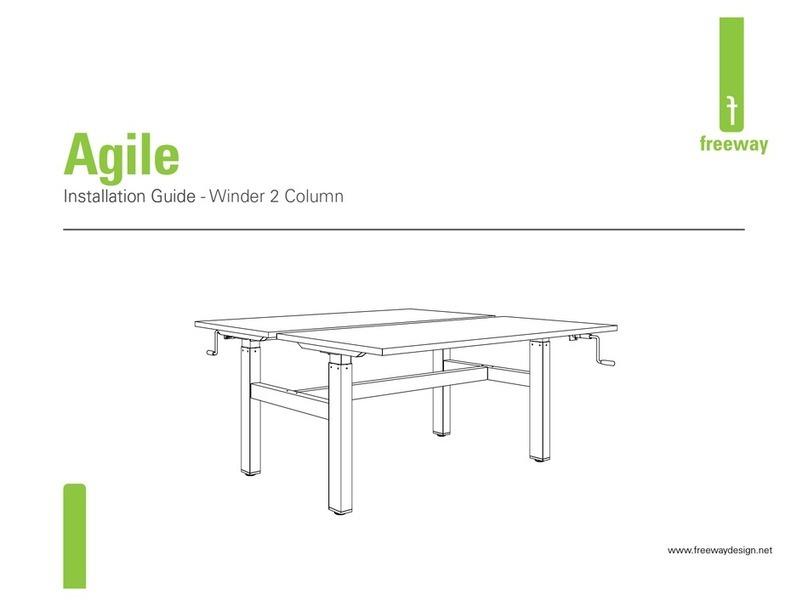

AGILE Winder 2 Column User manual

Installation Guide
www.freewaydesign.net
Installation Guide - Winder 2 Column
Agile

Page 2
www.freewaydesign.net
Installation Guide - Winder 2 Column
Agile
Parts:
1 x Left & Right Leg Pair 1 x Cross Rail 1 x Drive Shaft
4 x Levelling Foot
1 x L&R Support Bar Pair
2 x Foot 2 x Leg Rail
1 x Winder 10 x M8x10 4 x M10x25 6 x ST5.0x228 x M8x25

Page 3
www.freewaydesign.net
Step 1
Installation Guide - Winder 2 Column
Agile
6 x M8x10

Page 4
www.freewaydesign.net
Installation Guide - Winder 2 Column
Step 2
Agile
4 x M8x10

Page 5
www.freewaydesign.net
Installation Guide - Winder 2 Column
Step 3
Agile
4 x Levelling Foot 8 x M8x25

Page 6
www.freewaydesign.net
Installation Guide - Winder 2 Column
Step 4
Agile
4 x M10x25
Length
Worktop Length
1200mm 1125mm
1500mm 1425mm
1800mm 1725mm
2100mm 2025mm

Page 7
www.freewaydesign.net
Installation Guide - Winder 2 Column
Step 5
Agile
1 x Drive Shaft

Page 8
www.freewaydesign.net
Installation Guide - Winder 2 Column
Step 6
Agile
1 x Winder

Page 9
www.freewaydesign.net
Installation Guide - Winder 2 Column
Step 7
Agile
6 x ST5.0x22

Page 10
www.freewaydesign.net
Installation Guide - Winder 2 Column
Agile
Completed
