AGM Global Vision 8x36B User manual

USER MANUAL
8X36
DAYTIME BINOCULARS

© 2019 AGM Global Vision. All rights reserved worldwide.
This documentation is subject to change without notice.
No parts of this manual, in whole or in part, may be copied, photocopied, translated, or transmitted
by any electronic medium or in machine-readable form without the prior written permission of
AGM Global Vision.
If you have questions that are not covered in this manual, or need service, contact AGM Global
Vision customer support for additional information prior to returning a product.
AGM Global Vision
173 West Main Street
PO Box 962
Springerville, AZ 85938
Tel. [phone]
Fax [phone]
[e-mail]
www.agmglobalvision.com
2019.09.13

38x36 USER MANUAL
LIST OF CONTENTS
TITLE PAGE
Safety Summary 4
SECTION 1. DESCRIPTION AND DATA 5
1.1 System Description 5
1.2 Key Features 5
SECTION 2. OPERATING INSTRUCTIONS 6
2.1 Parts and Controls of Binoculars 6
2.2 Interpupillary Adjustment 7
2.3 Diopter Adjustment 7
2.4 Reticle Using 8
2.5 Fold-Down Eyecups Using 11
2.6 Tripod Mounting 11
SECTION 3. MAINTENANCE 12
3.1 General Maintenance 12
3.2 Storage 12
3.3 Service and Maintenance 12
SECTION 4. WARRANTY INFORMATION 13
4.1 Warranty Information and Registration 13
SECTION 5. SPECIFICATIONS 15

4AGM Global Vision
SAFETY SUMMARY
• Read and follow all instructions
• Read all warnings
• Only use the attachments/accessories specified by the manufacturer
• All service must be provided by the manufacturer
WARNING:
This product contains natural rubber latex which may cause allergic reactions! The FDA has
reported an increase in the number of deaths that are associated with an apparent sensitivity to
natural latex proteins. If you are allergic to latex, it is a good idea to learn which products contain
it and strictly avoid exposure to those products.
WARNING:
Do not watch the sun directly by using binoculars to avoid harming your eyes.
CAUTION:
• The binoculars are a precision optical instrument, and must be handled carefully at all times to
prevent damage to the device.
• The unit may be badly damaged if the tripod on which it is mounted collapses or overturns.
Remove the unit from the tripod if it is not within your reach.
• Do not turn the diopter adjustment handwheel in overexerting, stop to turn when it reach the
limited position, otherwise the eyepieces assembly will be damaged!
• Be careful to move the binoculars to avoid overexertion or collision.
• To avoid the heavy vibration when you take it.
• Thoroughly dry each component of the binoculars before placing them in the storage case.
NOTES:
For the purpose of returning defective components, retain all packaging materials.

58x36 USER MANUAL
1 DESCRIPTION AND DATA
1.1 SYSTEM DESCRIPTION
The AGM 8x36 daytime binoculars that offers plenty of magnification, waterproof construction,
built-in range finder reticle purposed for military, law enforcement or an outdoor adventurer’s
needs.
The AGM binoculars provides a powerful magnification and crystal-clear optics, that deliver a
full range of color and clarity. The multicoated optics of binoculars is designed to enhance the
resolution and contrast of your image in extremely bright conditions.
Built-in universal range finder allows for accurate target measurements and range estimates.
The AGM binoculars are waterproof and shockproof and can reach the standard of GJB/240,
GJB150 and MIL-STD-810.
1.2 KEY FEATURES
• Powerful magnification
• Designed for professional use
• Built-in universal rangefinder
• Multicoated optics
• Full rubber body armoring
• Individual eye focus
• Limited two-year warranty

6AGM Global Vision
2 OPERATING INSTRUCTIONS
WARNINGS:
Do not watch the sun directly by using binoculars to avoid harming your eyes.
2.1 PARTS AND CONTROLS OF BINOCULARS
THREADED HOLE
FOR TRIPOD
ADAPTER
LENSES
RUBBER LENS CAP
DURABLE RUBBER
ARMOR BODY
NECK STRAP LOOPS
DIOPTER
ADJUSTMENT
FOLD-DOWN
EYECUPS

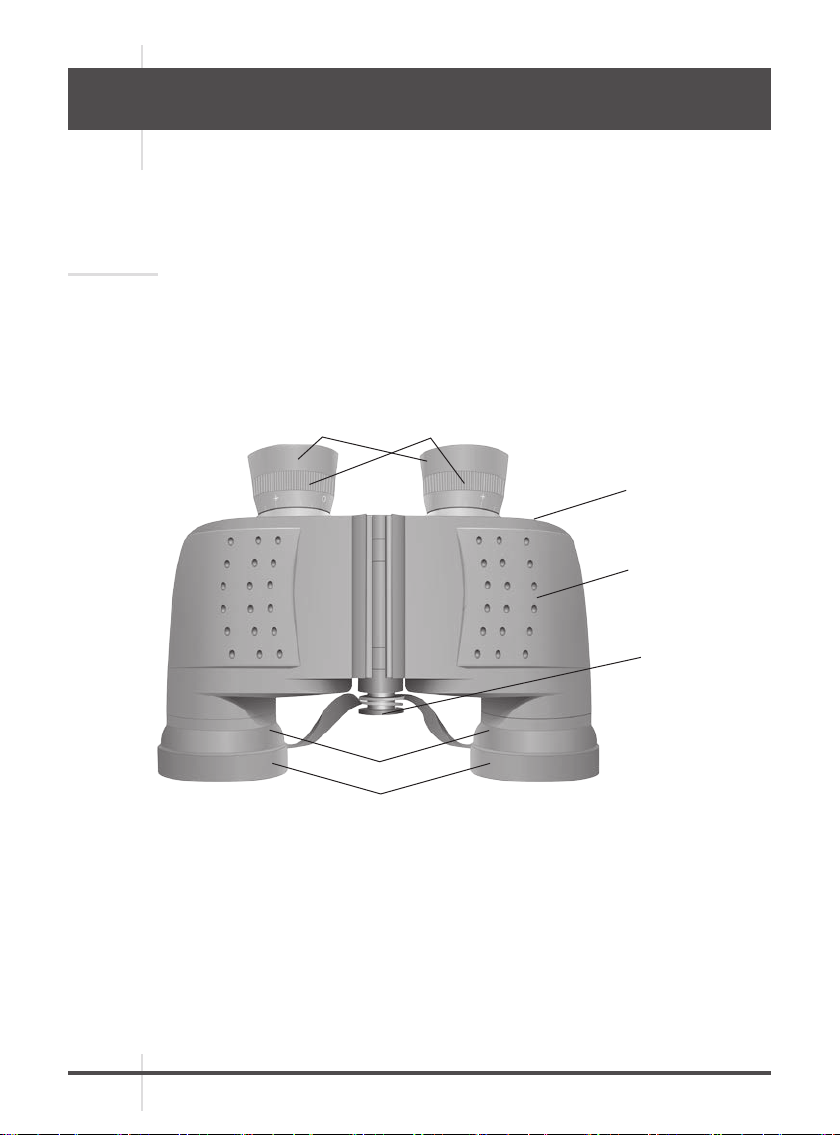

FIGURE 1. PARTS AND CONTROLS OF BINOCULARS

78x36 USER MANUAL
2.2 INTERPUPILLARY ADJUSTMENT
You must first adjust the binoculars so that each eye piece is adjusted to the distance between
your eyes. This is done by putting the binoculars in both hands and bending it until you can see a
single circular image.
2.3 DIOPTER ADJUSTMENT
To watch the object by handing the binoculars, you will need to close your left eye. Rotate the right
diopter adjustment rings until the object image appears sharp and clear in your right eye opening.
Then open you left eye and close right eye, rotate the left diopter adjustment rings until the object
image appears sharp and clear in your left eye opening. Then can get a perfect viewing.
FIGURE 2. INTERPUPILLARY ADJUSTMENT
FIGURE 3. DIOPTER ADJUSTMENT

8AGM Global Vision
2.4 RETICLE USING
2.4.1 BINOCULARS RANGEFINDER RETICLES
The reticle has horizontal scale and vertical scale, in the below there is measuring reticule
according to the known height (see Figure 4). Vertical and horizontal lines on the reticule is in mils
as unit. Each small division on both vertical and horizontal lines represents 5 mils and each big
division represents 10 mils. You can obtain the azimuth angle, upper and lower angle, distance and
height or width etc. by using this reticle. The fast distance measurement is regards as the target
as 2 meters high to measure the distance quickly.
2.4.2 HOW TO USE THE RETICLE AND CALCULATOR DIAL
1) How to Measure the Horizontal View Angle
The azimuth angles are the angle included between two objects to be measured at the horizontal
direction of the binoculars.
A. When the Horizontal View Angle is smaller than the horizontal scale range (-40~+40 mils) inside
the binoculars, aim one edge of the object at a horizontal scale line(the center or the outmost
line are selected according to the image size of object usually) and read its value. Then read the
value of the scale at which another edge was located. Add these two values, the sum value is the
measured Horizontal View Angle. As shown in Figure 5, the Horizontal View Angle of the target
(tank) is 20-00 mils, and the Horizontal View Angle is 20 mils.
FIGURE 4. 8X36 RETICLE
FIGURE 5. HORIZONTAL VIEW ANGLE MEASURING

98x36 USER MANUAL
B. When the Horizontal View Angle is bigger than the horizontal scale range (-40~+40 mils), a
vertical line splits(for example: mast, chimney etc.) on the object can be selected to make the
necessary estimated measurements in a step by step fashion. The sum of the value from each
step is used to obtain the measured value. As shown in Figure 6, the azimuth of target (cruiser) is
110 mils (60+50=110).

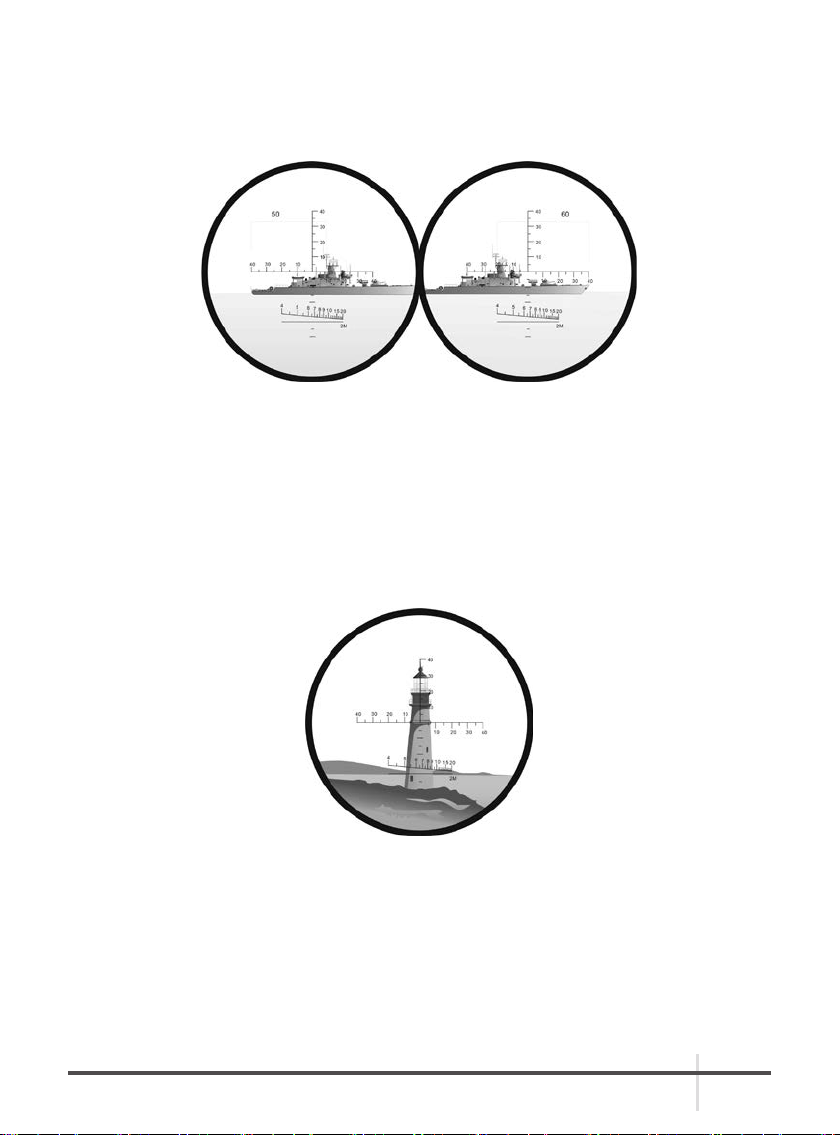

2) How to Measure the Vertical View Angle
Upper and lower angle means the angel included between any two targets (or two ends of the
target) against the vertical line on the reticle.
A. Vertical View Angle measurement is similar to measuring the Horizontal View Angle. When
the Vertical View Angle measurement is small, aim the cross center of reticle at lower part of the
object, read the scale value at the top of the object. If the target vertical angle is a little bigger, you
can read the upper scale and the lower scale. As shown in Figure 7, the upper line is 35 mils, and
the lower line is 40 mils, the total vertical angle is 75 mils.
B. When the Vertical View Angle is larger than the vertical scale range (-40 to +40 mils), it can be
measured in steps and the angle can be obtained by summing up the value of each step. (The
process will be similar to the measurements as mentioned above as horizontal view angle.)
FIGURE 6. MEASURING OF BIG VIEW ANGLE
FIGURE 7. VERTICAL VIEW ANGLE MEASURING

10 AGM Global Vision

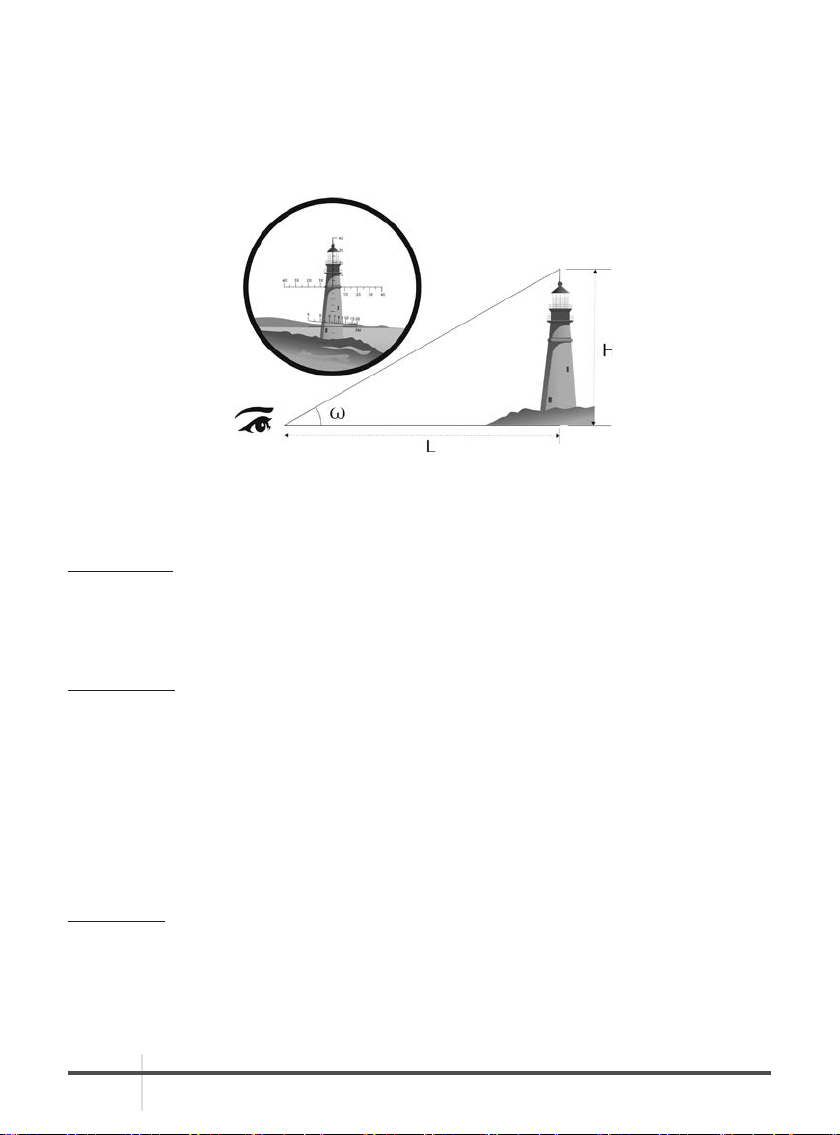

3) How to Use the Reticle to Measure Distance.
The distance measurement of a target can be calculated by using the mil reticule.
The formula of distance measurement: L(km)= H (m)/ω
L — the distance between the observer and the object (km)
H — the height of the object (m)
ω — the view angle of the object measured with the reticule of binoculars (mil).
When measure the distance, first, estimate the width or height of the object, then measure the
View Angle of the object. According, you can calculate the distance between the observer and the
object using the formula.
For example 1:
There is a lighthouse height is 25 m (H = 25 m).
The Vertical View Angle of the adult is 6 decade mils (60 mils).
L = H/ω = 25/60 = 0.4166 km = 416.6 m
Therefore: the distance between the observer and the adult is 416.6 m.
For example 2:
There is an adult whose height is 1.70m (H = 1.70 m).
The Vertical View Angle of the adult is 4 decade mils (40 mils).
L = H/ω = 1.7/40 = 0.0425 km = 42.5 m
Therefore: the distance between the observer and the adult is 42.5 m.
4) How to Measure an Object’s Size (Height and Width) Using
According to the formula for distance measurement, you can calculate the height using:
H = L × ω.
When measuring the size, you first estimate the distance to the object, then measure the View
Angle. With these measurements, you can calculate the height of the target using the formula.
For example:
The distance is 0.6 km between the observer and the object. You can measure that the Horizontal
View Angle is 6 decade mils (60mils) and the Vertical View Angle is 3 decade (30 mils). So, using
the formula you can get:
The height: H = 0.6 × 30 = 18 m
The width: h=0.6 × 60=36 m
FIGURE 8. DITANCE MEASURING

118x36 USER MANUAL

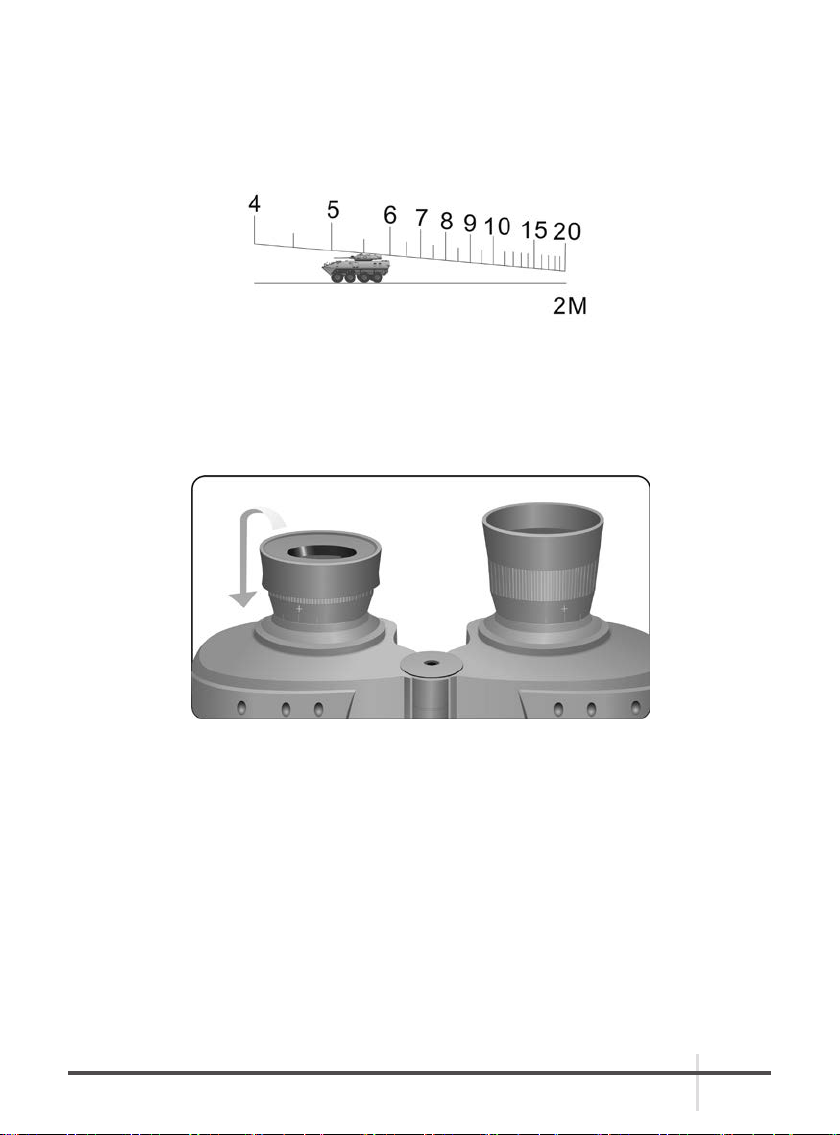

5) Quick Distance Measurement
The reticle is consisted of one horizontal line and a diagonal line. And regards the H=2 m as
known height to quickly measure the common target such as vehicle or adult. Placing the target
projection between the 2 lines, the reading on the tangency of the projection and diagonal line is
the target distance (line value:100 m). as shown in Figure 9, the distance between the target in 2
m high and the observer is 550 m.
2.5 FOLD-DOWN EYECUPS USING
AGM Binoculars designed with rubber fold-down eyecups. The fold-down eyecups can help when
wearing gas mask or glass.
2.6 TRIPOD MOUNTING
A standard threaded socket in 1/4 inch for tripod attachment is located at the base of binoculars
shaft. Insert a binoculars tripod adapter, and attach your tripod screw to the base of the adapter.
FIGURE 9. QUICK DISTANCE MEASUREMENT
FIGURE 17. FOLD-DOWN EYECUPS

12 AGM Global Vision
3 MAINTENANCE
3.1 GENERAL MAINTENANCE
Do not touch the lens by hand, be careful to protect the lens not to be injured by hard substance.
Please fold the Interpupillary adjustment in lowness, put on the lens cover and put into the soft
bag when you do not use it.
Dust, salt and the oil left from fingerprint smudges should never be allowed to remain on the
lenses because they can harm the sensitive multi-coatings applied to the lens surfaces.
Loose dust and debris should be removed by blowing the debris off, using an optical lens cleaning
brush or compressed air.
If fingerprints or smudges remain on the lens, use an optical lens tissue and lens cleaner solution
to clean the lenses. Follow the instructions on the lens cleaning tissue and cleaner.
Once the lens polluted by oil, please use the soft cotton cloth or silk to clear it with a little industrial
alcohol.
3.2 STORAGE
Please put in the dryness place when you do not use it in long time. Suggest using dryer and be
away from ferromagnetism material.
3.3 SERVICE AND MAINTAIN
Do not take down and maintain yourself when the binoculars can not work properly, please send
back to the factory or find the service center.

138x36 USER MANUAL
4 WARRANTY INFORMATION
4.1 WARRANTY INFORMATION AND REGISTRATION
4.1.1 WARRANTY INFORMATION
This product is guaranteed to be free from manufacturing defects in material and workmanship
under normal use for a period of three (3) years from the date of purchase. In the event that a
defect covered by the warranty below occurs during the applicable period stated above, AGM
Global Vision, at its discretion, will either repair or replace the product; such action on the part of
AGM Global Vision shall be the full extent of AGM Global Vision’s liability, and the Customer’s sole
and exclusive reparation. This warranty does not cover a product if it has been (a) used in ways
other than its normal and customary manner; (b) subjected to misuse; (c) subjected to alterations,
modifications or repairs by the Customer or by any party other than AGM Global Vision without
prior written consent of AGM Global Vision; (d) is the result of a special order or categorized as
“close-out” merchandise or merchandise sold “as-is” by either AGM Global Vision or the AGM
Global Vision dealer; or (e) merchandise that has been discontinued by the manufacturer and
either parts or replacement units are not available due to reasons beyond the control of AGM
Global Vision. AGM Global Vision shall not be responsible for any defects or damage that in
AGM Global Vision’s view are a result from the mishandling, abuse, misuse, improper storage or
improper operation of the device, including use in conjunction with equipment that is electrically or
mechanically incompatible with, or of inferior quality to, the product, as well as failure to maintain
the environmental conditions specified by the manufacturer. This warranty is extended only to
the original purchaser. Any breach of this warranty shall be enforced unless the customer notifies
AGM Global Vision at the address noted below within the applicable warranty period.
The customer understands and agrees that except for the foregoing warranty, no other warranties
written or oral, statutory, expressed or implied, including any implied warranty of merchantability
or fitness for a particular purpose, shall apply to the product. All such implied warranties are
hereby and expressly disclaimed.
4.1.2 LIMITATION OF LIABILITY
AGM Global Vision will not be liable for any claims, actions, suits, proceedings, costs, expenses,
damages, or liabilities arising out of the use of this product. Operation and use of the product
are the sole responsibility of the Customer. AGM Global Vision’s sole undertaking is limited to
providing the products and services outlined herein in accordance with the terms and conditions
of this Agreement. The provision of products sold and services performed by AGM Global Vision
to the Customer shall not be interpreted, construed, or regarded, either expressly or implied, as
being for the benefit of or creating any obligation toward any third party of legal entity outside
AGM Global Vision and the Customer; AGM Global Vision’s obligations under this Agreement
extend solely to the Customer. AGM Global Vision’s liability hereunder for damages, regardless
of the form or action, shall not exceed the fees or other charges paid to AGM Global Vision by the
customer or customer’s dealer. AGM Global Vision shall not, in any event, be liable for special,
indirect, incidental, or consequential damages, including, but not limited to, lost income, lost
revenue, or lost profit, whether such damages were foreseeable or not at the time of purchase,
and whether or not such damages arise out of a breach of warranty, a breach of agreement,
negligence, strict liability, or any other theory of liability.

14 AGM Global Vision
4.1.3 PRODUCT REGISTRATION
In order to validate the warranty on your product, the customer must complete and submit AGM
Global Vision PRODUCT REGISTRATION FORM on our website (www.agmglobalvision.com/
customer-support).
4.1.4 OBTAINING WARRANTY SERVICE
To obtain warranty service on your unit, the End-user (Customer) must notify the AGM Global
Vision service department via e-mail. Send any requests to [e-mail] to
receive a Return Merchandise Authorization number (RMA). When returning any device, please
take the product to your retailer, or send the product, postage paid and with a copy of your sales
receipt, to AGM Global Vision’s service center at the address listed above. All merchandise must
be fully insured with the correct postage; AGM Global Vision will not be responsible for improper
postage or merchandise that becomes lost or damaged during shipment. When sending product
back, please clearly write the RMA# on the outside of the shipping box. Please include a letter
that indicates your RMA#, the Customer’s Name, a Return Address, reason for the return, contact
information (valid telephone numbers and/or an e-mail address), and proof of purchase that will
help us to establish the valid start date of the warranty. Product merchandise returns that do not
have an RMA# listed may be refused, or a significant delay in processing may occur. Estimated
Warranty service time is 10-20 business days. The End-user/Customer is responsible for
postage to AGM Global Vision for warranty service. AGM Global Vision will cover return postage/
shipping after warranty repair to the End-user/Customer only if the product is covered by the
aforementioned warranty. AGM Global Vision will return the product after warranty service by
domestic UPS Ground service and/or domestic mail. Should any other requested, required, or
international shipping methods be necessary, the postage/shipping fee will be the responsibility
of the End-user/Customer.
For service, repair or replacement, please contact:
AGM Global Vision
173 West Main Street
PO Box 962
Springerville, AZ 85938
Tel. [phone]
Fax [phone]
[e-mail]
www.agmglobalvision.com

158x36 USER MANUAL
5 SPECIFICATIONS
5.1 SPECIFICATIONS
ITEM DATA
Magnification 8x
Prisms system Porro / Bak-4
Number of Elements & Groups 6 pieces in 4 groups
Objective lens diameter 35 mm
FOV (angular) 7°
FOV at 1000 m / 1000 yd 123 m / 369 ft
Minimum Focus Distance 8 m
Exit pupil 4.4 mm
Eye relief 16.2 mm
Relative Brightness 19.4
Twilight Factor 16.8
Resolution ≤ 6.2”
Focus System Individual
Diopter Adjustment -5 to +5 dpt
Interpupillary Distance 56 to 72 mm
Eye Cups Type Fold down Eyecups
Body Housing Material Strengthened PVC
Waterproof 1 m for 30 min
Nitrogen Filled Yes
Weight 0.6 kg (3.0 lbs)
Size 165 × 127 × 65 mm (7.9 ×5.9 × 3.3 in)
Tripod mount Yes
NOTE:
All data subject to change without notice.

AGMglobalvision.com
AGM Global Vision
MAIN OFFICE
173 West Main Street
PO Box 962
Springerville, AZ 85938
USA
Tel. [phone]
Fax [phone]
[e-mail]
www.agmglobalvision.com
EUROPEAN OFFICE
Andrey Lyapchev #7
Sofia, P.C. 1756
Bulgaria
Tel. [phone]
[e-mail]
www.agmglobalvision.eu
