AGRI TRONIX Brecknell SBI-100 User manual
SBI-100
User Instructions
AWT 35-501281
Issue AA
SBI100_u_en_501281.book
Brecknell is part of Avery Weigh-Tronix. Avery Weigh-Tronix is a trademark of the Illinois Tool Works group of companies whose
ultimate parent company is Illinois Tool Works Inc (“Illinois Tool Works”). Copyright © 2013 Illinois Tool Works. All rights reserved.
No part of this publication may be reproduced by making a facsimile copy, by the making of a copy in three dimensions of a two-dimensional
work and the making of a copy in two dimensions of a three-dimensional work, stored in any medium by electronic means, or transmitted in
any form or by any means, including electronic, mechanical, broadcasting, recording or otherwise without the prior written consent of the
copyright owner, under license, or as permitted by law.
This publication was correct at the time of going to print, however Avery Weigh-Tronix reserves the right to alter without notice the
specification, design, price or conditions of supply of any product or service at any time.
SBI 100 User Instructions Manual 1
Table of Contents
Chapter 1 General Information and Warnings ........................................................................................ 3
About this Manual ..............................................................................................................3
Special Messages ....................................................................................................... 3
Warnings ............................................................................................................................ 4
Electrical Installation .................................................................................................... 4
Routine Maintenance .................................................................................................. 4
Safe Use ............................................................................................................................ 5
Cleaning the Indicator / Weigh Head ........................................................................... 5
Training .......................................................................................................................5
EMC Compliance ........................................................................................................ 5
Declaration of Compliance ................................................................................................. 6
Chapter 2 Introduction .............................................................................................................................. 7
Product Identification .........................................................................................................7
Technical Specifications .................................................................................................... 7
Setup the Indicator for Use ................................................................................................ 9
Connect the Indicator to the Platform .......................................................................... 9
Power Supply ............................................................................................................ 10
Display and Keypad ......................................................................................................... 10
Function Keys ............................................................................................................ 11
Annunciators ............................................................................................................. 11
Chapter 3 Scale Operation ...................................................................................................................... 13
Keypress Symbols ........................................................................................................... 13
Turning on and Zeroing the Scale .................................................................................... 13
Turning off the Scale ........................................................................................................ 13
Select Unit of Measure ..................................................................................................... 13
Using the Tare .................................................................................................................14
Remove the Tare ............................................................................................................. 14
Hold Function with Automatic Zero on Next Weigh ......................................................... 14
Hold Function with Manual Release ................................................................................ 15
Removing Hold ................................................................................................................ 16
Print Function ................................................................................................................... 16
Chapter 4 User Configuration Settings ................................................................................................. 17
Setup Controls .................................................................................................................17
Entering Setup .................................................................................................................17
Selecting a Parameter ............................................................................................... 17
Changing Parameter Data ......................................................................................... 17
Saving Data ............................................................................................................... 18
Exiting Setup ............................................................................................................. 18
User Configuration Settings ............................................................................................. 19
RS-232 Data Commands for SBI Protocol ....................................................................... 20
Output Status Bit Meaning ........................................................................................ 21
Other RS-232 Output Strings .................................................................................... 21
RS-232 Serial Interface Wiring .................................................................................. 22
Chapter 5 Scale Calibration .................................................................................................................... 23
Setup Controls .................................................................................................................23
User Configuration Settings ............................................................................................. 23
Calibrate Scale ................................................................................................................. 24
Chapter 6 Service Configuration ............................................................................................................ 26
Setup Controls .................................................................................................................27
Parameters and Settings ................................................................................................. 27
SBI 100 User Instructions Manual 3
1 General Information and Warnings
1.1 About this Manual
This manual is divided into chapters by the chapter number and the large text at the top
of a page. Subsections are labeled as shown by the 1 and 1.1 headings shown above.
The names of the chapter and the next subsection level appear at the top of alternating
pages of the manual to remind you of where you are in the manual. The manual name
and page numbers appear at the bottom of the pages.
1.1.1 Special Messages
Examples of special messages you will see in this manual are defined below. The
signal words have specific meanings to alert you to additional information or the relative
level of hazard.
CAUTION!
This is a Caution symbol.
Cautions give information about procedures that, if not observed, could result
in damage to equipment or corruption to and loss of data.
ELECTRICAL WARNING!
THIS IS AN ELECTRICAL WARNING SYMBOL.
ELECTRICAL WARNINGS MEAN THAT FAILURE TO FOLLOW
SPECIFIC PRACTICES OR PROCEDURES MAY RESULT IN
ELECTROCUTION, ARC BURNS, EXPLOSIONS OR OTHER HAZARDS
THAT MAY CAUSE INJURY OR DEATH.
NOTE: This is a Note symbol. Notes give additional and important information, hints
and tips that help you to use your product.
4 SBI 100 User Instructions Manual
1.2 Warnings
Avoid lengthy exposure to extreme heat or cold. Your scale works best when operated
at normal room temperature. Always allow the scale to acclimate to a normal room
temperature before use.
1.2.1 Electrical Installation
The mains lead must be connected to a supply outlet with a protective earth contact.
The electrical supply at the socket outlet must provide over current protection of an
appropriate rating.
For your protection all mains (110V or 230V) equipment used out of doors or in wet or
damp conditions should be supplied from a correctly fused source and protected by an
approved ground fault protection device (RCD, GFCI etc.)
IF IN DOUBT SEEK ADVICE FROM A QUALIFIED ELECTRICIAN.
1.2.2 Routine Maintenance
CAUTION!
THE EQUIPMENT CONTAINS NO USER SERVICEABLE COMPONENTS.
Installation and maintenance of the equipment must only be carried out by
trained and authorised personnel.
IMPORTANT: This equipment must be routinely checked for proper operation
and calibration.
Application and usage will determine the frequency of calibration required for
safe operation.
ELECTRICAL WARNING!
TO AVOID THE POSSIBILITY OF ELECTRIC SHOCK OR DAMAGE TO
THE MACHINE, ALWAYS SWITCH OFF THE MACHINE AND ISOLATE
FROM THE POWER SUPPLY BEFORE CARRYING OUT ANY ROUTINE
MAINTENANCE.
TO AVOID THE RISK OF THE MACHINE FALLING, WHERE
APPLICABLE, ENSURE THAT IT IS PLACED SECURELY ON A FLAT
AND LEVEL SURFACE.
SBI 100 User Instructions Manual 5
1.3 Safe Use
Do not use sharp objects such as screwdrivers or long fingernails to operate the keys.
1.3.1 Cleaning the Indicator / Weigh Head
Harsh abrasives, solvents, scouring cleaners and alkaline cleaning solutions, such as
washing soda, should not be used especially on the display windows. Under no
circumstances should you attempt to wipe the inside of the machine.
The outside of standard products may be wiped down with a clean cloth, moistened
with water containing a small amount of washing up liquid.
The outside of products waterproofed to IP65, IP66 and IP67 may be washed down
with water containing a small amount of proprietary detergent.
1.3.2 Training
Do not attempt to carry out any procedure on a machine unless you have received the
appropriate training or read the Instruction Manual.
1.3.3 EMC Compliance
Do not attempt to carry out any procedure on a machine unless you have received the
appropriate training or read the Instruction Manual.
WARNING!
This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
6 SBI 100 User Instructions Manual
1.4 Declaration of Compliance
SBI 100 User Instructions Manual 7
2 Introduction
2.1 Product Identification
2.2 Technical Specifications
Part Number Capacity Region Power Supply (s)
816965001620 75 kg x 0.01kg /
150lb x 0.02lb
North America US Version, UL
816965001637 150 kg x 0.02kg /
300lb x 0.05lb
North America US Version, UL
816965001644 300 kg x 0.05kg /
600lb x 0.1lb.
North America US Version, UL
816965002160 75 kg x 0.01kg /
150lb x 0.02lb.
UK/EU 3 pin UK & 3 pin EU,CE
approved
816965002177 150 kg x 0.02kg /
300lb x 0.05lb.
UK/EU 3 pin UK & 3 pin EU,CE
approved
816965002184 300 kg x 0.05kg /
600lb x 0.1lb.
UK/EU 3 pin UK & 3 pin EU,CE
approved
816965002719 75 kg x 0.01kg /
150lb x 0.02lb.
AUS/SA 3-pin Australia C-Tick
approved, 3 pin South Africa
816965002726 150 kg x 0.02kg /
300lb x 0.05lb.
AUS/SA 3-pin Australia C-Tick
approved, 3 pin South Africa
816965002733 300 kg x 0.05kg /
600lb x 0.1lb.
AUS/SA 3-pin Australia C-Tick
approved, 3 pin South Africa
Scale Indicator
Input signal range: 0mV ~ +30mV
Sensitivity: >0.2µV/grad
Internal Resolution: Approximately 520,000 counts
Display Resolution: Can be selected between 500-100,000
System Linearity: Within 0.01% of FS
Loadcell excitation Voltage: +5 VDC (MAX current: 85mA)
Loadcell
Sensitivity: 0.3mV/V --- 3mV/V (must be fit to >0.2µV/display grad.)
Input Resistor: ≥60 Ω
Output Resistor: <10 KΩ
Temperature
Operation: 5°C - 35°C
Storage: 10°C - 70°C
8 SBI 100 User Instructions Manual
Humidity: ≤95%RH (no condensation)
Power
Battery: 6V4AH lead acid battery, 30 hrs continuous use
When the voltage of battery is below 5.7V, the "Low Bat" annunciator will be lighted, plug in AC
adapter to charge the battery. When "Lo.bAt" and actual weight is displayed alternately, this
indicates the voltage of battery is below 5.5V and the scale will be turned off in two minutes
automatically.
AC Adapter:
10.5-12VDC 600mA, with central positive, 5.7 VDC -9 VDC
SBI 100 User Instructions Manual 9
2.3 Setup the Indicator for Use

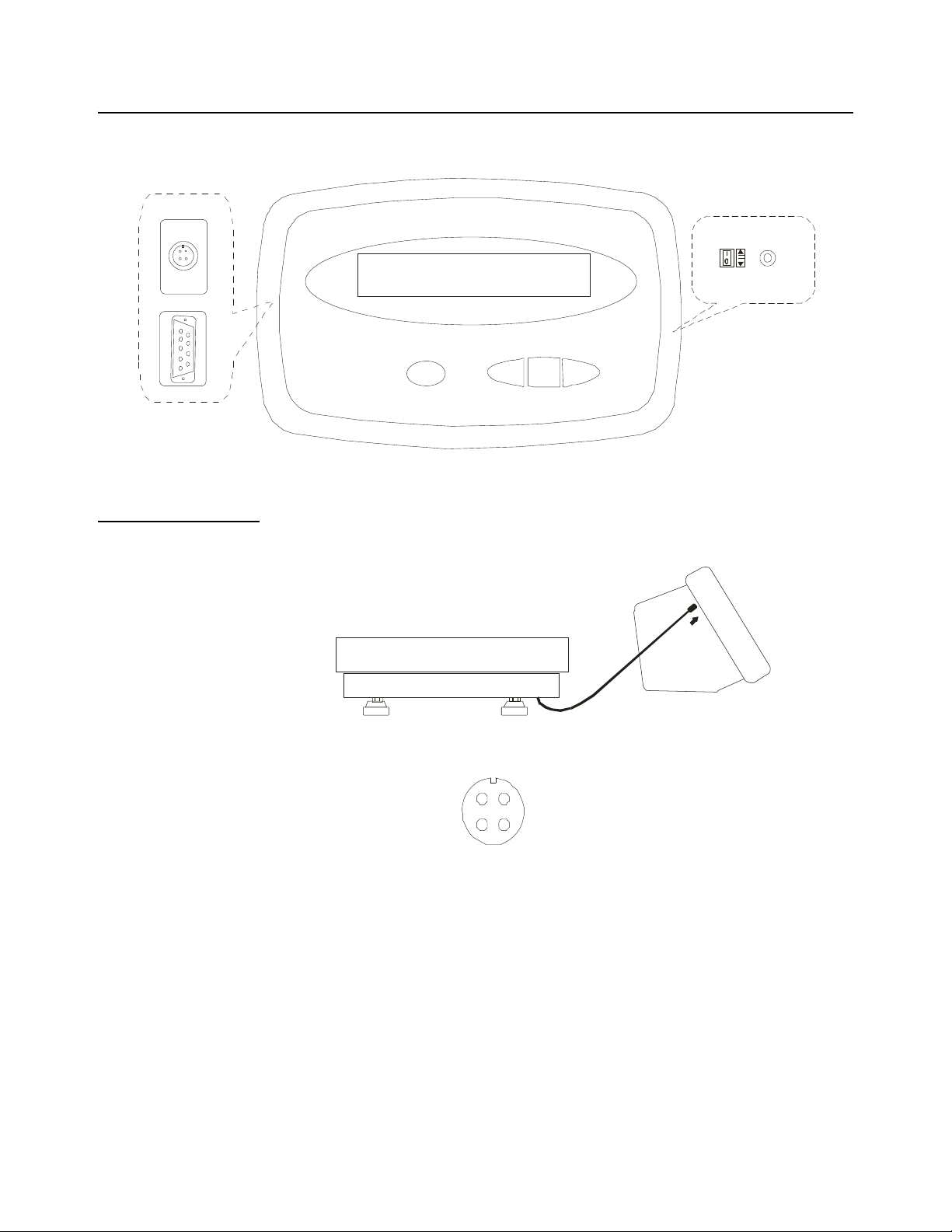

2.3.1 Connect the Indicator to the Platform
Wire the cable attached to the base as shown (if necessary)
RS232
Loadcell socket
Power/Adapter Socket
4
2
3
1
1RED
2RED
3RED
4RED
4
2
3
1
1RED
2RED
3RED
4RED
1. Red Excitation+
2. Bla ck Excitat ion -
3. Green Signal-
4. White Signal+
10 SBI 100 User Instructions Manual
2.3.2 Power Supply
2.4 Display and Keypad
-
6V DC - 500mA
+
230V - 50Hz
-
6V DC - 500mA
+
230V - 50Hz
On/Off
UnitsTare
T
kg/lb
kg lb Hold Low Batt CH
A
C
Max
d=
-
+
SBI 100
Zero
0
NET
Zero
H
o
l
d
P
r
i
n
t
SBI 100 User Instructions Manual 11
2.4.1 Function Keys
2.4.2 Annunciators
Key Function
Tare a gross weight
Turn the indicator ON or OFF
Zero an applied weight
Select between units: kg or lb
Hold a weight
Print
Annunciator Description
Weight is zero
Unit of measure (Flashing LED means that the
weight reading is not stable.)
Tare
T
On/Off
Zero
Units
kg/lb
Hold
Print
Zero
0
kg lb
12 SBI 100 User Instructions Manual
Tare is activated
Battery is charging
AC adapter is plugged in
Hold is activated
Battery is low
Annunciator Description
NET
CH
AC
Hold
Low Batt
-
+
SBI 100 User Instructions Manual 13
3 Scale Operation
3.1 Keypress Symbols
3.2 Turning on and Zeroing the Scale
3.3 Turning off the Scale
3.4 Select Unit of Measure
short keypress multiple keypress long keypress
On/Off
Zero
ZERO
0
On/Off
Zero
Units
kg - lb
kg lb
14 SBI 100 User Instructions Manual

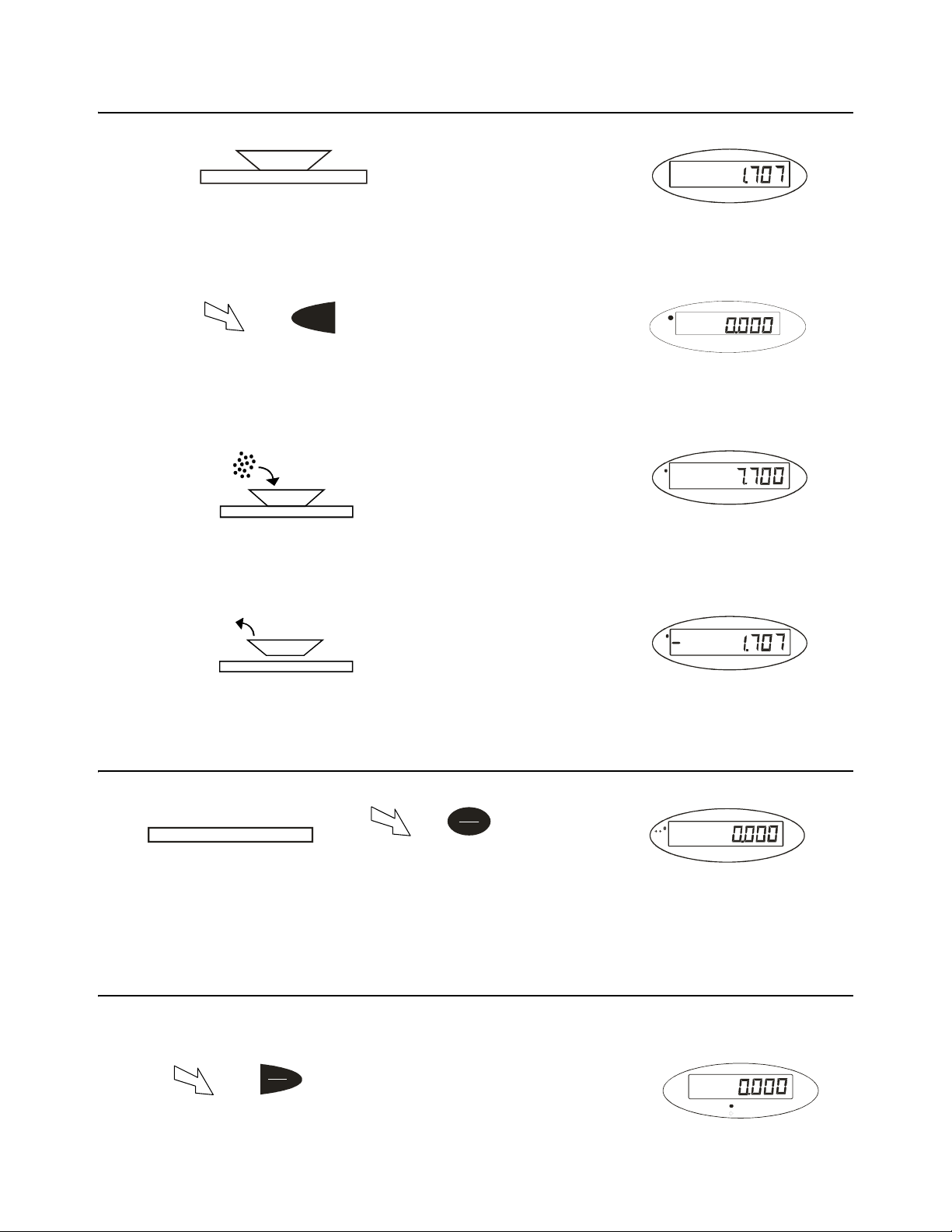

3.5 Using the Tare
3.6 Remove the Tare
3.7 Hold Function with Automatic Zero on Next Weigh
1.
2.
Tare
NET
3.
NET
4.
NET
On/Off
Zero
ZERO
0
1.
Hold
Print
Hold
SBI 100 User Instructions Manual 15
3.8 Hold Function with Manual Release
2.
3.
4.
1.
Hold
Hold
Print
Hold
2.
3.
16 SBI 100 User Instructions Manual
3.9 Removing Hold
3.10 Print Function
For communications to a printer or PC, the indicator has to be setup in the following
parameters P2, P4, P5 and P6. Refer to Chapter 4.
Hold
Print
Hold
1.
2.
Hold
Print
3. Print
Gross: 45.00kg
Tare:
1.35kg
Net:
43.65kg
SBI 100 User Instructions Manual 17
4 User Configuration Settings
4.1 Setup Controls
4.2 Entering Setup
4.2.1 Selecting a Parameter
4.2.2 Changing Parameter Data
Moves flashing digit Change flashed digits Saves data and move down to next
parameter setting
Exits setup mode
Hold
Print
Units
Tare
On/Off
Zero
kg
kg
+
On/Off
Zero
Units
Tare
Units
18 SBI 100 User Instructions Manual
4.2.3 Saving Data
4.2.4 Exiting Setup
Tare
On/Off
Zero
ZERO
0
Table of contents
Other AGRI TRONIX Accessories manuals
