2agria Sweeper 7100 Cleanstar basic
Symbols, Name Plate
Symbols
Warning – Danger
Important information
Choke
Fuel
Oil
Engine Start
Engine Stop
Brush drive
Wheel drive
Slow
Fast
Open (unlocked)
Closed (locked)
è- Serviceç= contact
Your agria-workshop
Please complete:
MachineType No........................
Identification No....................
......................................................
Engine Type: ..............................
Engine No..................................
Date of Purchase: ......................
For name plate,
refer to p3/fig. B/12.
For engine type and number,
refer to p34/fig. C/7.
Please state these data when order-
ing spare parts to avoid wrong deliv-
eries.
Only use original agria spare
parts!
Specifications, figures, and dimen-
sionsstated in these instructionsare
notbinding.Noclaimscanbederived
from them. We reserve the right for
improvements without changing
these instructions.
Amount of delivery:
l
Operating instructions Cleanstar
basic
l
Operating instructions Honda
engine
l
Base machine

agria Sweeper 7100 Cleanstar basic 3
Fig. A

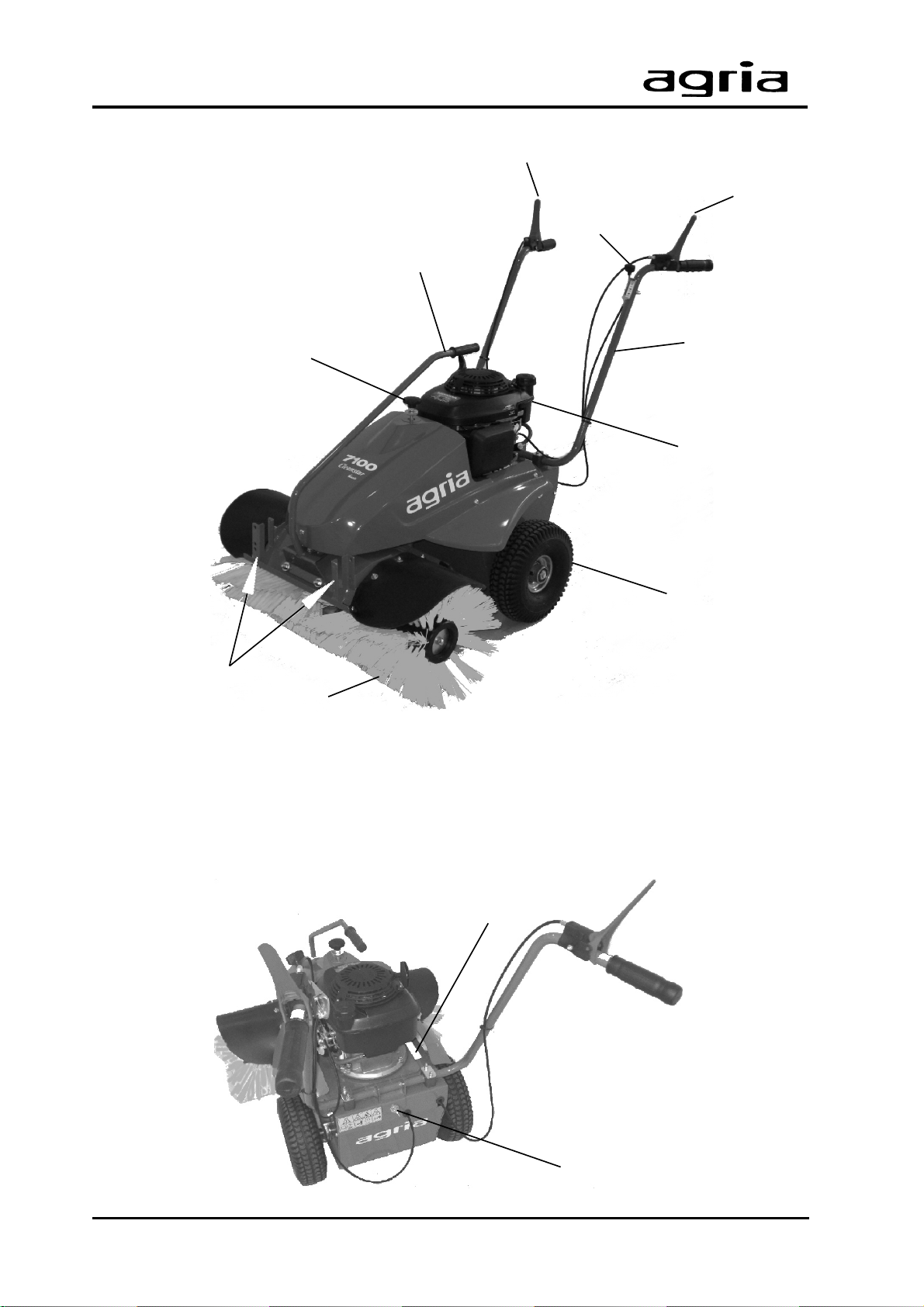

Designation of Parts
Fig. B
1
23
4
5
6
7
8
9
10
12
11

4agria Sweeper 7100 Cleanstar basic
Designation of Parts
Figures A and B
1Clutch lever for brush drive
2Speed control lever
3Clutch lever and safety circuit lever for wheel drive engagement
4Handlebars
5Engine
6Drive wheel
7Rotary brushes
8Coupling straps for implement attachment
9Control knob for brush height adjustment
10 Lifting rod
11 Clamping screw for handlebars adjustment
12 Name plate/identification-no.

agria Sweeper 7100 Cleanstar basic 5
Index
1
3
5
6
4
2
Amount of delivery.................. 2
Recommendations
Lubricants, Anti-Corrosive Agents .. 6
Fuel ................................................... 6
Maintenance and Repair.................. 6
Designation of Parts .......... 3, 34
Unpacking and Assembly ....... 7
1. Safety Instructions..........8-12
Due Use ........................................... 8
2. Specifications
Dimensions..................................... 13
Sweeper ......................................... 13
Noise Level..................................... 13
Vibration Acceleration Value........... 13
Engine ............................................. 14
Operation on Slopes ...................... 14
3. Devices and Operating
Elements
Engine............................................. 15
Safety Circuit Function ................... 16
Clutch.............................................. 16
Handlebars ..................................... 17
Rotary Brushes............................... 17
Sweeping Height Adjustment ......... 17
Side Adjustment ............................. 17
Accessoires .................................... 18
4. Commissioning and
Operation
Commissioning the Machine .......... 19
Starting the Engine ......................... 20
Shutting off the Engine ................... 21
Danger Zone................................... 22
Sweeping ........................................ 23
Snow Clearance ............................. 23
5. Maintenance
Drive ..........................................24
Drive Wheels .............................24
Safety Circuit .............................25
Clutch Play ................................25
Screen .......................................26
Air Cooling System....................26
Exhaust System........................26
Speed Control............................26
General......................................27
Cleaning.....................................27
Storage ......................................28
6.Troubleshooting ......30 - 31
Varnishes and Wear Parts........32
Inspection and
Maintenance Chart....................33
Conformity Declaration .... 35
Note fold-out pages!
Figures A and B .................. 3
Figure C.............................. 34

6agria Sweeper 7100 Cleanstar basic
Lubricants and
Anti-Corrosive Agents:
Use the lubricants specified for engine
and gearbox (see “Specifications”).
We recommend using Bio-lubricating
oil orBio-lubricating grease for“open”
lubrication points or nipples (as speci-
fied in the operating instructions).
WerecommendusingBio-slushing oil
to preserve machines and attachments
(do not apply on painted covers). You
can brush or spray the oil.
Anti-corrosive agents are environmen-
tally friendly and degrade fast.
Using ecologically safe Bio-lubricants
and Bio-anti-corrosives, you contribute
to environmental protection and to the
wellbeing of humans, animals and
plants.
Fuel:
This engine runs perfectly using
commercially available lead-free Nor-
mal and Super petrol (also E10) as
well as Super plus.
Do not add oil to petrol.
If, for environmental reasons, you
use unleaded petrol, make sure the
fuelis drained completely when shut-
ting down the engine for more than
30 days.This is to prevent resin resi-
duefromdepositinginthe carburetor,
fuel filter, and tank.Or add a fuel sta-
bilizer to the fuel.
For further instructions see “Engine
Preservation”.
Maintenance and
Repair:
The trained mechanics of your agria
workshop expertly carry out any
maintenance and repair work.
Youshouldonlycarryout major main-
tenance work and repairs on your
own, if you have the proper tools and
knowledge of machines and internal
combustion engines.
Do not hammer against the flywheel
with a hard object or metal tools as it
might crack and shatter in operation,
causing injuries and damage.Only
use suitable tools to pull off the
flywheel.
Recommendations

agria Sweeper 7100 Cleanstar basic 7
Unpacking
l
Open the box top.
l
Cut all corners open and fold down
the sides.
1. Raise the handlebars in
operating position
See page 17 for details.
2. Comissioning the machine
See page 19 for details.
Unpacking and Assembly

8agria Sweeper 7100 Cleanstar basic
Before starting the engine, read the op-
erating instructions and note:
Warning
Thissymbolmarks all paragraphswhich
affect yoursafety.Passall safety instruc-
tions to other users and operators.
Due Use
The sweeper, including the implements
approved by the manufacturer, is
constructed for normal use in cleaning
park and pathway areas, for gathering
and sweeping up loose dirt, and may
also be used as a snow-clearing
machine after it has been fitted with
suitable brushes and a rake blade (due
use).
Any other type of operation is consid-
ered undue.The manufacturer is not li-
able for any damages resulting from
undue use, for which the risk lies with
the user alone.
Due use includes compliance with
manufacturer’s instructions on opera-
tion, maintenance and repair.
Any unauthorized changes to the
sweeper render manufacturer liability
null and void.
General Instructions on
Safety and Accident
Prevention
Basic Rule:
The standard accident prevention regu-
lations must be adhered to, as well as
all other generally accepted rules gov-
erning operational safety, occupational
health and road traffic regulations.
For drives on public roads, the national
traffic code applies.
Accordingly,checkthesweeperforroad
and operational safety each time you
take up operation.
Only persons familiar with the sweeper
and instructed on the hazards of opera-
tion are allowed to use, maintain and
repair the sweeper.
Teenagers of 16 years or younger may
not operate the sweeper!
Only work in good light and visibility.
Operator’s clothes should fit tight.Avoid
wearing loose fitting clothes.Wear solid
shoes.
Note the warning and instruction signs
onthesweeper forsafeoperation.Com-
pliance is for your own safety.
When transporting the sweeper on ve-
hicles or trailers outside the area to be
sweeped, ensure that the engine is
turned off and the wheel dogs are
engaged.
Careful with rotating tools – keep at a
safe distance!
Beware of coasting tools.Before you
startanymaintenanceorrepair onthem,
waituntil tools have come toa complete
stop.
1. Safety Instructions
1

agria Sweeper 7100 Cleanstar basic 9
Riding on the machine during operation
is not permitted.
Implements and their weight affect the
driving, steering, braking, and tip-over
characteristics of the sweeper. There-
fore, ensure steering and braking func-
tions are sufficient. Match operating
speed to conditions.
Donot changesettingsofgovernor.High
engine speed increases risk of acci-
dents.
Working Area and Danger
Zone
The user is liable to third parties work-
ing within the sweeper’s working range.
Staying in the danger zone is not per-
mitted.
Check the immediate surroundings of
the sweeper before you start it. Watch
out for children and animals.
Careful! Dirt and stones may get air-
borne during sweeping.Peopleand ani-
mals must keep out of this area.Watch
outforvehicles,windowpanesandother
objects to avoid damage.
Before you start work, clear the area
from any foreign object. During opera-
tion,alwayswatchoutfor further objects
and remove them in time.
For operationin enclosed areas,ensure
that a safety distance is kept to enclo-
sures to prevent damage to tools.
Operation and Safety
Devices
BeforeYou Start the Engine
Become familiar with the devices and
operating elements and their functions.
Above all, learn how to turn the engine
off quickly and safely in an emergency.
Ensure that all protective devices are
mounted and positioned to provide pro-
tection.
Starting the Engine
Donotstartengineinclosedrooms.The
carbon monoxide contained in the ex-
haust fume is extremely toxic when in-
haled.
Before you start the engine set all oper-
ating elements to neutral or idling posi-
tion.
For starting the engine, do not step in
frontof thesweeperandthe implement.
Operation
Neverleavethe operator’spositionatthe
handlebars while sweeper is at work.
Never adjust the operating handles dur-
ing work – danger!
Duringoperationthe operatormustkeep
at a distance as defined by the handle-
bars, especially when turning the ma-
chine.
Riding on the machine during operation
or in transport is not permitted.
1. Safety Instructions
1

10 agria Sweeper 7100 Cleanstar basic
If clogging occurs in the brushes or in
the implement, turn off the engine and
cleanthebrushes or the implementwith
an appropriate tool.
In case of damage to the sweeper or to
the implement, immediately turn off the
engine and have it repaired.
If steering causes problems, immedi-
atelybring the sweepertoa halt andturn
it off.Have the malfunction removed
without delay.
To prevent the sweeper from sliding on
slopes, make sure it is secured by an-
other person using a bar or a rope.This
person must be located at a higher po-
sition than the vehicle and at a safe dis-
tance from the attachment at work.
If possible, always work horizontally on
the slope.
End of Operation
Never leave the sweeper unattended
with the engine running.
Before you leave the sweeper, turn off
the engine.
Secure sweeper against unauthorized
use - remove spark plug connector.
Implements
Only mount implements with the engine
and the implement drive switched off.
Always use appropriate tools and wear
gloves when changing implements and
parts thereof.
For mounting and dismounting imple-
ments bring stands into proper position
and ensure stability.
Secure sweeper and implements
against rolling off (wheel chocks).
Beware of injuries while coupling imple-
ments.
Mountimplementsasspecifiedandonly
couple at specified points.
Securesweeperand implement against
unauthorized use and rolling off when
you leave the machine.If necessary, in-
stall transport or security devices and
secure.
Weights
Always fit weights onto appropriate
weight mounting devices.
Snow Clearing
Ensure snow dozer is mounted cor-
rectly! Wear slip-proof shoes.
Whenpivoting thesnowdozerwatchout
for crush and shear points.Adjust work-
ing speed to conditions.Operator may
be injured when the machine hits an
obstacle.
1. Safety Instructions
1

agria Sweeper 7100 Cleanstar basic 11
Maintenance and
Cleaning
Never carry out any maintenance or
cleaning with the engine running.
Before you work on the engine, always
remove spark plug connector (petrol
engine only).
Check regularly and, if necessary, re-
place all guards and tools subject to
wear and tear.
Keep sweeper and implement clean to
avoid risk of fire.
Check nuts and bolts regularly for tight
fit and re-tighten, if necessary.
Aftermaintenanceandcleaning,ensure
that you re-install all safety devices and
guards and adjust them properly.
Only use original agria spare parts.All
other commercial spare parts must cor-
respondtoqualityandtechnicalrequire-
ments specified by agria.
Storage
It is not allowed to store the sweeper in
rooms with open heating.
Never parkthesweeperin closed rooms
with fuel left in tank. Fuel vapours are
hazardous.
Engine, Fuel, and Oil
Never let the engine run in closed
rooms. Extreme danger of intoxication!
Caution with hot engine parts!
The exhaust and other engine parts
become very hot, if the engine runs and
immediately after turning off. Hold for
sufficient distance from hot surfaces
and keep children away from the
running engine.
Becareful when dealing with fuel.Great
danger of fire! Never refill fuel close to
open fire, inflammable sparks or hot
engine parts.Do not refill fuel in closed
rooms.Do not smoke when refilling!
Refill only with the engine switched off
and cooled down.
Do not spill any fuel, use a proper filling
device.
Incase of fuelspillage,pullthe sweeper
away from the spillage before you start
the engine.
Make sure fuel is of specified quality.
Store fuel in approved cans only.
Store anti-corrosive agents and stabi-
lizing liquids out of reach of children. If
sickness and vomiting occur, see a
doctor.If fuel has contacted eyes, rinse
them thoroughly, avoid inhaling of va-
pours.
Read and observe enclosed instruc-
tions.
1. Safety Instructions
1

12 agria Sweeper 7100 Cleanstar basic
Before you dispose of opened and
seemingly empty pressurised tins (e.g.
ofassist-startingliquids)makesurethey
are completely empty.Empty them in
ventilated places safefromsparkforma-
tion or flames.If necessary, dispose of
tins in hazardous waste deposits.
Be careful when draining hot oil, dan-
ger of burns.
Makesureoil is of specified quality.Stor-
age is in approved cans only.
Disposeofoil,greases, andfilterssepa-
rately and properly.
Tyres and
Tyre Air Pressure
When working on tyres, make sure
sweeperisparkedproperlyand secured
against rolling off.
Any repairs are to be carried out by
trained mechanics only and with the
appropriate tools.
Regularly check tyre air pressure.
Excessive pressure may cause bursts.
Use appropriate tyre air pressure when
mounting weights or implements.
Electrical System and
Battery
Persons having a pacemaker must not
touch live parts of ignition system when
the engine is running.
1. Safety Instructions
Explanation of
Warning Signs
Before any cleaning, maintenance, and
repairwork switch off theengineandpull
spark plug connector.
With engine running, keep at a safe dis-
tance.Dirt and stones may get airborne
during sweeping. People and animals
must keep out of this area.
Signs
When working with the ma-
chine, wear individual protec-
tive ear plugs.
Wear protective gloves.
Wear solid shoes.
1

agria Sweeper 7100 Cleanstar basic 13
2. Specifications
Working width: ........................ 70 cm
Transmission:
Wheel drive: .......... tandem worm gear
.......................... with integrated clutch
... overrunning hub in the drive wheels
Ground speeds:
Forward travel ....................... 2.4 km/h
Brush drive:........................ worm gear
................................. with V-belt clutch
....... (idler pulley between engine and
.......................................... worm gear)
Brush speed ..........................339 rpm
Always use original agria V-belts
(see wear parts list on page 32)
Handlebars:
.................... for transport and storage
...................... adjustable without tools
Noise level:
Noise level: .......................... LpA 75 dB
in accordance with EN 11201 (at
operator’s ear)
sound power level in accordance with
EN ISO 3744:1995
:...............................
measured............................. LWA 95dB
guaranteed........................... LWA 96 dB
Vibration acceleration value:
on handlebar grip........ ahw = 3,02 m/s2
in accordance with 2002/44/EC
2.1 Sweeper
agria-Cleanstar
Weights:
Cleanstar basic 70 cm .. approx. 67 kg
Collector....................... approx. 11 kg
Snow dozer blade 80 cm approx. 15 kg
Tyres:..........4.00-4 (ø300) Lawn tyres
Tyre pressure: ........................ 1,8 bar
2
Dimensions:
a...................................... 650 mm
b...................................... 640 mm
c....................................................
h...................................... 980 mm
l...................................... 1380 mm
L Collector ...................................
L Snow dozer ..............................
A..................................... 700 mm
S...................................... 570 mm

14 agria Sweeper 7100 Cleanstar basic
2. Specifications
2.2 Engine
Manufacturer: ..........................Honda
Type: ............................ GCV 135 N2E
Version: ....................... Fan-air-cooled
1 cylinder-4-stroke
OHC engine (petrol)
Bore: ........................................ 64 mm
Stroke: ..................................... 42 mm
Piston displacement:.......... 135 ccm
Output: .................................... 3.4 kW
at 3600 rpm
Torque: ............................ max 9.7 Nm
at 2500 rpm
Spark plug: ...... NGK BPR6ES Bosch
Spark plug gap: ............... 0.7–0.8 mm
Ignition:
Transistor trip coil, contactless;
ignition point: 20° bef ore dead centre,
radio remote screened according to
VDE 0879
Valve lash (engine cold)
Intake: ........................0.15 ± 0.04 mm
Outlet: ........................0.20 ± 0.04 mm
Starter:..........................Recoil starter
Fuel tank capacity: ................... 1.1 l
Fuel:...........................Unleaded petrol
Octane number at least 91 RON
(also E10)
refer to fuel recommendations
in this manual
Fuel consumption: .................1.3 l/h
Air filter:................. Dry element filter
Carburetor:.............. Float carburetor
Throttle valve type
Mixture control screw: ... opened by
approx. 1 turn in base setting
Top no-load speed: ..........3250 rpm
Idling speed: ........... 1550–1850 rpm
Engine oil:
Filling quantity ............... approx. 0.55 l
Multi-grade oil SAE 10 W-40
SG, SF or higher quality grade
Operability on Slopes:
Engine is suited for use on slopes
(with oil level at “max” = upper level
mark)
Continuous operation possible up to
20° inclination (37 %)
2

agria Sweeper 7100 Cleanstar basic 15
3. Devices and Operating Elements
The agria Cleanstar sweeper is suited
for application in amenity areas and win-
ter road clearance. The following com-
ponents are available for sweepers:
l
Rotary brushes
70 cm agria item no.469 037
l
Collector agriaitemno.7194 211
l
Sprinkling assy
agria item no.6194 481
The following implements are available
for winter road clearance:
l
Snow dozer
80 cm agria item no.7196 011
Engine
The four-stroke petrol engine runs on
commercial petrol (refer to fuel recom-
mendations p6).
During the first 20 operating hours
(break-in period) do not operate the en-
gine at maximum speed.
Even after the break-in period never
operatethe engine at higher speedthan
is necessary for the work in hand.
IHigh engine speed is harm-
ful to any engine and consid-
erably affects its longevity. This ap-
plies especiallyfor no load operation.
Any overspeed (have the engine roar)
can result in immediate damage.
Cooling System
The engine is fan-cooled. Therefore
keep the grille on the recoil starter and
thecoolingfins on thecylindercleanand
free from sucked-in plant trash.
Idling-Speed
Always ensure that idling-speed is ad-
justed correctly.At low speeds and with
the speed control lever set to idle, the
engineissupposed to run smoothly and
without run-out.
Air Filter
The air filter cleans the air as it is in-
ducted. A clogged filter reduces engine
output.
Ignition System
The engine is equipped with a mainte-
nance-free, contactless electronic igni-
tion system. We recommend to have
necessary check-upsdonebyan expert
only.

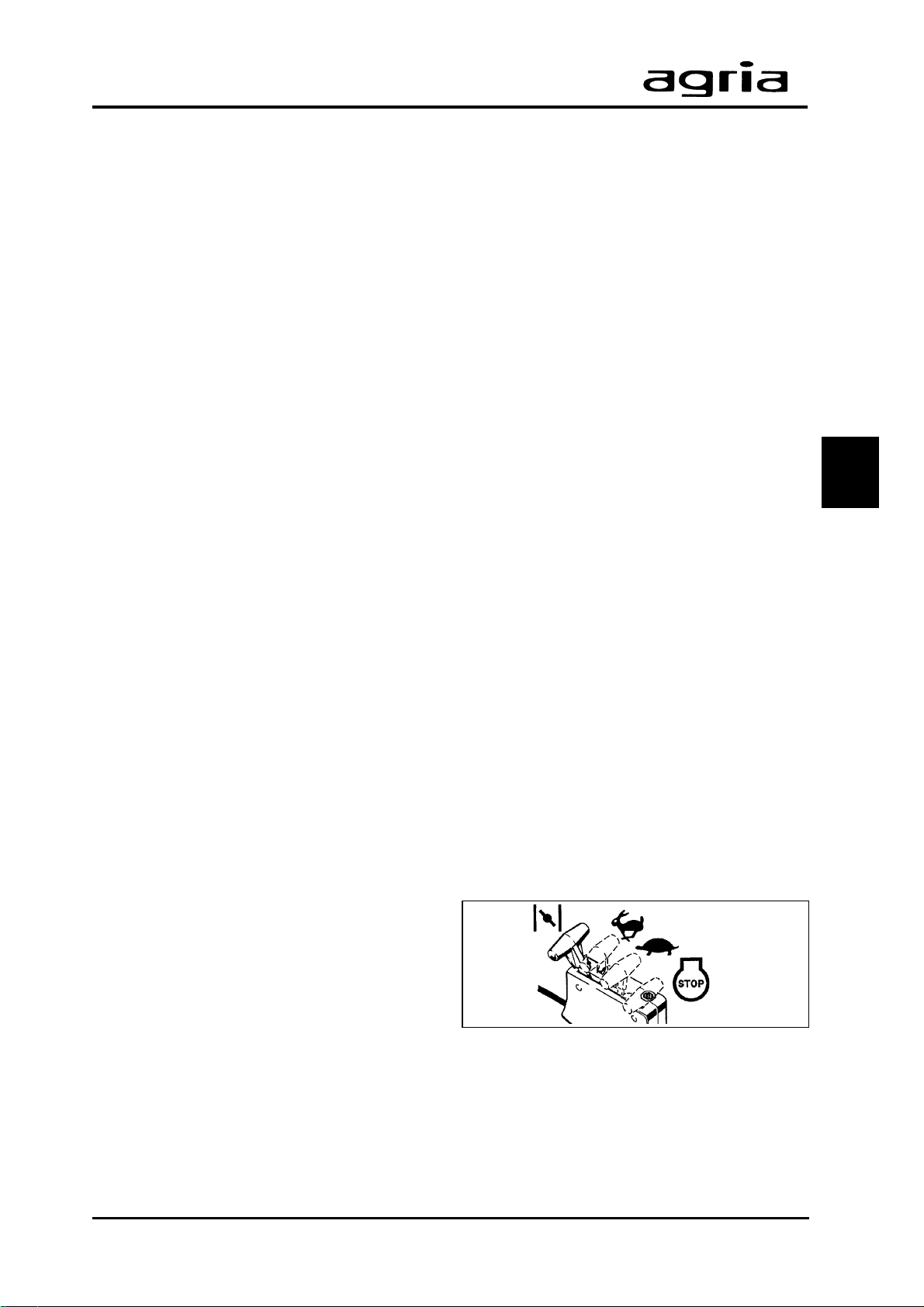

Speed Control Lever
(Engine-shut-off switch)
The speed control lever (A/2) on the
handlebar sets the engine speed
steplesslyandactuates the CHOKE and
the engine-shut-off switch. For the ap-
propriate positions see the illustration.
IThe speed control lever also
serves as engine safety circuit.
In an emergency move the lever to po-
sition "STOP" to shut off the engine
instantly.
3

16 agria Sweeper 7100 Cleanstar basic
3

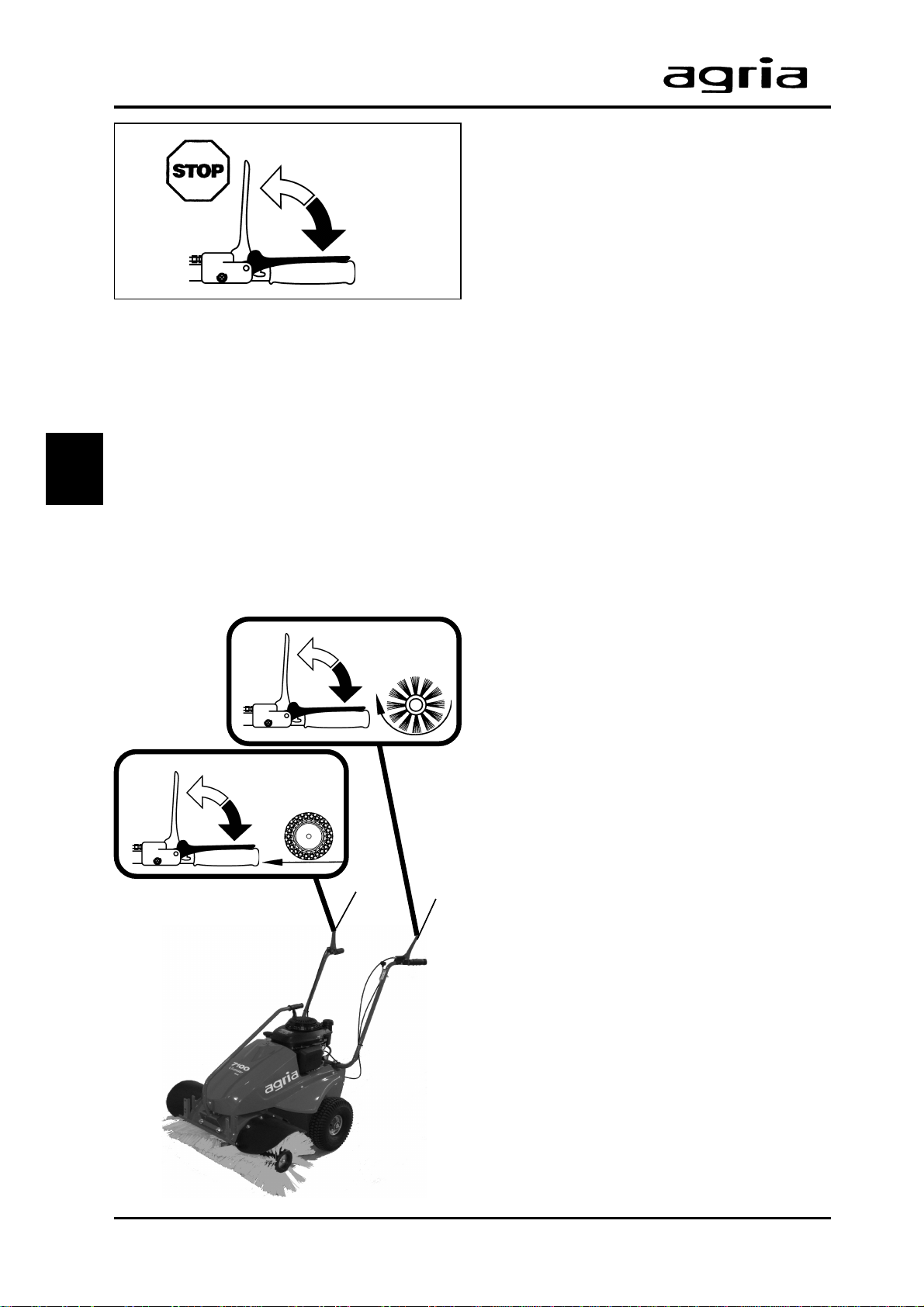

Safety Circuit Lever
The Cleanstar basic sweeper has a
safety circuit mechanism for wheel/
brush drives integrated in the clutch le-
ver.
l
Stop position: Release the clutch
levers (A/3 or A/1) to disengage either
drive.
WDo not tie down the safety
circuit lever.
IThesafety circuit leveralso serves
as engine safety circuit in an
emergency.Upon release, the lever will
automatically go to STOP position.
Clutch
Toengagethe clutch, depress the wheel
drive clutch lever (A/3) and the brush
drive clutch lever (A/1). Upon release,
theclutchleverswillautomaticallymove
to position “0” (drives are disengaged).
Each clutch is operated individually and
independently.
3. Devices and Operating Elements
A/1 A/3
0
0

agria Sweeper 7100 Cleanstar basic 17
3. Devices and Operating Elements
Handlebars
Handlebars adjustment for transport
and storage
l
Unscrew the clamping screw (A/11)
l
Fold the handlebars (A/4) forward
Handlebars adjustment in operation
position:
l
Unscrew the clamping screw (A/11)
l
Fold the handlebars (A/4) to the rear to a
complete stop
l
Re-tighten clamping screw (A/11) with nylon
washer (K) and metal washer (M)
Sweeping
Height adjustment
Thesweepingheight is altered by adjusting the
castor wheel.
l
Turn the control knob (A/9) to adjust the
wheel height.
l
Reduce the sweeping height only if
absolutely necessary (to the height of X) to
ensure clean sweeping and long service life of
the brushes.
Dirt, powder snow............. x = 2–3mm
Wet snow..................... x = max 8 mm
Side adjustment
The brush can be angled to the right or left to
sweep the rubbish or snow to one side.
l
Fold the rod(A/10)forwarduntilthenotches
are exposed.
l
Pivot the rod to turn the brushes to the left
or right.
l
Fold the rod (A/10) to the rear and down
again and mesh it into the proper notch.
IWhen operating without the collector the
brush can be angled to the left or to the
right, depending on which side the dirt is
intended to be swept.
3
A/10
A/9
K M A/11
3

18 agria Sweeper 7100 Cleanstar basic
3. Devices and Operating Elements
Accessoires
1. Attaching the Collector
l
Attach the collector by sliding its
coupling pins onto the coupling straps
(A/8) from the top front.
IWhen sweeping with the
collector the brush position
must be at 90° to the direction
of travel.
2. Emptying the Collector
l
Take the machine to the dump area
and lift up the collector by the frame –
thesweptup material will now drop from
the collector.
Alternatively:
l
Removethecollectorupwardsfrom its
coupling straps and carry it to the dump
area for emptying.
3. Attaching the Snow Dozer
l
Attach the snow dozer blade by slid-
ing its coupling pins onto the coupling
straps (A/8) from the top front and
secure with clip connector.
l
Operate the rod to pivot the blade like
the rotary brushes.
1.
2.
3

agria Sweeper 7100 Cleanstar basic 19
4. Commissioning and Operation
Commissioning the
Machine
Please note that durability and opera-
tional safety of the engine depend to a
large extent on its breaking-in. Always
allowa cold engine to warm up forsome
minutes and never run it at full throttle
at the beginning.Make sure the air filter
is serviced regularly and to use clean
fuel.
Please note: for the first 20 hours of
operation (break-in period) do not use
the engine at full power.
For this purpose, park the machine in
such a way that the engine is in a hori-
zontalposition.Foroilfillingquantityand
quality refer to “Specifications”.
Check the oil level after filling.
Each time you take up operation
Check the engine oil level:
l
Remove the oil fill plug (C/4).
l
Clean the oil dip-stick with a clean
rag, insert it again but do not screw it in.
l
Remove the dip-stick and read the
oil level. If necessary, fill engine oil up
to the level mark ”max”.
Ensure the oil fill plug is tightly screwed
into the filler neck during engine opera-
tion.
l
Check whether sufficient fuel is
filled into the tank.
Do not fill the fuel tank to the point of
spillage.Instead, top up fuel to the top
level mark to allow the fuel to expand.
WBe careful when dealing with
fuel.
l
Fuelis easily inflammableand explo-
sive in certain conditions!
l
Never refill close to open fire, inflam-
mable sparks or hot engine parts.
l
Do not refill in closed rooms.
l
Before each fuel fill, shut off the en-
gine and wait until it has cooled off.
l
Do not smoke during fill-
ing and keep away from
open fire and sparks.
l
Do not spill any fuel, use a proper
filling device.If fuel is spilled on the
ground, ensure the area is absolutely
dry and the vapours have evaporated
before you start the engine.
INote: For reasons of trans-
port, the engine is not filled
with engine oil!
Before you operate the
engine the first time, fill
in engine oil!
Top level mark
Oil fill plug
4

20 agria Sweeper 7100 Cleanstar basic
4
Starting the Engine
(with the engine in horizontal position)
4. Commissioning and Operation
4
l
Check whether all guards are in proper position.
WDo not start the engine in closed rooms. Exhaust fumes
contain carbon monoxide which acts toxic when inhaled.
Open the fuel tap (C/11).
Cold engine:
Setthespeedcontrollever(A/2) to“START”
(“CHOKE” ) position.
When the engine is warm or in hot
weather:
Movethespeedcontrolleverto1/3position.
Leavethe leverfor wheel drive (A/3)and
brush drive (A/1) in position “0” (start posi-
tion).
Leave the brushdriveengagementlever
(A/5 or B/5) in position “0” (start position).
Pull the starting-rope on handle (C/2)
untilyoufeelthestarter clutch engage.Then
pull hard and fast to start the engine.Af-
ter the start, let the rope glide back.Do not
let it snap.
WWarning: To start the engine,
step behind the handlebars and
pull the starter rope towards the rear.Keep
off the danger zone.
IFurther information on starting the
engine may be taken from the
engine operating instructions.
0
START
4
Table of contents
Popular Floor Machine manuals by other brands

IPC Eagle
IPC Eagle SC7 Operation manual

BETCO
BETCO CREWMAN AS20B Operator's manual

Clarke
Clarke MA50 15B CLARKE380B Instructions for use

Husqvarna
Husqvarna PG 530 Operator's manual

HAKO
HAKO PowerBoss Armadillo 6X user manual

Bissell
Bissell FMU-2000 Safety, operation and maintenance manual with parts list
