Agria 3400 User manual

Before commissioning the machine, read operating instructions
and observe warnings and safety instructions.
Operating Instructions No. 998 436GB-B 12.15
&
Operating Instructions
Translation of the original operating instructions
3247_1/4291_4
Versions with:
-Differential
- Steering Brake Clutch
-Petrol Engine EH 34
-Diesel Engine L100
Two-Wheel Tractor
agria 3400, 3400KL

2Two-Wheel Tractor agria 3400; 3400 KL
Please complete:
Machine Type No.: ......................
Identification No.: ........................
....................................................
Engine Type: ...............................
Engine No.: .................................
Date of Purchase: .......................
For name plate,refer to
p3/fig. A/17, p7/fig. C/17,
p11/fig. E/17, p15/fig. G/17.
For engine type and number,
refer to
p90/fig. J/17,
p94/fig. K/17 and K/13.
Please state these data when ordering
spare parts to avoid wrong deliveries.
Only use original Agria spare
parts!
Specifications, figures and dimen-
sions stated in these instructions are
notbinding.Noclaimscanbederived
from them. We reserve the right for
improvements without changing
these instructions.
This delivery comprises:
l Two-wheel tractor
l Tool kit
l Assembly hook ring for shifters
l Original operating instructions
l Original engine operating
instructions
l Machine identity card
(in connector cover on the outside of
the cardboard box).
Thecompletedmachineidentitycard
is to be sent back to Agria-Werke.
Symbols
Warning – Danger
Caution
Important information
Fuel Fuel filter
ChokeAir filter
Speed control
Engine StartEngine Stop
Clutch
Forward Reverse
Fast Slow
PTO
Differential lock
Brake Hand brake
Open Closed
Engine Oil Engine oil level
Transmission Oil
Transmission oil level
Oiling Greasing point
Lifting point Visual check
Wear protective gloves
Wear safety shoes
Wear ear plugs
èagria- Serviceç
= contact your agria-workshop
Symbols, Name Plate

Two-Wheel Tractor agria 3400; 3400 KL 3

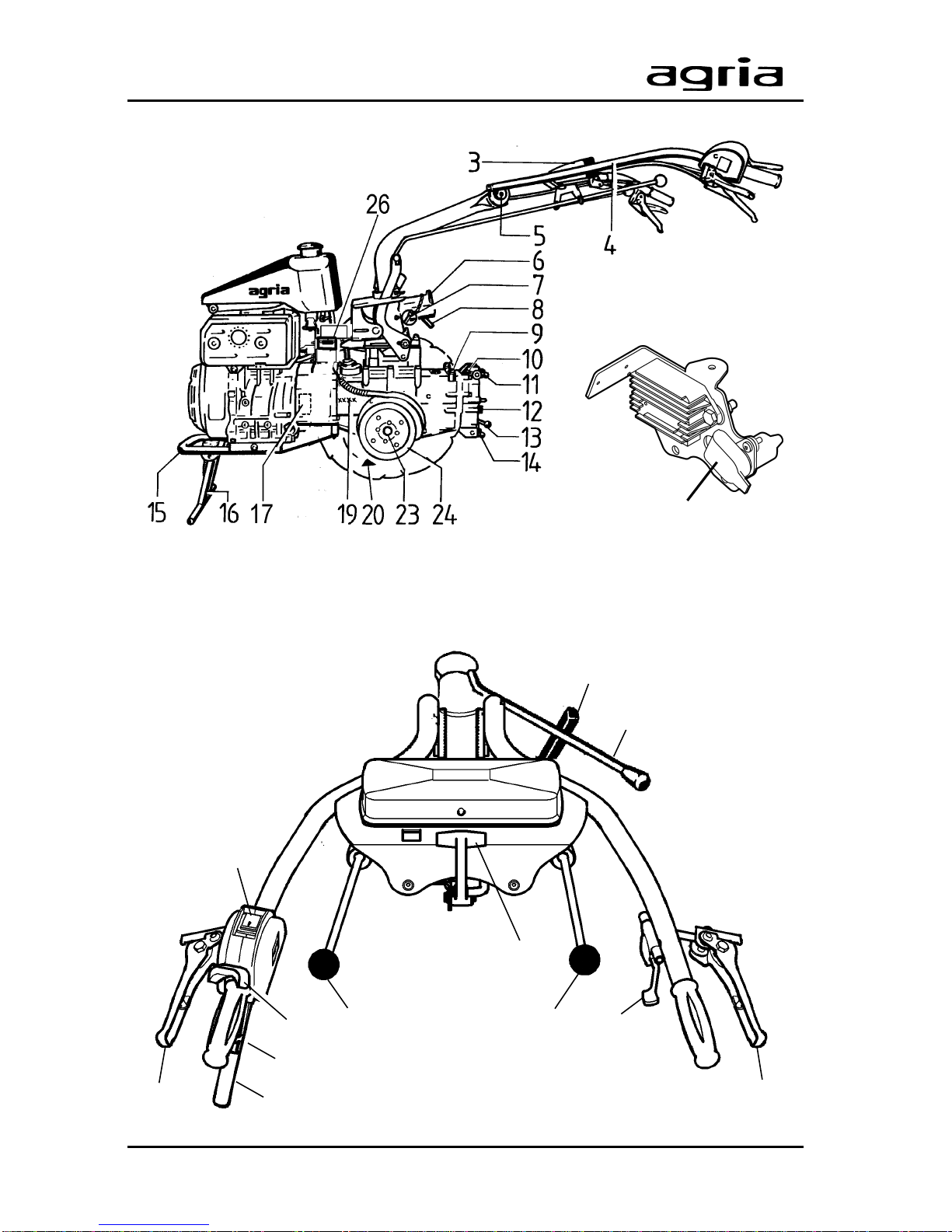

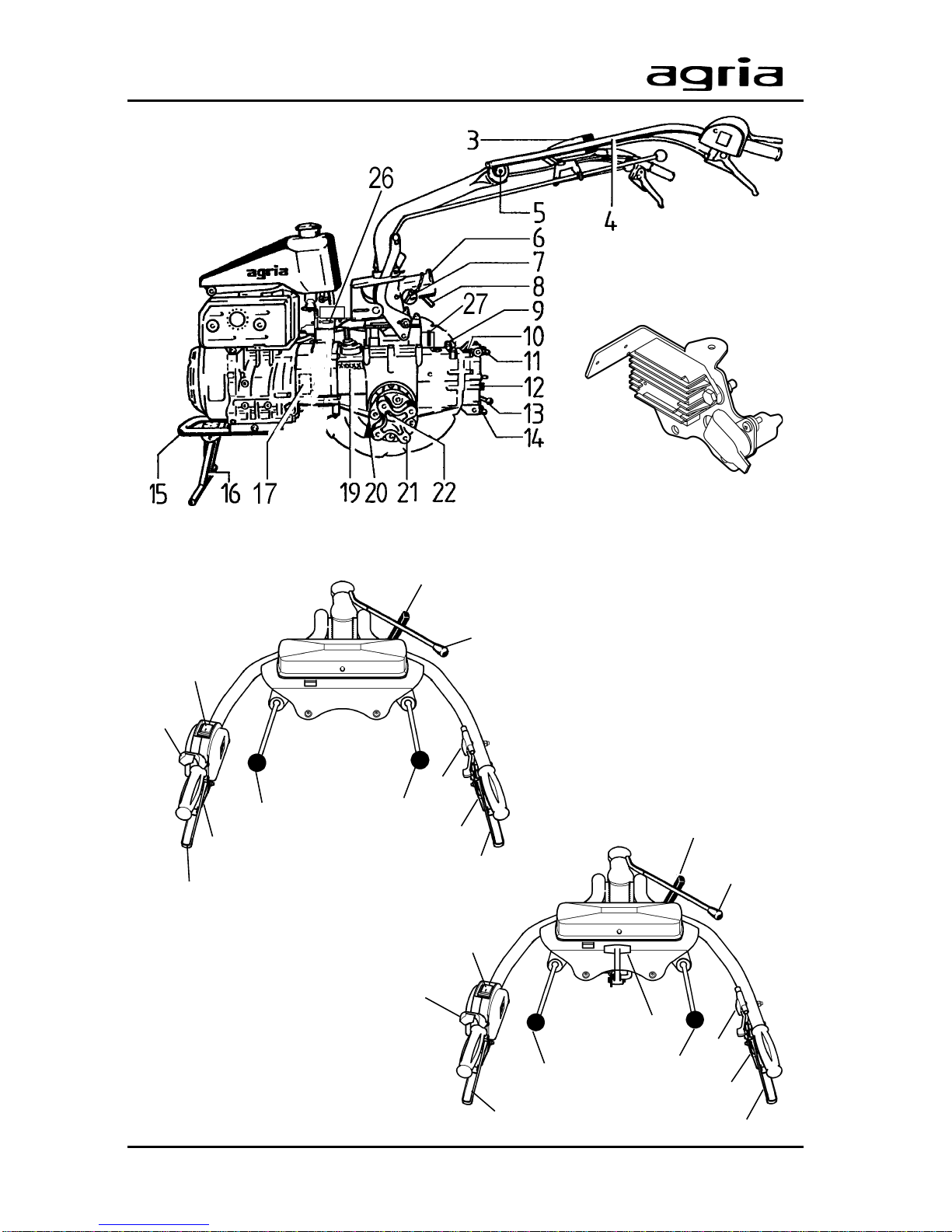

Figure A
Figure B
Designation of Parts:
Petrol Engine / Differential Version
5
1
2
3
4
8
9
10
7
11
6
Overdrive 14
1
2
3
4
5
8
9
10
711

4Two-Wheel Tractor agria 3400; 3400 KL
Figure A
3Tool kit
4Handlebar
5Clamping lever for height adjustment of steering handle
6Hitch (floating drawbar)
7Linch pin
8Plug
9Attachment bolts for wings and floating axle stop
10 Transmission oil filling opening and oil dip-stick
11 Eye bolt with cap nut, top
12 PTO
13 Link, PTO engagement
14 Eye bolt with cap nut, bottom
15 Weight mounting device and engine protection base
16 Stand
17 Name plate (on the right, in travel direction)
19 Machine identification no.(on right side, hammered into housing)
20 Oil drain plug, gearbox
21 Hub adapter
22 Attachment bolt
26 Operating hour counter
27 Disc brake
32 Socket (Accessory)
Figure B:
1PTO engagement lever
2Bar locking lever
3Engine Shut-off Switch
4Safety lever
5Clutch hand lever combined with brake and hand brake
6Pawl for clutch hand lever and hand brake
7Forward/Reverse ball handle
(with steering handle swivelled (front attachment) = Gear-shift ball handle)
8Gear-shift ball handle
(with steering handle swivelled (front attachment) = Forward/Reverse ball
handle)
9Speed control lever
10 Differential lock lever
11 Differential lock pawl
14 Brake lever for central hand brake (on "Overdrive" version only)
Designation of Parts:
Petrol Engine / Differential Version

Two-Wheel Tractor agria 3400; 3400 KL 5
3
5
6
2
1
4
Amount of Delivery........................... 2
Recommendations
Lubricants ......................................... 6
Maintenance and Repair .................. 6
Fuel ................................................... 9
Designation
of Parts.......... 3, 7, 11, 15, 90, 94
1. Safety Instructions....... 17–24
Due Use .......................................... 17
2. Specifications
Dimensions ..................................... 25
Machine .......................................... 26
Track Widths ............................. 27, 28
Petrol Engine .................................. 29
Diesel Engine ................................. 30
Operation on Slopes................. 29, 30
Vibration Acceleration Value........... 31
Noise Levels ................................... 31
3. Devices and Operating
Elements
Engine............................................. 32
Safety circuit ................................... 34
Clutch........................................ 34, 35
Central brake.................................. 35
Gearbox.......................................... 36
Differential Gear.............................. 37
Steering Brake Clutch .................... 38
PTO................................................. 39
Reversing Lock............................... 39
Loading Belt, Fixing Points............. 40
Steering Handle ....................... 40 - 42
Drive-Wheels ........................... 43 - 46
Front and Wheel Weights ............... 47
Stand .............................................. 47
Engine Cover .................................. 48
Fuse ................................................ 48
Battery, Electric Starter .................. 49
Mounting and Dismounting
Implements ..................................... 50
4. Commissioning and
Operation
Commissioning the Machine 52, 53
Starting the Petrol Engine .......... 52
Starting the Diesel Engine.... 54, 55
Shutting off the Petrol Engine .... 56
Shutting off the Diesel Engine.... 57
Operation .................................... 58
Danger Zone............................... 59
References for the Handling....... 61
Driving with Mounted Trailer 62 - 65
5.Wartung und Pflege
Petrol Engine .......................66 - 69
Diesel Engine ......................70 - 73
Machine ...............................74 - 82
Safety circuit ............................... 78
Adjustments on Levers ............... 78
Gaphic Symbols, General
Maintenance ............................... 81
Storage ....................................... 82
6. Troubleshooting ......83 - 85
7. Decommissioning,
disposal .............................. 86
Electrical Wirings .................87 - 89
Varnishes, Wear Parts ................ 91
Lubrication Chart........................ 92
Inspection and
Maintenance Chart..................... 93
Conformity Declaration ............... 95
Figs. A + B, Petrol Engine /
Differential Version .............. 3
Figs. C + D,Diesel Engine /
Differential Version .............. 7
Figs. E + F,Petrol Engine /
Steering Brake Clutch Vers. 11
Figs. G + H, Diesel Engine /
Steering Brake ClutchVers. .. 15
Fig. J,Diesel Engine .......... 90
Fig. K, Petrol Engine .......... 94
Index
7

6Two-Wheel Tractor agria 3400; 3400 KL
Lubricants and
Anti-Corrosive Agents
Use the specified lubricants for en-
gine and gearbox (see “Specifica-
tions”).
We recommend using bio-lubricat-
ing oil or bio-lubricating grease for
“open”lubricatingpointsor nipples(as
specified in the operating instruc-
tions).
Werecommendusingbio-slushingoil
for preservation of machines and im-
plements (do not apply on painted
external covers). Oil can be brushed
or sprayed on.
Anti-corrosive agents are environ-
mentally friendly and degrade fast.
Usingecologicallysafe bio-lubricants
and bio-anti-corrosives, you contrib-
ute to environmental protection and
to the wellbeing of humans, animals
and plants.
Maintenance and
Repair
Majormaintenanceand repairactions
may only be undertaken by trained
personnel who are capable of
carrying out professional repair and
maintenance work.
Minor maintenance and repair work
shouldonly beundertakenby yourself
if you possess the necessary tools
and training for machines and
combustion engines.
Only use genuine Agria replacement
parts.
Carry out a thorough functional test
after maintenance work.
Recommendations

Two-Wheel Tractor agria 3400; 3400 KL 7

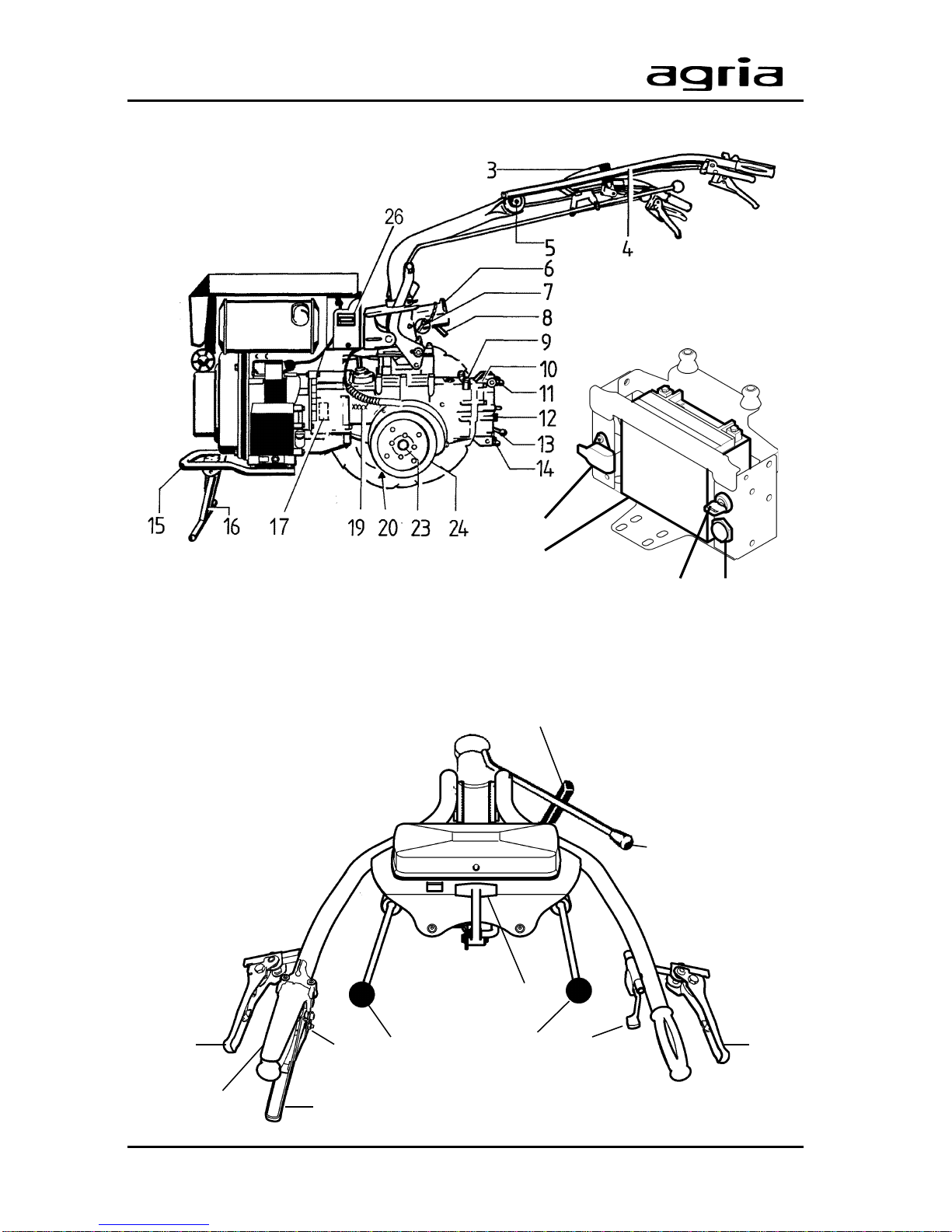

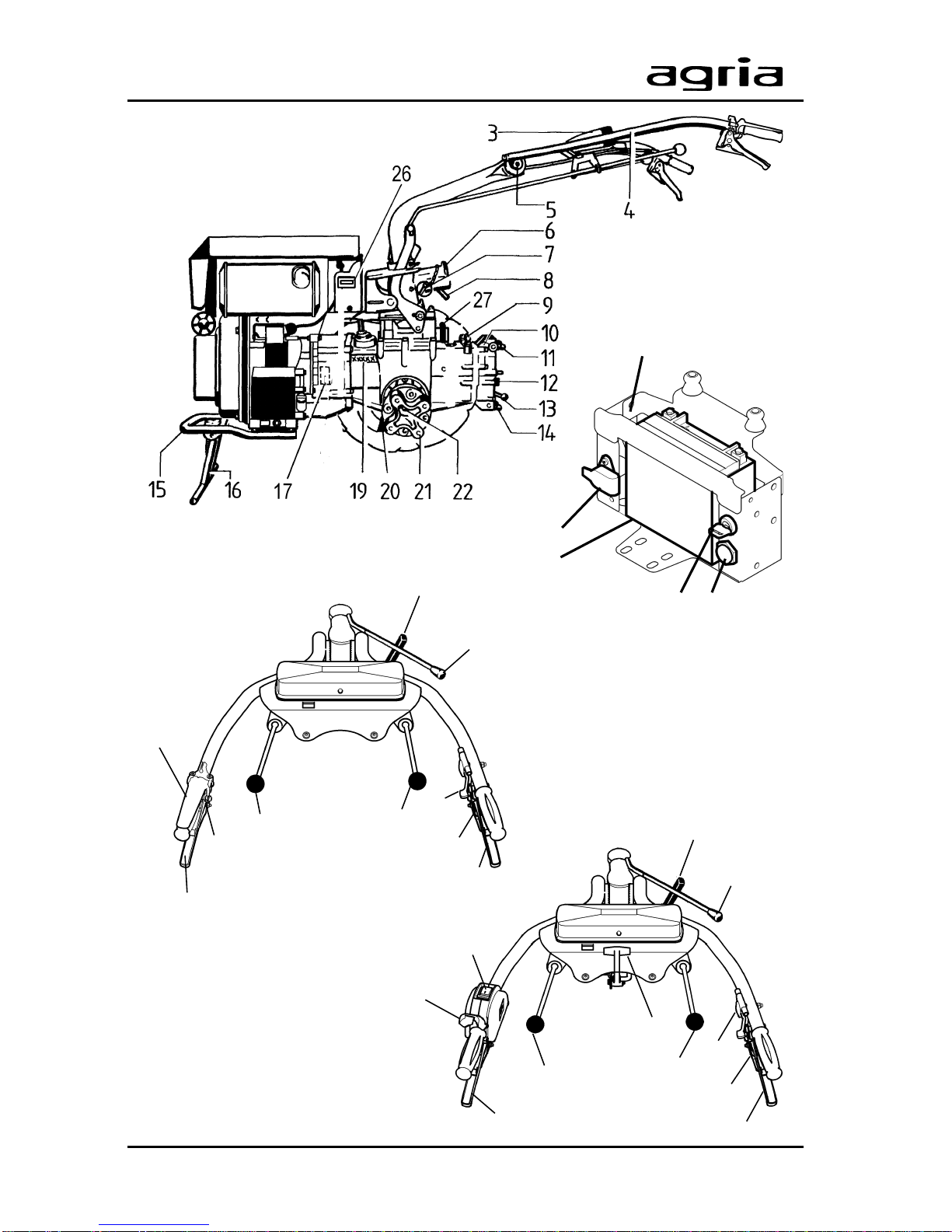

Figure D
Figure C
Designation of Parts:
Diesel Engine / Differential Version
32
33
34 35
31
5
1
2
4
6
8
9
10
7
11
14
1
2
3
4
5
8
9
10
711
Overdrive

8Two-Wheel Tractor agria 3400; 3400 KL
Figure C:
3Tool kit
4Handlebar
5Clamping lever for height adjustment of steering handle
6Hitch (floating drawbar)
7Linch pin
8Plug
9Attachment bolts for wings and floating axle stop
10 Transmission oil filling opening and oil dip-stick
11 Eye bolt with cap nut, top
12 PTO
13 Link, PTO engagement
14 Eye bolt with cap nut, bottom
15 Weight mounting device and engine protection base
16 Stand
17 Name plate (on the right, in travel direction)
19 Machine identification no.(on right side, hammered into housing)
20 Oil drain plug, gearbox
21 Hub adapter
22 Attachment bolt for hub adapters
26 Operating hour counter
27 Disc brake
32 Socket
33 Battery (on E-Start version only)
34 Start switch (on E-Start version only))
35 Battery charge control beeper (on E-Start version only)
Figure D:
1PTO engagement lever
2Bar locking lever
4Safety lever
5Clutch hand lever combined with brake and hand brake
6Pawl for clutch hand lever and hand brake
7Forward/Reverse ball handle
(with steering handle swivelled (front attachment) = Gear-shift ball handle)
8Gear-shift ball handle
(with steering handle swivelled (front attachment) = Forward/Reverse ball handle)
9Speed control lever
10 Differential lock lever
11 Differential lock pawl
14 Brake lever for central hand brake (on "Overdrive" version only)
Designation of Parts:
Diesel Engine / Differential Version

Two-Wheel Tractor agria 3400; 3400 KL 9
Petrol Engine
Robin EH 34 D
This engine runs perfectly using
commercially available lead-free Nor-
mal and Super petrol (also E10) as
well as Super plus.
Do not add oil to petrol.
If, for environmental reasons, you use
unleaded petrol, make sure the fuel is
drainedcompletelywhenshuttingdown
the engine for more than 30 days.This
is to prevent resin residue from depos-
itinginthecaburetor,fuelfilter,andtank.
Or add a fuel stabilizer.
For further instructions refer to “Engine
Preservation”.
Diesel Engine
Yanmar L100 AE
Thisdieselengine runs on conventional
diesel fuel of a min.cetane rating of 45.
Do not use diesel fuel oil substitutes,
they may be harmful to the fuel system.
Fuel should be free of water or dust.
Winter operation:
To ensure reliable winter operation use
“winter diesel fuel”, to be purchased at
filling stations.
At outside temperatures of below
-15°C, take the following additional pre-
cautions:
add commercial flow conditioners
or
add paraffine oil to depress diesel pour-
point:
Paraffine winter summer
oil: diesel diesel
fuel fuel
pour-point
50% app.-31°C app.-25°C
30% app.-26°C app.-15°C
10% app.-20°C app.- 9°C
As a last resort,youcanadd up to 30%
of regular petrol to avoid paraffine de-
posits.However, this has negative ef-
fects on consumption rate and perform-
ance.
Fuel Recommendations

10 Two-Wheel Tractor agria 3400; 3400 KL

Two-Wheel Tractor agria 3400; 3400 KL 11
Figure E
Figure F
Designation of Parts:
Petrol Engine / Steering Brake Clutch Version
1
2
3
5
8 97
13
4
6
14
12
32

12 Two-Wheel Tractor agria 3400; 3400 KL
Figure E
3 Tool kit
4Handlebar
5Clamping lever for height adjustment of steering handle
6Hitch (floating drawbar)
7Linch pin
8Plug
9Attachment bolts for wings and floating axle stop
10 Transmission oil filling opening and oil dip-stick
11 Eye bolt with cap nut, top
12 PTO
13 Link, PTO engagement
14 Eye bolt with cap nut, bottom
15 Weight mounting device and engine protection base
16 Stand
17 Name plate (on the right, in travel direction)
19 Machine identification no.(on right side, hammered into housing)
20 Oil drain plug, gearbox
23 Hex nut on hub
24 Steering brake clutch
26 Operating hour counter
32 Socket (Accessory)
Figure F:
1PTO engagement lever
2Spar locking lever
3Engine Shut-off Switch
4Safety lever
5Clutch hand lever
6Pawl for clutch hand lever
7 Forward/Reverse ball handle
(with steering handle swivelled (front attachment) = Gear-shift ball
handle)
8Gear-shift ball handle
(with steering handle swivelled (front attachment) = Forward/
Reverse ball handle)
9Speed control lever
2Steering brake clutch lever, left
13 Steering brake clutch lever, right
14 Central hand brake lever
Designation of Parts:
Petrol Engine / Steering Brake Clutch Version

Two-Wheel Tractor agria 3400; 3400 KL 13

14 Two-Wheel Tractor agria 3400; 3400 KL

Two-Wheel Tractor agria 3400; 3400 KL 15
Fig. G
Fig. H
Designation of Parts:
Diesel Engine / Steering Brake Clutch Version
32
3534
33
12
1
2
5
8 97 13
4
6
14

16 Two-Wheel Tractor agria 3400; 3400 KL
Fig. G:
3 Tool kit
4Handlebar
5Clamping lever for height adjustment of steering handle
6Hitch (floating drawbar)
7Linch pin
8Plug
9 Transmission oil filling opening and oil dip-stick
10 Attachment bolts for wings and floating axle stop
11 Eye bolt with cap nut, top
12 PTO
13 Link, PTO engagement
14 Eye bolt with cap nut, bottom
15 Weight mounting device and engine protection base
16 Stand
17 Name plate (on the right, in travel direction)
19 Machine identification no.(on right side, hammered into housing)
20 Oil drain plug, gearbox
23 Hex nut on hub
24 Steering brake clutch
26 Operating hour counter
30 Relay (E-Start version)
31 Fuse, relay under the cover (Recoil starter version)
32 Socket
33 Battery (on E-Start version only)
34 Start switch (on E-Start version only))
35 Battery charge control beeper (on E-Start version only)
Fig. H:
1PTO engagement lever
2Spar locking lever
4Safety lever
5Clutch hand lever
6Pawl for clutch hand lever
7 Forward/Reverse ball handle
(with steering handle swivelled (front attachment) = Gear-shift ball handle)
8Gear-shift ball handle
(with steering handle swivelled (front attachment) = Forward/Reverse ball
handle)
9Speed control lever
2Steering brake clutch lever, left
13 Steering brake clutch lever, right
14 Central hand brake lever
Designation of Parts:
Diesel Engine / Steering Brake Clutch Version

Two-Wheel Tractor agria 3400; 3400 KL 17
Before starting the engine, read the op-
erating instructions and note:
Warning
This symbol marks all paragraphs in
these operating instructions which af-
fect your safety.Pass all safety instruc-
tions to other users and operators.
Due Use
The machine meets both the current
state of the art and the safety
regulations applicable at the time of its
placing on the market within the terms
of its proper use.
The two-wheel tractor is a hand-
controlled automatic single-axle
machinewhichcan drive and/ or pull the
approved implement inaccordancewith
the Agria sales list (due use).
Any other type of operation is
considered undue.The manufacturer is
notliable foranydamagesresultingfrom
undue use, for which the risk lies with
the user alone.
When the two-wheel tractor is used on
public roads, the local national road
traffic rules must be observed, e.g.
reflectors, lights.
Due use includes compliance with
manufacturer’s instructions on
operation, maintenance and repair.
Any unauthorized changes to the two-
wheel tractor render manufacturer
liability null and void.
Themachineisintendedforcommercial
and personal use.
The machine must be operated by
trained personnel in accordance with
the rules given in the operating
instructions.
All forms of use not according to the
intended purpose and all forms of work
with the machine not described in these
instructions constitute an unauthorized
misuse and fall outside the limit of legal
liability of the manufacturer.
During usage not according to the
intended purpose:
- people are endangered,
- the machine and other assets of the
operator may be damaged,
- the functioning of the machine may be
impaired.
Reasonably predictable misuse
Predictableforms ofmisuseorimproper
handling are:
- removal or manipulation of the
protective and safety equipment
- use on slopes with engine types with
central steering brakes (KL)
- the use of non-approved attachments
- not keeping to service intervals
- a lack of measurement and testing for
the early recognition of damage
- a lack of replacement of worn parts
- incorrectly or poorly carried out
maintenance and repair work
- use not according to the intended
purpose
- working with defective electrical or
mechanical equipment
- transport and manoeuvring move-
ments with implements switched on.
1
1. Safety Instructions

18 Two-Wheel Tractor agria 3400; 3400 KL
General Instructions on
Safety and Accident
Prevention
Basic Rule:
The standard accident prevention regu-
lations must be adhered to, as well as
all other generally accepted rules gov-
erning operational safety, occupational
health and road traffic regulations.
For drives on public roads, the current
traffic code applies.
Accordingly, check the two-wheel trac-
tor for road and operational safety each
time you take up operation.
Only persons familiar with the tractor
and instructed on the hazards of opera-
tion are allowed to use, maintain and
repair the tractor.
Teenagers of 16 years or younger may
not operate the two-wheel tractor!
Only work in good light and visibility.
Operator’s clothes should fit tight.Wear
long pants.Wear
safety shoes .
Note the warning and instruction signs
on the tractor for safe operation. Com-
pliance is for your own safety.
When transporting the tractor on vehi-
cles or trailers outside the area to be
cultivated, ensure that theengineisshut
off.
Careful with rotating tools – keep at a
safe distance!
Beware of coasting tools.Before you
start anymaintenanceorrepaironthem,
waituntiltools havecometo a complete
stop.
Foreign poweredpartsshearandcrush!
Riding on the attachment during opera-
tion is not permitted.
Implements and their weight affect the
driving, steering, braking, and tip-over
characteristics of the tractor.Therefore,
ensure steering and braking functions
are sufficient.Match operating speed to
conditions.
Donot changesettingsof governor.High
engine speed increases risk of
accidents.
Working Area and Danger
Zone
The user is liable to third parties work-
ing within the tractor’s working range
(the whole of the area to be worked
upon).
Staying in the danger zone is not per-
mitted.
Check the immediate surroundings of
the tractor before you start it.Watch out
for children and animals.
Before you start work, clear the area
from any foreign object. During opera-
tion,alwayswatchoutfor further objects
and remove them in time.
Foroperationin enclosed areas,ensure
that a safety distance is kept to enclo-
sures to prevent damage to tools.
1. Safety Instructions
1

Two-Wheel Tractor agria 3400; 3400 KL 19
Operation and
Safety Devices
Before you start the engine
Become familiar with the devices and
operating elements and their functions.
Above all, learn how to turn the engine
off quickly and safely in an emergency.
Ensure that all protective devices are
mounted and positioned to provide pro-
tection.
Withnoimplementmounted,make sure
PTO-shaft is covered with the protec-
tive cap.
Starting the engine
Donotstart engine inclosedrooms.The
carbon monoxide contained in the ex-
haust fume is extremely toxic when in-
haled.
Before you start the engine set all oper-
ating elements to neutral or idling posi-
tion.
For starting the engine, do not step in
front of the two-wheel tractor and the
implement.
Do not use assist-starting liquids when
using electrical assist-starting devices
(jumper cable). Danger of explosion.
Operation
Never leave the operator’s position at
the steering handle while tractor is at
work.
Never adjust the operating handles dur-
ing work – danger!
During operation do not leave the op-
erator’s position at the steering handle,
especially not when you turn the ma-
chine.
Riding on the implement during opera-
tion or in transport is not permitted.
Ifcloggingoccurs in the implement,shut
off the engine and clean the implement
with an appropriate tool.
Incaseof damagetothe two-wheeltrac-
tor or to the implement, immediately
shut off the engine and have it repaired.
If steering causes problems, immedi-
atelybring thetwo-wheeltractortoahalt
and turn it off.Have the malfunction re-
moved without delay.
Depending on the state of the ground
(vegetation, dampness ...), special
footwear or crampons must be worn so
that the operator does not slip or fall.
To prevent the tractor from sliding on
slopes make sure it is secured by an-
other person using a bar or a rope.This
person must be located at a higher po-
sitionthan the vehicleatasafe distance
from the attachment at work.
If possible, always work diagonally to
the slope.Only turn uphill.
End of Operation
Never leave the two-wheel tractor unat-
tended with the engine running.
Before you leave the two-wheel tractor,
shutofftheengine.Thenclosefueltaps.
Secure two-wheel tractor against unau-
thorized use.If tractor is equipped with
ignitionkey,removethekey.Forall other
versions, remove spark plug connector.
1. Safety Instructions
1

20 Two-Wheel Tractor agria 3400; 3400 KL
Implements
Only mount implements with the engine
and PTO shut off.
Always use appropriate tools and wear
gloves when changing implements and
parts thereof.
For mounting and dismounting imple-
ments bring stand into proper position
and ensure stability.
Secure two-wheel tractor and imple-
ments against rolling off (parking brake,
wheel chocks).
Always switch off the working elements
when transporting or moving to neigh-
bouring areas.
Beware of injuries while coupling imple-
ments.
Hitch implements as specified and only
couple at specified points.
Securetwo-wheeltractorandimplement
against unauthorized use and rolling off
when you leave the machine.If neces-
sary, install transportorsecurity devices
and secure.
Hoeing Attachment
When hoeing and tilling on difficult
ground (stony, hard etc.) the machine
may give sudden jerking movements in
an upward and forward direction and
therefore extra care should be taken
under these conditions.
Adjustprotectivecoverofhoeingattach-
ment so that only those parts of tools
whichpenetratethe soilarenot covered.
When hoeing, make sure depth bar is
adjusted properly.
1. Safety Instructions
1
Mowing Implement
Handle with care! Sharp blades of the
cutter bar may cause injuries! Always
therefore wear protective gloves when
working on cutter blades.
Toexchangetheknife and to mount/dis-
mount the knife driver, make sure that
you turn screws away from cutting
blades.
For grinding the mowing knives, always
wear safety goggles and gloves.
Trailer
Trailer is allowed only with type 3400, it
is not allowed with type 3400KL.
The use of the two-wheel tractor with a
trailer on public roads requires an
operating licence for the two-wheel
tractor and for the trailer with the
appropriate equipment.
Make sure to not exceed permissible
tongueload oftrailerhitch, floatingdraw-
bar or hitch.
When coupling the drawbar, make sure
manoeuvrability at coupling point is suf-
ficient.
Do not exceed gross axle weight rating,
towing capacity and gross weights.
Before driving, checkbrakefunctionand
rear lighting for proper operation.
Regularly check brake systems closely.
Have adjustments and repairs on the
brake system carried out by a profes-
sional workshop or an authorized brake
service station only.
