Agria 5300 User manual

4238
Before commissioning the machine, read operating
instructions and observe warnings and safety instructions.
Operating Instructions No. 998 747-A12.11
&
- Honda Engine
- Robin Engine
Grassland MowerGrassland Mower
Grassland MowerGrassland Mower
Grassland Mower
53005300
53005300
5300
Operating InstructionsOperating Instructions
Operating InstructionsOperating Instructions
Operating Instructions
Translation of the original operating instructionsTranslation of the original operating instructions
Translation of the original operating instructionsTranslation of the original operating instructions
Translation of the original operating instructions

2agria Grassland Mower 5300
Symbols, Name Plate
Please complete:
Machine Type No.:......................
Identification No.:
...................................................
Engine Type:...............................
Engine No.:.................................
Date of Purchase: ......................
For name plate, refer to p3/fig. A/7.
For Engine type and number, refer to
p3/fig. B/6.
Please state these data when order-
ing spare parts to avoid wrong deliv-
eries.
Only use original agria spare parts!
Specifications, figures and dimen-
sions stated in these instructions are
notbinding.No claims can be derived
from them. We reserve the right for
improvementswithoutchangingthese
instructions.
This delivery comprises:
l Operating instructions
l Engine operating instructions
l Grassland mower –basic machine
l Handlebar with knob screw
l 1 pair of drive-wheels *
l Cutter bar *
l Tool kit
* = depending on machine version

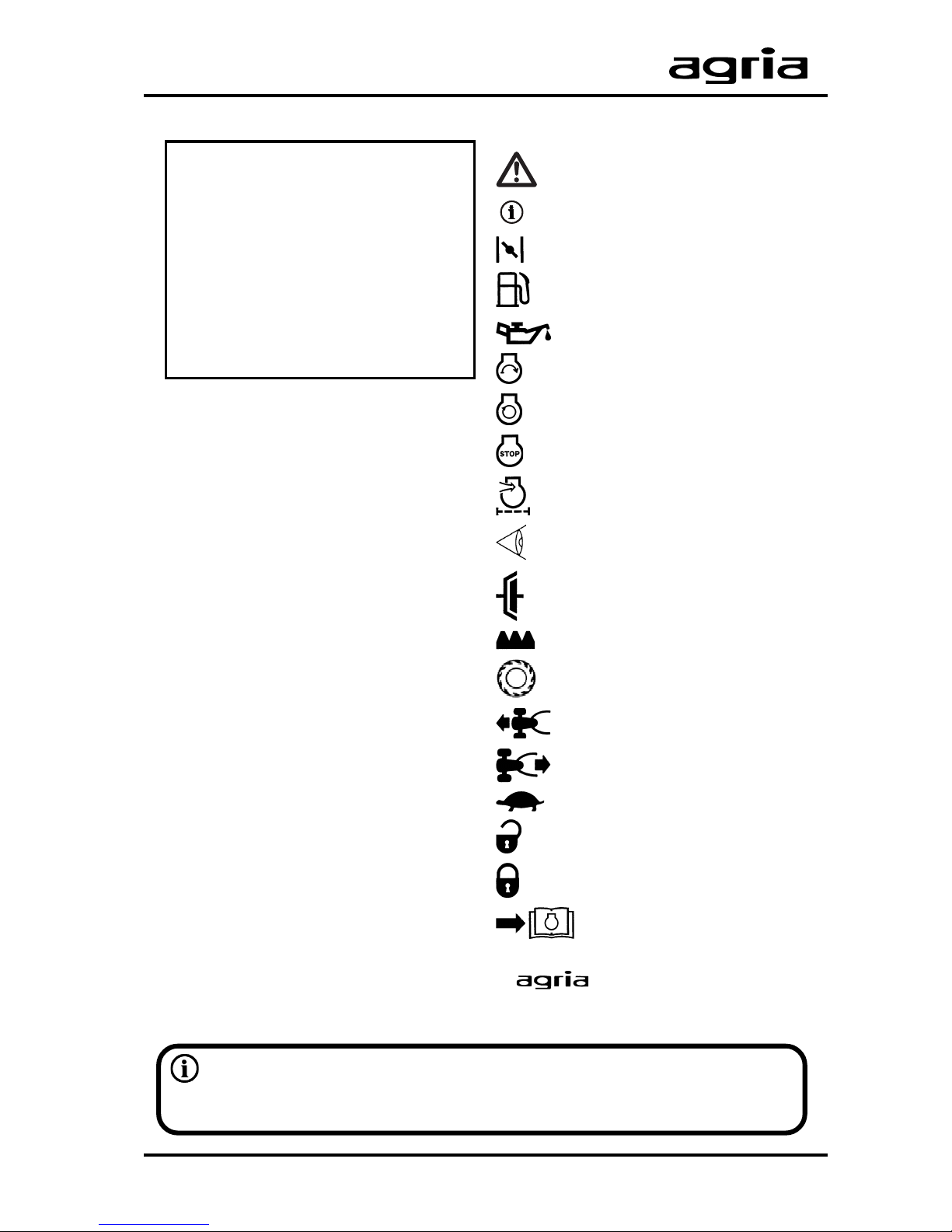

Symbols
Warning – Danger
Important information
Choke
Fuel
Oil
Engine Start
Motordrehzahl
Engine Stop
Air filter
Visual check
Clutch
Mowing drive
Wheel drive
Forward
Reverse
Slow
Open (unlocked)
Closed (locked)
see engine operating
instructions
è- Serviceç
= contactyour agria workshop
Please observe that only those activities of the engine are described here
which are required for operating the Grassland Mower.All other information on
the engine may be taken from the enclosed engine operating instructions!

agria Grassland Mower 5300 3
Designation of Parts
A
B
5
10
1
213 7 8
43
9
612 11
Honda Engine
Robin Engine

4agria Grassland Mower 5300
Designation of Parts
Figure A
1Cutter bar
2Running bases
3Knife driver
4Lubrication nipple for cutter bar carrier pin
5Lubrication nipple for crank roll
6Mowing drive hood
7Name plate/Machine identification no.
8Engine
10 Handlebar
11 Pulley and belt guard (V-belt clutch)
12 Interlocking bolt for cutter bar
13 Lubrication nipple for interlocking bolt
14 Transmission oil filler plug/control screw
15 Cap of transmission housing/Transmission oil drain opening
16 Drive-wheel
17 Detent spring for drive-wheel
Figure B
1Air filter
2Carburetor
3Fuel tank cap
4Fuel tank
5Choke lever
6Engine type no.
7Starter handle
8Cooling-air screen
9Exhaust with exhaust guard
10 Spark plug, spark plug connector
11 Engine oil filler plug – control opening
12 Engine oil drain screw
13 Fuel tap

agria Grassland Mower 5300 5
Index
3
5
6
2
1
4
Amount of Delivery..........................2
Symbols, Name Plate......................2
Designation of Parts ........ 3, 50
Recommendations
Lubricants, Anti-Corrosive Agents ..6
Fuel ..................................................6
Maintenance and Repair .................6
Instructions for
Unpacking and Assembly ..... 7
1. Safety Instructions...... 8 - 13
Due Use...........................................8
2. Specifications

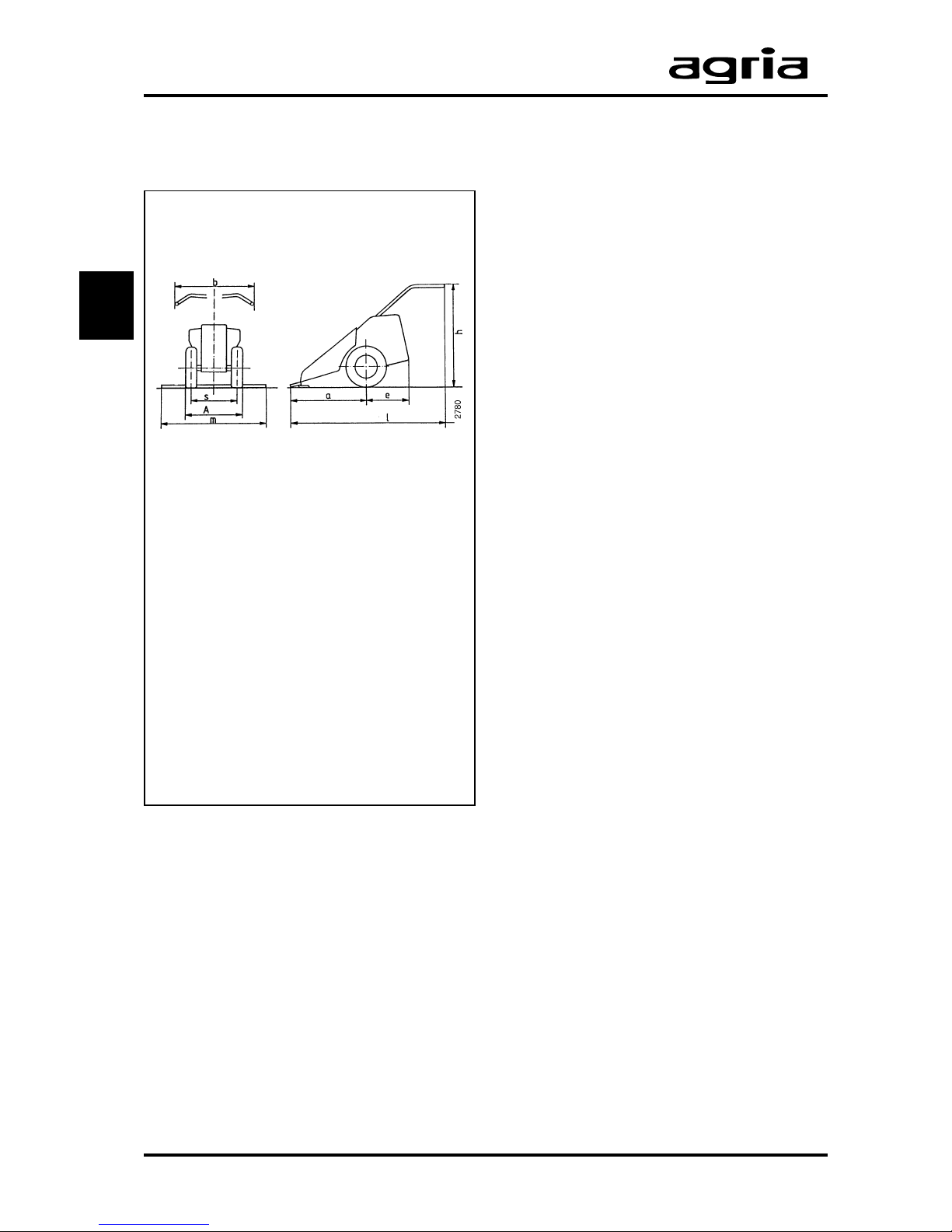

Dimensions ....................................14
Grassland Mower...........................14
Mowing Drive.................................14
Noise Level ....................................14
Vibration Acceleration Value..........14
Engine...................................... 15/16
Operation on Slopes................ 15/16
3. Devices and
Operating Elements
Engine............................................17
Safety Circuit .................................18
Travelling Drive..............................19
Clutch.............................................19
Mowing Drive.................................20
Steering Handle .............................21
Drive-Wheels .................................21
Cutter Bar ......................................25
4. Commissioning and
Operation
Commissioning the Machine .........27
Starting the Engine........................28
Shutting off the Engine ..................29
Mowing...........................................30
Danger Zone..................................31
Mowing on Slopes .........................31
5. Maintenance
Engine............................................32
Cooling System .............................33
Exhaust..........................................33
Speed Actuating Devices ..............33
Machine .........................................34
Drive-Wheels .................................34
Mowing Attachment .......................35
Universal-S Cutter Bar ..................36
Municipal Cutter Bar ......................37
Re-Grinding Mowing Knives ..........38
Safety Circuit .................................39
Adjustments on Hand Levers ........39
Adjusting V-Belt Tension ................40
General Maintenance ....................41
Cleaning.........................................41
Storage .................................. 42 - 43
6.Troubleshooting......... 44 - 45
ElectricalWiring,
Lubrication Chart................. 46
Varnishes,Wear Parts.......... 47
Inspection and
Maintenance Chart............... 48
Conformity Declaration ....... 51
Note fold-out pages!
Fig. A and B ............................ 3
Fig. C and D .......................... 50

6agria Grassland Mower 5300
Recommendations
Do not add oil to petrol.
If, for environmental reasons, you use
unleaded petrol, make sure the fuel is
drained completely when shutting down
the engine for more than 30 days.This
is to prevent resin residue from depos-
iting in the carburetor, fuel filter, and
tank.Or add a fuel stabilizer to the fuel.
For further instructions refer to “Engine
Preservation”.
Maintenance and Repair:
The trained mechanics of your agria
workshop expertly carry out any main-
tenance and repair work.
You should only carry out major main-
tenance work and repairs on your own,
if you have the proper tools and knowl-
edge of machines and internal combus-
tion engines.
Donothammeragainst theflywheelwith
a hard object or metal tools as it might
crack and shatter in operation, causing
injuries and damage.Only use suitable
tools to pull off the flywheel.
Lubricants and
Anti-Corrosive Agents:
Use the lubricants specified for engine
and gearbox (see “Specifications”).
We recommend using Bio-lubricating
oil orBio-lubricating grease for“open”
lubrication points or nipples (as speci-
fied in the operating instructions).
Werecommend using Bio-slushing oil
to preserve machines and attachments
(do not apply on painted covers). You
can brush or spray the oil.
Anti-corrosive agents are environmen-
tally friendly and degrade fast.
Using ecologically safe Bio-lubricants
and Bio-anti-corrosives, you contribute
to environmental protection and to the
wellbeing of humans, animals and
plants.
Fuel
This engine runs smoothly on commer-
cial unleaded regular and supergrade
petrol (including E10).

agria Grassland Mower 5300 7

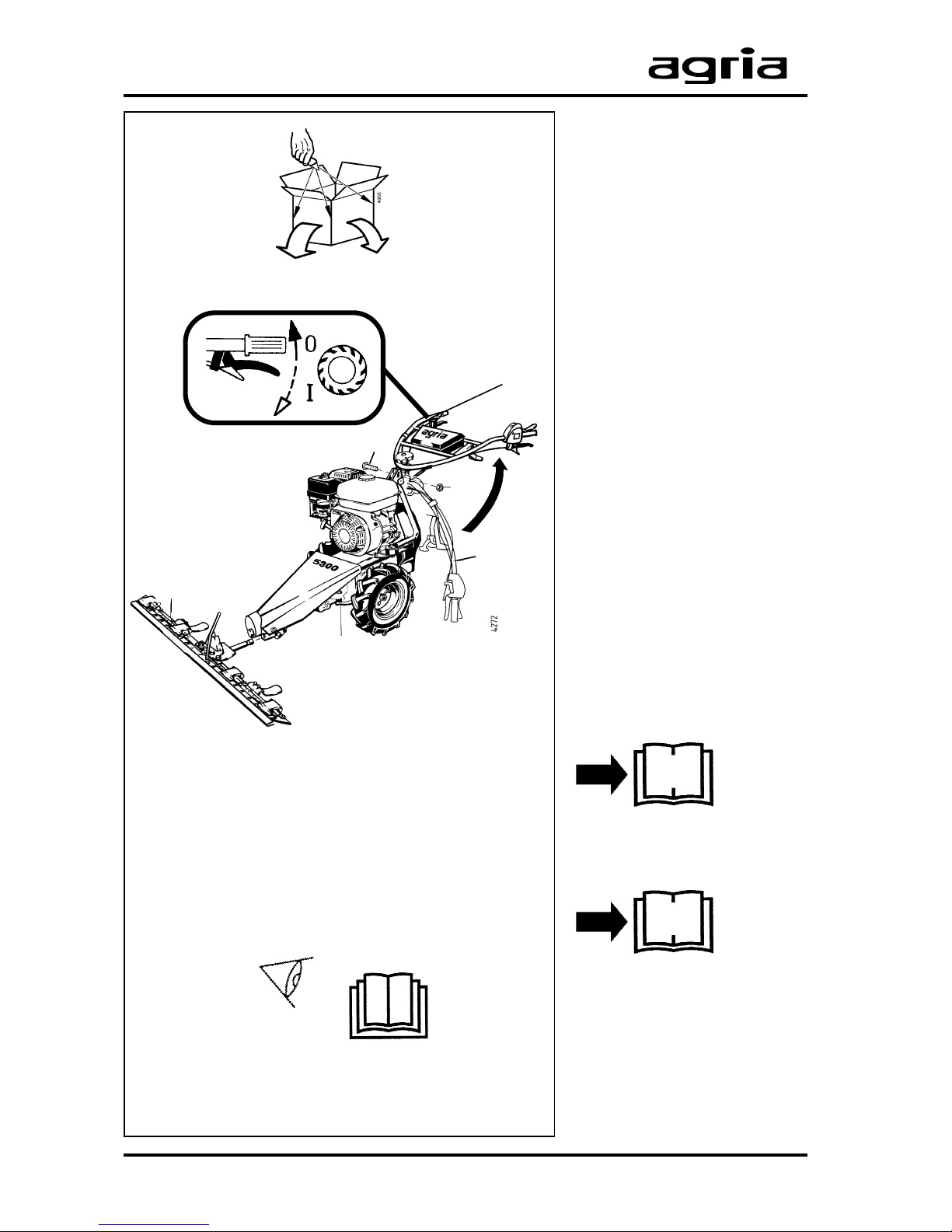

Instructions for Unpacking and Assembly
Open the box top.
l Cut the two rear corners
open and fold down the box
sides.
Fold the steeringhandle
upwards.
l Remove the hex head
bolt (3) and hex nut (4).
l Pivot the steeringhandle
(2) upwards, insert the hex
headbolt (3) into the appro-
priate holes, attach the hex
nut (4) and tighten it.
Move the wheel drive
engagementlever(6)topo-
sition 0 and lock it to disen-
gage the wheel drive. This
is to push the undriven ma-
chine.
l Pull the machine rear-
wards to remove it from the
box.
Attach the cutter bar (5),
Carry out the start-up
procedure


27
25


6
3
4
2
1
5


8agria Grassland Mower 5300
1. Safety Instructions
1
Before starting the engine, read the op-
erating instructions and note:
Warning
Thissymbolmarksallparagraphswhich
affectyoursafety.Passallsafety instruc-
tions to other users and operators.
Due Use
The grassland mower is constructed
solely for the cutting of grass and simi-
lar plants as well as thin non-wooded
scrub in land & forest management,
greenspaces, and othersuchareasand
may also be used as a snow-clearing
machine after it has been fitted with a
suitable rake blade (due use).
Any other type of operation is consid-
ered undue.The manufacturer is not li-
able for any damages resulting from
undue use, for which the risk lies with
the user alone.
When the grassland mower is used on
publicroads, the local national road traf-
fic rules must be observed, e.g. reflec-
tors, lights.
Thegrassland mowerisnotintendedfor
use with a trailer on public roads or as
as a tractive machine.
Due use includes compliance with
manufacturer’s instructions on opera-
tion, maintenance and repair.
Anyunauthorizedchangestothemower
render manufacturer liability null and
void.
General Instructions on
Safety and Accident
Prevention
Basic Rule:
The standard accident prevention regu-
lations must be adhered to, as well as
all other generally accepted rules gov-
erning operational safety, occupational
health and road traffic regulations.
For drives on public roads, the national
traffic code applies.
Accordingly,checkthe grasslandmower
forroad andoperationalsafetyeachtime
you take up operation.
Only persons familiar with the mower
and instructed on the hazards of opera-
tion are allowed to use, maintain and
repair the mower.
Teenagers of 16 years or younger may
not operate the grassland mower!
Only work in good light and visibility.
Operator’s clothes should fit tight.Avoid
wearing loose fitting clothes.Wear solid
shoes.
Note the warning and instruction signs
on the mower for safe operation. Com-
pliance is for your own safety.
When transporting the mower on vehi-
cles or trailers outside the area to be
mowed, ensure that theengineis turned
off.
Careful with rotating tools – keep at a
safe distance!

agria Grassland Mower 5300 9
1. Safety Instructions
1
Beware of coasting tools.Before you
startanymaintenanceorrepair onthem,
waituntil tools have cometo a complete
stop.
Foreign poweredparts shear and crush!
Riding on the attachment during opera-
tion is not permitted.
Implements and their weight affect the
driving, steering, braking, and tip-over
characteristics of the mower.Therefore,
ensure steering and braking functions
are sufficient.Match operating speed to
conditions.
Donotchangesettingsofgovernor.High
engine speed increases risk of acci-
dents.
Working Area and Danger
Zone
The user is liable to third parties work-
ing within the mower’s working range.
Staying in danger zone is not permit-
ted.
Check the immediate surroundings of
the mower before you start it.Watch out
for children and animals.
Before you start work, clear the area
from any foreign object. During opera-
tion,always watchout forfurtherobjects
and remove them in time.
For operationinenclosedareas,ensure
that a safety distance is kept to enclo-
sures to prevent damage to tools.
Operation and Safety
Devices
Before you start the engine
Become familiar with the devices and
operating elements and their functions.
Above all, learn how to turn the engine
off quickly and safely in an emergency.
Ensure that all protective devices are
mounted and positioned to provide pro-
tection.
Withno implement mounted, makesure
PTO-shaft is covered with the protec-
tive cap.
Starting the engine
Donot startengineinclosed rooms.The
carbon monoxide contained in the ex-
haust fume is extremely toxic when in-
haled.
Before you start the engine set all oper-
ating elements to neutral or idling posi-
tion.
For starting the engine, do not step in
front of the mower and the implement.
Operation
Neverleavetheoperator’spositionatthe
steering handle while mower is at work.
Never adjust the operating handles dur-
ing work – danger!

10 agria Grassland Mower 5300
1. Safety Instructions
1
During operationtheoperatormustkeep
at a distance as defined by the steering
handle, especially when turning the
machine.
Riding on the implement during opera-
tion or in transport is not permitted.
Ifcloggingoccurs in the implement, turn
off the engine and clean the implement
with an appropriate tool.
In case of damage to the grassland
moweror to the implement, immediately
turn off the engine and have it repaired.
If steering causes problems, immedi-
ately bring the mower to a halt and turn
it off.Have the malfunction removed
without delay.
To prevent the mower from sliding on
slopes, make sure it is secured by an-
other person using a bar or a rope.This
person must be located at a higher po-
sition than the vehicle and at a safe dis-
tance from the attachment at work.
If possible, always work horizontally on
the slope.
End of Operation
Never leave the mower unattended with
the engine running.
Before you leave the grassland mower,
turn off the engine.
Secure grassland mower against unau-
thorized use.If mower is equipped with
ignitionkey, remove the key.For allother
versions, remove spark plug connector.
Implements
Only mount implements with the engine
and PTO switched off.
Always use appropriate tools and wear
gloves when changing implements and
parts thereof.
For mounting and dismounting imple-
ments bring support leg into proper po-
sition and ensure stability.
Secure mower and implements against
rollingoff (parkingbrake,wheelchocks).
Beware of injuries while coupling imple-
ments.
Mountimplements as specifiedandonly
couple at specified points.
Secure mower and implement against
unauthorized use and rolling off when
you leave the machine.If necessary, in-
stall transport or security devices and
secure.
Mowing Attachment
Handle with care! Sharp blades of the
cutter bar may cause injuries! Remove
knife guards only for mowing and refit
immediately after work has finished.
For transportandstoragealways mount
the knife guards.Secure finger bars
additionally with tension springs.
Do not transport the dismounted cutter
bar without knife guards.

agria Grassland Mower 5300 11
1. Safety Instructions
1
Before mounting and dismounting the
cutter bar, make sure all blades are pro-
tected by the knife guard.
To exchange the mowing knife and to
mount/dismount the knife driver, make
sure that you turn screws away from
cutting edges.
For grinding the mowing knives, always
wear safety goggles and gloves.
Weights
Always fit weights onto appropriate
weight mounting devices.
Snow Clearing
Ensure snow dozer is mounted cor-
rectly! Wear slip-proof shoes.
When swivelling the snow dozer watch
out for crush and shear points.Adjust
working speed to conditions.Operator
may be injured when the mache comes
in contact with solid objects.
Maintenance
Never carry out any maintenance or
cleaning with the engine running.
Before you work on the engine, always
remove spark plug connector (petrol
engine only).
Check regularly and, if necessary, re-
place all protecting devices and tools
subject to wear and tear.
Replace damaged cutting tools.
Always wear safety gloves and use
proper tools when exchanging cutting
tools.
Do not carry out repairs like welding,
grinding, drilling, etc. on structural and
safety-relevant parts (e.g. coupling de-
vices)!
Keep mower and implement clean to
avoid risk of fire.
Checknutsandscrewsregularlyfortight
fit and re-tighten, if necessary.
Aftermaintenance and cleaning, ensure
that you re-install all safety and protec-
tive devices and adjust them properly.
Only use original agria spare parts.All
other commercial spare parts must cor-
respondto quality andtechnicalrequire-
ments specified by agria.
Storage
It is not allowed to store the mower in
rooms with open heating.
Never park the mower in closed rooms
with fuel left in tank. Fuel vapours are
hazardous.

12 agria Grassland Mower 5300
1. Safety Instructions
1
Engine,Fuel, and Oil
Neverlettheengineruninclosedrooms.
Extreme danger of intoxication! For the
same reason, also replace damaged
exhaust parts immediately.
Caution with hot engine parts!
The exhaust and other engine parts
become very hot, if the engine runs and
immediately after turning off.Hold for
sufficientdistance fromhotsurfacesand
keep children away from the running
engine.
Becarefulwhendealingwithfuel.Great
danger of fire! Never refill fuel close to
open fire, inflammable sparks or hot
engine parts.Do not refill fuel in closed
rooms.Do not smoke when refilling!
Refill only with the engine switched off
and cooled down.
Do not spill any fuel, use a proper filling
device.
In case of fuel spillage, pull the grass-
land mower away from the spillage be-
fore you start the engine.
Make sure fuel is of specified quality.
Store fuel in approved cans only.
For safety reasons the petrol tank and
fuel cap should be replaced regularly.
Store anti-corrosive agents and stabi-
lizing liquids out of reach of children. If
sickness and vomiting occur,see a doc-
tor.If fuel has contacted eyes, rinse
them thoroughly, avoid inhaling of va-
pours.
Read and observe enclosed instruc-
tions.
Before you dispose of opened and
seemingly empty pressurised tins (e.g.
ofassist-startingliquids) makesurethey
are completely empty.Empty them in
ventilated places safe from spark for-
mation or flames.If necessary, dispose
of tins in hazardous waste deposits.
Be careful when draining hot oil, dan-
ger of burns.
Makesure oil isofspecified quality.Stor-
age is in approved cans only.
Dispose of oil, greases, and filters
seperately and properly.
Tyres and
Tyre Air Pressure
When working on tyres, make sure
grassland moweris parkedproperlyand
secured against rolling off.
Any repairs are to be carried out by
trained mechanics only and with the
appropriate tools.
Regularly check tyre air pressure.Ex-
cessive pressure may cause bursts.
Use appropriate tyre air pressure when
mounting weights or implements.
Re-tighten attachment bolts of drive-
wheels or check tightness when doing
maintenance work.
Electrical System and
Battery
Persons having a pacemaker must not
touch live parts of ignition system when
the engine is running.

agria Grassland Mower 5300 13
1. Safety Instructions
1

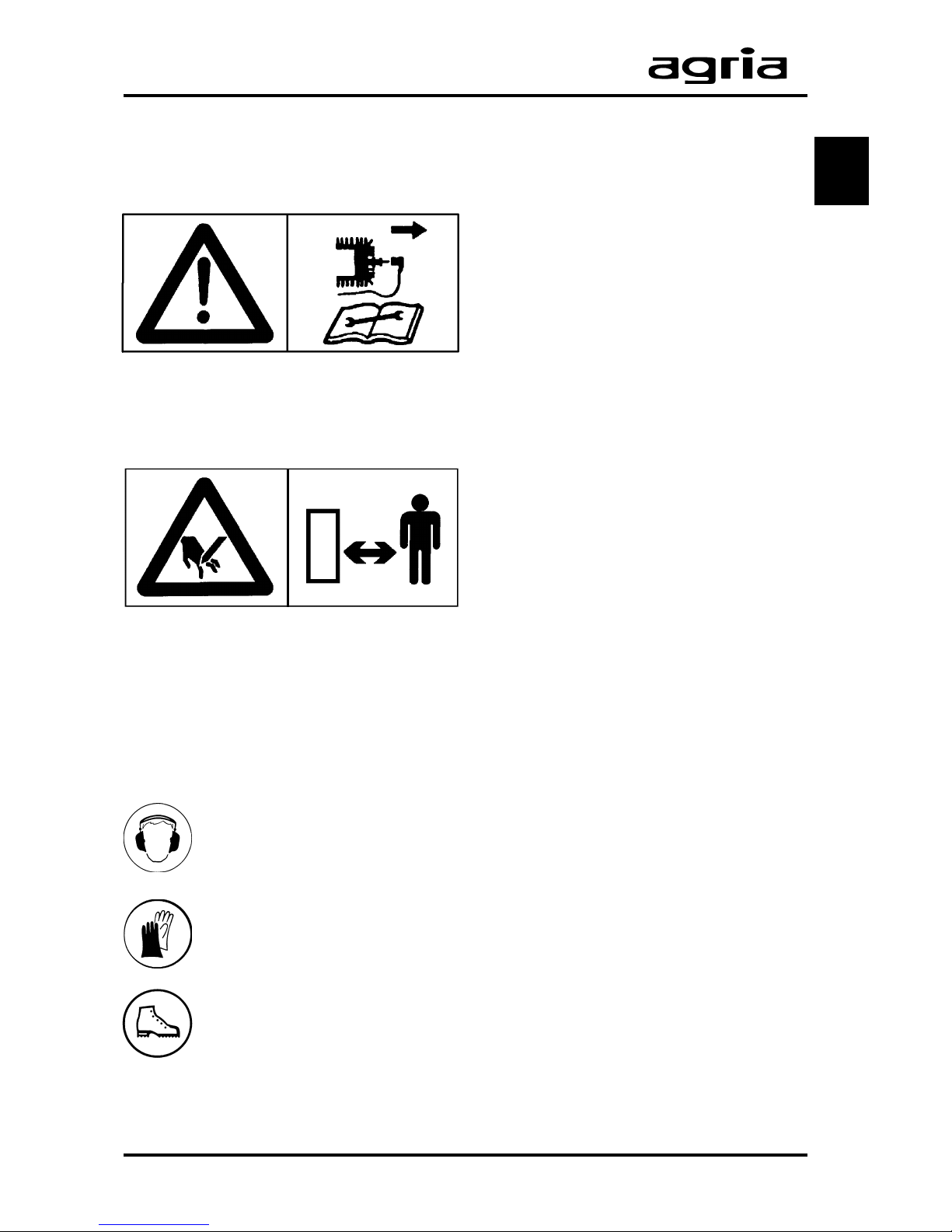

Explanation of
Warning Signs
Before any cleaning, maintenance, and
repair work switch off the engine and
pull spark plug connector.
With engine running, keep at a safe dis-
tance from cutting tools.
Signs
When working with the ma-
chine, wear individual protec-
tive ear plugs.
Wear protective gloves.
Wear solid shoes.

14 agria Grassland Mower 5300
2. Specifications
2
Clutch:
V-belt clutch with idler pulleys between
engine and transmission
Friction clutch for reverse
Only use original agria V-belts! (see
list of wear parts p47)
Transmission:...................Worm gear
with engageable wheel-drive
Transmission oil SAE 90-API GL5
Filling quantity.................. approx. 0.6 l
Travelling speed:
forward .................................. 3.0 km/h
reverse .................................. 2.3 km/h
Mowing drive:
Central crank drive,
Shaft speed............................920 rpm
Stroke, dyn................... approx 56 mm
Steering handle:
Vibration dampened,
height-adjustable,
side-adjustable without tools
Weight:
without cutter bar ...................... 70 kg
with cutter bar 105 cm ............... 84 kg
with cutter bar 122 cm ............ 89.5 kg
Noise level:
InaccordancewithEN12733andEN1553:
Noise level at operator’s ear ..............
.................................. Lp= 83.3 dB (A)
Sound level: .............LW= 103.3 dB(A)
Vibration acceleration value:
InaccordancewithEN12733andEN1033:
on handlebar grip:......... ahw = 9.6 m/s2
Machine Dimensions:
a........................................ 470 mm
b........................................ 630 mm
e........................................ 280 mm
h.............................. 860–1080 mm
l........................................ 1550 mm
m........................... 910 or 1050 mm
(depending on cutter bar version)
s......................................... 375 mm
s..................... twin-wheels 762 mm
A........................................ 525 mm
A.................... twin-wheels 857 mm
Grassland Mower
Tyres:.....................3.50 - 6 (field tyre)
Tyre air pressure: ................... 0.8 bar

agria Grassland Mower 5300 15
2. Specifications
2
Engine
Version: ....................... Fan-air cooled
1-cylinder, 4-stroke petrol ohv engine
Manufacturer: ..........................Honda
Mower type: 5300 441 5300 531
Engine type: GX 160 GX 200
K1 QPU QHQ4
Bore:65 mm 68 mm
Stroke:45 mm 54 mm
Cubic capacity: 163 ccm 196 ccm
Compression
ratio: 8.5 : 1 8.5 : 1
Output:
at 3,600 rpm 4.0 kW 4.8 kW
Max. torque:
at 2,500 rpm 10.8 Nm 13.2 Nm
Spark plug: ................ NGK BPR6 ES
Spark plug gap: ............... 0.7–0.8 mm
Ignition system:
Contactless solenoid ignition, ignition
point is pre-set, radio remote
screened according to VDE 0879
Valve lash (engine cold):
Intake: ............... 0.15 mm ±- 0.02 mm
Outlet: ............... 0.20 mm ± 0.02 mm
Starter:
Soft-pull recoil starter with mechanical
decompression facility
Fuel tank capacity: .................... 3.6 l
Fuel: ........................... unleaded petrol,
octane number at least 91 RON
(also E10)
refer to fuel recommendations
Air filter: ..................Dry element filter
with foamed preliminary filter
Carburetor: .......... Throttle valve type
Mixture control screw:
opened approx. 2 1/8 turns in base
setting
Rated speed: ........ 2,900...3,000 rpm
Top no-load speed: ...........3,000 rpm
Idling speed:...........1,250–1,600 rpm
Engine oil:
Filling quantity..................approx. 0.6 l
Multi-grade oil SAE 10 W-40
SG, SF or higher quality grade
Operability on Slopes:
max .................................... 30° (58 %)
(with oil level at “max“”= upper level
mark)

16 agria Grassland Mower 5300
2. Specifications
Engine
Version: ....................... Fan-air cooled
1-cylinder, 4-stroke petrol ohc engine
Manufacturer: ...........................Robin
Mower type: 5300 611
Engine type: EX21
Bore:67 mm
Stroke:60 mm
Cubic capacity: 211 ccm
Output:
at 3,600 rpm 4.8 kW
Max. torque:
at 2,500 rpm 13.9 Nm
Spark plug: .................. NGK BR6 HS
Spark plug gap: ............... 0.6–0.7 mm
Ignition system:
Contactless solenoid ignition, ignition
point is pre-set, radio remote
screened according to VDE 0879
Valve lash (engine cold):
Intake: ............... 0.15 mm ±- 0.02 mm
Outlet: ............... 0.20 mm ± 0.02 mm
Starter:
Soft-pull recoil starter with mechanical
decompression facility
2
Fuel tank capacity: .................... 3.6 l
Fuel: ........................... unleaded petrol,
refer to fuel recommendations
Air filter: ................. Dry element filter
with foamed preliminary filter
(DUAL-ELEMENT)
Carburetor: .......... Throttle valve type
Rated speed: ........ 2,900...3,000 rpm
Top no-load speed: ...........3,000 rpm
Idling speed:...........1,250–1,600 rpm
Engine oil:
Filling quantity..................approx. 0.6 l
Multi-grade oil SAE 10 W-40
SG, SF or higher quality grade
Operability on Slopes:
max .................................... 30° (58 %)
(with oil level at “max“”= upper level
mark)

agria Grassland Mower 5300 17
3. Devices and Operating Elements
The grassland mower agria 5100 is
suited for agricultural and forestal op-
erations, green spaces and for winter
service operation. The following cutter
bars are available:
l Universal SC cutter bar
105 cm (agria Item no.5347 751)
122 cm (agria Item no.5347 661)
l Municipal cutter bar
105 cm (agria Item no.5347 451)
Available attachment for winter service
operation:
l Snow dozer
100 cm (agria Item no.5396 012)
Engine
The four-stroke petrol engine runs on
commercial petrol (refer to fuel recom-
mendations p6).
During the first 20 operating hours
(break-in period) do not use engine to
maximum power.
Even after break-in period never use
engine at higher speed than necessary
for the work in hand.
IHigh engine speed is harm-
ful to any engine and con-
siderably affects its durability. This
applies especially for no load opera-
tion.Any overspeed (have the engine
roar) can resultin immediatedamage.
Cooling System
Thecoolingsystemis fan-cooled.There-
fore keep screen at recoil starter and
cooling fins of cylinder clean and free
from sucked-in plant trash.
Idle running speed
Always ensure that idling-speed is ad-
justed correcty. With the speed control
lever set to idle, the engine is supposed
to run smoothly and without run-out at
low engine speed.
Air Filter
The air filter purifies the air intake. A
clogged filter reduces engine output.
Ignition System
The engine is equipped with a mainte-
nance-free, contactless electronic igni-
tion system.
We recommend to have necessary
check-ups done by an expert only.
Choke
The choke lever (B/5) is on the carbure-
tor.Close the choke for cold starts.
Open the choke for warm starts
and operation.
Fuel tap
The fuel tap (B/13) is on the
carburetor.
3

18 agria Grassland Mower 5300
3. Devices and Operating Elements
3
Speed Control Lever
The speed control lever (C/9) on the
steering handle is for stepless setting
ofenginespeedfrommin.=idletomax.
= full throttle.
Engine Shut-off Switch
On pressing the electric shut-off switch
(C/3), the ignition is turned on or off.
Position “I” = Operation
Position “0” = Engine off
IThe engine shut-off switch also
serves to shut off the engine
in an emergency situation.Set the
switch to “0” for fast shut-off.
Safety Circuit
Stop position: When releasing the
lever (C/4), the ignition system is turned
off (engine is shut off). Beware – en-
gine keeps running due to centrifugal
mass.
Start position: (for starting the en-
gine and for short breaks) Press down
the safety circuit lever, pull the clutch
lever (C/5) and lock with pawl (C/6).
Operating position: To operate the
machine press safety circuit lever (C/4).
WDo not fasten safety circuit
lever.
IRelease the safety circuit lever in
an emergency situation, the lever
automatically goes to STOP position.
C/3
C/4
C/5



C/6
3
max min C/9

agria Grassland Mower 5300 19
3. Devices and Operating Elements
3

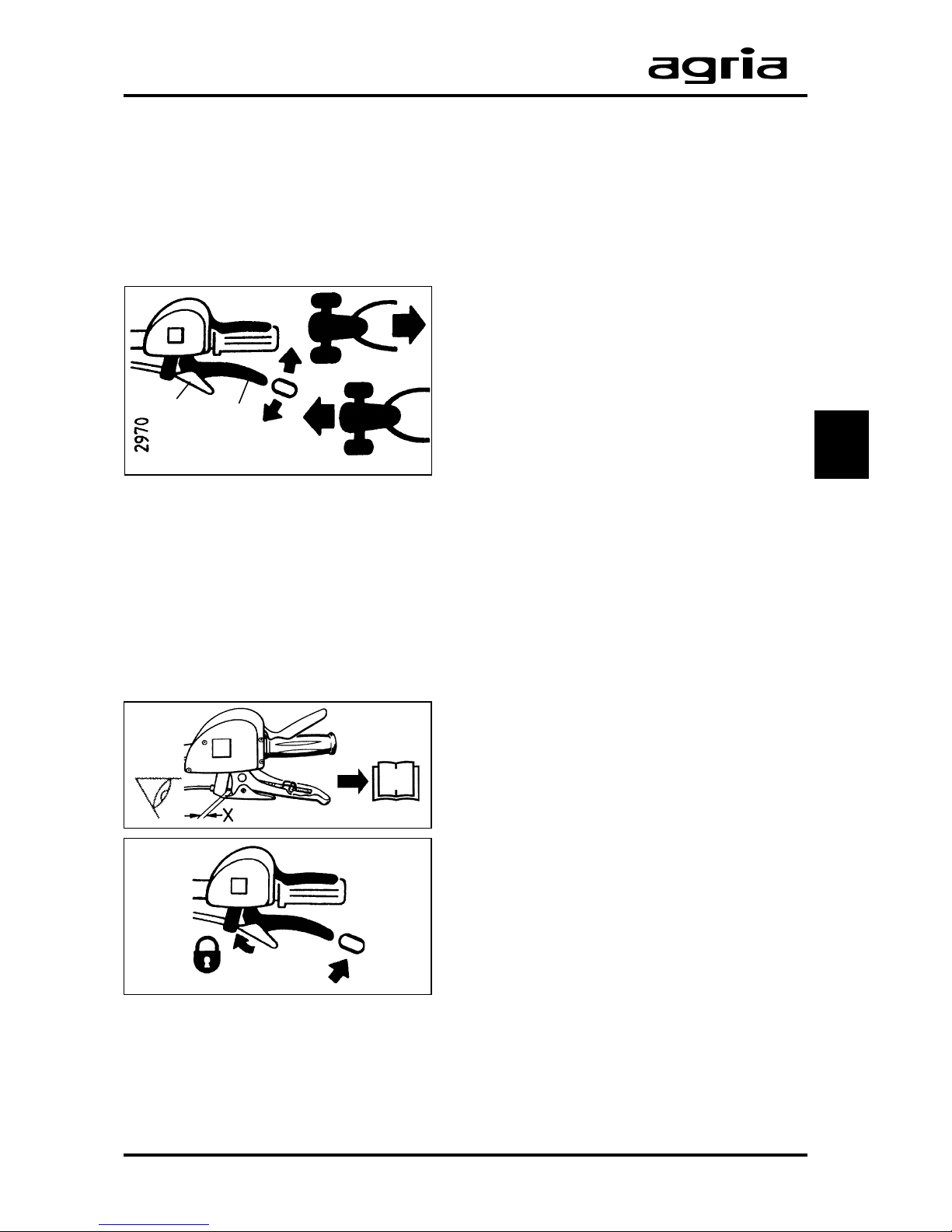

Travelling Drive
Forward – Reverse
The grassland mower is equipped with a
clutch-integrated FR-gearshift, whichisop-
erated via the hand clutch lever (C/5).
Travelling drive reverse speed:
Pull hand clutch lever (C/5) all the way up.
Travelling drive idling speed:
Pullhandclutchlever(C/5) approx.halfway
– lock pawl.
Travelling drive forward speed:
Move hand clutch lever downwards (C/5)
– unlock pawl.
Pawl (C/6) is for fastening the hand clutch
lever in neutral position (“0”).
Clutch
Watch for the correct clutch play (X) to
avoid clutch slipping away during opera-
tion.
INote: Always park mower with
hand clutch lever pulled (“0” –
pawl locked), otherwise clutch problems
may arise due to deformation of V-belt.
C/6 C/5
39

20 agria Grassland Mower 5300
3. Devices and Operating Elements
3

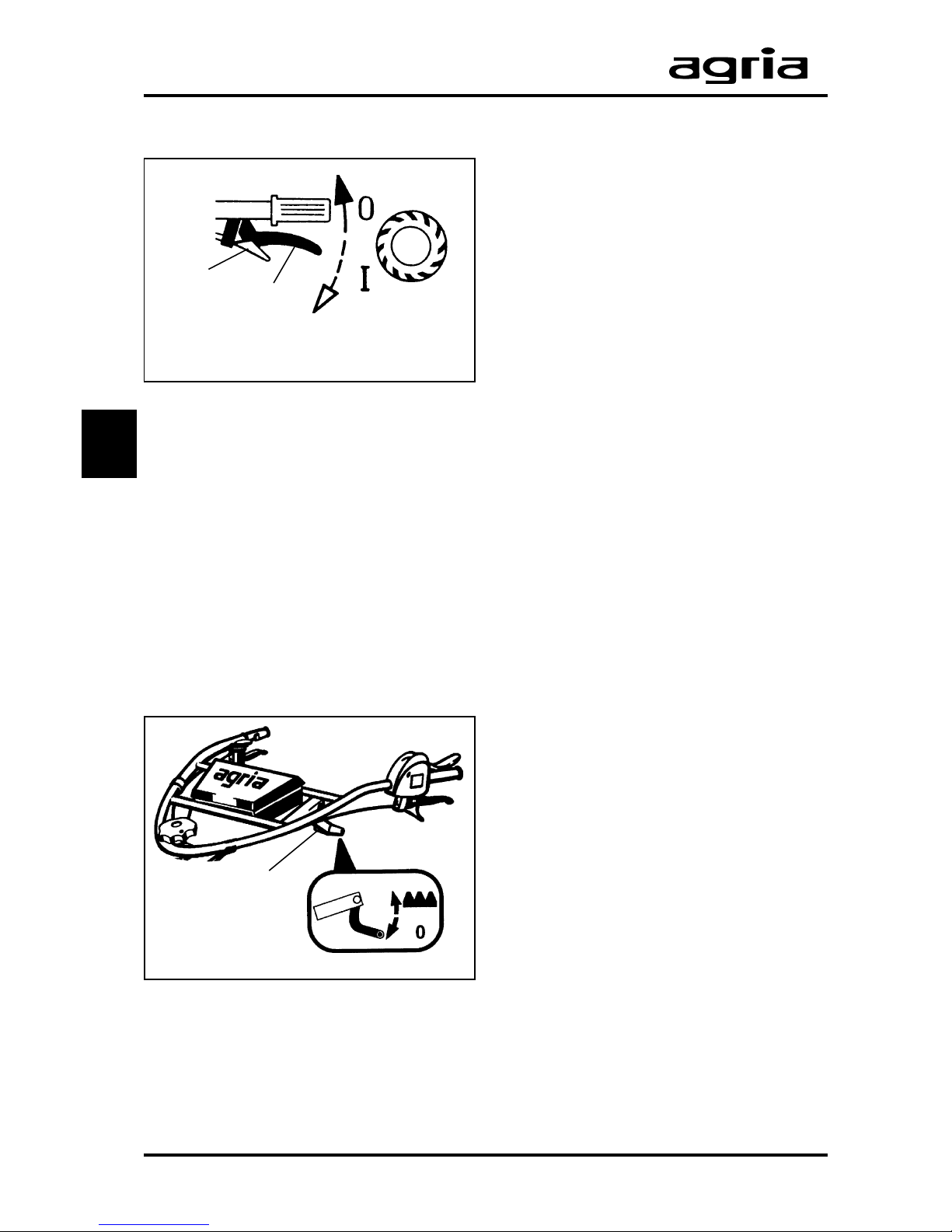

Wheel-drive
engaged:
Move hand lever for wheel-drive (C/11)
down – pawl (C/10) is locked.
disengaged:
Pull hand lever for wheel-drive (C/11)
upwards – pawl is unlocked.
With engine running, engage wheel-
drive as follows:
l Pull hand clutch lever (C/5) half way
(neutral) and hold.
l Unlock pawl (C/10).
l Move hand lever for wheel-drive
(C/11) downwards.
l Slowlyrelease handclutch lever(C/5)
while pressing the throttle.
Incase wheel-drivecannot be engaged,
couple and decouple. Then engage
wheel-drive.
Mowing Drive
The mowing drive is crank driven.
The mowing drive is engaged and dis-
engaged via the gear lever (C/7).
Only engage mowing drive when the
machine is decoupled (in neutral).
C/10 C/11
C/7
3
