Agria 8000 Quick guide

Translation of the original Operating In-
structions

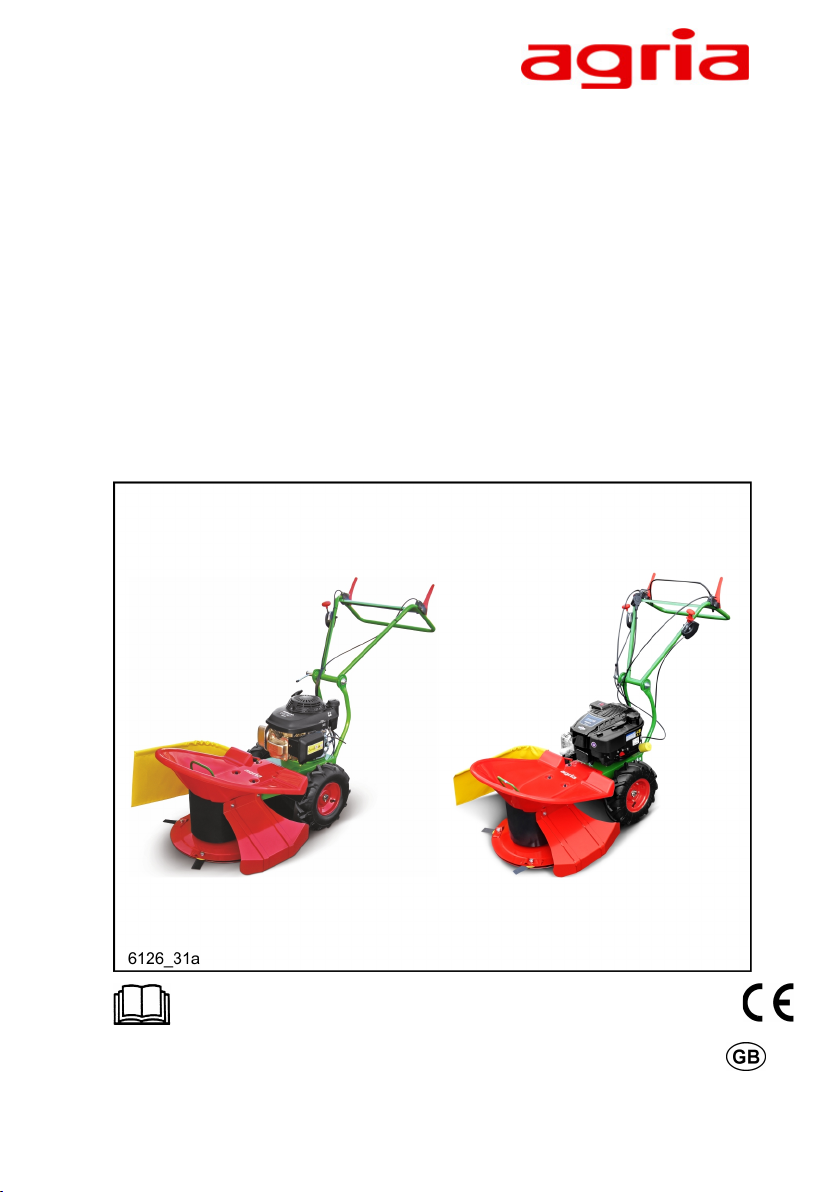

Brush mower
agria 8000
agria 8000 comfort
agria 8000 premium
8000 622, -641
Before commissioning please read the operating instructions
and note the safety and warning information!
Operating Instructions No. 998 489
01.21

2 agria 8000
Nameplate
Please enter here:
Machine art. no.: .............................................................
ID/machine no.: ..............................................................
Engine type: ...................................................................
Engine no.: .....................................................................
Date of purchase: ...........................................................
For nameplate see page 4, Fig. A/12
Motor type and motor no. see page 59, 61; Fig. B/7, C/7
Please provide this information for each spare parts order,
to prevent errors in delivery.
Only use genuine Agria spare parts!
The technical data, illustrations and dimensions provided in
these operating instructions are non-binding. No claims may
be derived from them. We reserve the right to make im-
provements without amending this manual.
Scope of delivery
(please check):
•Brush mower - basic unit
•Tarpaulin with holder
•Original Operating Instructions
•Original engine operating instructions
•Machine identity card
(in envelope on outside of box)
Please complete the machine identity card and re-
turn it to Agria-Werke.

Brush mower agria 8000 3
Symbols
Warning symbol, refer-
ence to danger point
Important information
Fuel
Choke
Engine
Engine start
Engine speed
Engine stop
Air filter
Engine oil level
Clutch
Mower drive
Wheel drive
Fast
Slow
Closed (locked)
Open (unlocked)
Visual inspection
Attachment point for re-
covery, lashing, towing
Wear protective gloves
Wear safety shoes
Fan cooling
Oil lubrication point
Grease lubrication point
Maintenance interval
Before each start-up
After each cleaning (in
particularly with a high-
pressure cleaner)
Annually
See separate engine op-
erating instructions
-agria-Service -= contact your agria
service centre

4 agria 8000
Designation of parts Fig. A

Brush mower agria 8000 5
Fig. A
1 Clutch lever for mower drive (safety device)
2 Clutch lever for travel drive (safety device)
3 Speed control lever
4 Handlebars
5 Toggle nut
6 Engine
7 Front cover (protective device)
8 Tarpaulin (protective device)
9 Mower rotor
10 Mower blade
11 Driving wheel
12 Nameplate / ID no.
13 Gear shift bracket
14 Tail guard (protective device)
15 Start button electric starter
16 Travel speed adjustment lever

6 Brush mower agria 8000
Contents
Nameplate .................................................................................................... 2
Scope of delivery.......................................................................................... 2
Symbols ............................................................................................... 3
Designation of parts Fig. A ................................................................4
Unpacking and assembly instructions.............................................8
1Safety Instructions ........................................................................9
Intended use................................................................................................. 9
2Technical Data ............................................................................. 15
Machine...................................................................................................... 15
Petrol engine .............................................................................................. 17
3Devices and Operating Elements...............................................19
Engine ........................................................................................................ 19
Speed regulating lever................................................................................ 20
Safety circuit............................................................................................... 20
Traction drive.............................................................................................. 21
Mower drive................................................................................................ 21
Steering bar................................................................................................ 23
Transport position....................................................................................... 23
Attachment points....................................................................................... 24
4Commissioning and Operation ..................................................25
Commissioning........................................................................................... 25
Danger zone............................................................................................... 26
Before starting the engine .......................................................................... 27
Starting the petrol engine ........................................................................... 28
Stopping the petrol engine.......................................................................... 30
Traction ...................................................................................................... 32
Mowing ....................................................................................................... 33
Stopping ..................................................................................................... 34
Mowing on slopes....................................................................................... 35
Notes on mowing........................................................................................ 36
Safety instructions for handling .................................................................. 37
5Maintenance and Repair .............................................................38
Petrol engine .............................................................................................. 39
Machine...................................................................................................... 40

Brush mower agria 8000 7
Labels......................................................................................................... 46
General....................................................................................................... 47
Cleaning ..................................................................................................... 47
Storage....................................................................................................... 48
6Troubleshooting and Remedies.................................................50
Petrol engine .............................................................................................. 50
Machine...................................................................................................... 52
7Decommissioning / Disposal......................................................53
Inspection and Maintenance Overview...........................................54
Electric diagram of petrol engine....................................................56
Paints, Wear parts.............................................................................57
Designation of parts .........................................................................58
Declaration of Conformity................................................................ 63

8 Brush mower agria 8000
Unpacking and assembly instructions
Unpacking
Open the top lid of the cardboard box. Cut the
cardboard box at all four edges, and fold down
the cardboard walls.
Packaging should be recycled
in an envi-
ronmentally friendly manner.
Assembly
Adjust the handlebars (A/4) to working height.
See page 23.
Attach the tarpaulin (A/8) to the tarpaulin bar.
Mount the tarpaulin bar with the attached
tarpaulin into the square tube on the brush
mower.

1
Safety Instructions
Brush mower agria 8000 9
1 Safety Instructions
Before commissioning, please read the
operating instructions and note:
Warning
symbol
This symbol has been used throughout
these operating instructions to highlight
all sections relevant to your safety. Also
pass on all safety instructions to other
users.
Intended use
The machine meets the current state of
the art and complies with the applicable
safety regulations at the time of market-
ing within the context of the approved
use. In terms of design it was not possi-
ble to eliminate either the foreseeable
misuse or the remaining risk without
limiting the functionality in accordance
with the regulations.
The brush mower agria 8000 is de-
signed exclusively for cutting thin, non-
woody brushwood, grass and similar
plants in agriculture, forestry, green area
and grounds maintenance. The lower
rotating mower disc must slide on the
ground. However, it is not suitable for
lawns in parks! (Intended use)
The brush mower is not intended for use
when the rotating mowing disc does not
slide on the ground.
Any other use is considered to be con-
trary to the intended purpose. The man-
ufacturer is not liable for any damages
resulting from such use and the risk is
entirely the user's own.
Intended use also includes observance
of the operating, servicing and mainte-
nance conditions stipulated by the man-
ufacturer.
Unauthorized changes to the machine,
especially to the safety equipment, may
lead to increased levels of danger, which
would rule out any manufacturer liability
for resulting damage.
When using the machine on public roads
– and when being transported – the
national road traffic regulations of the
relevant country must be complied with
(marking, lighting, etc.).
The machine is intended to be used in
commercial and in private applications.
The machine must be operated as di-
rected in the operating instructions.
Other operators must given instruction if
required.
Any improper use or execution of activi-
ties of the machine not described in
these instructions constitutes unauthor-
ized misuse and is not within the statuto-
ry limits for liability of the manufacturer.
Improper use of the machine can en-
danger people and may result in dam-
age to the machine or other property of
the operator. It can also impair the func-
tionality of the machine.
Reasonable foreseeable misuse
Foreseeable misuse and improper han-
dling include inter alia:
•Removal or manipulation of protec-
tive and safety devices
•Working on steep slopes without
securing the operator, the machine
and the working area
•Transport and manoeuvring move-
ments with activated knife drive
•Failure to observe maintenance
intervals
•Omitting measurements and tests
for the early detection of damage
•Failure to replace wearing parts
•Incorrectly executed maintenance or
repair work
•Improper use.

1
Safety Instructions
10 Brush mower agria 8000
General safety and accident
prevention regulations
Basic rule:
Please observe the relevant accident
prevention regulations as well as the
generally recognized rules pertaining to
safety, occupational health and traffic
laws.
The use of public transportation routes is
subject to the Road Traffic Act in its
latest version.
Please check the traffic and operating
safety of the machine before each com-
missioning!
The machine may only be used, ser-
viced and repaired by persons who are
familiar with it and have been instructed
in the hazards involved.
Persons under the age of 16 must not
operate the machine!
Only work with good visibility and in
good lighting conditions.
Operator clothing must fit tightly. Wear
sturdy footwear.
When operating the machine, wear
protective goggles to protect the eyes
from small flying parts!
The affixed warning and information
signs provide important information for
safe operation; please observe them for
your own safety!
The engine must be switched off for
transport on motor vehicles or trailers
outside the working area.
Be careful with rotating tools - keep a
safe distance!
Be careful with coasting tools. Before
you start working on them, wait until they
have come to a complete stop!
There is a risk of crushing and shearing
on power-operated parts!
Riding on the implement during opera-
tion is not permitted.
Match the operating speed to the condi-
tions.
Do not adjust the setting of the engine
speed governor. A high speed increases
the risk of accidents.
Working area and danger zone
The working area is the entire area to be
worked on. The user is responsible for
third parties in the working area.
Staying in the danger zone of the ma-
chine is not permitted (see page 26).
Check the work area before starting and
moving. Pay special attention to children
and animals.
Before starting work, remove foreign
bodies such as stones, wires, pipes,
thick branches from the surface to be
worked on. Foreign particles can be
ejected or damage the mowing equip-
ment. Look out for additional foreign
objects while working and remove these
promptly.
For operation in enclosed areas, ensure
that a safety distance is kept from edges
to prevent damage to tools.
Operation and protective de-
vices
Before you start work
Familiarize yourself with the equipment
and operating elements and their func-
tions. Above all, learn how to turn the
engine off quickly and safely in an
emergency!
Ensure that all protective devices are
mounted and properly adjusted!
Before each start-up check the function-
ing of all parts and protective devices.
Replace any damaged parts - have this
done by a specialist workshop if neces-
sary. For your own safety, only use
original Agria spare parts.
Suitable shoes must be worn depending
on the type of ground surface (vegeta-
tion, humidity ...), so that the operator
does not slip or fall.

1
Safety Instructions
Brush mower agria 8000 11
Startup
Do not start the engine in closed rooms,
the exhaust fumes contain carbon mon-
oxide, which is very toxic if inhaled!
Before starting the engine, set all operat-
ing elements to neutral or idle position.
Do not step in front of the machine or
the add-on device to start the engine.
Operation
Never leave the operator's position at
the steering bar while working!
Never adjust operator bars while work is
in progress – risk of accident!
For all work with the device, especially
when turning, the machine opera-
tor must maintain the distance from the
device shown by the bars!
Riding on the implement during opera-
tion or in transport is not permitted.
If any blockages occur on the cutting
unit, stop the engine, take off the ignition
plug or ignition key, and clean the cut-
ting unit with a suitable tool. There may
be tension in the drive train as a result of
the blockage, which is why you should
resolve the blockage carefully.
In the event of any damage to
the machine or the add-on device, shut
down the engine immediately and have
the damage repaired!
In the event of any malfunctions to the
steering, stop and park the machine
immediately. Have the fault resolved
without delay.
If there is a risk of slipping on a slope,
have a second person who holds the
machine with a bar or a rope. The at-
tendant must be located above
the machine at a safe distance from the
work equipment.
Work across the slope along contour
lines if possible. If possible, turn the
machine in uphill direction.
Finishing work
Never leave the machine unsupervised
while the engine is running.
Switch the engine off before leaving the
machine. Then close the fuel tap(s) (if
present).
Take care not to park the hot machine in
the blazing sun.
Protect the machine against unauthor-
ized use. In ignition key models, remove
the ignition key; otherwise, remove the
spark plug connector.
Mowing equipment
When handled improperly, the sharp
edges of the mower knives can cause
significant injuries. Always wear protec-
tive gloves when you work on the
knives.
When unscrewing the fastening screws
for changing the blades, ensure that the
screwing movements are away from the
cutting edges.
Wear protective goggles and protective
gloves when you grind the knives.
Maintenance and cleaning
Only trained specialist personnel, who
can carry out professional maintenance
and repair, may carry out this work.
Do not carry out maintenance and clean-
ing with the engine running.
When working on the engine always
remove the ignition key (if present) and
also the spark plug connector in the
case of petrol engines.
Protective devices and tools that are
subject to wear and tear must be regu-
larly inspected and replaced if neces-
sary!
Damaged cutting tools must be re-
placed!
When replacing cutting tools use suita-
ble tools and protective gloves.

1
Safety Instructions
12 Brush mower agria 8000
Do not carry out repair work such as
welding, grinding, drilling, etc. on struc-
tural, safety-relevant parts (such as
steering bar, tractor hitches, etc.)!
Keep the machine and attachments
clean, to avoid the risk of fire.
Regularly check nuts and bolts for tight-
ness and retighten if necessary.
After maintenance and cleaning, ensure
that the protective devices are re-
installed and properly adjusted!
Only use genuine Agria spare parts.
Carry out a functional and safety test
after completing the work.
Storage
Never store the machine in rooms with
open heating.
Do not park the machine in closed
rooms with fuel left in the tank. Fuel
vapours are hazardous.
Engine, fuel and oil
Do not run the engine in a closed room.
There is a high risk of poisoning! There-
fore always replace damaged exhaust
parts.
Handle hot engine components with
caution!
The silencer and other engine parts get
very hot when the engine is running and
are still hot directly after the engine is
switched off. Keep a sufficient distance
from hot surfaces and keep children
away from the running engine.
Caution is needed when handling fuel.
There is an increased risk of fire. Never
handle fuel near open flames, ignitable
sparks or hot engine parts.
Do not refuel in closed rooms. No smok-
ing when refuelling!
Refuel only with the engine switched off
and cooled down.
Do not spill fuel. Use a suitable filling
device.
If you spilled fuel, push the machine
away from the spilled liquid before you
start the engine.
Make sure fuel is of the specified quality.
Store fuel in approved containers only.
Drain fuel only outdoors and into suita-
ble containers.
In the interests of safety, replace the fuel
tank cap and other tank caps if dam-
aged.
Store anti-corrosion agents and stabi-
lizer fluids out of the reach of children. If
sickness and vomiting occur, consult a
doctor immediately. In the event of con-
tact with the eyes rinse immediately with
plenty of water. Avoid inhaling vapours.
Read and observe enclosed instructions!
Before disposing of opened and seem-
ingly empty pressurized tins make sure
they are completely empty. Empty them
in a well-ventilated area safe from
sparks and flames. Dispose of tins as
hazardous waste if necessary.
When working with oil, fuel and grease
wear suitable protective gloves and use
skin protection agents if necessary.
Be careful when draining hot oil, danger
of burns.
Make sure the oil used is of the specified
quality. Store in approved containers
only.
Dispose of oil, fuel, grease and filters
separately and properly.
Tyres and tyre pressure
When you work on the wheels ensure
that the machine is parked securely and
is secured against rolling away.
Only skilled specialists are allowed to
repair tyres, using suitable installation
tools.

1
Safety Instructions
Brush mower agria 8000 13
Check the tyre pressure at regular inter-
vals. There is a risk of explosion from
excessive tyre pressure.
Observe the required tyre pressure
when you use ballast.
Electrical system
Persons with cardiac pacemakers are
not allowed to touch the energized parts
of the ignition system as long as the
engine is running.

1
Safety Instructions
14 Brush mower agria 8000
Description of the warning, prohibition and mandatory signs
Prior to starting up the machine, read and observe the Operating and Safety
instructions.
Prior to starting cleaning, maintenance or repairs, switch off the engine and take off
the spark-plug connector.
Refuel only with the engine switched off and cooled down. No naked flame! No
smoking!
The engine exhausts contain poisonous gas - keep your distance. Never run the
engine in a closed room.
Keep a safe distance from the blades when the engine is running!
Only touch machinery parts when they have come to a complete stop.
Danger from flinging parts when the engine is running - keep a safety distance of
at least 30 m.
Danger of overturning! Do not drive on slopes greater than 20°.
When working with the machine wear individual hearing protection and safety
goggles.
Wear sturdy footwear.
Check the engine oil level at least every 8 operating hours.
Wear protective gloves.

2
Technical Data
Brush mower agria 8000 15
2 Technical Data
Machine
Scrub mower agria 8000 comfort
Engine: ......................................................................................... Honda GCVx 200
Mower drive:.............................................. V-belt clutch with integrated blade brake
............................................................................ Mower rotor with 4 rotatable blades
Traction drive:........................................................................................ Worm gear,
......................................... Gearbox oil SAE 90 – API - GL5 (e.g. BP Energear Hypo)
Driving speed: ................................................................................... 2.8 - 3.5 km/h
Steering bar: ........................................................... Height adjustment without tools
Slope capability: ........................................................................................ max. 20°
Weight:........................................................................................................... 62.0 kg
Tyres:.........................................................................Pneumatic tyres 13x5.00-6 AS
V-belt:Traction drive.............................................................................. 10x475 Li ZX
Mower drive ......................................................................................... A13x1490 LW
Use only genuine Agria V-belts! (see wearing parts page 57)
Tyre pressure:....................................................................................... 1.0 - 1.2 bar
Noise values:
Sound pressure level at the ear of the operator to EN 11201:
...............................................................................................................LpA = 77.2 dB
Sound power level EN ISO 3744: 1995
measured:............................................................................................. LWA = 91.1 dB
guaranteed:..............................................................................................LWA = 92 dB
Vibrational acceleration value:
on the handlebar grip according to ISO 5349:
.............................................................................................................. ahw = 1.5 m/s2
Dimension: ......................................................................................... L = 1400 mm
B = 660 mm
H = 1210 mm

2
Technical Data
16 Brush mower agria 8000
Scrub mower agria 8000 premium
Engine: ......................................................................Briggs & Stratton 875iS Series
Mower drive:.............................................. V-belt clutch with integrated blade brake
............................................................................ Mower rotor with 4 rotatable blades
Traction drive:................................................Driving speed adjustable with variator
Worm gearbox .......... Gear oil SAE 90 – API - GL5 (for example BP Energear Hypo)
Driving speed: ............................................................................... 2.05 - 3.65 km/h
Steering bar: ........................................................... Height adjustment without tools
Slope capability: ........................................................................................ max. 20°
Weight:........................................................................................................... 63.0 kg
Tyres:.........................................................................Pneumatic tyres 13x5.00-6 AS
V-belt:Traction drive..................................................................... AX 505 Lw - 475 Li
Mower drive ......................................................................................... A13x1490 LW
Use only genuine Agria V-belts! (see wearing parts page 57)
Tyre pressure:....................................................................................... 1.0 - 1.2 bar
Noise values:
Sound pressure level at the ear of the operator to EN 11201:
...............................................................................................................LpA = 77.2 dB
Sound power level EN ISO 3744: 1995
measured:............................................................................................. LWA = 90.7 dB
guaranteed:..............................................................................................LWA = 92 dB
Vibrational acceleration value:
on the handlebar grip according to ISO 5349:
.............................................................................................................. ahw = 3.6 m/s2
Dimension: ......................................................................................... L = 1400 mm
B = 660 mm
H = 1210 mm

2
Technical Data
Brush mower agria 8000 17
Petrol engine
Scrub mower agria 8000 comfort
Engine make: ..................................................................................................Honda
Type: ...........................................................................................................GCVx200
Bore x stroke:......................................................................................... 66 x 59 mm
Displacement: .............................................................................................. 201 cm3
Net output:.....................................................................4.2 kW (5.7PS) at 3600 rpm
Torque: .....................................................................................12.7 Nm at 2500 rpm
Design:............................... Fan-air-cooled 1-cylinder four-stroke OHV petrol engine
Nominal speed: ............................................................................. 2900 ... 3000 rpm
Lower no-load speed:................................................................... 1550 ... 1850 rpm
Upper no-load speed:...................................................................... 3000 ± 100 rpm
Spark plug: ............................................................... NGK BPR6ES; Bosch WR7DC
Electrode gap: 0.7 ... 0.8 mm
Ignition:.......................................... Electronic magneto ignition system, contactless,
fixed ignition point,
radio-interference-suppressed to VDE 0879
Valve play: (with cold engine)................................................intake: 0.10 ± 0.02 mm
exhaust: 0.10 ± 0.02 mm
Starting device:.............................................................................. Cable-pull starter
Fuel: ......................................................................Commercially available car petrol,
Octane rating see engine operating instructions
Fuel consumption:........................................................................ 1.4 l/h -3000 rpm
Capacity of the fuel tank: ................................................................................ 0.91 l
Air filter:............................................................Dry filter cartridge with foam prefilter
Carburettor:.................................................................................. Throttle valve type
Engine oil: .......................................................................Filling volume approx. 0.4 l
Multigrade oil SAE 10W-30, quality class API-SJ or higher

2
Technical Data
18 Brush mower agria 8000
Scrub mower agria 8000 premium
Engine make: ................................................................................. Briggs & Stratton
Type: ...................................................................................................... 875iS Series
Bore x stroke:....................................................................................68.3 x 51.8 mm
Displacement: .............................................................................................. 190 cm3
Net output:....................................................................4.3 kW (5.8 PS) at 3600 rpm
Torque: .....................................................................................12.0 Nm at 2900 rpm
Design:............................... Fan-air-cooled 1-cylinder four-stroke OHV petrol engine
InStart technology
Nominal speed: ............................................................................. 2900 ... 3000 rpm
Lower no-load speed:................................................................... 1550 ... 1850 rpm
Upper no-load speed:...................................................................... 3000 ± 100 rpm
Sparking plug:............................................................................Champion RC12YC
Electrode gap: 0.5 mm
Ignition:.......................................... Electronic magneto ignition system, contactless,
fixed ignition point,
radio-interference-suppressed to VDE 0879
Valve play: (with cold engine)...................................................intake: 0.10 - 0.2 mm
exhaust: 0.10 - 0.2 mm
Starting device:.............................................................................. Cable-pull starter
Fuel: ......................................................................Commercially available car petrol,
Octane rating see engine operating instructions
Fuel consumption:.................................................................................. 313 g/kWh
Capacity of the fuel tank: ................................................................................ 0.91 l
Air filter:............................................................Dry filter cartridge with foam prefilter
Carburettor:.................................................................................. Throttle valve type
Engine oil: .......................................................................Filling volume approx. 0.6 l
Multigrade oil SAE 10W-30, quality class API-SJ or higher
Battery system:.................................................... Lithium-ion battery system 10.8 V
Charger input: 100 - 240 V, charging current: 2 A
Charging time: 60 minutes
Operating temperature: 0 - 45°C

3
Devices and Operating Elements
Brush mower agria 8000 19
3 Devices and Operating Elements
The brush mower agria 8000 is de-
signed exclusively for cutting thin, non-
woody brushwood, grass and similar
plants in agriculture, forestry, green area
and grounds maintenance. The lower
rotating mower disc must slide on the
ground. However, it is not suitable for
lawns in parks! (Intended use)
When using the machine on public roads
– and during transport – the national
road traffic regulations of the relevant
country must be complied with (marking,
lighting, etc.).
Engine
The four-stoke petrol engine is to be
used with standard petrol (see chapter
Startup, page 25).
During the first 20 hours of operation
(running-in period) do not use the engine
at full power.
The rule of never using the engine at a
higher speed than necessary for the
work in hand applies even after the
running-in period.
High speeds are detrimental to
all engines and significantly reduce
their service life. This especially ap-
plies for no-load operation! Over-
revving the engine (letting it roar) can
result in immediate damage.
Cooling
The engine is cooled with an air blower.
Keep the fan grille at the cable-pull
starter and the cooling fins of the cylin-
der free of dirt and aspirated plant de-
bris.
Idling
Always ensure that the engine idle
speed is adjusted correctly. With speed
regulating lever at idling, the engine
should continue running smoothly.
- agria-Service -
Air filter
The air filter cleans the aspirated air. A
contaminated filter reduces the engine
output.
Ignition system
The petrol engine is equipped with a
contactless electronic ignition system.
We recommend that any necessary
inspections are carried out by a skilled
person only.

3
Devices and Operating Elements
20 Brush mower agria 8000
Speed regulating lever
(Engine stop switch)

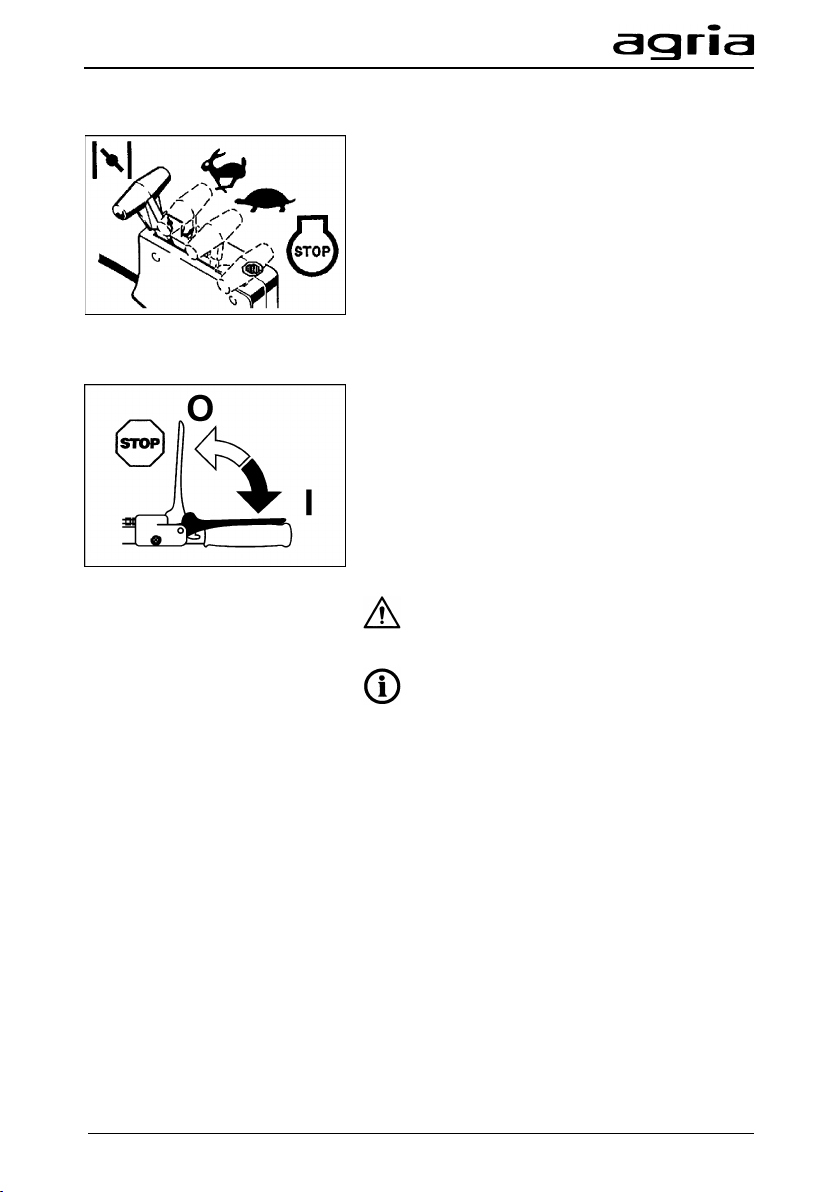

Use the speed regulating lever (A/3, B/3) at the
steering bar for operating the CHIKE and the
engine stop switch as well as the continuous
speed control. Switch positions see fig.
Safety circuit
The machine is equipped with a safety circuit for
mowing and driving.
O Stop position:
When the safety lever (A/1 or
A/2) is rele
ased, the drives are switched off, and
the engine continues running.
I operating position:
For operation, press down
the safety lever (A/1 or A/2). This establishes a
frictional connection between engine and gear-
box.
Never tamper with the safety circuit.
Never tie up the safety lever.
The safety lever is used as an
emergency
off switch:
Release the lever in a dangerous
situation. It swings automatically to "STOP"
position!
