Agrimate AM 530H PRO 2S User manual

User Manual
BEFORE OPERATING THIS MACHINE,
PLEASE READ THESE INSTRUCTIONS CAREFULLY
DISCLAIMER: DUE TO CONSTANT UPGRADATION, FEATURES AND SPECIFICATIONS ARE
SUBJECT TO CHANGE WITHOUT NOTICE
AM 530H PRO 2S
Weedcutter

2
SAFETY FIRST
Instructions contained in warnings within this manual marked with a
symbol concern critical points which must be taken into consideration to
prevent possible serious bodily injury, and for this reason you are
requested to read all such instructions carefully and follow them without
fail.
WARNINGS IN THE MANUAL
WARNING
This mark indicates instructions, which must be followed in order
to prevent accidents, which could lead to serious bodily injury
or death.
IMPORTANT
This mark indicates instructions, which must be followed, or it
leads to mechanical failure, breakdown, or damage.
NOTE
This mark indicates hints or directions useful in the use of the product.

3
Contents
TECHNICAL DATA

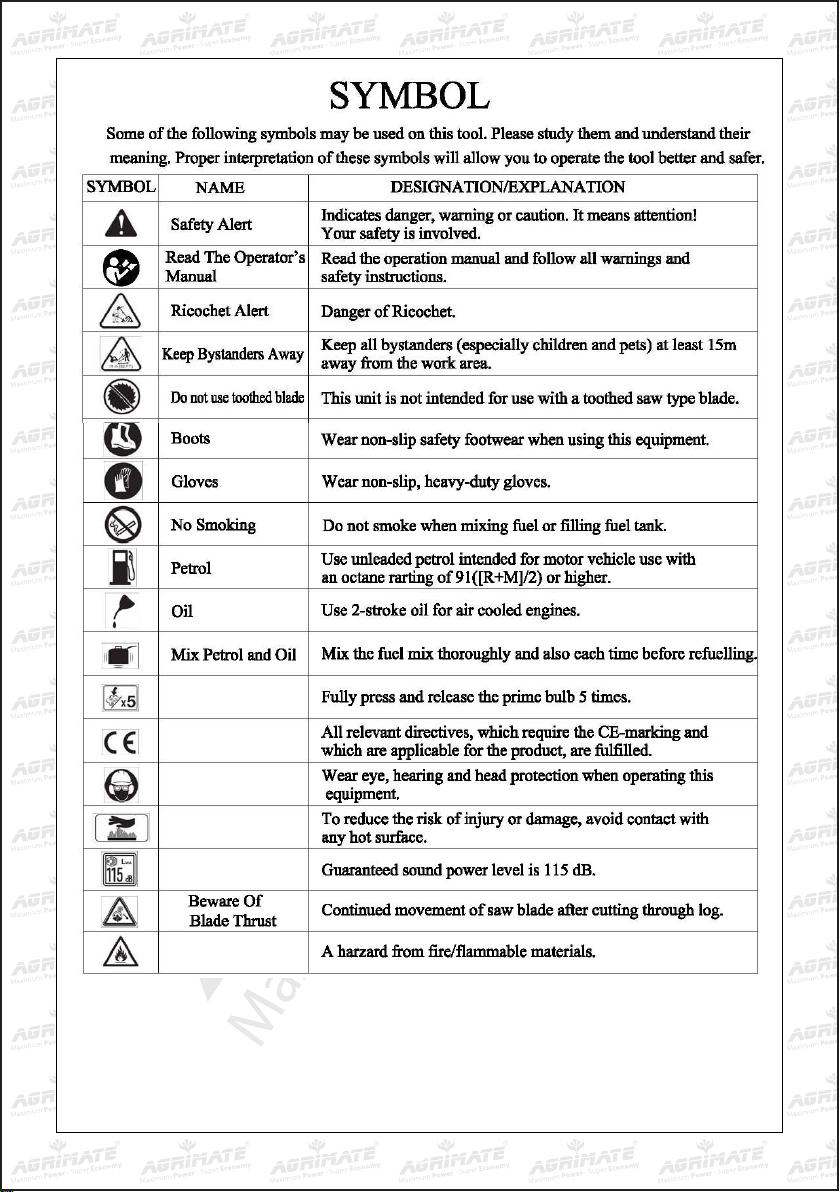

SYMBOL
FOR SAFE OPERATION
SET UP

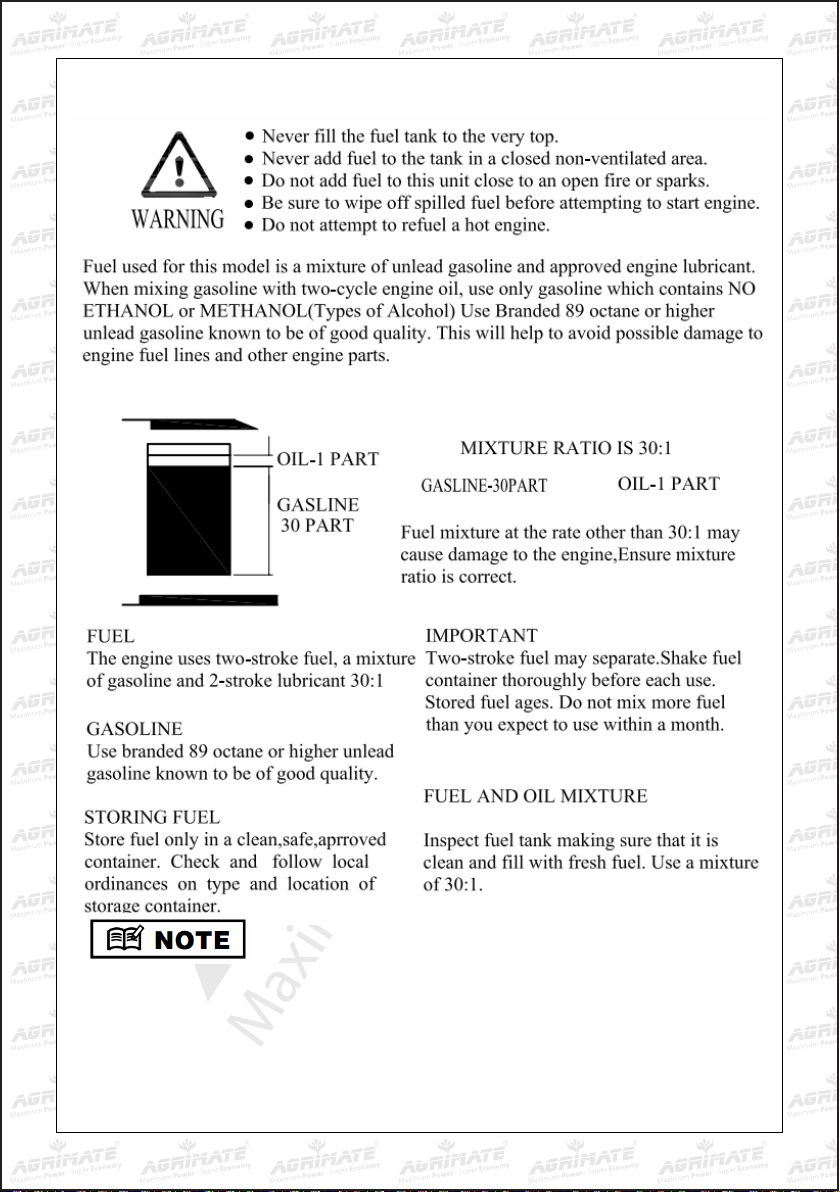

FUEL & OIL MIXTURE

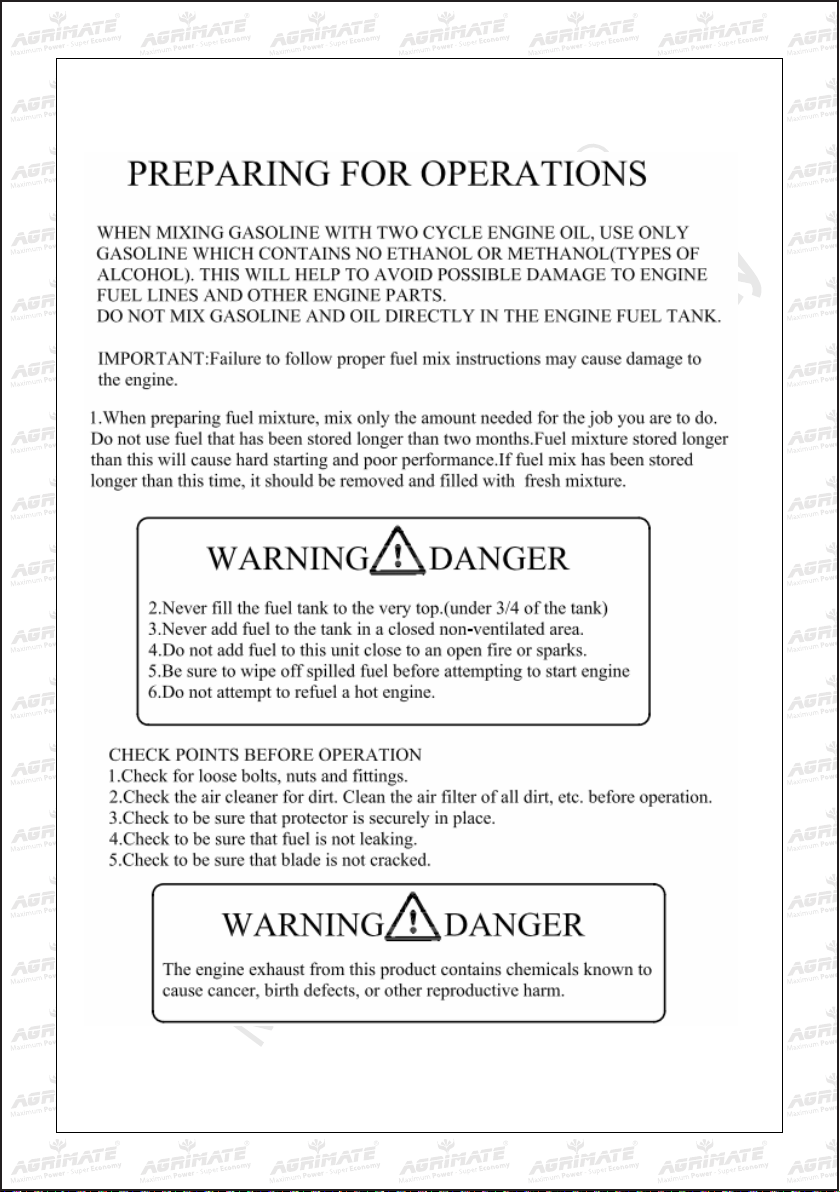

PREPARING FOR OPERATIONS
OPERATION

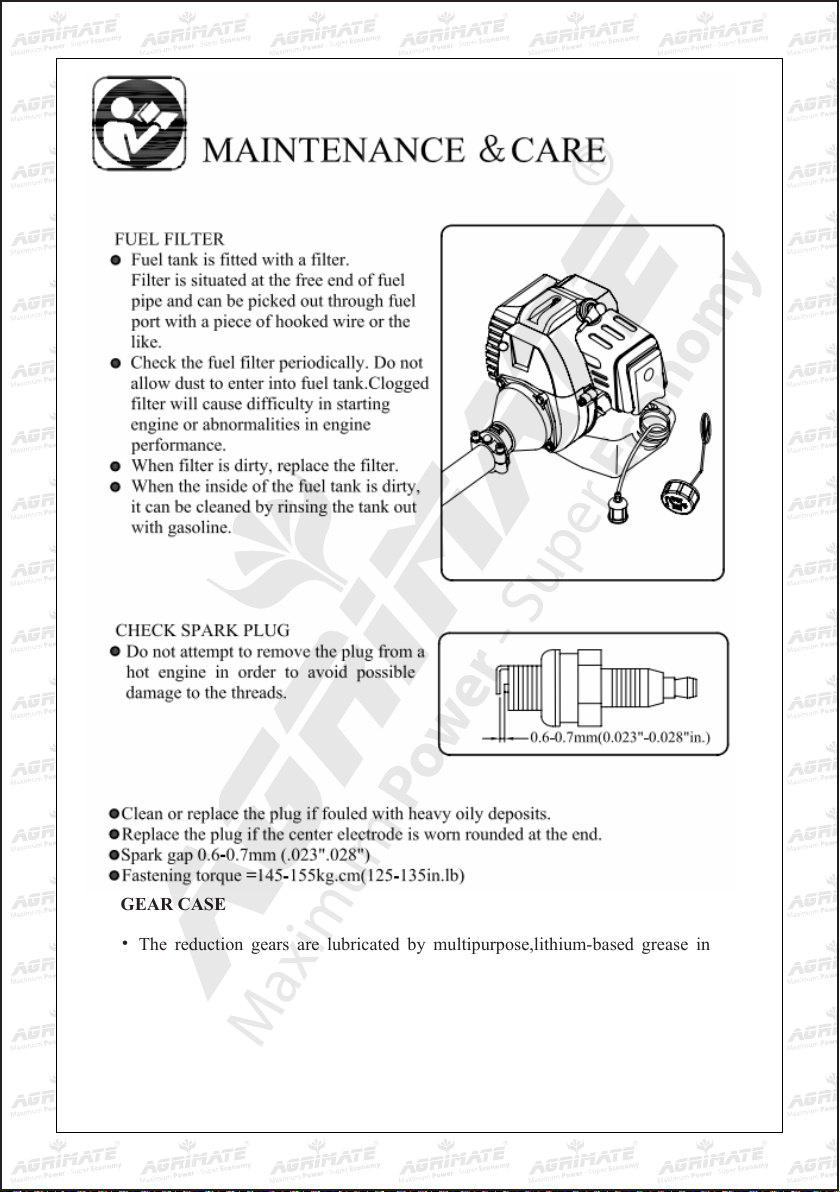

MAINTENANCE & CARE
TRANSPORT & STORAGE
TROUBLE SHOOTING GUIDE

5

4
~~~~~~~~~~~~~~~~~~~ TECHNICAL DATA~~~~~~~~~~~~~~~~~~~~
AM 530H PRO 2SLEDOM
laripS;hctulclagufirtneccitamotuAepytetomeR
bevel gear; Drive shaft
Maximum speed of gear shaft /engine speed (r/min) 9500/12295
0082)nim/r(deepseldI ±280
Nylon head 6.1
Equivalent vibration level(m/s²)
(in accordance with EN ISO 22867)
Uncertainty of vi
b
ration measurement
K=1.5m/s²Blade 5.4
Nylon head 100.2
Sound pressure values[dB(A)]
(in accordance with EN ISO 22868)
Uncertainty of noise measurement 3dB(A) Blade97.2
Nylon head 107.6Sound power values[dB(A)]
(in accordance with EN ISO 22868)
Uncertainty of noise measurement 3dB(A) Blade101.2
20:51oitarnoitcudeR
)potehtmorfnees(esiwkcolC-retnuoCnoitceridnoitatoredalB
pirgelbuoDeldnahfoepyT
Main
unit
8.8)gk(yrdnehwthgieW
AZ 44EPenignefoemaN
notsiplacitrev;elcyc2;delooc-riAepyT
valve; gasoline engine
7.15)Lm(tnemecalpsiD
1.55kW/7500rpm)nim/r/Wk(tuptuomumixaM
epyt-mgarhpaiDroterubraC
noitingicinortceletcatnoc-noNnoitingI
epytlioceRgnitratsfodohteM
gnitacirbulhtiwdeximenilosaGdesuleuF
oil(ratio of 30:1)
1L)L(yticapacknatleuF
Engine
6.4)gk(thgiewyrD
edalb-3mm5522-LH-025GC)mm(sedalbdradnatS （255
×2.8)
)66nolyn(mm5.2/01.36GBepornolyn/daehnolyndradnatS
0051)mm(noitcesepipniamfohtgneL
5351)mm(noitcestfahsevirdfohtgneL
Technical Data subject to changed without notice.

6
If warning label peels off or becomes soiled and impossible to read, you
should contact the dealer from which you purchased the product to order new
labels and affix them in the required location(s).
Never modify your machine.We won’t warrant the machine, if you use the
remodeled brushcutter or if you don’t observe the proper usage written in the
manual.
FOR SAFE OPERATION
1.Read this manual carefully until you completely understand and follow all
safety and operating instructions.
2. Keep this manual handy so that you may refer to it later whenever any
questions arise. Also note, if you have any questions which cannot be answered
herein, contact the dealer from whom you purchased the product.
3. Always be sure to include this manual when selling, lending, or otherwise
transferring the ownership of this product.
4.Never allow children or anyone unable to fully understand the directions given
in the manual to use the machine.
WORKING CONDITION
1. When using the product, you should wear proper clothing and protective
equipment.
(1)Helmet;(2)Ear protectors;(3) Protection goggles or face protector;(4)Thick
work gloves;(5)Non-slip-sole work boots.

7
2.And you should carry with you.
(1)Attached tools;(2)Properly reserved fuel;(3)Spare blade;(4)Things to notify
your working area (rope, warning signs);(5) Whistle (for collaboration or
emergency);(6) Hatchet or saw (for removal of obstacles).
3. Do not wear loose clothing, jewelry, short trousers, sandals, or go barefoot.
Do not wear anything which might be caught by a moving part of the unit.
Secure hair so it is above shoulder length.
WORKING CIRCUMSTANCE
1. Never start the engine inside a closed room or building. Exhaust gases contain
dangerous carbon monoxide.
2.Never use the product,
a. when the ground is slippery or when you can’t maintain a steady posture.
b. At night, at times of heavy fog,or at any other times when your field of vision
might be limited and it would be difficult to gain a clear view of the working
area.
c. During rain storms, during lightning storms, at times of strong or gale-force
winds, or at any other times when weather conditions might make it unsafe to
use the product.
WORKING PLAN
1. You should never use the product when under the influence of alcohol, when
suffering from exhaustion or lack of sleep, when suffering from drowsiness as a
result of having taken cold medicine or at any other time when a possibility

8
exists that your judgment might be impaired or that you might not be able to
operate the product properly and in a safe manner.
2. When planning your work schedule, allow plenty of time to rest.Limit the
amount of time over which the product is to be used continuously to somewhere
around 30 ~ 40 minutes per session, and take 10 ~ 20 minutes of rest between
work sessions. Also try to keep the total amount of work performed in a single
day under 2 hours or less.
1. If you don’t observe the working time, or working manner (See“USING
THE PRODUCT”), Repetitive Stress Injury (RSI) could occur.
If you feel discomfort, redness and swelling of your fingers or any other
part of your body, see a doctor before getting worse.
2. To avoid noise complaints, in general, operate product between 8 a.m. and
5 p.m. on weekdays and 9 a.m. to 5 p.m. on weekends.
Check and follow the local regulations as to sound level and hours of operations
for the product.
BEFORE STARTING THE ENGINE
1. The area within a perimeter of 15 m (50 ft) of the person using the product
should be considered a hazardous area into which no one should enter. If
necessary yellow warning rope, warning signs should be placed around the
perimeter of the area. When work is to be performed simultaneously by two or

9
more persons, care should also be taken to constantly look around or otherwise
check for the presence and locations of other people working so as to maintain a
distance between each person sufficient to ensure safety.
2. Check the condition of working area to avoid any accident by hitting hidden
obstacles such as stumps, stones, cans, or broken glass.
Remove any obstacle before beginning work.
3. Inspect the entire unit for loose fasteners and fuel leakage. Make sure that the
cutting attachment is properly installed and securely fastened.
4. Be sure the debris guard is firmly attached in place.
5. Always use the shoulder strap.Adjust the strap for comfort before starting the
engine. The strap should be adjusted so the left hand can comfortably hold the
handlebar grip approximately waist high.

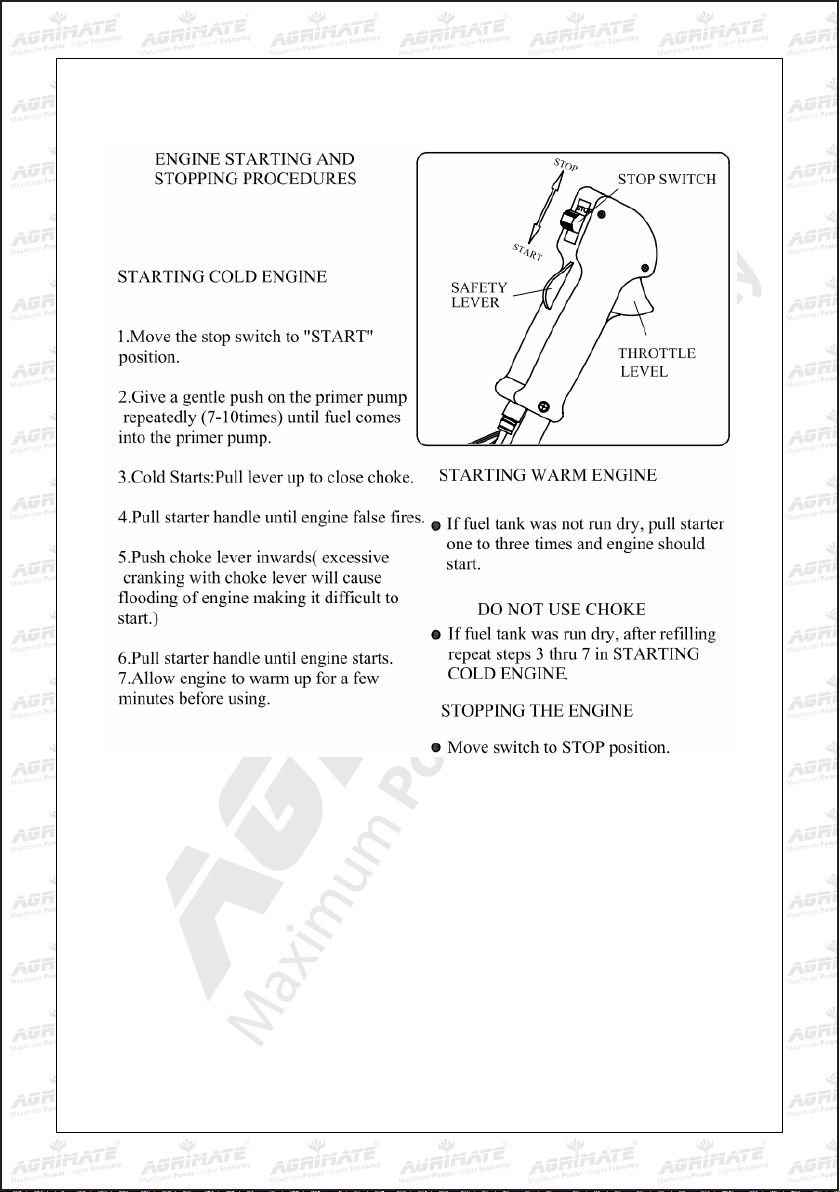

STARTING THE ENGINE
1.Keep bystanders and animals at least 15 m (50 ft) away from the operating
point. If you are approached, immediately stop the engine.
2. The product is equipped with a centrifugal clutch mechanism, so the cutting
attachment begins to rotate as soon as the engine is started by putting the throttle
into the start position. When starting the engine, place the product onto the
ground in a flat clear area and hold it firmly in place so as to ensure that neither
the cutting part nor the throttle come into contact with any obstacle when the
engine starts.

10
Never place the throttle into the high-speed position when starting the
engine.
3. After starting the engine, check to make sure that the cutting attachment stops
rotating when the throttle is moved fully back to its original position. If it
continues to rotate even after the throttle has been moved fully back, turn off the
engine and take the unit to your authorized KOMATSU ZENOAH servicing
dealer for repair.
USING THE PRODUCT
Cut only materials recommended by the manufacturer. And use only for tasks
explained in the manual.
1.Grip the handles firmly with both hands using your whole hand. Place your
feet slightly apart (slightly further apart than the width of your shoulders) so that
your weight is distributed evenly across both legs, and always be sure to
maintain a steady, even posture while working.
2. Keep cutting attachment below waist level.
3.Maintain the speed of the engine at the level required to perform cutting work,
and never raise the speed of the engine above the level necessary.
4. If the unit starts to shake or vibrate, turn off the engine and check the whole
unit. Do not use it until the trouble has been properly corrected.
5.Keep all parts of your body away from rotating cutting attachment and hot

11
surfaces.
6. Never touch the muffler, spark plug, or other metallic parts of the engine
while the engine is in operation or immediately after shutting down the engine.
Doing so could result in serious burns or electrical shock.
• IF SOMEONE COMES
1. Guard against hazardous situations at all times. Warn adults to keep pets and
children away from the area. Be careful if you are approached. Injury may result
from flying debris.
2.If someone calls out or otherwise interrupts you while working, always be sure
to turn off the engine before turning around.
MAINTENANCE
1.In order to maintain your product in proper working order, perform the
maintenance and checking operations described in the manual at regular
intervals.
2.Always be sure to turn off the engine before performing any maintenance or
checking procedures.
The metallic parts reach high temperatures immediately after stopping the
engine.
3. When replacing the cutting attachment or any other part, or when replacing
the oil or any lubricant, always be sure to use only HUASHENGTAISHAN
products or products which have been certified by HUASHENGTAISHAN for

12
use with the HUASHENGTAISHAN product.
4. In the event that any part must be replaced or any maintenance or repair work
not described in this manual must be performed, please contact a representative
from the store nearest HUASHENGTAISHAN authorized servicing dealer for
assistance.
5. Do not use any accessory or attachment other than those bearing the
HUASHENGTAISHAN mark and recommended for the unit.
6. Under no circumstances should you ever take apart the product or alter it in
any way. Doing so might result in the product becoming damaged during
operation or the product becoming unable to operate properly.
HANDLING FUEL
1. The engine of the HUASHENGTAISHAN product is designed to run on a
mixed fuel, which contains highly flammable gasoline.Never store cans of fuel
or refill the tank of the unit in any place where there is a boiler, stove, wood fire,
electrical sparks, welding sparks, or any other source of heat or fire which might
ignite the fuel.
2.Never smoke while operating the unit or refilling its fuel tank.
3. When refilling the tank, always turn off the engine and allow it to cool down.
Take a careful look around to make sure that there are no sparks or open flames
anywhere nearby before refueling.
4. Wipe spilled fuel completely using a dry rag if any fuel spillage occurs during
refueling.

13
5. After refueling, screw the fuel cap back tightly onto the fuel tank and then
carry the unit to a spot 3 m or more away from where it was
refueled before turning on the engine.
TRANSPORTATION
1. When hand-carrying the product,cover over the cutting part if necessary, lift
up the product and carry it paying attention to the blade.
2.Never transport the product over rough roads over long distances by vehicle
without removing all fuel from the fuel tank. If doing so,fuel might leak from
the tank during transport.
SET UP
INSTALLING HANDLE
•Loosen the 4bolts on the upper cap and insert the handle.
Retighten the bolts securely.
NSTALLING DEBRIS GUARD
•Attach the debris guard with the bolts provided to the
shaft.

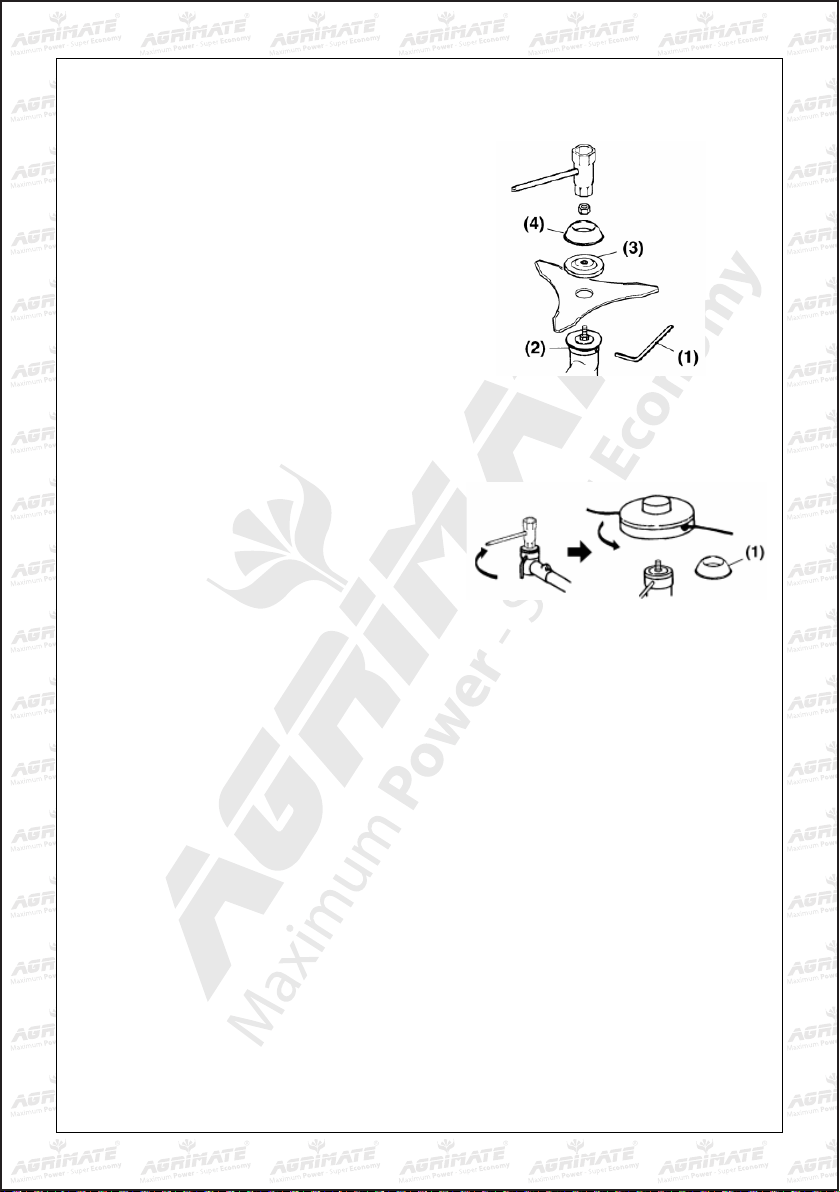

INSTALLING BLADE
1.Put the angled bar(1) into the side holes of the inner holder and the gearcase.

14
2.Remove the nut (Lefthanded) and the outer holder(3) from the gearshaft.
3. Put the blade onto the inner holder(2). Make the marked side face the holder.
4.Put the outer holder(3) onto the gearshaft making
the recessed side face the blade.
5.Fasten the blade by the nut and the cover(4).
INSTALLING LINE HEAD
1. While locking the gear shaft by inserting the supplied tool into the upper
holder on the gear box, loosen and remove the nut (left-handed).
2.Detach the cover(1), fit the line head assembly
to the gear shaft. Hand tighten it securely.
BALANCE UNIT
1.Put on strap and attach unit to strap.
2.Slide clamp up or down until unit balances with head aparting from the ground
when using it.

15
FUEL&OIL MIXTURE
As for details of quality assurance, read the descrip-
tion in the section Limited Warranty carefully. Moreover, normal wear and
change in product with no functional influence are not covered by the warranty.

16
Also, be careful that, if the usage in the instruction manual is not observed as to
the mixed gasoline,etc. described therein, it may not be covered by the warranty.

17
OPERATION
MAINTENANCE&CARE
REFILLING TRIMMING LINE
1. For replacement line, use a diameter of 2.4mm(.095in).The spool is capable

18
for a line upto 6m(20ft) on the 10cm(4”) head. Avoid using a larger line as it
may cut down the trimming performance.
For safety reasons, do not use metalreinforced line.
2.Pinch the slotted area on the both sides of the spool housing to unhook the
bottom cap.
3. Take out the spool and pull off the old line. Put one end of new line through
the spool holes and pull it until the length is equal between each part of the line.
4.Wind up the line in the correct direction as indicated on the spool.
5. Hook each end of the line in the slot on the edge of the spool, and then put the
ends through the eyelets on the housing. Make sure that the spring and the
washers are in place.
6.While holding the spool against the housing, pull the line ends to release them
from the slot.
7. Line up the slot on the bottom cap with the hook on the housing, press the cap
against the housing until it clicks.

19
BLADE
•Check the blade and the fasteners for looseness, cracking, or bending.
•Check the cutting edges and reform with a flat file.
Point :
1. Keep the end corner sharp.
2. Round the root of the edge, using round file.
3. Do not use water when using a grinder.
•It is recommended that filing should be done by professionals.
•Especially regarding filing the saw blade, Leave it to the professionals.
Make sure that the engine has stopped and is cool before performing any
service to the machine. Contact with moving cutting head or hot muffler
may result in a personal injury.

20
GEAR CASE
•The reduction gears are lubricated by multipurpose,lithium-based grease in
