agrional DELTA User manual

1
USER MANUAL
MOUNTED FIELD SPRAYER
USER MANUAL
www.agrional.com
DELTA
400-600 LITER

INSURES THE FUTURE

USER MANUAL
SPARE PART LISTS

4
USER MANUAL
Dear customer,
We would like to thank you for the purchase of this machine.
We welcome you among our clients and are confi dent that this product will
give you many years of reliable use and will fulfi ll your needs.
This “Use and Maintenance” manual applies to all versions of the series of
mounted sprayers.
Remember that any machine can work well and profi tably only if it is used
correctly and kept in effi cient working conditions. So please read this instruc-
tions manual carefully and check with it whenever diffi culties arise.
Should you need any assistance, our technical department is at your disposal
with information and service.
We remind you that, as manufacturer, we have the right to change, at any
time, any part, detail or accessory of the machine, either to improve it or for
marketing necessities. However, the changes made will not aff ect the main
technical features of operation and safety.
The symbols given below are safety warnings and indicate that the instruc-
tions must be followed in order to avoid harms and/or damages to persons,
animals and environment.
Failure to comply with the instructions may cause personal injury, in some
cases even death.
Attached to this manual you will fi nd also the operator’s instructions of en-
gine, pump, pressure regulator valve, drive shaft etc. made by other manu-
factures, as well as the breakdown and list of parts of the machine you pur-
chased.
WELCOME

5
USER MANUAL
This manual provides all the necessary information concerning the use and
maintenence of the machine as well the breakdown drawing and the list of
spare parts.
Our sprayers can be mounted on any tractor having a three point hitch of the
category 1 or 2 and an input shaft running at a maximum speed of 540 R.P.M.
(revolution per minute).
The horsepower required to run the sprayer is connected to the type of
pump which is mounted, the capacity of the tank and the type of the spraying
boom.
The sprayers are machines to spraying the chemical for the plants protection
crop, open fi leds, gardening and disinfestation.
All our machines have been designed and manufactured for the use in open
fi les as well as for work between the rows of orchards, vineyards, open fi elds,
etc…
Therefore NEVER RUN THE SPRAYER INDOOR!
Regular and adeguate operation of the machine depends on correct use and
maintenance.
The technical instructions that are contained in this manual must be there-
fore strictly complied with, to prevent any problem which could obstacle the
correct use of the machine and reduce its life.
Compliance to the safety requirements mentioned herein is also essential to
prevent accidents or injuries to the operator and the parties.
ANY USER OF THIS MACHINE IS WARMLY REQUIRED TO READ CAREFUL-
LY AND UNDERSTAND ALL THE INSTRUCTIONS OF THIS MANUAL BEFORE
STARTING TO USE THE MACHINE.
Should these instructions, or even one of them, not be complied with, then
the Manufacturer can not be held liable for any damages whatsoever that are
caused to the machine itself, to things or to persons.
Please refer to the Manufacturer’s Engineering Dept. should you need any
technical details or any information on how to improve the machine opera-
tion and effi ciency.
INTRODUCTION

6
USER MANUAL
The sprayers have been designed and manufactured to atomize and nebulize
everywhere and for the application of plant and crop proctection products and
disinfections.
WARNING: misuse or abuse of the equipment can cause severe damages and/
or injures. It is therefore recommended to strictly follow the directions given
herewith.
This handbook is part of the machines and must be carefully keep on fi le as
long as the machine is operative.
Any repair have to be carried out only by skilled technicians, either of a dealer
authorized by the manufacturer, or by the distributor.
For the repairs, only original spare parts can be used. Failing this the
manufacturer shall not be held liable for incorrect operation of the machine
and nor the user will then be entitled to any guarantee.
Should any doubt arise on the meaning of any part of this manual, the Italian
texts shall be considered as the valid reference text.

7
USER MANUAL
On receiving the sprayer, check that the markings are identical to those
shown below in fi g. and applied on the frame of the machine.
On the machine the user will fi nd the following plates or decals:
1. Marking plate containing the name of the Manufacturer, the year of con-
struction , the model, the serial number.
2. Decals with general maintenance and lubrication instructions.
3. Decals indicating of how to engage the propeller. (turbine on mist blowers).
4. Danger, warning and marking signals.
Plates, decals and signals on the machine are parts of the machine itself and can
not be removed.
The operator must comply with the instructions affi xed on the machine and
keep them in clean and legible condition as long as the machines is operative.
a- Production Year
b- Serial No
c- Weight
d- Model
MARKING AND IDENTIFICATIONS

8
USER MANUAL
The machine must be checked immediately on delivery to ensure that it is
complete with all its components; should not be the case, our competent
offi ce must be informed at once.
The sprayer is supplied either wrapped with nylon or packed in a carton and
all the components are appropriately protected for shipment. In order to save
space and reducing risks of damages during transportation, some parts are
supplied loose and need to be assembled before using the machine. You need
to follow these
instructions:
-refi ll oil to the engine (see the manaul book of engine for oil refi ll);
-refi ll fuel to the engine (see the manual book of engine for fuel refi ll);
-
check the assembling of the hoses of suction, batch and retourn;
-
connect the hoses of nozzles or sprayguns;
Check the correct funzionamento of the sprayers with clean water.
DELIVERY OF THE MACHINE

9
USER MANUAL
DESCRIPTION OF THE COMPONENTS OF THE MACHINE
PUMP
The pump is diaphragm type, it pushes the liquid to the circuit and it is of vital
importance for the machine and need of particular care.
TANK
The tank of the sprayer is made either of fi berglass or of polyethylene. Inside
the tank there is a system studied for agitating the liquid and keeping the
chemical product mixed uniformly. The agitation system can be either me-
chanical of jet. Be sure that the agitation system works always properly as it
essential for the corret use of the chemical and for avoiding possible damages
to the crops or injuries to people.

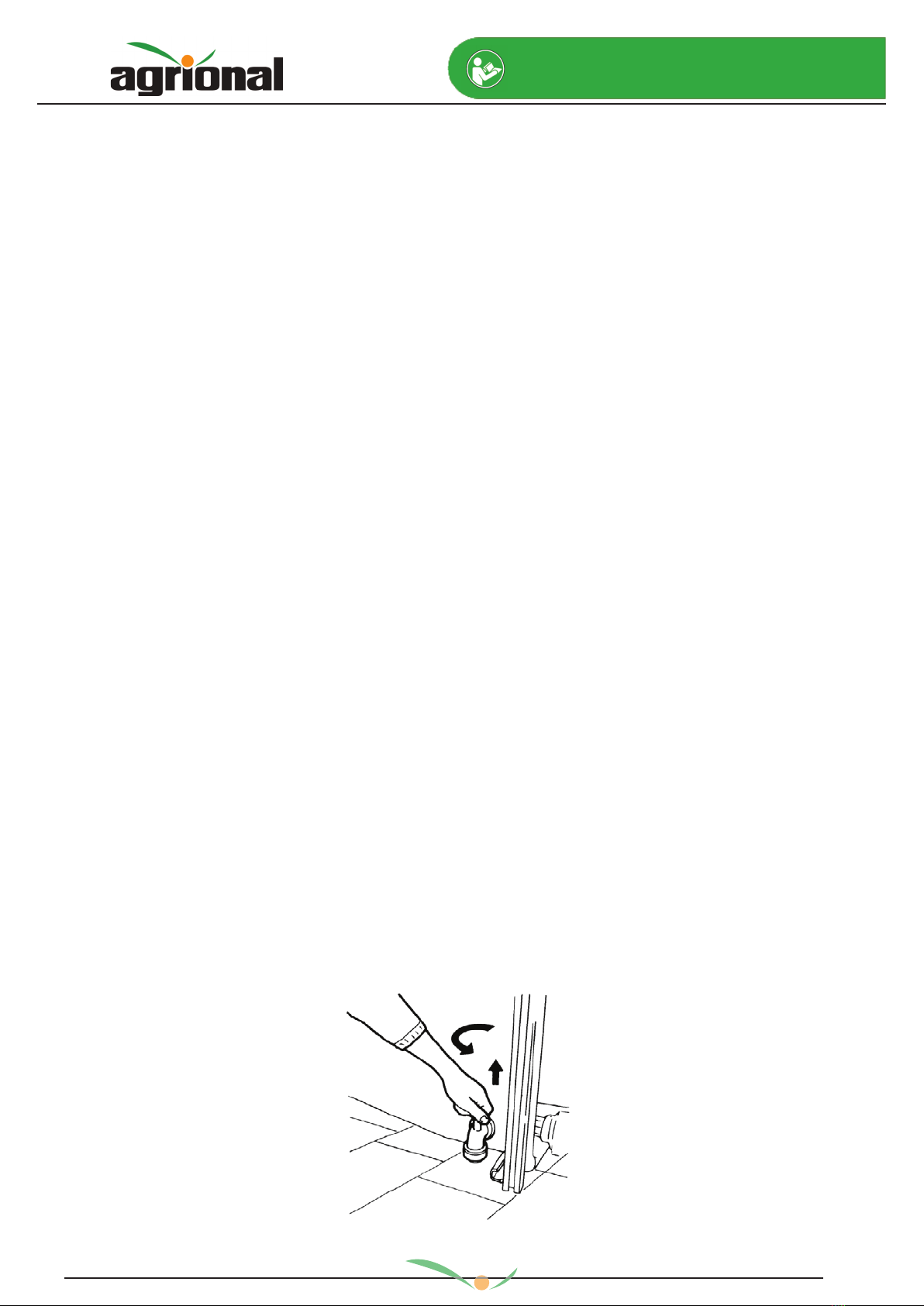

DRENAGE OF THE TANK
One important operation to learn is how and where to drain the tank. All the
tank are provided with a bottom valve which can be operated in a safe way,
without that the hands of the operator may get in touch with the chemical.
The drained liquid has never go into the gorund, but only in appropriate con-
tainers.

10
USER MANUAL
BOOM SPRAYERS
The sprayers can be provided of mechanical spraying boom mod. BD, BV,
BI or hydraulic spraying boom mod. BDIP. The boom is providied of painted,
zinc plate or hot galvanised steel frame, stainless steel tube, nozzles with
diapgrahm antidrip device with cone or fan tips and fi lter.
SPRAYGUN
The machine can be provided ofm spraygun which are of diff erent modeles.
Every spraygun is provided of the tips which can be replace in the time for
the maintenance or to vary the delivery output of the liquid.
The delivery can vary with the pressure value of the pump, it must be
changed turning the knob of the relief valve.
The tips are available with various holes which determinate with the pres-
sure the delivery of the spraygun.
Attached herewith please fi nd the rate chart of the diff erent tips available
for sprayguns.
The tips of the sprayguns either in stainless steel or ceramic can wear out
with the use and conseguently need to be changed time to time because the
delivery of the liquid will increase when the hole would have been enlarged
by the long use.
When the delivery of the spraygun increase without a giustifi cate reason and
the spraygun have a spraying not uniform, it means that the tips must be
replaced.
Attached herewith please fi nd the rate chart of the diff erent tips available
for sprayguns (see the pharagraph of calibrating and rate chart).

11
USER MANUAL
FILTERS
The sprayer is equipped with 3 systems of fi ltering.
1. A large basket fi lter is located under the main cover, the porpoise of
which is to
prevent that any impurity or foreign objects could get into the tank during
the operation of fi lling it with water.
2. A main strainer is located under the tank, connected to the inlet system.
The liquid is fi ltered before getting into the pump, which therefore will
work with no risk of damages. Before the main strainer there is a shut-off
valve which allows to clean the cartridge of the strainer when the tank is
full.
3. More other fi lters are placed one for each nozzle to prevent the clogging
of the tips.
All the fi lters are of easy access and easy to clean.
STRAINER
The sprayers is equipped with two strainers. A large fi lter screen is located
under the tank cover and the main strainer located under the tank.
When cleaning main strainer screen, make sure to remove yellow fi lter
shut-off valve before removing fi lter housing ring nut.

12
USER MANUAL
NOZZLES
The boom sprayer is provided of nozzles which can be adjusted to spray to
diff erent angulations.
The sprayers which are equipped with double ot triple nozzles are normally
used for interpolate diluted and concentrated works as are mounting one tip
with large hole and one tip with smaller hole.
All the nozzles, either single, double, or triple are provided of plastic, stain-
less steel or ceramic tips, at cone and fan spraying: the holes and the angula-
tions of the tips are available in diff erent sizes.
The tips can wear out with the use and consequently need to be changed
time to time because the delivery of the liquid will increase when the hole
would have been enlarged by the long use.
Each nozzle has a fi lter of stainless steel and an anti-drip device to prevent
leaks at the end of the work.

13
USER MANUAL

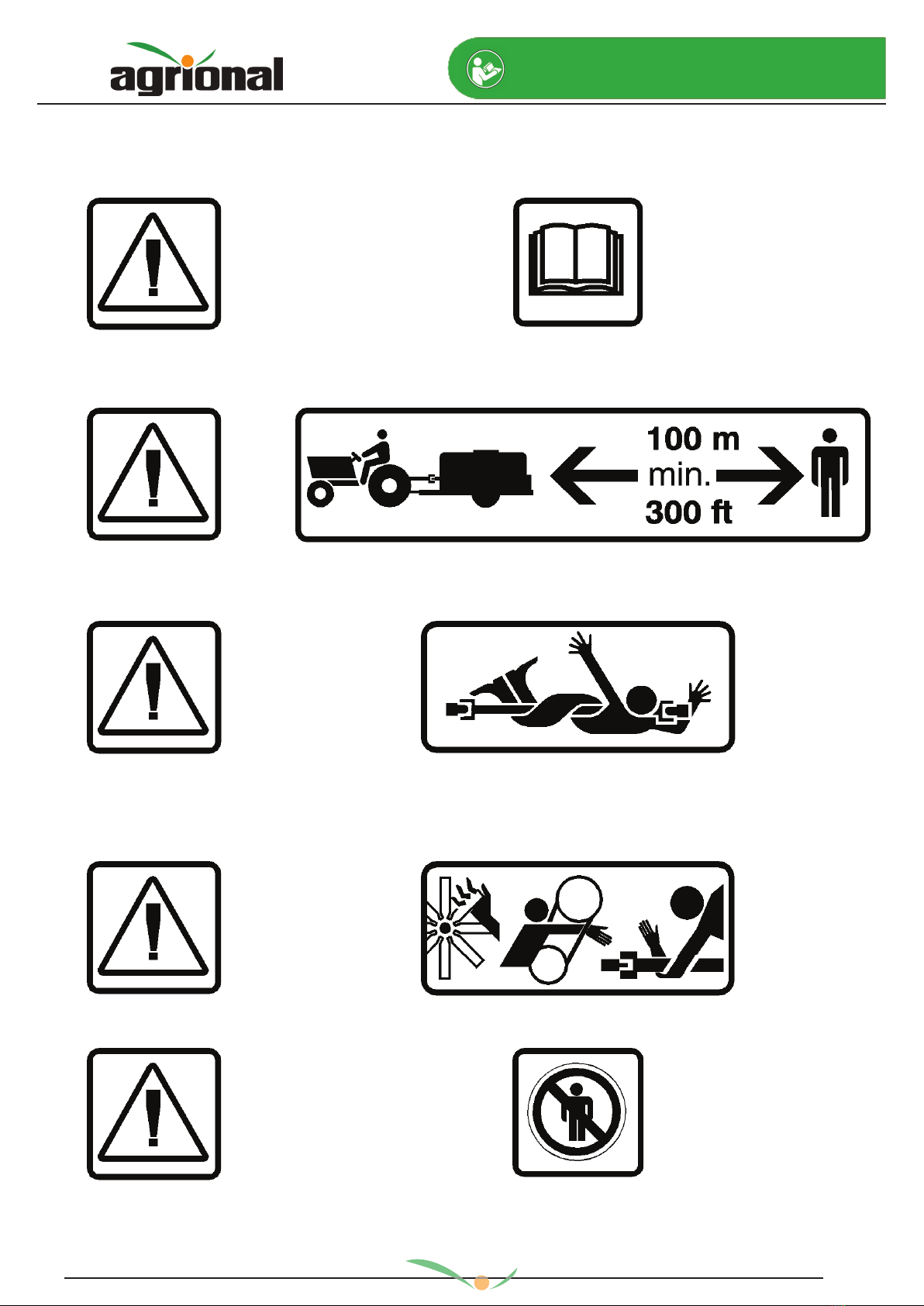

DANGER AND CAUTION SIGNALS
Please carefully read and understand the operating instruction of the operator’s
manual before using the machine.
DANGER: the machine blows possibly dangerous chemical.
Keep at a safe distance from the machine.
DANGER: never get near to the PTO shaft when it is in
operation.
DANGER: keep hands, feet and clothes away from the moving parts.
The machine must be used only by qualified personnel.

14
USER MANUAL
Never run the power take-off at speed exceeding 540 R.P.M.
(revolutions per minute).
Use only drive shaft with certified safery shields.
Avoid sharp angulation of drive line as this can damage the pump or the
PTO shaft of the tractor.
To stop the PTO shaft during the steering operation.
Before performing any service, stop both the machine and the tractor, verify that
both are still on the ground in a stable position and read the instructions of this
manual in the section referred to the service.
Wash the machine with plenty of water after each working phase.

15
USER MANUAL

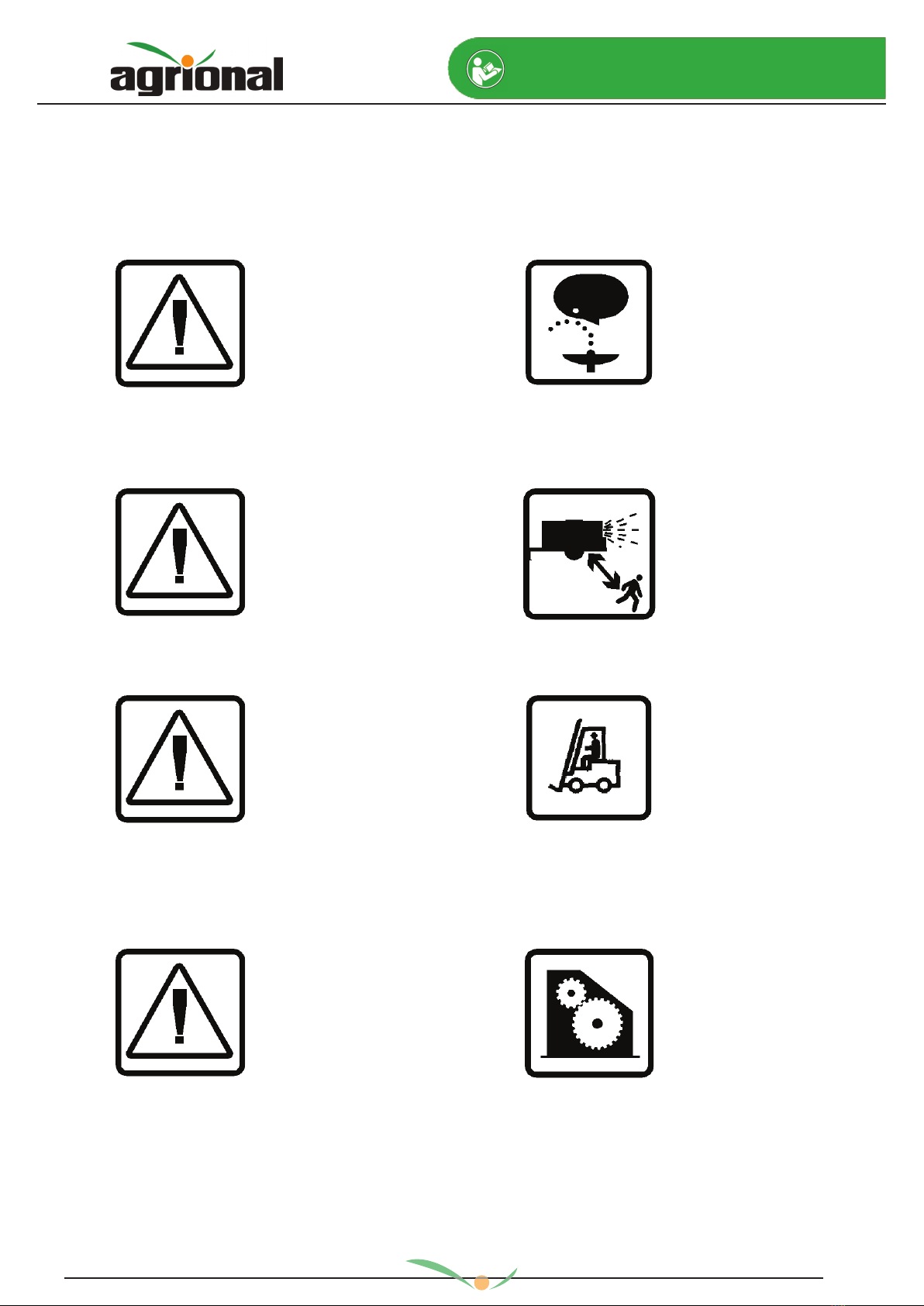

If the chemical products gets in contact with eyes, hands, skin or clothes,
neutralize them with suitable products and rinse with plenty of water.
Keep clear of the machine when it is in operation.
Hitching point for lifting the machine.
Make sure that the capacity of the vehicle used for transport is sufficient to lift the
maximum weight of the machine.
Never remove safety shields when the machine is running.

16
USER MANUAL
Get a thorugh knowledge of the chemical products used and how it must be
neutralized in case of contact with skin or eyes.
Use special goggles, boots, , overall working clothes, gloves, dust proof
mask or certified helmets with filter when you spray with the sprayers.
Carry out all the maintenance operations before starting to use the machine.
Use an additional support if the stand leg of the machine lays on soft ground.

17
USER MANUAL
Before using the machine, please carefully read the safety rules and the
recommendations of how to prevent accidents which are described in this
manual.
These rules must be strictly complied with to ensure safety of the operators
and other people as well as the environment.
The Manufacturer and its Sales network will not be considered liable in the
case that such rules are not complied with.
The sprayers are machines designed and built for the use of chemical prod-
ucts which could be very dangerous if handled or just touched by persons
with no adequate skill.
Before using such chemicals, read and understand all the warnings and di-
rections given by the manufacturer of the chemical and:
LEARN OF HOW TO ACT IF ACCIDENTALLY THE CHEMICAL WOULD BE
TOUCHED BY SOMEONE OR WOULD BE SPREAD IN THE ENVIRONMENT.
BEWARE: the sprayers are machines where some parts are rotating at a
very high speed, which, even if protected, are still potentially dangerous.
-Pay careful attention to warning, danger and marking signals which are
both contained in this handbook and affi xed to the machine.
-Any time the machine need to be serviced, the motor of the tractor must be
off , the gear engaged, the hand brake pulled and the machine must be fi rmly
parked on the ground.
-Never touch parts while they are in motion.
-It is forbibben to allow use of the machine by people under eighteen years
of age or who are not competent in use of the machine.
SAFETY RULES

18
USER MANUAL
When in operation, the sprayer blows chemical products.
Therefore, always make sure that no persons or animals are within the reach
of the machine. When making this evaluation, consider also possible wind.
Minimum distance between persons and working place: 100 Mt. (300 ft).
Never work when persons are in areas at risk.
The machine must be used by one person only who must operate it from the
tractor’s driver seat.
Nobody else is necessary, therefore no other persons must approach the
dangerous area (Min. distance from the machine while in operation: 100 Mt.
( 300 ft.).
Should someone come too close to the machine, then immediately stop any
operation you are carrying out and warn these persons with acoustic and
light signals until they leave the dangerous area, where they could be con-
taminated by chemicals, overrun by the tractor or be injured by machine
mechanisms. Risks Ndue to parts that are in motion and from sudden change
of the wind’s direction could be unavoidable.

19
USER MANUAL
Warning: It is strictly forbidden to stay between the tractor and the machine
when the engine is on. This can cause your death.
The operator must have a good visibility in order to check if somebody is
within the dangerous area (Minimum 100 Mt.: 300 ft.).
Should this happen however, then EVERY MACHINE OPERATlON MUST BE
STOPPED until the dangerous area is free.
The spraying of chemicals need the use of:GLOVES, GOGGLES, DUST
PROOF MASK OR HELMENTS, OVERALL WORKING CLOTHES.
Never wear clothes with free ends (such as belts, scarves, heads-squares,
long skirts, etc.) which could drag you towards the machine parts while they
are in motion.
The operator should keep all shields, of which the machine is equipped, in
steady and sound conditions. After any service or repair, all the shields must
be put in the original place.
When replacing any worn out pieces or during any other operation on the
machine (which must be carried out by skilled technicians) please proceed as
follows:
-make sure the engine is stopped;
-make sure that the lever of regulator valve is in by-pass position;
-in case of the need of servicing the machine from underneath, make sure
that this would rest safely on proper supports, in order to prevent any acci-
dental fall which would seriously injure someone;
-every intervention must be carried out on a clean horizontal fl oor.
-It is forbidden to allow use of the machine by people under eighteen years of
age or who are not competent in use of the machine.
-Chemicals means danger and must be kept in containers suited for the pur-
pose.

20
USER MANUAL
-Always fi ll the tank in the open air. Nevere smoke when carrying out these
operations.
-Never remove caps of the tanks if the motor is running or still warm.
-If there has been any leakage of chemical, do not start the motor but shift the
machine, with the motor turned off , to an area free from gas and combustible
liquids before carrying out the operation.
-Never run the motor in enclosed areas. The exhaust gases contain carboin
monxide, which is an odourless and deadly poison.
-Never use the motor in thick woods, among bushes or other areas with
uncultivated vegetation.
-When the machine is being used there must be no other people within a radious
of 100 metres from the work area.
-Prevent involuntary switching on of the motor by removing the spark plug be-
fore carrying out maintenance jobs.
-Pull the start cord slowly untill you feel a certain resistance; then pull the cord
rapidly so as to avoid recoil and prevent injury to the hands and arms.
-Use freshly blended fuel. Old petrol may cause rubbery deposits in the fuel and
lead to leakage.
-Check the feeding system an connections frequently to ensure there are no
leaks or cracks; if necessary, replace any damaged parts.
-Never remove protection devices and guards even for a time, in particular the
protective grid on the fan and protective casing on the silencer.
-Always wear suitable protective clòothing, especially during preparation of the
product, treatment, when cleaning the jets and fi lters, emptying the tank and
washing the machine.
