KISANKRAFT KK-KBS-165 User manual

KisanKraftTM
Warranty Certificate
(D
EALER
C
OPY
)
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
KisanKraft Machine Tools Private Limited
: www.kisankraft.com : [email protected] : +91.80.22178200
Page 1 of 24
Product
Knapsack Battery
Sprayer/ Knapsack
Manual cum Battery
Sprayer
KisanKraftTM
Invoice Date
Brand KisanKraft KisanKraftTM
Invoice No.
Model
KK-KBS-165
KK-KBS-167
KK-KBS-169
KK-KBS-183
KK-KBS-185
KK-KBS-187
KK-KBS-189
KK-KMB-4184
WARRANTY
PERIOD 6MONTHS
FOR THE SPECIFIED PERIOD FROM THE
DATE OF SALE OR DELIVERY WHICHEVER
IS EARLIER.
Dealer’s
Invoice
Date
Dealer’s
Invoice No.
Buyer’s Info (Name, Address, Phone, etc.):
Dealer’s Stamp (Address, Phone, TIN,
etc.):
Buyer’s
Sign Dealer’s
Sign
What is covered: KisanKraft Machine Tools Private Limited and its manufacturers
warrant this product to be free from defects in material or workmanship. All parts
defective in material and workmanship are covered.
This warranty will only cover defects arising under normal usage.
This warranty is limited to repair or replacement by KisanKraft Machine Tools Private
Limited or its manufacturers at the premises of Authorized Dealers, of such parts as
appear to KisanKraft or its manufacturers, upon inspection, to be defective in material
and/or workmanship. KisanKraft or its manufacturers make no warranty with respect
to trade accessories not manufactured or sold by them.
What is not covered: The warranty shall become null and void and neither
KisanKraft Machine Tools Private Limited nor any of its manufacturers, nor its
authorized dealers assumes any responsibility, if the failure was caused by the
following:
(1) Operation of product with incorrect fuel or lubricants, (2) Incorrect usage of
machine or misuse, (3) Lack of maintenance, (4) Negligence, (5) Accident or physical
damage, (6) Repairs made by unauthorized parties and/or with unauthorized parts,
(7) Improper set up, adjustments, tampering or altered products

KisanKraftTM
Warranty Certificate
(DEALER COPY)
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
KisanKraft Machine Tools Private Limited
: www.kisankraft.com : [email protected] : +91.80.22178200
Page 2 of 24
Important: (1) Normal maintenance and adjustments to the product is the responsibility
of the customer. (2) Normal wear and tear is not covered under warranty (3)
Rubber/plastic parts and consumables such as blades, clutch and clutch-bell, spark-
plugs, nylon line, air-filters, fuel-filters, oil seals etc. are not covered under the warranty.
No Warranty On Electrical Motor / Electrical Parts Etc.
Incidental / Consequential Loss: KisanKraft Machine Tools Private Limited or its
manufacturers will not be liable for general damages, including bodily injuries, or for
incidental or consequential damages including, but not limited to, loss of use, loss of
profits, loss of production, expense of substitute equipment or other commercial loss or
damage.
Limitation of Liability: This limited warranty is in lieu of all other express warranties,
obligations, or liabilities. Any implied warranties, obligations or liabilities, including, but
not limited to, any implied warranty of merchantability shall be limited in duration to the
applicable warranty period. Any action for breach of any warranties hereunder,
including, but not limited to, any implied warranty of merchantability must be brought
within the applicable warranty period.
Modifications of Warranty: No agent, representative, dealer, or employee of
KisanKraft Machine Tools Private Limited or any of its manufacturers has the authority
to increase or alter the obligations of this warranty.
Assignment / Transfer of warranty: The warranty cannot be assigned and shall not
transfer if the product is resold by the first buyer. The above warranties are extended to
the first end user (original purchaser), and no warranty is made, nor authorized to be
made assignable on resale by the first end user.
What you must do to obtain limited warranty service: To obtain performance of any
obligation under this warranty for failure during the applicable warranty period, deliver
the defective product, to the nearest Authorized Dealer. KisanKraft Machine Tools
Private Limited, its manufacturers and its dealers reserve the right to inspect the claimed
defective part(s) to determine if the malfunction is the result of a defect covered by this
warranty. Please note that the decision of KisanKraft Machine Tools Pvt Ltd with respect
to any warranty claim is final.
Receipt is required for availing warranty services
Jurisdiction: All disputes are subject to Bangalore court’s jurisdiction.
Our
Products
ChainsawsBrush Cutters and AccessoriesHarvesters
Engines and Water PumpsHand ToolsGarden Tools
Cultivators and AccessoriesSprayers and Accessories
Transplanter and Post Hole Digger Milking Machines

KisanKraft
TM
KNAPSACK BATTERY SPRAYER
KK-KBS-165/167/169/183/185/187/189
KNAPSACK MANUAL CUM BATTERY SPRAYER
KK-KMB-4184
: www.kisankraft.com : [email protected] : +91.80.22178200
Page 3 of 24
Operation Manual
KisanKraft Machine Tools Pvt. Ltd.
Sri Huchhanna Tower, #4,1st Main,7-A Cross, Maruthi Layout, Dasarahalli,
HAF Post, Hebbal, Bangalore 560024,Karnataka,INDIA
♦Bangalore (HO) ♦ Ahmedabad ♦ Bhopal ♦ Bhubaneswar ♦ Coimbatore ♦
♦Ernakulam ♦ Guwahati ♦Shimla ♦ Patna ♦ Hinudpur ♦ Hubli ♦ Hyderabad ♦
♦Jaipur ♦ Karnal ♦ Kolkata ♦ Lucknow ♦ Nagpur ♦ Pune ♦ Raipur ♦

K
isanKraftTM
KNAPSACK BATTERY SPRAYER
KK-KBS-165/167/169/183/185/187/189
KNAPSACK MANUAL CUM BATTERY SPRAYER
KK-KMB-4184
: www.kisankraft.com : [email protected] : +91.80.22178200
Page 4 of 24
CONTENTS
BEFORE GETTING STARTED ............................................................................................. 7
APPLICATION ................................................................................................................. 7
FEATURES....................................................................................................................... 7
SAFETY INSTRUCTIONS ................................................................................................... 7
MAIN CONSTRUCTION.................................................................................................... 9

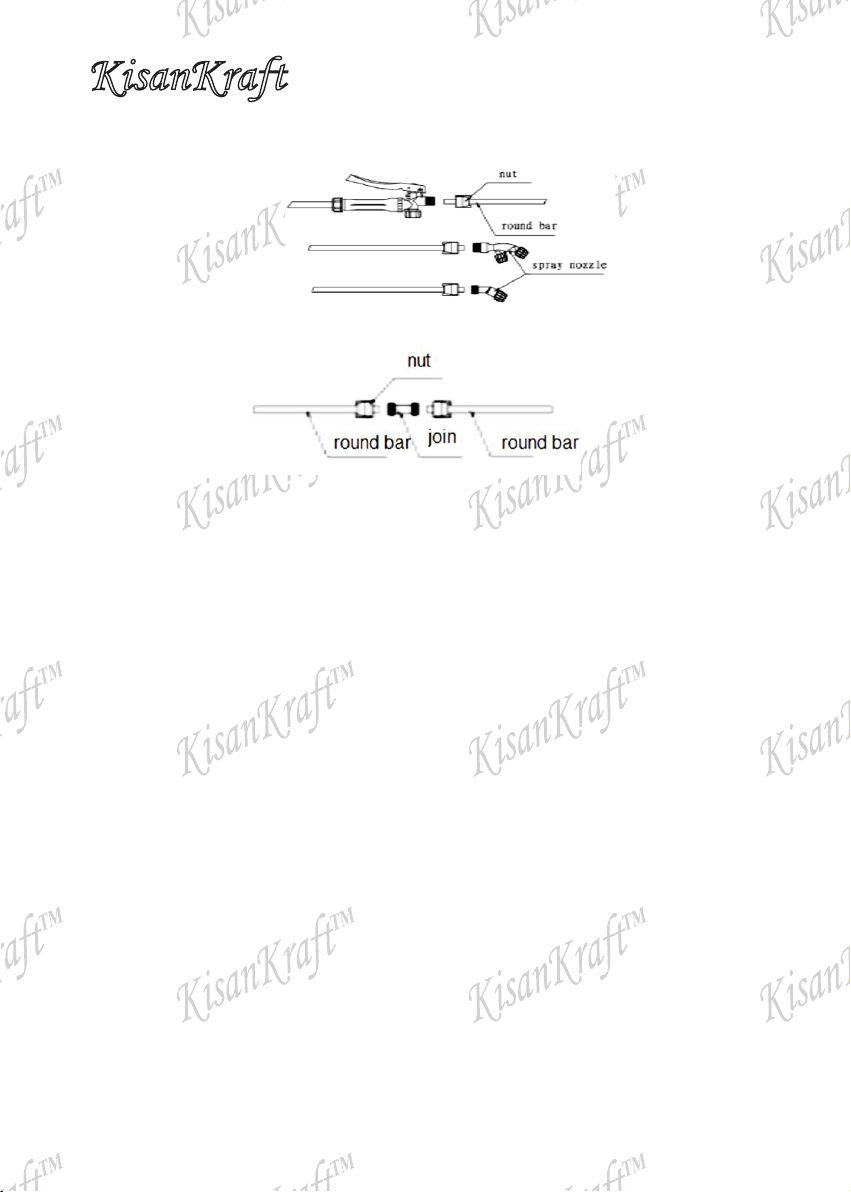

ASSEMBLY INSTRUCTIONS ............................................................................................ 10
OPERATION-MANUAL SPRAYER.................................................................................... 12
OPERATION-BATTERY SPRAYER .................................................................................... 13
TECHNICAL SPECIFICATION ........................................................................................... 16
TROUBLESHOOTING-MANUAL SPRAYER ....................................................................... 16
TROUBLESHOOTING - BATTERY SPRAYER ...................................................................... 17
MAINTENANCE AND STORAGE ..................................................................................... 19

KisanKraftTM
Warranty Certificate
(
CUSTOMER
C
OPY
)
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
KisanKraft Machine Tools Private Limited
: www.kisankraft.com : [email protected] : +91.80. 22178200
Page 5 of 24
Product
Knapsack Battery
Sprayer/ Knapsack
Manual cum Battery
Sprayer
KisanKraftTM
Invoice Date
Brand KisanKraft KisanKraftTM
Invoice No.
Model
KK-KBS-165
KK-KBS-167
KK-KBS-169
KK-KBS-183
KK-KBS-185
KK-KBS-187
KK-KBS-189
KK-KMB-4184
WARRANTY
PERIOD 6MONTHS
FOR THE SPECIFIED PERIOD FROM THE DATE
OF SALE OR DELIVERY WHICHEVER IS
EARLIER.
Dealer’s
Invoice Date Dealer’s Invoice No.
Buyer’s Info (Name, Address, Phone, etc.):
Dealer’s Stamp (Address, Phone, TIN, etc.):
Buyer’s Sign Dealer’s Sign
What is covered: KisanKraft Machine Tools Private Limited and its manufacturers
warrant this product to be free from defects in material or workmanship. All parts defective
in material and workmanship are covered.
This warranty will only cover defects arising under normal usage.
This warranty is limited to repair or replacement by KisanKraft Machine Tools Private
Limited or its manufacturers at the premises of Authorized Dealers, of such parts as
appear to KisanKraft or its manufacturers, upon inspection, to be defective in material
and/or workmanship. KisanKraft or its manufacturers make no warranty with respect to
trade accessories not manufactured or sold by them.
What is not covered: The warranty shall become null and void and neither KisanKraft
Machine Tools Private Limited nor any of its manufacturers, nor its authorized dealers
assumes any responsibility, if the failure was caused by the following:
(1) Operation of product with incorrect fuel or lubricants, (2) Incorrect usage of machine
or misuse, (3) Lack of maintenance, (4) Negligence, (5) Accident or physical damage, (6)
Repairs made by unauthorized parties and/or with unauthorized parts, (7) Improper set
up, adjustments, tampering or altered products

KisanKraftTM
Warranty Certificate
(CUSTOMER COPY)
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer’s stamp.
KisanKraft Machine Tools Private Limited
: www.kisankraft.com : [email protected] : +91.80. 22178200
Page 6 of 24
Important: (1) Normal maintenance and adjustments to the product is the responsibility
of the customer. (2) Normal wear and tear is not covered under warranty.(3)
Rubber/plastic parts and consumables such as blades, clutch and clutch-bell, spark-
plugs, nylon line, air-filters, fuel-filters, oil seals etc. are not covered under the warranty.
No Warranty On Electrical Motor / Electrical Parts Etc.
Incidental / Consequential Loss: KisanKraft Machine Tools Private Limited or its
manufacturers will not be liable for general damages, including bodily injuries, or for
incidental or consequential damages including, but not limited to, loss of use, loss of
profits, loss of production, expense of substitute equipment or other commercial loss or
damage.
Limitation of Liability: This limited warranty is in lieu of all other express warranties,
obligations, or liabilities. Any implied warranties, obligations or liabilities, including, but
not limited to, any implied warranty of merchantability shall be limited in duration to the
applicable warranty period. Any action for breach of any warranties hereunder,
including, but not limited to, any implied warranty of merchantability must be brought
within the applicable warranty period.
Modifications of Warranty: No agent, representative, dealer, or employee of
KisanKraft Machine Tools Private Limited or any of its manufacturers has the authority
to increase or alter the obligations of this warranty.
Assignment / Transfer of warranty: The warranty cannot be assigned and shall not
transfer if the product is resold by the first buyer. The above warranties are extended
to the first end user (original purchaser), and no warranty is made, nor authorized to be
made assignable on resale by the first end user.
What you must do to obtain limited warranty service: To obtain performance of any
obligation under this warranty for failure during the applicable warranty period, deliver
the defective product, to the nearest Authorized Dealer. KisanKraft Machine Tools
Private Limited, its manufacturers and its dealers reserve the right to inspect the
claimed defective part(s) to determine if the malfunction is the result of a defect covered
by this warranty. Please note that the decision of KisanKraft Machine Tools Pvt Ltd with
respect to any warranty claim is final.
Receipt is required for availing warranty services
Jurisdiction: All disputes are subject to Bangalore court’s jurisdiction.
Our
Products
ChainsawsBrush Cutters and AccessoriesHarvesters

Engines and Water PumpsHand ToolsGarden Tools

Cultivators and AccessoriesSprayers and Accessories

Transplanter and Post Hole Digger Milking Machines

KisanKraftTM
KNAPSACK BATTERY SPRAYER
KK-KBS-165/167/169/183/185/187/189
KNAPSACK MANUAL CUM BATTERY SPRAYER
KK-KMB-4184
: www.kisankraft.com : [email protected] : +91.80. 22178200
Page 7 of 24
BEFORE GETTING STARTED
Thank you for your purchase and use of our products. In order to avoid accidents or injury, please
read this manual carefully before using. After reading, preserve it for further reference. Please
make a note that this product is always improving, maybe the machine you buy does not coincide
with the manual, exactly.
APPLICATION
The knapsack electrical sprayer is the new model electrical sprayer developed by our company.
They have a reasonable design, beautiful outlook, reliable character and are economical
products. They have advantages of safety, trustiness, energy saving, good misting effect, the
high use ratio of pesticide, and wide range of usage. It is suitable for use in prevention of plant
diseases and pests, such as cotton, wheat, paddy, fruit trees, and tea trees and so on. It can
also be used for the prevention of the pests of garden flower, epidemic prevention near hotels,
stations and other public places and poultry.
Note: The model KK-KMB-4184 can be operated both manually and through battery.
FEATURES
Our new model knapsack battery sprayer has attractive features like telescopic lance,
speed controller and auto- cutoffpump.
Some of the sprayer models are equipped with a mobile charger and a LED light for
visibility during night operation.
The machine adopts subminiature direct current as the power, hence safe and reliable.
The handgrip adopts linkage-control motor switch, making the operation easy and safe
The dissepiment pump of the machine is bi-directional, simple structure and easy
maintenance.
The machine has a high pressure, heavy flow, high spraying effect and good effect in
prevention of pests.
The shape of the nozzle of main spraying parts is F, so it has a broad width and high effect.
The overall parts of dissepiment pump are made of plastic, so it has the property of low
weight and anti-corrosion.
SAFETY INSTRUCTIONS
1. Read this manual carefully, be sure you understand how to operate this machine
properly before you use it.
2. Protective Clothing:
Wear flange cap.
Wear dirt/fog-proof glasses.
Wear gauze mask.
Wear long gloves.
Wear coat guarding against
poisons.
Wear boots.
3. Following personnel should not use the machine:
Mentally challenged.
Drunk.
Under the age of 18 or older people.

KisanKraftTM
KNAPSACK BATTERY SPRAYER
KK-KBS-165/167/169/183/185/187/189
KNAPSACK MANUAL CUM BATTERY SPRAYER
KK-KMB-4184
: www.kisankraft.com : [email protected] : +91.80. 22178200
Page 8 of 24
Person with no knowledge of the machine.
Tired person or patient and others who cannot operate the machine normally.
A person who has just exercised strenuously or has not slept enough. Women
feeding breast milk to the baby or is pregnant.
4. Recharge
If the wire/ plug is bad, or the socket is loose, don’t use it as there is a risk of an
electric shock and even fire.
Don’t pull the plug with wet hand to avoid electric shock.
If the plug wasn’t inserted into the socket completely, there is a danger of
experiencing an electric shock, and even a fire.
Please clear away the dust on the plug. The dust also can cause a fire.
Don’t lay this machine in a wet or a dusty place to avoid electric shock, heat, split
and so on.
Don’t charge above the set time, or it will cause a battery leak, heat split and so
on.
When storing the machine avoid direct sunlight, hot environment and avoid things
that emit heat of their own. Otherwise, it will speed up the aging of the battery,
and may cause weeping, emit heat, craze, or strike fire etc.,
Don’t charge when the temperature of the battery is low or in the cold weather,
as it may cause the battery to leak and will shorten its life.
Don’t throw the battery into the fire or heat as it will split the battery.
If you find any battery leak, color change and distortion, don’t use it any more.
5. Spraying
It is fine to carry out an operation during cool weather with little wind. For example,
early in the mornings or in the late afternoons as this can reduce the evaporation
and drift of chemicals and improve the protective effect.
The operator should move windward.
If your mouth or eyes are spattered with chemicals, wash them with clean water
and then visit a doctor.
If the operator has a headache or dizziness, should stop working at once and
consult a doctor immediately.
For the operator’s safety, misting/dusting must be carried out strictly according to
the instruction of the chemicals and agricultural requirements.
Spray over, according to pesticide manual to clean out any residual spray mixture
in chemical tank.
After spraying always wash your hands and face thoroughly.
6. Warning:
Check if the parts in the package coincide with the packing list.
The new machine must be charged before using. It is normal for a new machine
and the machine stored for a long time to charge incompletely. It will be charged
full after releasing repeatedly.
Don’t charge in a wet room or with wet hands, as you may experience an electric
shock.
Please be sure to charge after using, and charge fully before storing.
Don’t use it to spray corrosive liquids, coal, oil and other volatile liquid in order
not to catch a fire or get any burns.
It will harm persons and crop if the chemical liquid is mixed improper. Please read
the introduction of pesticide before using it.
It is prohibited to put the pesticide into other containers in order not to prevent
any accidental consumption.

KisanKraftTM
KNAPSACK BATTERY SPRAYER
KK-KBS-165/167/169/183/185/187/189
KNAPSACK MANUAL CUM BATTERY SPRAYER
KK-KMB-4184
: www.kisankraft.com : [email protected] : +91.80. 22178200
Page 9 of 24
In order to avoid incidents incurred by clinging to the pesticide, the operator must
wear flange cap, fog-proof glasses, gauze mask, long gloves, and coat guarding
against poisons, boots and some other protective clothing.
After operating, the operator must wash the whole body with water and soap. In
the meantime, the operator must wash eyes with clean water, and change clothes
every day within the period of operation.
Don’t let the deposit or the water used for cleaning the machine flow into river,
lake, pond, in order not to avoid pollution.
The machine should cleaned completely, be dried and charged fully after using,
and then should be kept in a cool and windy place.
7. Please follow the safety instructions given in this manual.
8. Everyone has the duty to protect the environment and save energy!
9. While you strictly follow the rule of operating in this manual, you should do set below:
10. Don’t use the virulent pesticide prohibited by the government.
11. Don’t use the machine to harm the environment and public profits.
12. Please use the machine cautiously without affecting the ecological balance.
13. Don’t let the deposit pesticide flow arbitrarily in order to avoid the environment
pollution.
MAIN CONSTRUCTION
This machine mainly has five parts.
The dissepiment pump: It is the core part of this machine. It influences the property of the whole
machine. The power of the machine comes from DC motor which keeps the membrane running.
There is a press –control switch on the dissepiment pump, if the operating pressure exceeds the
rated pressure, the pump power will be shut off automatically to protect the motor. The
dissepiment pump connects with tank by pump holder.
Battery: The specification is DC12V7AH, fixed in the sprayer. The battery is held on the battery
seat by the belt. The battery is charged by the charging-line combination, also the fuse on the
charging-line combination protects the motor.
Chemical Tank: It is filled with liquids. The tank’s design is based on the shape of the person’s
back, so it is comfortable to wear on the back.
Spraying Part: It accomplishes the spraying work. There is a clique core switch, non- omit and
is easy to operate. To start working, turn on the power switch and press the handle switch, the
pump will shut down automatically if the handle is released. If you repress the handle, it works
again.
Knapsack system: It is composed of straps and pad used for wearing on the back

KisanKraftTM
KNAPSACK BATTERY SPRAYER
KK-KBS-165/167/169/183/185/187/189
KNAPSACK MANUAL CUM BATTERY SPRAYER
KK-KMB-4184
: www.kisankraft.com : [email protected] : +91.80. 22178200
Page 10 of 24
ASSEMBLY INSTRUCTIONS
1. Cut off the plastic cap
2. Insert the rocker into the hole
at the bottom of the tank
3. Turn the rocker down towards
you and locate the pump
handle retaining clip here
4. Push the rocker retaining clip
onto the rocker, ensuring that
the notch goes into the hole
5. Push the long end of the
connecting rod through the
pump handle, retaining loop
fitting and the holes on the top
of the plunger
6. Insert the split pin.

KisanKraftTM
KNAPSACK BATTERY SPRAYER
KK-KBS-165/167/169/183/185/187/189
KNAPSACK MANUAL CUM BATTERY SPRAYER
KK-KMB-4184
: www.kisankraft.com : [email protected] : +91.80. 22178200
Page 11 of 24
7. Push the other end of the
connecting rod through the
hole on the rocker
8. Fit the washer and the split pin
9. Screw one end of the hose
onto the top of plunger, It is for
sprayer manual operate
10. Screw one end of the hose
onto the tank pipe, It is for
battery power operate.
11. Screw the other end of the
hose onto the bottom of the
switch

KisanKraftTM
KNAPSACK BATTERY SPRAYER
KK-KBS-165/167/169/183/185/187/189
KNAPSACK MANUAL CUM BATTERY SPRAYER
KK-KMB-4184
: www.kisankraft.com : [email protected] : +91.80. 22178200
Page 12 of 24
12. Screw one end of the lance
onto the top of the switch.
Attach the nozzle of choice to
the other end of the lance
OPERATION-MANUAL SPRAYER
Structure
The machine is composed of the following:
1. Container of liquid
2. Pump and air chamber
3. Spraying system (including rubber hose and components, switch, sprayer spindle and
head)
4. Operation arm and components
5. Backpack belt system
Characteristics
1. The external form is an imitation of the human backs curve and the combination of the
air chamber and pump located in the liquid container makes the whole structure
compact and safe with no leakage.
2. The operation arm uses an action connecting style so that it can be installed on both
sides. It is convenient and quick in action and the user can accordingly to his habit and
usage operate it mutually changeable with the right or left hand reducing the labor
intensity.
3. Various spray heads can be fitted for use in different tasks, to achieve a fine spray and
sprinkle effects.
4. The chosen materials for the machine are resistant to acid, alkalinity and corrosion.
The machine is sealed hermetically and is very durable.
Working principle
By swinging the operation arm and components, the pump bowl rises up and down which allows
the sealing ball to turn on and off. This in turn makes the pressure in the air chamber rise up and
down which then forces the medicinal liquid into the chamber, the liquid can then go through the
spraying system and spurt out as spray.
Operation
1. After the packing box of new machine is opened please check all the parts conform to
the packing list.
2. Then assemble the machine as per the structure sketch. Before use please wrench
the cap off the container.

KisanKraftTM
KNAPSACK BATTERY SPRAYER
KK-KBS-165/167/169/183/185/187/189
KNAPSACK MANUAL CUM BATTERY SPRAYER
KK-KMB-4184
: www.kisankraft.com : [email protected] : +91.80. 22178200
Page 13 of 24
3. Pour the compounded medicinal liquid through the filter into the container slowly, then
close the cap tightly and put the machine on your back.
4. After the pressure in the air chamber is boosted swing the operation arm and then
press the switch component to begin spray operation.
5. It can be point-spray or it can be continuous spray. At the same time adjust the nut
according to the requirement of the crops in order to improve the quality of spraying.
6. Choose the different spray-head for spraying correctly. Along with the machine 3 kinds
of spray heads are delivered.

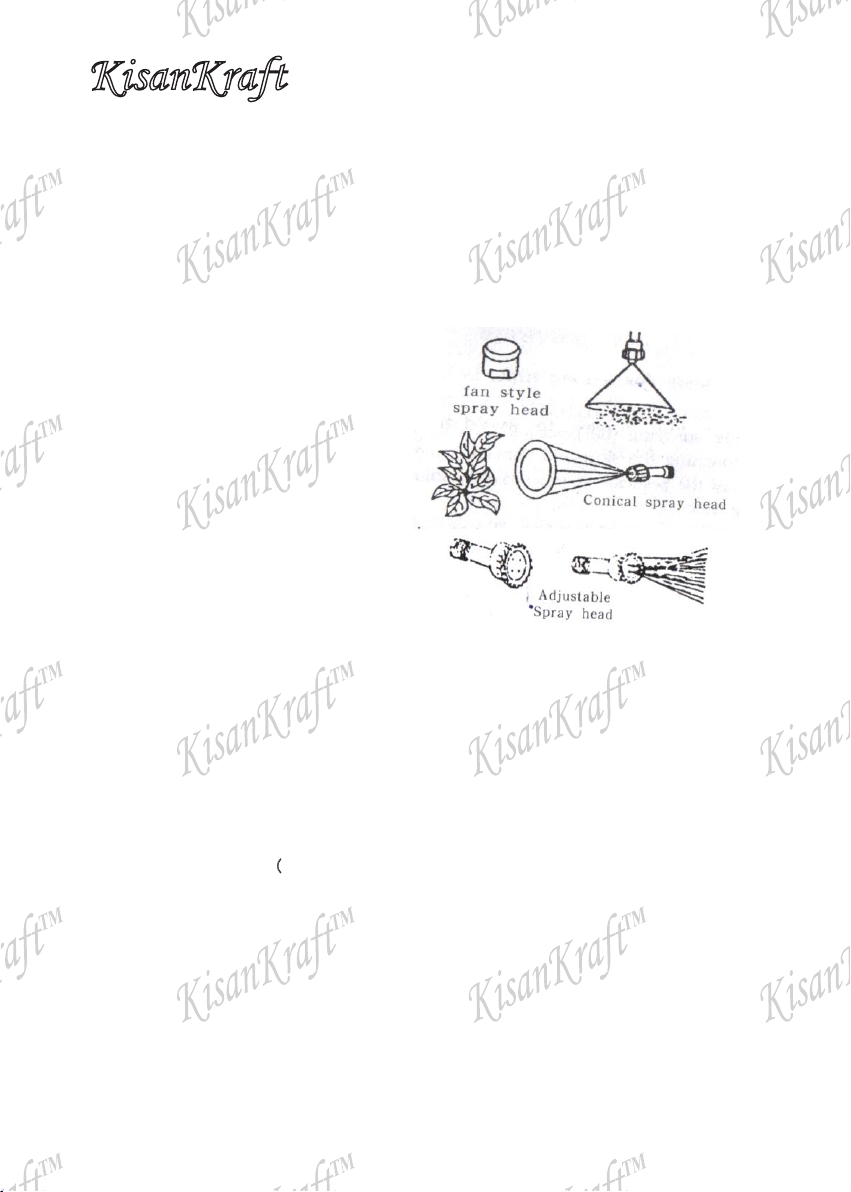

Fan style spray: This sprays evenly and is
suitable for spraying on low and short
stalked crops and for the spraying of weed
killer. Keep the spray head stable and
spray in the same direction as the wind.
Conical spray head: This can be used for
spraying pesticide and insecticide, to
prevent diseases and kill insects. Spray in
the same direction as the wind.
4 Hole adjustable spray: This can be
used for spraying on the high stalk crops
and fruit trees. Its shortcoming is the
serious running off the medicinal liquid.
OPERATION-BATTERY SPRAYER
1. Introduction to the function:
As shown in the figure, Control system is installed on one side of the cover: Voltmeter, Speed
Regulator, Charging Plug and a Power Switch.
Voltmeter Indicate over-discharge, over-charge and normal service condition.
Speed Controller ：Adjust the rotating speed of the pump to make the pump work stably,
achieving the result of spraying stabilization.
Charging plug: Linked with charger to transmit energy to the battery.
Power switch: Control the connection between the power and diaphragm pump.
Under voltage protector (optional) ：Linked with speed regulator to protect the battery.
When the battery voltage reached the preset protecting voltage 9.5-10V，buzzer rings
indicating that you should stop working to charge battery for maintenance
2. Charging the Battery:
The new machine must be charged before using.
If a machine is stored for a long time, it must be charged before use.
Charging with the special charger
Please untie the belt and back mat to disclose the battery completely. There are two plugs on
the plate, one is connected to electric power, usually there is a plug connected to an electric
pump to supply power, and the other jack is used to connect with the plug of the charger.

KisanKraftTM
KNAPSACK BATTERY SPRAYER
KK-KBS-165/167/169/183/185/187/189
KNAPSACK MANUAL CUM BATTERY SPRAYER
KK-KMB-4184
: www.kisankraft.com : [email protected] : +91.80. 22178200
Page 14 of 24
When charging, you only insert the output of the charger to the jack and then connect the input
with 220V alternating current. The signal light on the charger is red during normal charging. It will
change to green when it is fully charged.
The conditions for using the charger:
Standard Voltage
AC100V
～
240V
Input Frequency
50/60Hz
Using Temperature
＋
10℃
～＋
30℃
Storing Temperature
－
10℃
～＋
40℃
Using Place
Only inside
The time of charging for the new machine or a machine stored for a long time must
be 24 hours.
Don’t let the switch in the place of “一”while charging.
Please pull out the wire of the charger from the jack after the charging is completed.
An Improper battery wire connection will burn the battery and charger. The red wire
should be connected with the red end of the battery.
Don’t charge in a wet room or with wet hands, as it may cause an electric shock.
Please use the special charger for this machine in order to avoid fire. In addition, it is
prohibited to charge any other electrical machines with the special charger of this
machine or as a power source.
Please pull out the wire of the battery from the socket once the charging is completed.
Don’t let this machine exposed to the sun, high temperature conditions and the things
radiating heat, which may lead to ageing of the battery, battery leakages, radiate heat,
split and even fires.
If you find the charger abnormal, pull out from the plug immediately in order to avoid
electric shock, radiating heat and causing fires.
Don’t adopt generator as the electrical source of charging, which may destroy the
charger. Don’t pull the wire off the charger forcibly.
Please clean the electrical pick off of the battery with dry cloth. Bad connection will cut
the power supply or may result in charge failure.
Be sure of the safety, please store this machine in place out of reach of children and
infant in order to avoid an electric shock.

If the battery of this machine needs to be replaced, it must be confirmed by the company. The
disabled battery couldn’t be thrown away anywhere. Please send it into the proper recycle
center which can deal with it.
3. Connection of the spraying parts:
a) Fix the spraying pole in the place as shown in the figures.
b) Insert the spraying pole into the switch and fasten the screw cap.
Caution: Don’t fasten the nut with the pliers, or it may harm the nut.
c) Hold the knob assembly with one hand and adjust the direction of the nozzle by holding
the spraying head with the other hand.

KisanKraftTM
KNAPSACK BATTERY SPRAYER
KK-KBS-165/167/169/183/185/187/189
KNAPSACK MANUAL CUM BATTERY SPRAYER
KK-KMB-4184
: www.kisankraft.com : [email protected] : +91.80. 22178200
Page 15 of 24
d) If you want to spray higher, you could connect two spraying poles, which will increase
the total length.
e) This machine has three different kinds of nozzles. You could use the nozzle according
to different conditions.
Model of the
Nozzle
Diameter of the
Nozzle
（
mm
）
Flow
（L/min）
Working
Pressure
(MPa)
The
amount of
Nozzle
Taper Nozzle
1.0
0.8
0.15
～
0.35
1
Sector Nozzle
0.7
0.48
0.15
～
0.4
1
F Nozzle
1.5
1.2
0.15
～
0.25
2
Note: The data in the table is the trial value of our company and not the confirmed value.
The amount of spraying mist and working pressure may change with the environment.
4. Add Liquids
a) Please keep this machine on the actinic ground when adding liquids.
b) Please use the filter screen when you are adding liquids. The filter screen can protect
the liquid plug from jam, for the jam can result in abnormal jet.
c) Please be slow when adding chemical in order to avoid overflowing. Once overflowed,
please wipe it dry and clean with gauze so that the chemical doesn’t flow into the
battery and electric pump. The chemical liquids, can corrupt the electric equipment
and shorten the life of this machine.
d) It is strictly prohibited to use solvent easy to curdle when meeting heat for the heat
generated by the working of liquid pump is easy to curdle that solvent so that the liquid
pump doesn’t work.
Note:
Please make sure that the switch of electric power is open before adding the chemical.
There is a scale on the side of chemical tank, please add chemical liquid according to
the quantity of work.
It is strictly forbidden to spray highly acid liquid, paint and volatile chemical solvents.
Warning:
Please follow the chemical solvent recommended by the manufacturer to mix chemical liquid, or
it will harm crops and body.
Be sure to mix the chemical liquids in proper proportion in other containers. The filter must be
used when filling the chemical liquids into the chemical tank.
Please fasten the chemical cap after filling is completed.
5. Misting
Warning: Be sure to check the battery after adding water into the chemical tank.

KisanKraftTM
KNAPSACK BATTERY SPRAYER
KK-KBS-165/167/169/183/185/187/189
KNAPSACK MANUAL CUM BATTERY SPRAYER
KK-KMB-4184
: www.kisankraft.com : [email protected] : +91.80. 22178200
Page 16 of 24

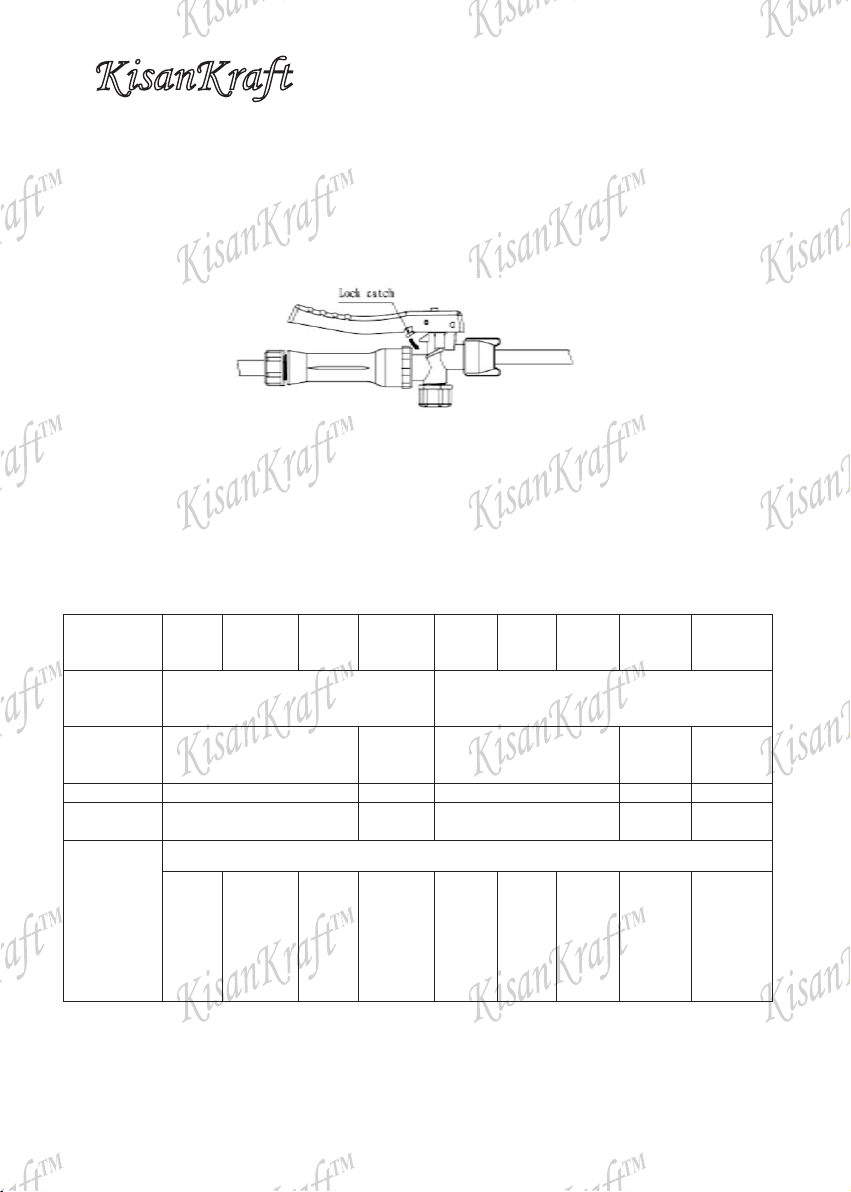

The liquid pump must avoid idler revolutions in order not to harm it.
Starting:
Adjust the switch to the “-”. Grasp the handlebar, open the check valve and then spray.
Stopping:
Adjust the switch to “o”, the liquid pump will stop.
Release the handlebar to stop the operation.
When the charge in the battery is low, the water flow will gradually reduce, indicating
a recharge. The battery doesn’t have to drain completely to recharge each time, it can be
recharged at any moment and even can saturate, which doesn’t affect its life.
After spraying, expel out the remaining liquid, wash the inside wall of the chemical
container with clean water. Then add clean water into the chemical tank, start liquid pump, rotate
for 2~3 minutes. Make sure that the spraying pipe, inside the pump and the nozzle are washed
clean, then swill the liquid in the chemical tank. Then, restart the liquid pump to expel out the
remaining liquid completely. After that, the power switch is adjusted to place “0”.
TECHNICAL SPECIFICATION
Model
KK-
KBS
-163
KK-
KBS-
165
KK-
KBS
-167
KK-
KBS-
169
KK-
KBS-
183
KK-
KBS
-185
KK-
KBS-
187
KK-
KBS-
189
KK-
KMB-
4184
Chemical
Tank
Capacity
16L 18L
Battery DC12V- 8AH DC12V
- 12AH DC12V - 8AH
DC12
V -
12AH
*DC12V
Charger
1.0A
1.7A
1.0A
1.7A
1.0A
Water
Flow
3.1 LPM
3.6
LPM
3.1 LPM
3.6
LPM
3.1 LPM
Additional
features
Auto-cut off pump, Speed controller, SS Telescopic lance
LED
Light
and
mobile
charge
r
LED
Light
LED
Light
and
mobile
charge
r
LED
Light
and
mobi
le
char
ger
LED
Light
LED
Light
and
mobile
charge
r
4 plastic
nozzle,
LED
Light
and
mobile
charger
Note: Battery is not included in KK-KMB-4184. Customer has to purchase that separately.
*Batteries with 4 AH, 6 AH and 8 AH are available with us. Contact your dealer for further
details.

KisanKraftTM
KNAPSACK BATTERY SPRAYER
KK-KBS-165/167/169/183/185/187/189
KNAPSACK MANUAL CUM BATTERY SPRAYER
KK-KMB-4184
: www.kisankraft.com : [email protected] : +91.80. 22178200
Page 17 of 24
TROUBLESHOOTING-MANUAL SPRAYER
Problem Cause Remedy
The sprayer has Leakage
and is not spraying well.
Sealing plate is damaged or
not wrenched firm
Replace the sealing plate or
wrench firm
The operation arm exerts
more pressure while
pumping
Spray head or filter block up
Clean the filter and spray
head, add Vaseline to the
activating parts.
Need to apply less pressure
while pumping the operation
arm feeling
Abrasion of the bowl or the
sealing ball.
Change the bowl or sealing
ball.
The operation arm exerts no
pressure while pumping
Sealing ball is missing or
removed Fix the sealing ball properly
TROUBLESHOOTING - BATTERY SPRAYER
Abnormal misting
Problem Cause Remedy
The motor does
Not work
The power switch is in “0”
Switch to “
一“
The plug is lax
Reconnection
The Switch got damaged
Replace the switch
The Line is cut off
Replace the line or
Reconnect it
Fuse got melted Replace the fuse
The motor is cut out
Replace the motor
The motor is burned to damage
Replace the motor
The voltage of the battery is low
Charge or replace the
battery
High pressure on pipe
Open the handle Switch
The pressure switch is not effective
Replace pressure switch
The
motor
is
running
No
spraying
The nozzle got clogged/blocked
Clean the nozzle
No medicine liquid in the tank
Fill chemical Liquids
The air valve of the chemical tank lid got
clogged
Clean the air valve
Pump valve got clogged Clean the pump valve
The absorbing filter got jammed
Clean the filter
The nut on the pressure switch is loose Tighten the nut

KisanKraftTM
KNAPSACK BATTERY SPRAYER
KK-KBS-165/167/169/183/185/187/189
KNAPSACK MANUAL CUM BATTERY SPRAYER
KK-KMB-4184
: www.kisankraft.com : [email protected] : +91.80. 22178200
Page 18 of 24
Abnormal misting
Problem
Cause
Remedy
Pump valve got jammed Clean the pump valve
Pressure spring is not effective
Replace the pressure
spring
The diaphragm is not effective Replace the diaphragm
The
pressure
does not
increase
Pump valve got clogged Clean the pump valve
The adjusting valve of pressure got
jammed
Clean the valve
Inlet nozzle on the tank lid got jammed
Clean the nozzle
The motor is abnormal
Replace the motor
Spout wear
Replace
The pressure switch is not effective
Replace the pressure
switch
The tube is jammed or out of shape
Cleaning or tidying up
Pressure nut is loose
Tighten the nut
Pressure spring is not effective
Replace the pressure
switch
Low voltage
Charge or replace the
battery
Charge abnormally
Cannot charge
The battery is abnormal
Replace the battery
The charger is abnormal
Replace the charger
Connection line is bad
Reconnection
Line turned off
Replace or repair the line
The capacity of the
Accumulator
cannot recover
Time for charge is not enough
Keep on charging
The battery is abnormal
Replace the battery
The charger is abnormal
Replace the charger
Fuse got melted
The motor does not
work
The pressure switch is not effective
Replace the pressure
switch
The switch is not connected well
Replace the switch
Motor runs heavily
Replace the motor

KisanKraftTM
KNAPSACK BATTERY SPRAYER
KK-KBS-165/167/169/183/185/187/189
KNAPSACK MANUAL CUM BATTERY SPRAYER
KK-KMB-4184
: www.kisankraft.com : [email protected] : +91.80. 22178200
Page 19 of 24
MAINTENANCE AND STORAGE
Daily maintenance:
The following maintenance should be done after daily job.
1. Cleaning the oil and dust on the surface of the machine.
2. Clean the chemical tank with clean water and wipe it dry.
3. Check if there is any leakage of water or fuel. If there is a leakage, remedy procedures
are to be taken.
4. Check to see if the screws are loose or lost. If so, please tighten the screw or replace.
5. The battery must be charged before storage. Charge before every use in case of power
shortage.
6. The machine after maintenance should be stored in a place which is dry and has good
ventilation. It must be far away from any fire source and sunlight.
Long term Storage:
The machine which is to be stored t for a long time should be maintained as follows:
1. Clean the machine surface carefully.
2. Discard any medicine in the tank and the pump, clean them with clean water.
3. The battery must be charged before storage. If stored for a long time, it should be
charged every two months.
4. All the plastic parts must neither be exposed to the sunlight nor pressed by heavy
matter.
5. Cover the machine with plastic dustcoat and store in a dry and clean place.
a) Cleaning
1. Clean chemical container
Discard remaining chemical liquid and wash it thoroughly. Fill one liter
of water into the chemical tank and then rinse it slightly.
2. Clean the inside liquid pump
After cleaning the chemical tank, fill with clean water again and start
liquid pump to mist so as to clean the whole pipeline.
3. Clean the filter net
a) Clean the filter net in the mouth of the chemical tank.
b) Clean the filter net of suction inside the chemical tank.
There is a filter net of suction at the bottom of the chemical tank to
avoid the dust coming from the filter net of the mouth of the
chemical tank to be sucked into the liquid pump. The filter of the
suction is jammed to spray abnormally and will infect the liquid
pump greatly. So please take out the filter of suction to clean
carefully after operating. Fix it carefully after cleaning.
Don’t allow the remaining chemical liquids and the water used for washing the machine flow
into rivers, lakes, ponds or cloacae in order avoid pollution.Please deal with it innoxiously
b) Maintenance of the battery:
In the course of operation, one should understand the frequency and duration of charge
according to the actual condition and referring to usual spray frequency and time. It’s better
to charge when the battery discharged to 60%--70%, the average charging time is about 8
hours. Longer charging time may cause the battery to lose water, hot and reduce the life.
Never stock the battery without power. If it happens so and you couldn’t recharge the battery
on time, it will easily get vitriolized to lead sulphate crystal ，which jams the path of the
electrical ions, and make the power insufficient. Also the capacity of the battery will get
reduced. If the battery is without power for a long time, serious damage will be caused.

KisanKraftTM
KNAPSACK BATTERY SPRAYER
KK-KBS-165/167/169/183/185/187/189
KNAPSACK MANUAL CUM BATTERY SPRAYER
KK-KMB-4184
: www.kisankraft.com : [email protected] : +91.80. 22178200
Page 20 of 24
Therefore, even if you are not using the battery for a short period, should charge it once in
a month, so as to keep the battery in a good situation.
It is normal that the charger is little hot while charging.
Overcharge or over discharge will reduce the life of the battery remarkably.
Don’t connect the battery directly, or it will harm the safety of the battery.
Never try to disassemble and assemble the battery. The battery has the protection
equipment and if you alter it, it will make the battery hot and split.
Don’t connect the anode and cathode of the battery with any metallic material.
Don’t transport battery with a metallic material, which will make the battery leak, hot and
split. The light on the charger will turn on if you recharge immediately after charging is over,
it becomes normal. But this will result in overcharge and you should avoid the operation.
Don’t throw the battery into the fire or heat it up, or it will make the battery split and
electrolyte splashed.
c) Replace the fuse:
In order to protect the wire and electrical machine, this machine is equipped with a fuse. If
a blowout happens due to any reason, please unplug the right and left fixed equipment,
take out the assembly of battery, lax the packing belt, remove the battery, open the cap of
fuse to replace the damaged fuse with a new one. In addition, please find out the cause of
the blowout and find a remedy for it. After this, you could operate it once again.
Some causes of blowout:
The charger doesn’t coincide with the battery or has any other trouble.
The pesticide got stuck to the liquid pump.
The wire is short circuited due to the damage.
Incorrect connection.
