CONTENTS
PREFACE��������������������������������������������������������������������������������������������������������i
SAFETY INSTRUCTIONS��������������������������������������������������������������������������������� ii
Chapter 1� Product Introduction �������������������������������������������������������������1
1�1 Box Content ������������������������������������������������������������������������������������������������������ 1
1.2 Specications ��������������������������������������������������������������������������������������������������� 2
1�3 General Information����������������������������������������������������������������������������������������� 3
Chapter 2� Hardware Installation������������������������������������������������������������6
2�1 Removing and Installing Top Cover ��������������������������������������������������������������� 6
2�2 Removing/Installing a Drive Tray/ Hard Drive/ Drive Slot Map�������������������� 7
2�3 Removing and Installing a PSU Module ��������������������������������������������������������� 9
2�4 Removing and Installing a Fan Module ������������������������������������������������������� 10
2�5 Removing and Installing External Expander Module���������������������������������� 11
2�6 Removing and Installing the HDD backplane Module������������������������������ 12
2�7 Installing Slide Rail /Adjuster Plate ��������������������������������������������������������������� 14
Chapter 3. Sub-System Conguration Setup ���������������������������������������17
3.1 Supported Conguration On Host����������������������������������������������������������������� 17
3�2 Connect Host to JBOD via RS232 ������������������������������������������������������������������ 18
3�3 Utility Set up on Host��������������������������������������������������������������������������������������� 19
3�4 Updating Firmware and MFG through Console Port ����������������������������������� 22
3.5 Congure command Line Interface Operation ������������������������������������������ 25
3�6 SES Inband Features��������������������������������������������������������������������������������������� 39
Chapter 4. BMC Conguration and Settings����������������������������������������56
4.1 Login the web page��������������������������������������������������������������������������������������� 56
4�2 Sensor’s location for Fan & Temperature ����������������������������������������������������� 57
4�3 Utility setup on Host ���������������������������������������������������������������������������������������� 58
4�4 Connect Host to BMC by RS232 �������������������������������������������������������������������� 58
4.5 BMC LED signal ����������������������������������������������������������������������������������������������� 61
4�6 Web UI ������������������������������������������������������������������������������������������������������������� 62
4�7 Firmware Update �������������������������������������������������������������������������������������������� 83
4.8 Expander rmware update ��������������������������������������������������������������������������� 88
4�9 Firmware safety mode ����������������������������������������������������������������������������������� 92

Copyright © 2017 AIC, Inc� All Rights Reserved�
This document contains proprietary information about
AIC products and is not to be disclosed or used except in
accordance with applicable agreements.

i
PREFACE
• Copyright
No part of this publication may be reproduced, stored in a retrieval system, or transmitted
in any form or by any means, electronic, mechanical, photo-static, recording or
otherwise, without the prior written consent of the manufacturer.
• Trademarks
All products and trade names used in this document are trademarks or
registered trademarks of their respective holders.
• Changes
The material in this document is for information purposes only and is subject to change
without notice.
• Warning
1. A shielded-type power cord is required in order to meet FCC emission limits and also
to prevent interference to the nearby radio and television reception. It is essential that
only the supplied power cord be used.
2. Use only shielded cables to connect I/O devices to this equipment.
3. You are cautioned that changes or modications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
• Disclaimer
AIC shall not be liable for technical or editorial errors or omissions contained herein. The
information provided is provided "as is" without warranty of any kind. To the extent
permitted by law, neither AIC or its affiliates, subcontractors or suppliers will be liable
for incidental, special or consequential damages including downtime cost; lost profits;
damages relating to the procurement of substitute products or services; or damages for
loss of data, or software restoration. The information in this document is subject to change
without notice.

ii
SAFETY INSTRUCTIONSSAFETY INSTRUCTIONS
• Before getting started, please read the following important cautions:
• All cautions and warnings on the equipment or in the manuals should be noted.
• Most electronic components are sensitive to electrical static discharge. Therefore,
be sure to ground yourself at all times when installing the internal components.
• Use a grounding wrist strap and place all electronic components in static-shielded
devices. Grounding wrist straps can be purchased in any electronic supply store.
• Be sure to turn off the power and then disconnect the power cords from your system
before performing any installation or servicing. A sudden surge of power could
damage sensitive electronic components.
• Do not open the system’s top cover. If opening the cover for maintenance is a must,
only a trained technician should do so. Integrated circuits on computer boards are
sensitive to static electricity. Before handling a board or integrated circuit, touch
an unpainted portion of the system unit chassis for a few seconds. This will help to
discharge any static electricity on your body.
• Place this equipment on a stable surface when install. A drop or fall could cause
injury.
• Please keep this equipment away from humidity.
• Carefully mount the equipment into the rack, in such manner, that it won’t be
hazardous due to uneven mechanical loading.
• This equipment is to be installed for operation in an environment with maximum
ambient temperature below 35°C.
• The openings on the enclosure are for air convection to protect the equipment from
overheating. DO NOT COVER THE OPENINGS.
• Never pour any liquid into ventilation openings. This could cause fire or electrical
shock.
• Make sure the voltage of the power source is within the specication on the label
when connecting the equipment to the power outlet. The current load and output
power of loads shall be within the specication.
• This equipment must be connected to reliable grounding before using. Pay special
attention to power supplied other than direct connections, e.g. using of power strips.
• Place the power cord out of the way of foot trafc. Do not place anything over the
power cord. The power cord must be rated for the product, voltage and current
marked on the product’s electrical ratings label. The voltage and current rating
of the cord should be greater than the voltage and current rating marked on the
product.
• If the equipment is not used for a long time, disconnect the equipment from mains to
avoid being damaged by transient over-voltage.

iii
CAUTION :
risk of explosion if battery is replaced by an incorrect type.
dispose of used batteries according to the instructions.
After performing any installation or servicing, make sure the
enclosure are lock and screw in position, turn on the power.
caution :
Where there i s more than one connection supplying H AZARDOUS
VOLTAGES or HAZARDOUS E NERGY L EVELS t o equipment, a prominent
marking, located close t o the entry point provided for a S ERVICE
PERSON to gain access to the hazardous parts, shall be provided to
indicate which disconnect device o r devices isolate the equipment
completely and which disconnect devices can be used to isolate each
section of the equipment.
• Never open the equipment. For safety reasons, only qualified service personnel should
open the equipment.
• Equipment for restricted access locations.
For equipment intended only for installation in a restricted access location, the installation
instructions shall contain a statement to this effect.
• If one of the following situations arise, the equipment should be checked by service
personnel:
1. The power cord or plug is damaged.
2. Liquid has penetrated the equipment.
3. The equipment has been exposed to moisture.
4. The equipment does not work well or will not work according to its user manual.
5. The equipment has been dropped and/or damaged.
6. The equipment has obvious signs of breakage.
7. Please disconnect this equipment from the AC outlet before cleaning. Do not use
liquid or detergent for cleaning. The use of a moisture sheet or cloth is recommended
for cleaning.
• Module and drive bays must not be empty! They must have a dummy cover.
Product features and specications are subject to change without notice.

1
J3016-01 User's Manual
Chapter 1 Product Introduction
1�1 Box Content
Before removing the subsystem from the shipping carton, visually inspect the physical
condition of the shipping carton. Exterior damage to the shipping carton may indicate
that the contents of the carton are damaged. If any damage is found, do not remove the
components; contact the dealer where the subsystem was purchased for further instructions.
Before continuing, rst unpack the subsystem and verify that the contents of the shipping
carton are all there and in good condition.
• Enclosure (Power supply, fan, 16 HDD tray included)
• RS232 cable x 1pcs • Power cord x 2pcs • Screws kit x 1set
If any items are missing, please contact your authorized reseller or sales representative.
Chapter 1� Product Introduction
• Mounting Optional
• Slide Rail x 1set
or
• Adjuster Plate x 1set

2
J3016-01 User's Manual
Chapter 1 Product Introduction
1.2 Specications

3
J3016-01 User's Manual
Chapter 1 Product Introduction
1�3 General Information
J3016-01 is a 3U rackmount chassis with 16 x 3.5”HDD hot swap bay and dual expand
module JBOD, which is a high performance, high density, scalable storage product. The
J3016-01 JBOD supports T10 zoning function and can be shared by up to 3 servers.
• Front Panel
Supports hot-swap 16 x 3.5” HDDs

4
J3016-01 User's Manual
Chapter 1 Product Introduction
• Rear Expender Panel
2 Dual Expander (Primary & Secondary)
BMC console port
BMC LAN port(option)
3 x Mini SAS HD
BMC LAN port(option)
3 x Mini SAS HD Console port
Debug port
BMC console port
It em Describtion
Mini SAS HD
Console port
Debug port
BMC LAN port
BMC console port

5
J3016-01 User's Manual
Chapter 1 Product Introduction

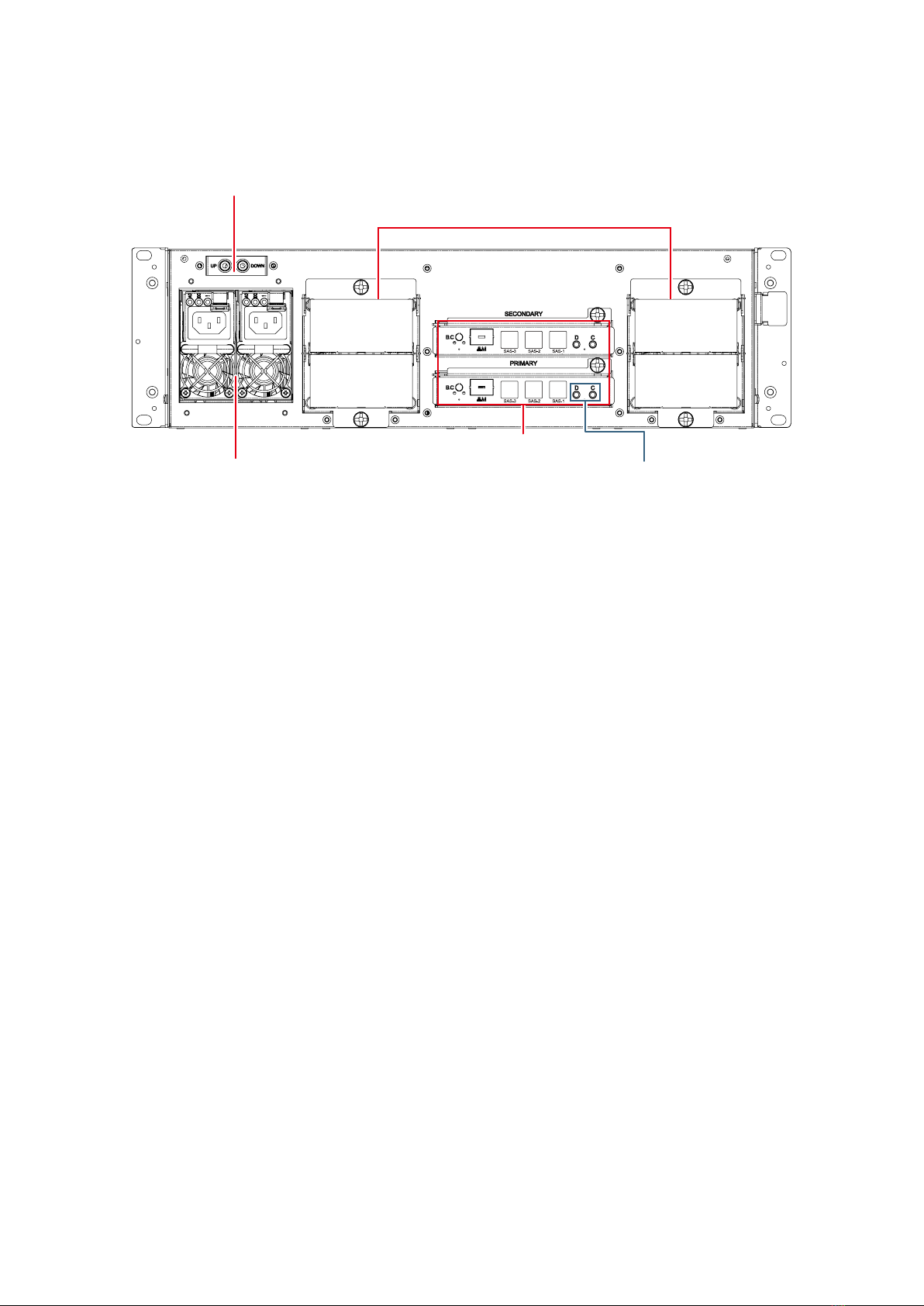

• Rear Panel
2 x 8083 hot-swap fans
6 x 48Gb/s Mini SAS HD
Debug & Console port
For Admin & Firmware update
549W 1+1 hot-swap redundant power suppl y
Serial port for Remote JBOD Power on & off
Up – to Host or JBOD
Down – to JBOD (Daisy Chain)

Chapter 2 Hardware Installation
J3016-01 User's Manual
66
Chapter 2� Hardware Installation
This chapter provides detailed instructions on hardware installation.

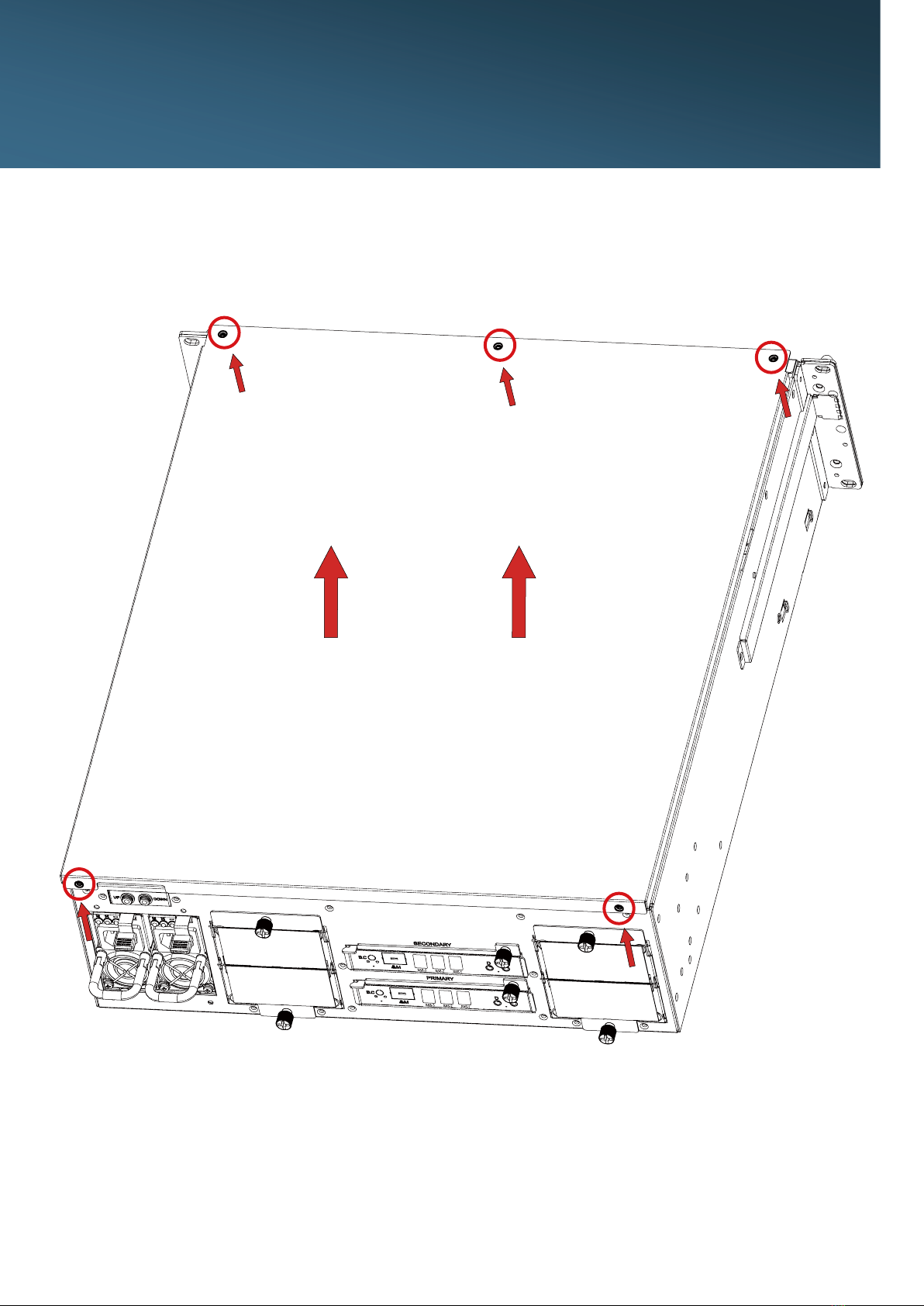

2�1 Removing and Installing Top Cover
Loosen 5 screws on top cover. Take it out of the enclosure.

J3016-01 User's Manual
7
Chapter 2 Hardware Installation
2�2 Removing/Installing a Drive Tray/ Hard Drive/ Drive Slot Map
2.2.1 Removing a Disk Drive
Release a drive tray by pressing the unlock button and pinching the lock lever slightly
and pulling out the drive tray.
2.2.2 Installing a 3.5'' Disk Drive
Directly place HDD into tool-less HDD tray until it
snaps. Please check if the screw holes on HDD
match the dimples on HDD tray.
HDD can also be screwed on HDD tray by
fastening two screws as picture
showed.

Chapter 2 Hardware Installation
J3016-01 User's Manual
8

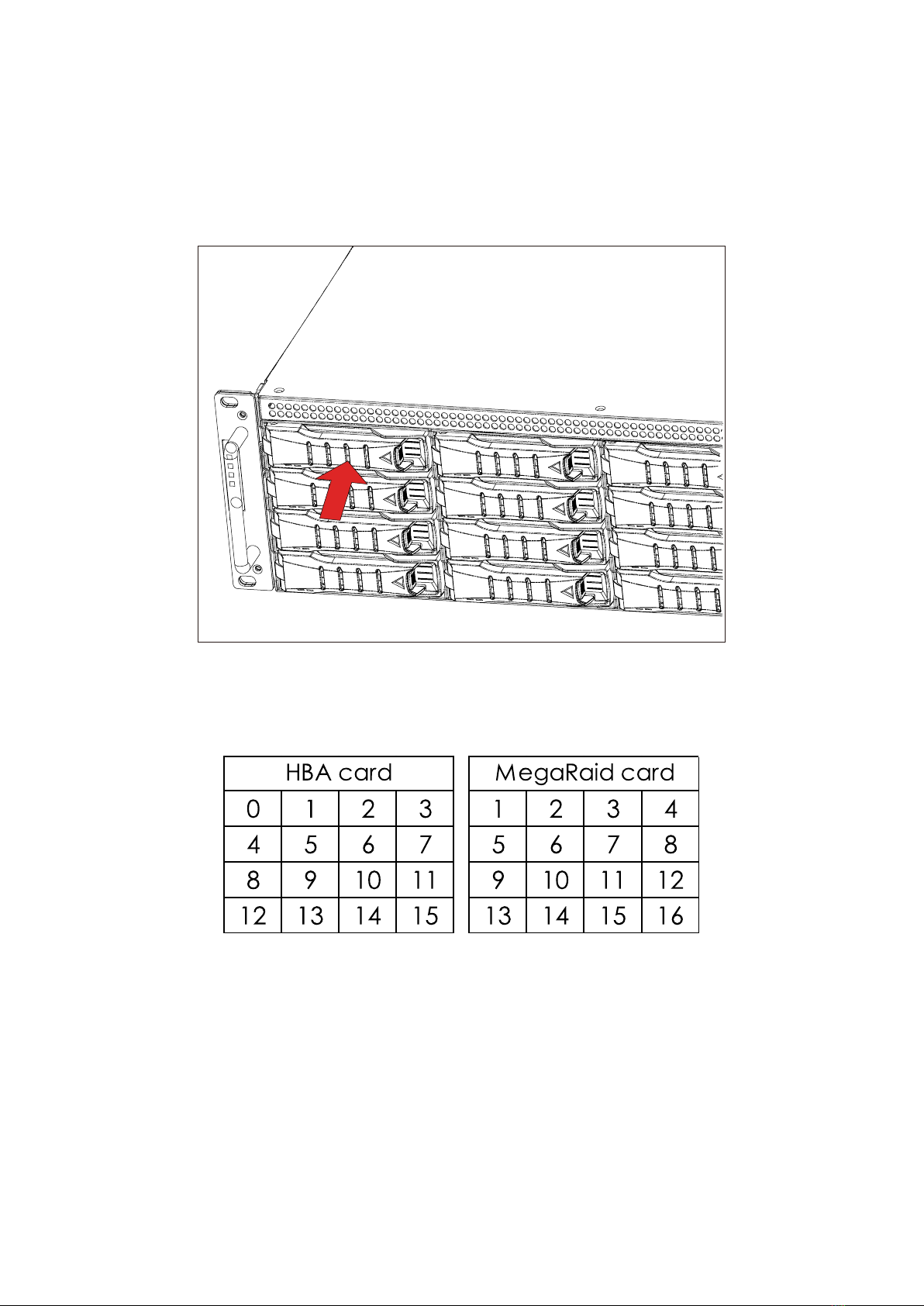

2.2.3 Installing a Hard Disk Drive Tray
Insert the drive carrier into its bay. Push the tray lever until it clicks. Make sure the
drive tray is correctly secured in place when its front edge aligns with the bay edge.
2.2.4 Drive Slot Map
The drive slot map follows.

J3016-01 User's Manual
9
Chapter 2 Hardware Installation
2�3 Removing and Installing a PSU Module
2.3.1 Removing a PSU module
• Remove power cables connected to the PSU module.
• Allow a minute for fan to spin down.
• Pushing the latch then hold the tray handle tab. Then pull the PSU
module gently until it slides out of the JBOD.
2.3.2 Installing a PSU Module
• Slide in PSU module.
• Make sure the latch on the module is fully hooked onto the PSU
housing.
Caution & Shock Hazard
Disconnect all power sources

Chapter 2 Hardware Installation
J3016-01 User's Manual
10
2�4 Removing and Installing a Fan Module

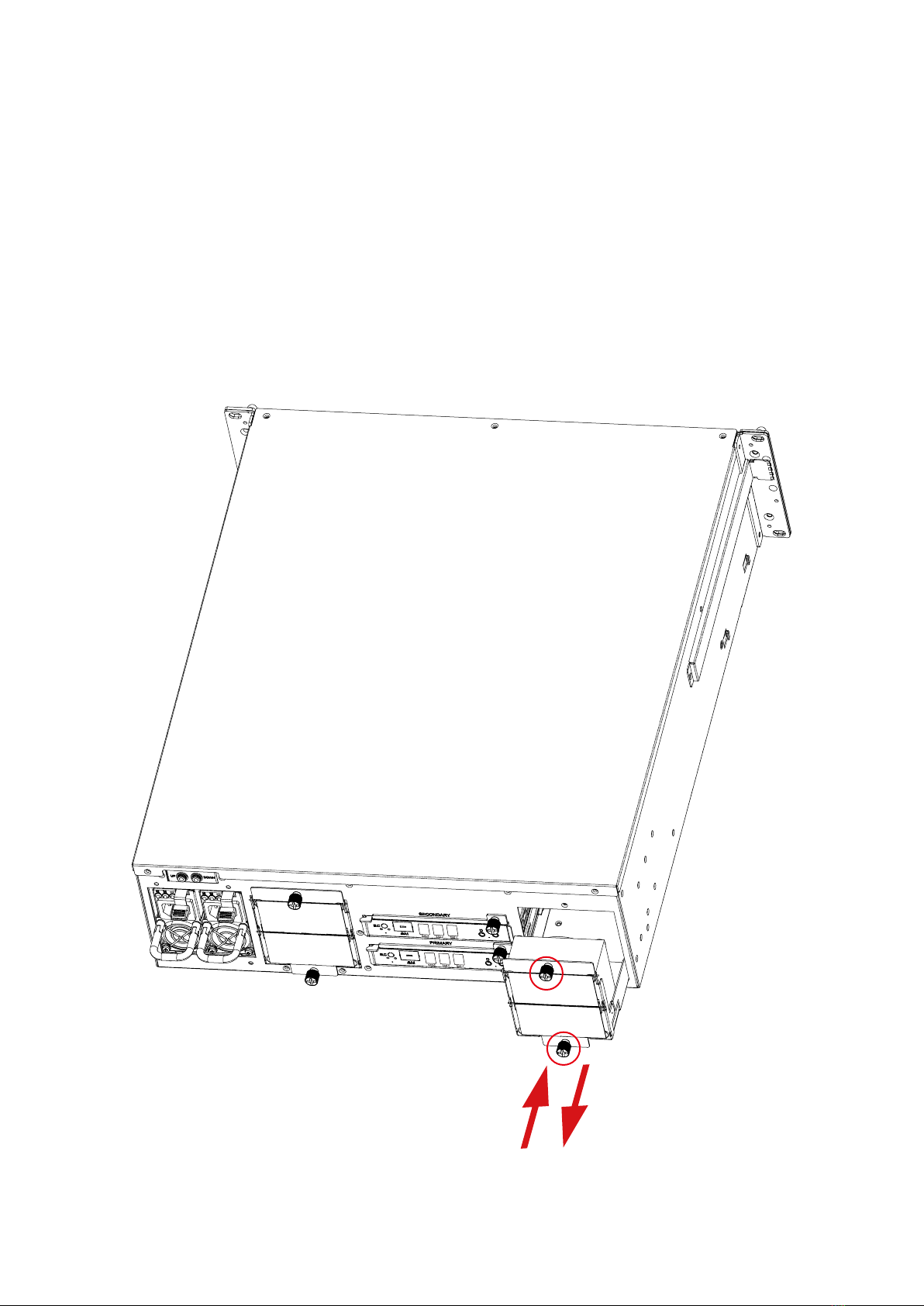

2.4.1 Removing a Fan module
• Loosen the thumb screws on each sides in front of fan module.
• Hold the fan module from both sides.
• Pull the fan module gently and rmly until it clears the enclosure
chassis.
2.4.2Installing a Fan Module
• Align the fan module with the opening in the enclosure.
• Insert the fan module into JBOD.

J3016-01 User's Manual
11
Chapter 2 Hardware Installation
2�5 Removing and Installing External Expander Module

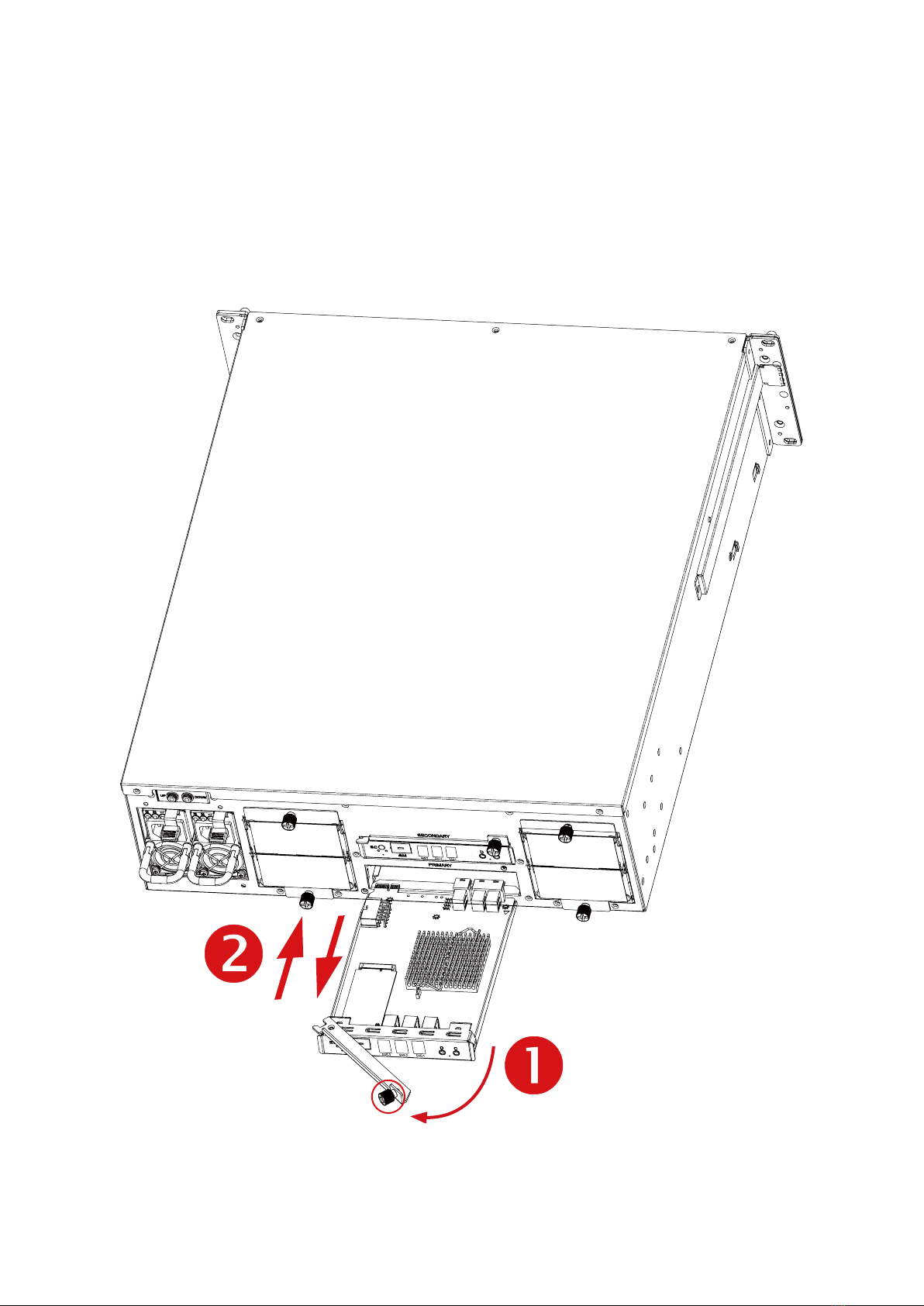

2.5.1 Removing an expander module
• Loosen the thumb screw to release expander tray lever.
• Hold the lever to pull the expander out of JBOD.
2.5.2 Installing an expander module
• Align the expander module with the opening in front of the enclosure,
and insert it into the enclosure rmly.
• Close the lever and secure the retaining screw.

Chapter 2 Hardware Installation
J3016-01 User's Manual
12
2�6 Removing and Installing the HDD backplane Module
2.6.1 Removing a HDD backplane module
• Unplugging all connectors & HDDs from HDD backplane.
• Release the lock pin.
2.6.2 Installing a HDD backplane module
• Slide the HDD backplane module into JBOD.
• Secure the HDD backplane module onto the JBOD using the screws.

J3016-01 User's Manual
13
Chapter 2 Hardware Installation

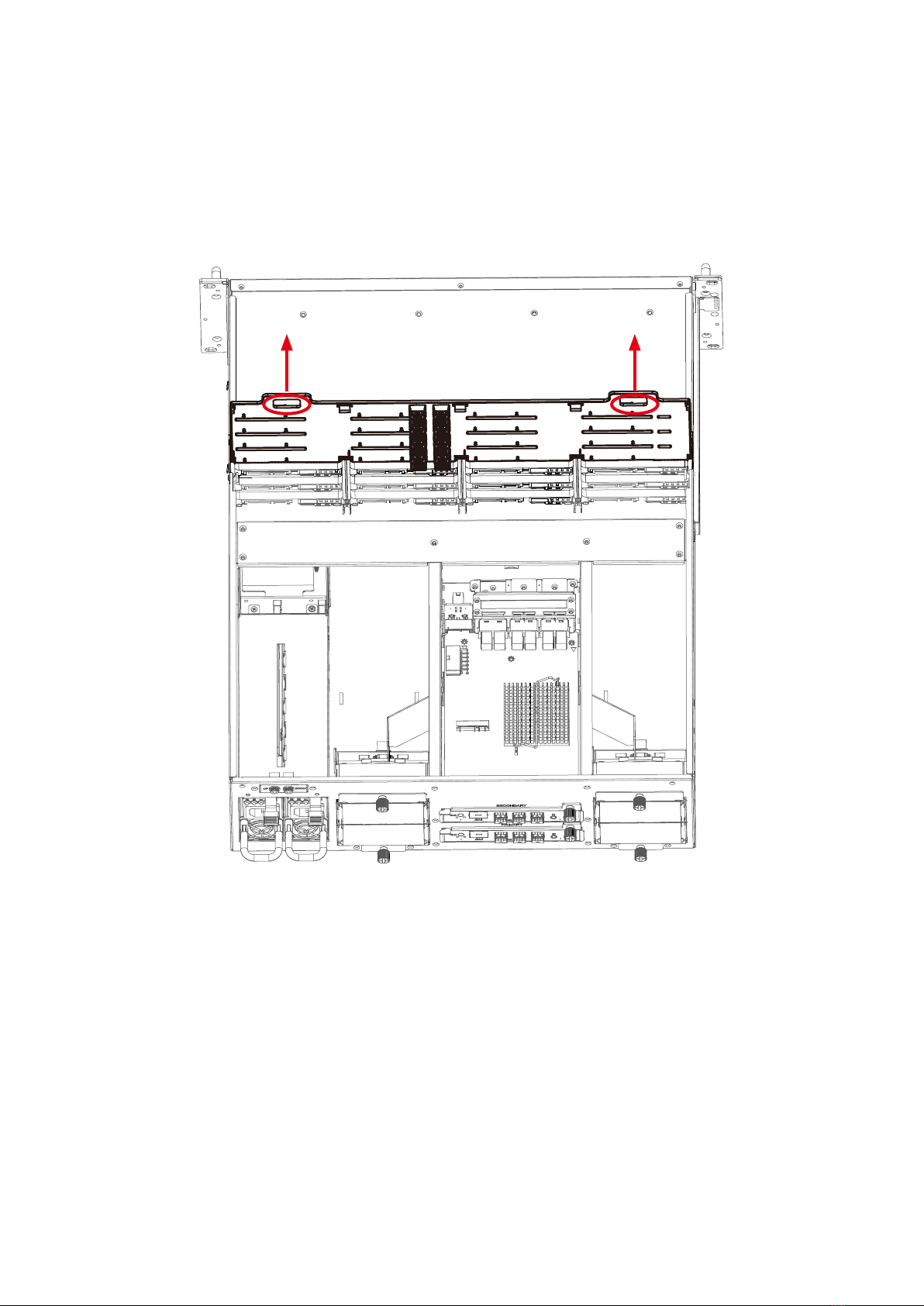

• Lift up and remove the blackplane to the a little bit up from hook then
can get out.
2.6.2 Installing a HDD backplane module(follow the reverse order)
• Align the backplane with the hooks, and insert it into the enclosure
rmly.
• Lock the backplane. Follow the reverse order.
Table of contents
Other AIC Extender manuals
