Aichi Tokei Denki VN Series User manual

Ver. 2 (2007.2.26)

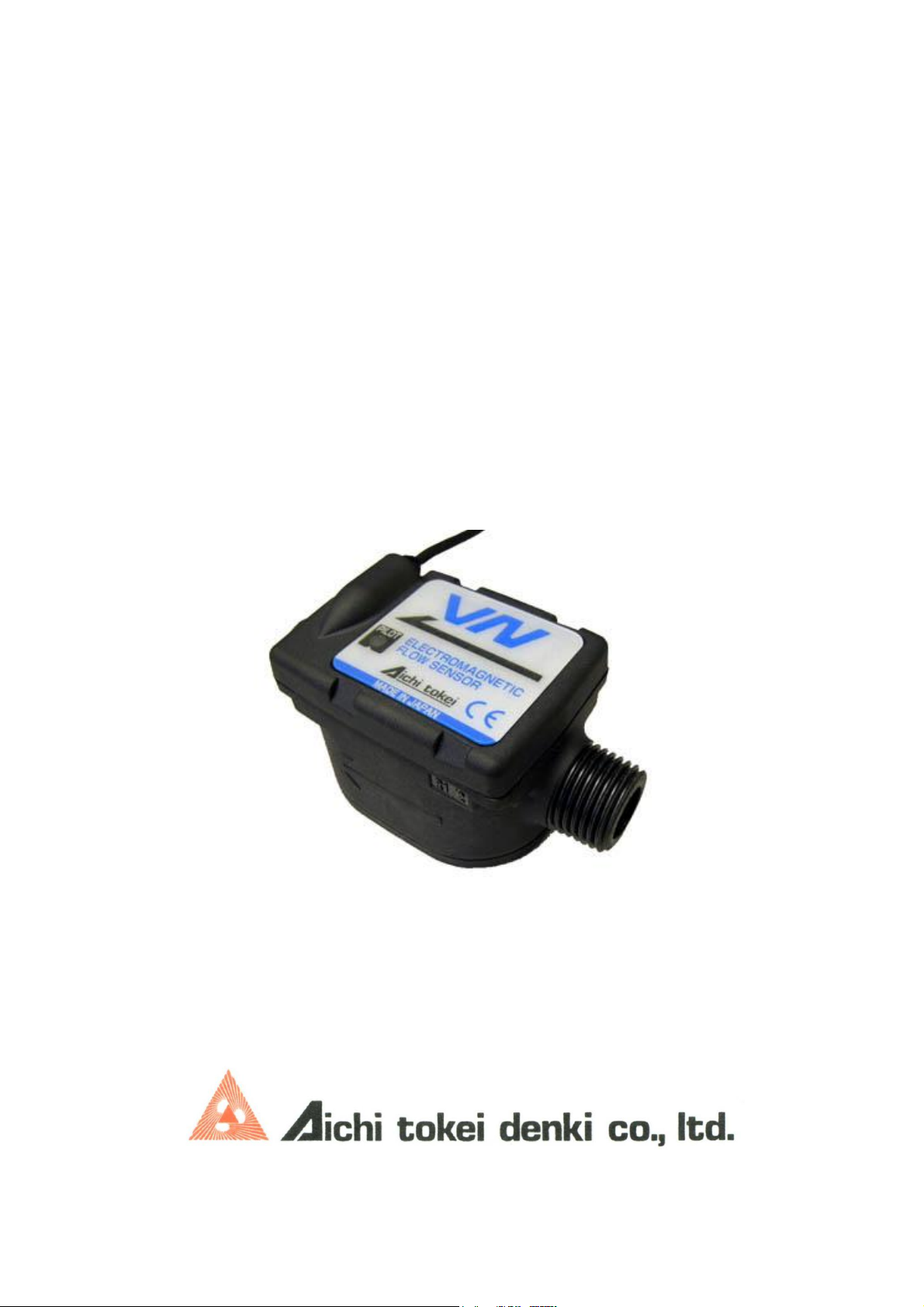

Small Size Electromagnetic Flowsensor
Model VN Series
Handling Manual

1/7
Ver 2. (2007.2.26)
Danger
Failure to follow instructions may lead to death or serious injury.
Warning
Failure to follow instructions may lead to injury.
Caution
Failure to follow instructions may lead to product damage (Product malfunctions,
etc.).
Precautions in use
Danger
1. Do not use the VN Series for applications that requires safety, such as any
nuclear, railroad, aircraft, vehicle, playground equipment, etc.
2. Do not modify the VN Series.
3. The VN Series is not designed to sanitary specifications. Do not use the product
for drinks, foods, or medical liquids, etc.
4. The VN Series is not designed to explosion-proof specifications. Do not use the
product in an environment with flammable gas or something similar.
5. Do not use the VN Series for corrosive liquids.
Operating environments・Liquid to be measured
Caution
1. The measurable liquid is uniform water with electric conductivity not less than 50
μS/cm. Ensure to follow this electric conductivity. In particular, note that the
product cannot be used for a liquid with low conductivity such as pure water, oil,
etc.
2. Ensure not to install the VN Series at places where liquid to be measured may
freeze or, to the contrary, liquid temperature may exceed 60℃
3. Trying to measure liquid in which electric current is flowing may lead to
abnormality of operation/function.
4. Use the VN Series within the pressure range (Not more than 1MPa).
5. The VN Series is IP64 equivalent and is not 100% waterproof structure. Do not
install the product in locations where it may become submerged.
6. Do not bring a strong magnet or magnetic field close to the VN Series
Caution in application
Caution
1. 20 seconds after supplying power to the VN Series is its start-up time. Do not use
outputs from and the display of the flowsensor during this period.

2/7
Ver 2. (2007.2.26)
Piping
Caution
1. Do not use the VN Series at the place air bubbles enter or for measurement of
the liquid containing air bubbles. And, do not install the flowsensor in the locations
where air collects easily (Upstream side of a downward elbow, etc.). After
installation of the flowsensor, make sure to perform sufficient air elimination
before its operation.
2. Although installation position of the VN Series is free, to avoid influence of air
bubbles, dart, etc., we recommend the direction of installation that LED seal-face
is parallel to the ground or flow direction is vertically upward.
3. In case a flow-regulating valve, etc., that causes turbulence of flow is to be
installed, its location must be at the downstream side of the flowsensor.
4. Do not install the VN Series in the piping system to which impact pressure, such
as water hummer, is applied.
5. In case of new piping, install the VN Series after sufficient cleaning.
6. Arrange piping so that the flow direction conforms to the direction of the arrow
indicated on the flowsensor body.
7. Do not install the VN Series in locations where strong compressive force, tensile
force, or load is applied after its installation.
8. Make sure that sealing tape or adhesive agent does not protrude from the
threaded portion of piping.
9. For the upstream and downstream pipes just before the VN Series to which the
flowsensor is to be connected, ensure there is no fins, etc., of thread machining
exists at the edges and end-faces of the pipes.
10. Do not drop the VN Series, bang it against something, or apply excessive force.
Handle the product by holding its body, not to hold its cable.
Warning
1. Regarding the tightening torque to piping, refer to the value given below for the
each the model, and do not apply higher torque to the flowsensor than specified.
The flowsensor’s connection thread portion(s) may be damaged and the liquid
inside the piping may leak consequently. Also, 2-3 times of wrapping with sealing
tape is indispensable.
VN05: 3.0±0.5Nm
VN10: 5.0±0.5Nm
VN20: 12±1Nm
If leakage occurs although piping is done with the torque shown above, do not
perform additional tightening. Instead, check for flaws in the threaded portion or
sealing tape.
2. Do not install the VN Series in locations used as footholds.

3/7
Ver 2. (2007.2.26)
Wiring
Danger
1. Operating supply voltage of the VN Series is DC12～24V. Connecting AC100V
may cause fire.
2. At the time of wiring, ensure to follow instructions of this handling manual to
perform wiring.
3. Use the VN Series within the rated voltage range. Do not use the product by
applying excessive load that is over the allowable load.
Caution
1. Do not place the VN Series’cable together with or near to power supply lines or
power lines, etc.
2. Isolate the VN Series’cable as far as possible from any source of noise.
3. Electrical isolation of the power supply, a remote counter (a receiver), etc., from
others is recommended.
4. Do not apply excessive tensile force to the cable.
5. Ensure that the cable tip is not soaked in water during wiring work.
Confirmation of the specifications
・ Please confirm the descriptions on the upside of the packing box and on the backside of the
flowsensor conform to the ordered specifications.
・ As there are 2 channels of outputs, please also confirm the specification of the each of 1CH and
2CH is correct.

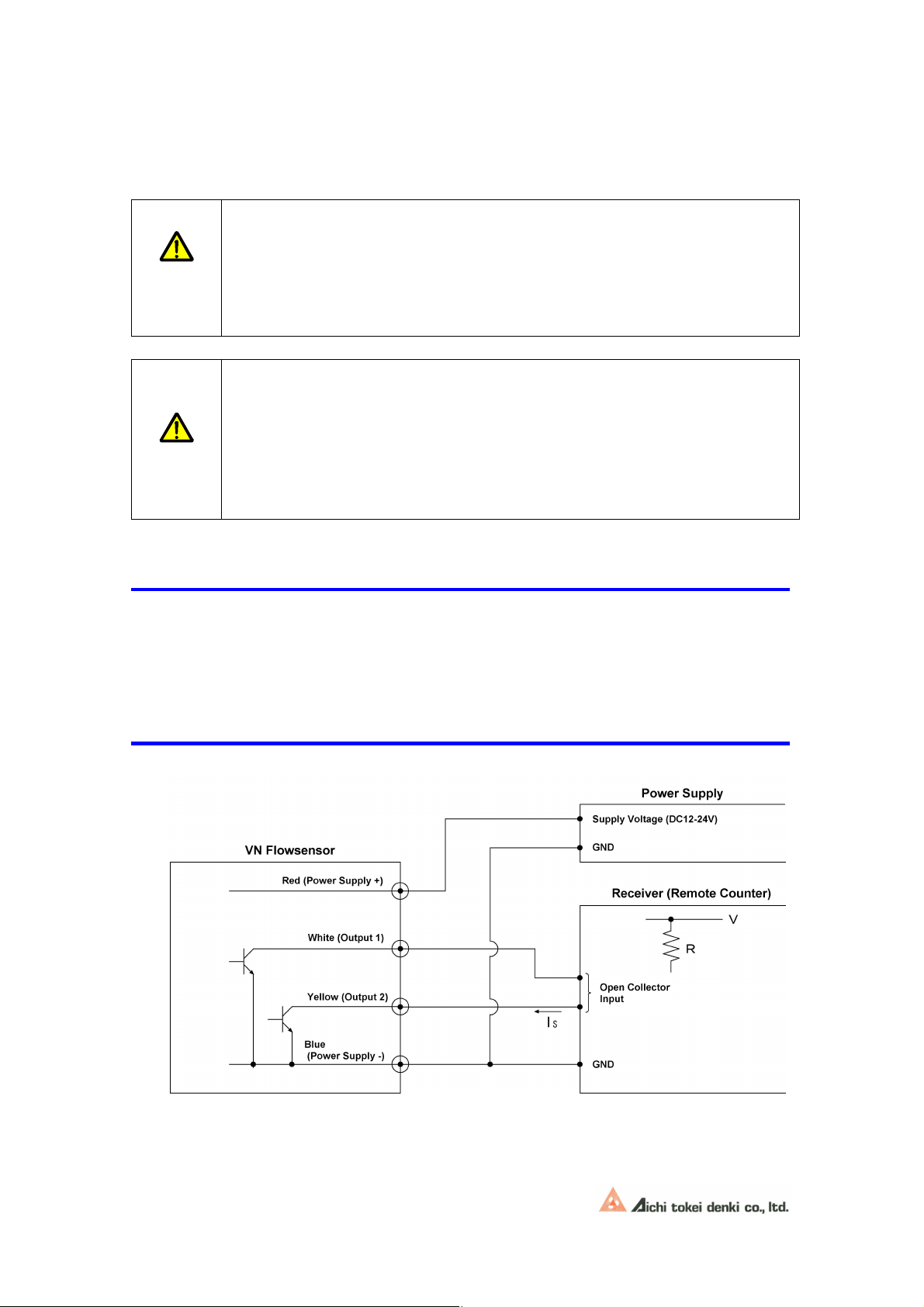

Wiring
・ The wiring method is as the following diagram.

4/7
Ver 2. (2007.2.26)
V (Pull-up voltage)
Is (Absorbing current of output) = ──────────── ≦20mA
R (Pull-up resistance)
Pull-up voltage shall be not more than 30V, and Is (Absorbing current of output) shall be not
more than 20mA for the each.
LED display
・ With 2-colors LED of green and red, either of flow-rate status or alarm information is displayed.
Alarm information by error detection has priority of indication. And, only the information that has
the highest priority is displayed.
Green: Status of flow-rate is indicated with 4 patterns, which are combination of 3 steps for
flashing and lighting.
Red: Content of alarm (error detection) is indicated with 6 patterns that are combinations of 4
steps for flashing, lighting, and No-light.

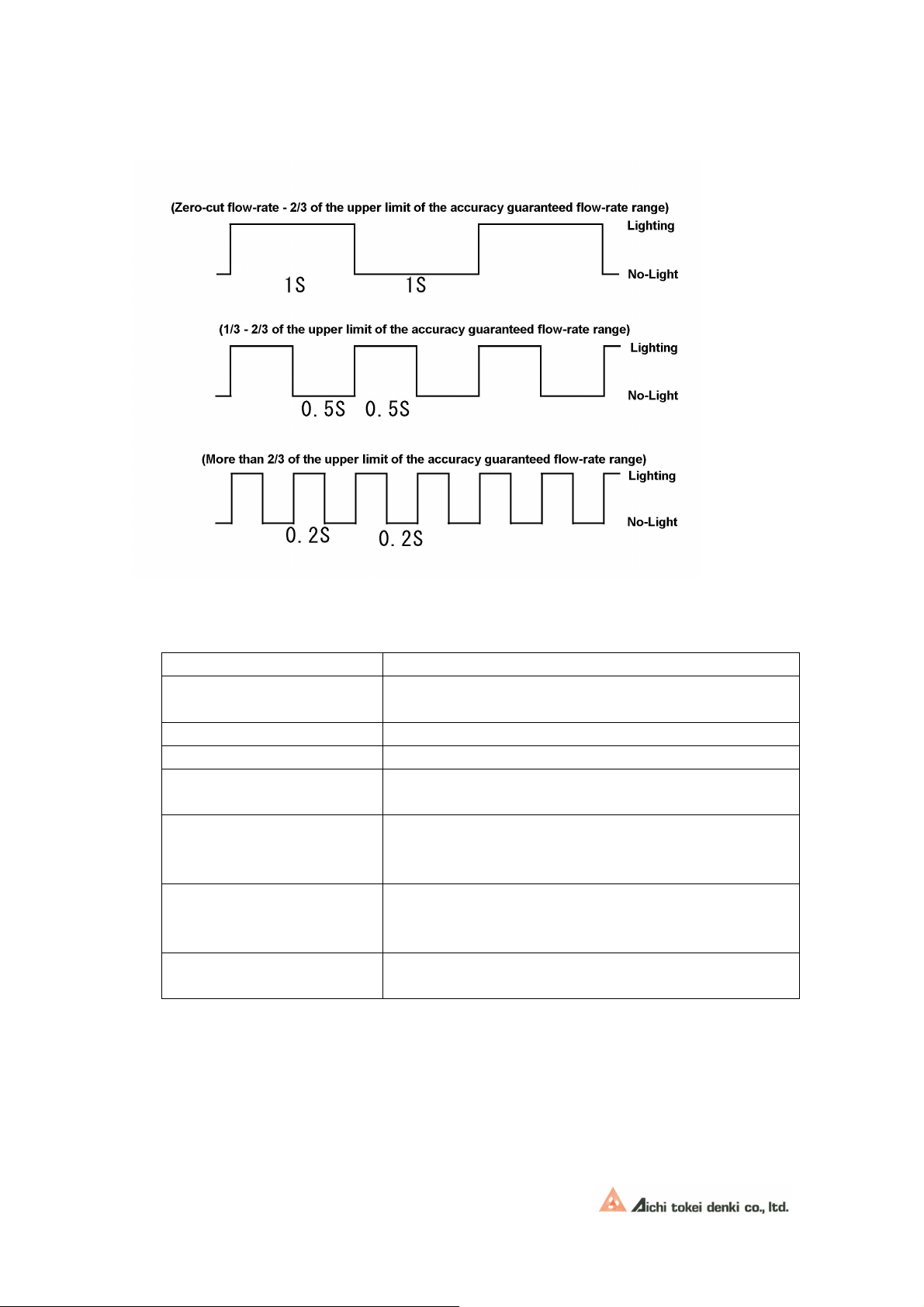

1. Flow information (Green)
・ Flow-rate ranges and patterns of indications
Flow-rate range Patterns of indication
Less than zero-cut flow-rate Continuous LIGHTING
Zero-cut flow-rate ～1/3 of the upper limit of
the accuracy guaranteed flow-rate range
Flashing of 2 seconds cycle. Repeating of 1
second LIGHTING and 1 second of
NO-LIGHT.
1/3 ～2/3 of the upper limit of the accuracy
guaranteed flow-rate range
Flashing of 1 seconds cycle. Repeating of 0.5
second LIGHTING and 0.5 second of
NO-LIGHT.
More than 2/3 of the upper limit of the
accuracy guaranteed flow-rate range
Flashing of 0.4 seconds cycle. Repeating of
0.2 second LIGHTING and 0.2 second of
NO-LIGHT.

5/7
Ver 2. (2007.2.26)
2. Alarm information (Red)
・ Details of the alarm items
Name of alarm Content
Excitation error detection Electric current does not correctly flow through the excitation
coil.
Memory error detection Error of data at the memory is detected.
Low power voltage detection Power voltage lower than 9.6V is detected.
No-water detection The measuring pipe is not fulfilled with liquid to be measured
(Partially filled condition).
Excessive liquid noise
detection
Condition that correct measuring is obstructed because
abnormal current is flown on the liquid to be measured, the
liquid contains air bubbles, etc.
Reverse-flow detection Reverse flow (flow direction opposite to the arrow shown on
the flowsensor’s body), which flow-rate is more than the
zero-cut flow-rate point, is detected.
Excessive flow-rate detection Not less than 25% excess from the upper limit of the
accuracy guaranteed flow-rate range is detected.

6/7
Ver 2. (2007.2.26)

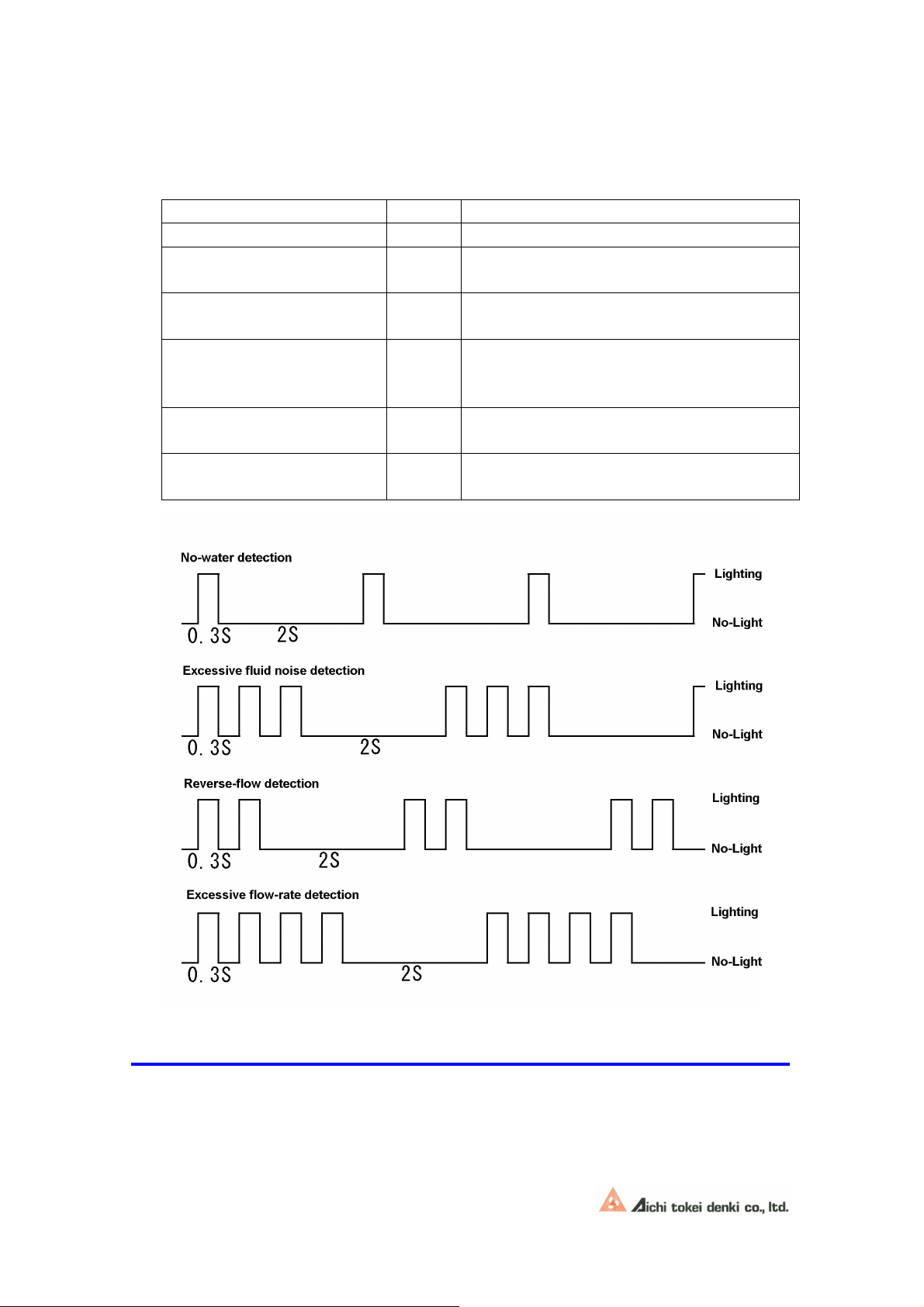

・ Error detection items and patterns of indications
Error detection item Priority Patterns of indication
Low power voltage detection 1 No-LIGHTING of the both green and red
Excitation error detection
or Memory error detection
2 Continuous LIGHTING
No-water detection 3 Repeating of 1 time of 0.3 second LIGHTING
and 2 second of NO-LIGHT
Excessive liquid noise
detection
4 Repeating of 3 times of 0.3 second LIGHTING
and 0.3 second of NO-LIGHT + 1.7 second of
NO-LIGHT
Reverse-flow detection 5 Repeating of 2 times of 0.3 second LIGHTING
and 0.3 second of NO-LIGHT
Excessive flow-rate detection 6 Repeating of 4 times of 0.3 second LIGHTING
and 0.3 second of NO-LIGHT
Warranty period
Period of warranty for the product is within 1 year from the date of shipment.

7/7
Ver 2. (2007.2.26)
Aichi Tokei Denki Co., Ltd.
Head office・factory No. 2-70, Chitose 1-Chome, Atsuta-Ku, Nagoya 456-8691,
Japan
Contact us Overseas Business Div.
TEL: [phone]
FAX: [phone]
URL of Aichi Tokei Denki Co., Ltd. http://www.aichitokei.co.jp
NOTE:
・ The specifications are subject to change without notice.
・ VN series conforms with CE marking, except EN61000-4-5 (Surge) because the series is
intended to utilize as the built-in flowsensor of a machine, etc.
