AIR GUARD AG-1000 User manual

1
AG-1000 Antibacterial Vaporizer
USER MANUAL
- ENGLISH

2
Safety Information
Thank you for choosing Air Guard. Please read the following safety information carefully
before operating the machine. This information includes important safeguards about
installation, usage, and maintenance. Pay attention to all warning labels and instructions
in this manual and printed on the machine.
l Keep this device dry.
l Always connect to a grounded circuit to avoid risk of electrocution.
l Before connecting the machine to power, always check the voltage indicate on the machine
matches to your local AC voltage. Do not use the machine if AC power voltage does not match.
l Disconnect the machine from AC power before servicing and when not in use.
l If the supply cord is damaged, contact your local dealer for replacement.
l This product is for indoor use only! Do not expose to rain or moisture. If fluid is spilled,
disconnect AC power and clean with a damp cloth. If fluid is spilled onto electronic parts,
immediately unplug the machine and contact your local dealer for advice.
l No user serviceable and modifiable parts inside. Never try to repair this product, an
unauthorized technician may lead the machine to damage or malfunction.
l For adult use only. Children being supervised not to play with the machine. Never leave the
machine running unattended.
l The machine is not to be used by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge.
l Installed in a well ventilated area. Provide at least 50 cm space around the machine.
l Never add flammable liquid of any kind to the machine.
l Make sure there are no flammable materials close to the machine while operating.
l Only use Air Guard Antibacterial Solution. Other solution may lead to heater clog and
malfunction.
l If the machine fails to work, unplug the machine and stop operation immediately. Contact
your local dealer for advise .
l Before transporting the machine, make sure the fluid tank is completely drained.

3
l Air Guard Antibacterial Solution may present health risks if swallowed. Do not drink Air Guard
solution. Store it securely. In case of eye contact or if solution is swallowed immediately look
for medical advice.
Unpacking and Inspection
Immediately upon receiving the antibacterial vaporizer, carefully unpack the carton, check the
content to ensure that all parts are present and have been received in good condition. If any parts
appear damaged or mishandled from shipping, notify the shipper immediately and retain the
packing material for inspection.
What is included: 1 x AG-1000 Antibacterial Vaporizer
1 x Power Cord
1 x Wireless remote control
1 x User Manual

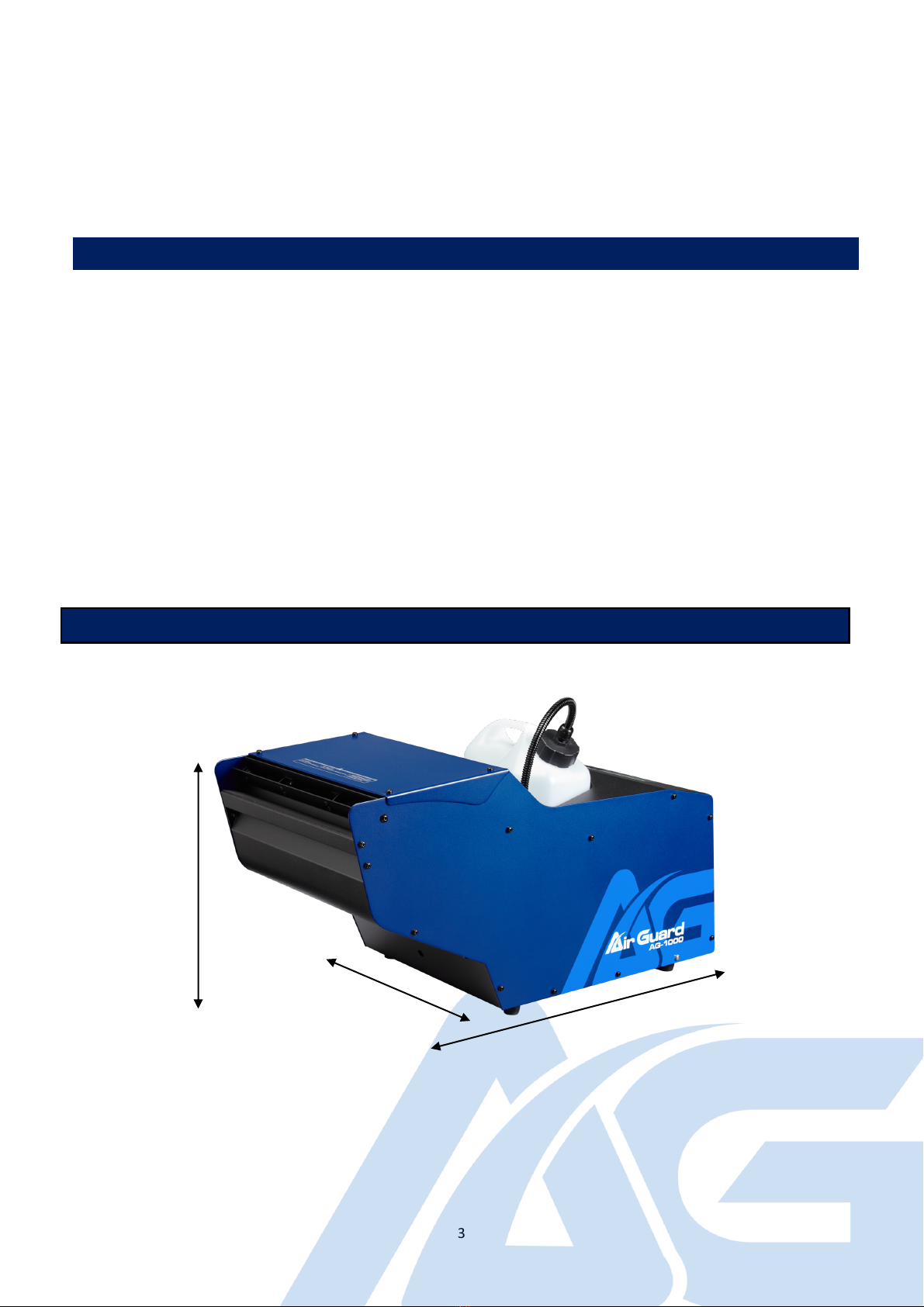

Product Dimensions
H 286 mm
W 275 mm
L 608 mm

4
Product Overview
Setting Up
Step 1: Place the machine on a flat surface and in a suitably large area with at least 50 cm of open
space around the machine.
Step 2: Fill the fluid tank with Air Guard fluid.
Step 3: Connect the machine to a suitably rated power supply.To determine the power requirement
for the machine refer to the label on the back of the machine.
Always connect the machine to a protected circuit and ensure it is properly grounded to
avoid risk of electrocution.
Step 4: Turn on the machine and allow it to heat up. Heat up takes approximatly 4 mintues. Once
the machine has reached operating temperature, the display will show Ready to Faze. Now the
machine is ready for operation.
Step 5: To start making haze, press the VOLUME button on the control panel.
Fluid Tank
LCD control panel
Wireless receiver (antenna)
XLR 3-Pin DMX Connector
XLR 5-Pin DMX Connector
Neutrik PowerCon
Power Switch

5
Step 6: To tu rn off the machi ne, hold the STOP button for 3 seconds; the machine will automatically
run a self-cleaning process and shut off after the process is done.
Operation

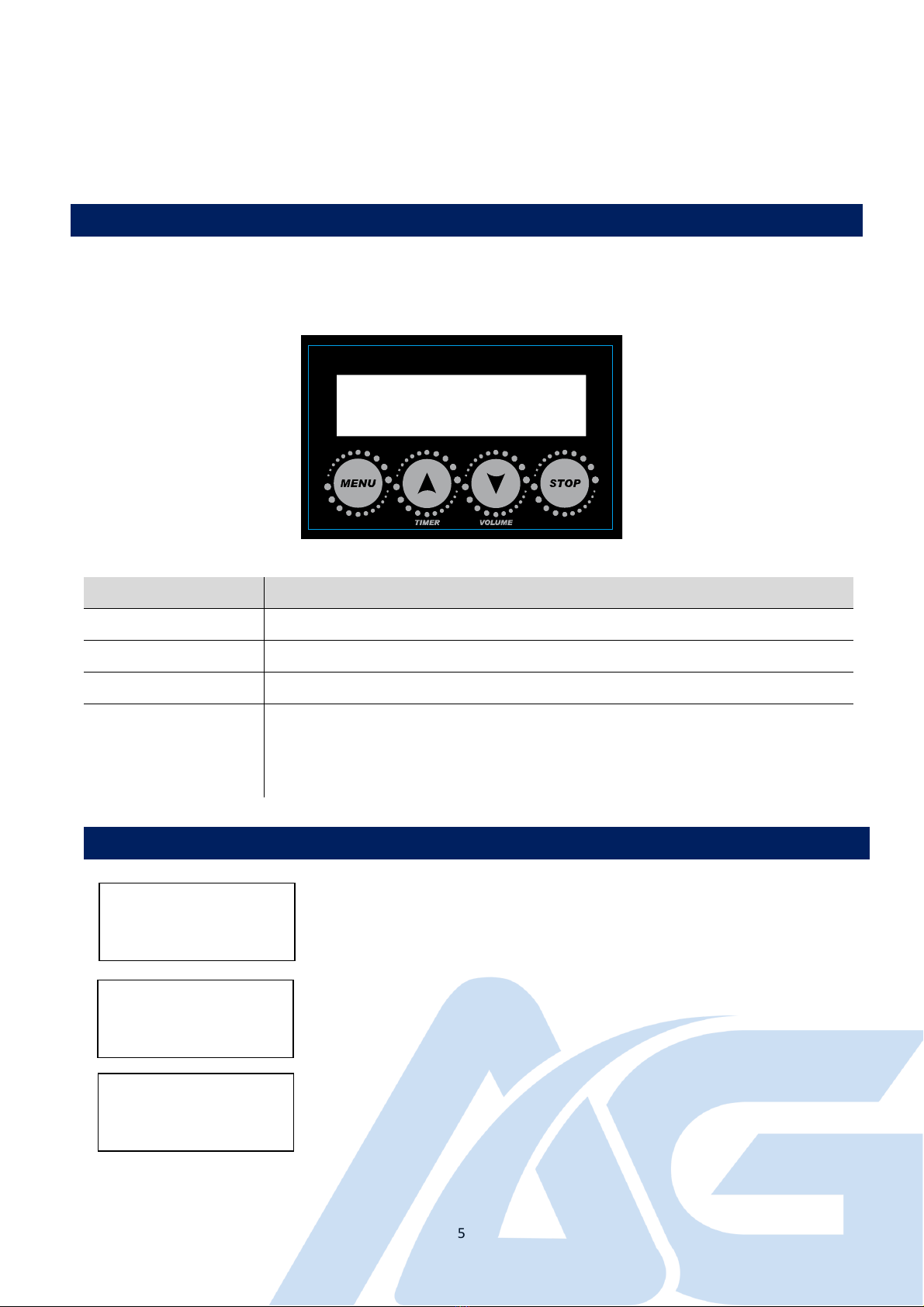

Control Panel Operation
The machine can be operated with the onboard digital control interface.
Button
Function
[MENU]
Scroll through setting menu
[UP]/[TIMER]
Up/Activate Timer fucntion
[DOWN]/[VOLUME]
Down/Activate Volume function
[STOP]
Deactivate Timer/Volume function.
Or to select and memorize the setting.
Hold 3 seconds to start self-cleaning process and shut down the machine
Control Menus
Set interval time at Timer mode from 5 to 200 seconds
Set duration time at Timer mode from 1 to 200 seconds
Set output volume at Timer mode from 1 to 100 %
Interval Set
XXX Sec
Duration Set
XXX Sec
Timer Output
XXX %
AG-1000
Ready to Fog

6
Set output volume at Volume mode from 1 to 100 %
Set fan speed from 20 to 100%
Set DMX/W-DMX address from 1 to 511
Turn On/Off Wireless Remote Control function
Turn On/Off Air Pump Sensor
Select DMX mode from 2ch, 1ch, and Sync mode
Turn On/Off run last setting function
Turn On/Off Keypad Sound
Volume Output
XXX %
Fan Speed
XXX %
DMX-512
Address: XXX
Run Last Setting
XX
Wireless
XX
Air Pump Sensor
XX
DMX Mode
XXXX
Keypad Sound
XX

7

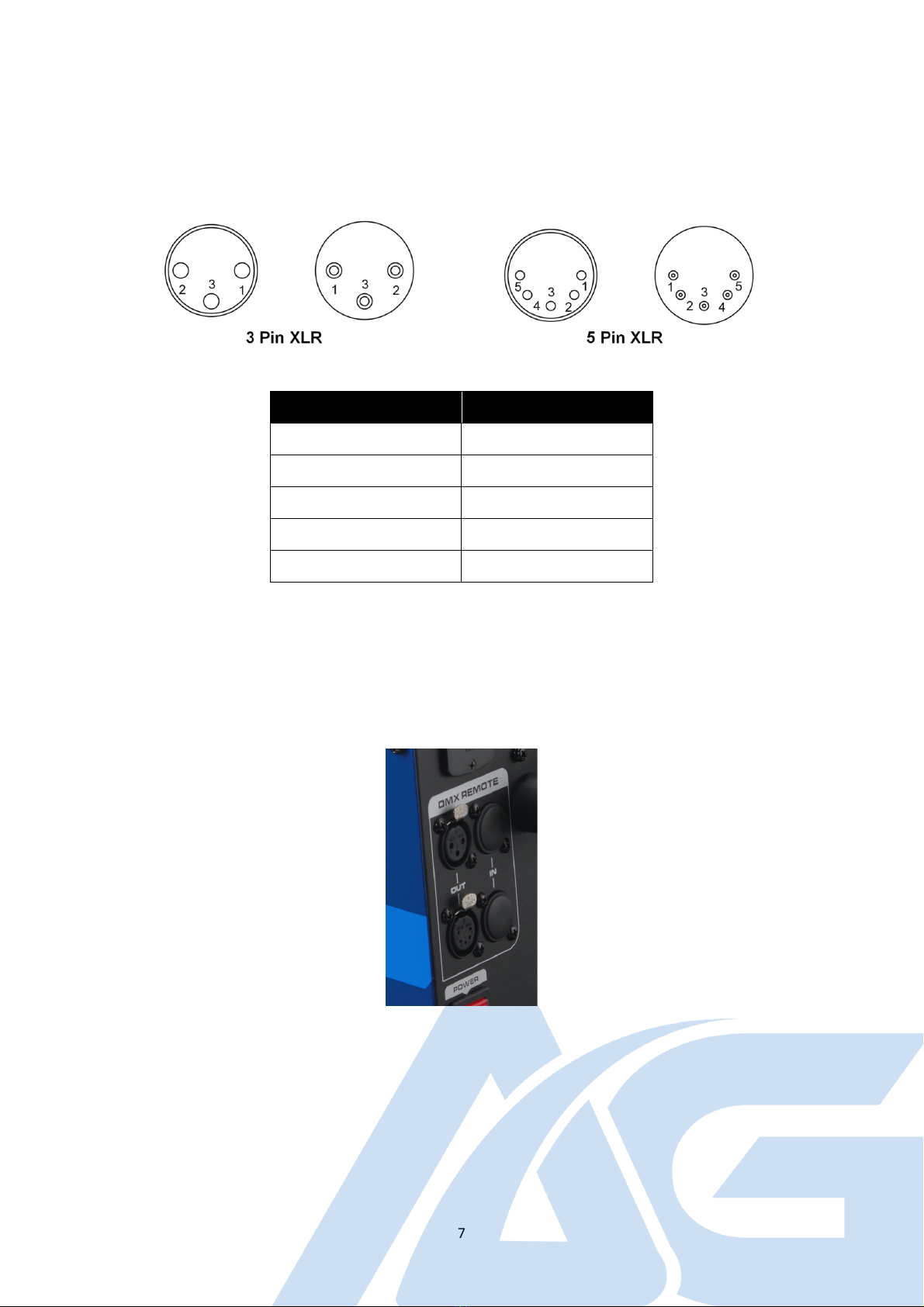

DMX Connector Pin Assignment
The machine provides a 3- or 5-pin XLR connector for DMX connection. The diagram below indicates
pin assignment information.
Pin
Function
1
Ground
2
Data-
3
Data+
4
N/A
5
N/A
DMX Operation
Making the DMX Connection – Connect the machine to a DMX controller or to one of the machines
in the DMX chain. The machine uses a 3-pin or 5-pin XLR connector for DMX connection, the
connector is located on the back of the machine.
Address Setup – Use control menu to set DMX address. The machine occupies 2 control channels.
The starting address is defined as the first channel from which the machine will respond to the
controller. Always double check to make sure there are no overlapping channles in order to control
the machine correctly.

8

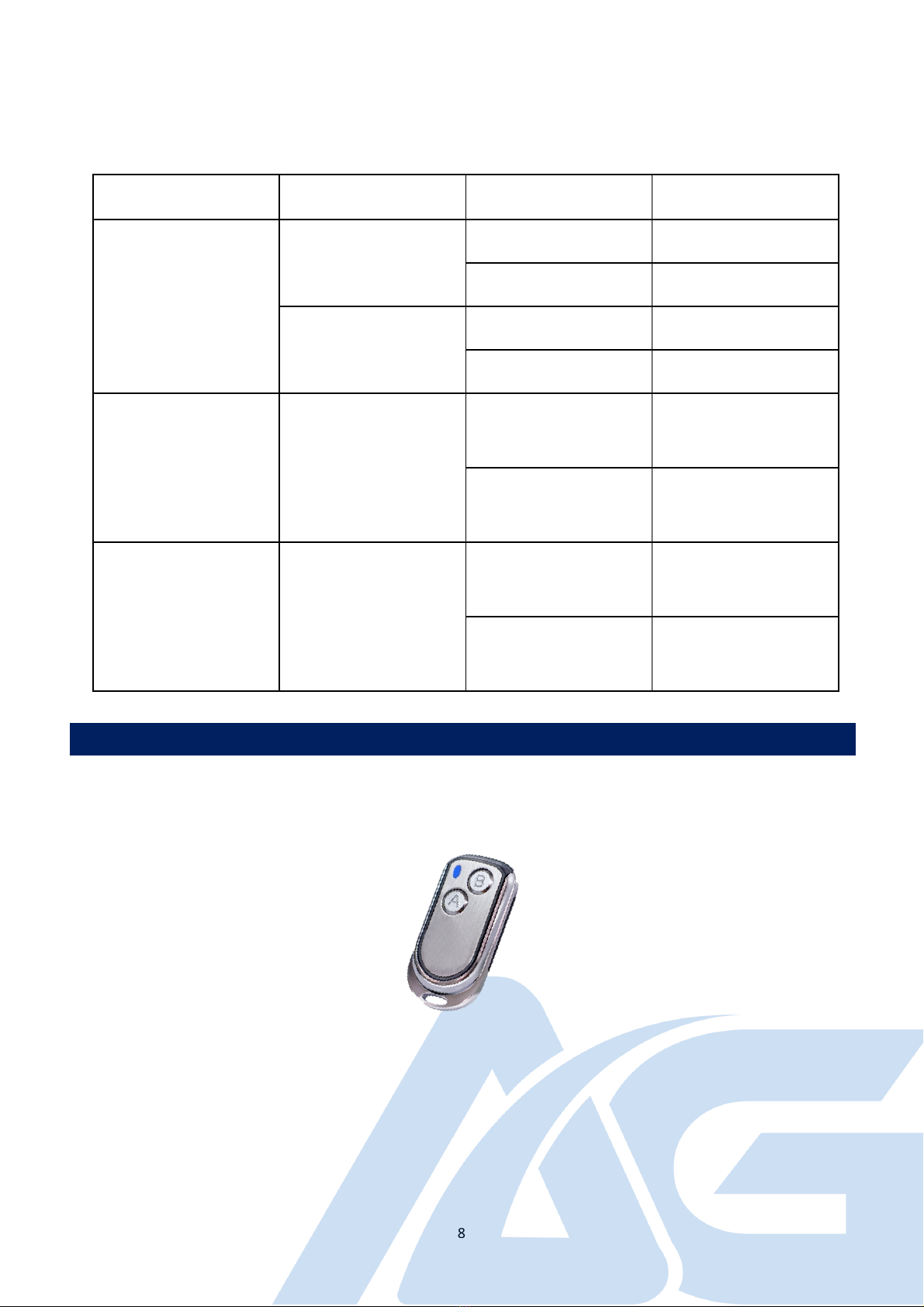

DMX Channel Function
Channel Mode
Channel
Value
Function
2
1
0-4
Faze off
5-255
Faze 1-100%
2
0-4
Fan 20%
5-255
Fan 21-100%
1
1
0-4
Faze off
Fan 100%
5-255
Faze 1-100%
Fan 100%
Sync
1
0-4
Faze Off
Fan 20%
5-255
Faze 1-100%
Fan 21-100%
Operation
Wireless remote control system W-1 consists of a transmitter equipped with two buttons to activate,
deactivate and an onboard receiver attached to the rear panel of AG-1000.
W-1 Wireless Transmitter
Press [A] button to emit fog and press [B] button to stop.
In an unobstructed open space the effective distance is 50 meters, usage depending on obstacle level
the effective distance is 10-25 meters.

9
Wireless Receiver
Transmitter setting
By default [A] button is set to activate and deactivate. To change activation button, simply press desire
button within 15 seconds after power is turn on.
Registering a transmitter
Transmitter can be paired from the receiver. Each receiver can pair up to 5 transmitters. Follow
below steps to pair transmitter from receiver.
Step 1: Turn on machine and turn on wireless remote control function.
Step 2: Power off machine and turn on again
Step 3: Wait until display show “Wireless Detecting”
Step 4: Press [A] button on the transmitter to pair
Notes:
1. Once the wireless remote control function is turned On, the letter “W” will be displayed
on the LCD screen.
2. Once the wireless remote control function is turned On, the LCD screen will display
“Wireless Detect …” each time when the machine is turned on; this allows users to pair
new transmitter with the machine’s receiver. Every new registration overwrites the
previous memory.
3. One machine can be controlled by up to 5 transmitters while one transmiter can be
registered to an unlimited number of machines.
Wireless Detecting

10
Transmitter battery replacement
If the effective distance seems to decrease, it is possible the battery level is low and requires
replacement. In order to replace the battery, undo the three screws on the back of transmitter to
release the cover. Replace with the same type and specification of battery which is 27A 12V

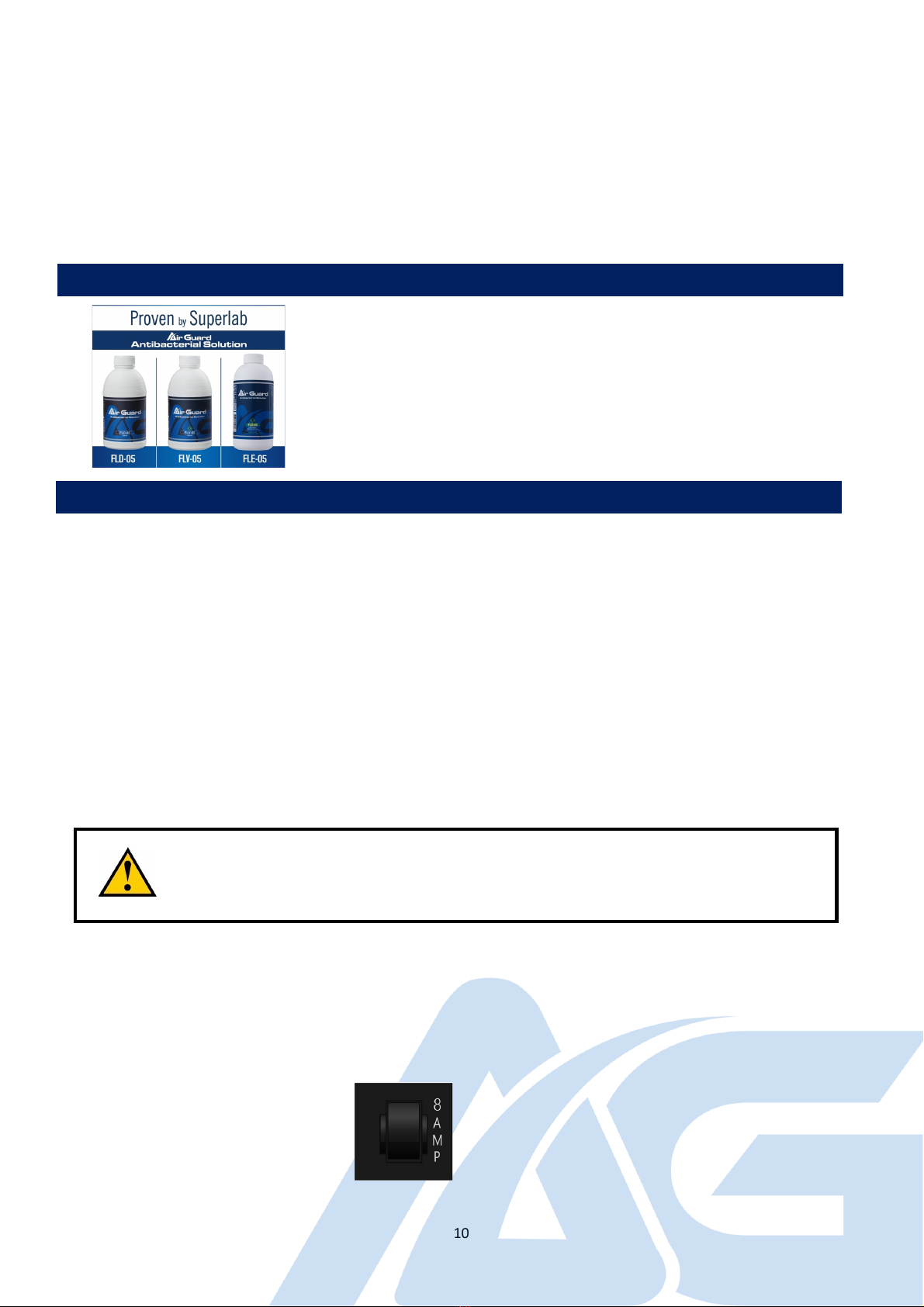

Fluid
Use Air Guard Antibacterial Solution for AG-1000. The machine is
tested and calibrated with these authorized fluids to achieve the best
performance. Warranty will be void, if any other type of liquid is used.
Improper use of liquid may lead to machine failure and danger.
Service and Maintenance
․ Do not allow the machine to become contaminated.
․ Remove dust from air vents with air compressor, vacuum or a soft brush.
․ Only use a damp cloth to clean the casing.
․ Before storing run distilled water through the system to help prevent condensing the pump or
heater.
․ It is recommended to run the machine on a monthly basis in order to achieve best
performance and output condition.
․ Excessive dust, liquid and dirt built up will degrade performance and cause overheating.
Breaker Reset
Disconnect AC power before resetting the breaker. Only replace fuse with same type
and rating.
Step 1: Disconnect AC power.
Step 2: Flip breaker to ON position.
Step 3: Turn on machine for testing.
Breaker
100-120V = 8A 250V
220-240V = 4A 250V

11
Technical Specifications
- Input voltage
US model : AC 100-120V, 50/60Hz 6.8A
EU model : AC 220-240V, 50/60Hz 3.5A
-Rated power
800 W
-Warm-up time
4.5 minutes (approx)
-Fluid consumption
8.5 ml/min
-Fluid tank capacity
2.4 Liters (0.63 gallon)
-Compatible fluid
Air Guard Antibacterial Solution
-Operating time
9.5 hrs at max. output
-Ambient temp.range
0°C - 40°C (32°F - 104°F)
-Control
Manual, DMX512, Timer
Wireless
-DMX channels
2 channels
-Connection
Neutrik Powercon (Power)
XLR 3-pin and 5-pin (DMX)
-Dimension
L 618 W 275 H 327 mm
(L 24.33 W 10.83 H 12.87 inch)
-Weight
14.1 kg (31.09 lbs)

12
M22 Moisture Co., Ltd.
Tel : [phone] Fax : [phone]
www.airguard.com.tw e-mail : [e-mail]
C08AG1000
