AIR GUARD AG-20 User manual
1
AG-20 Antibacterial Vaporizer
USER MANUAL
- ENGLISH
2
3
Safety Information
Thank you for choosing Air Guard. Please read the following safety information carefully
before operating the machine. This information includes important safeguards about
installation, usage, and maintenance. Pay attention to all warning labels and instructions
in this manual and printed on the machine.
l Keep this device dry.
l Always connect to a grounded circuit to avoid risk of electrocution.
l Before connecting the machine to power, always check the voltage indicate on the machine
matches to your local AC voltage. Do not use the machine if AC power voltage does not match.
l Disconnect the machine from AC power before servicing and when not in use.
l If the supply cord is damaged, contact your local dealer for replacement.
l This product is for indoor use only! Do not expose to rain or moisture. If fluid is spilled,
disconnect AC power and clean with a damp cloth. If fluid is spilled onto electronic parts,
immediately unplug the machine and contact your local dealer for advice.
l No user serviceable and modifiable parts inside. Never try to repair this product, an
unauthorized technician may lead the machine to damage or malfunction.
l For adult use only. Children being supervised not to play with the machine. Never leave the
machine running unattended.
l The machine is not to be used by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge.
l Installed in a well ventilated area. Provide at least 50 cm space around the machine.
l Never add flammable liquid of any kind to the machine.
l Make sure there are no flammable materials close to the machine while operating.
l Only use Air Guard Antibacterial Solution. Other solution may lead to heater clog and
malfunction.
l If the machine fails to work, unplug the machine and stop operation immediately. Contact
your local dealer for advice.
l Before transporting the machine, make sure the fluid tank is completely drained.
4
l Air Guard Antibacterial Solution may present health risks if swallowed. Do not drink Air Guard
solution. Store it securely. In case of eye contact or if solution is swallowed immediately look
for medical advice.
Unpacking and Inspection
Immediately upon receiving the antibacterial vaporizer, carefully unpack the carton, check the
content to ensure that all parts are present and have been received in good condition. If any parts
appear damaged or mishandled from shipping, notify the shipper immediately and retain the
packing material for inspection.
What is included: 1 x AG-20 Antibacterial Vaporizer
1 x Battery
1 x Battery Charger
1 x Wireless Remote Control
1 x FLD Antibacterial Solution
1 x User Manual

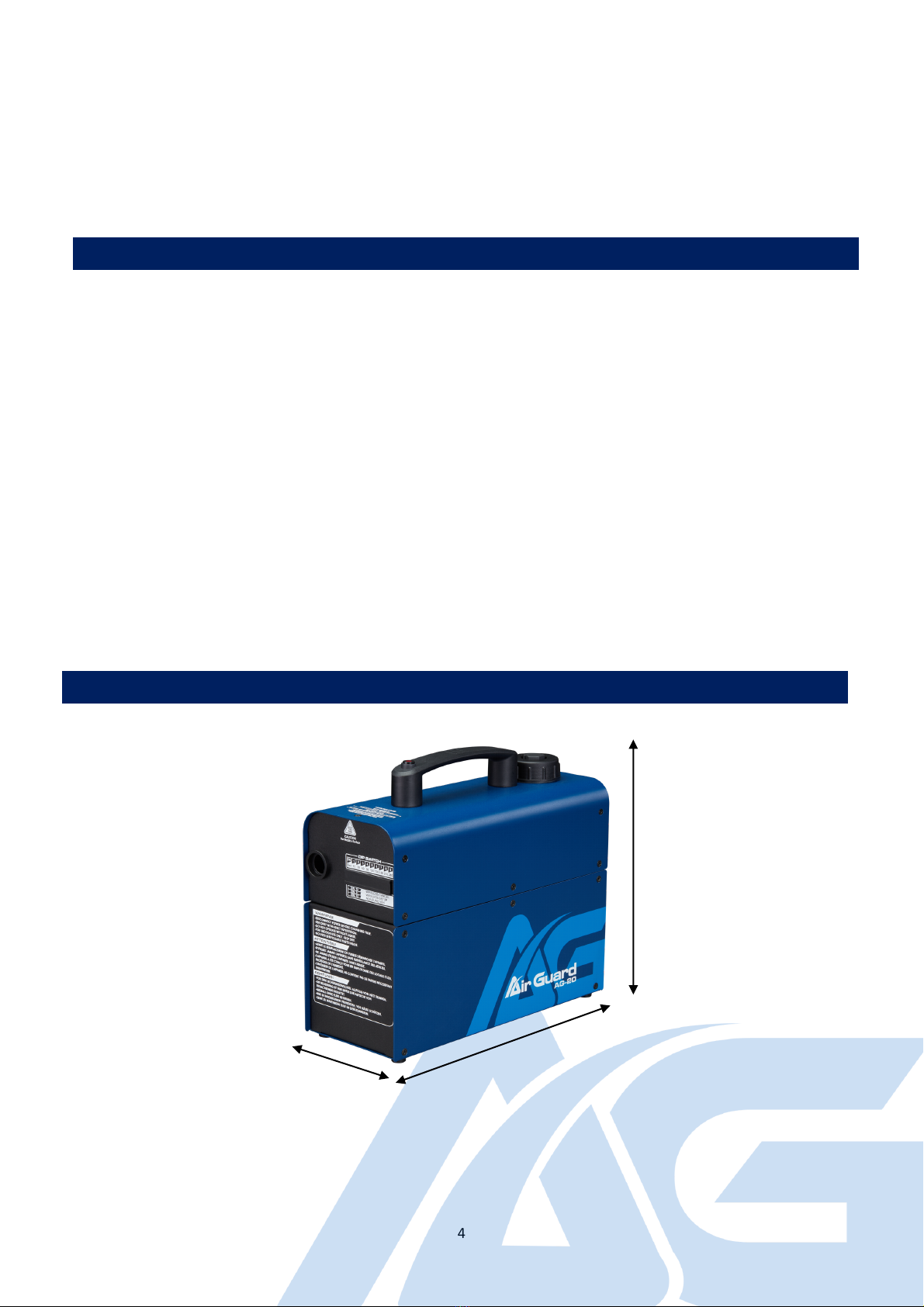

Product Dimensions
L 293 mm
W 108 mm
H 238 mm
5
Product Overview
Setting Up
Step 1: Place the machine on a flat surface and in an area with at least 50 cm open space at each
side of the machine.
Step 2: Fill the fluid tank with Air Guard fluid.
Always connect the machine to a protected circuit and ensure it is properly
grounded to avoid risk of electrocution.
ON / OFF Switch
Fog Output
Nozzle
Dip Switch
Power Switch
Lock lever
Charger Input
Wireless Receiver (Antenna)
Battery
6
Step3: Connect the battery base or power base to the fog machine. Turn on the machine to start
operation.
Pull to release locking lever
Align and insert head unit to base
Battery and Chargers
When the LED indicator on the charger turns red, the battery is being charged. When it turns green,
the charging process is completed. A low power battery requires approximately 3 hours to be fully
charged. A fully charged battery can run the machine for roughly 12 minutes.
Plug in the charger
Red light indicates charging
Green light indicates charging
completed
7
Operation
Manual Mode
Put DIP switch 1 ~ 9 to OFF position for manual mode.
In the manual mode, fog output can be triggered by either keeping holding the handle button or
pressing once the button A on the wireless transmitter. To stop fogging, release the handle button
or press once the button B on the wireless transmitter.
Timer Mode
Use the DIP switch located in front of machine to set the timer’s duration (fogging) time. Duration
time can be set from 15 to 240 seconds. Put DIP switch to ON position for desired duration time.
Longer timer setting overwrites shorter timer setting. For example: When both DIP switch 1 and 9
set to ON position, the duration time will be 240 seconds.
Timed fogging can be triggered by either pressing the handle button once or pressing the button A
on the wireless transmitter once. When the timed fogging’s time is up, machine stops automatically.
To stop timed fogging immediately, press once handle button or press once the button B on the
wireless transmmiter.
Radio Wireless Remote System
Radio wireless remote control system consists of a transmitter with two buttons to activate and
deactivate fogging. The wireless signal receiver (antenna) is attached to the rear panel of AG-20.
W-1 Wireless Transmitter
8
Press [A] button to emit fog and press [B] button to stop fogging.
Wireless Signal Receiver (Antenna)
In an open space, the maximum distance of the radio wireless remote is 50 meters. However, the
operating distance depends on obstacle levels.
Pairing and Deleting a transmitter with receiver
Transmitters can be paired or deleted from the wireless signal receiver. Each receiver can pair up to
5 transmitters. Follow the steps below to pair or delete a transmitter from a receiver.
To Pair
Step 1: Put Dip switch 11 to ON position
Step 2: The red LED indicator on handle starts to blink. Press button A on the transmitter once to
pair it with the receiver.
Step 3: Once pairing is completed, LED indicator will be constant on for 3 seconds
Step 4: Put Dip switch 11 back to OFF position to start operation
To Delete
Step 1: Put the dip switch 10 to ON position
Step 2: The red LED indicator on handle starts to blink. Press button A on the transmitter once to
delete it from the receiver.
Step 3: The deleting process takes approximately 10 seconds
Step 4: Once deleted, the LED indicator will be on for 3 seconds
Step 5: Put the dip switch 10 back to the OFF position to start operation
Transmitter battery replacement
If the operating distance of the radio wireless remote becomes shorter, it is possible the wireless
transmitter’s battery power is getting low and requires a replacement. In order to replace the
battery, undo the three screws on the back of transmitter to remove the case. Replace with the
same type and specification of battery which is 27A 12V.
9
Fluid
Use Air Guard FLD / FLV Antibacterial Solution for AG-20.
The machine is tested and calibrated with these authorized
fluids to achieve the best perf
ormance. Warranty will be
void, if any other type of liquid is used. I
mproper use of
liquid may lead to machine failure and danger.
Service and Maint
․ It is recommended to run the machine on a monthly basis in order to achieve best
performance and output condition.
․ Excessive dust, liquid and dirt built up will degrade performance and cause overheating.
․ In an event of machine error, contact an authorized distributor/dealer for further technical
supports and service.
Red LED Indicator on the handle
Machine’s Status
LED Indicator
Ready to fog
Constant on
Producing fog
Slow flash every 0.7 second
Low battery
Quick flash every 0.3 second
Machine error
Qucik flash every 0.1 second
Technical Specifications
- Input voltage
- Rated power
- Warm-up time
- Fluid consumption
- Fluid tank capacity
- Compatible fluid
- Ambient temp. range
- Control
- Dimension
- Weight
DC 12V (Battery)
AC 100-240V, 50-60Hz (Battery charger)
600W
1 second (approx.)
14 ml/min
0.4 Liter (0.11 Gallon)
Air Guard FLD Antibacterial Solution
Air Guard FLV Antibacterial Solution
0 °C - 40 °C (32 °F-104 °F)
Manual, Timer, Radio Wireless Remote
L293 W108 H238 mm
(L11.54 W4.25 H9.37 inch)
8.5 kg (18.74 lbs)
10
11
12
M22 Moisture Co., Ltd.
Te l : +886 3 2227470 Fax : +886 3 2227469
C08AG0201
