SPECIFICATIONS
EXHAUST FANS

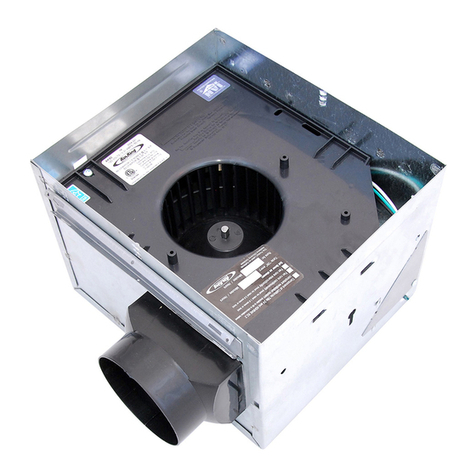

AKF100LS
100 CFM/1.5 SONES @ 0.10" WG.
HVI CERTIFIED 120 Volts, 0.85 amps, 60 hz.
•Grill
White, polymeric grill secured in place with torsion springs;
easily removed if necessary, dimensions - 11" x 133/4". Moonstone
glass lens.
• Blower Wheel
Balanced polymeric dual inlet blower wheel 51/4" dia. x 227/32"
depth, 30 paddles, secured in place via press fit.
• Motor
Enclosed 4 pole electronically balanced permanently split
capacitor motor (PSC); life time lubricated, suitable for
continuous operation. Motor bearings - ball. Rated 115/120 volts,
60 Hz, 0.35 amps.
• Fan Housing
23 gauge galvanized steel housing.
Overall dimensions 107/8" x 93/8" x 77/8".
• Duct Collar
4" round, zinc plated metal collar adapter. 4" spring loaded
aluminum backdraft damper.
• Ventilating Area
For bathrooms up to 100 sq. ft. For other rooms up to 125 sq. ft.
• Electrical Connections
1/2"electrical knockouts provided. Easy wiring access via either
internal or external wiring compartment cover.
CUL/HVI
Canada: 110 Glidden Road
Brampton, Ontario L6T 2J3
Tel: [phone]
Fax: [phone]
U.S.: 820 Lincoln Drive
West Chester, Pennsylvania 19380-4466
Tel: [phone] • 877-304-3785
Fax: [phone]
Updated 7-06Specifications subject to change without notice.
• Lighting
Electronic Quick Start Ballast – rated 26 Watt – Use Triple 4 pin
PL lamp. Maximum 26 Watt.
• Unit Mounting
The housing will mount in ceilings with at least 8" of clearance
and through drywall thickness up to 3/4", with a rough-in opening
of 111/8" x 95/8". Rated for ceilings insulated to R-40. The housing
will mount either between 16" or 24" on center joists, using the
4 supplied housing mounting rails. The housing mounting rails
can be adapted for overhead mounting (hardware not provided).
• Single Pack Shipping Info
Box Dim Box Dim: 141/8" x 115/8" x 12"
UPC: 0-8316221000-5
Shipping Weight: 11.5 lbs.
CUS
PROJECT
LOCATION
CONTRACTOR
ARCHITECT
ENGINEER
SUBMITTED BY DATE
FAN MODEL CFM IN RPM WATTS AMPS SONES QTY OPTIONAL EQUIPMENT
NUMBER NUMBER W.G. & REMARKS
Acceptable for use over tub or shower when
installed in a GFCI protected branch circuit.
PERFORMANCE
HVI Sones Fan Speed Power
Static Pressure (inches of w.g.) @ .1 SP RPM Watts
0 0.05 0.1 0.125 0.15 0.2 0.25 0.3
Air Flow - CFM 104 102 100 99 98 95 90 71 1.5 1106 29
77/8"
4"
107/8"
93/8"
11"
133/4"
