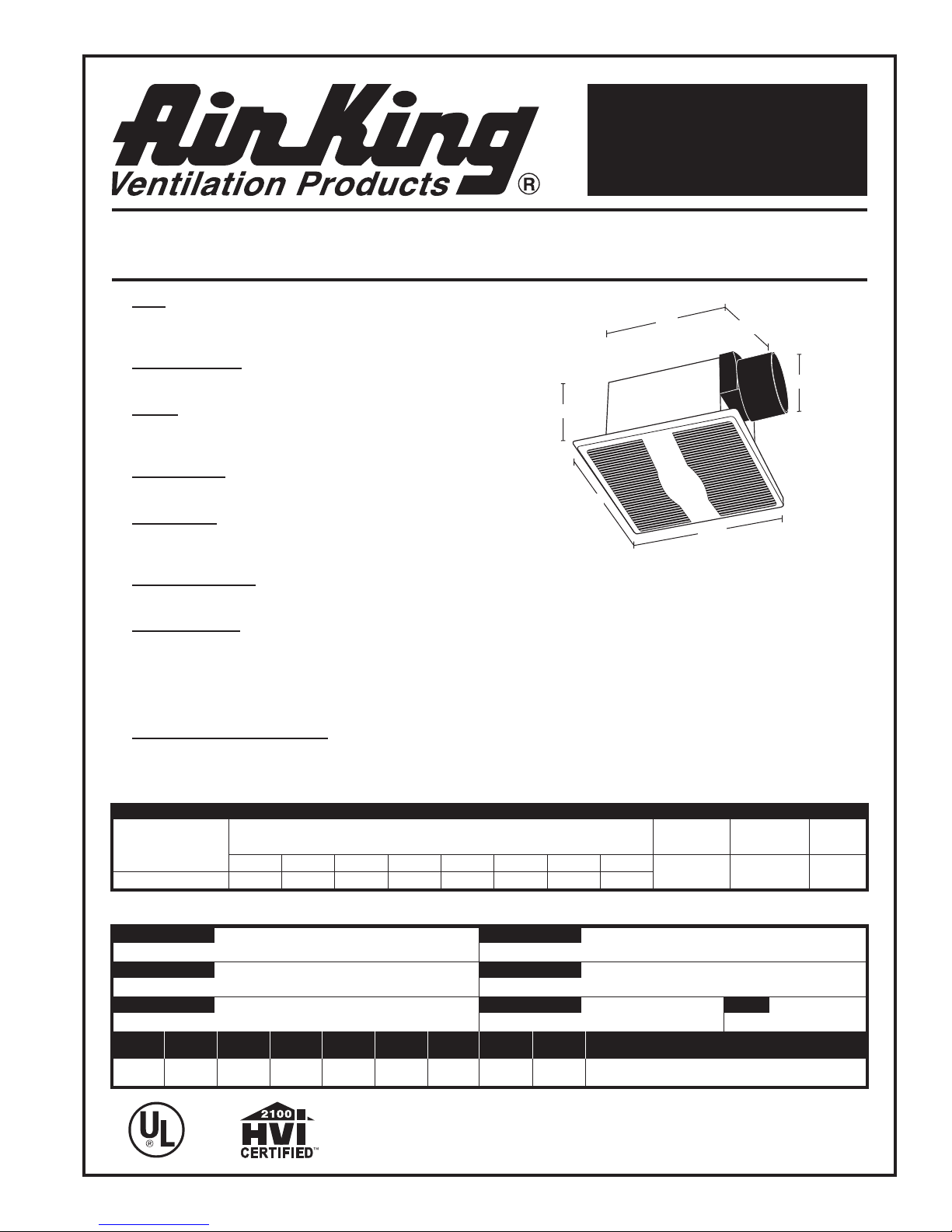

Air King EXHAUST FANS AS90 User manual

SPECIFICATIONS
EXHAUST FANS
AS90
90 CFM/2.5 SONES @ 0.10" WG. -HVI CERTIFIED
120 Volts, 0.45 amps, 60 hz.
• Grill
White, polymeric grill secured in place with torsion springs;
easily removed if necessary, dimensions - 101/2" x 101/2".
• Blower Wheel
One piece polymeric wheel, 51/8"diameter, 23/8"wide, with 48 fins.
• Motor
PSC, plug-in, 4 pole motor, life time lubrication, suitable for
continuous operation. Rated 120 volts, 60 hz., 0.45 amps.
• Fan Housing
23 gauge galvanized steel housing, dimensions 83/4" x 83/4" x 53/4".
• Duct Collar
Plastic collar for 4" duct connection, comes complete with built
in non-metallic back draft damper for quiet operation.
• Ventilating Area
For bathrooms up to 90 sq. ft. for other rooms up to 115 sq. ft.
• Unit Mounting
Rated for ceilings insulated to R-40. Designed to mount in
ceilings with at least 6" of clearance. AS120 is centered between
joists (with 16" centers) using hanging brackets. The housing
will mount through drywall thickness up to 3/4", with a rough-
in opening of 9" x 9".
• Single Pack Shipping Info
Box Dim: 123/4" x 101/8" x 7"
UPC 0-8316229021-2
Shipping Weight - 61/4lbs.
CUL/HVI
Canada: 110 Glidden Road
Brampton, Ontario L6T 2J3
Tel: [phone]
Fax: [phone]
U.S.: 820 Lincoln Drive
West Chester, Pennsylvania 19380-4466
Tel: [phone] • 877-304-3785
Fax: [phone]
Updated 6-06Specifications subject to change without notice.
CUS
PROJECT
LOCATION
CONTRACTOR
ARCHITECT
ENGINEER
SUBMITTED BY DATE
FAN MODEL CFM IN RPM WATTS AMPS SONES QTY OPTIONAL EQUIPMENT
NUMBER NUMBER W.G. & REMARKS
Acceptable for use over tub or shower when
installed in a GFCI protected branch circuit.
PERFORMANCE
HVI Sones Fan Speed Power
Static Pressure (inches of w.g.) @ .1 SP RPM Watts
0 0.05 0.1 0.125 0.15 0.2 0.25 0.3
Air Flow - CFM 101 95 90 88 85 81 74 65 2.5 1375 50
53/4"
4"
83/4"
83/4"
101/2"
101/2"
