Air King K52 Service manual

July, 2016
1
701 Frontier Way,
Bensenville, IL 60106
Phone: [phone]
Fax : [phone] Website: AIR-KING.COM
SERVICE & INSTALLATION FOR
K52 & K552
VACUUM UNIT, AIR / VACUUM UNITS
UNITS 1200 SERIES .

July, 2016
2
TABLE OF CONTENTS
1. Safety Instructions Page 3
2. Introduction Page 4
3. Service & Warranty Page 5
4. General Specifications Page 6
5. Electrical Requirements Page 7
6. Mounting Instructions Page 8
7. Operating Instructions Page 9
8. Basic Maintenance Page 10
9. Replacement of Parts Page 11-12
10. Trouble Shooting Page 13-14
11. Parts Identification Page 15-18
12. Vacuum Timers Page
13. Wiring Diagrams Page

July, 2016
3
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE OPERATING
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR INJURY:
1. Do not use the vacuum on wet surfaces.
2. Use the vacuum only as described in the manual
3. Only the recommended Manufactures attachments should be
used on the vacuum.
4. Do not handle the vacuum with wet hands
5. Do not put any objects into the openings of the vacuum.
6. Do not vacuum up anything that is burning such as: cigars,
cigarettes, matches, or hot ashes.
7. Do not vacuum up flammable or combustible liquids, such as
gasoline. This will trigger an explosion.
8. Do not use the vacuum in areas where flammable liquids may
be present.
WARNING: VACUUMS EQUIPPED WITH AIR COMPRESSORS (K552-750) OR
VACUUMS EQUIPPED WITH REMOTE AIR SOLENOIDS (K52-9)
1. Over inflation of tires may be dangerous. Please consult your
vehicle owner’s manual for proper tire inflation.
DANGERS:
This vacuum contains equipment that tends to produce arcs and sparks,
which can cause an explosion. This vacuum must be located 18 inches
above grade and at least 25 feet from a fuel dispenser.
The vacuum operates on 120-volt AC single phase, three wires
electrical power. This vacuum must be connected to a grounded metal
permanent wiring system, or an equipment grounding conductor must be
run with the circuit conductors and connected to the equipment grounding
terminal, or lead on the unit.
ALL SERVICING OTHER THAN BASIC MAINTENANCE SHOULD BE PERFORMED BY
QUALIFIED SERVICE PEOPLE.
SAVE THESE SAFETY INSTRUCTIONS

July, 2016
4
INSTRUCTION
The American Products / Air King Vacuum is manufactured in a variety of configurations to
meet diverse customer needs. This manual has been prepared to aid service personal in
installing, diagnosing and repairing American Products Inc. equipment.
In general they come in one type of cabinet styles and three different models.
1. K52 Standard 2 Motor Vacuum 1200 series cabinet. (vacuum only)
.
2. K552- Two Motor Vacuum with ¾ H.P. Compressor 1200 series Cabinet.
(Air Vacuum)
3. K52-9 Standard 2 Motor with Remote Air Solenoid 1200 series Cabinet
(Air Vacuum Remote)
The Cabinets for the models listed above are made out of 16 gauge stainless steel.
Each of the basic models comes with a variety of optional features.
1. Models can be set up for free operation or coin operation.
2. Cut resistant hose (Air Vacuum & Air Vacuum Remote units only)
3. Single hose reel assemblies (Air Vacuum & Air Vacuum Remote units only)
4. JB 7 Lock Box for coin box security.
UNIT IDENTIFICATION
The model number and serial number appear on a metal tag, bearing the American
Products Inc. name (See Figure1 below). The identification tag is found inside the upper
compartment.
Figure 1.
Technical Support:
Our technical support staff is available at 1-800-542-3336 during normal business hours to
answer any questions regarding machine operation, components or spare parts. When
calling for technical support it is extremely helpful to have the serial # and machine model #
readily available.
Air King of America, Inc.
710 Frontier Way,
Bensenville, IL 60106
Model #
Serial #
K552-AV-P
1111111

July, 2016
5
SERVICE AND WARRANTY
WARRANTY STARTS FROM DATE OF INVOICING
1) Air Compressors are warranted for defects in materials and workmanship for 18
months.
2) Multi Coin timers part # 1512 & 1515 are warranted for defects in materials and
workmanship for one year.
3) Hoses and air gauge’s are warranted for thirty days from Manufacturer defects
4) All other parts of the unit are warranted for ninety days.
5) Warranty covers parts and materials only, warranty does not include labor or
transportation costs of any kind.
6) If unit or parts are returned to the factory at the customers expense, there will
be no charge for labor.
7) Vandalism or misuse of equipment, or tampering is not covered under warranty.
8) No returns will be accepted without a prior R.G.A. (RETURNED GOODS
AUTHORIZATION).
For Service Call or Write:
Air King of America, Inc.
701 Frontier Way
Bensenville, IL 60106
Phone# [phone]
Fax # [phone]

July, 2016
6
GENERAL SPECIFICATIONS
AIR KING MODEL K52
1. Four bag filter system for longer life.
2. Two twin stage 1.7 H.P. high performance vacuum motors.
3. 15 foot X 2 inch Industrial grade, crush resistant and clog
resistant hose with nozzle at the end of the hose.
4. Cabinet construction 16 and 11 gauge stainless steel or cold
rolled steel powder coated with a clear coat finish.
5. Separate timer for each function vacuum or air.
6. Money box secured with two medco plug locks on the 1200
series vacuum.
AIR KING MODEL K552-
1. High quality ¾ H.P. Industrial compressor.
2. Choice of standard red hose or cut resistant black hose.
MODEL
COMPRESSOR
H.P.
VACUUM
PEAK
H.P
CFM 2.5
ORIFICE
ELECTRICAL
RATING
(VACUUM)
SHIPPING
WEIGHT
K52
None
Vac Only
1.7 each
109
60HZ
18AMPS
150 LBS
K552
¾
or Remote Air
1.7 each
109
18 AMPS
VAC
13 AMP
Comp.
200 LBS
NOTE ALL SPECIFICATIONS ARE FOR 1200 SERIES VACUUM MACHINES

July, 2016
7
ELECTRICAL REQUIREMENTS
Model K52 Vacuum only
A. 120 Volts AC Current
B. 20 AMPS Circuit Breaker
C. 60 HZ Single Phase
Model K52-9 Vacuum with Remote Air Solenoid
A. 120 Volts AC Current
B. 20 AMPS Circuit Breaker
C. 60 HZ Single Phase
Model K552- Vacuum with ¾ H.P. Compressor
A. 120 Volts AC Current
B. 40 AMPS Circuit Breaker
C. 60 HZ Single Phase
The use of the recommended wire size is required for proper operation of all models. See
wire size guide below. If using aluminum wire increase gauge on size.
Building Vacuum Machine
Run
Air King Model
#
Copper Wire Size
0 to 25 Ft
0 to 50 Ft
0 to 100 Ft
0 to 150 Ft
0 to 200 Ft
K52
K52-9
K552
14 GA
14 GA
8 GA
12 GA
12 GA
8 GA
10 GA
10 GA
6 GA
8 GA
8 GA
4 GA
6 GA
6 GA
4 GA
Note: The run should be the length from the circuit
Breaker inside the building to the Air/Vac. machine
outside the building.

July, 2016
8

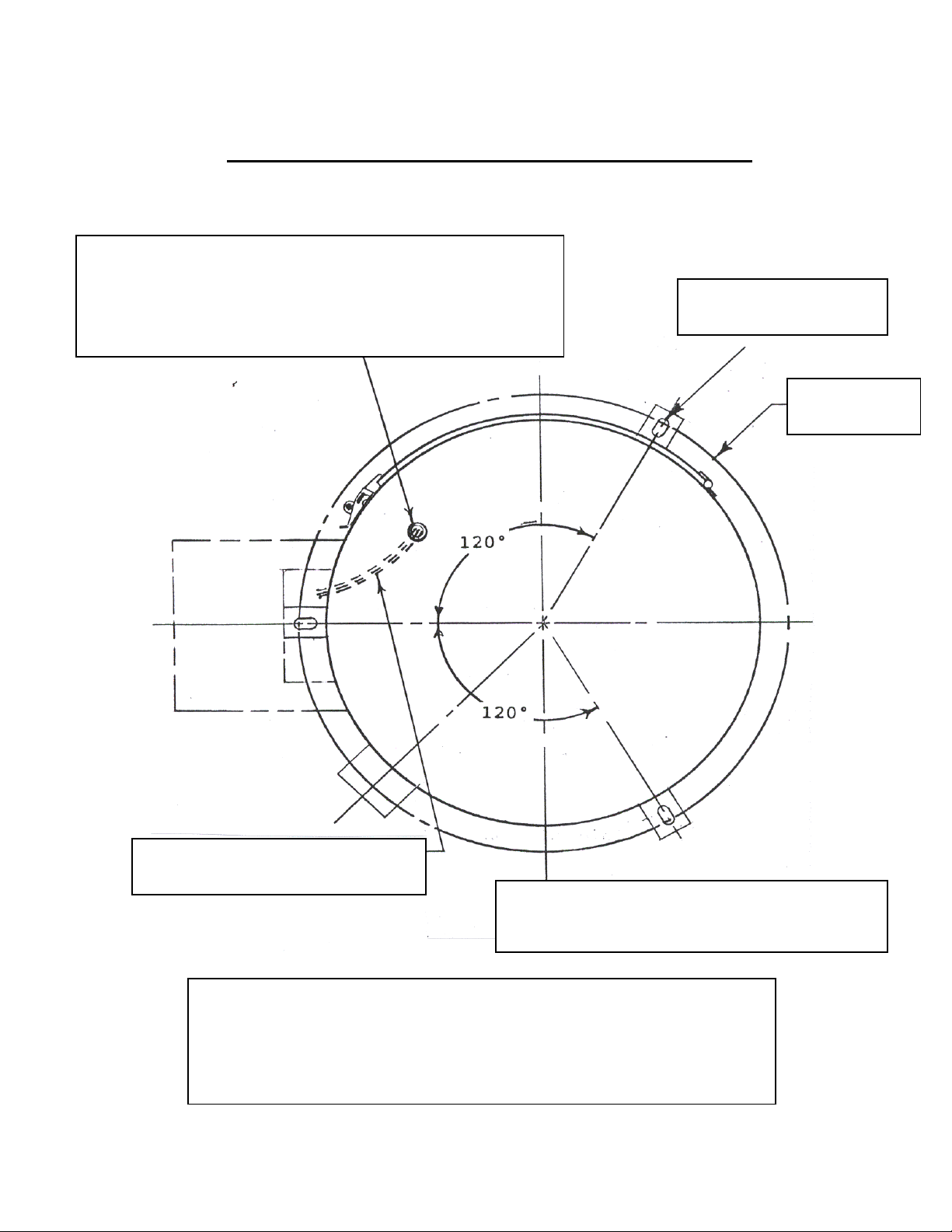

MOUNTING INSTRUCTIONS AND PATTERN
SEE WIRE SIZE GUIDE IN THE MANUAL FOR
PROPER WIRE GAUGE
SEE WIRE SIZE GUIDE ON
PAGE 7 FOR PROPER WIRE
GAUGE
USE ½ IN DIAMETER
STUDS 3 PLACES
CONDUIT CAN ENTER ANYWHERE IN THIS
CIRCLE, BUT SHOULD NOT EXTEND MORE THAN 1
INCH ABOVE CONCRETE BECAUSE FLOOR OF
VACUUM IS ONLY 2 ½ INCHES ABOVE THE
CONCRETE
ELECTRICAL REQUIREMENTS K52 & K52-9 , 120
VAC 20 AMP CIRCUIT BREAKER, K552-750 120
VAC 40 AMP CIRCUIT BREAKER
CONCRETE BASE SHOULD BE A MINIMUM OF 26 INCHES
LONG BY 26 INCHES WIDE 36 INCHES HIGH. CONCRETE
BASE SHOULD BE BURIED 24 INCHES IN THE GROUND.
CONRETE BASE SHOULD SIT UP A MINIMUM OF 12 INCHES
ABOVE GROUND LEVEL OR CAR BUMPER HEIGHT.
21 1/8
DIAMETER

July, 2016
9
OPERATING INSTRUCTIONS
To operate a K52 Vacuum coin operated model follow these instructions:
A. Insert correct amount of coin or coins into the money slot of the machine.
The machine will then start.
B. Take two inch vacuum hose off hose hanger and proceed to vacuum vehicle.
To operate a K52 Vacuum free operated model follow these instructions:
A. To start machine there will be either a toggle switch or pushbutton switch
to turn machine on either move switch up or down to start or simply push
the button to turn vacuum on.
B. Take two inch vacuum hose off hanger and proceed to vacuum vehicle.
To operate a K552- or a K52-9 Air Vacuum and Air Vac. remote follow these
instructions.
A. To operate the Vacuum side insert the correct amount of coin or coins into
the money slot on the right hand side of the vacuum control box. The
vacuum will then start, repeat the step B above and proceed to vacuum
vehicle.
B. To operate Air side insert the correct amount of coin or coins into the
money slot on left hand side of the vacuum control box. The Compressor
will then start. Take hose off of hose hanger or out of reel assembly place
end of hose on valve stem of tire. You will have to hold the end of the hose
on to the valve stem.
C. Depress handle on air gauge and begin to fill tire. To check air pressure
in tire leave hose end on valve stem and let up on handle of gauge. The
gauge will pop out showing the air pressure in the tire.

July, 2016
10
BASIC MAINTENANCE
1. Removal of Money Box 1200 Series Vacuum
A. Remove the two medeco plug locks with keys on front of the money box
face plate, rotate lock counter clockwise until you hear a click, pull lock
completely out. Use a 5/16 allen wrench to loosen bolts where the locks
were, turning bolts counter clockwise. When bolts are loose remove the
money box faceplate. Coin box or boxes are sitting behind faceplate.
2. Reinstall Money Box 1200 Series Vacuum
A. Replace coin box or boxes in unit, place money box face plate back into
position using 5/16 allen wrench line up bolts and tighten. Replace
medeco plug locks. Turn locks clockwise half of turn until they click.
Remove keys unit is now secured.
3. Cleaning Out Refuse Area 1200 Series Vacuums
A. Refuse area must be cleaned periodically. Refuse area is located behind
lower door on unit. If refuse is caught in the filter bags close lower door
and open top door and shake bags until refuse drops. Finish cleaning
out lower refuse area.
4. Dome Removal 1200 Series Vacuums
A. The dome is held on with four allen head screws. When the screws are
removed the dome may be lifted straight upward and off the unit.
5. Cleaning Exterior of the 1200 Series Vacuums
A. To remove scratches, paint, and dirt use soap and water or a cleaning
solution. Use a nylon scouring pad such as a scotch brite and rub with the
grain of the metal. Do not use steel wool and do not scrub decals.

July, 2016
11
POWER HOOK UP
Remove Money Box Face plate on 1200 Series
1. Remove two bolts holding the seam cover located below the Money Box face
plate at the bottom of the machine.
2. Two of the bolts are in the control box where the coin boxes set.
Remove locks and money box face plate. Remove coin boxes bolts are located
behind the coin boxes. Refer to Basic Maintenance for lock removal.
3. Run the power wire from the stub up through the hold provided at the bottom
of the unit. (See wire size guide on page 7)
4. Splice the power wire and the three wires from the unit together. Splice the same
color wires together. If you are unsure which wires to splice call a qualified electrician.
The use of wire nuts for splicing is strongly recommended.
5. To replace the seam cover reverse step one.

July, 2016
12
REPLACEMENT OF PARTS
Dome Removal 1200 Series Vacuums
1. The dome is held on with four allen head screws. When the screws are
removed the dome may be lifted straight upward and off the unit.
2. Under the dome is where the vacuum motors, fuses and the compressor will be.
Vacuum Motor replacement of the 1200 Series Vacuums
1. Turn power off the unit.
2. If unit is K552-750 the air compressor must be removed first. (See instructions
below for compressor removal).
3. Disconnect the wires from the vac motors. Remove the six bolts holding down
the exhaust manifold. Remove the four screws (two per motor) holding the vacuum
motors to the exhaust manifold. Lift manifold up and out of the unit. The motors
may have to be rotated
to be removed. Be sure to check motor gasket and screen to se that they are
fastened tight
4. If you ordered new gaskets and screens with motor remove old gasket and
adhesive strip off of gasket place screen on gasket over hole. Take gasket
and screen and press adhesive side down onto where the old gasket and
screen were.
5. To install motors follow in reverse the above procedure.
Air Compressor Replacement for 1200 Series Vacuums.
1. Turn Power off to unit.
2. Remove Air hose.
3. Disconnect wires to compressor
4. Remove bolts holding bracket.
5. Lift compressor and bracket together as a unit up from unit. (Compressor
weights 26 pounds)
6. Remove four bolts holding compressor to bracket and take old compressor
off of bracket
7. To install new compressor follow the procedures above in reverse order.
Fuse Replacement for 1200 Series Vacuums
1. Turn power off to unit.
2. The fuses are located under the dome mounted on the control box.
3. Only use 3AB 20 amp 250 volt fuses.
Electrical Plate for 1200 Series Vacuums.
1. Turn power off to unit
2. The electrical plate is located in the control box of the vacuum directly behind the coin
acceptors. To get to the electrical plate use the round key you received with your unit, open
the coin op face plate. You will see the coin acceptor or acceptors are connected to the
timer or timers. The electrical plate is what the timers, ground faults or terminal blocks are
attached to.

July, 2016
13
3. You can remove the entire electrical plate by disconnecting the motor connections and
power line. Remove the three nuts in each upper right and left hand corner and one at the
bottom in the middle.
4. This will allow you to receive the timer and replace them if necessary.
Filter bag replacement for the 1200 Series Vacuums.
1. Removal
A. Open upper service door and lower, clean out door located on
the left side of the vacuum.
B. Firmly grasp top filter ring at the top going through the service
door and lift toward the top of the unit. The top filter ring is
hooked into an eyebolt. Slide the filter ring out of the eyebolt.
C. The filter can now be pulled down and out through the bottom
clean out door.
D. To replace filter bags repeat procedure by reversing the above
procedures.
2. Preparing new filter bags
A. Remove A ring from top of the old bag by rotating the A ring
counter clockwise until the ring is out of the bag.
B. Remove bottom B ring from the bottom of the bag by rotating
the ring out of the hold provided.
C. To install rings in new bags by reversing the above
procedures.
Installation of the vacuum hose.
1. When the vacuum is shipped the vacuum hose is in the top of the box
the unit came in.
2. The hose must be screwed counter clockwise into the vacuum inlet on
the right side of the vacuum.
Installation of the air hose on Models K552-, K52-, Series Vacuums.
1. When the vacuum is shipped the air hose is located in the bottom of the
vacuum.
2. Insert the hose through the hose guard on the left hand side of the
vacuum. Run the hose to the quick coupler on the compressor or solenoid
valve on the K52-9 models. Push the quick coupler open and insert hose
coupler on
the end of the hose into the quick coupler. Holding the hose coupler into
the quick coupler release the quick coupler. The hose is now hooked up.

July, 2016
14
TROUBLE SHOOTING
This part of the manual was designed to help you with any minor problems or repairs you
may have with your AIR KING Vacuum 1200 Series.
Problem: Vacuum will not start up. Check circuit breaker in building. If the breaker in the
building has not kicked out go out to the machine and do the following:
1. Check ground fault interrupter on Model K52 vacuum only. (Air
vacuum model K552 do not have ground fault interrupters). If reset button
is popped out this shows that there is a short of some kind in the machine.
Shut breaker off inside building and check for loose wire connections.
2. Extremely wet or humid weather conditions may affect vacuum
operation. Shut breaker off in building dry out machine and ground fault
interrupter. Spray all wire connections with a contact cleaner to protect
them from moisture. Do not spray any contact cleaner on or into the
ground fault interrupter. (Note K52 Models only)
3. After checking ground fault turn breaker in building on. Push reset
button on ground fault and start machine.
4. If machine still does not start and ground fault kicks out then check fuse
underneath the dome. (See parts identification section for location of fuse.
See page 8 for fuse replacement) Replace fuse push reset on ground fault
and start machine. If machine still does not start you may have a possible
bad vacuum motor or timer. Call American Products Inc for service.
5. Check for jammed coins in coin acceptor. Clear coins out if jammed.
6. Check coin switch on coin acceptor for bent or broken activation wire. If
bent straighten wire if broken replace.
Problem: Compressor will not start up K552 models only. Check circuit breaker in building,
if the beaker in the building has not kicked out shut off breaker and go out to the machine
and do the following;
1. Check fuse underneath the dome. (See parts identification section for
fuse location. See page 8 for fuse replacement) Replace fuse.
2. Turn circuit breaker back on and start Air Compressor side of air
vacuum. If compressor does not start you may have a short in the
compressor motor. Call American Products Inc for service.
3. Check for jammed coins in coin acceptor. Clear coins out if jammed.
4. Check coin switch on coin acceptor for bent or broken activation wire. If
bent straighten, if broken replace.

July, 2016
15
Problem: If circuit breaker in building has kicked out. For K52 & K552 models.
1. Reset breaker, try and restart machine.
2. If machine does not start you may have a bad or weak breaker.
Replace breaker and try to restart machine.
3. If machine does not start you may have a short, or you may have to
much of a load running off of the same line. The vacuum and the air
vacuum should have there own separate line. The vacuum model K52
requires a 30 amp breaker. The air vacuum model K552 requires a 40
amp breaker.
4. If the compressor in the vacuum model K552 hums at the start check to
see what size wire you are running to the unit and how far the unit is from
the fuse box. If the wire running from the breaker inside the building to
the vacuum unit is to small a gauge the compressor will not start and run
properly. Refer to the wire size guide on page 5 of this manual for the
required size.
Problem: Vacuum runs but has no suction.
1. Check for clogged or broken hose. Check for open door or
damaged door gasket, if gasket is damaged replace it.
Problem: Vacuum has low suction.
1. Check for plugged filter bags. Clean out bags if plugged. Check
for holes in filter bags replace if necessary. Check for leaking
door gaskets, replace if necessary.
Problem: Unit vibrating or has high pitched motor noise.
1. Check for dirt or junk in vacuum motor. Make sure gasket and
screens are secure if they are not secure then replace them.
Check vacuum filter bags for holes. Replace them if necessary.
Problem: Air compressor has no pressure.
1. Check hose end make sure that chuck on the end of the hose has
the chuck washer and deflator pin still in place. If unit is more
than a year old and has a heavy use the then the relief valve may
need to be replaced. Check felt filter, if filters are dirty clean them
out and replace them.
K52-9 Remote air unit no compressor equipped with solenoid valve.
1. The solenoid valve on the K52-9 remote air unit becomes clogged
and stays open. Disconnect hose from valve, clean out debris
around the valve and reattach. If valve is still does not operate
properly the replace valve.

July, 2016
16
VACUUM MACHINE TIMERS
Timer Part # 1511 multi pulse Infitec ASCR . To adjust time and coins follow directions
below:
Switches 1 thru 7 Are Time setting switches. Combine
number of seconds to set the time: Here
Switch #3 (20 Seconds) &
Switch #6 (160 Seconds) are ON for a total run time =
20+160= 180 Seconds (3 minutes)
Coin setting Switches, 8, 9 & 10
Combine number of coins to set the
total coins. Here
Switch # 8 (1 coin) and
Switch # 9 (2 coins) for a total of :
3 Coins / Quarters

July, 2016
17
Timer Part # 1512 multi pulse Infitec ASCR 540. To adjust time and coins follow directions
below:
Combine Open Switches to select Time.
Switches must lie flat towards the number
in seconds and toward the open.
Combine Closed Switches to Select
Signal Count (coin). Switches must lie
toward the numbers
