Air Mentor Intelligence Air Mentor 2 User manual

Hardware Introduction
LED Breathing Light
Functional Key
Long press for 5 seconds to force release
current connected Bluetooth device.
Monitor Cap (with magnet)
Bluetooth Connection Light
WiFi Connection Indication
Power Button
DC In 5V/1A USB Power Connector
Wall Hanging Strap

First Use
When use for the first time, please use our USB
power supply and power cord accessories, after
wired, please turn on the power on the back of
Air Mentor 2. Our LED breathing light will start
flashing, 30 seconds later, Air Mentor 2 will start
showing air quality color.
Air Mentor 2 is designed for long term monitoring,
will monitor air quality all time real time.

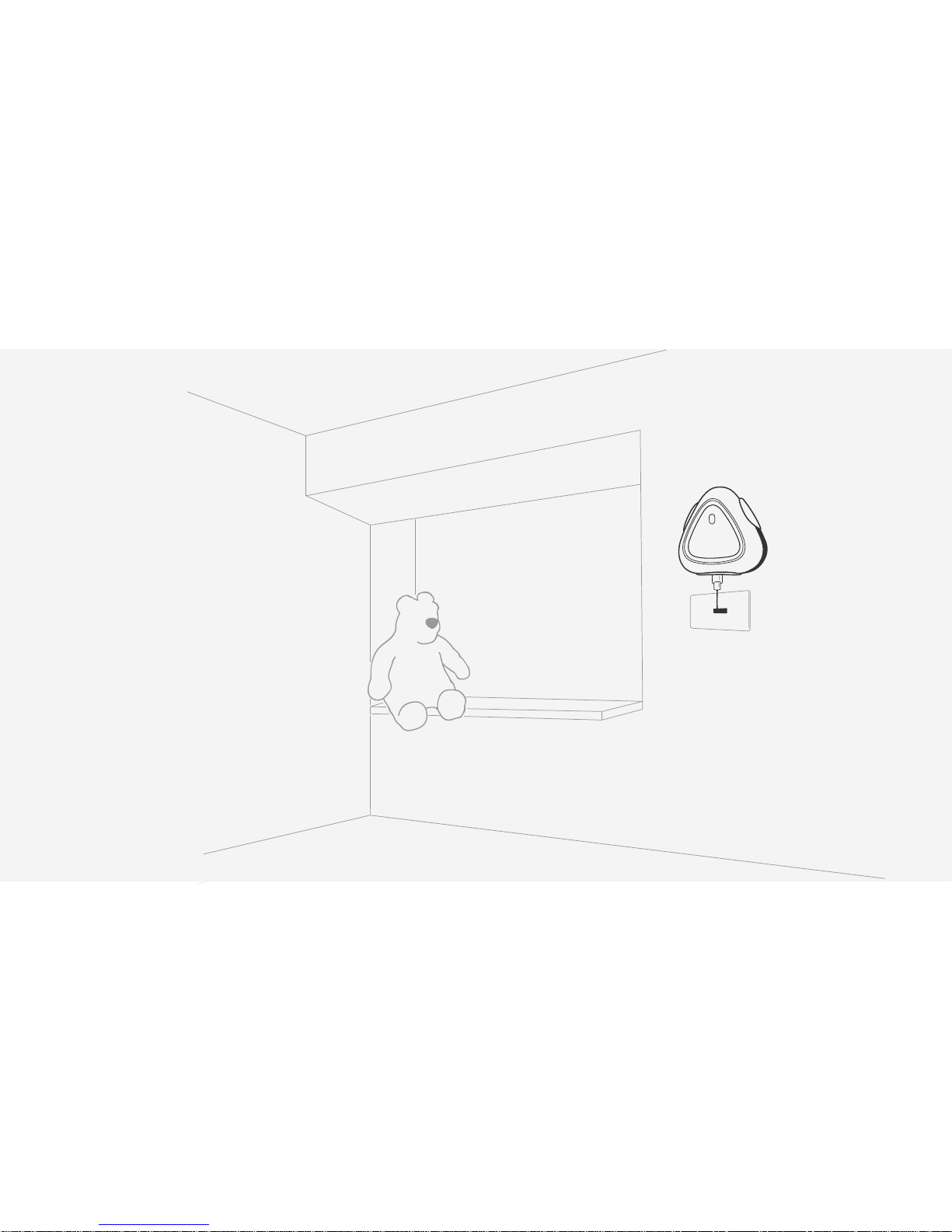

Wall Hanging
Air Mentor 2 shipped with our wall
hanger kit, it’s designed to be easily
installed on the wall.

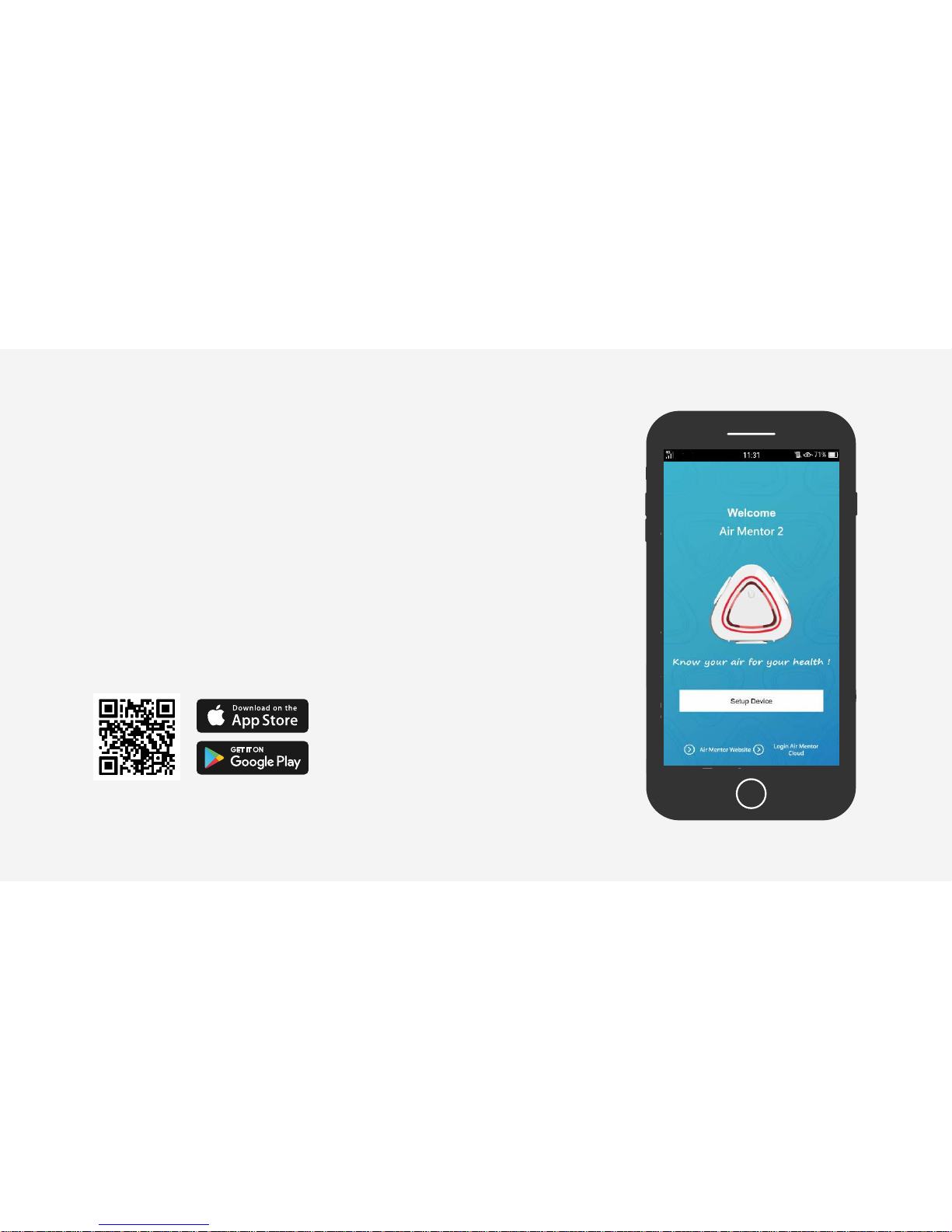

App Installation & Connection
Please scan below QR Code to download Air Mentor 2 App.
iOS and Android Apps are both provided.
After complete App installation, it will guide you to connect
with your Air Mentor 2.

Setup smart phone App and
Air Mentor 2 connection
Every time you turn on Air Mentor 2, LED will flash with blue, green,
yellow, orange, red and purple in sequence, after 30 seconds, device
will start air quality monitoring, temperature and relative humidity
will reach environment status in 30 minutes.
Turn on your smart phone Bluetooth (in your smart phone setup page)
When users turn on Bluetooth connection, please choose Air Mentor 2
to connect with. If you have multiple Air Mentor 2, App will prioritize
all your Air Mentor 2 with distance list.
After setup Bluetooth connection, users can follow App guidance to
further setup Air Mentor 2 WiFi connection. After completeness, users
will be able to remotely check Air Mentor 2 measurements and all
history data. Without WiFi setup, users can only receive and check air
quality data from smart phone App.

WiFi Connection Indication
The light color shows WiFi connection status & cloud
connection status.
Red ‒ No connection established
Orange ‒ Successfully connected with WiFi AP
Green ‒ Successfully connected to Air Cloud
WiFi Setup Reminder
Please connect your smart phone to your WiFi AP first.
Air Mentor 2 only supports 2.4GHz WiFi connection,
please make sure your WiFi AP supports this spec.

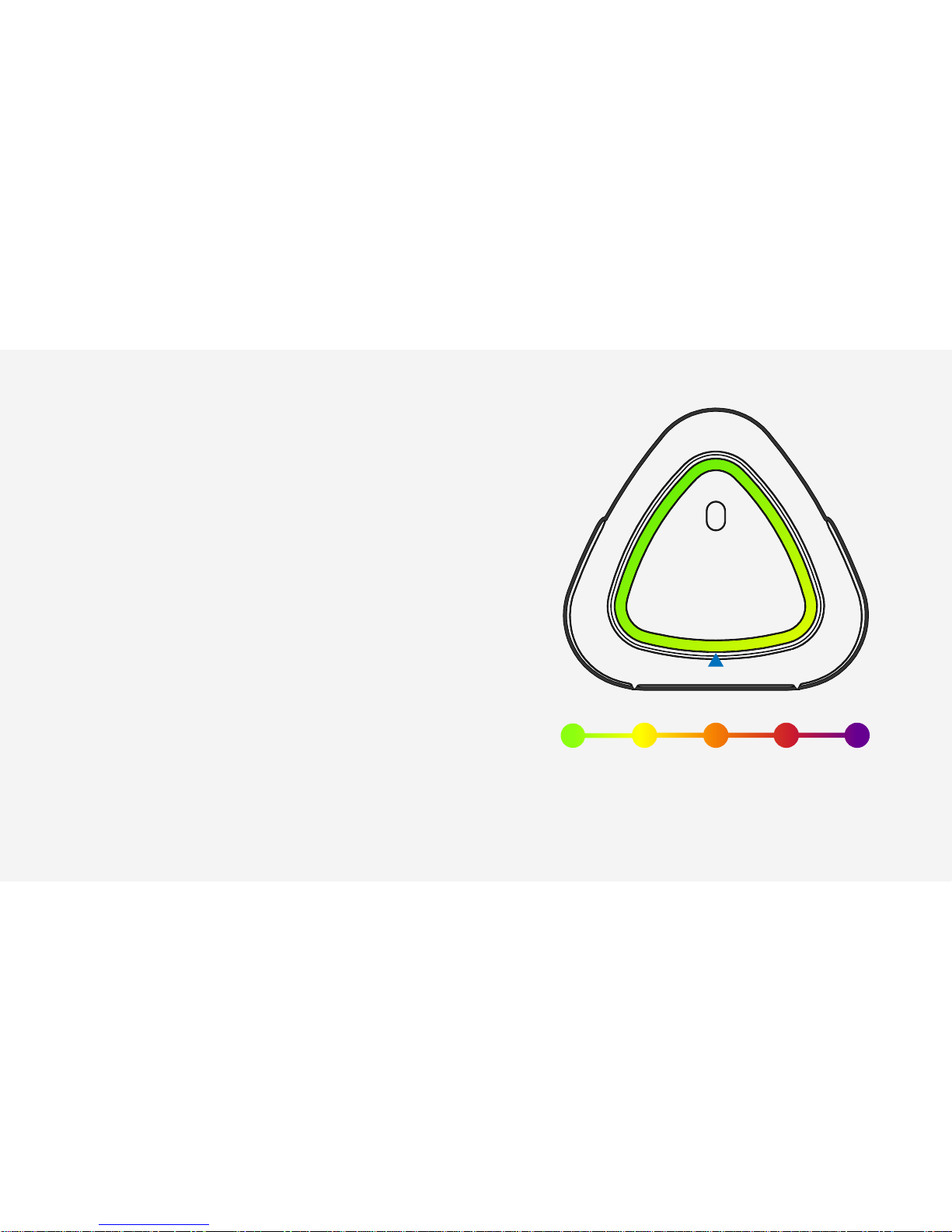

LED Color

LED Breathing Light
Air quality is shown by 5 breathing light colors; green,
yellow, orange, red and purple. Breathing light color
and frequency will change with air quality monitoring
level.
Users can adjust breathing light brightness through App. Breathing Light
0-50 51-100 101-150 151-200 >200
Good Moderate Unhealthy for
Sensitive Group
Unhealthy Very Unhealthy

Warning
Air Mentor 2 will alert user along with air quality change,
users can setup alarm level through App setup page.
Mute/Unhealthy (Red)/Very Unhealthy (Purple)
If the device is setup with WiFi connection, smart phone
App will receive the relative air quality push notification.

Checking Air Quality Analysis
Air quality monitoring App will real time provide you with
air quality status, analysis and improvement suggestions.

Knowledge Base
Our knowledge base provides all kinds of air quality
related knowledge, and their influences to your health,
we also provide users with proper suggestions.

History Data
When Air Mentor 2 is correctly connected to Air Cloud,
history data will automatically be stored at cloud side.
Users can check them through App.
App Update
App will remind users with update notification.

Limited Warrantee
Under normal use by following Air Mentor 2 user
instruction, we provide one year limited warrantee
from the date with your purchase.
O
n
e
Y
e
a
r
L
i
m
i
t
e
d
W
a
r
r
a
n
t
e
e

Safety
Please do not install device near heat source.
Please do not put device on top of dangerous products.
Please do not install or put device near water.
Please do not dissemble device or remove seal.

All build-in sensors are designed with automatic calibration
function.
How to force release the Bluetooth
connection with your smart phone?
When connected with smart phone, the ventilation hole
on the back to Air Mentor 2 will flash blue light every 5
seconds. If users would like to force release the connection,
users may long press the functional key for 5 seconds
till users hear long beep.
Does Sensor Need Calibration?
How to Maintain
Open the cap, use dry cotton swab to wipe
the sensor, recommend to clean the device
every 6 months.

Air Mentor 2
Dimension
Product Name
Operating Temperature
Power
106 x 115 x 44.5 mm (height x width x depth)
5 - 40 ℃ (41℉ - 104℉)
DC 5V , 1A
Sensor
Particulate Matter
TVOC / Gas Pollution
CO2
Temperature
Humidity
Communication
Smartphone Requirements
Detectable Particle size >0.7μm
PM2.5 / PM10 Range 0-1,000μg/m³
Resolution 1.0μg/m³
Range 0.020-10PPM
Resolution 0.001PPM
Range -20℃ to 80℃ Resolution 0.1℃
(Temperature and relative humidity will reach environment status in 30 min. after power on.)
Relative Humidity % Range 0-100% Resolution 1.0%
(Temperature and relative humidity will reach environment status in 30 min. after power on.)
Bluetooth 4.0 Low Energy/Bluetooth Smart
WiFi 802.11 b/g/n 2.4GHz (do not support hidden SSID and 5GHz network)
iPhone 5, 5S, 6, 6+, iOS9 or above
Android version ≧ 5.0 (with Bluetooth 4.0 Low Energy)
Android smart phone performance, will depend on each phone brand, please consult your
smart phone maker.
NDIR Non-dispersive Infrared Sensor
Range 400-10,000PPM
Resolution 1PPM

Product Name
Product Number
Nominal Voltage
Country of Manufacture
Air Mentor 2
8099-AP
5V
Taiwan,R.O.C
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause
harmful interference and (2) this device must accept any interference received, including interference that may cause undesired
operation.
This equipment been tested and found to comply with the limits for a Class B digital device, pursuant to part15 of the FCC rules.These
limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving
antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different
from
that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority
to operate the equipment.
FCC RF Radiation Statement:
1.This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
2.This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with a minimum distance of 20 centimeters between the radiator and your body.
