Aircat Pneumatic Tools 6700-DCE-6 Datasheet

MODEL: 6700-DCE Series
5” & 6” DC Electric Sander/Polisher

SPECIFICATIONS
OPERATING INSTRUCTIONS
Important Warnings - Sanders & Polishers
1. Eye protection, safety gloves and safety aprons must always we worn when operating a sander or
polisher.
2. Never adjust the sander or polisher or change the backing pad, sanding disc, sanding belt or
polishing bonnet unless the electric supply is disconnected from the tool.
3. Only use backing pads and polishing backing pads that have a rated speed then same as the sander
or polisher or higher.
4. Never attempt to modify or adapt a sander or polisher for use with a grinding wheel or cut-off wheel
or wire brush.
5. Only personnel trained in the correct methods to change pads, sanding discs, sanding belts and
polishing bonnets should conduct these operations.
Model No. Speed Settings
(RPM)
Spindle
Thread (in)
Pad Size
(in)
Orbit
(in)
Weight
(lbs.)
Length
(in)
Noise
Level
Vibration
Level
Cable
Length
(ft)
6700-DCE-6 10,000 - 7,000 - 4,000 5/16 x 24 6 3/16 1.98 7.0 70 dBa 0.5 m/sec220
6700-DCE-5 10,000 - 7,000 - 4,000 5/16 x 24 5 3/16 1.98 8.9 70 dBa 0.5 m/sec220

MODEL: 6700-DCE Series
5” & 6” DC Electric Sander/Polisher

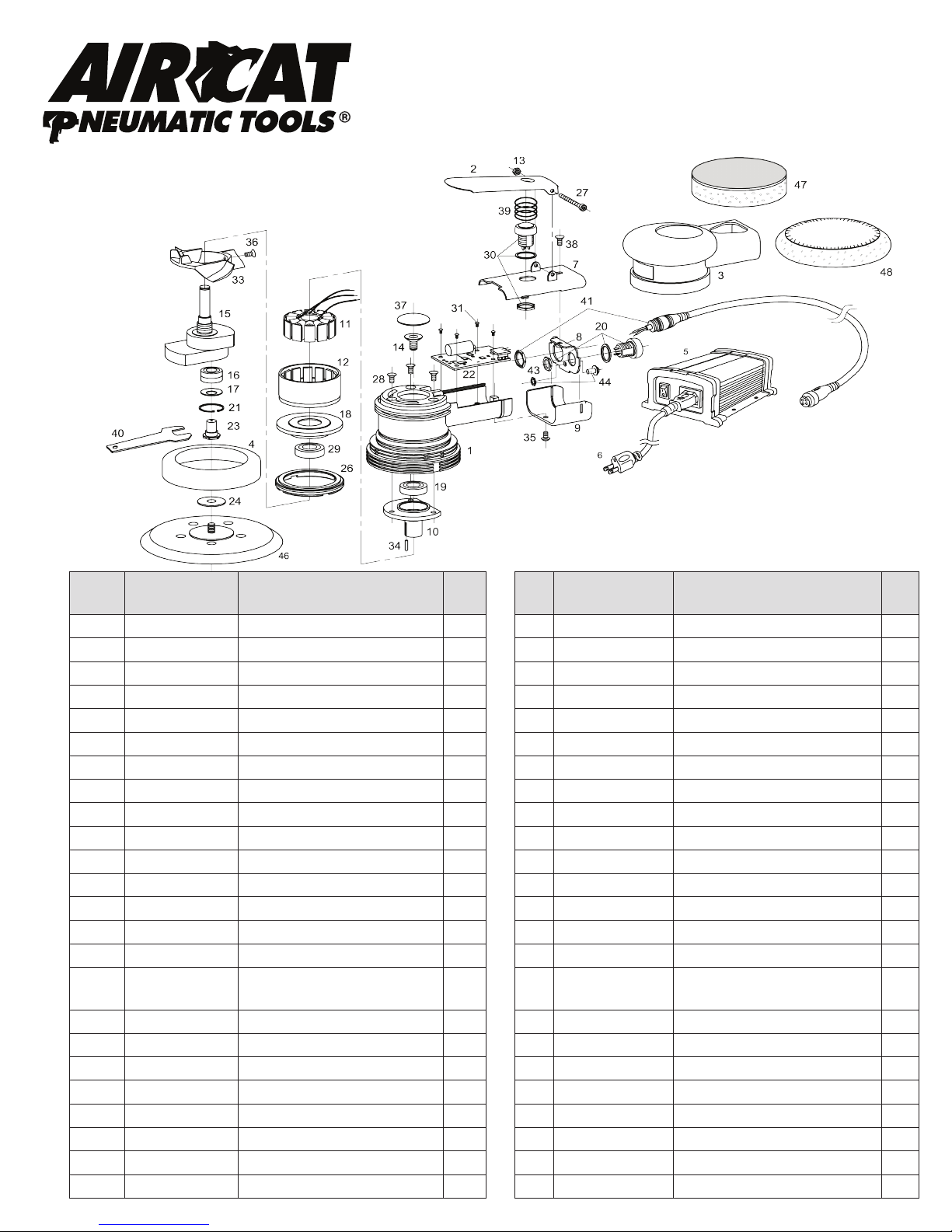

Exploded View & Parts List
Ref
#
Part Number Description Qty Ref
#
Part Number Description Qty.
1 952001TW Housing 1 24 970588 Washer 1
2 952002 Lever 1 26 952026 Lock Ring 1
3 952003 Rubber Cover 1 27 9HSM3X35 Screw 1
4 952004 Shroud 1 28 9HFSM4X8 Screw 3
5 952005 Power Supply 1 1 29 952029 Bearing 1
6 9520051 Power Cord 1 1 30 952030 Button (Green) 1
7 952066 Upper Cover 1 31 9FSM2.5X4 Screw 4
8 952065 End Plated 1 33 952064 Fan 1
9 952063 U Plate 1 34 9RP2X10 Pin 1
10 952017T Upper Plate 1 35 9HFSM3X10 Screw 1
11 952011T17 Stator 1 36 9HFSM3X6 Screw 1
12 9520120 Rotor 1 37 9520262 Cap 1
13 9HNM3 Nut M3 1 38 9RSM4X6 Screw 1
14 970512 Screw 1 39 952039 Spring 1
15 952056J Orbit Shaft Balancer (6"Pad) 1 40 956024 Wrench 1
952055J Orbit Shaft Balancer (5"Pad) 1 41 9520056 Female Connector Cable Ass'y
(20' )
1
16 9B6001LU Bearing 2 43 9R13X15 O Ring 1
17 956014 Washer 1 44 952044 LED 1
18 952018 Low Plate 1 46 96AC 6" F.R.P Hook Face Pad 1
19 952019 Bearing B608 1 96PC 6" F.R.P Vinyl Face Pad 1
20 952020 Button (Red) 1 95AC 5" F.R.P Hook Face Pad 1
21 956028 Snap Ring 1 95PC 5" F.R.P Vinyl Face Pad 1
22 952022 PCB Controller 1 47 9576CPS 6"Compounding Pad (Soft) 1
23 956019 Balance Shaft 1 48 95736BN 6"Lambswool Bonnet 1

MODEL: 6700-DCE Series
5” & 6” DC Electric Sander/Polisher
Lever
Speed Button
Pad
Green Memory LED
Power supply swith / Power LED
AC Cable
DC Cable
Sander Power LED
