Aircat 6255 User manual

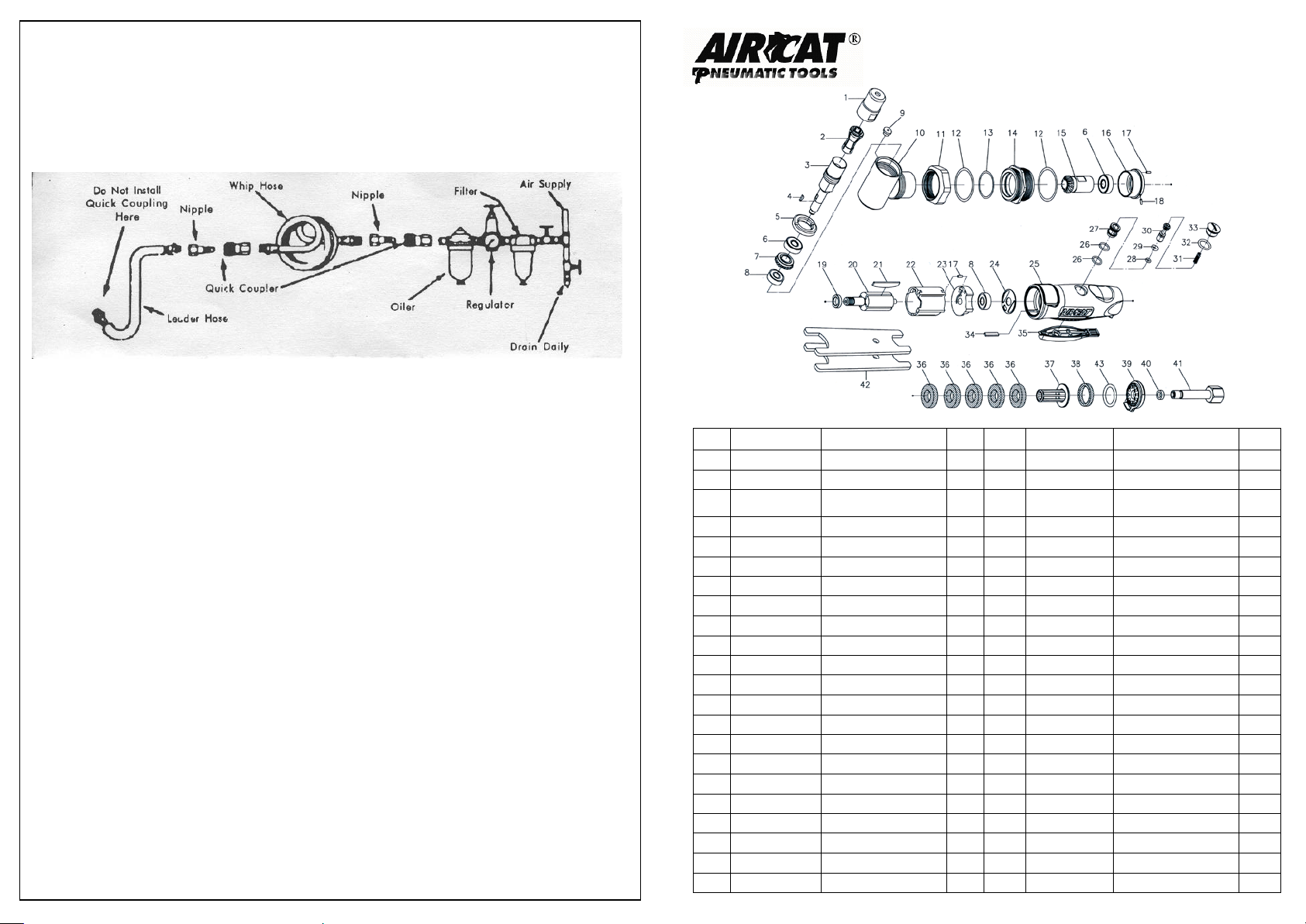

Angle Die Grinder
Model # 6255 /Composite
Operating Instructions, Parts List,
Warranty, & Warranty Repair Centers
IMPORTANT! Read carefully before operating this tool. Failure to operate any power
tool properly can result in personal injury and/or property damage!
SPECIFICATIONS
Sound------------------------------- 82DBA
Air Flow Pressure(PSI)-----------------90
Free Speed(RPM)--------------------20,000
Avg.Air Consump.(cfm)---------------- 9.5
Hose Size(ID)------------------------- 3/8”
Shipping Wt.(LBS)-----------------------1.3
Air Inlet(NPT)-------------------------1/4”
Safety
1. Read all instructions before operating your tool
2. Always wear protective eye gear. Use a dust mask if the operation creates dust.
3. Wear gloves and protective clothing to avoid injuries caused by malfunctioning
attachments or improperly clamped work.
4. Never use the tool over 90 psi, its free speed will increase in proportion to any
increase in air pressure above 90 psi.
5. USE ACCESSORIES ON THIS TOOL.
6. DISCONNECT TOOL FROM AIR SUPLY BEFORE CHANGING ANY ACCESSORY ON THIS
TOOL. Do not perform service work on tool while connected to air supply.
7. If a sudden change occurs in the feel or sound of the unit, the tool should be
immediately turned off and head inspected for damage.
8. Handle the tool safely. Do not carry the tool with a finger on or near the throttle
or trigger while the tool is connected to the air supply. Do not carry the tool by
the hose. Protect the hose from sharp objects and heat.
9. When not in use, disconnect tool from air supply to prevent accidental or
unauthorized use.
10. Always use tool a safe distance from other people in work area.
11. Do not attempt to alter any part of this tool in any way, shape or form.
Lubrication
Lubricate daily with good grade of air tool oil. Lubricate motor before using. In
in-line lubricator is not used, add a few drops of oil into air inlet daily. Do not flood
this tool with oil. GREASE HEAD GEARS DAILY.
Notice
90% of all Air Tool problems are caused by
moisture in air lines
This problem can be avoided by using Air Tool Lubricant
(See “Lubrication” & “Air Supply”sections of this manual)
FAILURE TO OIL can void your warranty
2 YEAR LIMITED WARRANTY
AIRCAT® and NITOCAT ® air tools are warranted to be free from defects in material
and workmanship for 2 years from date of purchase. We will repair or replace; at our
option any defective part or unit which proves to be defective in material or
workmanship during this 2 year period.
The foregoing obligation is AIRCAT and Florida Pneumatics’ sole liability under this or
any implied warranty, under no circumstances shall it be liable for any incidental or
consequential damages.
This warranty applies to the tool only. The warranty does not apply to any attached
accessories/consumable products; such as drill chucks, sander backing pads, air
hammer retainers and chisels or “kit” accessories or any other accessory included
with the tool.
Any repair required due to normal wear and tear, abuse, misuse, modification of the
tool or repair attempts (by other than an AIRCAT or Florida Pneumatic Authorized
Service Center) are not covered by this warranty.
Return your tool to an AIRCAT or Florida Pneumatic Authorized Service Center freight
prepaid. Be sure to include your name, address, copy of purchase with date and
description of the suspected defect.
See enclosed list for your nearest Warranty Repair Center.

Angle Die Grinder
Model # 6255 /Composite
Ref.
No.
Part No.
Description
Q'ty
Ref.
No.
Part No.
Description
Q'ty
1
501A-001
Collets Nut
1
23
221-023
Rear End Plate
1
2
511-002B
Collets 1/4”
1
24
222F-045
Rear Gasket
1
3 501A-003
Spindle
1 25 222F-025 Motor Housing 1
4
00-3701
Key
1
26
00-4167
O-Ring
2
5
501A-002
Angle Housing Nut
1
27
222F-026
Bushing
1
6
00-2332
Ball Bearing
2
28
00-41187
O-Ring
1
7
501A-009
Spiral Bevel Gear
1
29
00-41157
O-Ring
1
8
00-2340
Ball Bearing
2
30
222F-027
Valve Stem
1
9
00-4605
Grease Fitting
1
31
222F-029
Spring
1
10
501A-004
Angle Housing
1
32
00-4166
O-Ring
1
11
501A-005
Nut
1
33
222F-030
Valve Plug
1
12
00-4177
O-Ring
2
34
222F-037
Seal Lump
1
13
00-4158
O-Ring
1
35
222F-043
Throttle Lever
1
14
502FA-006
Clamp Nut
1
36
222F-038
Muffler
5
15
501A-008
Spiral Bevel Gear
1
37
222F-039
Exhaust Tube
1
16
501-019
Front End Plate
1
38
222F-047
Muffler
1
17
00-3333
Spring Pin
2
39
222F-042
Exhaust Deflector
1
18
00-3334
Spring Pin
1
40
222F-050
Bushing
1
19
501-006
Spacer
1
41
222F-034C
Air Inlet
1
20
501-020
Rotor
1
42
411-034
Double Ended Wrench
2
21
221-021
Rotor Blade
4
43
00-4173
O-Ring
1
22
221-022
Cylinder
1
2014.09
Air Supply
Tools of this class operate on a wide range of air pressure. It is recommended that air
pressure of these tools measures 90 PSI at the tool while running free. Higher pressure
and unclean air will shorten the tool’s life because of faster wear and may create a
hazardous condition and void the warranty.
Water in the air line will cause damage to the tool. Drain the air tank daily. Clean the
air inlet filter screen on at least a weekly schedule. The recommended hookup
procedure can be viewed in the illustration below.
The air inlet, used for connecting air supply, has standard 1/4” NPT American Thread.
Line pressure should be increased to compensate for unusually long air hoses (over 25
feet). Minimum hose diameter should be 3/8”I.D. and fittings should have the same
inside dimensions. Operating Instructions
1. Read safety instructions first.
2. The tool is started by depressing the throttle, which is spring loaded and when
released returns to off position.
3. Always wear protective safety goggles and clothing when operating tool.
4. DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE DISC GUARD.
5. Use both hands when operating this tool.
6. Refer to safety instructions when operating this tool.
Maintenance
Other factors outside the tool may cause loss of power or erratic action. Reduced
compressor output, excessive drain on the air line, moisture or restriction in air pipes
or the use of hose connections of improper size or poor condition may reduce air
supply. Grit or gum deposits in the tool may cut power and may be corrected by
cleaning the air strainer and flushing out the tool with gum solvent oil or an equal
mixture of SAE#10 oil and kerosene. If outside conditions are in order and tool is
out-of-warranty, disconnect tool from hose, disassemble tool, replace worm or
damaged parts, clean, reassemble, and re-lubricate, or take tool to any air tool
service center. For tools in warranty period, send tool direct to Warranty Center. You
must send in your warranty card for warranty service.
