Aircat VIBROTHERM DRIVE 1058-VXL Datasheet

MODEL: 1058-VXL
1/2" COMPACT
IMPACT WRENCH
by

SPECIFICATIONS
Important Warnings - Impacts
1. Eye protection and hearing protection and safety gloves must always be worn when operating an impact wrench or impact
driver.
2. When using heavy impact sockets or sockets on impact wrenches with 3/4” drive anvils or larger, a socket retaining ring
and pin should be used to prevent the socket falling off and causing injury.
3. Use only impact sockets and accessories. Only use sockets designated “FOR USE WITH IMPACT WRENCHES”, hand tool
damage and replace when necessary.
Accessory Hazards
4. Disconnect the assembly power tool for threaded fasteners from the energy supply before changing the inserted tool or
accessory.
5. Do not touch sockets or accessories during impacting as this increases the risk of cuts, burns or vibration injuries.
6. Use only sizes and types of accessories and consumables that are recommended by the assembly power tool for threaded
fasteners manufacturer; do not use other types or sizes of accessories and consumables.
Tools of this class operate on a wide range of air pressure. It is recommended that air pressure of these tools measures 90 PSI at the tool while running free. Higher
pressure and unclean air will shorten the tool’s life because of faster wear and may create a hazardous condition and void the warranty. Water in the air line will
cause damage to the tool. Drain the air tank daily. Clean the air inlet lter screen on at least a weekly schedule. The recommended hookup procedure can be viewed
in the illustration below. The air inlet, used for connecting air supply, has standard 1/4”NPT/BSP Thread. Line pressure should be increased to compensate for
unusually long air hoses (over 25 feet). Minimum hose diameter should be 3/8”I.D. and ttings should have the same inside dimensions.
WARNING: This product can expose you to chemicals
including lead, which are known to the State of California
to cause cancer and birth defects or
other reproductive harm. .
For more information go to www.P65Warnings.ca.gov
3/8 1/4 NPT/BSP

MODEL: 1058-VXL
1/2" COMPACT IMPACT WRENCH

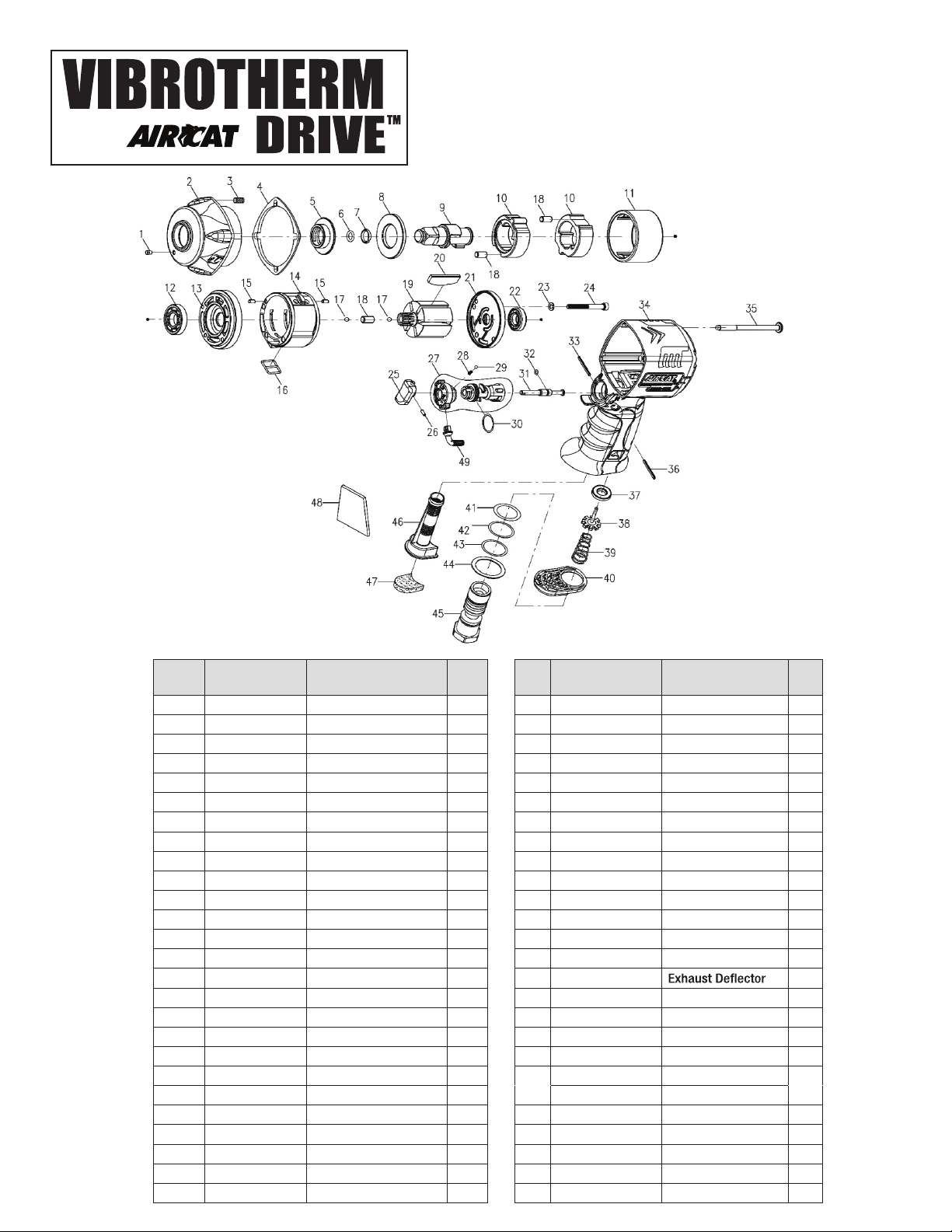

Exploded View & Parts List
by
Ref
#
Part Number Description Qty Ref
#
Part Number Description Qty.
1 00-4603 Grease Fitting(1/8") 1 27 243Q-034B F/R Lever 1
2 243Q-002 Hammer Case 1 243D-021 R/F Valve 1
3 00-4302 Helicoil 4 28 305Y-027 Spring 1
4 243D-019 Front Gasket 1 29 00-3816 Steel Ball 1
5 243Q-010 Anvil Bushing 1 30 00-41175 O-Ring 1
6 00-4103 O-Ring 1 31 243Q-029 Trigger pin 1
7 250-033 Anvil Collar 1 32 00-4190 O-Ring 1
8 243Q-019 Hammer Cage Cover 1 33 00-3351 Spring Pin 1
9 243Q-011NA4 Anvil 1 34 243Q-001 Motor Housing 1
10 243Q-017 Hammer 2 35 243D-028 Screw 4
11 243Q-012 Hammer Cage 1 36 00-3308 Spring Pin 1
12 00-2317 Ball Bearing 1 37 243D-024 Bushing 1
13 243Q-005B Front End Plate 1 38 243D-025 Valve Stem 1
14 243Q-006 Cylinder 1 39 243D-027 Spring 1
15 00-3419 Pin 2 40 243H-021 1
16 243D-030 Square Ring 1 41 00-4126 O-Ring 1
17 00-3824 Steel Ball 2 42 00-4143 O-Ring 1
18 00-3480 Pin 3 43 00-4127 O-Ring 1
19 243Q-007 Rotor 1 44 305F-032 Washer 1
20 243D-008D Rotor Blade 6 45 305F-025A-B Air Inlet (BSP) 1
21 243Q-009 Rear End Plate 1
22 00-2326 Ball Bearing 1
305F-025C-B Air Inlet (NPT)
23 00-1801 Spring Washer 3 46 243H-019B-B Exhaust Tube 1
24 00-0145 Cap Screw 3 47 243H-027 Non Woven 1
25 243Q-023 Trigger 1 48 243Q-027 Felt 1
26 00-3325 Spring Pin 1 49 243Q-035B Tab 1

SERVICE CENTER LISTINGS ENCLOSED
AIRCAT VIBROTHERM DRIVETM impact wrenches are warranted to be free from defects in material and workmanship for 3 years from
date of purchase. We will repair or replace; at our option any defective part or unit which proves to be defective in material or
workmanship during this 3 year period. The foregoing obligation is AIRCAT and Florida Pneumatic's sole liability under this
or any implied warranty, under no circumstances shall it be liable for any incidental or consequential damages.
This warranty applies to the tool only. The warranty does not apply to any attached accessories/consumable products;
such as drill chucks, sander backing pads, air hammer retainers and chisels or “kit” accessories or any other accessory
included with the tool.
an AIRCAT or Florida Pneumatic Authorized Service Center) are not covered by this warranty.
Return your tool to an AIRCAT or Florida Pneumatic Authorized Service Center freight prepaid. Be sure to include your
name, address, copy of purchase with date and description of the suspected defect.
AIRCAT whose policy is continued product improvement reserves the right to make changes in design or construction at
any time without incurring any obligation on tools previously sold.
Tune-Up and Head Kits for all AIRCAT PNEUMATIC impact wrenches and ratchets are available.
For Authorized Service Centers, please visit www.aircat.com/warranty-service 3
