AIREDALE Ultima Compact UCCU30SQ-1/1 User manual

INSTALLATION, OPERATING &
MAINTENANCE MANUAL
Ultima Compact Condensing Unit
Air Cooled Condensing Unit
30kW - 450kW

ULTIMA COMPACT
Condensing Units
2
Condensers & Condensing Units
Installation & Maintenance : 6259675 IM V1.9.0 04/2016
About Airedale Products & Customer Services
WARRANTY,
COMMISSIONING &
MAINTENANCE
As standard, Airedale guarantees all non consumable parts only for a period of 12 months,
variations tailored to suit product and application are also available, please contact Airedale for full
terms and details.
To further protect your investment in Airedale products, we have introduced Airedale Service, who
can provide full commissioning services, comprehensive maintenance packages and service cover
24 hours a day, 365 days a year (UK mainland). For a free quotation contact our Airedale Service or
your local Sales Engineer.
All Airedale products are designed in accordance with EU Directives regarding prevention of build up
of water, associated with the risk of contaminants such as Legionella.
Where applicable, effective removal of condensate is achieved by gradient drainage to outlets and
where used, humidification systems produce sterile, non-toxic steam during normal operation.
For effective prevention of such risk it is necessary that the equipment is maintained in accordance
with Airedale recommendations.
CAUTION
Warranty cover is not a substitute for Maintenance. Warranty cover is conditional to
maintenance being carried out in accordance with the recommendations provided during the
warranty period. Failure to have the maintenance procedures carried out will invalidate the
warranty and any liabilities by Airedale International Air Conditioning Ltd.
SPARES
A spares list for 1, 3 and 5 years will be supplied with every unit and is also available from our
Spares department on request.
TRAINING
As well as our comprehensive range of products, Airedale offers a modular range of Refrigeration
and Air Conditioning Training courses, for further information please contact Airedale.
CUSTOMER SERVICES
For further assistance, please e-mail: [e-mail] or telephone:
CUSTOMER SERVIC ES
UK Sales Enquiries
+ 44 (0) 113 238 7789
[e-mail]
International Enquiries
+ 44 (0) 113 239 1000
[e-mail]
Spares Hot Line
+ 44 (0) 113 238 7878
[e-mail]
Airedale Service
+ 44 (0) 113 239 1000
[e-mail]
Technical Support
+ 44 (0) 113 239 1000
[e-mail]
Training Enquiries
+ 44 (0) 113 239 1000
[e-mail]
For information, visit us at our Web Site: www.airedale.com
AIAC Ltd endeavours to ensure that the information in this document is correct and fairly stated, but
none of the statements are to be relied upon as a statement or representation of fact. AIAC Ltd does
not accept liability for any error or omission, or for any reliance placed on the information contained
in this document.
The development of Airedale products and services is continuous and the information in this
document may not be up to date. It is important to check the current position with AIAC Ltd at the
address stated. This document is not part of a contract or licence unless expressly agreed.
No part of this document may be reproduced or transmitted in any form or by any means, electronic
or mechanical, including photocopying, recording, or information storage and retrieval systems, for
any purpose other than the purchaser's personal use, without the express written permission of
AIAC Ltd.
2016 Airedale International Air Conditioning Limited. All rights reserved. Printed in the UK.

Condensing Units
ULTIMA COMPACT
Condensers & Condensing Units
3
Installation & Maintenance : 6259675 IM V1.9.0 04/2016
Contents
GENERAL STATEMENT 4
WARRANTY 5
GENERAL DESCRIPTION 6
Unit Identification 6
Introduction 6
Standard Features 6
Features - Variations 8
Optional Extras - Energy Saving 9
Optional Extras –General 9
INSTALLATION DATA 10

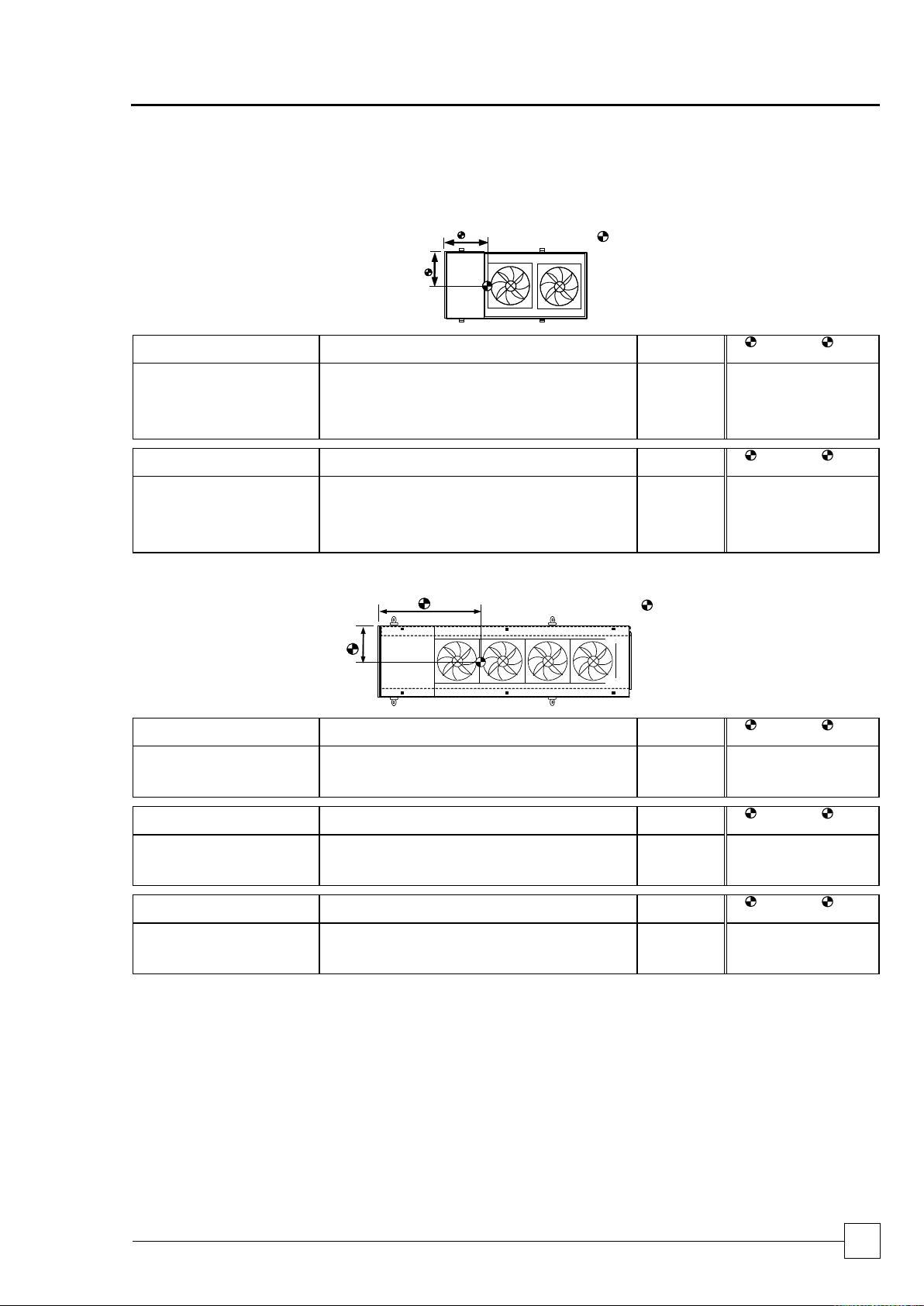

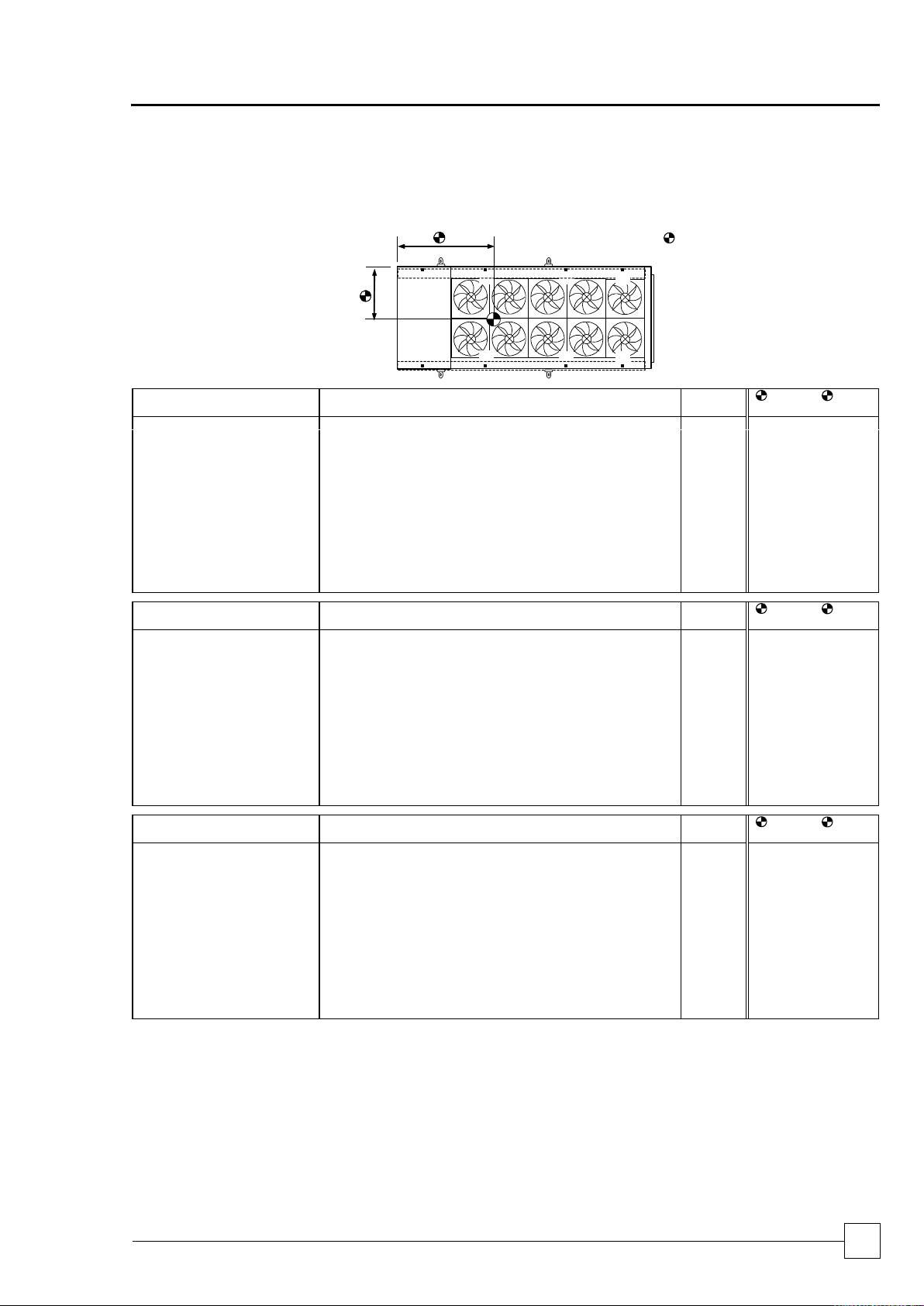

Dimensions 10
Unit Lifting 14
Anti Vibration Mounting –Optional 15

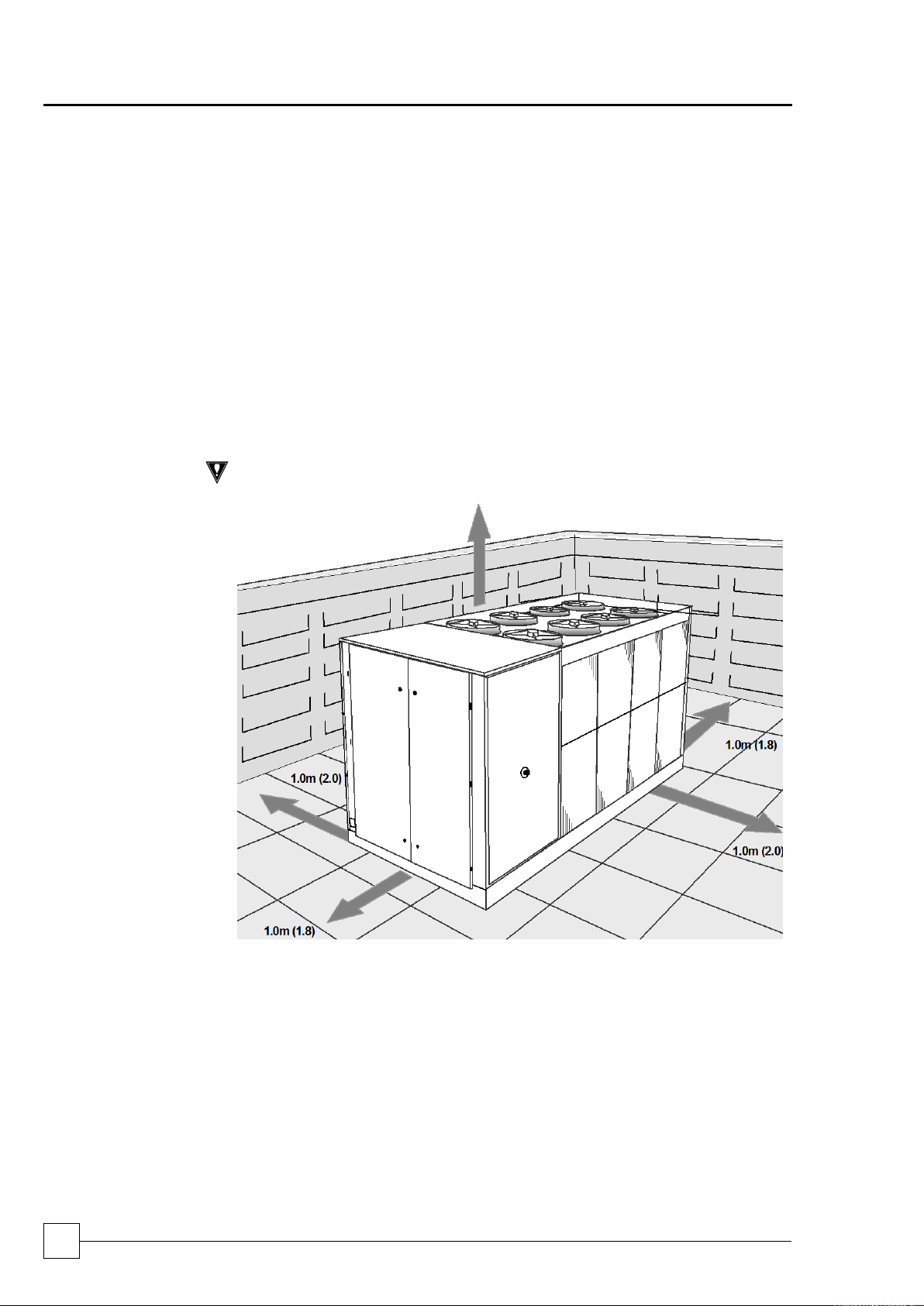

Positioning 16

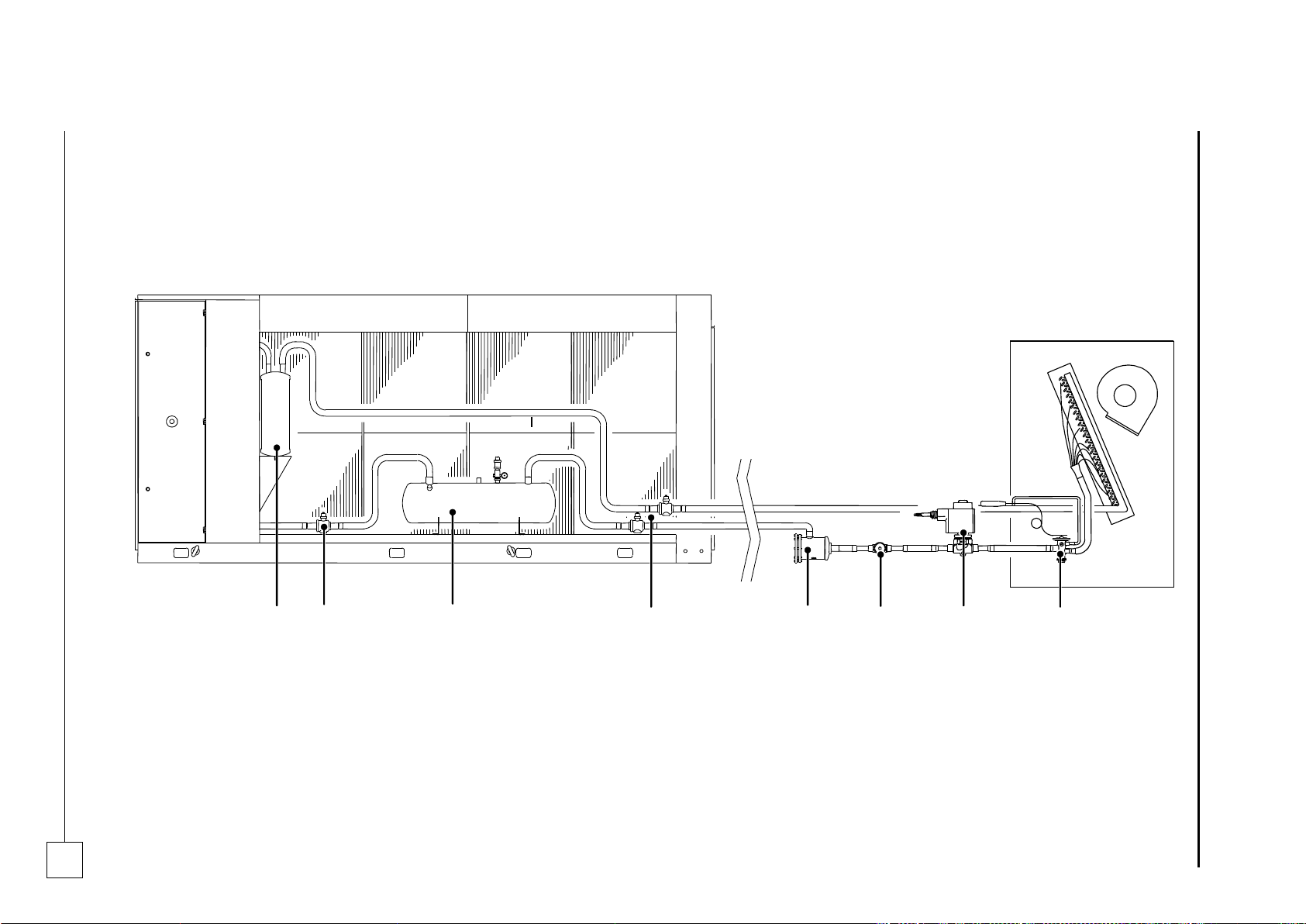

Refrigeration System 17
Refrigeration Connections 18
Pipe Sizing Guide 18
Pipework Installation 18
Pressure Testing 19
Evacuation 19
Electrical 19
Interconnecting Wiring 20
Electrical Data 22
CONTROLS 26
Viewing Unit Operating Status 27
Setting up 27
Alarms 28
COMMISSIONING DATA 29
Operating Limits 29
Mechanical Data 29
Unloading Protection 29
COMMISSIONING PROCEDURE 30
Pre Commissioning Checklist 30
Commissioning Checklist 32
MAINTENANCE 35
General Maintenance 35
Compressor Maintenance 36
Shut Down Periods 36
PARTS IDENTIFICATION 37

ULTIMA COMPACT
Condensing Units
4
Condensers & Condensing Units
Installation & Maintenance : 6259675 IM V1.9.0 04/2016
General Statement
IMPORTANT
The information contained in this manual is critical to the correct operation and
maintenance of the unit and should be read by all persons responsible for the installation,
commissioning and maintenance of this Airedale unit.
SAFETY
The equipment has been designed and manufactured to meet international safety
standards but, like any mechanical/electrical equipment, care must be taken if you are to
obtain the best results.
CAUTION
1 Service and maintenance of Airedale equipment should only be carried out
by Technically trained competent personnel.
CAUTION
2 When working with any air conditioning units ensure that the electrical
isolator is switched off prior to servicing or repair work and that there is no
power to any part of the equipment.
3 Also ensure that there are no other power feeds to the unit such as fire alarm
circuits, BMS circuits etc
4 Electrical installation commissioning and maintenance work on this equipment
should be undertaken by competent and trained personnel in accordance with
local relevant standards and codes of practice.
5 Refrigerant used in this range of products is classified under the COSHH
regulations as an irritant, with set Occupational Exposure Levels (OEL) for
consideration if this plant is installed in confined or poorly ventilated areas.
6 A full hazard data sheet in accordance with COSHH regulations is available
should this be required.

Condensing Units
ULTIMA COMPACT
Condensers & Condensing Units
5
Installation & Maintenance : 6259675 IM V1.9.0 04/2016
Warranty
GENERAL
To be read in conjunction with Airedale International Air Conditioning Ltd standard Conditions
of Sale.
The equipment carries Airedale’s standard warranty for a period of 24 months from the date of
despatch or of invoice which ever is the sooner in respect of non-consumable parts only and
does not include for the cost of labour incurred during the investigation or replacement of a
defective item.
WARRANTY IS ONLY
VALID IN THE EVENT
THAT:
1 The equipment is serviced & maintained by Airedale or an approved Airedale company
in accordance with the Installation & Maintenance manual provided, during the
Warranty Period.
2 Commissioning is carried out by Airedale or an approved Airedale company.
3 Commissioning documents have been completed and returned to Airedale within
28 days of the date of commissioning.
4 Replaced faulty parts have been returned to Airedale within 21days of replacement
for evaluation.
Any spare part supplied by Airedale under the warranty shall be warranted for the unexpired
period of the warranty or 3 months from delivery whichever period is the longer, with the
exception of compressors on which a further 12 months warranty is granted.
PROCEDURE
When a component part fails, a replacement part should be obtained through our Spares
department. If the part is considered to be under warranty, the following details are required to
process this requirement.
Full description of part
required, including Airedale's
part number, if known.
Faulty Component Return Tag
No 28401
CUSTOMER
DATE
ADDRESS
AIREDALE U/No
CUST. O/No
Ex G/S No
TYPE OF UNIT
COMPONENT DESCRIPTION
SERIAL No (where applicable)
FAULTY DESCRIPTION (‘Faulty’ or ‘Defective’ not sufficient)
DATE OF INVOICE
1. Original Equipment
DATE OF INSTALLATION
2. Component (if different)
DATE OF FAILURE
Airedale International Air Conditioning Limited
Leeds Road, Rawdon, Leeds LS19 6JY
Tel: [phone] Fax: [phone]
CUSTOMER
COPY
To be filled in and attached complete to faulty component
700-006
The original equipment serial
(U) or (BP) number.
An appropriate purchase
order number.
A spares order will be raised under our "G" number system and the replacement part will be
despatched, usually within 24 hours should they be in stock.
When replaced, the faulty part must be returned to Airedale with a suitably completed and
securely attached "Faulty Component Return" (FCR) tag. FCR tags are available from Airedale
and supplied with each "G" order.
On receipt of the faulty part, suitably tagged, Airedale will pass to its Warranty department,
where it will be fully inspected and tested in order to identify the reason for failure, identifying at
the same time whether warranty is justified or not.
On completion of the investigation of the returned part, a full "Report on Goods Returned" will
be issued. On occasion the release of this complete report may be delayed as component
manufacturer becomes involved in the investigation.
When warranty is allowed, a credit against the "G" number invoice will be raised. Should
warranty be refused the "G" number invoice becomes payable on normal terms.
EXCLUSIONS
Warranty may be refused for the following reasons:
Misapplication of product or component
Incorrect site installation
Incomplete commissioning documentation
Inadequate site installation
Inadequate site maintenance
Damage caused by mishandling
Replaced part being returned damaged without explanation
Unnecessary delays incurred in return of defective component
RETURNS ANALYSIS
All faulty components returned under warranty are analysed on a monthly basis as a means of
verifying component and product reliability as well as supplier performance. It is important that
all component failures are reported correctly.

ULTIMA COMPACT
Condensing Units
6
Condensers & Condensing Units
Installation & Maintenance : 6259675 IM V1.9.0 04/2016
General Description
UNIT IDENTIFICATION
AIR COOLED CONDENSING UNIT
UCCU
Ultima Compact Condensing Unit - Cooling Only
30 - 450
Model Size (Expressed as Nominal Cooling in kW)
SQ-
Single Circuit - Quiet (Models 30-80 (Except 75) Only)
SSQ-
Single Circuit - Super Quiet (Models 30-80 (Except 75) Only)
D-
Double Circuit - Standard
DQ-
Double Circuit - Quiet
DSQ-
Double Circuit - Super Quiet
2-16
Number of Fans
/1 or /2
Single or Double Row of Fans
Example
UCCU250DQ-8/2
INTRODUCTION
The Airedale range of Ultima Compact air cooled condensing units covers the nominal
capacity range 30kW to 450kW in 24 model sizes. The range is available with many
optional variations including Quiet and Super Quiet sound level variants.
The range is suitable for a wide range of split-system applications such as Cold Storage,
large Retail Comfort Cooling, Process Cooling, Healthcare, Hi-Tech environments
and leisure.
Attention has been placed on maximising the unit’s performance while keeping the sound
and vibration levels and footprint to an absolute minimum.
CE DIRECTIVE
Airedale certify that the equipment detailed in this manual conforms with the following
EC Directives:
Electromagnetic Compatibility Directive (EMC)
2014/30/EU
Low Voltage Directive (LVD)
2014/35/EU
Machinery Directive (MD)
89/392/EEC in the version 98/37/EC
Pressure Equipment Directive (PED)
97/23/EC
Article 13 of 2014/68/EU
To comply with these directives appropriate national & harmonised standards have been
applied. These are listed on the Declaration of Conformity, supplied with each product.
Maximum and Minimum Operation Temperature (TS) and Pressure (PS)
Operating Temperature (TS), TS = Min -20°C to Max 120°C *
Maximum Operating Pressure (PS) PS = High Side 26 Barg
*Based upon the maximum machine running temperatures.
REFRIGERANTS
The range has been designed and optimised for operation with the ozone benign
R407C refrigerant.
STANDARD FEATURES
All models sizes.
Construction
The base is fabricated from galvanised steel to ensure a tough, durable,
weatherproof construction.
The superstructure is manufactured from galvanised sheet steel coated with epoxy baked
powder paint to provide a durable and weatherproof finish. Standard unit colour is Light
Grey (RAL 7035).
Compressors and heat exchangers are mounted on a rigid galvanised heavy-duty sub
frame. Fully weatherproofed electrical panels are situated at one end of the unit. Access
to the compressors is via end panels adjacent to the electrical control panel.
Other features include:
Dedicated Compressor Enclosure
Condenser Fan Discharge Plenum

Condensing Units
ULTIMA COMPACT
Condensers & Condensing Units
7
Installation & Maintenance : 6259675 IM V1.9.0 04/2016
General Description
STANDARD FEATURES
All models sizes.
Condenser
Large surface area coil(s) ideally positioned to optimise airflow and heat transfer,
manufactured from refrigeration quality copper tubes with mechanically bonded
aluminium fins.
Condenser Fan
Axial fan assemblies with fingerproof grille and incorporating external rotor motor
technology, to provide highly accurate discreet speed control, discharge air vertically. The
fans offer maximum performance while keeping sound levels to a minimum.
Electrical supply dependent upon model size, refer to Electrical Data.
Head Pressure Control
Electronic head pressure controllers are fitted which modulate the fan speed to maintain
a constant condensing pressure, allowing the system to operate satisfactorily in ambient
temperatures as low as -20°C.
Head pressure can be set, monitored and values viewed at the microprocessor keypad.
Compressor
Scroll compressors comprising:
Internal motor protection
Internal pressure relief
Non return valve
External discharge temperature protection
Oil sight glass
Sump heater
Each Tandem / Trio set has an oil equalisation line.
The compressors are mounted to the rigid galvanised heavy duty sub-frame with the use
of vibration reducing isolation.
Refrigeration
Each refrigeration circuit is supplied with the following:
Holding charge of Helium
Liquid line ball valve
Suction line ball valve
Low pressure cut out with manual reset via microprocessor controller
High pressure switch with manual reset
Pressure relief valve with integral rupture disc and indicator gauge
Refer to Features - Variations for further detail.
Controls
microprocessor controller can provide 2-6 stages of capacity control,
dependent upon model type, as standard. The controller incorporates full Building
Management System capabilities, full details can be found in the Controls section.
Control management is offered in 1 of 4 of the most common types, to select via the
microprocessor, to be specified at time of order:
External 0-10V Signal
Suction Pressure Monitoring
Remote Space Temperature Sensor
Remote Digital Inputs
Electrical
Dedicated weatherproof electrical power and controls panels are situated at the end of
the unit and contain:
Separate, fully accessible, controls compartment, allowing adjustment of control
set points whilst the unit is operational
Circuit breakers for protection of all major unit components
Separate, permanent supply for controls/trace heating, 230V/50Hz/1ph
The electrical power and control panel is wired to the latest European standards and
codes of practice.
Refer to Features - Variations for further detail.

8
Installation & Maintenance : 6259675 IM V1.9.0 04/2016
Condensers & Condensing Units
ULTIMA COMPACT
Condensing Units
FEATURES - VARIATIONS
UCCU30, UCCU40,
UCCU50, UCCU60,
UCCU70 &
UCCU80
UCCU75,
UCCU100,
UCCU125 &
UCCU150
UCCU110,
UCCU130,
UCCU160 &
UCCU180
UCCU200,
UCCU225 &
UCCU250
UCCU240, UCCU270,
UCCU300, UCCU330,
UCCU360, UCCU400
& UCC450
Construction
4 x eye bolts to BS4278 or Integrated lugs/Mounting feet
Integrated lugs
Lifting Eye Bolts
Lifting Eye Bolts
Lifting Eye Bolts
Lifting Eye Bolts
Acoustically lined compressor enclosure
SSQ/DSQ Models
DSQ Models
DSQ Models
DSQ Models
DSQ Models
Refrigeration
Holding charge of Helium
Std
Std
Std
Std
Std
Number of Independent Refrigeration Circuits
1 or 2
2
2
2
2
Scroll Compressor Arrangement
1 x Tandem Set
or 2 x Single
2 x Tandem Sets
2 x Tandem Sets
2 x Tandem Sets
2 x Trio Sets
Sickle Bladed Fans
Std
Std - c/w
Long Bellmouth
Std - c/w
Long Bellmouth
Std - c/w
Long Bellmouth
Std - c/w
Long Bellmouth
Low speed condenser fan
SQ/DQ Models
DQ Models
DQ Models
DQ Models
DQ Models
Extra Low speed condenser fan
SSQ/DSQ Models
DSQ Models
DSQ Models
DSQ Models
DSQ Models
Electrical
Emergency stop
-
Std
Std
Std
Std
Door isolated mains power compartments
-
-
Std
Std
Std
Dedicated bus-bar chamber for incoming 3-phase &
earth mains power supply (no neutral required)
-
-
Std
Std
Std
Mains Supply 3 Phase
Std
Std
Std
Std
Std
Neutral Required
Yes
No
No
No
No
Phase Rotation Protection
Opt
Opt
Opt
Std
Std
Power Factor Correction
-
Opt
Opt
Opt
Opt

Condensing Units
ULTIMA COMPACT
Condensers & Condensing Units
9
Installation & Maintenance : 6259675 IM V1.9.0 04/2016
Chillers
ULTIMA COMPACT
General Description
OPTIONAL EXTRAS - ENERGY SAVING
Power Factor Correction
When applied to the motors of each compressor, the compressor power factor is
controlled to a minimum operating value of 0.95 at the full operating capacity. This
satisfies many supply authorities that may impose surcharges on equipment with power
factor less than 0.95.
OPTIONAL EXTRAS –GENERAL
Loose Item
Anti Vibration Mounts
Condenser Fan Discharge Air Plenum Extension
Power Factor Correction
Factory Fitted
Epoxy Coated Condenser Coils
Coil Guards
Dual Pressure Relief Valve
Discharge Line Ball Valve
Discharge Line non-Return Valve
Suction Line Accumulator
Liquid Receiver & Pressure Relief Valve
Filter Drier & Sight Glass
Leak Detection Kit
Electronic Soft Start
Phase Rotation Protection
BMS Interface Card
Remote Setpoint Adjust
Alternative Refrigerant (Outside EU)

ULTIMA COMPACT
Condensing Units
10
Condensers & Condensing Units
Installation & Maintenance : 6259675 IM V1.9.0 04/2016
Installation Data
DIMENSIONS
SINGLE ROW FANS - /1
A
20
20
2
3
6
B
D
C
1200
55
55
4
300
1
60
80
1410
1200
460
40
500
5
1410
1200
460
40
7
8
E
E
E
UCCU30 - UCCU80
(Except UCCU75)
Model SQ/DQ
A
B
C
D
E
UCCU30 –UCCU40 SQ/DQ
mm
1650
300
1050
300
200
UCCU50 –UCCU70 SQ/DQ
mm
2500
300
1450
750
200
UCCU80 SQ/DQ
mm
2500
300
1450
750
200
Model SSQ/DSQ
A
B
C
D
E
UCCU30 - UCCU40 SSQ/DSQ
mm
1650
300
1050
300
200
UCCU50 - UCCU70 SSQ/DSQ
mm
2500
300
1450
750
200
UCCU80 SSQ/DSQ
mm
2500
300
1450
750
200
UCCU75 - UCCU150
(Except UCCU80)
A
2000
1300
50
50
E
2
3
B
D
C
1250
25
25
4
25
300
1
7
500
5
565
F
G
F
6
Model D
A
B
C
D
E
F
G
UCCU75D-2/1
mm
2775
390
1900
(1)
485
200
170
UCCU100D-2/1
mm
2775
390
1900
(1)
485
200
170
UCCU125D-3/1
mm
3625
390
1825
1135
275
200
170
UCCU150D-3/1
mm
3625
390
1825
1135
275
200
170
Model DQ
A
B
C
D
E
F
G
UCCU75DQ-2/1
mm
2775
390
1900
(1)
485
200
170
UCCU100DQ-2/1
mm
2775
390
1900
(1)
485
200
170
UCCU125DQ-3/1
mm
3625
390
1825
1135
275
200
170
UCCU150DQ-4/1
mm
4475
390
1900
1900
285
200
170
Model DSQ
A
B
C
D
E
F
G
UCCU75DSQ-3/1
mm
3625
390
1825
1135
275
200
170
UCCU100DSQ-3/1
mm
3625
390
1825
1135
275
200
170
UCCU125DSQ-4/1
mm
4475
390
1900
1900
285
200
170
UCCU150DSQ-4/1
4475
390
1900
1900
285
200
170
(1)
Have only 4 fixing and 4 point loadings.
1 Electric Control Panels
2 Mains Electric Isolators
3 Mains Cable Entry
4 20mm Ø Mounting Holes
5 Optional Plenum Extension
6 Refrigeration Connections
7 Single Circuit
8 Dual Circuit
1 Electric Control Panels
2 Mains Electric Isolators
3 Mains Cable Entry
4 20mm Ø Mounting Holes
5 Optional Plenum Extension
6 Refrigeration Connections
7 Emergency Stop

Condensing Units
ULTIMA COMPACT
Condensers & Condensing Units
11
Installation & Maintenance : 6259675 IM V1.9.0 04/2016
Chillers
ULTIMA COMPACT
Installation Data
POINT LOADINGS, WEIGHTS & CENTRE OF GRAVITY (C OF G)
SINGLE ROW FANS - /1
UCCU30 - UCCU80 (Except UCCU75)
P1
P2
P3
P4
2
1
= C of G
Model SQ/DQ
P1
P2
P3
P4
(1)
(1)
Operating
Weight
C of G1
(mm)
C of G2
(mm)
UCCU30 SQ/DQ-1/1
kg
120
120
115
115
470
600
815
UCCU40 SQ/DQ-1/1
kg
140
140
135
135
550
600
815
UCCU50 SQ/DQ-2/1
kg
170
170
175
175
690
600
1035
UCCU60 SQ/DQ-2/1
kg
180
180
190
190
740
600
1045
UCCU70 SQ/DQ-2/1
kg
185
185
195
195
760
600
1045
UCCU80 SQ/DQ-2/1
kg
200
200
215
215
830
600
1050
Model SSQ/DSQ
P1
P2
P3
P4
(1)
(1)
Operating
Weight
C of G1
(mm)
C of G2
(mm)
UCCU30 SSQ/DSQ-1/1
kg
120
120
120
120
480
600
825
UCCU40 SSQ/DSQ-1/1
kg
145
145
140
140
570
600
815
UCCU50 SSQ/DSQ-2/1
kg
175
175
175
175
700
600
1025
UCCU60 SSQ/DSQ-2/1
kg
185
185
190
190
750
600
1035
UCCU70 SSQ/DSQ-2/1
kg
185
185
200
200
770
600
1055
UCCU80 SSQ/DSQ-2/1
kg
210
210
225
225
870
600
1050
UCC75 - UCC150 (Except UCC80)
P1
P3
P5
P2
P4
P6
2
1
= C of G
Model D
P1
P2
P3
P4
P5
P6
Operating
Weight
C of G1
(mm)
C of G2
(mm)
UCCU75D-2/1
kg
305
305
(1)
(1)
165
165
940
650
1055
UCCU100D-2/1
kg
320
320
(1)
(1)
165
165
970
650
1035
UCCU125D-3/1
kg
300
280
185
175
135
135
1210
635
1595
UCCU150D-3/1
kg
305
305
190
190
130
130
1250
650
1560
Model DQ
P1
P2
P3
P4
P5
P6
Operating
Weight
C of G1
(mm)
C of G2
(mm)
UCCU75DQ-2/1
kg
305
305
(1)
(1)
165
165
940
650
1055
UCCU100DQ-2/1
kg
325
325
(1)
(1)
180
180
1010
650
1065
UCCU125DQ-3/1
kg
305
285
185
175
135
125
1210
630
1570
UCCU150DQ-4/1
kg
325
325
240
240
190
190
1510
650
1950
Model DSQ
P1
P2
P3
P4
P5
P6
Operating
Weight
C of G1
(mm)
C of G2
(mm)
UCCU75DSQ-3/1
kg
285
285
165
165
125
125
1150
650
1555
UCCU100DSQ-3/1
kg
290
290
165
165
135
135
1180
650
1580
UCCU125DSQ-4/1
kg
315
295
250
240
195
185
1480
635
1995
UCCU150DSQ-4/1
kg
330
330
270
270
210
210
1620
650
2010
(1)
Have only 4 fixing and 4 point loadings.

ULTIMA COMPACT
Condensing Units
12
Condensers & Condensing Units
Installation & Maintenance : 6259675 IM V1.9.0 04/2016
Installation Data
DIMENSIONS
DOUBLE ROW FANS - /2
UCCU110 - UCCU450
A
C
B
50
50
F
375
K
2
3
1
G
J
H
M
25
25
4
25
25
7
500
5
L
6
D
E
Model D
A
B
C
D
E
F
G
H
J
K
L
M
UCCU110D - UCCU160D
mm
2365
1850
2100
115
140
205
275
1600
(1)
(1)
490
1800
UCCU180D - UCCU225D
mm
3170
1850
2100
115
140
205
480
1100
1100
(2)
490
1800
UCCU240D
mm
4650
2200
2180
140
150
225
350
1750
1925
(2)
625
2150
UCCU250D
mm
3170
1850
2100
115
140
205
480
1100
1100
(2)
490
1800
UCCU270D - UCCU300D
mm
4650
2200
2180
140
150
225
350
1750
1925
(2)
625
2150
UCCU330D - UCCU360D
mm
5500
2200
2180
140
150
225
350
1350
1350
1925
525
2150
UCCU400D - UCCU450D
mm
6350
2200
2180
140
150
225
350
1700
1925
1925
450
2150
Model DQ
A
B
C
D
E
F
G
H
J
K
L
M
UCCU110DQ - UCCU130DQ
mm
2365
1850
2100
115
140
205
275
1600
(1)
(1)
490
1800
UCCU160DQ - UCCU200DQ
mm
3170
1850
2100
115
140
205
480
1100
1100
(1)
490
1800
UCCU225DQ
mm
3975
1850
2100
115
140
205
480
1500
1500
(2)
495
1800
UCCU240DQ
mm
4650
2200
2180
140
150
225
350
1750
1925
(2)
625
2150
UCCU250DQ
mm
3975
1850
2100
115
140
205
480
1500
1500
(2)
495
1800
UCCU270DQ - UCCU300DQ
mm
5500
2200
2180
140
150
225
350
1350
1350
1925
525
2150
UCCU330DQ - UCCU360DQ
mm
6350
2200
2180
140
150
225
350
1700
1925
1925
450
2150
UCCU400DQ- UCCU450DQ
mm
7200
2200
2180
140
150
225
350
1700
2700
2000
450
2150
Model DSQ
A
B
C
D
E
F
G
H
J
K
L
M
UCCU110DSQ
mm
2365
1850
2100
115
140
205
275
1600
(1)
(1)
490
1800
UCCU130DSQ - UCCU180DSQ
mm
3170
1850
2100
115
140
205
480
1100
1100
(2)
490
1800
UCCU200DSQ
mm
3975
1850
2100
115
140
205
480
1500
1500
(2)
495
1800
UCCU225DSQ
mm
3975
1850
2100
115
140
205
480
1500
1500
(2)
495
1800
UCCU240DSQ
mm
5500
2200
2180
140
150
225
350
1350
1350
1925
525
2150
UCCU250DSQ
mm
3975
1850
2100
115
140
205
480
1500
1500
(2)
495
1800
UCCU270DSQ - UCCU300DSQ
mm
6350
2200
2180
140
150
225
350
1700
1925
1925
450
2150
UCCU330DSQ - UCCU360DSQ
mm
7200
2200
2180
140
150
225
350
1700
2700
2000
450
2150
UCCU400DSQ - UCCU450DSQ
mm
8050
2200
2180
140
150
225
350
1700
2800
2725
525
2150
(1)
Have only 4 fixing and 4 point loadings.
(2)
Have only 6 fixing and 6 point loadings.
1 Electric Control Panels
2 Mains Electric Isolators
3 Mains Cable Entry
4 20mm Ø Mounting Holes
5 Optional Plenum Extension
6 Refrigeration Connections
7 Emergency Stop

Condensing Units
ULTIMA COMPACT
Condensers & Condensing Units
13
Installation & Maintenance : 6259675 IM V1.9.0 04/2016
Chillers
ULTIMA COMPACT
Installation Data
POINT LOADINGS, WEIGHTS & CENTRE OF GRAVITY (C OF G)
DOUBLE ROW FANS - /2
UCCU110 - UCCU450
P1
P3
P5
P2
P4
P6
P7
P8
1
2
= C of G
Model D
P1
P2
P3
P4
P5
P6
P7
P8
Operating
Weight
C of G1
(mm)
C of G2
(mm)
UCCU110D-4/2
kg
380
380
(1)
(1)
(1)
(1)
280
280
1320
925
955
UCCU130D-4/2
kg
395
415
(1)
(1)
(1)
(1)
280
280
1370
940
930
UCCU160D-4/2
kg
470
470
(1)
(1)
(1)
(1)
235
235
1410
925
810
UCCU180D-6/2
kg
550
590
205
225
(2)
(2)
120
120
1810
955
1035
UCCU200D-6/2
kg
550
590
205
225
(2)
(2)
120
120
1810
955
1035
UCCU225D-6/2
kg
620
620
220
220
(2)
(2)
125
125
1930
925
1015
UCCU240D-8/2
kg
635
635
325
325
(2)
(2)
190
190
2300
1100
1450
UCCU250D-6/2
kg
620
620
220
220
(2)
(2)
125
125
1930
925
1015
UCCU270D-8/2
kg
680
680
330
330
(2)
(2)
195
195
2410
1100
1425
UCCU300D-8/2
kg
715
715
350
350
(2)
(2)
200
200
2530
1100
1415
UCCU330D-10/2
kg
690
690
340
340
190
190
190
190
2820
1100
1665
UCCU360D-10/2
kg
715
715
345
345
190
190
190
190
2880
1100
1640
UCCU400D-12/2
kg
740
740
380
380
255
255
245
245
3240
1100
2160
UCCU450D-12/2
kg
775
775
395
395
255
255
245
245
3340
1100
2120
Model DQ
P1
P2
P3
P4
P5
P6
P7
P8
Operating
Weight
C of G1
(mm)
C of G2
(mm)
UCCU110DQ-4/2
kg
370
370
(1)
(1)
(1)
(1)
270
270
1280
925
950
UCCU130DQ-4/2
kg
385
405
(1)
(1)
(1)
(1)
265
265
1320
940
915
UCCU160DQ-6/2
kg
480
480
210
210
(2)
(2)
125
125
1630
925
1100
UCCU180DQ-6/2
kg
505
545
210
230
(2)
(2)
125
125
1740
955
1075
UCCU200DQ-6/2
kg
505
545
210
230
(2)
(2)
125
125
1740
955
1075
UCCU225DQ-8/2
kg
545
545
290
290
(2)
(2)
225
225
2120
925
1525
UCCU240DQ-8/2
kg
655
655
330
330
(2)
(2)
190
190
2350
1100
1435
UCCU250DQ-8/2
kg
545
545
290
290
(2)
(2)
225
225
2120
925
1525
UCCU270DQ-10/2
kg
650
650
325
325
195
195
180
180
2700
1100
1680
UCCU300DQ-10/2
kg
690
690
335
335
200
200
185
185
2820
1100
1660
UCCU330DQ-12/2
kg
715
715
375
375
245
245
230
230
3130
1100
2140
UCCU360DQ-12/2
kg
730
730
385
385
250
250
230
230
3190
1100
2130
UCCU400DQ-14/2
kg
760
760
415
415
300
300
290
290
3530
1100
2550
UCCU450DQ-14/2
kg
805
805
425
425
300
300
290
290
3640
1100
2490
Model DSQ
P1
P2
P3
P4
P5
P6
P7
P8
Operating
Weight
C of G1
(mm)
C of G2
(mm)
UCCU110DSQ-4/2
kg
380
380
(1)
(1)
(1)
(1)
270
270
1300
925
940
UCCU130DSQ-6/2
kg
380
400
210
210
(2)
(2)
200
200
1600
935
1320
UCCU160DSQ-6/2
kg
405
405
220
220
(2)
(2)
200
200
1650
925
1305
UCCU180DSQ-6/2
kg
425
465
225
245
(2)
(2)
200
200
1760
955
1275
UCCU200DSQ-8/2
kg
480
520
265
285
(2)
(2)
240
240
2030
950
1300
UCCU225DSQ-8/2
kg
535
535
290
290
(2)
(2)
245
245
2140
925
1575
UCCU240DSQ-10/2
kg
635
635
315
315
190
190
180
180
2640
1100
1690
UCCU250DSQ-8/2
kg
535
535
290
290
(2)
(2)
245
245
2140
925
1575
UCCU270DSQ-10/2
kg
695
695
340
340
245
245
225
225
3010
1100
2155
UCCU300DSQ-12/2
kg
730
730
355
355
250
250
225
225
3120
1100
2120
UCCU330DSQ-14/2
kg
760
760
405
405
280
280
270
270
3430
1100
2475
UCCU360DSQ-14/2
kg
780
780
410
410
280
280
270
270
3480
1100
2450
UCCU400DSQ-16/2
kg
805
805
460
460
430
430
320
320
4030
1100
2830
UCCU450DSQ-16/2
kg
835
835
475
475
435
435
320
320
4130
1100
2790
(1)
Have only 4 fixing and 4 point loadings.
(2)
Have only 6 fixing and 6 point loadings.

ULTIMA COMPACT
Condensing Units
14
Condensers & Condensing Units
Installation & Maintenance : 6259675 IM V1.9.0 04/2016
Installation Data
UNIT LIFTING
Employ lifting specialists.
Local codes and regulations relating to the lifting of this type of equipment should
be observed.
Use the lifting eye bolts/lifting lugs provided.
Attach lifting chains to the 4 lifting eye bolts/lifting lugs provided, each chain and
eye bolt must be capable of lifting the whole chiller.
Use the appropriate spreader bars/lifting slings with the holes/lugs provided.
Lift the unit slowly and evenly.
If the unit is dropped, it should immediately be checked for damage and reported
to Airedale Service.
CAUTION
Only use lifting points provided.
The unit should be lifted from the base and where possible, with all packing and
protection in position. If any other type of slinging is used, due care should be taken to
ensure that the slings do not crush the casework or coil.
LIFTING DIMENSIONS
A
C
B
E
D
UCCU30 - 80 (Except UCCU75)
A
B(1)
C(1)
D(1)
E
1 FAN /1
mm
300
1050 (1450)
300 (300)
1900 (2200)
1270
2 FANS /1
mm
300
1450
750
2200
1270
E
A
B
C
D
UCCU75 - UCCU250
(Except UCCU80)
A
B
C
D
E
2 FANS /1
mm
290
1900
585
2500
1450
3 FANS /1
mm
290
2015
1320
2500
1450
4 FANS /1
mm
290
2870
1315
3000
1450
4 FANS /2
mm
180
1580
605
2500
2000
6 FANS /2
mm
595
1650
925
2500
2000
8 FANS /2
(Tandem Compressor)
mm
595
2050
1330
2500
2350
8 FANS /2
(Trio Compressor)
mm
465
2560
1625
3000
2350
10 FANS/2
mm
465
3135
1900
3500
2350
12 FANS/2
mm
465
3610
2275
3500
2350
14 FANS/2
mm
465
4385
2350
4000
2350
16 FANS/2
mm
465
5035
2600
5000
2350

Condensing Units
ULTIMA COMPACT
Condensers & Condensing Units
15
Installation & Maintenance : 6259675 IM V1.9.0 04/2016
Chillers
ULTIMA COMPACT
Installation Data
ANTI VIBRATION MOUNTING –OPTIONAL
COMPONENTS:
1 Locating Screw
2 Retaining Nut & Washer
3 Levelling Screw
4 Levelling Lock Nut
5 Retaining Studs
6a Upper Retaining Nuts
6b Lower Retaining Nuts
7 Spring assembly
8 Pressure Plate
9 Top Plate
10 Bolting-down holes
2
1
6a
5
6b
10
9
8
7
3
4
DIMENSIONS:
B
A
C
D
E
F
E
A(1)
B
C
D
E
FØ
UCC30-70
2 SPRING
162
110
180
148
16
11
UCC75, 80, 100, 125 & 150
UCCU30-70
UCCU75, 80, 100, 125 & 150
UCFC75-150
UCC110, 130, 160-450
4 SPRING
162
130
225
186
20
16
UCCU110, 130, 160-450
UCFC160-450
UFC200-750
URAC75-450
USC200-750
UWC75-450
(1) Unloaded dimension
(2) Refer to relevant Loose Parts Instructions sheet for positioning of each mount.
INSTALLATION
1 Locate and secure mount using bolting down holes (10) in base plate.
2 Ensure mounts are located in line with the unit base.
3 If applicable, remove compressor enclosure covers to allow access to mount fixing holes in
the unit base.
4 Lock the upper retaining nuts (6a) to the underside of the top plate (9) before a load is
applied.
5 Remove retaining nut and washer (2), lower the unit onto the mounts and replace retaining
nut and washer.
6 Beginning with the mount with the largest deflection, adjust the height of each mount using
the levelling screw (3).
CAUTION
Mountings must be adjusted incrementally in turn. Do not fully adjust 1 mount at a time as
this may overload and damage springs.
7 When all mounts are level, lock each into place using the levelling lock nut (4).
8 Lock all retaining nuts (6a and 6b) to the extreme ends of the retaining studs (5).
CAUTION
Do not connect any services until all anti vibration mounts have been fully adjusted.

ULTIMA COMPACT
Condensing Units
16
Condensers & Condensing Units
Installation & Maintenance : 6259675 IM V1.9.0 04/2016
Installation Data
POSITIONING
The installation position should be selected with the following points in mind:
Position on a stable and even base, levelled to ensure that the compressor
operates correctly.
Levelling should be to +/- 5mm.
Where vibration transmission to the building structure is possible, fit spring anti-
vibration mounts and flexible water connections.
Observe airflow and maintenance clearances.
Pipework and electrical connections are readily accessible.
Where multiple units are installed, due care should be taken to avoid the
discharge air from each unit adversely affecting other units in the vicinity.
Within a side enclosed installation, the fan MUST be higher than the
enclosing structure.
Figures in brackets indicate airflow and maintenance clearances for side-enclosed
or multiple condensing unit applications.
Ensure there are no obstructions directly above the fans.
Allow free space above the fans to prevent air recirculation.
CAUTION
Prior to connecting services, ensure that the equipment is installed and
completely level.

Installation & Maintenance : 6259675 IM V1.9.0 04/2016
Chillers
17
Chillers
ULTIMA COMPACT
Installation Data
REFRIGERATION SYSTEM
Standard Recommended Installation
OUTDOOR UNIT - ULTIMA COMPACT CONDENSING UNIT
INDOOR UNIT - BY OTHERS
1
2
3
4
5
6
7
8
1 SUCTION ACCUMULATOR
(Optional - Factory Fitted)
2 RECEIVER PUMP DOWN
BALL VALVE
(Optional - Factory Fitted)
3 LIQUID RECEIVER & PRESSURE RELIEF ASSEMBLY
(Optional - Factory Fitted)
4 SUCTION & LIQUID LINE
BALL VALVES
(Standard - Factory Fitted)
5 FILTER DRIER
(Optional - Supplied Loose)
6 SIGHT GLASS
(Optional - Supplied Loose)
7 SOLENOID VALVE
(Supplied By Others)
8 EXPANSION VALVE
(Supplied By Others)
OUTDOOR UNIT - ULTIMA COMPACT CONDENSING UNIT
INDOOR UNIT - BY OTHERS
1 Suction accumulator (optional - factory fitted)
2 Receiver pump down ball valve (optional - factory fitted)
3 Liquid receiver & pressure relief assembly (optional - factory fitted)
4 Suction & liquid line ball valves (standard - factory fitted)
5 Filter drier (optional - supplied loose)
6 Sight glass (optional - supplied loose)
7 Solenoid valve (supplied by others)
8 Expansion valve (supplied by others)

ULTIMA COMPACT
Condensing Units
18
Condensers & Condensing Units
Installation & Maintenance : 6259675 IM V1.9.0 04/2016
Installation Data
REFRIGERATION CONNECTIONS
UCCU30SQ-1/1
UCCU40SQ-1/1
UCCU50SQ-2/1
UCCU60SQ-2/1
UCCU70SQ-2/1
UCCU80SQ-2/1
Connections - Single
Circuit
(1)
Liquid Line
in
7/8
7/8
7/8
1 1/8
1 1/8
1 1/8
Suction Line
in
1 3/8
1 3/8
1 5/8
1 5/8
1 5/8
1 5/8
UCCU30DQ-1/1
UCCU40DQ-1/1
UCCU50DQ-2/1
UCCU60DQ-2/1
UCCU70DQ-2/1
UCCU80DQ-2/1
Connections - Dual Circuit
(1)
Liquid Line
in
3/4
3/4
3/4
7/8 / 3/4
7/8
7/8
Suction Line
in
1 1/8
1 1/8
1 1/8
1 3/8 / 1 1/8
1 3/8
1 3/8
UCCU75D-2/1
UCCU100D-2/1
UCCU110D-4/2
UCCU125D-3/1
UCCU130D-4/2
UCCU150D-3/1
Connections
(1)
Liquid Line
in
1 1/8
1 1/8
1 1/8
1 1/8
1 1/8
1 1/8
Suction Line
in
1 3/8
1 3/8
1 5/8
1 5/8
1 5/8
1 5/8
UCCU160D-4/2
UCCU180D-6/2
UCCU200D-6/2
UCCU225D-6/2
UCCU240D-8/2
UCCU250D-6/2
Connections
(1)
Liquid Line
in
1 1/8
1 1/8
1 3/8
1 3/8
1 5/8
1 3/8
Suction Line
in
2 1/8
2 1/8
2 1/8
2 1/8
2 5/8
2 1/8
UCCU270D-8/2
UCCU300D-8/2
UCCU330D-10/2
UCCU360D-10/2
UCCU400D-12/2
UCCU450D-12/2
Connections
(1)
Liquid Line
in
1 5/8
1 5/8
1 5/8 / 2 1/8
2 1/8
2 1/8
2 1/8
Suction Line
in
2 5/8
2 5/8
2 5/8
2 5/8
2 5/8 / 3 1/8
3 1/8
(1)
Suitable For Brazed Connections.
PIPE SIZING GUIDE
Pipework sizes and routes should be set in accordance with good refrigeration practice.
PIPEWORK
INSTALLATION
The suction line should be insulated.
Liquid lines should be insulated in areas of high temperature or when exposed to
direct sunlight.
Special consideration should be given to vertical pipe runs and heat pump installation.
Unit performance will reduce if there are vertical rises of above 5m. Please consult
Airedale Service for risers above 10m.
When insulating refrigerant lines, cut approximately 30 - 50cm longer than the distance
between the units to ensure the insulation goes right upto the unit. Leave connections
uncovered for leak testing.
Remove burrs to the ends of the copper tube, holding the tube downward to avoid
allowing dirt to contaminate the tube.
Where applicable insert flare nuts removed from the pipework terminations and make a
flare at the end of the copper tube to conform with the following:
Inside surface is glossy and smooth
Tapered sides are of uniform length
Refrigeration lubrication is applied to mating surfaces
The installation of a sight glass close to the indoor unit is recommended.
Where applicable braze incoming pipe to rotalock service valve.

Condensing Units
ULTIMA COMPACT
Condensers & Condensing Units
19
Installation & Maintenance : 6259675 IM V1.9.0 04/2016
Chillers
ULTIMA COMPACT
Installation Data
PRESSURE TESTING
In accordance with PED 97/23/EC, a strength test should be carried out in order to
ensure that all interconnecting joints, pipework and components are sufficiently strong to
cater for maximum permissible operating pressures. Once installation is completed, the
high side of the system should be strength tested with dry nitrogen to a recommended
minimum pressure of 27 barg and the low side to 17 barg.
CAUTION
Pressure testing can be dangerous if not properly conducted, personnel
undertaking pressure testing MUST be technically competent and suitably
qualified.
When installation is complete, the system should be pressure tested.
Fill the system with dry nitrogen to a pressure of between 17 bar/250psig and 34bar/
500 psig.
Record the pressure over a minimum of 60 minutes to detect major leaks (a 24 hour
period should preferably be allowed).
If a reduction in pressure is detected, trace the leak and repair before conducting a further
pressure test and charging.
EVACUATION
Evacuation for systems operating with R407C refrigerant to be carried out as follows (for
alternative refrigerants please refer to Airedale).
Use a high vacuum pump and connect to the high and low pressure sides of the system
via a gauge manifold fitted with compound gauges. A high vacuum gauge should be fitted
to the system at the furthest point from the vacuum pump.
Triple evacuation should be used to ensure that all contaminants are removed.
Operate the vacuum pump until a pressure of 1.5 torr (200 Pa) absolute pressure is
reached, then stop the vacuum pump to break the vacuum using oxygen free Nitrogen
until the pressure rises above zero.
The above operation should be repeated a second time.
The system should then be evacuated a third time but this time to 0.5 torr
absolute pressure.
Break with the correct refrigerant, until pressures equalise between the charging bottle
and the system.
ELECTRICAL
General
As standard the equipment is designed for 400V, 3 phase, 3 wire 50Hz and a
separate permanent 230V, 1 phase, 50Hz supply, to all relevant IEE regulations,
British standards and IEC requirements.
A fused and isolated electrical supply of the appropriate phase, frequency and
voltage should be installed.
The control voltage to the interlocks is 24V. Always size the low voltage interlock
and protection cabling for a maximum voltage drop of 2V.
CAUTION
Wires should be capable of carrying the maximum load current under non-fault
conditions at the stipulated voltage.
Avoid large voltage drops on cable runs, particularly low voltage wiring.
Once the connecting pipework is complete the electrical supply can be connected
by routing the cable through the appropriate casing hole and connecting the
cables, refer to the Wiring Diagram supplied with each unit.
CAUTION
A separately fused, locally isolated, permanent single phase and neutral supply
MUST BE FITTED for the compressor sump heater and control circuits, FAILURE to
do so could INVALIDATE WARRANTY.

ULTIMA COMPACT
Condensing Units
20
Condensers & Condensing Units
Installation & Maintenance : 6259675 IM V1.9.0 04/2016
Installation Data
INTERCONNECTING WIRING
Single Circuit
(not including: leak detector,
and remote setpoint adjust)
UCCU30–
UCCU80
(Excluding
UCCU75)
L1


Mains incoming supply 400V/3PH/50Hz 50Hz
(N2 Only Required For UCCU30-80Q/DQ & UCCU50-60SSQ/DSQ)
L2


L3


N2


E


L4


Separate Permanent Supply 230V/1PH/50Hz
N1


E


502


Circuit 1 24VAC (Suction Pressure Control Option), Compressor.1 24VAC (Digital
I/P Control Option)
504


502


Remote On/Off 24VAC, Compressor.2 24VAC (Digital I/P Control Option)
505


500


0 v
Remote Capacity Control (0-10VDC Control Option)
806


0-10v
52


Circuit 1 Solenoid Valve
53


Volt Free Contact N/O
573


Circuit 1
Volt Free Common Alarm
574


Volt Free Alarm N/O
575


Volt Free Alarm N/C
RX-/TX-


RX+/TX+


/ Optional EEV Connections
GND


Double Circuit
UCCU30 –
UCCU450
L1


Mains incoming supply 400V/3PH/50Hz
(N2 Only Required For UCCU30-80Q/DQ & UCCU50-60SSQ/DSQ)
L2


L3


N2


E


L4


Separate Permanent Supply 230V/1PH/50Hz
N1


E


502


Circuit 1 24VAC (Suction Pressure Control Option) / Compressor.1 24VAC (Digital
I/P Control Option)
504


502


Unit Remote On/Off 24VAC, Circuit 2 24VAC (Suction Pressure Control Option),
Compessor.2 24VAC (Digital I/P Control Option)
505


502


Compressor.3 24VAC (Digital I/P Control Option)
506


502


Compressor.4 24VAC (Digital I/P Control Option)
507


502


Compressor.5 24VAC (Digital I/P Control Option UCCU240-450 Only Excluding
UCCU250)
508


502


Compressor.6 24VAC (Digital I/P Control Option UCCU240-450 Only Excluding
UCCU250)
509


502


Remote On/Off 24VAC, Compressor.2 24VAC (Digital I/P Control Option)
505


500


0 v
Remote Capacity Control (0-10VDC Control Option)
806


0-10v
52


Circuit 1 Solenoid Valve
53


Volt Free Contact N/O
54


Circuit 2 Solenoid Valve
55


Volt Free Contact N/O
573


Circuit 1
Volt Free Common Alarm
574


Volt Free Alarm N/O
575


Volt Free Alarm N/C
576


Circuit 2
Volt Free Common Alarm
Dual Circuit Only
577


Volt Free Alarm N/O
578


Volt Free Alarm N/C
RX-/TX-


/ Optional EEV Connections
RX+/TX+


GND


