AirLive WL-1100SD User manual

QuickSetupGuide
WL-1100SD
Wireless 802.11b SD Card
English ●●●
Español ●●●
Deutsch ●●●
Português ●●●
Русский ●●●
日本語 ●●●
29
36
1
15
22
1
8

1
1
English
802.11b Wireless SD Card
WL
-
1100SD

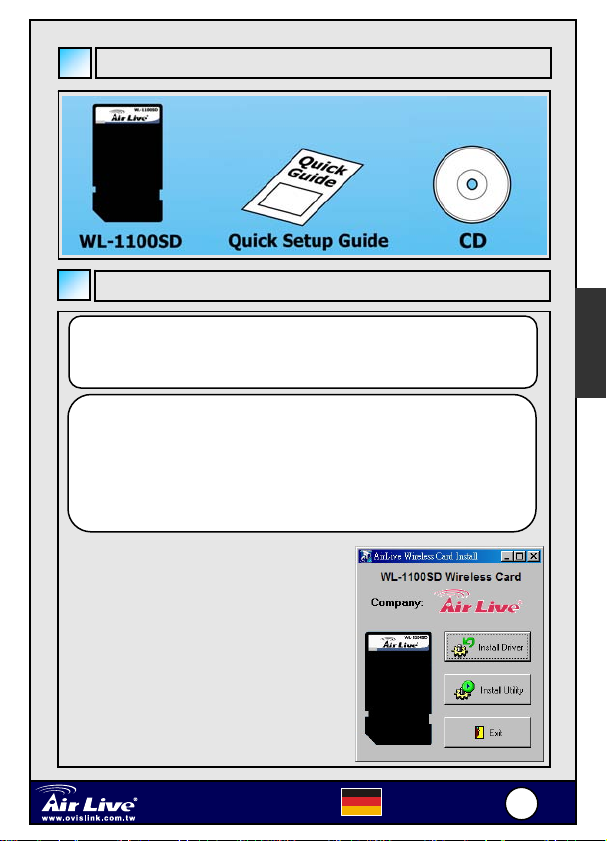

Package contents
Install the Driver
Installation of the SDW11b Driver to the
Pocket PC using Microsoft Active Sync®
Note: Do not insert the SDW11b into the card slot of your PDA until the
Install Driver (Step 1) and Install Utility (Step 2) have been performed.
English
1. Please DO NOT remove the SD WLAN card while the PDA's power
is on.
2. To set the WEP/WPA encryption on Windows Mobile. On your
PocketPC, please choose Setup->Network Card. Then select your
network, enter the WEP/WPA encryption information. Please refer
to your PDA user's guide for details.

2
2
English
802.11b Wireless SD Card
WL
-
1100SD

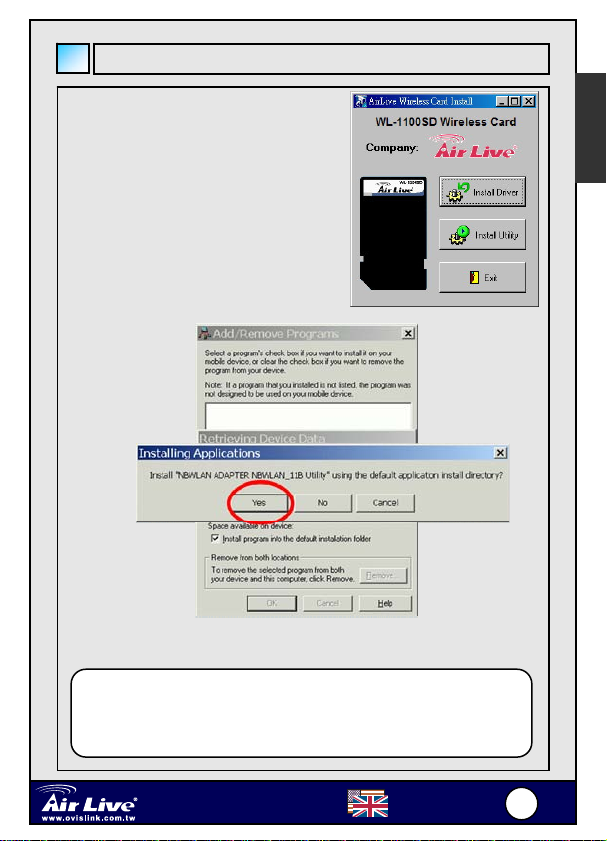

3. Click “YES” to continue the installation.
2. Connect your PDA to your computer and make sure Active-Sync®
has established for a connection between the two devices.
3. Insert the CD-ROM to your PC. The main screen will apeear, click
Install Driver to start driver installation. After driver installation is
complete, clik Install Utility to start utility installation.
4. Click “OK” to complete the driver installation.
English

3
3
English
802.11b Wireless SD Card
WL
-
1100SD
Install the Utility
3. Click “OK” to complete the driver installation.
2. Click “YES” to continue the
installation.
1. Click Install Utility to perform utility
installation.
English
LWhen using it on Window's Mobile 2003, it will show the error
message. Saying the driver is not designed for Windows Mobile
2003. Please ignore the message and continue with the installation.

4
4
English
802.11b Wireless SD Card
WL
-
1100SD

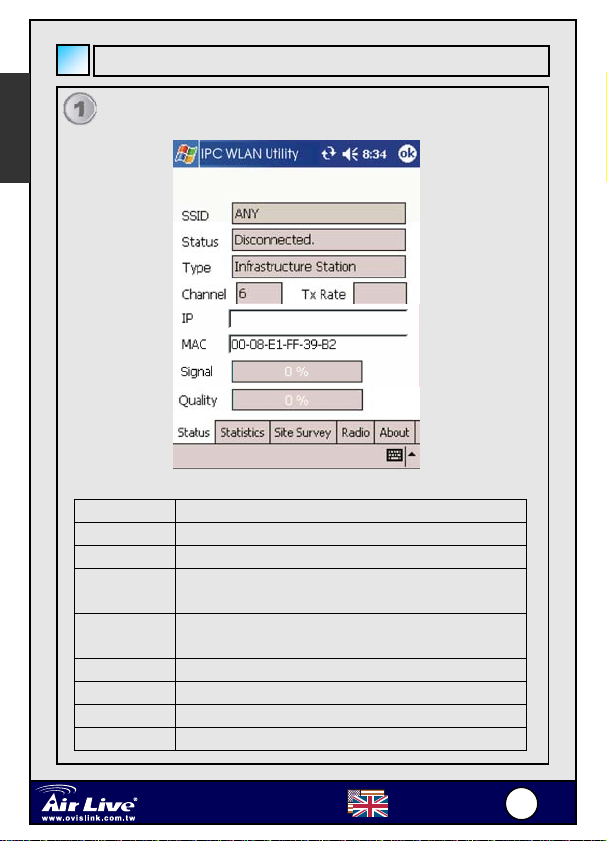

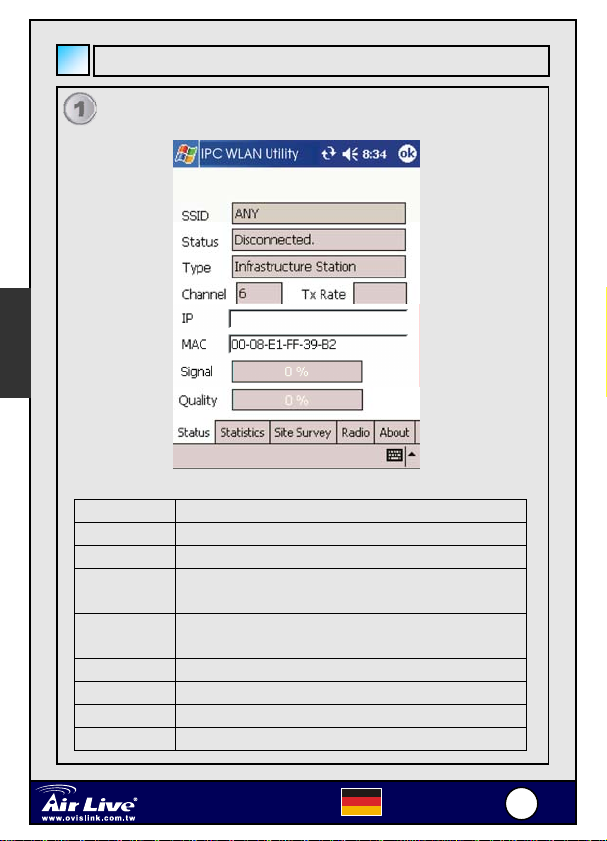

Configuring IPC WLAN Utility
Status tab
SSID The current access point name (ESS ID)
Status The current connection status.
Type The current connection mode.
Channel The wireless radio channel currently used by the
card.
Tx Rate The current transmit rate. This can be 1 Mbps, 2
Mbps, 5.5 Mbps.
IP The IP address of the card.
MAC The MAC address of the card.
Signal Shows the signal strength of the received signal.
Quality Shows the signal quality of the received signal.
English

5
5
English
802.11b Wireless SD Card
WL
-
1100SD
Tx Success The number of successfully transmitted
packets.
Tx Error The number of unsuccessfully transmitted
packets.
Tx Throughput (kbps) The actual instantaneous transmit rates, in
Kbps.
Rx Success The number of successfully reveived
packets.
Rx CRC Success The number of successfully reveived CRC
packets.
Rx CRC Error The number of unsuccessfully reveived
CRC packets.
Rx Throughput (kbps) The actual instantaneous receive rates, in
Kbps.
Reset Click to clear the previously settings.
Statistics tab
English

6
6
English
802.11b Wireless SD Card
WL
-
1100SD

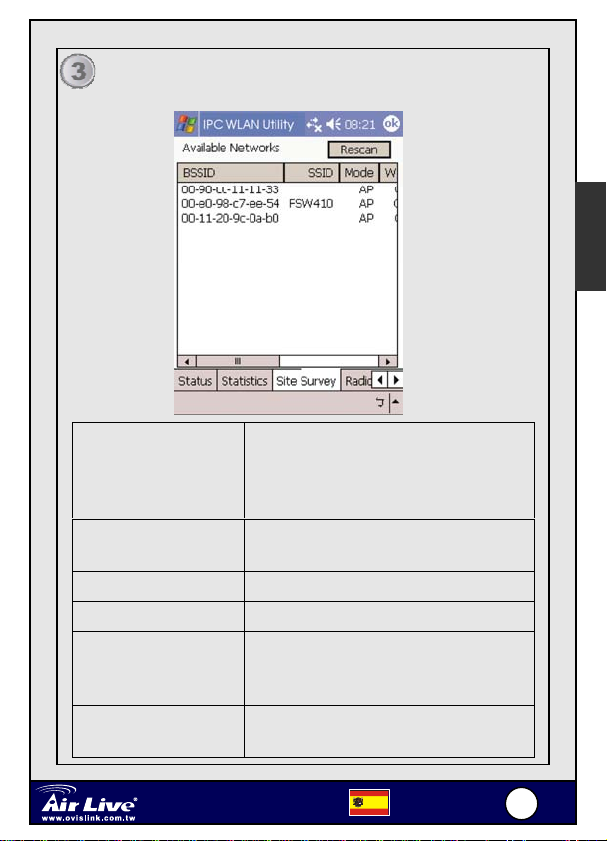

Rescan Searches for all available networks.
Clicking on the button, the device will start
to rescan and list all available sites.
BSSID The MAC address for the Access Point or
station.
SSID The current access point name (ESS ID).
Mode The currently connected device mode.
WEP WEP (Wired Equivalent Privacy)shows the
current WEP used in the AP. WEP can be
enabled or disabled.
CH The wireless radio channel currently used
by the card.
Site Surve
y
tab
English

7
7
English
802.11b Wireless SD Card
WL
-
1100SD

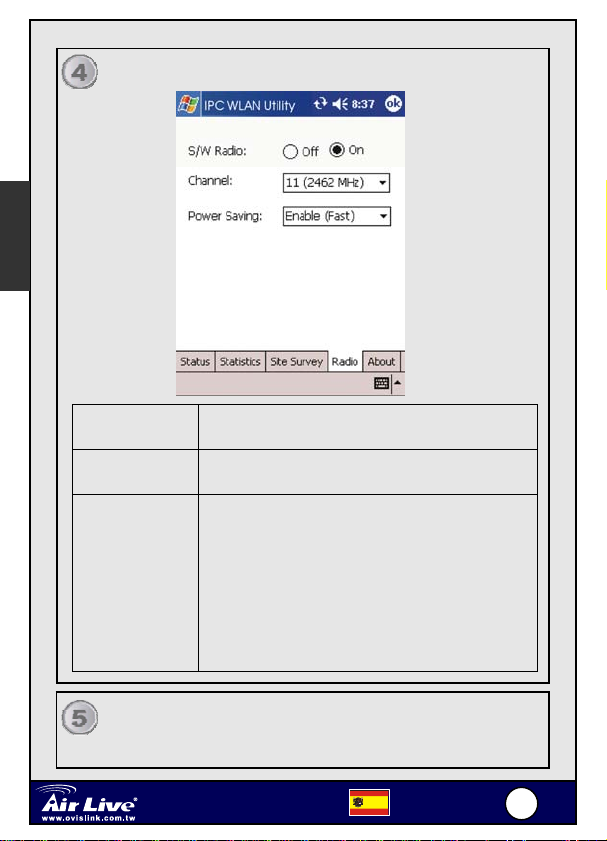

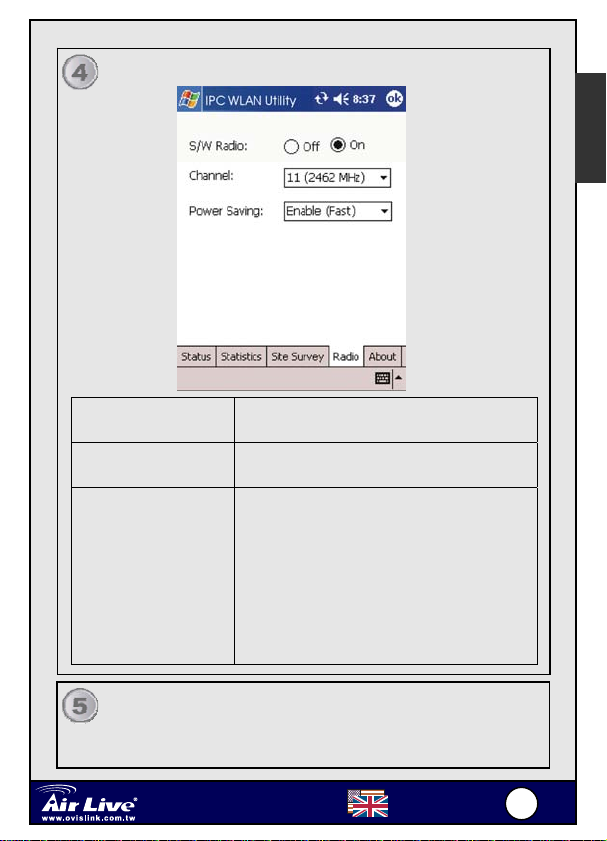

S/W Radio Select Off or On to turn off/on Radio
Frequency function.
Channel Select from the pull-down list, there are 13
channels in the list.
Power Saving Disable: Select to disable power saving
function.
Enable (Max): Select to enter power saving
mode instantly.
Enable (Fast): Select to enter power saving
mode later (Under the circumstances of not
receving/transitting packets, the system will
enter Power Saving mode in 10 seconds. )
Radio tab
A
bout tab
The driver version and the setup utility software version.
English

8
8
Español
802.11b Wireless SD Card
WL
-
1100SD
Contenido del Paquete
Instalar el Driver
Instalación del Driver SDW11b en el
Pocket PC utilizando Microsoft Active
S
y
nc
®
Nota: No insertar el SDW11b en la ranura de tu PDA hasta que los
pasos (1) Instalar Driver y (2) Instalar Utilitario hayan sido completado.
Español
1. Por favor NOT retire la tarjeta SD WLAN mientras el equipo PDA
esté encendido.
2. Para configurar la opción de WEP/WPA en Windows Mobile en
tu PocketPC, por favor seleccione Setup->Network Card. Luego
seleccione Tu red ( your network); introduzca la informacion de
encriptación WEP/WPA. Para más detalles por favor referirse la
Guía de Usuario PDA.

9
9
Español
802.11b Wireless SD Card
WL
-
1100SD

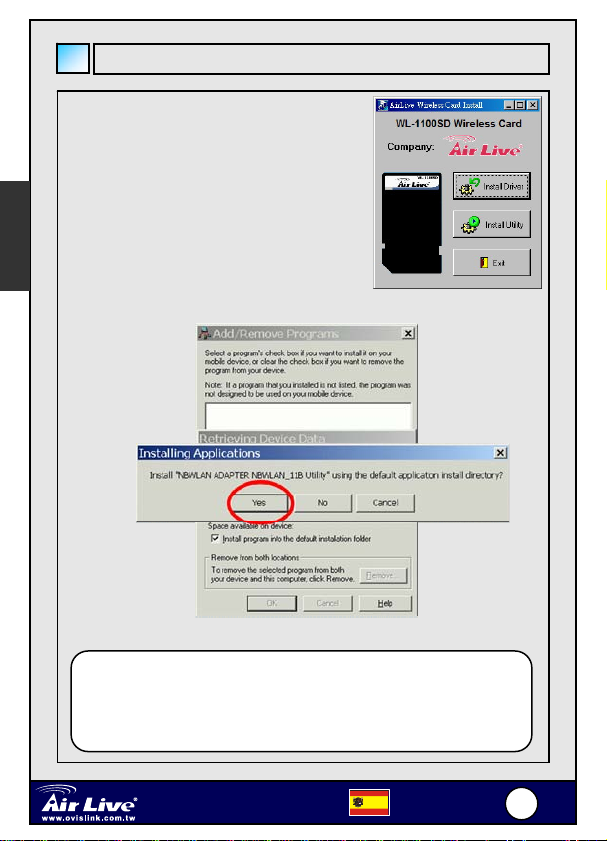

2. Conecte su PDA a su computadora y asegúrse que Active-Sync® ha
establecido una conexión entre los dos dispositivos.
3. Inserte el CD-ROM en su PC. La pantalla principal aparecerá. Haz
click en Install Driver para iniciar la instalación. Al terminar la
instalación del driver haz clik en Install Utility para iniciar la
instalación del utilitario.
4. Haz Click en “YES” para continuar con la instalación
4. Haz Click en “OK” para completar la instalación del driver.
Español
