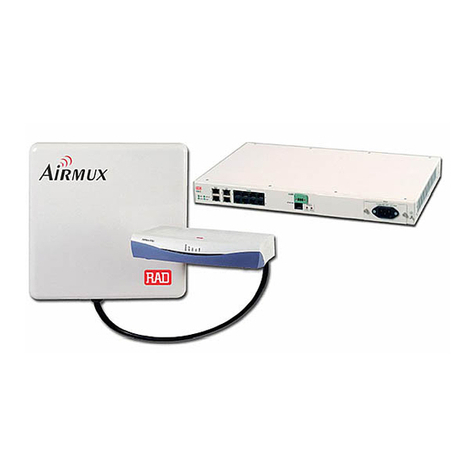

Airmux Airmux-200 User manual

A
irMux-
2
00
Installation and Operation Manual
Point-to-Point Wireless
TDM/IP Multiplexer

AirMux-200
Point-to-Point Wireless TDM/IP Multiplexer
Installation and Operation Manual
Notice
This manual contains information that is proprietary to RAD Data Communications Ltd. ("RAD"). No
part of this publication may be reproduced in any form whatsoever without prior written approval by
RAD Data Communications.
Right, title and interest, all information, copyrights, patents, know-how, trade secrets and other
intellectual property or other proprietary rights relating to this manual and to the AirMux-200 and any
software components contained therein are proprietary products of RAD protected under international
copyright law and shall be and remain solely with RAD.
AirMux-200 is a registered trademark of RAD. No right, license, or interest to such trademark is granted
hereunder, and you agree that no such right, license, or interest shall be asserted by you with respect
to such trademark.
You shall not copy, reverse compile or reverse assemble all or any portion of the Manual or the
AirMux-200. You are prohibited from, and shall not, directly or indirectly, develop, market, distribute,
license, or sell any product that supports substantially similar functionality as the AirMux-200, based on
or derived in any way from the AirMux-200. Your undertaking in this paragraph shall survive the
termination of this Agreement.
This Agreement is effective upon your opening of the AirMux-200 package and shall continue until
terminated. RAD may terminate this Agreement upon the breach by you of any term hereof. Upon
such termination by RAD, you agree to return to RAD the AirMux-200 and all copies and portions
thereof.
For further information contact RAD at the address below or contact your local distributor.
International Headquarters
RAD Data Communications Ltd.
24 Raoul Wallenberg St.
Tel Aviv 69719 Israel
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
U.S. Headquarters
RAD Data Communications Inc.
900 Corporate Drive
Mahwah, NJ 07430 USA
Tel: [phone], Toll free: 1-800-444-7234
Fax: [phone]
E-mail: [email protected]
© 2002-2004RAD Data Communications Ltd.Publication No.199-200-10/04

Limited Warranty
RAD warrants to DISTRIBUTOR that the hardware in the AirMux-200 to be delivered hereunder shall
be free of defects in material and workmanship under normal use and service for a period of twelve
(12) months following the date of shipment to DISTRIBUTOR.
If, during the warranty period, any component part of the equipment becomes defective by reason of
material or workmanship, and DISTRIBUTOR immediately notifies RAD of such defect, RAD shall have
the option to choose the appropriate corrective action: a) supply a replacement part, or b) request
return of equipment to its plant for repair, or c) perform necessary repair at the equipment's location.
In the event that RAD requests the return of equipment, each party shall pay one-way shipping costs.
RAD shall be released from all obligations under its warranty in the event that the equipment has been
subjected to misuse, neglect, accident, or improper installation, or if repairs or modifications were
made by persons other than RAD's own authorized service personnel, unless such repairs by others
were made with the written consent of RAD.
The above warranty is in lieu of all other warranties, expressed or implied. There are no warranties
which extend beyond the face hereof, including, but not limited to, warranties of merchantability and
fitness for a particular purpose, and in no event shall RAD be liable for consequential damages.
RAD shall not be liable to any person for any special or indirect damages, including, but not limited to,
lost profits from any cause whatsoever arising from or in any way connected with the manufacture,
sale, handling, repair, maintenance or use of the AirMux-200, and in no event shall RAD's liability
exceed the purchase price of the AirMux-200.
DISTRIBUTOR shall be responsible to its customers for any and all warranties which it makes relating
to AirMux-200 and for ensuring that replacements and other adjustments required in connection with
the said warranties are satisfactory.
Software components in the AirMux-200 are provided "as is" and without warranty of any kind. RAD
disclaims all warranties including the implied warranties of merchantability and fitness for a particular
purpose. RAD shall not be liable for any loss of use, interruption of business or indirect, special,
incidental or consequential damages of any kind. In spite of the above RAD shall do its best to provide
error-free software products and shall offer free Software updates during the warranty period under
this Agreement.
RAD's cumulative liability to you or any other party for any loss or damages resulting from any claims,
demands, or actions arising out of or relating to this Agreement and the AirMux-200 shall not exceed the
sum paid to RAD for the purchase of the AirMux-200. In no event shall RAD be liable for any indirect,
incidental, consequential, special, or exemplary damages or lost profits, even if RAD has been advised of
the possibility of such damages.
This Agreement shall be construed and governed in accordance with the laws of the State of Israel.

General Safety Instructions
The following instructions serve as a general guide for the safe installation and operation of
telecommunications products. Additional instructions, if applicable, are included inside the manual.
Safety Symbols
This symbol may appear on the equipment or in the text. It indicates
potential safety hazards regarding product operation or maintenance to
operator or service personnel.
Danger of electric shock! Avoid any contact with the marked surface while
the product is energized or connected to outdoor telecommunication lines.
.
Protective earth: the marked lug or terminal should be connected to the building
protective earth bus.
Some products may be equipped with a laser diode. In such cases, a label
with the laser class and other warnings as applicable will be attached near
the optical transmitter. The laser warning symbol may be also attached.
Please observe the following precautions:
• Before turning on the equipment, make sure that the fiber optic cable is
intact and is connected to the transmitter.
• Do not attempt to adjust the laser drive current.
• Do not use broken or unterminated fiber-optic cables/connectors or look
straight at the laser beam.
• The use of optical devices with the equipment will increase eye hazard.
• Use of controls, adjustments or performing procedures other than those
specified herein, may result in hazardous radiation exposure.
ATTENTION: The laser beam may be invisible!
Always observe standard safety precautions during installation, operation and maintenance of this
product. Only qualified and authorized service personnel should carry out adjustment, maintenance or
repairs to this product. No installation, adjustment, maintenance or repairs should be performed by
either the operator or the user.
Warning
Warning

Handling Energized Products
General Safety Practices
Do not touch or tamper with the power supply when the power cord is connected. Line voltages may
be present inside certain products even when the power switch (if installed) is in the OFF position or a
fuse is blown. For DC-powered products, although the voltages levels are usually not hazardous,
energy hazards may still exist.
Before working on equipment connected to power lines or telecommunication lines, remove jewelry
or any other metallic object that may come into contact with energized parts.
Unless otherwise specified, all products are intended to be grounded during normal use. Grounding is
provided by connecting the mains plug to a wall socket with a protective earth terminal. If an earth lug
is provided on the product, it should be connected to the protective earth at all times, by a wire with a
diameter of 18 AWG or wider. Rack-mounted equipment should be mounted only in earthed racks
and cabinets.
Always make the ground connection first and disconnect it last. Do not connect telecommunication
cables to ungrounded equipment. Make sure that all other cables are disconnected before
disconnecting the ground.
Connection of AC Mains
Make sure that the electrical installation complies with local codes.
Always connect the AC plug to a wall socket with a protective ground.
The maximum permissible current capability of the branch distribution circuit that supplies power to
the product is 16A. The circuit breaker in the building installation should have high breaking capacity
and must operate at short-circuit current exceeding 35A.
Always connect the power cord first to the equipment and then to the wall socket. If a power switch is
provided in the equipment, set it to the OFF position. If the power cord cannot be readily
disconnected in case of emergency, make sure that a readily accessible circuit breaker or emergency
switch is installed in the building installation.
Connection of DC Mains
Unless otherwise specified in the manual, the DC input to the equipment is floating in reference to the
ground. Any single pole can be externally grounded.
Due to the high current capability of DC mains systems, care should be taken when connecting the DC
supply to avoid short-circuits and fire hazards.
DC units should be installed in a restricted access area, i.e. an area where access is authorized only to
qualified service and maintenance personnel.
Make sure that the DC supply is electrically isolated from any AC source and that the installation
complies with the local codes.
The maximum permissible current capability of the branch distribution circuit that supplies power to
the product is 16A. The circuit breaker in the building installation should have high breaking capacity
and must operate at short-circuit current exceeding 35A.
Before connecting the DC supply wires, ensure that power is removed from the DC circuit. Locate the
circuit breaker of the panel board that services the equipment and switch it to the OFF position. When
connecting the DC supply wires, first connect the ground wire to the corresponding terminal, then the
positive pole and last the negative pole. Switch the circuit breaker back to the ON position.
A readily accessible disconnect device that is suitably rated and approved should be incorporated in
the building installation.

Installing the Outdoor Units (ODUs)
Observe the following safety measures when installing the outdoor units.
• Masts/poles should comply with local standards.
• Only trained professional installers should install or dismantle outdoor units. The installer is
responsible for meeting all building and safety codes.
• Before installing an outdoor unit, make sure it is disconnected from power.
• A safety belt and climbing harness must be used when installing the outdoor units on a mast or
tower.
• Masts of height 3 meters or more must be guyed according to required industry standards and be
lightning protected.
• If an outdoor unit is to be mounted at a height of more than 4 meters above the roof, it is
recommended that a climbable tower be installed to give access to the equipment and to prevent
antenna movement during strong winds.
• When installing equipment, beware of overhead high-voltage power lines. Never install a mast
under power lines.
• The mast structure must be grounded.
• Do not stand in front of a live outdoor unit.
• The installer should configure the output power level of antennas according to country regulations
and per antenna type.
• The antenna used for this transmitter must be installed to provide a separation distance of at least
200 cm from all persons and must not be co-located or operating in conjunction with any other
antenna or transmitter.
Outdoor units and antennas should be installed ONLY by experienced
installation professionals who are familiar with local building and safety
codes and, wherever applicable, are licensed by the appropriate government
regulatory authorities. Failure to do so may void the AirMux-200 warranty
and may expose the end user or the service provider to legal and financial
liabilities. RAD and its resellers or distributors are not liable for injury,
damage or violation of regulations associated with the installation of outdoor
units or antennas.
Protection Against Lightning Activity
Observe the following safety measures to protect personnel and equipment:
• All outdoor equipment must be attached to a properly grounded structure, and installed masts
must be grounded in order to provide protection against lightening, surges and static buildup. In
addition, masts over 3 meters should have a lightning protection rod. Failure to do so creates a
safety risk and will void the equipment warranty.
• Do not work on the system or connect or disconnect the cables prior to or during electrical storm
activity.
• In case of an electrical storm, do not touch any outdoor electrical equipment and leave the roof as
quickly as possible.
Warning

Connection of Data and Telecommunications Cables
Data and telecommunication interfaces are classified according to their safety status.
The following table lists the status of several standard interfaces. If the status of a given port differs from
the standard one, a notice will be given in the manual.
Ports Safety Status
V.11, V.28, V.35, V.36, RS-530,
X.21, 10 BaseT, 100 BaseT,
Unbalanced E1, E2, E3, STM, DS-2,
DS-3, S-Interface ISDN, Analog voice
E&M
SELV Safety Extra Low Voltage:
Ports which do not present a safety hazard. Usually
up to 30 VAC or 60 VDC.
xDSL (without feeding voltage),
Balanced E1, T1, Sub E1/T1
TNV-1 Telecommunication Network Voltage-1:
Ports whose normal operating voltage is within the
limits of SELV, on which overvoltages from
telecommunications networks are possible.
FXS (Foreign Exchange Subscriber) TNV-2 Telecommunication Network Voltage-2:
Ports whose normal operating voltage exceeds the
limits of SELV (usually up to 120 VDC or telephone
ringing voltages), on which overvoltages from
telecommunication networks are not possible. These
ports are not permitted to be directly connected to
external telephone and data lines.
FXO (Foreign Exchange Office), xDSL
(with feeding voltage), U-Interface
ISDN
TNV-3 Telecommunication Network Voltage-3:
Ports whose normal operating voltage exceeds the
limits of SELV (usually up to 120 VDC or telephone
ringing voltages), on which overvoltages from
telecommunication networks are possible.
The signals between the IDU and ODU are TNV-1.
Always connect a given port to a port of the same safety status. If in doubt, seek the assistance of a
qualified safety engineer.
Always make sure that the equipment is grounded before connecting telecommunication cables. Do
not disconnect the ground connection before disconnecting all telecommunications cables.
Some SELV and non-SELV circuits use the same connectors. Use caution when connecting cables.
Extra caution should be exercised during thunderstorms.
When using shielded or coaxial cables, verify that there is a good ground connection at both ends. The
earthing and bonding of the ground connections should comply with the local codes.
The telecommunication wiring in the building may be damaged or present a fire hazard in case of
contact between exposed external wires and the AC power lines. In order to reduce the risk, there are
restrictions on the diameter of wires in the telecom cables, between the equipment and the mating
connectors.
Note

To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cords.
Pour réduire les risques s’incendie, utiliser seulement des conducteurs de
télécommunications 26 AWG ou de section supérieure.
Some ports are suitable for connection to intra-building or non-exposed wiring or cabling only. In such
cases, a notice will be given in the installation instructions.
Do not attempt to tamper with any carrier-provided equipment or connection hardware.
Electromagnetic Compatibility (EMC)
The equipment is designed and approved to comply with the electromagnetic regulations of major
regulatory bodies. The following instructions may enhance the performance of the equipment and will
provide better protection against excessive emission and better immunity against disturbances.
A good earth connection is essential. When installing the equipment in a rack, make sure to remove all
traces of paint from the mounting points. Use suitable lock-washers and torque. If an external
grounding lug is provided, connect it to the earth bus using braided wire as short as possible.
The equipment is designed to comply with EMC requirements when connecting it with unshielded
twisted pair (UTP) cables. However, the use of shielded wires is always recommended, especially for
high-rate data. In some cases, when unshielded wires are used, ferrite cores should be installed on
certain cables. In such cases, special instructions are provided in the manual.
Disconnect all wires that are not in permanent use, such as cables used for one-time configuration.
The compliance of the equipment with the regulations for conducted emission on the data lines is
dependent on the cable quality. The emission is tested for UTP with 80 dB longitudinal conversion loss
(LCL).
Unless otherwise specified or described in the manual, TNV-1 and TNV-3 ports provide secondary
protection against surges on the data lines. Primary protectors should be provided in the building
installation.
The equipment is designed to provide adequate protection against electro-static discharge (ESD).
However, it is good working practice to use caution when connecting cables terminated with plastic
connectors (without a grounded metal hood, such as flat cables) to sensitive data lines. Before
connecting such cables, discharge yourself by touching earth ground or wear an ESD preventive wrist
strap.
FCC-15 User Information
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
Caution
A
ttentio
n

-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected. Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to this equipment not expressly approved by the party responsible for
compliance (RAD) could void the user’s authority to operate the equipment.
It is the responsibility of the installer to ensure that when using the outdoor
antenna kits in the United States (or where FCC rules apply), only those
antennas certified with the product are used. The use of any antenna other
than those certified with the product is expressly forbidden in accordance to
FCC rules CFR47 part 15.204.
Canadian Emission Requirements for the IDU
This Class B digital apparatus meets all the requirements of the Canadian Interference-Causing
Equipment Regulation.
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
Statement according to Directive 1999/5/EC
Hereby, RAD Data Communications Ltd. declares that the AirMux-200 system is in compliance with
the essential requirements and other relevant provisions of Directive 1999/5/EC.
The alert sign on the AirMux-200 indicates that the frequency band that is being used by the
equipment is not harmonized within the EU and/or the potential restrictions on its use are
applicable in one or more EU member states.
Warning

Installing AirMux-200 Units 1
Quick Start Guide
Installation of AirMux-200 should be carried out only by a qualified technician. If you
are familiar with AirMux-200, use this guide to prepare the units for operation.
1. Installing AirMux-200 Units
Equipment Required:
• RJ-45 crimp tool (If pre-assembled cable is not used)
• Drill (for wall mounting only)
• IDU and ODU grounding cable
• 13 mm or 1/2″socket spanner
• ODU to IDU cable if not ordered (Outdoor class, CAT-5e, 4 twisted pairs)
• Cable ties
• Laptop running Windows 2000 or Windows XP
Before the installation
1. Verify that all equipment and tools are available.
2. Use the Link Budget Calculator Utility in order to calculate the expected
performance of the link, operating at the system requirements.
The Link Budget Calculator Utility can be found on the Technical Documentation
CD-ROM
3. Install the AirMux-200 software on the laptop; the installation takes a few
minutes.
The software installation leaves the AirMux Manager icon on the desktop.
Performing Installation
 To install the ODU:
1. At site A, route the ODU cable from the ODU location (on the roof) to the IDU
location (inside the building). The maximum length is 100m.
2. Mount the ODU unit to the mast or wall, using the mounting kit and mounting
instructions.
Do not tightly secure the ODU until the alignment process is complete.
When installing the ODU is important to check that there are no direct obstructions in
front of the ODU between the two link sites.
3. Verify that the ODU mounting brackets are connected to ground.
4. Connect the ODU chassis ground to ground.
Notes

Quick Start Guide AirMux-200 Installation and Operation Manual
2 Installing AirMux-200 Units
5. Connect the RJ-45 connectors to both ends of the cable, use the pinout table and
diagram below:
IDU RJ-45 Wire Color Function ODU RJ-45
1 White/Green Ethernet (RxN) 1
2 Green Ethernet (RxT) 2
3 White/Orange Ethernet (TxT) 3
4 Blue Power (+) 4
5 White\Blue Power (+) 5
6 Orange Ethernet (TxN) 6
7 White/Brown
Power (−) 7
8 Brown Power (−) 8
6. Secure the ODU and ground cables to the mast or brackets using cable ties.
7. Repeat the procedure at site B.
 To align the ODU:
1. Connect power to the site A IDU.
After approximately 20 seconds the ODU beeper starts beeping, this is
normal.
2. Verify normal operation of the IDU by the LED indications on the front panel.
Indicator Color Status
PWR Green ON
IDU Orange
Green
Blinks for 40 seconds during startup
Blinking slowly shows normal operation
ODU Green Blinking slowly shows normal operation
AIR I/F Orange
Green
Blinks for short duration during installation
Blinking slowly shows normal operation
SERVICE Green Blinking slowly shows normal operation
OFF when Service selected is Ethernet only

AirMux-200 Installation and Operation Manual Quick Start Guide
Installing AirMux-200 Units 3
Do not stand in front of a live outdoor unit.
3. Align the site A ODU in the direction of the site B ODU.
4. Connect power to the site B IDU.
After approximately 20 seconds the ODU beeper starts beeping, this is
normal.
5. Verify normal operation of the IDU by the LED indications on the front panel.
6. Make an azimuth sweep with the site B ODU of 180 degrees. So that the site A
ODU position is learnt by the site B ODU.
7. Turn the site B ODU slowly back towards the site A direction, listening to the
beep sequence until optimal alignment is achieved.
Beeper Sequence
=beeper on
=beeper off
Description
[approx. 1s]
Best Signal so far
Signal quality increased
No change in signal
Signal quality decreased
[approx. 2s] No air link
Three beeps and a pause is the best signal
Two beeps and a pause, signal quality increased
One beep and pause is no signal change
Any other signal detects no signal between ODUs.
8. Secure the site B ODU to the mast/wall.
9. At site A, adjust the ODU slowly whilst listening to the beeper sequence until the
best signal is attained.
10. Secure the site A ODU to the mast/wall.
11. Monitor the link quality for about 15 minutes to verify stability.
12. Connect the management station to one of the two IDUs in the link.
13. Double-click the AirMux Manager icon to start the application.
14. Click the Installation button to open the installation wizard and follow the
installation steps.
Warning
Note

Quick Start Guide AirMux-200 Installation and Operation Manual
4 Installing AirMux-200 Units
15. After selection of the radio channel and the link rate (as determined in the Link
Budget Calculator utility), verify that the link quality bar in the AirMux manager is
within the green range for TDM service and within the yellow range for Ethernet
service.
Achieve the best possible link quality values. In case of radio link loss, verify the ODU
alignment, or change the radio channel in both sides of the link. When the radio link
resumes continue the installation process.
Connecting User Equipment
 To connect user equipment to the IDU:
1. Connect the user equipment (such as PBX) to the IDU rear panel RJ-45 port
designated Trunk.
2. Connect user hub/router or any other compatible device to the IDU rear-panel
RJ-45 port designated LAN.
Note

Installation and Operation Manual i
Contents
Chapter 1. Introduction
1.1 Overview..................................................................................................................... 1-1
Application ...........................................................................................................................1-1
Features................................................................................................................................1-1
1.2 Physical Description..................................................................................................... 1-3
1.3 Technical Specifications............................................................................................... 1-4
Chapter 2. Installation and Setup
2.1 AirMux-200 System ..................................................................................................... 2-1
2.2 Site Requirements and Prerequisites ............................................................................ 2-2
2.3 Package Contents ........................................................................................................ 2-2
2.4 Equipment Required.................................................................................................... 2-3
2.5 Installation and Setup .................................................................................................. 2-3
Mounting the ODU ..............................................................................................................2-4
Connecting the ODU to the IDU ..........................................................................................2-5
Installing AirMux-200 Management Software ........................................................................2-6
Connecting the Power ..........................................................................................................2-6
Starting the AirMux Manager Software ..................................................................................2-7
Aligning the AirMux-200 ODUs ............................................................................................2-8
Installing the Link..................................................................................................................2-9
Connecting the User Equipment .........................................................................................2-15
Chapter 3. Configuration
3.1 Performing Configuration of AirMux-200 ..................................................................... 3-1
Configuring Service Parameters .............................................................................................3-5
Editing the Configuration Parameters.....................................................................................3-8
Defining the Management Addresses ....................................................................................3-9
Chapter 4. Operation
4.1 Indicators..................................................................................................................... 4-1
Front Panel Indicators ...........................................................................................................4-1
Rear Panel Indicators ............................................................................................................4-2
4.2 Operating AirMux-200 ................................................................................................ 4-2
Turning On AirMux-200 .......................................................................................................4-2
Normal Indications ...............................................................................................................4-3
Turning Off AirMux-200 .......................................................................................................4-3
Changing the Password .........................................................................................................4-3
4.3 Managing AirMux-200................................................................................................. 4-3
Resetting AirMux-200 ...........................................................................................................4-5
Saving AirMux-200 Configuration in a File.............................................................................4-5
Restoring a Configuration File ...............................................................................................4-6
Displaying the AirMux-200 Inventory ....................................................................................4-6

Table of Contents
ii AirMux-200 Installation and Operation Manual
Chapter 5. Diagnostics and Troubleshooting
5.1 Error Detection and Alarms.......................................................................................... 5-1
5.2 Collecting and Saving Statistics..................................................................................... 5-2
5.3 Running Diagnostic Loopbacks .................................................................................... 5-3
Local External Loopback .......................................................................................................5-4
Remote Internal Loopback....................................................................................................5-4
Remote External Loopback ...................................................................................................5-5
Local Internal Loopback........................................................................................................5-5
5.4 Troubleshooting........................................................................................................... 5-6
5.5 Frequently Asked Questions ........................................................................................ 5-7
5.6 Technical Support........................................................................................................ 5-9
Appendix A. Wiring Specifications
Appendix B. Mast and Wall Installation
List of Figures
1-1. Typical Application................................................................................................................ 1-1
1-2. AirMux-200 Unit with Integrated Antenna............................................................................. 1-3
2-1. Typical Installation Diagram................................................................................................... 2-4
2-2. IDU Rear Panel ..................................................................................................................... 2-5
2-3. Login Screen ......................................................................................................................... 2-7
2-4. Main Menu ........................................................................................................................... 2-8
2-5. Beeper Sequence for ODU Alignment................................................................................... 2-9
2-6. Link Installation Wizard ....................................................................................................... 2-10
2-7. Installation Wizard, System dialog box................................................................................. 2-11
2-8. Installation Wizard, Channel Select dialog box .................................................................... 2-12
2-9. Installation Wizard, Rates dialog box ................................................................................... 2-13
2-10. Installation Wizard, Services dialog box ............................................................................. 2-14
2-11. Installation Wizard, Finish Screen ...................................................................................... 2-15
3-1. AirMux Manager Main Menu ................................................................................................ 3-1
3-2. Configuration Link Wizard..................................................................................................... 3-2
3-3. Link Configuration, System dialog box ................................................................................... 3-3
3-4. Link Configuration, Channel select dialog box ....................................................................... 3-4
3-5. Air Interface Rate select Dialog Box ....................................................................................... 3-5
3-6. Service Parameters Dialog Box, E1/T1 Interface ..................................................................... 3-6
3-7. Service Parameters Dialog Box, Ethernet only Interface ......................................................... 3-7
3-8. Configuration Link, Finish screen........................................................................................... 3-8
3-9. Configuration Dialog Box ...................................................................................................... 3-9
3-10. Configuration, Management .............................................................................................. 3-10
4-1. Front Panel............................................................................................................................ 4-1
4-2. Main Menu, Wireless Link is Active ....................................................................................... 4-4
4-3. AirMux-200 Inventory ........................................................................................................... 4-6

Table of Contents
Installation and Operation Manual iii
5-1. Preferences Dialog Box, Event Log Tab.................................................................................. 5-3
5-2. Loopbacks Dialog Box........................................................................................................... 5-4
5-3. Local External Loopback........................................................................................................ 5-4
5-4. Remote Internal Loopback .................................................................................................... 5-5
5-5. Remote External Loopback.................................................................................................... 5-5
5-6. Local Internal Loopback ........................................................................................................ 5-6
List of Tables
1-1. AirMux-200 Throughput........................................................................................................ 1-2
4-1. IDU Front Panel LEDs ........................................................................................................... 4-1
4-2. WAN/LAN LEDs .................................................................................................................... 4-2
4-3. TDM Traffic Indicators........................................................................................................... 4-2
4-4. AirMux-200 Indicators at Startup........................................................................................... 4-3
5-1. AirMux-200 Alarms and Information Messages ...................................................................... 5-1
5-2. Troubleshooting with AirMux-200 LEDs ................................................................................ 5-6

Table of Contents
iv AirMux-200 Installation and Operation Manual

Overview 1-1
Chapter 1
Introduction
1.1 Overview
AirMux-200 is a carrier-class, high capacity, Point-to-Point broadband wireless
transmission system. AirMux-200 combines legacy TDM and Ethernet services over
5.725–5.850 GHz license-exempt bands and is suitable for deployment in FCC, ESTI,
or CAN regulated countries. The system provides up to 48 Mbps wireless link and
supports ranges of up to 80 km (50 miles).
Application
Figure 1-1 illustrates a typical point-to-point application of two AirMux-200 units.
Site A Site B
LAN LAN
10/100BaseT 10/100 BaseT
AirMux-200
Up to 41 km (25.5 miles)
AirMux-200
PBX PBX
E1/T1
E1/T1 E1/T1
E1/T1
Figure 1-1. Typical Application
Features
Wireless Link
AirMux-200 delivers up to 48 Mbps data rate for Ethernet and E1/T1 traffic. The
system supports ISM frequency bands and can be configured to operate over
several frequency channels with a carrier step resolution of 5 MHz.
AirMux-200 operation complies with the FCC 47CFR Part 15 and subpart C
requirements.
AirMux-200 employs Time Division Duplex (TDD) transmission. This technology
simplifies the installation and configuration procedure. There is no need to plan
and to allocate separate channels for the uplink and downlink data streams.
Operation over 5.725–5.850 GHz bands is not affected by harsh weather
conditions, such as fog, heavy rain etc.

Chapter 1 Introduction AirMux-200 Installation and Operation Manual
1-2 Overview
Table 1-1 explains the possible combinations of AirMux-200 and gives typical
ranges according to supported data rates.
Table 1-1. AirMux-200 Throughput
Air-Interface
Rate
[Mbps]
Throughput
full duplex
[Mbps]
Throughput left for Ethernet
when using TDM Service
[Mbps]
Max.
[km]
Range
[miles]
1×E1 2×E1 1×T1 2×T1
12 4.2 2.0 N/A 2.5 0.88 41 25.5
18 6.5 4.4 2.3 4.8 3.2 25 15.5
36 13.6 11.5 9.3 11.9 10.2 10 6.0
48 18.3 16.2 14.0 16.6 14.9 4 2.5
Throughput may decrease by up to 10% as a function of range, due to propagation
delay.
LAN Interface
The AirMux-200 LAN port provides 10/100BaseT interfaces with autonegotiation
and transparent VLAN support. Traffic handling is provided by a MAC-level
self-learning bridge.
TDM Interface
The AirMux-200 TDM interface accepts E1 or T1 traffic, supporting the following:
• Unframed operation (E1 and T1)
• AMI and B8ZS zero suppression (T1).
Management
AirMux-200 has full local and remote management capabilities. The user-friendly
SNMP-based management tool provides full end-to-end configuration, event log
and performance monitoring capabilities.
Diagnostics and Performance Monitoring
AirMux-200 supports activating local and remote loopbacks on E1/T1 links.
AirMux-200 constantly monitors the data transmission process, evaluates received
signal strength, and signal quality. It also monitors received traffic and frame rate
(FPS) for local and remote units.
Optional External Antenna
An optional flat panel 28 dBi external antenna increases the operation range of
AirMux-200 up to 80 km (50 miles).
Note
