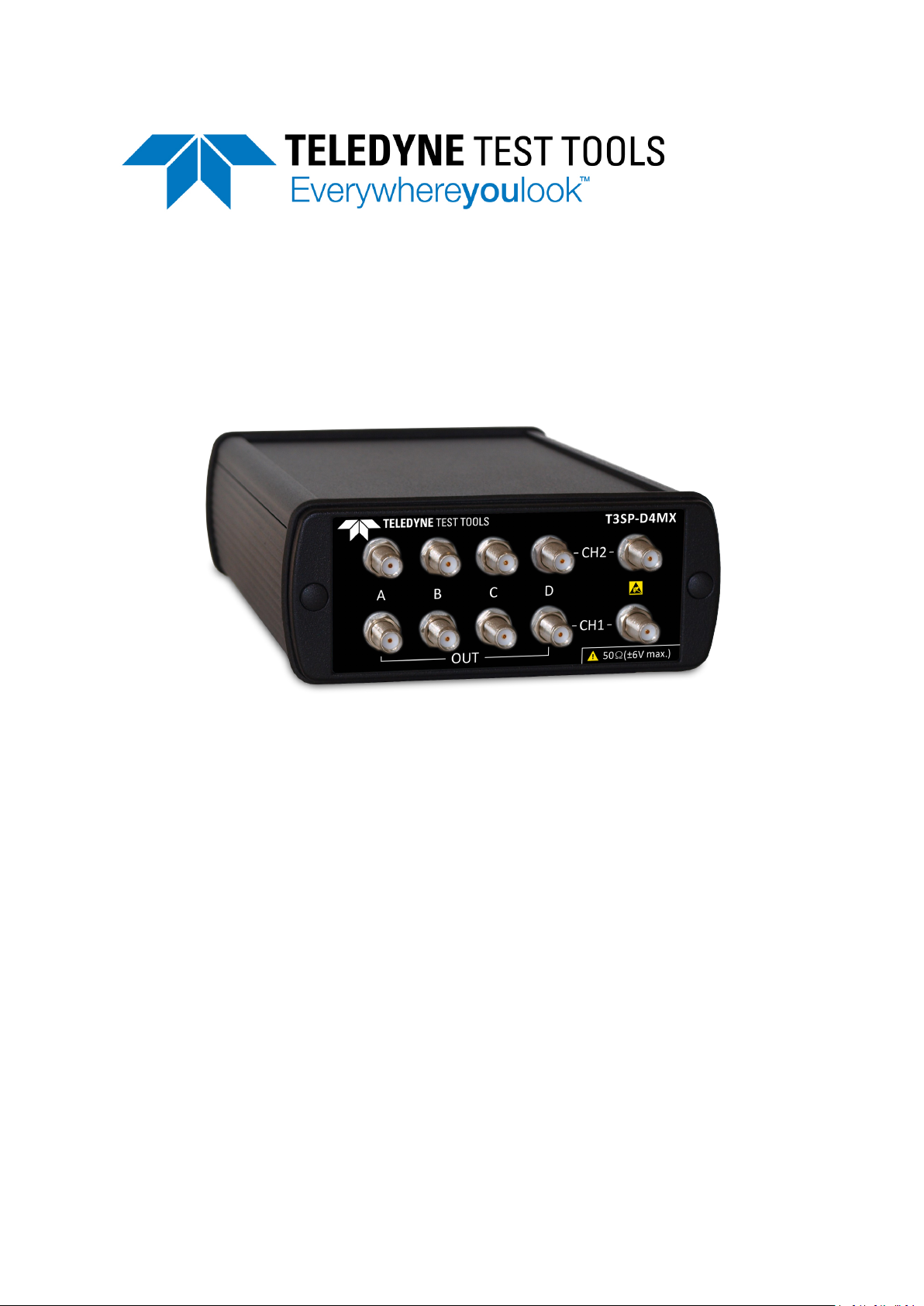

Teledyne Everywhereyoulook T3SP-D4MX User manual

Operator’s Manual
RF-Mulplexer T3SP-D4MX

T3SP-D4MX Operator’s Manual
© 2021 Teledyne Test Tools is a brand and trademark of Teledyne LeCroy Inc.
All rights reserved. Specicaons, prices, availability and delivery subject to
change without noce. Product brand or brand names are trademarks or
requested trademarks of their respecve holders.
T3 stands for Teledyne Test Tools.
2
933407 Rev1

T3SP-D4MX Operator’s Manual
Contents
1 General Information about the T3SP-D4MX 5
2 Technical Specications 6
2.1 KeyFeatures .......................... 6
2.2 Electrical Specicaons . . . . . . . . . . . . . . . . . . . . 7
2.3 Mechanical Specicaons . . . . . . . . . . . . . . . . . . . 8
3 Programming 9
3.1 USB Interface Descripon . . . . . . . . . . . . . . . . . . . 9
3.2 Programming Examples . . . . . . . . . . . . . . . . . . . . 10
3.2.1 C/C++-Code....................... 10
3.2.2 C#-Code ........................ 12
3.2.3 Python ......................... 14
3.2.4 LabVIEW ........................ 16
3.2.5 Matlab ......................... 18
4 Safety Instructions 21
4.1 Operang Environment . . . . . . . . . . . . . . . . . . . . 21
4.2 Power.............................. 21
4.3 Safety Symbols & Terms . . . . . . . . . . . . . . . . . . . . 22
5 Maintenance 23
6 Certications 24
6.1 EMCCompliance........................ 24
6.1.1 EC DECLARATION OF CONFORMITY - EMC . . . . . . 24
6.1.2 AUSTRALIA & NEW ZEALAND DECLARATION OF CON-
FORMITY–EMC .................... 25
6.2 Safety Compliance . . . . . . . . . . . . . . . . . . . . . . . 26
6.2.1 EC DECLARATION OF CONFORMITY – LOW VOLTAGE 26
3
933407 Rev1

T3SP-D4MX Operator’s Manual
6.3 Environmental Compliance . . . . . . . . . . . . . . . . . . 27
6.3.1 END-OF-LIFE HANDLING . . . . . . . . . . . . . . . . 27
6.3.2 RESTRICTION OF HAZARDOUS SUBSTANCES (RoHS) . 27
4
933407 Rev1

T3SP-D4MX Operator’s Manual
1. General Informaon about the T3SP-D4MX
Please read this operaon manual carefully before commissioning the T3SP-
D4MX , to avoid incorrect operaon of the instrument.
The T3SP-D4MX mulplexer unit can be used in applicaons requiring a high
frequency (RF) bandwidth in combinaon with pair-wise phase-matched sig-
nal paths. The mulplexer was developed for test & measurement envi-
ronments as well as for industrial applicaons, by using RF micro-electro-
mechanical-systems switches (MEMS).
A high level of protecon against electromagnec discharge (ESD) is given
by internal protecon diodes.
A main advantage of using MEMS technology is a very long lifeme, which
goes hand in hand with a high number of cycle mes (up to 1 billion). The
device typically is used in mul signal path tesng applicaons (e.g. cable
tesng). It can be programmed either by a stand-alone applicaons or inte-
grated into automated test environments.
Teledyne Test Tools oers TDR systems for measuring impedance proles
and S-parameters. The Teledyne T3SP-10D/15D series is operated by us-
ing the universal instrumentaon soware Seunis that provides control of
the T3SP-D4MX as well as calibraon (open, short, load, thru) and/or de-
embedding of the mulplexer unit.
5
933407 Rev1

T3SP-D4MX Operator’s Manual
2. Technical Specicaons
2.1 Key Features
•Double pole 4 throw (DP4T) switch with addional OFF state
•RF bandwidth up to 10GHz (3dB bandwidth: 8GHz)
•Phase-matched dierenal signal paths (typ. <5ps skew)
•Up to 1 billion switching cycles (cold) / 500 million (hot, 10dBm@50 Ω)
•Starts in not connected state
•Internal ESD protecon
•SMA connectors
•Controlled and powered via USB

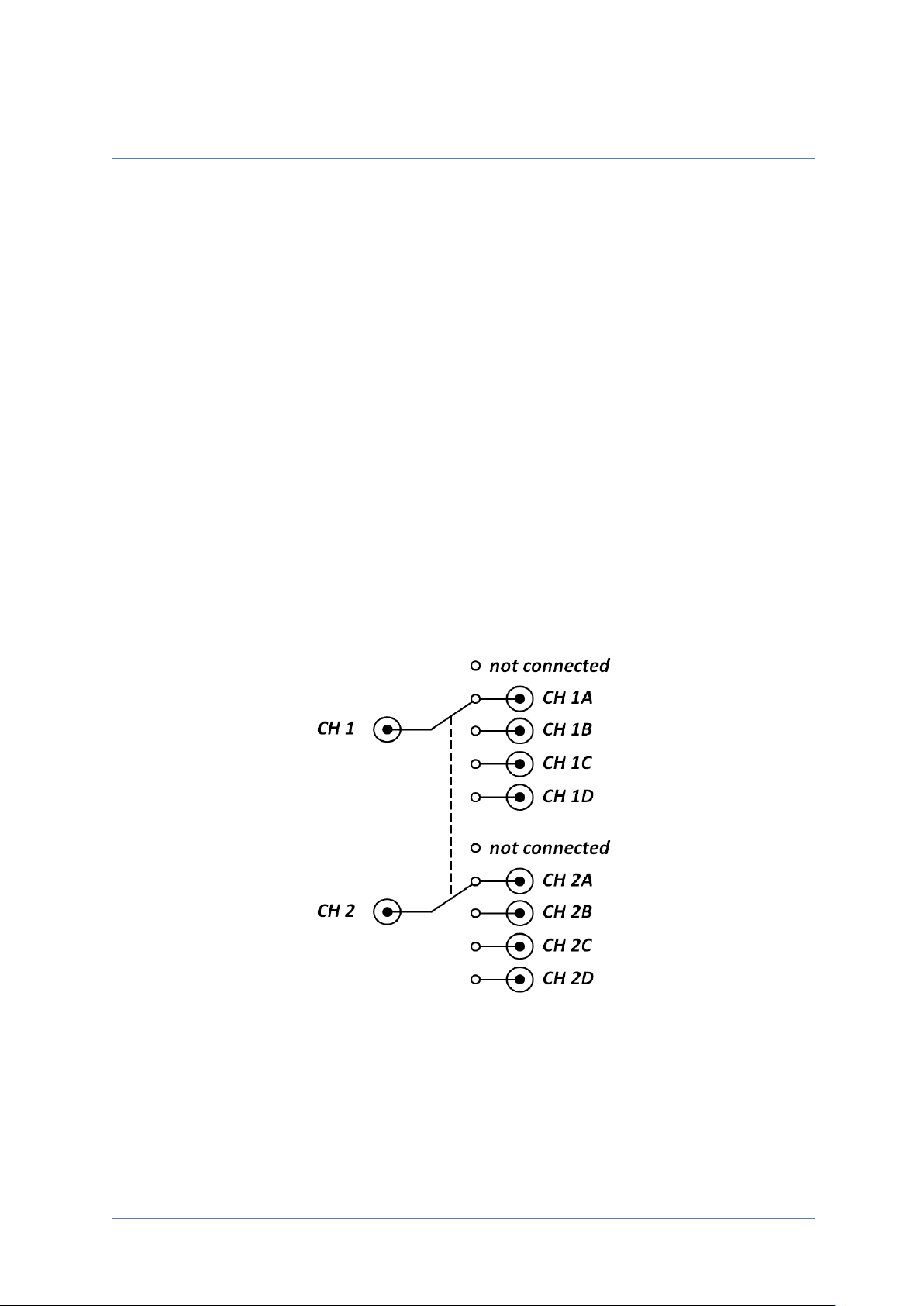

Figure 1: Simplied funconal diagram showing input ports CH1 and CH2 to
the le and the blocks of four output ports for each input port.
Alternavely, the input can be set to an unconnected state.
6
933407 Rev1

T3SP-D4MX Operator’s Manual
2.2 Electrical Specications
General Characteriscs
Parameter Value Remark/Condion
Operang frequency 0 - 10 GHz 3 dB bandwidth: 8 GHz
RF max. power rangs 30 dBm 50 Ωload
24 dBm open
RF input voltage range ±6 V DC
RF input current range ±200 mA DC
Contact resistance (ON) 3.5 Ωmax.
1.8 Ωtyp.
Contact resistance (OFF) >1 GΩ@±6 V
Switching me <100µs without soware latency
<10 ms with soware latency
Power supply voltage 5 V via USB
Power supply current <12 mA
Electrostac discharge 5 kV∗RFin, RFout
Switch life me+109cold switching
500·106hot switching, 10dBm@50 Ω
∗Human body model (HBM)
+Cauon: hot switching reduces switch life me
RF Characteriscs (single-ended)
Parameter min. typ. max. Frequency
Inseron loss < 0.4 dB 0.5 dB DC – 0.3 GHz
< 1.0 dB 1.2 dB 0.3 GHz – 2 GHz
< 3.0 dB 3.5 dB 2 GHz – 8 GHz
< 5.0 dB 6.0 dB 8 GHz – 10 GHz
Return loss (CH1,2 input) 20 dB > 25 dB DC – 0.3 GHz
16 dB > 18 dB 0.3 GHz – 2 GHz
13 dB > 15 dB 2 GHz – 8 GHz
8 dB > 10 dB 8 GHz – 10 GHz
Isolaon between contacts 40 dB > 45 dB DC – 0.3 GHz
of same channel 30 dB > 32 dB 0.3 GHz – 2 GHz
25 dB > 27 dB 2 GHz – 10 GHz
RF Characteriscs (dierenal, between same paths of CH1 & CH2)
Parameter min. typ. max. Frequency
Isolaon between CH1 & CH2 55 dB >60 dB DC – 10 GHz
Group delay deviaon between CH1 & CH2 ±5 ps ±10 ps DC – 10 GHz
7
933407 Rev1

T3SP-D4MX Operator’s Manual
2.3 Mechanical Specications
•SMA in-/output connectors
•USB mini-B connector (programming & power)
•Ground jack (4mm)
•Dimensions: 49x108x180mm3(with connectors & feet)
Dimensions: 42x108x165mm3(without connectors & feet)

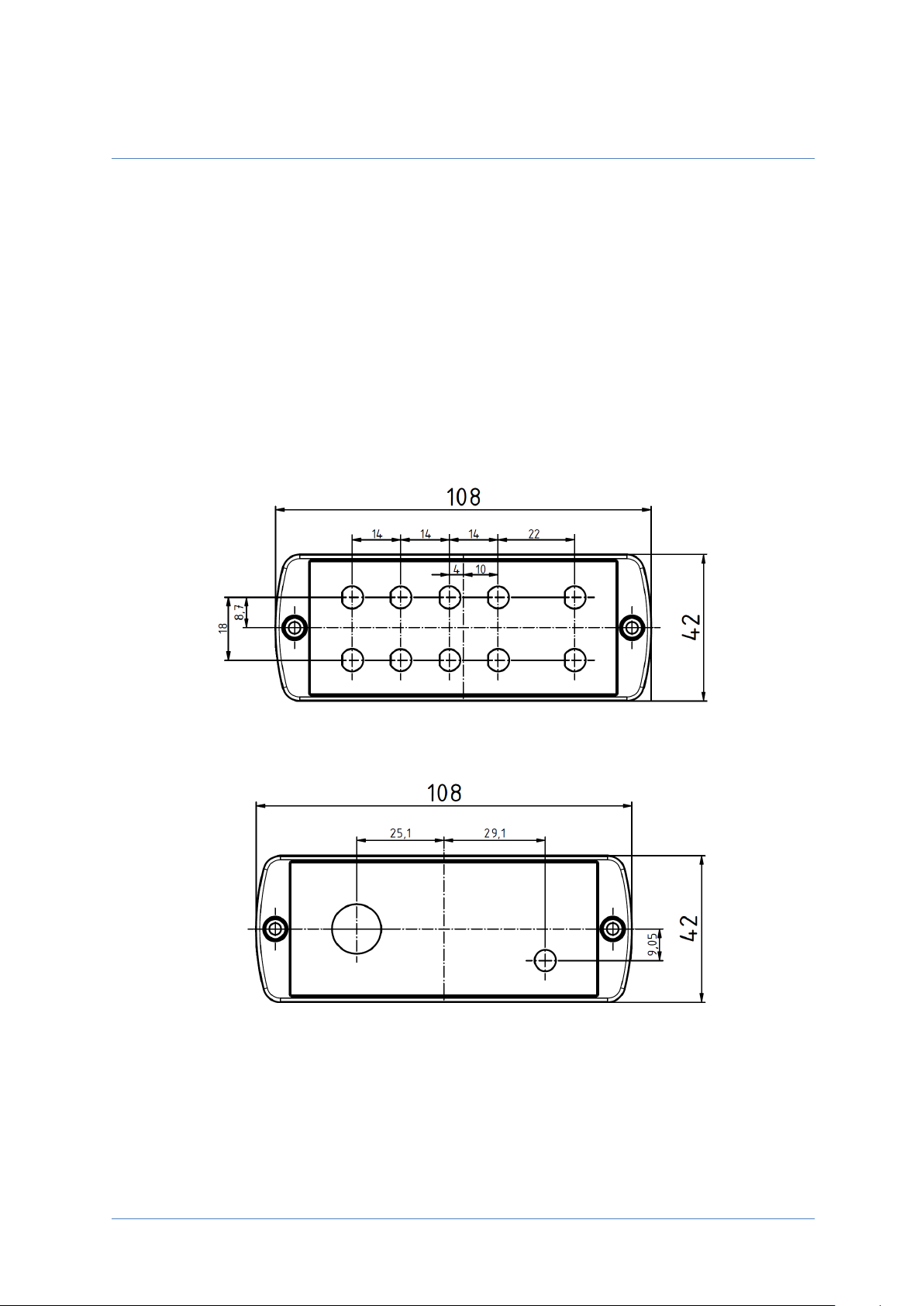

Figure 2: Front panel dimensions
Figure 3: Rear panel dimensions
8
933407 Rev1

T3SP-D4MX Operator’s Manual
3. Programming
To have a quick access to the T3SP-D4MX and to be able to perform tests, the
Windows applicaon WinD4MX.exe can be downloaded from the Teledyne
LeCroy website. The program does not need to be installed and does not
require any addional driver components.

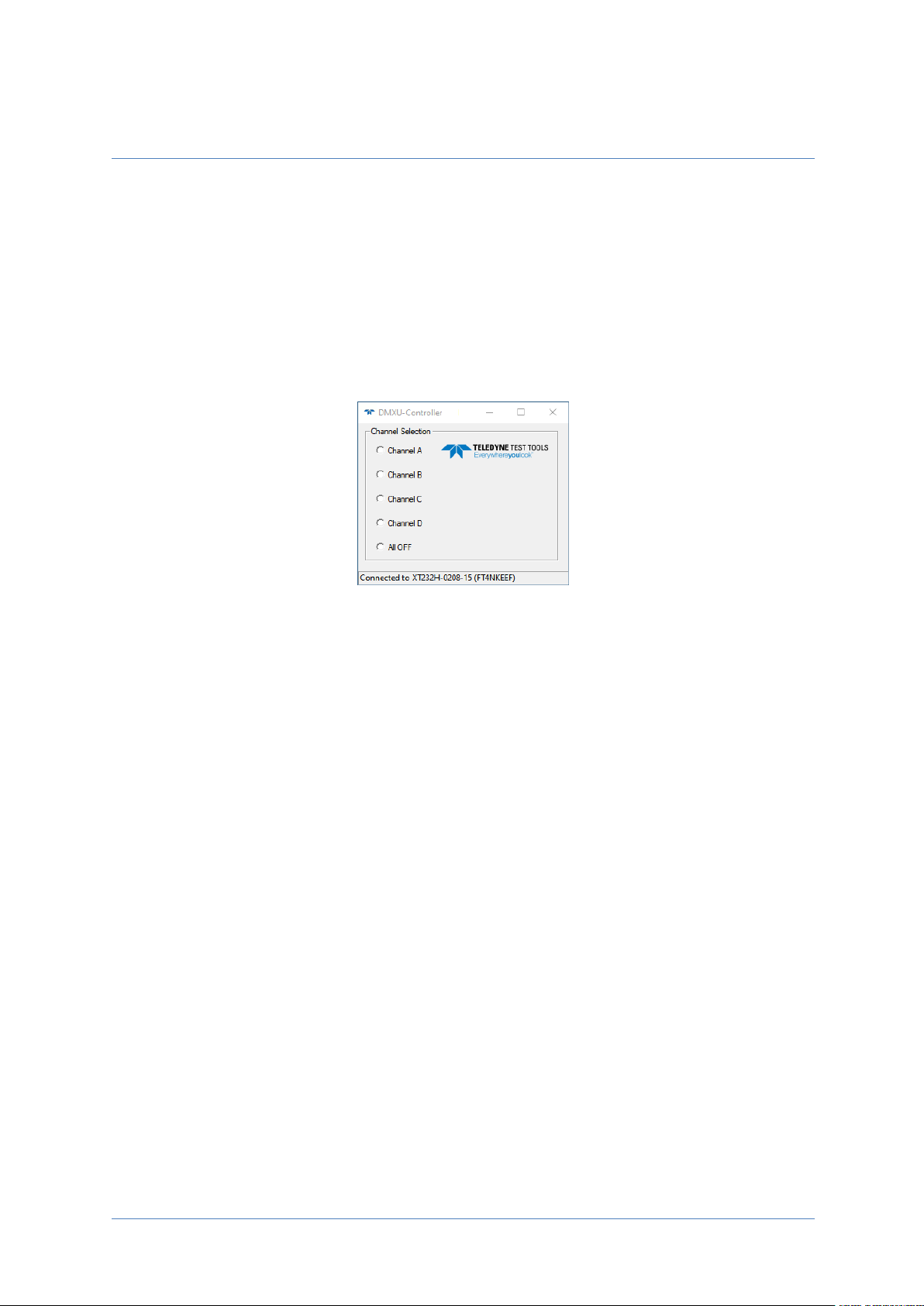

Figure 4: Control applicaon WinD4MX.exe
To integrate the device into your own soware environment for remote con-
trol, please read the following secons.
3.1 USB Interface Description
The T3SP-D4MX is controlled via a USB 2.0 interface based on a communica-
on chip from Future Technology Devices Internaonal Limited (FTDI). Win-
dows operang systems usually have the required D2XX-driver for this chip
family pre-installed. If this is exceponally not the case, the corresponding
driver can be downloaded from the FDTI driver download page.
The device is not controlled via a virtual comport protocol, therefore it is
necessary to control it via the cDMXU.dll 32-bit shared library shipped
with the device. In order to simplify the device connecon, some program-
ming examples are listed in the following secon. In case a 64-bit shared
library is required, please contact our Teledyne LeCroy support.
Please use only the supplied USB cable to avoid transmission errors.
9
933407 Rev1

T3SP-D4MX Operator’s Manual
3.2 Programming Examples
3.2.1 C/C++-Code
The T3SP-D4MX control library cDMXU.dll is wrien in C++. All funcon
declaraons / signatures can be found in the corresponding header le:
All funcons return a posive value on success and -1 on error. For more
detailed informaon on the individual funcons, please refer to the C source
code below:
int cDMXU_Init(char* id);
int cDMXU_IsInitialized(void);
int cDMXU_SetChannel(int channel);
int cDMXU_GetChannel(void);
int cDMXU_GetSerialNumber(void);
int cDMXU_GetNumberOfChannels(void);
int cDMXU_Release(void);
The following is a simple main program that calls all funcons as an example:
// make sure cDMXU.lib is added to linker dependencies
#include <stdio.h> // include header file
#include "cDMXU.h" // include T3SP-D4MX header
// macro for checking on errors
#define CHK_ERROR(e,m) {if (e<0) {printf(m); return e; } }
int main(void)
{
int no_of_channels = -1; // number of channels of multiplexer
int channel = -1; // channel variable
int serno = -1; // serial number (50001 --> 05.0001)
// initialize library (id string not required yet)
if (cDMXU_Init(NULL) != 0)
CHK_ERROR(-1, "Initialization failed");
10
