AIRAVE 4 LTE Installation Guide
DUG01508-SP Airspan Commercial and Internal Use 2
Document Information
Abstract
This document details a description of the installation of the Sprint AIRAVE 4 LTE (AV 100C) unit.
Revision History
Revision Details
Date
Summary of Changes
0.1
October 2018
Initial draft document
Picture
Troubleshooting
FCC & UL Statements
A
January 2019
Comments
Publish

AIRAVE 4 LTE Installation Guide
DUG01508-SP Airspan Commercial and Internal Use 3
About This Document
Purpose
This Installation Guide is intended as an instructional manual to provide step-by-step instructions for
the installation of the Sprint AIRAVE 4 LTE (AV-100C).
Intended Audience
This guide is intended for persons who are installing the Sprint AIRAVE 4 LTE (AV-100C) unit.

AIRAVE 4 LTE Installation Guide
DUG01508-SP Airspan Commercial and Internal Use 4
Customer Care Help Desk
Airspan’s Customer Care Help Desk offers prompt and efficient customer support services.
Note: To avail Airspan’s Customer Care Help Desk support, you must be a registered user and
must have a valid support contract. To register, click here and fill the Registration form.
To create and update issue logs, send e-mails to Customer Care Help Desk. Once you submit your
issue, the system generates a new issue and sends an issue number for your reference. The system
uses this issue number to categorize and store e-mails under the appropriate issue.
To help Customer Care Help Desk identify your issue, include the issue number and your Customer
Care Helpdesk account details in all further communications.
Main Operations
Airspan Communications Ltd.
Capital Point
33 Bath Road
Slough, Berkshire
SL1 3UF, United Kingdom
Tel: [phone]
Worldwide Headquarters
Airspan Networks Inc.
777, Yamato Road, Suite 105
Boca Raton, FL 3341-4408, USA
Tel: [phone]
Airspan Encourages Comments
Airspan welcomes any feedback and suggestions that help to improve the quality of the
documentation. Send your feedback to [e-mail].

AIRAVE 4 LTE Installation Guide
DUG01508-SP Airspan Commercial and Internal Use 5
1 Overview
This installation guide is intended to explain how to install the Sprint AIRAVE 4 LTE.

AIRAVE 4 LTE Installation Guide
DUG01508-SP Airspan Commercial and Internal Use 6
2 AIRAVE 4 LTE Setup
This section provides a description of how to setup your new AIRAVE 4 LTE, including:
Carefully remove the Sprint AIRAVE 4 LTE from the packaging
Carefully remove the Power Supply Unit (PSU) from the packaging
Connect the Cables
Connect PSU into the Sprint AIRAVE 4 LTE
Plug the PSU into the wall outlet
Follow these step-by-step instructions to connect the Sprint AIRAVE 4 LTE to the Sprint Magic Box
Voice Amp.
1. Carefully remove the AIRAVE 4 LTE from its packaging.
Figure 1: Sprint AIRAVE 4 LTE - front
2. Carefully remove the Power Supply Unit (PSU) from its packaging and place aside.
3. Turn the unit to expose the back of the unit as shown below.

AIRAVE 4 LTE Installation Guide
DUG01508-SP Airspan Commercial and Internal Use 7
Figure 2: Sprint AIRAVE 4 LTE Back
4. Connect one end of the Ethernet cable to an available LAN port on your
broadband connection modem, or to a LAN port on your network. If on network:
Open UDP ports 53, 67, 500 and 4500 bi-directionally
Contact your IT administratorfor assistance
5. Place the other end of the Ethernet cable in the Airave 4 Ethernet port.
Figure 3: Sprint AIRAVE 4 LTE ETH port
6. Connect the external GPS antenna to the GPS connection, under the cap.

AIRAVE 4 LTE Installation Guide
DUG01508-SP Airspan Commercial and Internal Use 8
Figure 4: External GPS Connection

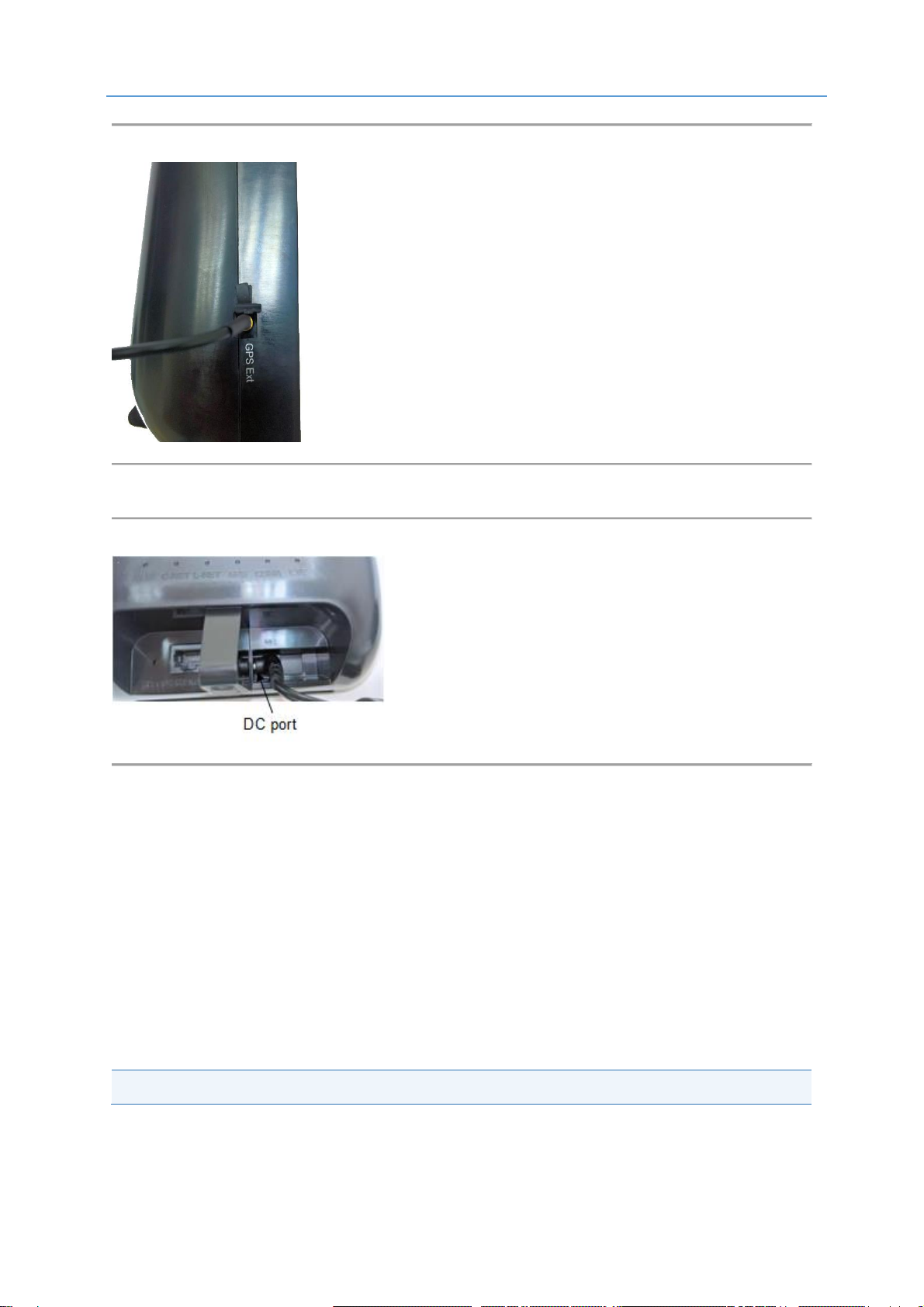

7. Plug the power supply cable into the DC port on the back.
Figure 5: AIRAVE 4 LTE DC Port Cable Connected
8. Place the GPS antenna base on a flat surface next to a closed window.
9. Plug the other end of the Sprint AIRAVE 4 LTE power supply cable into an available
electrical outlet. (Sprint recommends a surge protected outlet)
2.1Positioning the AIRAVE 4 LTE
Place the unit:
In an elevatedlocation, such as the top of a shelf or tall cabinet
Within 10 to 20 feet of a clear view of the sky
Within reach of your broadband modem or router
Within reach of an electrical outlet
Turn the unit so the front faces into the room and carefully move all cables.
Note: There is room for the cables to come from the sides of the unit once it is facing forward.

AIRAVE 4 LTE Installation Guide
DUG01508-SP Airspan Commercial and Internal Use 9
3 Troubleshooting - Sprint AIRAVE 4 LTE
There is a Reset button located on the back to the left side of the Ethernet port.
Note: To prevent it being pressed accidentally the Reset button is accessible only by a pin or
similar thin object.
A short press (less than 9 seconds) will initiate a reset of the unit
A long press (more than 10 seconds) will reset the unit to its factory default
Table 1: LED Display
LED
Color & Pattern
Description
User Action
WAN
Solid Green
WAN port is connected to peer and
has obtained an IP addresses over the
local network.
None
Blinking Green
Acquiring IP Address. (DHCP process)
Wait
Solid Red
Port is not connected or switch failure.
Connect Ethernet
Cable.
If continues –
Contact Sprint
Blinking Red
The device is initializing
Wait
Off
SW Loading
C-NET
Solid Green
CDMA IPSec Tunnel established
None
Solid Red
CDMA IPSec Tunnel is down.
Contact Sprint
Blinking Red
CDMA IPsec establishing
Wait
Off
SW Loading
L-NET
Solid Green
LTE IPSec Tunnel established
None
Solid Red
IPSec tunnels is down or has not
established a connection. (More than
15 minutes)
Contact Sprint
Blinking Red
IPSec tunnel is establishing a
connection. Blinks as long as tunnel
still establishing.
Tunnel have gone down for less than
15 minutes.
Wait
Off
SW Loading
GPS
Solid Green
GPS device has acquired a lock and is
ready.
None
Solid Red
GPS error. GPS has not achieve fix
since Boot up (30 minutes or more)
Verify external
antenna is
connected and
located outside.

AIRAVE 4 LTE Installation Guide
DUG01508-SP Airspan Commercial and Internal Use 10
LED
Color & Pattern
Description
User Action
If continues –
Contact Sprint
Blinking Red
GPS is acquiring a lock
Wait
Off
SW is loading
CDMA
Solid Green
Voice service is up.
None
Solid Red
Voice service error. Voice service has
been down for 30 minutes.
Contact Sprint
Blinking Red
Voice service is coming up, or voice
service is down for 15 minutes.
Off
Voice service disabled by the operator.
Contact Sprint
LTE
Solid Green
LTE service is up.
None
Solid Red
LTE service error
Contact Sprint
Blinking Red
LTE service initializing
Wait
Off
LTE service sector turned off. (admin
down)
Contact Sprint

AIRAVE 4 LTE Installation Guide
DUG01508-SP Airspan Commercial and Internal Use 11
4 FCC Statement
Federal Communications Commission (FCC) Interference Statement (Part 15.105(b))
This equipment hasbeen testedand found to comply with thelimitsfor a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver.
Connect the equipmentinto anoutlet on acircuit different from that to which the receiveris connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Compliance Statement (Part 15.19)
This device complies with Part15 of the FCC Rules. Operationissubject tothefollowing two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
FCC Caution (Part 15.21)
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment.
FCC Radiation Exposure Statement (OET Bulletin 65)
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This device should be installed and operated at a minimum distance of 20cm between itself and your
body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.

AIRAVE 4 LTE Installation Guide
DUG01508-SP Airspan Commercial and Internal Use 12
5 UL Authorization Statement
NOTICE OF COMPLETION AND
AUTHORIZATION TO APPLY THE UL MARK
2018-09-11
MS. SHARON LIN
Hon Lin Technology Co Ltd
11th Fl 32 Jihu Rd Neihu District Taipei, 114, TW
Our Reference: File E199598, Vol. X2 Project Number: 4788649274
Your Reference: 1808T083
Project Scope: UL/CUL 60950-1 for 1) Femto Cell (Sprint Magic Box Voice Amp); 2) Femto Cell
(AIRAVE 4 LTE), Models 1) AVC; 2) AV100C (Report Reference Number: E199598-A172)
Dear MS. SHARON LIN:
Congratulations! UL's investigation of your product(s) has been completed under the above
Reference Number and the product was determined to comply with the applicable requirements. This
letter temporarily supplements the UL Follow-Up Services Procedure and serves as authorization to
apply the UL Mark at authorized factories under UL's Follow-Up Service Program. To provide your
manufacturer(s) with the intended authorization to use the UL Mark, you must send a copy of this
notice to each manufacturing location currently authorized under File E199598, Vol. X2.
Records in the Follow-Up Services Procedure covering the product are now being prepared and will
be sent in the near future. Until then, this letter authorizes application of the UL Mark for 90 days from
the date indicated above.
Additional requirements related to your responsibilities as the Applicant can be found in the document
“Applicant responsibilities related to Early Authorizations” that can be found at the following web-site:
http://www.ul.com/EAResponsibilities
Any information and documentation provided to you involving UL Mark services are provided on
behalf of
UL LLC (UL) or any authorized licensee of UL.
We are excited you are now able to apply the UL Mark to your products and appreciate your
business. Feel free to contact me or any of our Customer Service representatives if you have any
questions.
Very truly yours, Reviewed by:
Nate Hsu Bruce A. Mahrenholz Engineer Project Associate CPO Director
[e-mail] [e-mail]
4d6b2035-dc83-4c0d-89ae-80c4c31e9b66
This is an electronically generated letter. Signatures are not required for this document to be valid.
