Airspan UGD-D01035 iR460 User manual

iRelay 460 Equipment Installation Guide
Part Number: UGD-D01035
Revision: 1.0
Published: September 2015

© Copyright by Airspan Networks Inc., 2015. All rights reserved worldwide.
Legal Notices
The information contained within this document is proprietary and is subject to all relevant copyright, patent and other laws
protecting intellectual property, as well as any specific agreements protecting Airspan Networks Inc. rights in the aforesaid
information. Neither this document nor the information contained herein may be published, reproduced or disclosed to third
parties, in whole or in part, without the express, prior, written permission of Airspan Networks Inc. In addition, any use of this
document or the information contained herein for the purposes other than those for which it is disclosed is strictly forbidden.
Airspan Networks Inc. reserves the right, without prior notice or liability, to make changes in equipment design or specifications.
Information supplied by Airspan Networks Inc. is believed to be accurate and reliable. However, no responsibility is assumed by
Airspan Networks Inc. for the use thereof nor for the rights of third parties which may be effected in any way by the use of
thereof.
Any representation(s) in this document concerning performance of Airspan Networks Inc. product(s) are for informational
purposes only and are not warranties of future performance, either expressed or implied. Airspan Networks Inc. standard
limited warranty, stated in its sales contract or order confirmation form, is the only warranty offered by Airspan Networks Inc. in
relation thereto.
This document may contain flaws, omissions or typesetting errors; no warranty is granted nor liability assumed in relation
thereto unless specifically undertaken in Airspan Networks Inc. sales contract or order confirmation. Information contained
herein is periodically updated and changes will be incorporated into subsequent editions. If you have encountered an error,
please notify Airspan Networks Inc. All specifications are subject to change without prior notice.
Product performance figures quoted within this document are indicative and for information purposes only.
UK WEE Registration number: WEE/AB0207WZ

iRelay 460 Equipment Installation Guide
UGD-D01035 Airspan Commercial and Internal Use i
Table of Contents
Document Information.............................................................................1
Abstract.................................................................................................................. 1
Revision History ..................................................................................................... 1
About This Document .............................................................................2
Purpose.................................................................................................................. 2
Intended Audience ................................................................................................. 2
Document Conventions.......................................................................................... 2
Document Organization ......................................................................................... 3
Related Reading .................................................................................................... 3
Customer Service Help Desk..................................................................4
Airspan Encourages Comments ............................................................................ 4
1 Introduction .........................................................................................5
1.1 iR460 with Internal Steerable Antenna Assembly ........................................... 5
1.2 Installation Workflow ....................................................................................... 6
1.3 Installation Checklist........................................................................................ 7
1.4 Verify Site Requirements................................................................................. 7
Commissioning iR460 .................................................................................... 7 1.4.1
LOS Check..................................................................................................... 7 1.4.2
1.5 Verify Safety Requirements............................................................................. 7
Warning of Hazardous Voltages..................................................................... 7 1.5.1
Adhering to European Directive 1999/519/EC ................................................ 8 1.5.2
1.6 Verify Installation Requirements...................................................................... 8
Verify the Tools .............................................................................................. 8
1.6.1
Verify the Parts and Kits................................................................................. 8 1.6.2
Verify Components....................................................................................... 10 1.6.3
2 Installing iR460..................................................................................11
2.1 Unpacking and Examining iR460 .................................................................. 11
iR460 Weights and Dimensions.................................................................... 11 2.1.1
2.2 iR460 Assembly ............................................................................................ 12
2.3 Mounting the iR460 Panel Antenna Unit ....................................................... 13

iRelay 460 Equipment Installation Guide
UGD-D01035 Airspan Commercial and Internal Use ii
3 Connecting and Managing the Cables...............................................19
3.1 Fitting the Protection Earth Cable.................................................................. 19
3.2 Lightning Protection....................................................................................... 20
Surge Protection Specification ..................................................................... 22 3.2.1
3.3 Connecting PoE to iR460 .............................................................................. 23
RJ45 Pin Connections.................................................................................. 23 3.3.1
Weatherproofing the PoE Connectors .......................................................... 23 3.3.2
3.4 Mounting with AirHarmony 1000 ................................................................... 25
3.5 Mounting with AirHarmony 4000 ................................................................... 26
A Job Sheet..........................................................................................27
B Installation Checklist..........................................................................30
C Initial Site Survey ..............................................................................31
D RFI Checklist.....................................................................................33
E Standard Torque Values – Metric System .........................................35
F Abbreviations ....................................................................................37

iRelay 460 Equipment Installation Guide
UGD-D01035 Airspan Commercial and Internal Use ii
Figures
Figure 1: iR460.......................................................................................................................................5
Figure 2: iR460 Installation Workflow ....................................................................................................6

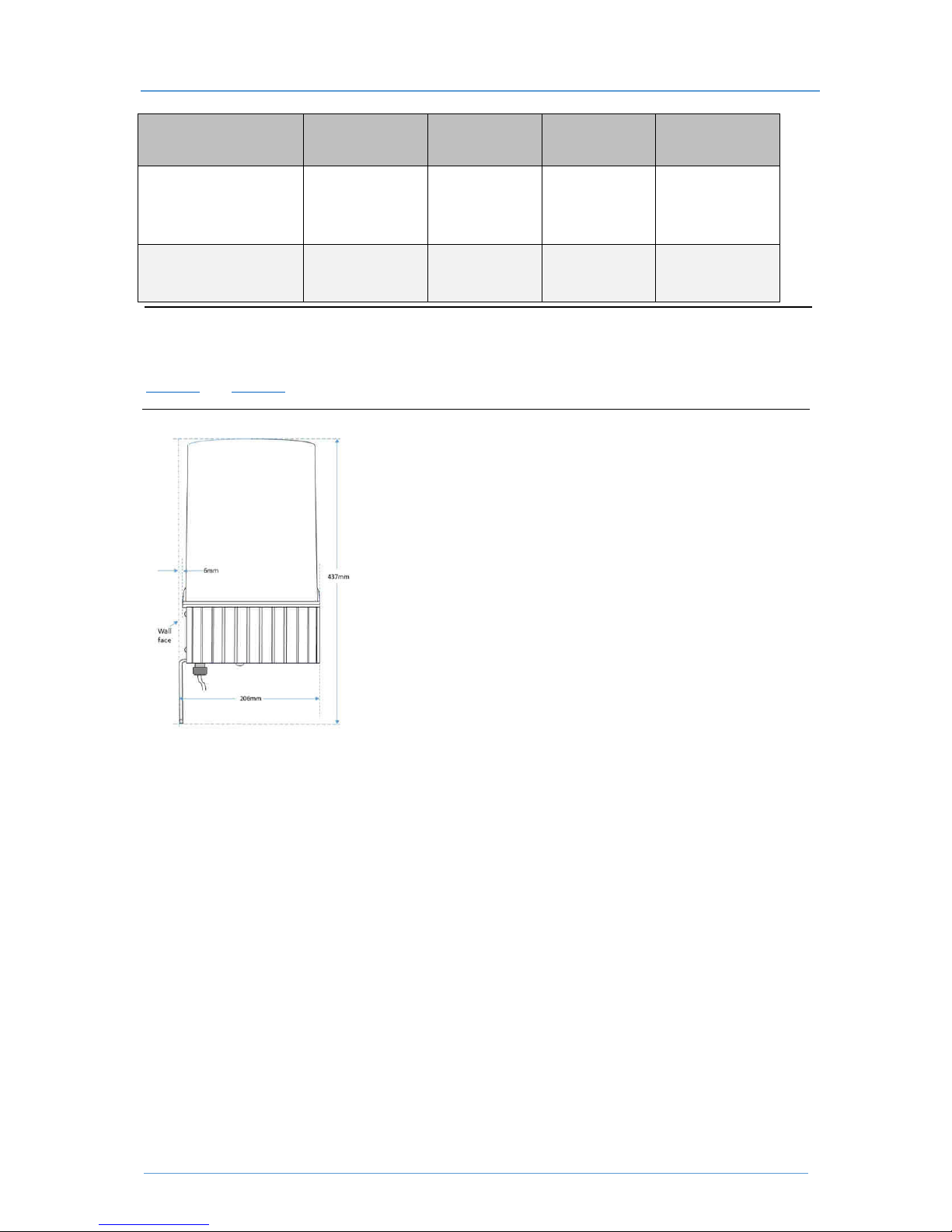

Figure 3: Product Dimension Envelope (Wall Mounted)......................................................................12
Figure 4: Product Dimension Envelope (Pole Mounted)......................................................................13
Figure 5: iR460 Mounting Kit Parts ......................................................................................................13
Figure 6: Mounting Bracket..................................................................................................................14
Figure 7: Sliding the Unit......................................................................................................................15
Figure 8: Sliding the Unit (Close-Up View) ..........................................................................................15
Figure 9: Securing the iR460 Unit........................................................................................................15
Figure 10: iR460 Mounting Plate .........................................................................................................16
Figure 11: Front View of the iR460 Mounting Plate ............................................................................16
Figure 12: Sliding the iR460 Unit .........................................................................................................16
Figure 13: Securing the iR460 Unit......................................................................................................17
Figure 14: iR460 Installed on a Large Pole..........................................................................................17
Figure 15: Attaching the Mounting Bracket..........................................................................................18
Figure 16: iR460 with Earthing Connection .........................................................................................19
Figure 17: Attaching the Earth Cable to the Pole ................................................................................19
Figure 18: Recommended Metal Combinations ..................................................................................20
Figure 19: iR460 with Internal POE and External Surge Protection and Grounding ...........................21
Figure 20: iR460 with External POE and Grounding ...........................................................................22
Figure 21: RJ45 Cable from PoE to the PoE Port of the Unit ..............................................................23
Figure 22: RJ45 Pin Connections ........................................................................................................23
Figure 23: Connecting the Protection Earth and Ethernet Cable.........................................................24
Figure 24: iR460 with Earth and Ethernet Cables installed .................................................................24
Figure 25: Securing the Cables ...........................................................................................................25
Figure 26: iR460 with AirHarmony 1000 on a Small Pole—Front View...............................................25
Figure 27. iR460 with AirHarmony 1000 on a Small Pole—Side View ................................................26
Figure 28. iR460 with AirHarmony 1000 on a Large Pole—Side View................................................26
Figure 29. iRelay with AirHarmony 4000..............................................................................................27
Figure 30: Standard Torque Values.....................................................................................................35
Tables
Table 1. Typographic Conventions.........................................................................................................2
Table 2. iR460 Panel Antenna Specification ..........................................................................................5
Table 3. iR460 Installation Tools ............................................................................................................8
Table 4. iR460 Installation Parts and Kits...............................................................................................8
Table 5. iR460 IRM Kit............................................................................................................................9
Table 6. iR460 Components .................................................................................................................10

iRelay 460 Equipment Installation Guide
UGD-D01035 Airspan Commercial and Internal Use iii
Table 10. Weights and Dimensions of Products and Brackets ............................................................11
Table 11. Weights and Dimensions of Brackets...................................................................................11
Table 7. Parts List.................................................................................................................................13
Table 8. Surge Protection Specification ...............................................................................................22
Table 9. Network Configuration Information .........................................................................................29

iRelay 460 Equipment Installation Guide
UGD-D01035 Airspan Commercial and Internal Use 1
Document Information
Abstract
This document details the procedures for installing the iRelay (iR460) equipment and includes
equipment installation best practices. Airspan assumes that the personnel performing these
instructions have a basic working knowledge of the equipment.
Revision History
Revision Details Date Summary of Changes
Preliminary information August 2015 Added Appendix (Paul Holmes)
Rev 1.0 September 2015 This guide is a new document that provides
instructions for installing iR460.

iRelay 460 Equipment Installation Guide
UGD-D01035 Airspan Commercial and Internal Use 2
About This Document
Purpose
This guide provides the workflow and step-by-step procedures for installing the iR460 equipment. It
includes the following procedures:
•Verifying prerequisites
•Installing the iR460 radio equipment
•Installing the PSU equipment
•Connecting and managing cables
Intended Audience
This guide is intended for the personnel who install the iR460 equipment. Airspan assumes that a
person performing these instructions is qualified in performing installations and capable of identifying
hazards.
Document Conventions
This document uses the following typographic conventions.
Table 1. Typographic Conventions
Convention Element
Blue underlined text Cross-reference links.
Bold text Keyboard buttons and GUI elements.
Command Command names or phrases.
Computer output Text displayed by the computer.
Hyperlinks Website and e-mail addresses.
Danger
Signifies a hazardous situation—if not avoided—will
cause death or serious injury. Describes how to avoid
it.
Warning
Signifies a hazardous situation—if not avoided—can
cause death or serious personal injury. Describes
how to avoid it.
Caution
Signifies a hazardous situation—if not avoided—can
void the product warranty, and cause property
damage. Describes how to avoid it.
Important Provides necessary information to explain a task.
Note Provides additional information.
Tip Provides helpful hints.

iRelay 460 Equipment Installation Guide
UGD-D01035 Airspan Commercial and Internal Use 3
Document Organization
Chapter Contents
1 Introduction Provides an overview of iR460.
2 Installing iR460 Describes how to install an iR460 unit.
3 Connecting and Managing Cables Provides instructions on how to connect and manage earthing,
lightning protector, and power drop cables.
A Job Sheet Provides information that aids users in performing the
installation.
B Installation Checklist Provides an overview of the high–level steps involved in the
installation process.
C Initial Site Survey Provides the list of requirements that helps you to make sure
that the site is ready for equipment installation.
D RFI Checklist Provides the list of requirements that helps you to prepare for
installing an iR460 unit.
E Standard Torque Values – Metric System Lists standard torque values.
F Torque Setting for Serratub Maxi Steel
Bands
Provides information on the recommended torque setting for
the Serratub Maxi steel bands.
G Abbreviations Lists the abbreviations (used in this document) and their
expansions.
Related Reading
The following document contains related information:
•iRelay 460 Product Specification
This product specification describes the design requirements and standards of iR460.

iRelay 460 Equipment Installation Guide
UGD-D01035 Airspan Commercial and Internal Use 4
Customer Service Help Desk
Airspan’s Customer Care Help Desk offers prompt and efficient customer support services.
Note: To avail Airspan’s Customer Care Help Desk support, you must be a registered user and
must have a valid support contract. To register, click here and fill the Registration form.
To create and update issue logs, send e-mails to Customer Care Help Desk. Once you submit your
issue, the system generates a new issue and sends an issue number for your reference. The system
uses this issue number to categorize and store e-mails under the appropriate issue.
To help Customer Care Help Desk identify your issue, include the issue number and your Customer
Care Helpdesk account details in all further communications.
Main Operations
Airspan Communications Ltd.
Capital Point
33 Bath Road
Slough, Berkshire
SL1 3UF, United Kingdom
Tel: [phone]
Worldwide Headquarters
Airspan Networks Inc.
777, Yamato Road, Suite 105
Boca Raton, FL 3341-4408, USA
Tel: [phone]
Airspan Encourages Comments
Airspan welcomes any feedback and suggestions that help to improve the quality of the
documentation. Send your feedback to documentf[email protected].

iRelay 460 Equipment Installation Guide
UGD-D01035 Airspan Commercial and Internal Use 5
1 Introduction
iRelay 460 (iR460) is part of iRelay —Airspan’s wireless backhaul family.
iR460 offers the following benefits:
•Provides PtP connectivity.
•Functions as the building blocks that provides fully secure and encrypted capabilities.
•Provides a trusted wireless backhaul solution that supports all capacity needs of Airspan’s
eNodeB.
•Provides high-speed data.
iR460 contains both radio and antenna as a single unit housed such that the antenna direction can be
rotated by software command and by automatic link acquisition software. The complete weatherproof
enclosure can be mounted on a wall, pole, or tower, and powered by an AC or a DC PoE device using
a CAT5e cable.
1.1 iR460 with Internal Steerable Antenna Assembly
This form factor is targeted for short or medium distance deployments where the feeder base is
located on pole mounts (typically, on a lamppost, towers or in a building location).
Figure 1: iR460
Table 2. iR460 Panel Antenna Specification
Item Specification
Frequency range LTE B41
Antenna 60°
EIRP 31 dBm (max)
Input power (typical) < 20 Watt @ Input to PoE
Dimensions (H x W x D) 330 x 200 x 200 mm (excluding cable glands and
mounting)
iR460 unit weight See Table 7
Radome UV protected polycarbonate
Operating temperature range -40°C to +65°C
Wind load 200 km/h (survival)

iRelay 460 Equipment Installation Guide
UGD-D01035 Airspan Commercial and Internal Use 6
Item Specification
Water proofing IP-67
1.2 Installation Workflow
Figure 2 shows the steps involved in the iR460 installation workflow.
Figure 2: iR460 Installation Workflow

iRelay 460 Equipment Installation Guide
UGD-D01035 Airspan Commercial and Internal Use 7
1.3 Installation Checklist
To plan the installation of the iR460 unit, use the installation checklist. See Appendix B.
1.4 Verify Site Requirements
Commissioning iR460 1.4.1
To change or check iR460 values, an Ethernet connection or Bluetooth is required to a laptop PC so
that the local web page can be accessed.
LOS Check 1.4.2
For best results it is important to have a clear LOS between iR460 and the DeNB.
To ensure a clear LOS, make sure the following requirements are met:
Note: Make sure to check whether there are any additional obstacles which were not detected
during last survey.
1.5 Verify Safety Requirements
Read and follow all warning notices and instructions marked on the product or included in this
manual.
When installed in the final configuration, the product must comply with the applicable safety standards
and regulatory requirements of the country in which it is installed. If necessary, consult with the
appropriate regulatory agencies and inspection authorities to ensure compliance.
Ascertain the radiation hazards and act accordingly when working in an environment close to other
antennas and electromagnetic fields—for example, working on towers with other Radio transmitters.
Warning of Hazardous Voltages 1.5.1
On AC installations, hazardous voltages exist. Use caution when verifying or working with the AC
power. Before working with the AC power, remove all metal jewellery and accessories (for example—
rings, watches, and other metal items). To avoid personal injury or damage to the equipment, do not
allow these metal items to come into contact with the AC power.
On DC sections, short circuiting the low voltage, low impedance circuits can cause arcing that might
result in burns or eye damage. To avoid shorting DC circuits, remove all metal jewellery and
accessories.
Important: Airspan products do not contain hazardous substances (as defined in UK Control of
Substances Hazardous to Health Regulations 1989 and the Dangerous Substances Regulations
1990). At the end of any Airspan products life cycle, the customer should consult with Airspan to
ensure that the product is disposed of in conformance with the relevant regulatory requirements.
Caution: Any modifications to this device not expressly authorized by the manufacturer can void
the users’ authority to operate this device.

iRelay 460 Equipment Installation Guide
UGD-D01035 Airspan Commercial and Internal Use 8
Adhering to European Directive 1999/519/EC 1.5.2
European Council Recommendation1999/519/EC details basic restrictions and reference levels on
human exposure to electromagnetic fields as advised by the ICNIRP. Adherence to these
recommended restrictions and reference levels should provide a high level of protection as regards
the established health effects that may result from exposure to electromagnetic fields.
1.6 Verify Installation Requirements
Verify the Tools 1.6.1
Table 3 lists the tools required for the installation.
Table 3. iR460 Installation Tools
Tool Quantity Purpose
Flat blade screwdriver 1 For pole straps (large poles)
Wrenches for M8 and M10 hex
head screws 1 For securing iR460 to the bracket and bracket to small
poles
Large pliers 1 For tightening the cable glands
Knife 1 For stripping the back insulation
Wire cutters 1 For cutting and trimming the electrical wires
Wire strippers 1 For cutting the insulation
Ring terminals crimp tool 1 For fitting the ring terminals (for example, on the ends of
the earthing cables)
RJ45 Crimp tool 1 For crimping the RJ45 connectors to the CAT5e cable
terminating ends
Laptop PC 1 For commissioning of units and alignment of the PtP links
Optional As
required
•Pen
•Labeling machine with weatherproof label
•Binoculars
Verify the Parts and Kits 1.6.2
Table 4 and Table 5 provide information on the entire set of installation parts and kits.
For information on the correct set of itinary for a use case (for example, an IB-POE-OD-0 is used for
an outdoor installation with an AC input), see the iRelay 460 Configuration Guide (Rev 1.0).
Table 4. iR460 Installation Parts and Kits
Product Part Code Item Description Quantity per
Install
iR460 unit IR460-xxxx-xxx-xx iR460, single Ethernet, PoE input 1
POE+ POE supported from AirHarmony*

iRelay 460 Equipment Installation Guide
UGD-D01035 Airspan Commercial and Internal Use 9
Product Part Code Item Description Quantity per
Install
Power Supply
IB-POE-ID-0 iR460 outdoor AC input POE*
IR460-POE-DC-OD-0 iR460 outdoor DC input POE*
Cables
IB-DCCABLE-0 Unterminated DC cable – As required for
installation
Xm
IB-ARM-SWACABLE-
P-0
Armored AC mains cable - As required
for installation
CBL-GND-1M-1 Grounding cable- As required for
installation Xm
IB-ETH-CAT5EUV-P-0 Shielded CAT5e UV resistant cable - As
required for installation Xm
Label CABLE-LABELS-0 Labels for cables - As required for
installation N
Pole mounting kit Mounting kit 1
IRM kit Not Supplied Suggested IRM kit (for more details, see
Table 5) 1
* Power can be supplied from AirHarmony or PoE devices.
The IRM kit lists the suggested consumable items required to complete a physical installation of each
iR460 unit.
Table 5. iR460 IRM Kit
Product Part Code Item Description Quantity per
Pack
RJ45 shielded
connector
IB-ETH-RJ45CON-P-
0
RJ45 shielded connector 2
Grounding lug CON-LUG-GND-1 Grounding lug one hole for 6AWG cable 1
Cable ties CABLE-TIES-1 Cable Ties - Black 10
CABLE-TIES-2 Cable Ties - White 50
PVC tape PVC-INS-TAPE-1 PVC Tape 4.5m, Black 19mm width, 2m 1
PVC-INS-TAPE-2 PVC Tape 4.5m, Green 19mm width, 2m 1
DC cable connector kit IB-DCCON-0 DC Cable Connector Kit 2
Nut IB-M6-NUT-0 Stainless steel M6 nut 5
Bolt IB-M6-BOLT-0 Stainless steel M6 bolt 5
Washer IB-M6-WSHR-0 Stainless steel M6 washer 5
DC cable fork lug IB-DCLUG-FRL-0 DC Cable Fork Lug 1
Self-amalgamating
tape
S-AMAL-WP-TAPE-1 Self-amalgamating waterproof tape - 1m 1

iRelay 460 Equipment Installation Guide
UGD-D01035 Airspan Commercial and Internal Use 10
Verify Components 1.6.3
Table 6 lists the iR460 components and accessory kits.
Table 6. iR460 Components
Component
Description
Illustration
iR460
Mounting
bracket
•PSU (DC
and AC)
•Surge
protector
•Waterproof
outdoor PSU
enclosure

iRelay 460 Equipment Installation Guide
UGD-D01035 Airspan Commercial and Internal Use 11
2 Installing iR460
This chapter describes how to install and perform the setup for the iR460 link.
It includes information on the following topics:
•Unpacking and Examining iR460
•Mounting the iR460 Panel Antenna Unit to a Pole
2.1 Unpacking and Examining iR460
Before you begin the iR460 install, examine the iR460 package contents carefully before making
arrangements for the professional services personnel to install the equipment. Unbox iR460 and
inspect it for any physical damage that might have occurred during transportation and storage.
Important: Any physical damage to the iR460 unit must be addressed before mounting the unit at
the site.
Verify that all other equipment including cables, tools, mounting brackets, and grounding systems are
in place for the installation.
iR460 Weights and Dimensions 2.1.1
Table 7 and Table 8 list the weights and dimensions of the product and brackets.
Table 7. Weights and Dimensions of Products and Brackets
Product and Brackets Height (inch / mm) Diameter (inch /
mm)
Weight (lbs / kg)
iRelay without brackets
13 inch / 330 mm 7.87 inch / 200 mm 9.85 lbs / 4470 g
iRelay together with a wall
bracket
17.20 inch / 437 mm 7.87 inch / 200 mm 10.80 lbs / 4900 g
iRelay together with a
small pole bracket
17.40 inch / 442 mm 7.87 inch / 200 mm 12.82 lbs / 5815 g
iRelay together with straps
and a 3.7 inch pole bracket
17.40 inch / 442 mm 7.87 inch / 200 mm 12.18 lbs / 5525 g
Note: The values listed in Table 7 do not include the weights and dimensions of the cables and
shroud.
Table 8. Weights and Dimensions of Brackets
Brackets Height (inch /
mm)
Width (inch /
mm)
Depth (inch /
mm)
Weight (kg /
lbs)
iRelay wall bracket 7.13 inch /
181 mm
3.15 inch /
80 mm
0.75 inch /
19 mm
0.95 lbs / 430 g
iRelay pole bracket front
and rear parts (for poles
up to 3.7 inch diameter)
4.17 inch /
106 mm
5.63 inch /
143 mm
1.50 inch /
38 mm
2.02 lbs / 915g

iRelay 460 Equipment Installation Guide
UGD-D01035 Airspan Commercial and Internal Use 12
Brackets Height (inch /
mm)
Width (inch /
mm)
Depth (inch /
mm)
Weight (kg /
lbs)
Pole bracket rear part
only
(for poles up to 3.7 inch
diameter)
1.50 inch /
38 mm
4.96 inch /
126 mm
0.98 inch /
25 mm
0.53 lbs / 240 g
iRelay pole bracket and
straps (for poles over
3.8 inch diameter)
4.17 inch /
106 mm
5.63 inch /
143 mm
1.50 inch /
38 mm
1.378 lbs / 625 g
2.2 iR460 Assembly
Figure 3 and Figure 4 show the gap required between iR460 and the mounting pole.
Figure 3: Product Dimension Envelope (Wall Mounted)

iRelay 460 Equipment Installation Guide
UGD-D01035 Airspan Commercial and Internal Use 13
Figure 4: Product Dimension Envelope (Pole Mounted)
2.3 Mounting the iR460 Panel Antenna Unit
When installing iR460 on a pole, mast, or lamppost, use the pole mount kit included with the iR460
unit.
Figure 5 shows iR460 mounting kit parts.
For a description of these parts, see Table 9.
Figure 5: iR460 Mounting Kit Parts
Table 9. Parts List
Item Quantity Description
1 2 Long bolts for connecting mounting
bracket front and back plates together
around the small pole

iRelay 460 Equipment Installation Guide
UGD-D01035 Airspan Commercial and Internal Use 14
Item Quantity Description
2 1 Mounting bracket back plate (part A)
3 1 Mounting bracket front plate (part B)
4 2 Short bolts for mounting iR460 to the
mounting bracket
The iR460 mounting kit that is designed to enable deployment on a wall or a pole contains:
•Wall mounting bracket and short bolts
•Pole mounting bracket part A and long bolts
•Pole mounting bracket part B and metal straps
2.3.1.1 Mounting iR460 to a Pole
When installing iR460 on a pole, mast, or lamppost, use the pole mount kit included with the iR460
unit. Carefully select the location on the pole allowing enough clearance to align the iR460 to the
desired direction.
The following are the two types of available pole mounting kits:
•Type A iR460 mounting kit for poles less than 3.75 inch diameter
•Type B iR460 mounting kit for poles less greater than 3.75 inch diameter
Both contain several parts that you can assemble prior to mounting on a pole. For more information
on how to mount Type A iR460 and Type B iR460, see Mounting Type A iR460 for Metal Poles Less
than 3.75 inch Diameter, Mounting Type B iR460 for Metal Poles Greater than 3.75 inch Diameter,
and Mounting Type B iR460 for Wood Poles Greater than 3.75 inch Diameter (TBC).
2.3.1.2 Mounting Type A iR460 for Metal Poles Less than 3.75 inch
Diameter
To install iR460 on small poles (that is, poles with diameter up to 3.75 inch), use all brackets parts
except the metal bands.
1. Insert both long bolts into the bracket part A; position on the pole, fit bracket Part B, fit the
washers (form A washer and rectangular lock washer), hand tighten the nut. Position the
bracket in the correct location on the pole before fully securing.
Torque =
Make sure to place part A behind the pole.
Figure 6: Mounting Bracket
2. Slide iR460 into the pole bracket front slot.
