AirStage AOUA36RLAVM User manual

WARNING: Do not attempt to install this equipment unless you’ve been properly trained.
• To obtain training, please contact your local Fujitsu Airstage Distributor.
• Use this Quick Installation Guide to install Airstage “J-II” Heat Pump Systems only. It does NOT replace the Installation Manual.
• Refer to the Installation Manual for complete installation requirements.
• When installing indoor units, always refer to the Installation Manual included with each indoor unit.
• All work must be performed by a qualified person certified under any local, regional, governmental or national regulations to
conduct refrigeration piping work and the handling of R-410a refrigerant.
• The manufacturer shall in no way be responsible for improper installation, start-up, maintenance or service, including failure to
follow all appropriate instructions within the Installation Manual.
• Do not power the indoor or outdoor units until all wiring, piping, evacuation and refrigerant charging work is completed.
• Carefully read the Installation Manual before commencing installation. Observe all local, state, province and or national codes.
•For Technical Support, please contact:
•Fujitsu Distributor Technical Service Advisor (TSA)
•Fujitsu Service Department [phone]
J-II Heat Pump
Quick Installation Guide
Outdoor Unit and Piping Installation
Refer to the Installation Manual for complete installation details.

Typical Installation Work Flow
Indoor unit installation
Outdoor unit installation
Refrigerant piping
Refrigerant piping pressure test
Condensate drain installation
Line voltage wiring
Transmission line wiring
Remote Controller mounting
System evacuation
Refrigerant charge adder
Pre-Start Checklist
Start-Up
IU Unit Connection Check
Test Run
Commissioning
Handover
Refer to the Installation Manual for complete installation details.

AOU36, 48, 60RLAVM Outdoor Unit(s)
208-230V/1 phase
50-130% Connected Capacity Indoor Unit(s)
208-230V/1 phase
Separation Tube Assemblies or Headers
Correctly sized line sets (both lines insulated separately)
Nitrogen & regulator capable of 600 PSIG
Vacuum pump and micron gauge
R-410a manifold gauges
Normal tools for installation
4
This “Quick Installation Guide” is not
intended to replace the Installation Manual
shipped with each piece of equipment.
Don’t take shortcuts and don’t follow any “Rule of Thumb”
Conform to all Local, State & Federal
codes during installation.
Don’t apply power to the equipment until
ready to start and test.
Adhere to all safety and installation warnings
within the Installation Manual for each unit.
2
J-II systems are CHARGED BY WEIGHING IN ADDITIONAL
REFRIGERANT ONLY. Do not charge by subcooling, superheat, by
pressures or any other alternative method.
Product Weight (LBS)
AOUA36RLAVM
260
AOUA48RLAVM
262
AOUA60RLAVM
269
Height 52 1/2”
Width 38 3/16”
Depth 14 9/16”
1 2
3
Refer to the Installation Manual for complete installation details.

5a
45
3 ton- 1 to 6 IU’s
4 ton- 1 to 8 IU’s
5 ton- 1 to 9 IU’s
18,000 to 46,800 BTUH
24,000 to 62,400 BTUH
30,000 to 78,000 BTUH
Indoor Unit Connected Capacity Range
Refer to the Installation Manual for complete installation details.

Cold climates:
OD unit must be installed at least 2”
above anticipated snow depth.
OD unit must not be installed directly on the
ground, as it may result in equipment failure.
OD unit must be installed level, +/- 3°
6b
66a
6c
Location consideration:
Refrigerant piping connections can be installed though
(4) different locations into the OD unit.
Refer to the Installation Manual for complete installation details.

Use of the Fujitsu “Design Simulator” software is
highly recommended for pipe selection.
Refrigerant piping may be manually selected
using these tables.
7c
7
Note Tables A, B and C
10a, Table A- OD unit to first Separation Tube
10b, Table B- Separation Tube to (optional) Header
10c, Table C- Separation Tube (or Header) to IU unit
7b
7a
Use of pipe sizes other than specified is not permitted.
Pipe length limitations must not be exceeded.
Refer to the Installation Manual for complete installation details.

Do not connect a Separation Tube downstream of a Header.
8
6b
8
9
2’ minimum between Separation Tubes or Header(s)
Refer to the Installation Manual for complete installation details.

Refer to the Installation Manual for complete installation details.
8
6b
10
10a

Refer to the Installation Manual for complete installation details.
8
6b
10c
12
11
10d

Refer to the Installation Manual for complete installation details.
8
12a
14
13
IMPORTANT! THE ONLY ACCEPTIBLE METHOD TO CHARGE THE J-II SYSTEM
IS BY WEIGHING IN THE ADDITIONAL REFRIGERANT!
CHARGE CALCULATION IS BASED UPON THE TOTAL LIQUID LINE LENGTH USED
R-410A ONLY! NO ALTERNATE REFRIGERANT USE IS PERMITTED!
ADD REFRIGERANT INTO LIQUIU LINE ONLY!
NOTE: OPEN SERIVCE VALVES ONLY AFTER WEIGHING IN ADDITIONAL REFRIGERANT
If power was turned ON to the indoor unit(s) at any time prior to evacuation,
the indoor unit electronic expansion valve (EEV) will close and inhibit system
evacuation. In order to reopen the IU unit EEV’s:
Turn power ON to outdoor unit and indoor units.
Press the "MODE/EXIT" button on the OD unit control board.
Use the “SELECT” button to scroll to function F3.
Press the "ENTER" button.
Use the “SELECT” button to scroll to item code "21"
Push and HOLD the "ENTER" button for about 5 seconds.
Turn power OFF to all units when "PoFF" is displayed.
Perform system evacuation.
You may also use these instructions to recover refrigerant if necessary.
For complete service instructions, please refer to the J-II “Service Manual”
available on the Fujitsu Portal.

MCA- Minimum Circuit Ampacity- For selecting wire gauge between circuit
breaker panel and outdoor unit.
Refer to the Installation Manual for complete installation details.
8
6b
15
16b
16a
16

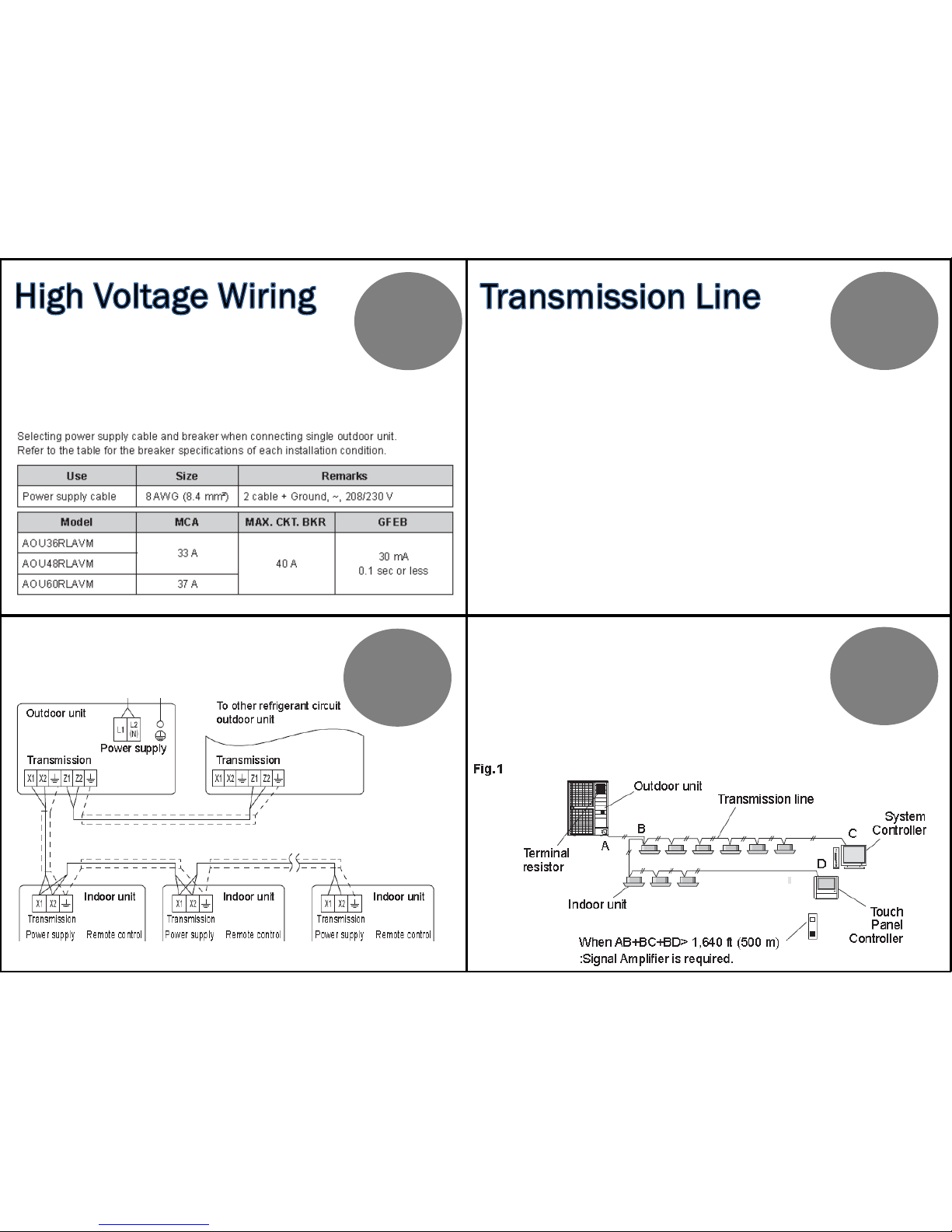

“TL” or “transmission line” wiring is referred to as the communication
cable between indoor and outdoor units.
TL wiring may be installed in either a parallel or series arrangement.
(Series shown for illustration.)
“Automatic” addressing require indoor units to be wired as shown below.
Refer to Section 6, “Wiring Rules” in the Installation Manual to ensure
maximum wire lengths are not exceeded.
Connect outdoor unit terminals Z1 and Z2 ONLY when more than one outdoor
unit is being connected to a communication network. (See QIG Step 16a)
Electrical wiring must conform to all Local, State, National or Provincial Codes.
GFEB- Ground Fault Equipment Breaker- When required by applicable Code. IMPORTANT! THE ONLY ACCEPTIBLE TRANSMISSION LINE CABLE IS HONEYWELL PART NUMBER
P/N 3254, CATALOG NUMBER K00250LW OR K00500LW. THE CABLE IS EASILY RECOGNIZED BY THE
PINK COLORED SHEATHING.
USE OF ANY ALTERNATE CABLE WILL RESULT IN A FORFEIT OF THE COMMISSIONING AND EXTENDED
WARRANTY.
“TL” or “transmission line” cable is connected between the indoor and
outdoor unit X1 and X2 terminal connections.
Cable ground wire MUST BE CONNECTED at each termination point.

Set the rotary switches in the OD to the desired address. You only need to
change the address if there is more then (1) refrigerant system in a
communications network.
Refer to the Installation Manual for complete installation details.
8
6b
17
19b
19
18
Indoor units physically piped together with the outdoor unit MUST HAVE
THE SAME REFRIGERANT ADDRESS.
BEFORE TURNNG ON POWER:
Check the resistance between X1 and X2 at the OU, and compare with the
resistance table below. IF THE RESISTANCE VALUE IS OUT OF RANGE, PLEASE
CONFIRM THE TERMINAL RESISTOR SETTING IN QIG STEP 19.
Please refer to the applicable indoor unit Installation Manual for rotary switch location and setting
details.
A “terminal resistor” is on board of every J-II OU.
REF AD MUST BE
BETWEEN A RANGE OF
00 –63.
ALL INDOOR UNITS ARE SHIPPED WITH A DEFAULT REF AD OF 00.
EXAMPLE REF AD OF 63 IS SHOWN.
DIP switch SET5-4 will enable or disable the onboard terminal resistor.
There must be (1) terminal resistor setting to ON for every network segment.
STAND ALONE J-II SYSTEMS- TURN DIP SWITCH SET 5-4 “ON”
POWER MUST REMAIN OFF WHEN SETTING ALL DIP AND ROTARY SWITCHES.
Refer to the Installation Manual for complete installation details.
PLEASE REFER TO THE INSTALLATION
MANUAL FOR COMPLETE TRANSMISSION
LINE WIRING DETAILS!

Refer to the Installation Manual for complete installation details.
8
6b
20
21b
21a
21
AFTER POWERING THE EQUIPMENT AND BEFORE THE SYSTEM IS OPERATED,
AN “INDOOR UNIT CONNECTION CHECK” MUST BE PERFORMED!
THIS CHECK IS PERFORMED AT THE OUTDOOR UNIT.
Please refer to the applicable indoor unit and Remote Control
Installation Manuals for complete details.
This is a summary of Remote controller wiring:
3 wire remote- Connect Y1, Y2 and Y3 as shown.
2 wire remotes (“T” series IU’s only)- Connect only Y1 and Y2 terminals
of the indoor unit to the 2 wire Remote control.
YOU ARE NOW READY TO APPLY POWER TO ALL INDOOR AND
OUTDOOR UNITS.
PLEASE VERIFY REQUIRED VOLTAGE AT THE IU AND OU DISCONNECT
BEFORE APPLYING POWER.
ALL AIRSTAGE IU’S REQUIRE 208/230 SINGLE PHASE POWER.
AFTER PRESSING “ENTER” FOR MORE THAN (3)
SECONDS, PROCEED TO QIG STEP 21b.
Continued from Step 21a.

Refer to the Installation Manual for complete installation details.
8
6b
21c
22a
22
21d
AFTER POWERING THE EQUIPMENT AND BEFORE THE SYSTEM IS OPERATED,
AN “INDOOR UNIT CONNECTION CHECK” MUST BE PERFORMED!
Function Codes are built in set up options within Airstage IU and OU’s.
Example:
U 8 indicates (8) indoor units are installed.
C 120 indicates the total BTUH capacity of the indoor units is 120% of the outdoor unit.
The maximum acceptable ratio is 130%.
Function Codes are also referred to as “Push Button Settings” in the J-II ODU Installation
Manual. Most function codes may be left in their default settings; used at the discretion of the
Installer, architect or engineer. However, regardless of installation, there is a function code
which must be confirmed prior to system operation. (See QIG Step 22a)
Function 00- This function will adjust the systems target pressures for heat and cool modes.
The value used is the linear piping length of the installer refrigerant piping (one way) between
the ODU and the NEAREST IDU. (Must be greater than 16’)
Note the default option value for Function 00 is “00”, where the distance between the ODU
and NEAREST IDU is between 131’ to 231’ (40 to 65m) IF THIS VALUE IS NOT CORRECT,
PLERASE SET THE OPTION VALUE TO REPRESENT THE ACTUAL, INSTALLED, ONE-WAY PIPE
LENGTH BETWEEN THE ODU AND NEAREST IDU.
POWER MUST REMAIN ON WHEN PERFORMING THIS TASK.
Continued from QIG Step 22a.
Please set the option value (00, 01, 02, 03) to represent the installed,
one-way refrigerant pipe length between the ODU and NEAREST IDU.

8
6b
23
24a
24
23a
ARUL18TLAV- Function code example to change ESP (External Static
Pressure) setting from 31 (.10” w.g. default) to option value 09 for .36” w.g.
In order to have the Fujitsu factory Extended Warranty of (10) years
for both parts and compressor, an approved “Commissioning” must
be performed within (120) days of start up.
Function Codes are built in set up options within Airstage IU and OU’s.
Many IDU function codes may be left in their default settings; used at the discretion of the
Installer, architect or engineer. However, function codes for each IDU vary and must be checked.
Please refer to the IDU and Remote Installation Manual for complete function code details.
Please refer to the “Commissioning Report” included with the J-II ODU. You may also download
the Commissioning Report at www.portal.fujitsugeneral.com (Account set up required for first
time users)
The Commissioning Report requires use of “Service Tool” and operation of the J-II system for (1)
hour in either HEAT or COOL mode of operation.
Collection of operating data for Commissioning must b with the system completely installed,
operational and error free.
See QIG Step 24a for a Commissioning Report example and support contacts.
THANK YOU FOR PUIRCHASING A FUJITSU J-II INVERTER SYSTEM!
For assistance completing the J-II “Commissioning Report”, please contact
Fujitsu General America at [phone] and follow the voice menu for
“Commissioning”
When complete, please email the Commissioning Report to:
[e-mail]

Warning
Always use a licensed, qualified installer or contractor to
install this product. Do not try to install the product yourself.
Improper installation can result in water or refrigerant
leakage, electrical shock, fire or explosion. Use only parts,
accessories and controls supplied or specified by Fujitsu. Ask
a licensed contractor to install all parts, accessories and
controls. Use of unauthorized or improper installation of
parts, accessories and controls can result in injury, major
equipment repairs or property damage. Read the owner's
operation manual carefully before using this product. The
owners operation manual provides important safety
instructions and warnings which should be followed closely.
For any questions or concerns, please contact Fujitsu General
America, Inc.
Trademarks
The Fujitsu logo is a registered trademark of Fujitsu Limited.
The Airstage logo and name is a trademark of Fujitsu General
America, Inc.
Copyright © 2016 Fujitsu General America, Inc.
Fujitsu’s products are subject to continuous improvements.
Fujitsu reserves the right to modify product design,
specifications and information in this brochure without notice
and without incurring any obligations.
Non-Internet Retail Policy
Internet sales are strictly prohibited and unauthorized. Any
Fujitsu HVAC systems or components purchased on the
Internet, from an online retailer or any similar e-tailing website,
OR where the original factory serial numbers of the display
have been removed, defaced, or replaced in any way
WILL NOT BE COVERED BY WARRANTY.
Fujitsu General America, Inc.
353 Route 46 West
Fairfield, NJ 07004
Toll Free: [phone]
Local: [phone]
Fax: [phone]
Email: [email protected]
www.fujitsugeneral.com
A subsidiary of
Fujitsu General Limited
