AIS IP17ID7T-M1-5RT User manual

American Industrial Systems – IP65 All-In-One Fan-less Panel PC User Guide Page 1
Table of Contents
1. Introduction------------------------------------------------------------------------------------------- 3
2. Important Instructions------------------------------------------------------------------------------4
2.1 Note on the warranty------------------------------------------------------------------------ 4
2.2 Exclusion of Accident Liability Obligation---------------------------------------------- 4
2.3 Liability Limitation / Exemption from the Warranty Obligation----------------------4
3. Safety Instructions----------------------------------------------------------------------------------- 5
3.1 Electrostatic Discharge (ESD)------------------------------------------------------------- 6
3.2 Grounding Methods--------------------------------------------------------------------------6
User Guide
IP65 All-In-One Fan-less Panel PC
17”IP17ID7T-M1-5RT

American Industrial Systems – IP65 All-In-One Fan-less Panel PC User Guide Page 2
The information contained in this document is subject to change without notice. This
document contains proprietary information that is protected by copyright © 2013
American Industrial Systems. All rights are reserved. No part of this document may be
reproduced, translated to another language, stored in a retrieval system, or transmitted by
any means, electronic, mechanical, photocopying, recording, or otherwise, without prior
written permission. Windows is a registered trademark of Microsoft, Inc. Other brand or
product names are trademarks of their respective holders.
American Industrial Systems, Inc.
http://www.aispro.com
The test results show that this device meets FCC rules. Those limits are set to protect residential areas
from harmful emissions from the devices. This device will produce, use and radiate radio frequency
energy. In addition, failure to follow the user manual in order to install or use this device might produce
harmful interference with radio communication. Foregoing this information does not guarantee that this
type of harmful interference will not occur in some special instances. The interference caused by this
device to radio or television signals may be verified by turning the device on and off. Any changes or
modifications to this TFT LCD would void the user’s authority to operate this device.
Important Recycle Instruction:
Lamp(s) inside this product contains mercury. This product may contain other electronic waste that can be
hazardous if not disposed of properly. Recycle or dispose in accordance with local, state, or federal Laws.
For more information, contact the Electronic Industries Alliance at WWW.EIAE.ORG. For lamp specific
disposal information check WWW.LAMPRECYCLE.ORG

American Industrial Systems – IP65 All-In-One Fan-less Panel PC User Guide Page 3
Table of Contents
1. Introduction ..................................................................................................................................... 6
2. Important Safety Instructions ..........................................................................................................7
2.1 Electrostatic Discharge (ESD) ..............................................................................................................8
2.2 Grounding Methods............................................................................................................................8
2.3 FCC Statement.....................................................................................................................................8
2.4 Electromagnetic Capability .................................................................................................................8
2.5 Important LCD Information.................................................................................................................9
3. Packaging List.................................................................................................................................10
4. Product Description .......................................................................................................................11
4.1 General Information .........................................................................................................................11
4.2 Features ............................................................................................................................................11
5. Mechanical Drawings.....................................................................................................................12
6. Touch Screen Solution ...................................................................................................................13
6.1 Introduction to Five-Wire Resistive Touch Screen............................................................................13
7. Installing the Display......................................................................................................................14
7.1 Signal Cable .......................................................................................................................................14
7.1.1 VGA Signal Shielding Cable Connection .....................................................................................14

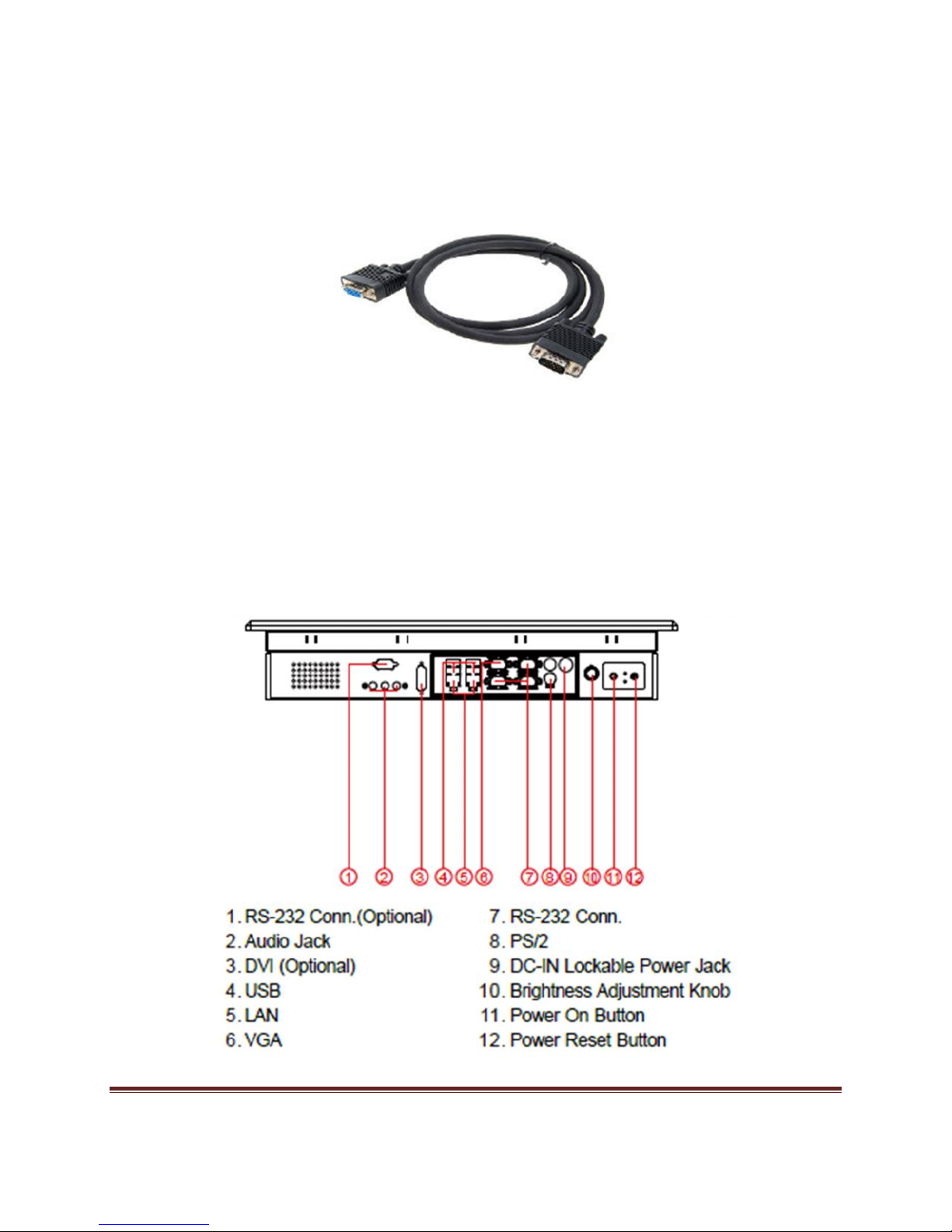

7.2 Input/output .....................................................................................................................................14
7.3 Starting the Panel PC.........................................................................................................................15
7.4 VESA Wall Mount Installation ...........................................................................................................16

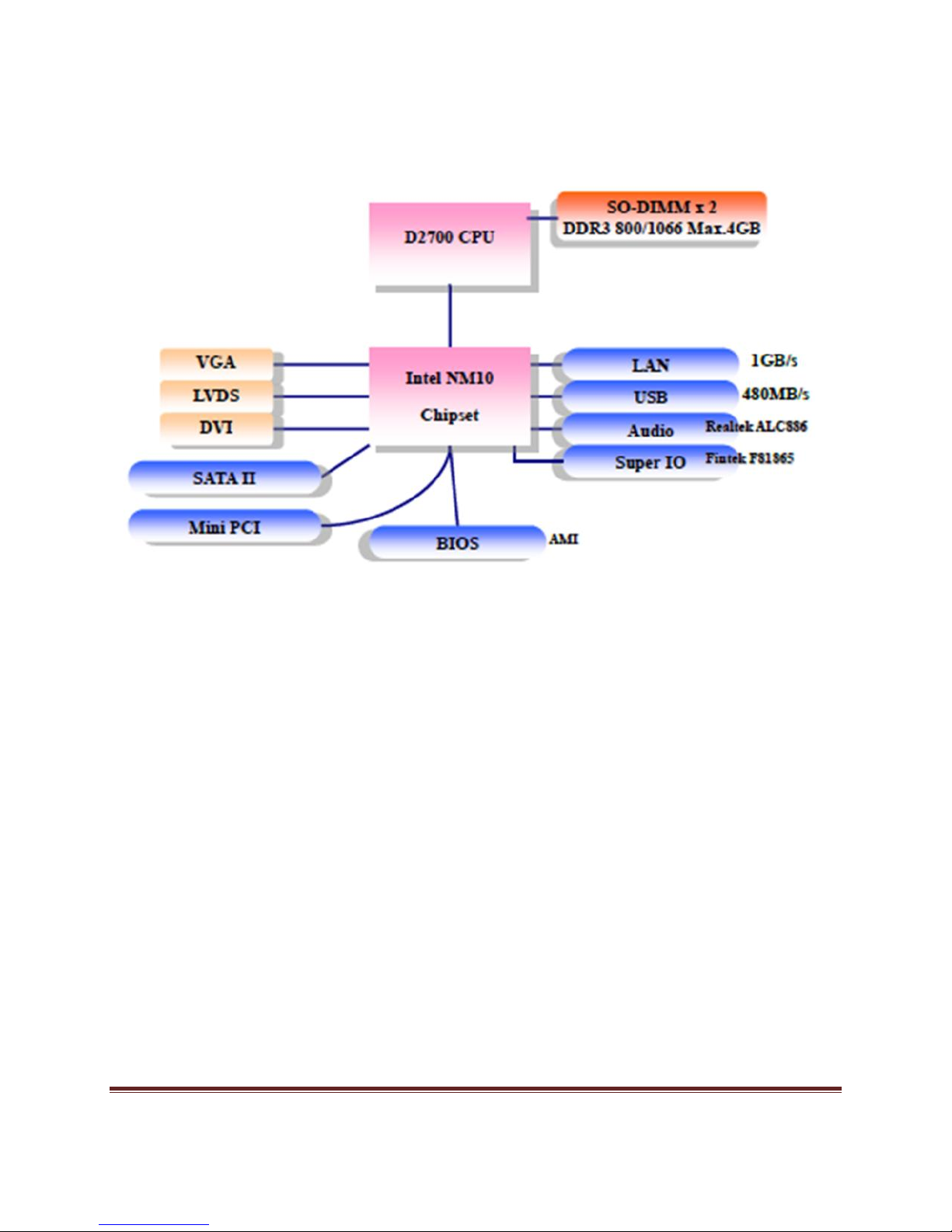

8. Motherboard .................................................................................................................................17

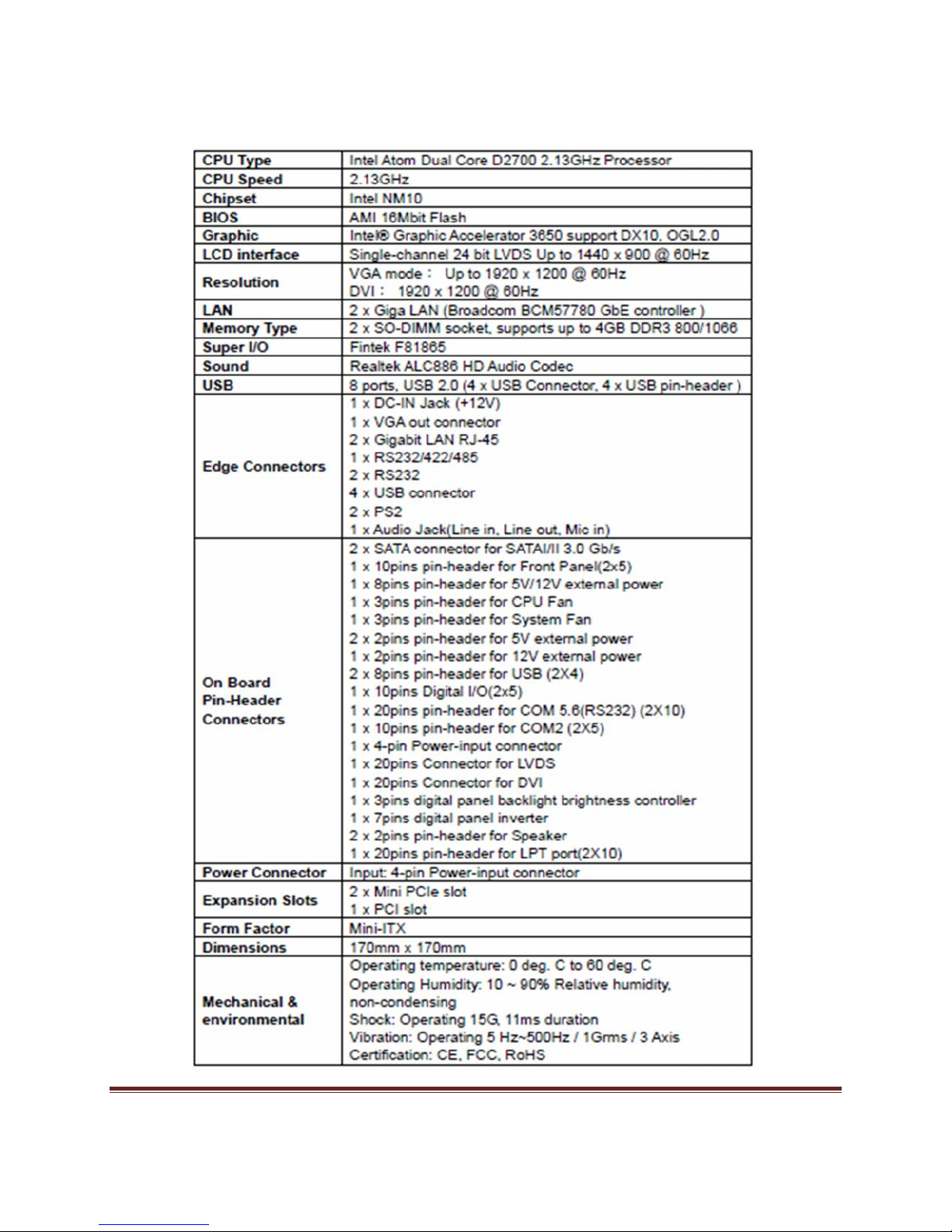

8.1 Motherboard Specifications .............................................................................................................19
8.2 Board Dimensions .............................................................................................................................20
8.3 Motherboard Installation..................................................................................................................21
8.3.1 Memory Module (SO-DIMM) Installation..................................................................................21
8.4 Input/Ouput Information..................................................................................................................21

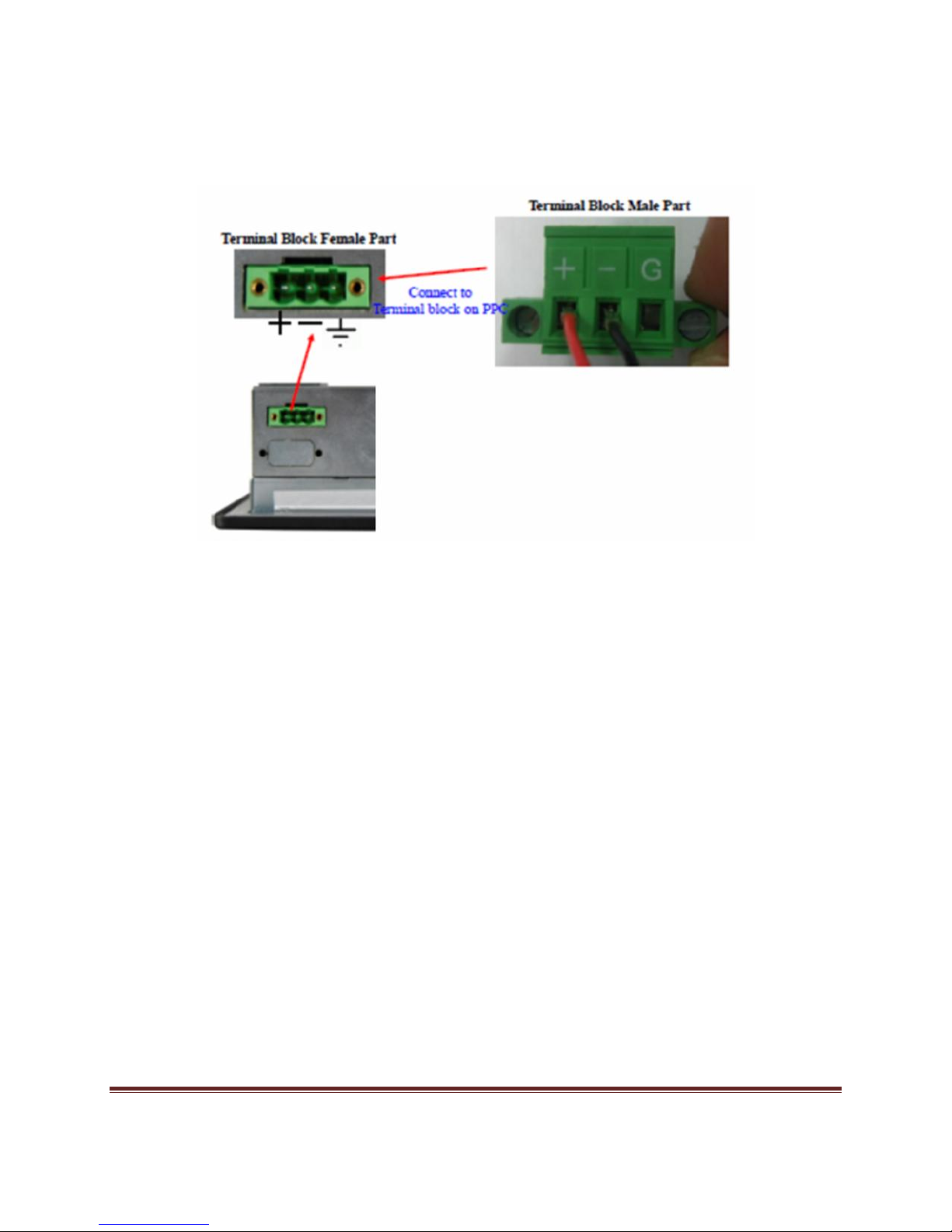

8.4.1 12V DC-IN...................................................................................................................................21
8.4.2 Serial COM Ports ........................................................................................................................21
8.4.3 Internal VGA...............................................................................................................................21

American Industrial Systems – IP65 All-In-One Fan-less Panel PC User Guide Page 4
8.4.4 Ethernet Interface......................................................................................................................21
8.4.5 USB Ports....................................................................................................................................21
8.4.6 Audio Jack (Pin-header) .............................................................................................................21
8.5 Jumpers and Connectors...................................................................................................................22
8.6 Jumper Settings.................................................................................................................................23
8.6.1 JP1: RS232/RS422/RS485 Selector for CON Port .......................................................................24
8.6.2 JP2: RS232/RS422/RS485 Selector for CON Port .......................................................................24
8.6.8 JP3: LCD Panel Voltage Select ....................................................................................................25
8.6.6 JP4: Back Light PWR ...................................................................................................................25
8.6.3 JP5: Clear CMOS .........................................................................................................................25
8.6.7 JP6: PWM Level ..........................................................................................................................25
8.6.5 JP7: Brightness Control (DC/PWM)............................................................................................25
8.6.4 JP8: Brightness Control (VR/Software) ......................................................................................25
8.7 Connectors and Pin Assignment .......................................................................................................25
8.7.1 CON1: LVDS Connector ..................................................................................................................27
8.7.2 CN16: Digital Panel Backlight Brightness Control ......................................................................27
8.7.3 CN19: Inverter Power.................................................................................................................27
8.7.4 COM5-6: Dual Output ................................................................................................................28
8.7.5 5V/12V/CN10: External Power...................................................................................................28
8.7.6 USB: USB PIN HEADER................................................................................................................28
8.7.7 PANEL Connector: Front Panel System Function Connector .....................................................28
8.7.8 COM2: Serial port COM2 ...........................................................................................................29
8.7.9 DIDO1: Digital I/O Connector.....................................................................................................29
8.7.10 J2/J3: Amplifier ........................................................................................................................29
8.7.11 DVI1: DVI Connector ................................................................................................................30
8.7.12 CPU: FAN CONNECTOR ............................................................................................................30
9. Graphic Driver Installation .............................................................................................................30
9.1 Standard CMOS Feature ...................................................................................................................30
9.2 Panel Resolution Setting ...................................................................................................................31
10. Chipset Driver Installation .............................................................................................................34

American Industrial Systems – IP65 All-In-One Fan-less Panel PC User Guide Page 5
10.1 Standard CMOS Features ................................................................................................................34
11. Ethernet Driver Installation ...........................................................................................................35
11.1 Installation of Ethernet Driver ........................................................................................................35
12. Audio Driver Installation ................................................................................................................38
12.1 Installation of the Audio Driver.......................................................................................................38
13. LCD Display Operation ...................................................................................................................39
13.1 Simple Troubleshooting Guide........................................................................................................39
13.1.1 Brief FAQ ..................................................................................................................................39
13.1.2 Additional Troubleshooting Chart: ..........................................................................................40
14. Appendix ........................................................................................................................................41
14.1 Cleaning the Monitor ......................................................................................................................41
14.2 Touch Screen Driver Installation.....................................................................................................42
14.3 RMA (Return Material Authorization) Service ................................................................................43

American Industrial Systems – IP65 All-In-One Fan-less Panel PC User Guide Page 6
Introduction
This user manual is designed for American Industrial Systems, Inc. Included is a comprehensive overview of
the systems designed by American Industrial Systems.
All rights are reserved. None of this document shall be duplicated, stored in a retrieval system, or
transmitted by all means, electronic, mechanical, photocopying, recording, or otherwise, without the
prior written permission of American Industrial Systems, Inc. No copyright or patent liability is assumed
with respect to the use of the information included herein. Although every precaution has been taken in
the preparation of this documentation, neither responsibility is assumed for errors or omissions by the
publisher and the author, nor is any liability assumed for damages caused by the use of the information
included herein.
The information in this documentation is subject to change without prior notice and does not stand for a
commitment on the part of American Industrial Systems, Inc.
The information included in this manual may be subject to technical changes especially due to constant
product upgrades.
The attached documentation does not involve any guarantee on the part of American Industrial Systems,
Inc. regarding technical processes described in the manual or any product characteristics specified in the
manual. American Industrial Systems, Inc. does not accept any liability for any printing errors or other
inaccuracies in the manual unless it can be proven that American Industrial Systems, Inc. is aware of such
errors or inaccuracies or that American Industrial Systems, Inc. overlooks these as a result of gross
negligence and American Industrial Systems, Inc. has failed to get rid of these errors or inaccuracies for
this reason.
American Industrial Systems, Inc. clearly informs the users that this manual only encloses a general
description of technical processes and instructions which may not be applicable in every single case. In
cases of doubt, please contact American Industrial Systems.
This manual is protected by copyright. All rights are reserved by American Industrial Systems, Inc. Copies
of all or part of this manual or translations into different languages may only be made with the prior
written consent. American Industrial Systems, Inc. points out that the information included in this manual is
constantly being updated in line with the technical changes and improvements made by American
Industrial Systems, Inc. to the products and thus this manual only reflects the technical status of the
products at the time of printing.
© 2013 by American Industrial Systems, Inc.

American Industrial Systems – IP65 All-In-One Fan-less Panel PC User Guide Page 7
Important Safety Instructions
This chapter also includes information on approval and interference inhibition of your unit. Please abide
by the warnings and instructions on the unit and in the manual. Please read these instructions carefully
before using the product and save it for later reference.
Follow all warnings and instructions marked on the product.
Unplug this product from the wall outlet before cleaning. Clean the product with a damp soft
cloth. Do not use liquid or aerosol cleaners as it may cause permanent damage to the screen.
Do not use this product near water.
Do not place this product on an unstable cart, stand, or table. The product may fall, causing
serious damage to the product.
This product should be operated from the type of power indicated on the marking label. If you are
not sure of the type of power available, consult your dealer or local power company.
This product is equipped with a 3-wire grounding type plug, a plug having a third (grounding) pin.
This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are
unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet.
(For AC version only) Do not defeat the purpose of the grounding-type plug.
Do not allow anything to rest on the power cord.
Do not locate this product where persons will walk on the cord.
Never push objects of any kind into this product through cabinet slots as they may touch
dangerous voltage points or short out parts that could result in a risk of fire or electric shock.
Never spill liquid of any kind on the product.
Do not attempt to service this product yourself, as opening or removing covers may expose you to
dangerous voltage points or other risks and will void the warranty. Refer all servicing to qualified
service personnel.
Unplug this product from the wall outlet and refer servicing to qualified service personnel under
the following conditions:
When the power cord or plug is damaged or frayed. If liquid has been spilled into the
product.
If the product has been exposed to rain or water.
If the product does not operate normally when the operating instructions are followed.
Adjust only those controls that are covered by the operating instructions since improper
adjustment of other controls may result in damage and will often require extensive work
by a qualified technician to restore the product to normal operation.
If the product has been dropped or the cabinet has been damaged.
If the product exhibits a distinct change in performance, indicating a need for service.
The display system was built and tested by American Industrial Systems, Inc. in accordance to prescribed
safety conditions, and in a safe condition.
In order to retain this condition and maintain safe operation, the users must abide by the instructions and
warnings
The electrical installations in the room must not violate the requirements of the local (country-specific)
regulations.
The unit must be used in accordance with these instructions.
Pay close attention that there are no cables, especially power cables, in areas where ambulatory traffic
may interfere.
Only use the power cord supplied with the package. Don't use injured or damaged power cords.

American Industrial Systems – IP65 All-In-One Fan-less Panel PC User Guide Page 8
2.1 Electrostatic Discharge (ESD)
A sudden discharge of electrostatic electricity can damage electrostatic-sensitive devices or circuit.
Adequate packaging and grounding techniques are essential fundamentals to avoid damage. The
following precautions should be always taken:
1. Deliver printed circuit boards in electrostatic-safe containers such as cartons, boxes or anti-static
bags.
2. Keep electrostatic-sensitive parts in their containers until they reach an electrostatic-free station.
3. Follow adequate grounding when sensitive PCB’s, components, or assemblies are in close vicinity
of the unit.
4. Store electrostatic-sensitive PCB's in a protective packaging such as insulating foam.
2.2 Grounding Methods
Protect against electrostatic damage of the unit by taking the following preventative measures:
1. Cover workstations with approved anti-electrostatic material.
2. In order to guarantee that the operator is grounded, provide a wrist strap connected to the working
bench.
3. Properly ground tools and equipment.
4. For extra protection use anti-electrostatic mats, heel straps, or air ionizers.
5. Handle electrostatic-sensitive components, PCB's, and assemblies with care nearby the case or the
edge of the board.
6. Prevent contact with pins, leads, or circuitry.
7. Switch off power and input signals before plugging and removing connectors or testing equipment.
8. Keep the work area free from non-conductive materials such as ordinary plastic assembly aids and
Styrofoam.
9. Use field service tools with conductivity, such as screwdrivers, pliers, and vacuum cleaners.
10. Always put drives, PCB’s, and the like with the component-side down on the working bench.
2.3 FCC Statement
This equipment has been tested and found to comply with the requisites for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection from
harmful interference when the equipment is operated in commercial environments. This equipment
generates, uses, and radiates radio frequency energy, and if it is not installed and used in accordance with
the instruction manual it may cause harmful interference to radiofrequency communications. Operation of
this equipment in residential areas may cause harmful interference in which case the operator will be
required to correct the interference at his or her own expense.
2.4 Electromagnetic Capability
The display systems has been designed for industrial use. The most recent version of the EMC guidelines
(EMC Directive 2004/108/EC) are applied. If the users modify and/or add to the equipment (e.g.
installation of add-on cards), then the prerequisites for the CE conformity declaration (safety
requirements) may no longer be applicable.

American Industrial Systems – IP65 All-In-One Fan-less Panel PC User Guide Page 9
2.5 Important LCD Information

American Industrial Systems – IP65 All-In-One Fan-less Panel PC User Guide Page 10
Packaging List
Item
Description
Note
1 User Manual
1 CD for Touchscreen Drivers & Tools
1 Power Cord

American Industrial Systems – IP65 All-In-One Fan-less Panel PC User Guide Page 11
Product Description
4.1 General Information
AIS pre-designed and open-based HMIs, 17" inch (1280 x 1024 SXGA) all-in-one panel PC computers or
operator control panels with fan-less design and IP65/NEMA 4/4x rating designed which provide cost
effective control interface which can be easily integrated into new and existing machinery installations,
reduce development costs and shorten time to market, by utilizing industry leading touch screen display
technologies and all-in-one systems-level expertise in operator control and monitoring applications
within a variety of demanding environments and innovative product application areas. The AIS 10.1"
IP65 all-in-one fan-less panel PC features high-performance Intel® Atom™ Dual Core Processor D2550
1.86 GHz, in an industrial-grade LCD flat panel with resistive touch screen technology and IP65 front
bezel.
4.2 Features
Flexible, reliable, and ruggedized for open platform HMI/SCADA
Windows-based and PC-based with integrated high performance system processors, memory, and
storage, USB RS232, RS422/485 and Ethernet ports
Robust design with aluminum with NEMA 12, NEMA 4, IP52, IP54, IP65 ratings.
Supports Panel, Wall, or VESA arm mounting.
All steel construction designed for harsh and industrial environments
Technical support for drivers, hardware, including troubleshooting procedures and general system
issues
Customer service and sales support for product selection, order management, and warranty status

American Industrial Systems – IP65 All-In-One Fan-less Panel PC User Guide Page 12
Mechanical Drawings

American Industrial Systems – IP65 All-In-One Fan-less Panel PC User Guide Page 13
Touch Screen Solution
6.1 Introduction to Five-Wire Resistive Touch Screen
The five-wire resistive touchscreens use a glass panel with a uniform resistive coating. A thick polyester
coversheet is tightly suspended over the top of the glass, separated by small, transparent insulating dots.
The coversheet has a hard, durable coating on the outer side and a conductive coating on the inner side.
When the screen is touched, the conductive coating makes electrical contact with the coating on the glass.
The voltages produced are the analog representation of the position touched. The controller digitizes these
voltages and transmits them to the computer for processing. The five-wire technology utilizes the bottom
substrate for both X and Y-axis measurements. The flexible coversheet acts only as a voltage-measuring
probe. This means the touchscreen will continue working properly even with non-uniformity in the cover
sheet's conductive coating. The result is an accurate, durable and reliable touchscreen that offers drift free
operation. The touchscreens are sealed against contamination and moisture. The coversheet is sealed to
the glass substrate with an industrial grade caulk. This prevents wicking of fluid between the coversheet
and glass. Also, the touchscreens are not air vented, thereby preventing fluid ingress through an air vent.
Brief Specifications:

American Industrial Systems – IP65 All-In-One Fan-less Panel PC User Guide Page 14
Installing the Display
7.1 Signal Cable
7.1.1 VGA Signal Shielding Cable Connection
1. Plug one end of the 15-pin signal cable to the video signal
connector at the rear end of the PC system and the other end of
the cable to your military display.
2. Secure the connectors with the screws on the cable connector at
both ends.
7.2 Input/output

American Industrial Systems – IP65 All-In-One Fan-less Panel PC User Guide Page 15
7.3 Starting the Panel PC
1. Connect the power to 12 V DC Power Supply to 3 pins Terminal Block (Phoenix Type)

American Industrial Systems – IP65 All-In-One Fan-less Panel PC User Guide Page 16
7.4 VESA Wall Mount Installation
This monitor conforms to the VESA Flat Panel Mounting Physical Mounting Interface standard which
defines a physical mounting interface for flat panel monitors. It also corresponds with the standards of flat
panel monitor mounting devices, such as walls and table arms. The VESA mounting interface is located
on the back of your monitor.
To mount the monitor on an UL-listed certified swing arm or other mounting fixture, follow the
instructions included with the mounting fixture to be used.

American Industrial Systems – IP65 All-In-One Fan-less Panel PC User Guide Page 17
Motherboard
The ID70 SBC is integrated with Intel® NM10 express chipset, 17x17mm, and Atom D2700 Processor.
Intel Atom Processor with 32nm low power design enables down to 50% less average power
consumption and the chipset delivers up to 4x improvement in graphics performance and enables up to
50% higher data transfer bus speed rate.
In peripheral connectivity, ID70 SBC features with two Mini-PCIe I/O ports, one PCI slot, two Serial ATA
connectors, six Serial Port (Three Connector; Three Pin Header ) and Eight Hi-Speed USB 2.0
connectors(Four Connector ; Four Pin Header). Additionally, ID70 SBC build-in a 12V DC-IN power
adapter.
Thus, the ID70 SBC is designed to satisfy most of the applications in the industrial computer market,
such as Gaming, POS, KIOSK, Industrial Automation, and Programmable Control System. Its compact
design meets the demanding performance requirements of today‘s business and industrial applications.
Features:
Mini-ITX Form Factor ( 170mm x 170mm)
Supports Intel® Atom D2700 2.13GHz processor
System memory up to 4GB DDR3 800/1066, SO-DIMM
Intel NM10 Chipset
Intel® Graphic Accelerator 3650 Integrated Graphics Engine.
Dual Broadcom BCM57780 GbE controller
1 x PCI, 2 x Mini PCIe, 6 x COM, 8 x USB2.0, 2 x SATA, 8 x GPIO
ports, 1 x DVI, 1 x LPT port

American Industrial Systems – IP65 All-In-One Fan-less Panel PC User Guide Page 18
Function Block

American Industrial Systems – IP65 All-In-One Fan-less Panel PC User Guide Page 19
8.1 Motherboard Specifications

American Industrial Systems – IP65 All-In-One Fan-less Panel PC User Guide Page 20
8.2 Board Dimensions
