AIS DIUR series User manual

S
ST TA AN ND D- -A AL LO ON NE E D DV VR R
D
DI IU UR R S SE ER RI IE ES S
U
US SE ER R M MA AN NU UA AL L

INDEX
System Introduction ___________________________________________________ 1
Warning _________________________________________________________________________ 2
DIUR Series System Components _____________________________________________________ 3
DIUR System Front / Back Panel _____________________________________________________ 3
Remote Controller Function_________________________________________________________ 13

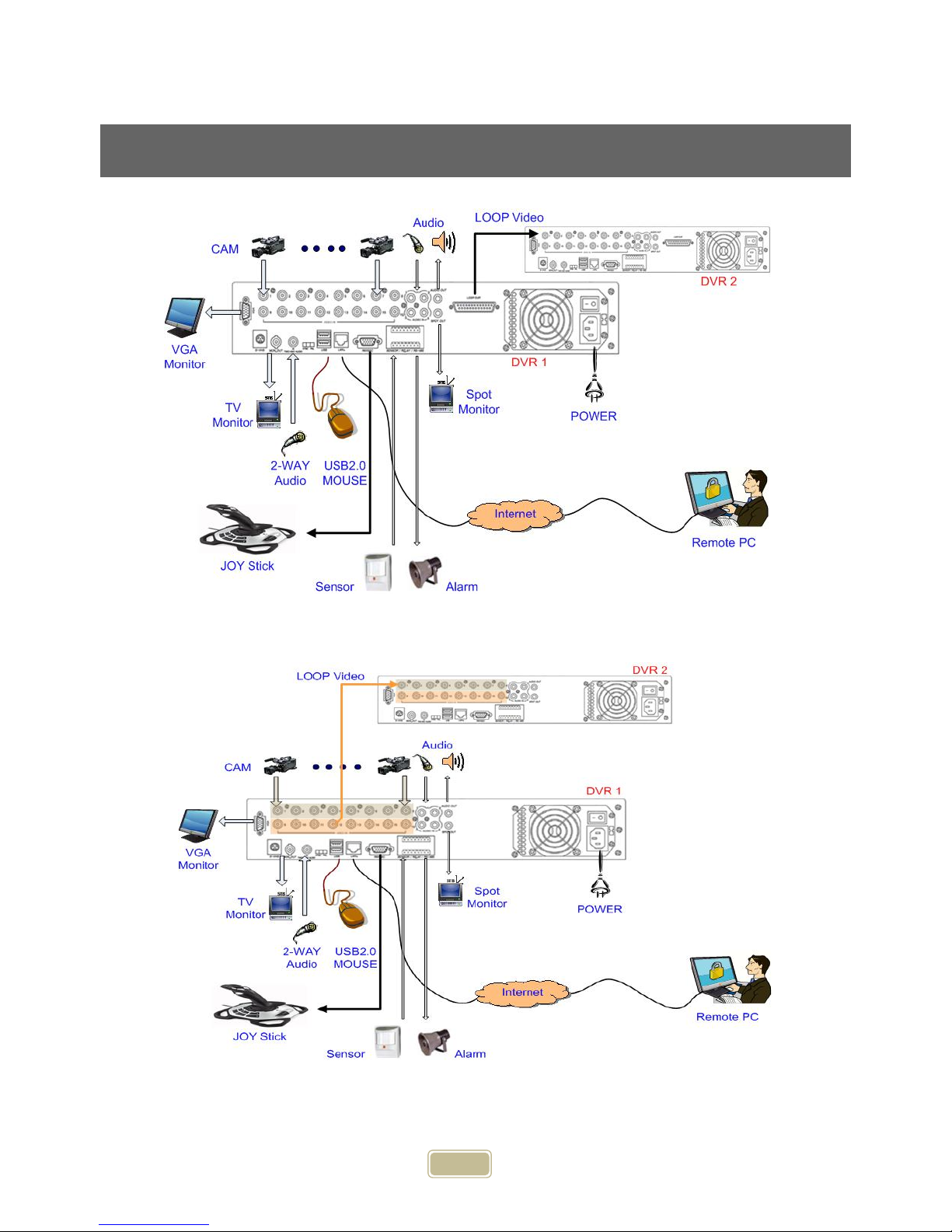

DIUR System Connection __________________________________________________________ 14
DIUR Series Specification__________________________________________________________ 15
General Information__________________________________________________ 17
Precaution for Setup_______________________________________________________________ 18
Initial Surveillance Screen __________________________________________________________ 21
Screen Introduction _____________________________________________________________ 21
DIUR Setup Configuration ____________________________________________ 25
User Log IN _____________________________________________________________________ 26
Setup Configuration _______________________________________________________________ 27
System Setup ________________________________________________________ 28
Menu __________________________________________________________________________ 29
System Setup ____________________________________________________________________ 30
Information ___________________________________________________________________ 30
Time Setup____________________________________________________________________ 32
Disk Manager _________________________________________________________________ 36
User Setup ____________________________________________________________________ 41
Factory Setup__________________________________________________________________ 43
Log Off ______________________________________________________________________ 44
System Shutdown ______________________________________________________________ 44
Device Setup ____________________________________________________________________ 45
Camera_______________________________________________________________________ 45
Audio________________________________________________________________________ 50
Alarm________________________________________________________________________ 51
Screen Display Setup____________________________________________________________ 55

Recording Setup__________________________________________________________________ 57
Setup ________________________________________________________________________ 58
Schedule Setup ________________________________________________________________ 60
Network Setup ___________________________________________________________________ 61
Network Setup _________________________________________________________________ 61
E-mail Notification Setup ________________________________________________________ 63
Web Server Setup ______________________________________________________________ 64
DDNS Setup __________________________________________________________________ 65
Event Notification Setup _________________________________________________________ 66
Event Information Search __________________________________________________________ 67
Sensor Log____________________________________________________________________ 67
Camera Loss Log_______________________________________________________________ 68
System Log ___________________________________________________________________ 68
PTZ Function _______________________________________________________ 69
Digital PTZ _____________________________________________________________________ 70
Freeze Function __________________________________________________________________ 71
Dynamic PTZ____________________________________________________________________ 71
Search Function _____________________________________________________ 73
Search Structure __________________________________________________________________ 74
Search Function __________________________________________________________________ 75
Search Menu ____________________________________________________________________ 75
Calendar Search __________________________________________________________________ 76
Operation _____________________________________________________________________ 76
Search Setup __________________________________________________________________ 77
Motion Search ___________________________________________________________________ 78
Operation _____________________________________________________________________ 78
Search Setup __________________________________________________________________ 79
Event Search ____________________________________________________________________ 80
Operation _____________________________________________________________________ 80
Search Setup __________________________________________________________________ 81
Search _________________________________________________________________________ 82
Search Menu ____________________________________________________________________ 83
Screen Division in Search Mode _____________________________________________________ 84

Backup Function_____________________________________________________ 85
Backup Preparation _______________________________________________________________ 86
Backup Function _________________________________________________________________ 86
Backup Process ________________________________________________________________ 87
Preview Player_________________________________________________________________ 89
Replay of Backup File ___________________________________________________________ 90
Remote Surveillance Function__________________________________________ 93
Remote Surveillance Program _______________________________________________________ 94
Program Installation ____________________________________________________________ 94
RS (Remote Surveillance) Environment Setup __________________________________________ 96
RS Program ON________________________________________________________________ 96
Site Registration _______________________________________________________________ 97
Group Registration _____________________________________________________________ 98
USER Registration _____________________________________________________________ 99
System Setup _________________________________________________________________ 100
Record ______________________________________________________________________ 101
RS (Remote Surveillance) _________________________________________________________ 102
Site Connection _______________________________________________________________ 102
Remote Surveillance Function____________________________________________________ 103
Remote PTZ Function __________________________________________________________ 106
System Control _______________________________________________________________ 107
Search Window _______________________________________________________________ 117
Backup______________________________________________________________________ 119
Finish and Reset ______________________________________________________________ 122

Web Surveillance Function ___________________________________________ 123
Web Surveillance Program_________________________________________________________ 124
Static IP Connection ___________________________________________________________ 124
Dynamic IP Connection_________________________________________________________ 124
Security Warning ______________________________________________________________ 125
Connection and Termination _______________________________________________________ 126
Surveillance Screen ____________________________________________________________ 127
Sensor and Control Icon ________________________________________________________ 127
Camera Selection______________________________________________________________ 128
Screen Division _______________________________________________________________ 128
PTZ Function ___________________________________________________________________ 128
Search Function _________________________________________________________________ 129
Surveillance Screen Search ________________________________________________________ 130

Manual_Version 2.00(20070416)
1
System Introduction

Manual_Version 2.00(20070416)
2
Warning
WARNING: To prevent a risk of fire of electric shock, do not expose this product to rain or moisture.
•This installation should be made by a qualified service person and should conform to all local codes.
•This is a Class A product. In a domestic environment this product may cause radio interference in which case the
user may be required to take adequate measures.
zThis system operates time using charge battery in the system. Use this system after
time setup in the beginning. Battery can be discharged completely if battery is not used for a long time
unplugged or moving the system during system operation. If system is reused after complete battery
discharge by plugging power supply, time will be the initial time setup status. The data in HDD that is
recorded with the date that is later than current time may be deleted in order to sync time. Therefore,
separate HDD and approve power supply and then do time setup and install HDD again and use the system
again.
zEnquire to the supplier or dealers if you have any question or defective goods for repair.
zPlease read user manual carefully before starting the system.
zDo not open the system as it is, because the inside of the system has very sensitive substances to the
environment.
zPut the power cord safely and do not touch power cord with wet hands.
zDo not use loose plug outlet and damaged power cable.
zDo not touch exposed plug outlet to prevent electrical shock. If necessary, wear electricity-proof gloves.
zExit power properly on the program before turning off the system with peripheral devices.
zBe cautious not to drop conductive objects in the ventilation area of power supply device and the inside of
the system.
zDo not disassemble or modify system.
zDo not put heavy objects on top of the system.
zDo not give shock to the system while on the move.
zTurn off the power switch right away if there is smoke or smell in the system. Consult with the supplier for the
advice of expertise.

Manual_Version 2.00(20070416)
3
DIUR Series System Components
Model Name Mouse
Video Output Cable
(Loop Out Cable)
I/O Input Connector
DIUR104 1 N/A 2 (8 Pin)
DIUR108 1
N/A 2 (8 Pin)
DIUR116 1
1 (16 CH) 2 (8 Pin)
► Common feature: User manual, SW CD, Remote Controller & power cable.
► Specification per model name, refer model specification table
DIUR System Front / Back Panel

Manual_Version 2.00(20070416)
4

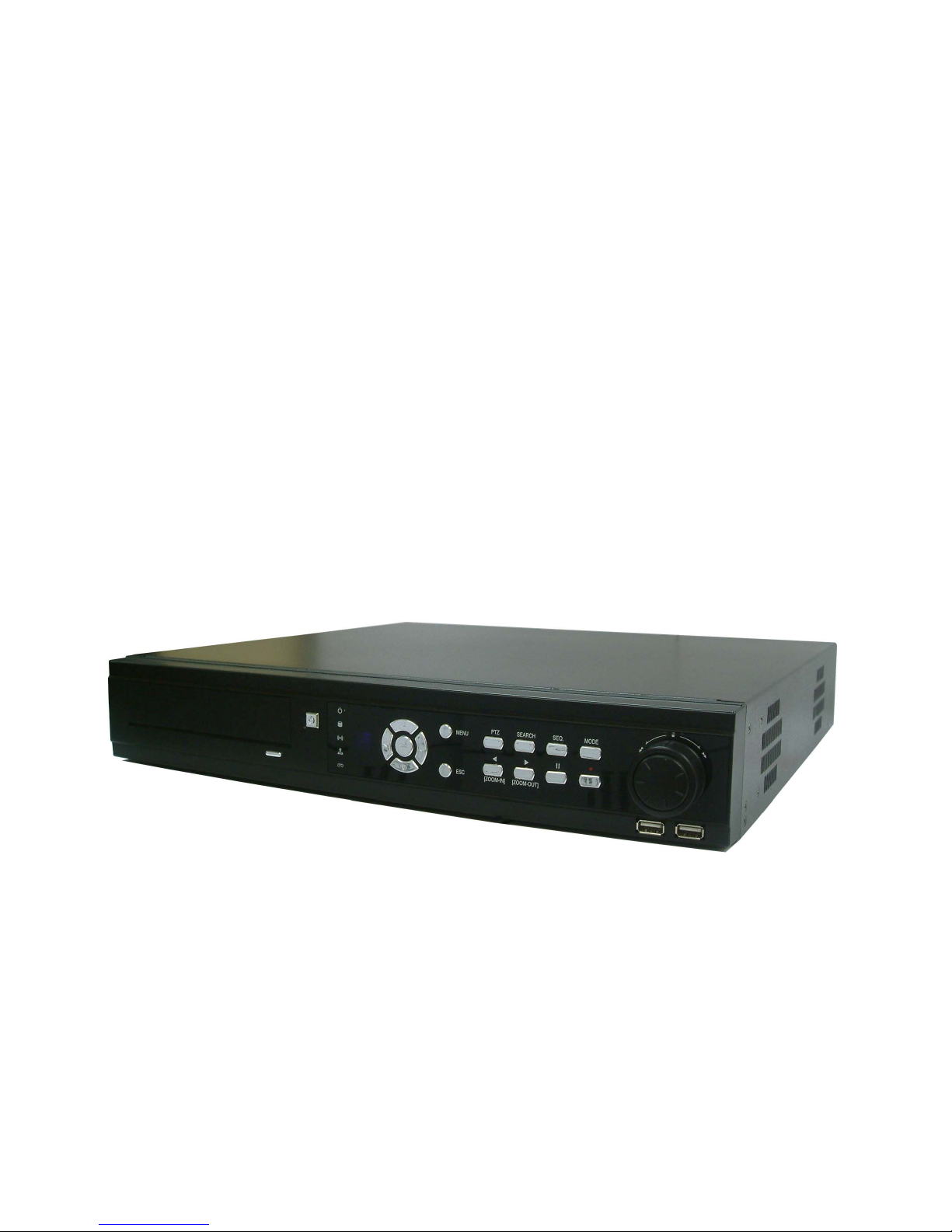

Front (Common)
①Power Button ②CD-R/W[DVD-R/W] ③USB2.0 HOST PORT
1. Button & MOUSE function in the front panel
2. Button & MOUSE function in the front side
2
3
1

Manual_Version 2.00(20070416)
5
(1) LED group
Power LED: Red, Dark Green (2 Color ON/OFF/BLINK)
Red: Stand-by,
Red (Flickering): Booting status,
Dark Green: Operation status
HDD LED: Yellow (ON/OFF)
ON: Operation status is OK after access to the HDD access
OFF: Recognition is not fulfilled and can’t record
Alarm LED: Yellow (BLINK)
BLINK: When one sensor or more operates
Network LED: Yellow (ON/OFF)
ON: Cable connection is OK,
OFF: LAN cable is not connected or problem occurs in LAN environment.
Recording LED: Yellow (ON/OFF)
LED ON: Recording status,
OFF: STOP recording
Power ON/OFF & Standby Mode
Recording
Alarm Occurrence
Network Connection Status
HDD Recording Status

Manual_Version 2.00(20070416)
6
(2) Enter & Arrow button
1) Enter Button: Selection
This button is used for the menu item, division screen selection etc
Division screen: When pressing button, the channel is selected.
If double clicking the channel, it becomes full screen and becomes
previous divisionMode status if double click again.
MENU activation: Select item on the cursor.’
Motion area setup: Select area on the cursor
2) ▲►▼◄ Arrow Button: Movement
This button is used for the menu item movement & Pan/Tile/Zoom control in PTZ mode.
Division mode: Channel movement in the screen
PTZ mode: PTZ or dynamic PTZ control in the screen
3) MENU Button: Enter to Menu Mode
System LOG ON Status: Display system setup menu in the screen
System LOG OFF Status: Display LOG ON screen
It is the same with the right button of the mouse for the above status
Motion Area Setup: Selection cancellation for the area of cursor (Enter button is used for the
selection)
4) PTZ Button: PTZ Mode Activation/ Cancellation.
It does not any function if PTZ module does not exist in LIVE mode.
Menu->Device->Camera>Dynamic PTZ
System Log Off status: LOG ON screen display
JOY STICK icon is displayed in the right bottom of the PTZ module setup channel indicating PTZ activation.
Arrow button is the Pan and Tilt function. Zoom in/out function are also activated.
5) SEARCH Button: Enter to Search mode
System Log Off status: LOG ON screen display
System Log On status: Search screen display
6) SEQ Button: Division page rotation activation / cancellation
Current division screen pages are displayed in order based on page rotation time setup.
Page rotation time setup : Refer system setup in DVR
Menu->Device->Display->Sequence->Main Monitor Dwell Time

Manual_Version 2.00(20070416)
7
If channel is not selected in the main monitor, it is not included in the sequence.
Menu->Device->Display->Sequence->Main Monitor
There is no change in case of 16 channels and 16 divisions mode.
7) MODE Button: Screen division mode change
Division mode from 1 to Maximum division are displayed in order e.g. 16channel 16 division.
The same when pressing the wheel button of the mouse
8) JOG / SHUTTLE:
Jog / Shuttle.
JOG/SHUTTLE function is used in replay mode and do not have function in other mode.
JOG: Device for Frame search. One frame is replayed to the forward direction per each movement of JOG
in case of the clockwise direction. Previous key frame is replayed per each movement of JOG in case of
backward replay mode. Key frame is the frame that has complete image in MPEG.
SHUTTLE: Device for Ultra speed search. Forward and backward replay and control speed ±1, ±2, ±4, ±
16, ±32, ±64, ±128, ±256 is possible. It operates by forward x1 speed by default. Audio is activated only
for ±1 mode and key frame is replayed.
9) ESC Button: Cancellation
Menu mode is disappeared.
Return to the previous menu. (The same function with return button in menu)
10) ◄/ Zoom In Button
Replay mode: Backward x1 times replay speed
PTZ Mode: Used for the screen Zoom in
11) ►/ Zoom Out Button
Replay mode: Forward x1 times replay speed
PTZ Mode: Used for the Screen Zoom out
Screen division mode is changed based on the sequence setup mode in
the current division screen
Single 4 division 6 division
8 division 9 division 10 division
13 division 16 division

Manual_Version 2.00(20070416)
8
12) Button: Mute. Stop replay temporarily.
This function is used for replay mode only and no function except for replay mode.
13) QButton: Emergency Recording Start/ Cancellation
Emergency recording records all channel by full frame recording (CIF) regardless of recording setup. It
records all channel continuously by maximum frame regardless of recording setup such as resolution,
sensor, motion etc. In case of this situation, current time is displayed by blue and dark green from yellow
color display. Resolution is CIF to maintain maximum frame. If selecting this function key, normal
recording mode is returns. It is very useful in case of emergency situation.
(3) USB 2.0 Port: External USB device connection.
Connect by Max.480Mbps with external USB device
1) Connectable device: USB stick memory, USB CD/RW and USB HDD for backup devices. 2) 10Mbps
(USB1.1) is possible to connect depending on the device of connection.
3) Be careful not to put metal pieces etc near the port connection area because power (5V) output exists in the
port.
(4) I IR R r re ec ce ei iv ve er r
IR (Infra Red) remote controller receiver
1) Receiver that receives signal for the system control and setup through remote controller

Manual_Version 2.00(20070416)
9
Back Panel [Model: DIUR116]
1. Port in the back side
ⓞVideo Input [1~16]
①VGA Video Output ②Composite Video Output ③S-Video Output
④2-WAY AUDIO Input ⑤NTSC/PAL Selection ⑥USB2.0 HOST 2 PORTS
⑦LAN Port ⑧RS-232C Port ⑨
Sensor/Relay/RS-485
Connector
⑩Loop Video Output [1-16] ⑪Power [110~220V AC] ⑫Spot Video Output
⑬Audio Output ⑭Audio Input[1~4] ⑮Main Power Switch
⑧ RS-232C: Joystick etc
⑨ RS-485 : PAN/TILT Controller

Manual_Version 2.00(20070416)
10
2. SENSOR/RELAY/RS-485 Input/Output Connector Pin Configuration
Pin No. Signal Name Pin No. Signal Name
1 Sensor 15 15 Sensor 14
2 Sensor 16 16 Sensor 13
3 Common 17 Sensor 12
4 Common 18 Sensor 11
5 Relay 1-A 19 Sensor 10
6 Relay 1-B 20 Sensor 9
7 Relay 2-A 21 Sensor 8
8 Relay 2-B 22 Sensor 7
9 Relay 3-A 23 Sensor 6
10 Relay 3-B 24 Sensor 5
11 Relay 4-A 25 Sensor 4
12 Relay 4-B 26 Sensor 3
13 RS-485+ 27 Sensor 2
14 RS-485- 28 Sensor 1
Pin No: 1 Pin No: 14
Pin No: 28 Pin No: 15

Manual_Version 2.00(20070416)
11
Back Panel [Model: DIUR108 & DIUR104]
1. Port in the back side
ⓞVideo Input [1~8] EL-4008L/M Video Input (1~4) EL-4004L
①VGA Video Output ②S-Video Output ③Composite Video Output
④2-WAY AUDIO Input ⑤NTSC/PAL Selection ⑥USB2.0 HOST 2 PORTS
⑦LAN Port ⑧RS-232C Port ⑨
Sensor/Relay/RS-485
Connector
⑩Loop Video Output ⑪Power[110~220V AC] ⑫Spot Video Output
⑬Audio Output ⑭Audio Input [1~4] ⑮Main Power Switch
⑧ RS-232C: Joystick etc
⑨ RS-485: PAN/TILT Controller

Manual_Version 2.00(20070416)
12
2. SENSOR/RELAY/RS-485 Input/Output Connector Pin Configuration
Pin No. Signal Name Pin No. Signal Name
1 GND 9 Sensor 8
2 GND. 10 Sensor 7
3 Alarm NC 11 Sensor 6
4 Alarm NO 12 Sensor 5
5 Common 13 Sensor 4
6 NC 14 Sensor 3
7 RS-485+ 15 Sensor 2
8 RS-485- 16 Sensor 1
zNC : Not connected
3. JOY Stick Connector Pin Configuration
Pin No. Signal Name Pin No. Signal Name
1 RS-422 TX- 6 NC
2 RS-422 TX+ 7 NC
3 RS-422 RX+ 8 NC
4 RS-422 RX- 9 NC
5 GND

Manual_Version 2.00(20070416)
13
Remote Controller Function
*
Warning: Remote controller ID must be set to communicate with DVR system.
Remote controller ID setup:
①Press for ID button 3 seconds approximately (red LED flickers)
②Input 2 digit ID number for DVR. (Menu->SYSTEM->Information->Controller ID)
③Record setup by pressing ID SET button.
Power button
Controller ID
Setting Set Controller ID
UP
Left
MENU
PTZ
Zoom In
Search
Run Sequence
Play backward
Play forward
Play fast
backward
Play one frame
backward
Play one frame
forward
Input Controller ID
Select function
Right
Pause
Back
Zoom Out
Screen Mode
Record
Play fast forward
Down

Manual_Version 2.00(20070416)
14
DIUR System Connection
1. Model: DIUR116
2. DIUR 108& DIUR104

Manual_Version 2.00(20070416)
15
DIUR Series Specification
Model DIUR104 DIUR108 DIUR116
Video
Camera input 4 8 16
Output 1 BNC, S-Video, VGA(OPTION)/1 SPOT/LOOP OUT
Audio
Audio input 4 RCA /1 2-WAY AUDIO
Output 1 RCA
Sensor In (NO, NC)/Alarm out 4/1 8/1 16/4
Operating System Embedded Linux OS
Display
Speed[NTSC/PAL] 120/100 fps 240/200 fps 480/400 fps
Resolution (Pixel) 704 X 480(NTSC), 704 X 576(PAL)
Split screen 1,4,SEQ 1,4,6,8,9,SEQ 1,4,6,8,9,10,13,16,SEQ
Zoom Digital x 2
others De-interlaced Video, Graphic OSD On/Off, HDD automatic Calculation and ETC
Recording
Compression MPEG-4 SP
Resolution (Pixel) 704x480, 704x240, 352x240 (NTSC) / 704x576, 704x288, 352x288(PAL)
Picture quality High, middle, low
Mode Continuous/Motion/Sensor/Sensor & Motion/Schedule
Speed
Total
NTSC
30 fps (704x480)
60 fps (704x240)
120fps (352x240)
60<30> fps(704x480)
120<60> fps(704x240)
240<120> fps(352x240)
120<60/30> fps(704x480)
240<120/60> fps(704x240)
480<240/120>fps(352x240)
PAL
25 fps (704x576)
50 fps (704x288)
100fps (352x288)
50<25>fps (704x576)
100<50>fps (704x288)
200<100>fps (352x288)
100<50/30> fps(704x576)
200<100/50> fps(704x288)
400<200/100> fps(352x288)
Each channel
NTSC Max30fps Max30<15> Max30<15,7>
PAL 25 fps Max25<12> Max25<12,6>
Water Marking Own Algorithm
