Aitronic LogiScan-1560 User manual

LogiScan-15xx
Operating Manual
Edition 22.11.2018

LogiScan-15xx
Operating Manual
Edition 22.11.2018

We don’t deliver just our Mobile Terminals with Standard
Software...
but also develop to customers specific
Applications for this Devices
PC Applications
Hardware
and advise you on
Creating concepts for mobile and stationary data collection
Queries surrounding Bar Code and RFID
Hardware problems
Please consult us with your queries or problems at:
aitronic GmbH
Balhorner Feld 10
D-33106 Paderborn
Germany
Telefon: [phone]
Telefax: [phone]
Internet: http://www.aitronic.de
E-Mail: [email protected]
___________________________________________________________
Copyright aitronic GmbH, 2017
All Rights reserved, in particular all extracts which correspond to the
translation, the reprint and reproduction by copying or similar methods.
Delivery and technical changes are subject to change.

Content__________________________________________________________________
Edition 22.11.2018 _____________________________________________________ aitronic
1
1. General.............................................................................. 2
2. Laser Scanner Module..................................................... 3
3. Precautions for using Batteries...................................... 4
4. Getting started ................................................................. 6
Controls ............................................................................................................6
SD Card Installation.........................................................................................9
SIM Card Installation......................................................................................10
Battery Installation/Change...........................................................................11
Charging the Battery......................................................................................12
Deeply discharged Batteries.........................................................................12
Insert/remove the Pistol Grip ........................................................................12
AppCenter.......................................................................................................13
Barcode Scanning..........................................................................................14
Turning Device on/off ....................................................................................14
5. Pre-installed Android apps from aitronic..................... 15
6. Disposal.......................................................................... 16
7. Technical Specifications............................................... 17
LogiScan-1500................................................................................................17
LogiScan-1550................................................................................................18
LogiScan-1560................................................................................................19
RFID LF/HF Reader Modul.............................................................................21

LogiScan-15xx Operating Manual ___________________________________________
Edition 22.11.2018 _____________________________________________________ aitronic
2
1. General
The LogiScan-15xx family of aitronic includes a range of compact Android
terminals for data acquisition, data processing and wireless communication. The
devices are characterized by high reliability and great expandability. With a full
range of high-quality options an easy and safe data collection is ensured in various
business fields. Easier development, reduced complexity and reduced
maintenance costs shall inter alia the benefits for your business. The LogiScan-
15xx meets the IP64 standard and is suitable eg for routine applications in the
fields of logistics, warehousing and inventories in wholesale and retail. Whether
indoor or outdoor use: With a LogiScan-15xx their employees are always online
with high efficiency.
Devices of LogiScan-15xx family are designed for the realization of a wide range of
mobile solutions. With the integrated high-performance quad-core processor
technology (Cortex A7 1.3-GHZ) requires the operator merely a device in order
comfortable and easy to get the job done. A unit of LogiScan-15xx family is the
ideal choice for mobile solutions where a simplified workflow, improved efficiency
and faster response times to be achieved.
The LogiScan-15xx family is equipped with the worldwide WCDMA technology.
Multi-channel data and voice communications guaranteed real-time communication
and data efficiency. The LogiScan-15xx offers the best return on investment.

LogiScan-15xx Operating Manual ___________________________________________
Edition 22.11.2018 _____________________________________________________ aitronic
3
2. Laser Scanner Module
This MDE device is equipped with a low-
power visible laser diode laser light. The
wavelength is 650 nm and the laser power 1.2
mW nominal. The laser scanner complies with
the requirements of CDRH / IEC Class II.
As with other light sources also strengthen, the operator
should avoid looking directly into the laser beam. It is not
known that occasional exposure to laser light of the CDRH Class II is harmful.
The security labels required are located under the laser light-exit window
Never open any part of the laser module or perform any maintenance at it. The
laser safety regulations may be hurt. The laser module must be repaired
exclusively at the factory.

LogiScan-15xx Operating Manual ___________________________________________
Edition 22.11.2018 _____________________________________________________ aitronic
4
3. Precautions for using Batteries
Do not damage the batteries, heat, compress, open (eg with a drill) or soak in
water: danger of explosion! Make sure to store batteries out of the reach of
children or animals.
Do not use the product in explosion hazardous areas.
If the product gets wet, do not heat or heat (eg heating, microwave, etc.).
Heated battery can cause an explosion, deform or become unusable. On
contact with water and other liquids, the sticker changes color inside the
terminal. In this case, the warranty claim expires.
Do not use in an airplane or hospital.
Do not expose batteries to direct sunlight (eg car dashboard), because they are
deformed by heat and become unusable.
Do not let the battery unused for long periods in the device or in storage. If the
battery has not been used for 6 months or longer, check the charge status and
charge or dispose of the battery if necessary.
The typical estimated life of a lithium-ion battery is approximately 2 to 3 years,
or 300 to 500 charge cycles, whichever occurs first. A charge cycle is the useful
life of fully charged to fully discharged and fully recharged. For batteries with
which no full charge cycles are run through, the life expectancy is about 2 to 3
years.
Rechargeable lithium ion batteries have a limited lifespan, and gradually lose
their ability to hold a charge. This loss in capacity (aging) is irreversible. Since
the battery capacity decreases, so does the time from about the device can be
operated with a fully charged battery.
Lithium-ion batteries gradually, if they are not in use or during storage (self-
discharge). The battery charge status should be checked regularly. The
instructions contain information such as the state of charge to check and how
the batteries must be recharged.
Observe and register the term, which can be reached with a new, fully charged
battery with your device. Use the term of a new battery as a basis to compare
the runtimes with older batteries. The duration of the batteries varies depending
on the configuration of the device and applications that are running.
Batteries that have almost reached the end of their estimated life is to carefully
monitor.
Replace the battery with a new one of the following conditions applies:
The battery life is less than about 80% of the initial term.
The battery charge time increases significantly.
If a battery is stored for long periods of time or otherwise not used, please see
the instructions for the storage of batteries in this document. If you have not
followed the instructions and the battery has no charge, you look at it as
damaged and replace it with a new one.
Observe the loading instructions in the user manual of the product and / or the
detailed online help to recharge your batteries.

LogiScan-15xx Operating Manual ___________________________________________
Edition 22.11.2018 _____________________________________________________ aitronic
5
Charging or discharging the battery to approximately 50% of capacity before
storage.
Charge the battery to approximately 50% of capacity at least once every 6
months.
Remove the battery and store these separately from your device.
Store the battery at a temperature between 5 °C and 20 °C (41 °F and 68 °F).

LogiScan-15xx Operating Manual ___________________________________________
Edition 22.11.2018 _____________________________________________________ aitronic
6
4. Getting started
Controls
Loudspeaker
Power Button
Reserved Button
Microphon
Battery LED & Sensor
Reserved Button
Screen
Left Function Button
Front LogiScan-1500
Navigation Bar
Right Function Button
Scanner Button

LogiScan-15xx Operating Manual ___________________________________________
Edition 22.11.2018 _____________________________________________________ aitronic
7
Loudspeaker
Power Button
Reserved Button
Microphone
Battery LED & Sensor
Reserved Button
Screen
QWERTY Keypad
Front LogiScan-1550
Navigation Bar

LogiScan-15xx Operating Manual ___________________________________________
Edition 22.11.2018 _____________________________________________________ aitronic
8

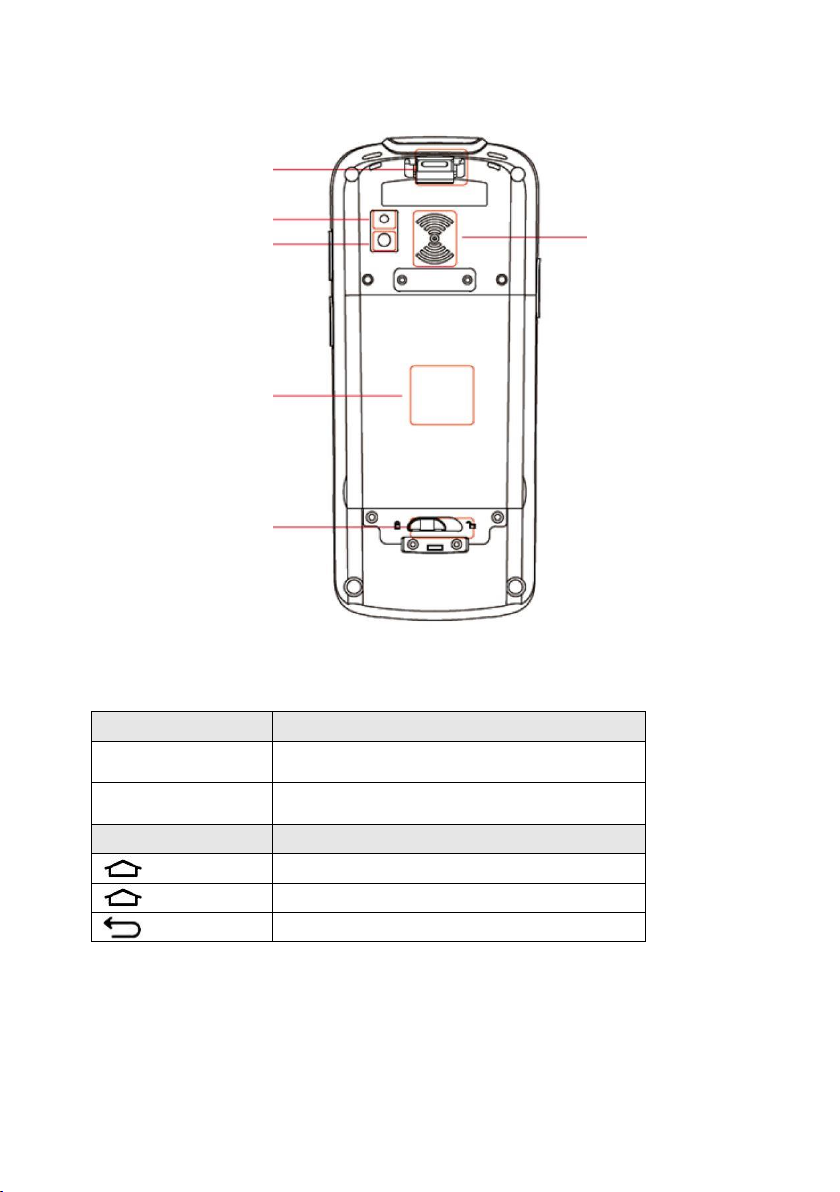

Button
Function
Pressing Power
Button short
Turn the device on / off
Pressing Power
Button long
Device start up / shut down, reboot or flight
mode
Navigation Bar
Function
Short Touch
Return to the home screen
Long Touch
View a list of apps running
Return to the previous screen
RFID
Wrist Strap Locker
Camera
Battery
Battery Locker
Back
Flash Light

LogiScan-15xx Operating Manual ___________________________________________
Edition 22.11.2018 _____________________________________________________ aitronic
9
SD Card Installation
Open SIM slot.
Open SD slot.
Do not insert SD Card in
this manner,
rather insert SD Card in
this way and
lock SD and SIM Slots.

LogiScan-15xx Operating Manual ___________________________________________
Edition 22.11.2018 _____________________________________________________ aitronic
10
SIM Card Installation
Open SIM slot,
and unfold it.
Do not insert SIM Card in
this manner,
rather insert SIM Card in
this way and
lock SIM slot.

LogiScan-15xx Operating Manual ___________________________________________
Edition 22.11.2018 _____________________________________________________ aitronic
11
Battery Installation/Change
Using a device with pistol grip that
must be removed by unlocking the
catch.
Open the battery compartment lock.
Remove / insert the battery.
With simultaneous pressure on the battery
close the battery lock. Possibly attach
pistol grip again.

LogiScan-15xx Operating Manual ___________________________________________
Edition 22.11.2018 _____________________________________________________ aitronic
12
Charging the Battery
Direct Charging: Connect AC adapter with charging cable or AC adapter with
USB cable to USB jack of the Snap-On.
Please notice:
If the device should be charged via the AC adapter, the
USB cable has to be disconnected, otherwise the
charging will be done via the USB cable.
Communication via USB does not work when the AC
adapter is connected.
Cradle Charging: Connect AC adapter to the cradle and plug LogiScan-15xx
into the cradle.
Please notice: To charge the pistol battery the LogiScan-15xx has to be
charged with the cradle.
Deeply discharged Batteries
Symptoms: A device with a deeply discharged battery can no longer be
switched on. After the AC adapter has been plugged in or the device has been
put into the cradle, the flash symbol can flash for a short time. Until then the
red charge LED at the top left of the device can go up to 10 minutes.
Leave the device connected in the cradle or the AC adapter!
Observe the notes in "Charging the Battery".
Thus, a deep discharge of the battery can be avoided:
Charge the batteries regularly. For intensive use should be loaded daily.
Charge the battery as soon as possible after you receive the prompt from the
device.
If a device is not used for more than 2 days, turn it off as follows: Press and
hold the power button on the side of the device, and then press "Turn off" in
the menu that appears.
Insert/remove the Pistol Grip
To mount / remove the pistol grip, the device must be shut down:
Press and hold the power button on the side of the device, and then press "Turn
off" in the menu that appears.

LogiScan-15xx Operating Manual ___________________________________________
Edition 22.11.2018 _____________________________________________________ aitronic
13
AppCenter
The AppCenter contains a collection of apps for hardware-specific test functions,
such as
Barcode Scanner,
RFID Reader,
Fingerprint Sensor,
GPS,
Network,
Bluetooth,
NFC,
Telephone,
Camera,
Printer.

LogiScan-15xx Operating Manual ___________________________________________
Edition 22.11.2018 _____________________________________________________ aitronic
14
Barcode Scanning
Turning Device on/off
Press the power button at the side of the device short to switch on / off the device.
Press the power button at the side of the device and hold to start up / shut down
the device, to reboot or enable flight mode.
Right
Right
Wrong
Wrong
1D Barcode
2D Image

LogiScan-15xx Operating Manual ___________________________________________
Edition 22.11.2018 _____________________________________________________ aitronic
15
5. Pre-installed Android apps from aitronic
The following Android apps by aitronic are preinstalled on Android-based devices
from aitronic:
devin
allows the transfer of the scanned barcode scanner or RFID reader data of an
android-based LogiScan to the keyboard buffer or the clipboard. Alternatively,
a broadcast message is possible. Thus, the bar code scanner and RFID
reader can serve as a data source for each app.
aibrowser
interacts with the Android app devin and allows the transfer of the scanned
barcode scanner or RFID reader data of an android-based LogiScan into web
applications. The aiBrowser is HTML-5 compliant and is useful for modern
JavaScript-based web applications (such as Microsoft Dynamics NAV). The
optional kiosk mode prevents access to the system.
ScannerDemo
serves as a demonstration for the barcode and transponder tag pickup, on the
other hand it serves app developers as an example of the integration of
barcode scanners and RFID scanner features in a native app. We provide this
demo app to incl. source code for download.
aiInventur
The Android app aiInventur interacts with the Android app devin. aiInventur is
used for the demonstration of barcode scanners and/or RFID readers and can
be used for simple inventory with android based LogiScan.
The manual "Android apps by aitronic.pdf" contains a detailed description of these
apps and can be downloaded from our website www.aitronic.de.

LogiScan-15xx Operating Manual ___________________________________________
Edition 22.11.2018 _____________________________________________________ aitronic
16
6. Disposal
Disposal of Batteries
Duty to inform in accordance with battery legislation (BattG)
Batteries and rechargeable batteries do not belong in household
waste. The consumer is obliged to dispose of no longer used batteries
properly. Let please dispose of them only through retailers or battery
collection points. Hereby you make an actual contribution to
environmental protection. Since 2009, the German battery legislation
obligates all citizens to dispose of used batteries exclusively via the trade or
specially equipped collection points (statutory obligation to return). Retailers and
manufacturers are obliged to take back these batteries free of charge and properly
and batteries to be recycled or disposed of as hazardous waste (legal obligation).
Batteries may only be disposed in the discharged state at the return points, and / or
(e.g. by isolating the poles with adhesive strips), precaution against short-circuits
has to be taken.
The built-in Li-Polymer battery of this device is marked with the adjacent Disposal
characters (consisting of a crossed out dustbin and the type of batteries used).
The symbols shown on the batteries have the following meaning:
= Battery must not be placed in household waste
Pb = Battery contains more than 0.004 percent lead
Cd = Battery contains more than 0.002 percent cadmium
Hg = Battery contains more than 0.0005 per cent of mercury
Legal notice for waste disposal
In accordance with the European legislation, it is forbidden to dispose of
electrical and electronic equipment in the domestic waste. The aitronic
GmbH takes back all of it placed on the market or sold electronic devices
and accessories. So environmentally sound disposal is ensured.

LogiScan-15xx Operating Manual ___________________________________________
Edition 22.11.2018 _____________________________________________________ aitronic
17
7. Technical Specifications
LogiScan-1500
Physical Characteristics
Dimensions
153 mm x 75 mm x 29 mm / 6.02 x 2.95 x 1.14 inch
Weight
286 g / 10.08 oz. (includes main battery)
Screen
4 in. WVGA (480 x 800) TFT-LCD, capacitive dual touch
Keyboard
3 function buttons, 3 side buttons, 4 TP touch key-press buttons
Battery
Main battery (rechargeable Li-Ion polymer, 3.7 V, 3200 mAh)
Pistol battery (rechargeable Li-Ion polymer, 3.7 V, 5200 mAh)
Extension Slots
1 PSAM, 1 SIM, 1 MicroSD
Audio
0.5 W
Performance Characteristics
CPU
Cortex-A9 1 GHz Dual Core
Memory
1 GB RAM, Build-in 4 GB Flash, MicroSD max. 32 GB expansion
Interface
USB Micro-B, serial port RS-232 (TTL)
User Environmental Characteristics
Operating Temperature
-10º to +50º C
Storage Temperature
-40º to +70º C
Humidity
5% RH - 95% RH (non-condensing)
Dropping Survive
1.2 m / 3.9 ft. drop, 6 sides (concrete floor under operating
temperature)
Protection Class
IP64, IEC compliance
Wireless Communication
WAN & Voice
WCDMA/HSDPA/HSPA+ (850/1900/2100 MHz)
GSM/GPRS/EDGE (850/900/1800/1900 MHz)
WLAN
IEEE802.11b/g/n, internal antenna
WPAN
Bluetooth v4.0 Low Energy
GPS
GPS (embedded A-GPS)
Data Collection
Barcode Scan Engine
(optional)
1D barcode (Symbol SE955, laser）(optional)
2D CMOS laser scanner: Symbol SE4750 (optional)
RFID LF/HF Reader
Modul Standard or
LEGIC (optional)
125 und 134 kHz, 13,56 MHz
Supported transponder tag types see pages 21 and 22
RFID UHF (optional)
860 –960 MHz, EPC C1 GEN2/ISO18000-6C
Camera (optional)
5 mega pixel, auto focus
