Aiva Robotics AM-10 User manual

AM-10

02-03
04-05
06
07
08-09
10-19
10
10-17
18
19
19
20
21
Safety and maintenance
Warnings
Parts
Functions
Remote control instruction
Usage methods
Power on
Massage function control operation
Voice control poeration
Position adjustment
Power off, stop massage
Method to move the product
Specification
Maintenance and cleaning of product
Thanks for choosing our products, please read this manual carefully
before using, so as to know the right way to use it. Please pay attention to
the important warnings, and keep this manual properly.
Remark: our company keeps the right to change and explain the
product design, we will not announce if there is change, product real color
shall prevail.

1.Important warning
Keep children away from the moving parts of this product.
Please use well-grounding power matching this product.
Please pull off the power cord after using or before cleaning, to avoid
damage or injury.
Please use this product according to the instructions.
Please don’t use unrecommended accessories.
Please don’t use this product outside .
Please read this manual carefully before using.
Do not use this product for purpose which are not listed in this manual.
Recommended using time is no more than 30 minutes.
Please don’t use if the covers are broken.
Please don’t use if the ventilation holes are blocked.
Please don’t drop any objects into this product.
Please don’t fall asleep when using this product.
Please don’t use this product under drunk or unwell situation.
Please don’t use this product in one hour after having meal.
Please don’t push hard when using this product to avoid injury.
2.Environment
Please don’t use under high temperature and humidity circumstance such
as bathroom.
Please don’t use when environment temperature changes dramatically.
Please don’t use under environments where dusts are heavy or full of
corrosive air.
Please don’t use where space us limited or air circulation is not smooth.
3.Users not suitable to use massage chair
Users with malignant tumor, osteoporosis, and spine broken.
Users with heart disease or equipped with electronic medical devices such
as pacemaker.
Users with high fever, or wounded just after surgical operation.
Pregnant, puerperants or menstrual women.
Users with surface or internal injuries.
Users under 14-year old without adult’s supervision, or unwell minded are
not allowed to use this product.
Users who need to take rests according to doctors’ or not feeling well.
Users in wet body are not allowed to use this product.
Users who are sensitive to heating must pay attention during usage.
4.Safety notice
Check if the voltage complies to this product’s specification.
Don’t plug in and out the power cord with wet hands.
Prevent this product from water so as to cause electric shock or damage.
Don’t put strength on the power cord when plugging in and out.
Don’t damage the wires or change it circuit.
Don’t clean the live parts with wet cloth, such as power switch and plug.
Please leave this product when power is cut off, to avoid injury if power
supply comes back.
When users find this product abnormal during usage, please stop using
immediately and consult to local distributors.
When users feel unwell during usage, please stop using immediately and
consult to doctor.
This product does not suit users with physical disability, nerve imperfection
or those lack of experience and common knowledge( including children),
unless they are guided or supervised by their guardian.
5.Maintenance
This product must be maintained in authorized service center, users are
not allowed to disassemble it and repair.
Please shut off the power switch after usage.
Don’t use this product when power socket is loose.
Scroll the power cord and put this product in dry environment if it will not
be used for long time.
Don’t put this product close to high temperature, fire, and direct sunshine.
Please clean with dry cloth, no diluent, benzene and alcohol.
The mechanical parts of this product is specially designed and manufac
tured, no need special maintenance.
Don’t use sharp objects toward this product.
Don’t move this product on unsmooth ground, labor lift is required.
Don’t use this product continuously.
6.Common phenomenon settles down
Motor noise during usage is normal.
Remote control doesn’t work: check if power cord and power socket is
connected well; check if power switch is turned on.
This product stop working: it stops automatically when rated working time
is out; it works continuously long time so that the temperature protection
switches on and shut off automatically, use it after half an hour.
Safety and maintenance Safety and maintenance

Warnings Warnings
Warnings Warnings
Don’t push down towards the calfrest when it goes up, to avoid the
massage chair leaning forward and cause damages and injuries
Under standby and power on situation, don’t pull the remote wire or
power cord to avoid damage or sudden electric shock; scrolling the
remote wire and power cord is recommended
Make sure that the massage hands are not in seat position before
sitting on it, to avoid uncomfortable or damage to massage hands
Make sure that no pets and children are under the footrest and
backrest before operating zero gravity function, to avoid damages and
injuries
Warnings Warnings

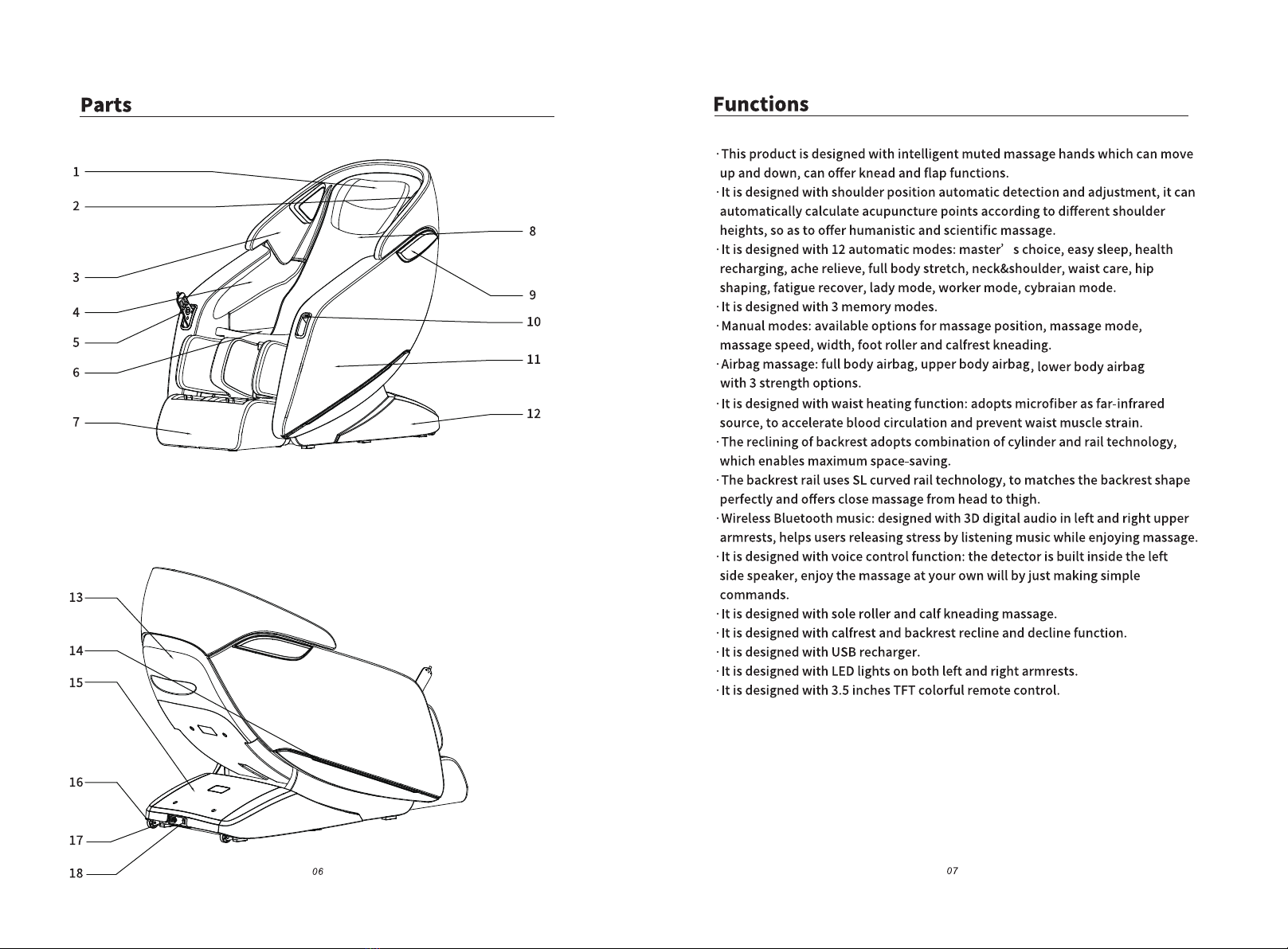

1.Pillow
2.3D digital audio
(voice control built
insidi the laft arm)
3.Upper arm airbags
4.Arm airbags
5.Remote control
6.Remote control bag
7.Calfrest
8.Backrest cushion
9.Decoration plate
10.USB charger
11.Armrest
12.Side cover
13.Backrest cover
14.LED light
15.PCB cover
16.Caster
17.Power jack
18.Power switch

Note: the colors shown in screen, typesetting and order of massage
functions and their icons should prevail to real screen!
1.TFT colorful LCD
2.Massage function display
3.Backrest stretch display
4.Massage method display
5.Zero gravity display
6.Calfrest kneading display
7.Armrest airbag display
8.Thigh and leg airbag display
9.Sole roller display
10.Width adjustment
11.Airbag strength adjustment
12.Massage position adjusment
13.Shoulder position adjustment
14.Timimg
15.Bluetooth
16.Massage position display
17.Backrest heating display
18.Speed adjustment
19.Roller speed adjustment
20.Calfrest kneading speed adjustment
21.Info
1.on/off: start or stop massage chair
2.Up: to move up the navigation button
3.Ok: confirm
4.Left: left control
5.Down: down control
6.Menu: enter main interface
7.Sit up: massage chair sits up
8.Calfrest recline: lift up the calfrest
9.Calfrest decline: lay down the calfrest
10.Lay-down: massage chair lays down
11.Pause: stop current functions
12.Right: right navigation button
13.Voice control: voice control button
14.Auto: to enter automatic modea
15.Zero gravity: adjust the angle to zero
gravity 1 or 2
16.Foot roller: start or stop foot roller
massage

、 Switch on
Plug in Plug in Switch on
1、 Standby
Massage chair is under standby position.
Screen display: enjoy the healthy life
、 Massage function operation
Ⅱ
Ⅰ
Usage methods
2、Start massage (on/off)
Press on/off button to start massage
1)、 Automatic lay-down adjustment
After starting the massage, the chair will enter automatic lay-down position
and detect shoulder position.
Display screen:
Usage methods
When massage hands detect the shoulder position, buzzer sounds “Didi”,
adjust it by pushing “up”or “down” if it is not the real position, there are 11
level options. It will enter massage mode if there is no adjustment within 10
seconds. It can also enter massage mode by pressing “OK” button. If
shoulder position can’t be detected, the massage will run according to
default shoulder height.
Display screen:
2)、shoulder position detect and adjustment

If shoulder position needs to be adjusted after starting massage, it can be done
by pressing navigation button 'Left' or ' Right' to enter the shoulder position
interface, then press 'Up' or 'down' button to adjust the shoulder position.
Display screen:
3)、 Massage position adjustment
If massage position needs to be changed after massage is turning on and the
current mode is in fixed or partial status under manual mode, it can be done
by pressing navigation button 'Left' or' Right' to enter the massage position
interface. Press 'Up' button and don't loose to move the massage hands
upward, it stops when finger loses; press 'Down' button and don't' loose to
move the massage hands downward, it stops when fingers loses.
Display screen:
3、 Pause
When massage is in process, stop current massage functions by pressing
'Pause' button, press it again to continue. If pause period is more than 20
minutes, all massage functions will be turned off automatically.
4、 Menu
Enter main interface by pressing 'Menu' button, it contains auto program,
manual program, airbag massage, additional function, memory storage,
setting...etc. To select by pressing 'Up' or 'Down' button, return to previous
menu by pressing 'Left' button, enter next menu by pressing 'Right'
button,confirm by pressing 'OK ' button.
Usage methods Usage methods

5、 Auto program(Menu-auto program, can also enter auto program
interface by pressing 'Auto' button)
Enter menu interface by pressing 'Menu' button, choose auto program icon,
there are 10 automatic modes: Master's choice,easy sleep,health
recharge,pain relief,
6、 Manual program
Enter menu interface by pressing 'Menu' button, choose manual program icon
including methods, area, speed, width, roller and kneading...etc.
There are 9 massage methods: 360°knead, clockwise knead, counter-clockwise
knead, upper knead, lower knead,tap, knead&tap, knock and shiatsu.
There are 5 areas: full back, upper back, lower back, partial and fixed position.
There are 5 speed options. Speed can only be adjusted under manual modes.
There are 3 width options. Width can only be adjusted in flapping, knocking and
shiatsu status under manual mode.
Selected status: Sole roller: sole rolling massage with 3 speed options. It
offers scratching massage to sole area to accelerate blood circulation and the
supersession of body.
Calfrest kneading: calfrest kneading massage with 3 speed options. It helps
the office workers who sit for long time without movement, suffering cold
hands and feet caused by lower body insufficient blood circulation.
Note: To select by pressing 'up' or 'down' button, return to previous menu by
pressing 'Left' button, enter next menu by pressing 'Right' button, confirm
by pressing 'OK' button. These operations are same under other interfaces.

7、 Airbag massage
Enter home by pressing 'Menu' button, choose airbag massage: full body,
upper body, lower body. There are 3 strength levels.
8、 Additional functions
It is designed with waist heating function: adopts microfiber as far-infrared
source, to accelerate blood circulation and prevent waist muscle strain.
Enter menu interface by pressing 'Menu' button, choose memory storage
function: M1, M2 and M3.
Save: store current massage mode, massage methods, airbag mode and
strength, calfrest and backrest position...etc.
Use: choose saved massage mode, massage method, airbag mode and
strength, calfrest and backrest position...etc.
9、 Memory storage
Enter main menu interface by pressing 'Menu' button choose setting tool icon:
timer, LED light, language, Bluetooth.
There are 3 timing levels, 10 minutes, 20 minutes, 30 minutes.
LED light: turn on and off LED light.
Bluetooth: turn on cellphone Bluetooth and match massage chair(matching
code 0000 or 1234), music can be played once matching is successful.
Language: simplified Chinese, traditional Chinese, English.
10、 Setting tool

Ⅳ
Ⅴ
Ⅲ
Answer: OK, Massage OnMassage On
Answer: OK, Massage OFFMassage OFF
Answer: OK, Massage’ choiceMassage’ choice
Answer: OK, Easy-sleepEasy-sleep
Answer: OK, Health RechargeHealth Recharge
Answer: OK, Pain RechargePain Recharge
Answer: OK, Full Body StratchFull Body Stratch
Answer: OK, Neck and ShoulderNeck & Shoulder
Answer: OK, Waist CareWaist Care
Answer: OK, Hip ShapingHip Shaping
Answer: OK, Fixed MassageFixed Massage
Answer: OK, Change To Another ModeChange To Another Mode
Answer: OK, Little DownGo a Little Down
Answer: OK, Little UpGo a Little Up
Answer: OK, Sit UpSit Up
Answer: OK, Recline DownRecline Down
Answer: OK, Stop AdjustmentStop Adjustment
、 Position adjustment
Include calfrest recline and decline, sit up, lay-down, zero gravity 1 and zero
gravity 2.
Stop all massage functions by pressing 'On/Off 'button during massage
process, calfrest, backrest and massage hands return to original position.
When timing out, all massage functions stop automatically, while calfrest and
backrest position will not change.
Shut-off power.
、 Turn off and stop massage
Awaken voice control function by speaking 'Hi, what's up' when massage chair
is turned on or under standby status.
Once it is awakened, it will answer 'I am here', users can speak corresponding
voice control words within 6 seconds, otherwise the voice control function will
be turned off automatically and needs to be awakened again.
Under noisy condition or when music is played, the awaken voice will not be
sensitive, it can be done by pressing the voice control button on remote control.
Press the button short to awaken it, shut it off if press more than 3 seconds, and
the awakening of voice control under this circumstance can only be done by
pressing the button.
Note: Please speak correct and slowly, follow below words
、 Voice control operation
Calfrest recline: lift up the calfrest slowly by pressing this button,
it stops When finger loses.
Calfrest decline: lay down the calfrest slowly by pressing this
button it stops when finger loses.
Sit up: lift up the backrest and lay down the calfrest slowly by
pressing this button, it stops when finger loses.
Lay-down: lay down the backrest and lift up the calfrest slowly by
pressing this button, it stops when finger loses.
Zero gravity1: adjust the angle to zero gravity 1 by pressing this
button.
Zero gravity2: adjust the angle to zero gravity 2 by pressing this
button.

Ⅵ
Move the backrest to highest position.
Shut-off power and pull out the power cord.
Lift up the front part and press down the back part, move the chair by caster.
Once movement is done, put the chair to original position slowly.
、 Method to move the product
Note: movement must be done when the power switch is turned off and
power cord and remote wire is unplugged.
Name: Massage Chair
Model: AM-10
Rated voltage: 110V-120V-60Hz
220v-240-50/60hz
Rated power: 150W
Safety design: Class I
Executive standard: GB4706.1-2005 GB4706.10-2008
1. Don't clean this product with corrosive cleanser such as diluent
2. Don't iron the surface material
3. Don't press, knock and scratch the massage chair
4. Press the remote control button gently
5. It is recommended to use no more than 30 minutes at one time
6. Please pull out the plug immediately after usage
7. Pull out the plug before cleaning. Don't touch the plug with wet hands, to
avoid electric shock and injury
Maintenance and cleaning of product
