Aiwa ADC-EX108 User manual
SERVICE MANUAL
STEREO CAR
CD CHANGER SYSTEM BASIC CD MECHANISM : 8ZG-4 RNF
ADC-EX108
ADC-M105
YZ
YL,YH
S/M Code No. 09-003-404-5R7
REVISION
• This Service Manual is the "Revision Publishing" and replaces "Simple Manual",
(S/M Code No. 09-003-404-5T7).
DATA
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
SPECIFICATIONS
ACCESSORIES / PACKAGE LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
- 2 -
<Compact disc changer>
System Compact disc digital audio system
Frequency Response 5 Hz - 20 kHz
Wow and flutter Below measurable limit
Signal to noise ratio 91 dB or more
Outputs Line output (for changer connector only)
Operating temperature -10 oC to 55 oC
Dimensions 254 x 83 x 173mm (w/h/d)
(10 x 3 3/8x 6 7/8in.)
Weight 2.1 kg (4.62 lbs.)
Power requirement 12 V DC car battery
(negative ground)
D/A converter 1 bit DAC, 8 times over sampling
Sampling rate 44.1 kHz
Disc size 120 mm
• Design and specifications are subject to change without notice.
1 8Z-KM3-914-010 IB,YL(3L) M105-I<YL>
1 8Z-KM3-915-010 IB,YZ(9L) 108,M105-I<YZ>
1 8Z-KM3-916-010 IB,YH,Y(E CK CH A) 108M105-I<YH>
2 87-B10-208-010 VWWS+4-12 BLK
3 8Z-KM1-210-110 PLATE,UNIT ASSY
4 8Z-KM1-218-010 NUT,5 HEX-FLANGE
5 8Z-KM1-209-010 HLDR,UNIT 10A
6 8Z-KM1-216-010 HLDR,UNIT 10B
7 8Z-KM4-651-010 CABLE ASSY,13PIN-DIN
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
– 3 –

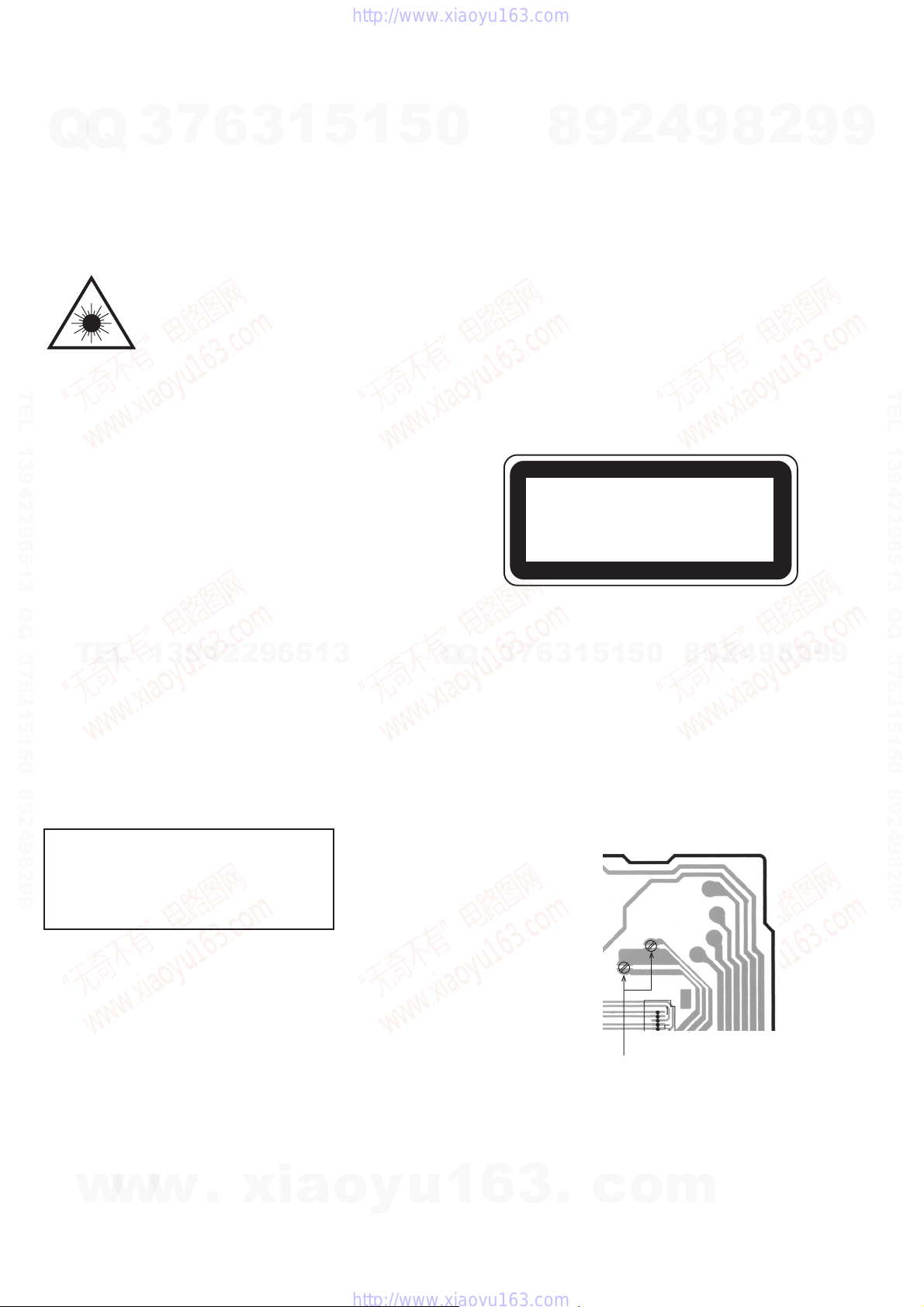

CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
This set employs laser. Therefore, be sure to follow carefully
the instructions below when servicing.
WARNING!!
WHEN SERVICING, DO NOT APPROACH THE LASER
EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS
NECESSARY TO CONFIRM LASER BEAM EMISSION.
BE SURE TO OBSERVE FROM A DISTANCE OF MORE
THAN 30cm FROM THE SURFACE OF THE OBJEC-
TIVE LENS ON THE OPTICAL PICK-UP BLOCK.
sCaution: Invisible laser radiation when
open and interlocks defeated avoid
exposure to beam.
sAdvarsel: Usynlig laserståling ved åbning,
når sikkerhedsafbrydere er ude af funktion.
Undgå udsættelse for stråling.
VAROITUS!
Laiteen Käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saataa altistaa käyt-täjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING!
Om apparaten används på annat sätt än vad som
specificeras i denna bruksanvising, kan användaren
utsättas för osynling laserstrålning, som överskrider
gränsen för laserklass 1.
PROTECTION OF EYES FROM LASER BEAM DURING SERVICING
CAUTION
Use of controls or adjustments or performance of proce-
dures other than those specified herin may result in
hazardous radiation exposure.
ATTENTION
L’utillisation de commandes, réglages ou procédures
autres que ceux spécifiés peut entraîner une dangereuse
exposition aux radiations.
ADVARSEL
Usynliglaserstålingvedåbning,nårsikkerhedsafbrydereer
ude af funktion. Undgå udsættelse for stråling.
This Compact Disc player is classified as a CLASS 1
LASER product.
The CLASS 1 LASER PRODUCT label is located on the
rear exterior.
PICK-UP ASSY
P.C.B
Precaution to replace Optical block
(KSS-710A)
Body or clothes electrostatic potential could
ruin laser diode in the optical block. Be sure
ground body and workbench, and use care the
clothes do not touch the diode.
1) After the connection, remove solder shown in
right figure.
SOLDER
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
- 4 -

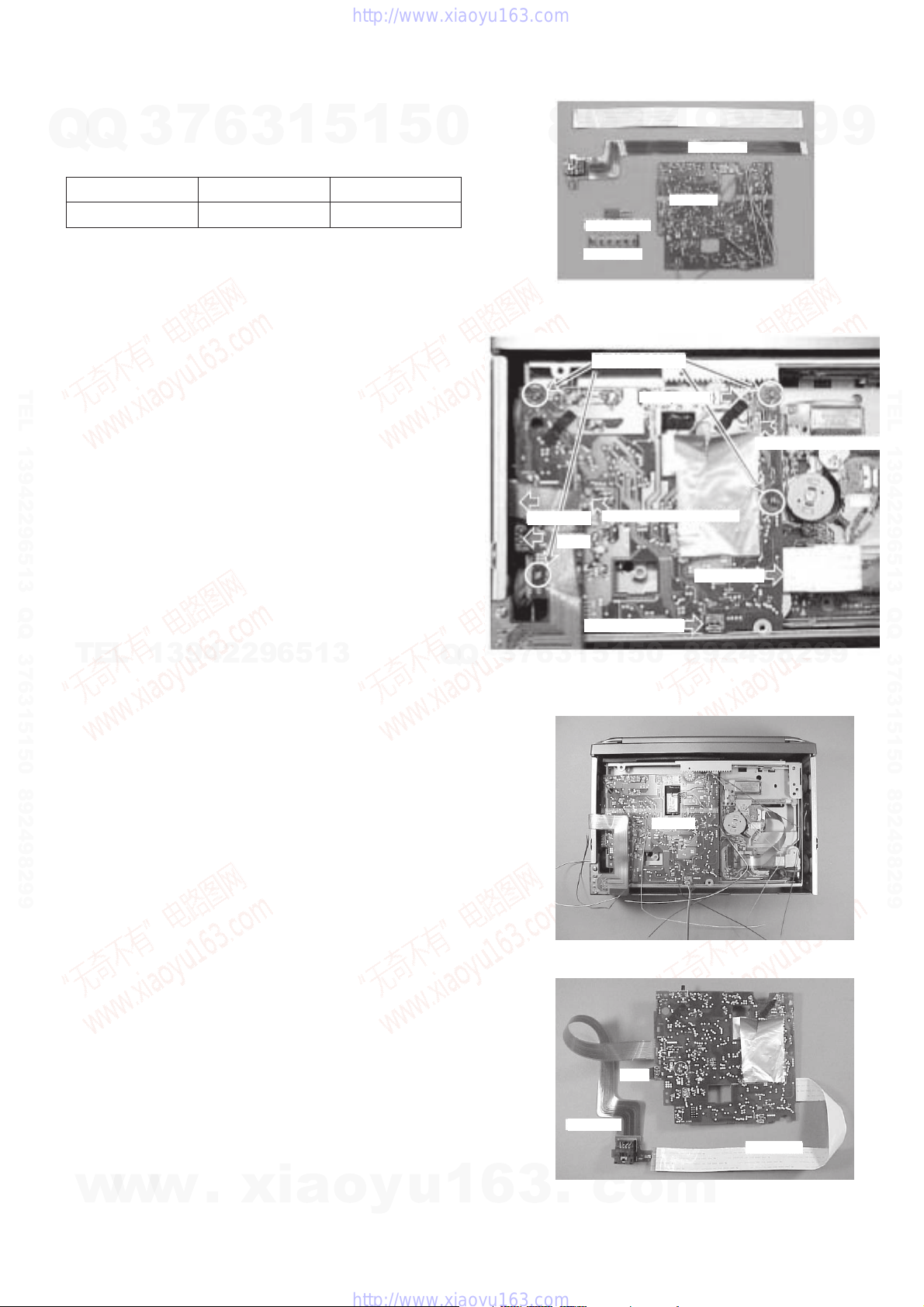

1. How to Use the Repair Jig
Use the following repair jig kit for servicing.
The kit contains the following parts (Refer to Fig-1) ;
1. FFC (26P/25 cm) 1 pcs
2. P.W.B. FLEX 1 pcs
3. P.W.B. JIG 1 pcs
4. TRANSISTOR (2SD-2395) 1 pcs
5. P.W.B. KEY 1 pcs
(1) Remove the cabinet as follows;
1) Remove the CABI BOTTOM by removing the
four screws VTT+2.6-6B (Refer to Fig-2).
(2) Remove the P.W.B. MAIN as follows;
1) Remove all terminals of the transistor Q623
(2SD2395) by unsoldering them.
2) Remove the two motor wires (BLU/WHT).
3) Remove the two wires (BLK/BRN) of the sensor
(PD201).
4) Remove the P.W.B. MAIN from the unit by
removing the four screws V+2-3.
5) Disconnect the FFC of pickup from CN101.
6) Disconnect the PWB FLEX from CON1.
7) Remove the LED (LED201,GL380) from the
P.W.B. MAIN.
8) Remove the sensor (PS201,SENR GP1S94) from
P.W.B. MAIN.
(3) Install the repair jig as follows;
1) Install the P.W.B. JIG into the unit and fix it with
screws. (Refer to Fig-3).
(4) Attach the parts as follows, (Refer to Fig-4);
1) Attach the supplied transistor to the location of the
P.W.B. MAIN from which Q623 is removed in
step (2).
2) Connect the supplied PWB FLEX to CON1.
• When the CONTROL UNIT is not used, use the
P.W.B. KEY instead. (Refer to step (6), How to
use the repair jig.)
3) Connect the FFC cable to CON101 and pickup.
(The supplied FFC cannot be used because pitches
and number of pins are different.)
SERVICE JIG AND TOOLS
Part name Part code
For 10 CD changer JIG-ADC-EX106 SV-J00-090-010
Fig-1
Fig-2
Fig-3
Fig-4
FFC
FFC
TRANSISTOR
PWB KEY
REMOVE SCREW
LED(LED201)
REMOVE MOTOR WIRE
PWB FLEX REMOVE SENSOR WIRE
Q623
PICKUP FCC
SENSOR (PS201)
PWB JIG
Q623
PWB FLEX
FFC CABLE
PWB JIG
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
- 5 -
Fig-5
Fig-6
(5) Perform wirings to the C.Bs. Refer to Fig-5/-6;
• Be sure to connect the wires coming from the
P.W.B. JIG to the same connecting points on the
MAIN C.B as follows.
1) Connect the motor wires and sensor (PD201)
wires that are removed in step (2) to the P.W.B.
JIG.
2) Connect all wires coming from the P.W.B. JIG to
the respective lands of the MAIN C.B by
soldering.
• Connect the motor wires (BLU/WHT) of the
P.W.B. JIG to the motor wire connecting lands on
the MAIN C.B by soldering.
• Connect the LED (LED201) wires (RED/GRY) of
the P.W.B. JIG to the LED wire connecting lands
on the MAIN C.B by soldering.
• Connect the sensor wires (BRN/BLK) of the
P.W.B. JIG to the sensor wire connecting lands on
the MAIN C.B by soldering.
• Connect the sensor (PS201) wires (YEL/ORG/
RED/BRN) of the P.W.B. JIG to the sensor wire
connecting lands on the MAIN C.B by soldering.
• Connect the SW202 wire (WHT) of the P.W.B.
JIG to the SW202 wire connecting lands on the
MAIN C.B by soldering.
• Connect the SW203 wire (BLK) of the P.W.B.
JIG to the SW203 wire connecting lands on the
MAIN C.B by soldering.
• Connect the SW204 wires (BLU/WHT) of the
P.W.B. JIG to the leads of SW204 on the MAIN
C.B by soldering. Refer to Fig-6.
(6) How to use the repair jig;
When the Control Unit (CDC/CT) is going to be used.
1) After all wires and connections are complete,
connect the Control Unit (CDC/CT) with the DIN
jack of the P.W.B. FLEX.
2) Connect external power +12 V to ACC/BACKUP
wire and ground (-) to the GROUND wire.
3) Perform the operation check.
When the Control Unit (CDC/CT) is not used.
1) Connect the supplied P.W.B KEY to the MAIN
C.B by performing all connections between them.
Refer to Fig-7/-8.
(Wires to be used for connecting the MAIN C.B
are not supplied.)
2) Connect the wires as follows. Refer to Fig-9.
P.W.B KEY MAIN C.B
HOT TO
GND GND
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
- 6 -
2) Connect the wires as follows (Refer to Fig-9);
• Connect wire for +12 V power to BACK UP of ICP601
by soldering.
• Connect ICP601 and ACC pattern land by soldering a
wire.
• Connect GND by soldering a wire.
• Connect the +12 V power to the ACC/BACK UP wire
and connect ground (-) to the GROUND wire of the
connector (Wires to be used for connection are not
supplied.)
3) Perform the operation check (Refer to Fig-10).
The P.W.B Key has the following pin assignment.
Fig-7
Fig-10
Fig-8
Fig-9
PWB KEY
GND
+12V Fig-9
Fig-8 GND
TO
ACC
Add wire
GND
ICP601
+12V
STOP PLAY BSKIP FSKIP DOWN UP
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
- 7 -
IC
87-A20-892-010 C-IC,CXD2588R
87-A21-467-010 C-IC,CXA2581N
8Z-KM3-691-010 C-IC,CXP84632-143Q
87-A21-158-040 C-IC,TC74HC365AF
87-017-888-080 IC,NJM4558MD
87-A21-161-040 C-IC,BA6392FP
87-A21-162-040 C-IC,BA6247FP
87-A21-102-040 C-IC,S-80828ANNP-EDR-T2
87-A21-190-040 C-IC,PQ20WZ1U
TRANSISTOR
87-A30-248-040 C-TR,2SB1197KQ
89-110-372-080 TR,2SA1037KR
87-026-648-080 C-TR,UPA608T
89-327-125-080 CHIP TR,2SC2712GR
87-A30-272-040 C-TR,DTA124EKA
87-A30-273-040 C-TR,DTC124EKA
87-A30-274-040 C-TR,2SD1622S-TD
87-A30-317-080 TR,2SA1702
89-423-952-010 TR,2SD2395E
87-A30-371-040 C-TR,2SD1623
DIODE
87-A40-250-040 CHIP-DIODE,DAN217
87-A40-196-080 C-ZENER,UDZ6.2B
87-020-331-080 CHIP-DIODE,DAN202K
87-A40-524-040 C-DIODE,1SR154-400
87-070-136-080 ZENER,MTZJ5.1B
87-A40-437-080 ZENER,MTZJ4.3B
MAIN C.B
C102 87-010-499-040 CAP,E 22-6.3 GAS
C103 87-A12-154-010 CAP,E 470-4 MA GAS
C104 87-016-669-080 C-CAP,S 0.1-25 K B
C105 87-016-669-080 C-CAP,S 0.1-25 K B
C106 87-016-669-080 C-CAP,S 0.1-25 K B
C107 87-010-184-080 C-CAP,S 3300P-50 KB
C108 87-016-526-080 C-CAP,S 0.47-16 BK
C109 87-012-156-080 C-CAP,S 220P-50 CH
C110 87-010-184-080 CHIP CAPACITOR 3300P(K)
C111 87-010-992-080 C-CAP,S 0.047-25 B
C112 87-016-669-080 C-CAP,S 0.1-25 K B
C115 87-012-154-080 C-CAP,S 150P-50 CH
C116 87-012-154-080 C-CAP,S 150P-50 CH
C117 87-010-176-080 C-CAP,S 680P-50 SL
C118 87-010-176-080 C-CAP,S 680P-50 SL
C151 87-A10-711-080 C-CAP,E 100-6.3 M MF<YL>
C152 87-016-669-080 C-CAP,S 0.1-25 K B
C153 87-A10-711-080 C-CAP,E 100-6.3 M MF
C155 87-016-669-080 C-CAP,S 0.1-25 K B
C156 87-016-669-080 C-CAP,S 0.1-25 K B
C157 87-012-156-080 C-CAP,S 220P-50 CH
C158 87-010-992-080 C-CAP,S 0.047-25 B
C159 87-012-156-080 C-CAP,S 220P-50 CH
C161 87-016-669-080 C-CAP,S 0.1-25 K B
C162 87-A12-031-080 C-CAP,E 33-10 M MF
C165 87-016-669-080 C-CAP,S 0.1-25 KB
C166 87-016-669-080 C-CAP,S 0.1-25 KB
C201 87-016-669-080 C-CAP,S 0.1-25 K B
C202 87-016-669-080 C-CAP,S 0.1-25 K B
C251 87-010-197-080 C-CAP,S 0.01-25 KB
C252 87-012-140-080 C-CAP,S 470P-50 J CH
C301 87-010-552-040 CAP,E 22-16 GAS
C302 87-010-552-040 CAP,E 22-16 GAS
C303 87-010-318-080 C-CAP,S 47P-50 CH
C304 87-010-318-080 C-CAP,S 47P-50 CH
C305 87-015-696-040 CAP,E 2.2-50 SRA
C306 87-015-696-040 CAP,E 2.2-50 SRA
C307 87-010-178-080 CHIP CAP 1000P
C308 87-010-178-080 CHIP CAP 1000P
C321 87-010-555-040 CAP,E 100-10
C322 87-016-669-080 C-CAP,S 0.1-25 K B
C323 87-010-550-040 CAP,E 100-6.3 GAS
C324 87-016-669-080 C-CAP,S 0.1-25 K B
C325 87-010-550-040 CAP,E 100-6.3 GAS
C501 87-010-555-040 CAP,E 100-10 GAS
C503 87-016-669-080 C-CAP,S 0.1-25 K B
C505 87-010-178-080 CHIP CAP 1000P
C506 87-A11-257-010 CAP,E 470U-10M
C551 87-010-555-040 CAP,E 100-10 M 5L
C552 87-A11-257-010 CAP,E 470U-10M
C553 87-016-669-080 C-CAP,S 0.1-25 K B
C554 87-016-669-080 C-CAP,S 0.1-25 K B
C555 87-016-669-080 C-CAP,S 0.1-25 K B
C556 87-016-669-080 C-CAP,S 0.1-25 K B
C601 87-010-552-040 CAP,E 22-16 GAS
C602 87-A10-368-080 C-CAP,S 2.2-10 Z F
C603 87-010-552-040 CAP,E 22-16 GAS
C604 87-010-782-010 CAP,DL 0.047F-5.5 Z 70
C605 87-016-669-080 C-CAP,S 0.1-25 K B
C606 87-A10-368-080 C-CAP,S 2.2-10 Z F
C621 87-010-552-040 CAP,E 22-16 GAS
C622 87-010-555-040 CAP,E 100-10 M 5L
C623 87-010-555-040 CAP,E 100-10 M 5L
C624 87-010-260-080 CAP,E 47-25 M 11L SME
C625 87-016-669-080 C-CAP,S 0.1-25 K B
C626 87-016-044-040 CAP,E 100-16 GAS
C631 87-010-555-040 CAP,E 100-10 M 5L
C632 87-010-552-040 CAP,E 22-16 M 5L
C901 87-010-197-080 C-CAP,S 0.01-25 K B C2012
C902 87-016-669-080 C-CAP,S 0.1-25 K B
CN101 87-A61-155-080 C-CONN,30P H XF2H-3015-1
FC101 8Z-KM3-672-010 FF-CABLE, 30P 0.5 145MM
FC102 8Z-KM3-608-010 F-CABLE,2P (SENS KM3)
HL201 8Z-KM1-232-010 HLDR,LED
ICP601 87-A91-337-080 PROTECTOR,IC ICP-N75
L101 87-A50-536-080 C-COIL, 10UH K LQH3C24
L151 87-A50-536-080 C-COIL,10UH K LQH3C24
L152 87-A50-536-080 C-COIL,10UH K LQH3C24
L201 87-A50-536-080 C-COIL,10UH K LQH3C24
L301 87-A50-536-080 C-COIL,10UH K LQH3C24
L501 87-A50-536-080 C-COIL,10UH K LQH3C24
L551 87-A50-536-080 C-COIL,10UH K LQH3C24
LED201 87-070-288-010 LED,GL380
PS201 87-A90-244-010 SNSR,GP1S94
SW201 87-A91-155-010 SW,TACT SKHHLQ
SW202 87-036-110-010 SW,MICRO SPPB62
SW203 87-036-110-010 SW,MICRO SPPB62
SW204 87-036-312-080 SW PUSH ESE102MH4-Q
X101 87-A70-163-080 C-VIB,CER 16.93MHZ CSTCVMXJ0C4
X200 87-A70-200-080 C-VIB,CER 12MHZ CSTCV12MTJ0C4
SENS C.B
PD201 87-026-674-010 P-TR,PT4850F
DIN C.B
J901 8Z-KM3-638-010 JACK,DIN 13 P TCS5125-014151
FLEX DIN C.B
8Z-KM3-606-010 PWB,FLEX DIN (ZKM3)
SW C.B
!
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
- 8 -
SW801 87-036-269-080 C-SW,PUSH 1-1-1 ESE102MH2
SW802 87-036-312-080 C-SW,PUSH ESE102MH4-Q
W803 8Z-KM3-625-010 F-CABLE,4P (SWITCH)
LED C.B
CNA800 8Z-KM3-623-210 CONN ASSY,2P (LED)
CON803 87-009-863-010 CONN,2P WHT ZH
LED801 87-A40-319-080 C-LED,LT1E40A GRN
LED802 87-A40-320-080 C-LED,LT1H40A Y
LED803 87-A40-319-080 C-LED,LT1E40A GRN
CONNECT C.B
CON801 87-A61-155-080 C-CONN,30P H XF2H-3015-1
CON802 87-A61-240-080 C-CONN,16P H FLZ-RSM1-TB
M802 87-A91-054-010 MOT,FF-050SK
M803 87-A91-054-010 MOT,FF-050SK
M804 87-A90-926-010 MOT,RF-3L0PA
88
A
Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
LIMIT C.B
SW803 87-036-312-080 C-SW,PUSH ESE102MH4-Q
W804 8Z-KM3-624-010 F-CABLE,2P (LIMIT)
FLEX PICK UP C.B
8Z-KM4-631-010 PWB,FLEX PICK UP (AK)
TRANSISTOR ILLUSTRATION
2SA1037
2SB1197
2SC2712
2SD1623
DTA124EKA
DTC124EKA
2SA1702
2SD1622 2SD2395
B
E
C
C
BECB
E
CBE
C1
B1
E1
C2
B2 E2
UPA608T
C
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
WIRING - 1 (MAIN / SENS) <1/2>
- 9 -
181920212223242526272829303132
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
WIRING - 1 (MAIN / DIN / FLEX DIN) <2/2>
- 10 -
151413121110987654321
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
WIRING - 2 (SW / LED / CONNECT / LIMIT / FLEX PICK UP)
- 11 -
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
IC DESCRIPTION
- 16 -
IC, CXP84632-143Q
1 ~ 4 NC – Not connected.
5 EEPDI – Connected to GND. (Not used).
6 SCLK O SENS read clock out.
7 SENS I SENS in.
8 XLAT O DSP data latch out.
9 SYSM O DSP(DAC) system mute control. (H : MUTE).
10 DRST O DSP IC reset. (L : RESET).
11 EMPHA O DSP(DAC) DE EMPHASYS control. (H : ON).
12, 13 PWRCNT1, 2 O POWER control out 1, 2.
14 SENS I DISC IN detect sensor in.
15 RFSW O RFAMP GAIN select out. (H : CD - RW).
16 (EASSON) RFSEL O RFAMP Fs select out. (x2 speed : L). (Not used).
17 LEDCONT O LED on / off out. (H : ON).
18 ELCONT O MOTOR DRIVER control out 1.
19 LDCONT O MOTOR DRIVER control out 2.
20 MCONT O MOTOR DRIVER control out 3.
21 PHPWR O PHOTO SENSOR ON / OFF out. (H : ON).
22 EJECT I EJECT SW in. (Pull 22 ~ 28 SW L : ON).
23 INIT I INITIAL POSITION SW in.
24 MZIN I DISC MAGAZINE IN SW in.
25 MZLOCK I DISC MAGAZINE LOCK SW in.
26 UNLOAD I UNLOAD POSITION SW in.
27 LS I PU INNER POSITION SW in.
28 CHUCK I CHUCKING POSITION SW in.
29 CD6/10 I 6 / 10 DISC selector. (OPEN : 6 disc).
30 RESET – IC RESET. (L : RESET).
31 EXTAL – 12 MHz CLOCK.
32 XTAL – 12 MHz CLOCK.
33 VSS – IC GND.
34 TX – Not used.
35 TEX – Not used.
36 AVSS – GND. (A/D in GND).
37 AVREF – VDD. (A/D in Vref).
38 TEST0 I/O TEST MODE select (L) / TEST KEY connect.
39 ~ 42 TEST1 ~ 4 – Not used.
43 TEST5 I CD TEXT FUNTION select. (L : NO TEXT). (Not used).
44 TEST6 – Not used.
45 TEST7 I EASS FUNCTION select. (L : NO EASS). (Not used).
46 NC – Not connected.
47 SQSI I SUBCODE CRC flag check.
48 SQCLK O SUBCODE READ CLOCK out.
Pin No. Pin Name I/O Description
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
- 17 -
Pin No. Pin Name I/O Description
49 SQSI I SUBCODE DATA in.
50 NC – Not connected.
51 DCLK O DSP / DRAM controller DATA CLOCK out.
52 ZSENS I DRAM controller DATA in. (Not used).
53 DATAO O DSP / DRAM controller DATA out.
54 PHSENS I PHOTO SENSOR in.
55 C2PO I C2 error flag in. (H : C2 error).
56 LOCK I LOCK in. (H : SPINDLE SERVO LOCK).
57 FOK I FOK in (H : FOCUS OK).
58, 59 NC – Not connected.
60 ACCCNT I ACC CONT in. (H : ON).
61 CLKO O Adjust SERIAL CLOCK out.
62 CLKI I SERIAL CLOCK in.
63 SCOR I SUBCODE SYNC in.
64 DSPSEL I SERIAL BUS enable in.
65 SBCLKI I Adjust SERIAL CLOCK in.
66 SBDTI I SERIAL DATA in.
67 NC – Not connected.
68 SBCLKO O SERIAL CLOCK out.
69 SBDTO O SERIAL DATA out.
70 NC – Not connected.
71 BUCHK I Connected to VDD. (Not used).
72 VDD – IC VDD.
73 NC – Connected to VDD.
74 AMUTE – Not used.
75 SPCON O MOTOR DRIVER STANDBY control. (L : MUTE).
76 NRST O DRAM controller IC RESET. (L : RESET). (Not used).
77 YMLD O DRAM controller DATA LATCH out. (Not used).
78 LED1 O DISC detect sensor LED on / off. (L : ON).
79, 80 LED2, 3 – Not used.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
IC101, CXD2588R
VOLTAGE CHART
PIN NO. CD x 1 CD x 2 RW x 1
1 DATA LINE DATA LINE DATA LINE
2 4.56 4.56 4.56
3 0.11 0.11 0.11
4 0 0 0
5 4.60 4.60 4.60
6 0 0 0
7 DATA LINE DATA LINE DATA LINE
8 4.59 4.59 4.59
9 4.57 4.57 4.57
10 0.03 0.03 0.03
11 4.61 4.61 4.61
12 ~ 14 4.06 4.06 4.06
15 ~ 18 0 0 0
19 ~ 20 2.03 2.03 2.03
21 1.92 1.92 1.92
22 4.06 4.06 4.06
23 0 0 0
24 0.05 0.05 0.05
25 1.92 1.92 1.92
26 2.00 2.00 2.00
27 ~ 28 0.01 0.01 0.01
29 0.04 0.04 0.04
30 ~ 31 4.06 4.06 4.06
32 2.25 2.25 2.25
33 0 0 0
34 ~ 35 2.25 2.25 2.25
36 ~ 41 DATA LINE DATA LINE DATA LINE
42 ~ 46 0 0 0
47 2.02 2.02 2.02
48 1.98 1.98 1.98
49 ~ 50 0 0 0
51 DATA LINE DATA LINE DATALINE
52 2.02 2.02 2.02
53 2.79 2.79 2.79
54 1.95 1.95 1.95
55 0 0 0
56 1.73 1.73 1.73
57 3.92 3.92 3.92
58 1.95 1.95 1.95
59 1.96 1.96 1.96
60 0.80 0.80 0.80
PIN NO. CD x 1 CD x 2 RW x 1
61 1.96 1.96 1.96
62 0 0 0
63 ~ 64 2.04 2.04 2.04
65 ~ 66 1.96 1.96 1.96
67 3.92 3.92 3.92
68 0 0 0
69 ~ 70 1.63 1.63 1.63
71 0.01 0.01 0.01
72 ~ 73 0 0 0
74 4.06 4.06 4.06
75 0.01 0.01 0.01
76 2.02 2.02 2.02
77 ~ 78 2.03 2.03 2.03
79 1.35 1.35 1.35
80 1.96 1.96 1.96
81 2.00 2.00 2.00
82 4.06 4.06 4.06
83 4.60 4.60 4.60
84 4.06 4.06 4.06
85 0 0 0
86 1.98 1.98 1.98
87 0 0 0
88 3.91 3.91 3.91
89 0 0 0
90 ~ 91 1.62 1.62 1.62
92 ~ 93 0 0 0
94 1.61 1.61 1.61
95 1.62 1.62 1.62
96 1.63 1.63 1.63
97 3.93 3.93 3.93
98 ~ 99 4.06 4.06 4.06
100 0 0 0
- 18 -
PIN NO. CD x 1 CD x 2 RW x 1
1 13.10 13.10 13.10
2 4.57 4.57 4.57
3 11.11 11.11 11.11
4 2.67 2.67 2.67
5 0 0 0
IC622, PQ20WZ1U
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
- 19 -
PIN NO. CD x 1 CD x 2 RW x 1
1 0 0 0
2 ~ 3 4.64 4.64 4.64
4 ~ 5 0 0 0
6 4.61 4.61 4.61
7 0.03 0.03 0.03
8 4.59 4.59 4.59
9 0 0 0
10 ~ 11 4.59 4.59 4.59
12 ~ 13 4.57 4.57 4.57
14 4.59 4.59 4.59
15 0 0 4.6
16 4.63 0.09 4.63x1 / 0.09x2
17 4.62 4.62 4.62
18 ~ 21 0 0 0
22 ~ 23 4.59 4.59 4.59
24 ~ 25 0 0 0
26 ~ 27 4.59 4.59 4.59
28 ~ 29 0 0 0
30 4.16 4.16 4.16
31 2.27 2.27 2.27
32 2.43 2.43 2.43
33 0 0 0
34 4.64 4.64 4.64
35 ~ 36 0 0 0
37 4.65 4.65 4.65
38 4.62 4.62 4.62
39 ~ 41 0 0 0
42 4.60 0 0
43 4.60 4.60 4.60
44 4.60 0 0
45 ~ 46 4.60 4.60 4.60
47 DATA LINE DATA LINE DATA LINE
48 4.56 4.56 4.56
49 DATA LINE DATA LINE DATA LINE
50 0 0 0
51 4.57 4.57 4.57
52 ~ 53 DATA LINE DATA LINE DATA LINE
54 4.64 4.64 4.64
55 0 0 0
56 ~ 57 4.06 4.06 4.06
58 ~ 59 0 0 0
60 4.65 4.65 4.65
IC201, CXP84632–143Q
PIN NO. CD x 1 CD x 2 RW x 1
61 4.64 4.64 4.64
62 0 0 0
63 0.05 0.05 0.05
64 DATA LINE DATA LINE DATA LINE
65 4.64 4.64 4.64
66 ~ 67 0 0 0
68 4.64 4.64 4.64
69 DATA LINE DATA LINE DATA LINE
70 0 0 0
71 ~ 73 4.65 4.65 4.65
74 0 0 0
75 4.59 4.59 4.59
76 ~ 77 4.63 4.63 4.63
78 4.00 4.00 4.00
79 ~ 80 0 0 0
PIN NO. CD x 1 CD x 2 RW x 1
1 4.45 4.45 4.45
2 5.03 5.03 5.03
3 4.48 4.48 4.48
4 ~ 5 DATA LINE DATA LINE DATA LINE
6 4.75 4.75 4.75
7 4.77 4.77 4.77
8 0 0 0
9 ~ 10 DATA LINE DATA LINE DATALINE
11 4.73 4.73 4.73
12 4.71 4.71 4.71
13 4.76 4.76 4.76
14 0 0 0
15 4.59 4.59 4.59
16 4.78 4.78 4.78
17 4.69 4.69 4.69
18 4.76 4.76 4.76
19 ~ 20 DATA LINE DATA LINE DATA LINE
21 ~ 22 9.90 9.90 9.90
23 2.03 2.03 2.03
24 2.22 2.03 2.03
25 2.03 2.03 2.03
26 5.02 5.02 5.02
27 4.36 4.36 4.36
28 0 0 0
IC501, BA6392FP
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
- 20 -
PIN NO. CD x 1 CD x 2 RW x 1
1 0.55 0.55 0.55
2 ~ 4 0 0 0
5 ~ 6 DATA LINE DATA LINE DATA LINE
7 0 0 0
8 DATA LINE DATA LINE DATA LINE
9 10.33 10.33 10.33
10 ~ 15 0 0 0
16 10.33 10.33 10.33
17 0 0 0
18 0.55 0.55 0.55
19 ~ 21 0 0 0
22 0.55 0.55 0.55
23 ~ 25 0 0 0
IC551, BA6247FP IC151, CXA2581N
PIN NO. CD x 1 CD x 2 RW x 1
1 2.57 2.57 2.57
2 0.158 0.158 0.158
3 2.03 2.03 2.03
4 2.10 2.10 2.10
5 0 0 0
6 2.15 2.15 2.15
7 2.14 2.14 2.14
8 ~ 9 2.13 2.13 2.13
10 ~ 11 2.04 2.04 2.04
12 0 0 4.61
13 4.06 4.06 4.06
14 2.04 2.04 2.04
15 2.19 2.19 2.19
16 2.00 2.00 2.00
17 2.04 2.04 2.04
18 1.95 1.95 1.95
19 2.04 2.04 2.04
20 2.02 2.02 2.02
21 2.04 2.04 2.04
22 4.06 4.06 4.06
23 2.97 2.97 2.97
24 2.43 2.43 2.43
25 1.57 1.57 1.57
26 2.80 2.77 2.77
27 2.04 2.04 2.04
28 2.19 2.19 2.19
29 2.04 2.04 2.04
30 1.54 1.54 1.54
PIN NO. CD x 1 CD x 2 RW x 1
1 ~ 8 0 0 0
9 ~ 10 4.64 4.64 4.64
11 ~ 14 DATA LINE DATA LINE DATALINE
15 0 0 0
16 4.65 4.65 4.65
IC251, TC74HC365AF
IC301, NJM4558MD
PIN NO. CD x 1 CD x 2 RW x 1
1 ~ 3 6.30 6.30 6.30
4 0 0 0
5 ~ 7 6.30 6.30 6.30
8 10.65 10.65 10.65
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
Other manuals for ADC-EX108
3
This manual suits for next models
1
Table of contents
Other Aiwa Car Stereo System manuals
Popular Car Stereo System manuals by other brands
Jensen
Jensen JDM118BT Installation and user manual
Renault
Renault R-Link instruction manual
Clatronic
Clatronic AR 773 DVD/TFT instruction manual
Bosch
Bosch Blaupunkt Heidelberg RCM 126 Fitting instructions
Sony
Sony MEX-BT3900U Installation/connections
Blaupunkt
Blaupunkt Essen CD33 installation instructions
