SERVICE MANUAL
DATA
CDC-MP3 YU
STEREO CAR CD STEREO
SIMPLE
S/M Code No. 09-007-436-6T1
 Replace this Service manual with Revision Publishing when it is issued.
BASIC CD MECHANISM : CDC02AW1

PARTS LIST
-1-
! =! SAFTY PARTS
C=Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
K NO. =Only use japanese.
C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX
O ACCESSORY 87-B10-141-010 0E NUT,5 TYPE-2 YUSTF CDC-MP3
O ACCESSORY 87-B10-143-010 0E UT1+5-15 W/O SLOT YUSTF CDC-MP3
O ACCESSORY 87-B10-144-010 0E W,5.2-10-0.5 YUSTF CDC-MP3
O ACCESSORY 87-B10-145-010 0E W-SPR,5.3-8.5-1.5 YUSTF CDC-MP3
O ACCESSORY 87-B10-216-010 0E U+2.6-4.0 ZINC BLK (BH M2.6) YUSTF CDC-MP3
X ACCESSORY 87-B40-178-010 0E BAG,PV 0.04-100-250 YUSTF CDC-MP3
X ACCESSORY 87-B40-179-010 0E BAG,PV 0.04-50-100 YUSTF CDC-MP3
X ACCESSORY 87-B40-242-010 0E BAG,PV 0.04-70-100 YUSTF CDC-MP3
O ACCESSORY 8Z-KC1-030-010 1A CASE,DFP -C YUSTF CDC-MP3
O ACCESSORY 8Z-KC1-231-110 1C HLDR,HALF -C YUSTF CDC-MP3
O ACCESSORY 8Z-KC1-232-010 0E KEY,REMOVE -C YUSTF CDC-MP3
X ACCESSORY 8Z-KC1-233-010 0E CUSHION,DFP-CASE YUSTF CDC-MP3
O ACCESSORY 8Z-KC1-235-010 0E HLDR,REAR MTG YUSTF CDC-MP3
O ACCESSORY 8Z-KC1-244-010 0E S-SCREW,5*6 TH+ TAPPING ST YUSTF CDC-MP3
O ACCESSORY 8Z-KC1-250-010 0E S-SCREW,HEXAGON YUSTF CDC-MP3
X ACCESSORY 8Z-KC1-871-010 0E CUSHION,DFP-GUARD YUSTF CDC-MP3
O ACCESSORY 8Z-KT1-616-010 1F CONN ASSY,16P B52 YUSTF CDC-MP3
O APPEARANCE 8A-KC6-001-010 — WINDOW,LCD MP3 YUSTF CDC-MP3
O APPEARANCE 8A-KC7-001-110 1B CABI,FRONT-AC7 YUSTF CDC-MP3
O APPEARANCE 8A-KC7-002-010 1A CABI,REAR-AC7 YUSTF CDC-MP3
O APPEARANCE 8A-KC7-020-010 0E RING,RTRY -AC YUSTF CDC-MP3
O APPEARANCE 8A-KC7-021-010 1B WINDOW,L-AC7 YUSTF CDC-MP3
O APPEARANCE 8A-KC7-022-010 1B WINDOW,R-AC7 YUSTF CDC-MP3
O APPEARANCE 8A-KC7-023-010 1B CABI,TRIM-AC7 YUSTF CDC-MP3
O APPEARANCE 8Z-KC1-021-310 1C CABI,BASE F -C1 YUSTF CDC-MP3
O BUFF AMP C 0847 87-A10-419-080 0E C-CAP,TN 1-16 A TCF YUSTF CDC-MP3
O BUFF AMP C 0848 87-A10-419-080 0E C-CAP,TN 1-16 A TCF YUSTF CDC-MP3
O BUFF AMP C 0849 87-012-188-080 0E C-CAP,U 47P-50 J CH YUSTF CDC-MP3
O BUFF AMP C 0850 87-012-188-080 0E C-CAP,U 47P-50 J CH YUSTF CDC-MP3
O BUFF AMP C 0851 87-016-317-080 0E C-CAP,TN 2.2-6.3 M YUSTF CDC-MP3
O BUFF AMP C 0852 87-016-317-080 0E C-CAP,TN 2.2-6.3 M YUSTF CDC-MP3
O BUFF AMP C 0853 87-012-274-080 0E C-CAP,U 1000P-50 K B YUSTF CDC-MP3
O BUFF AMP C 0854 87-012-274-080 0E C-CAP,U 1000P-50 K B YUSTF CDC-MP3
O BUFF AMP C 0855 87-A10-473-080 0E C-CAP,E 47-10 MF10FC(M) YUSTF CDC-MP3
O BUFF AMP C 0856 87-012-286-080 0E C-CAP,U 0.01-25 K B YUSTF CDC-MP3
O BUFF AMP C 0857 87-A10-711-080 0E C-CAP,E 100-6.3 M MF YUSTF CDC-MP3
O BUFF AMP C 0858 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O BUFF AMP C 0862 87-A10-711-080 0E C-CAP,E 100-6.3 M MF YUSTF CDC-MP3
S BUFF AMP IC 0832 87-017-888-080 1A C-IC,NJM4558MD YUSTF CDC-MP3
X BUFF AMP R 0851 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
X BUFF AMP R 0852 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
X BUFF AMP R 0853 88-108-123-080 0E C-RES,U 12K-1/16W J YUSTF CDC-MP3
X BUFF AMP R 0854 88-108-123-080 0E C-RES,U 12K-1/16W J YUSTF CDC-MP3
X BUFF AMP R 0855 88-108-473-080 0E C-RES,U 47K-1/16W J YUSTF CDC-MP3
X BUFF AMP R 0856 88-108-473-080 0E C-RES,U 47K-1/16W J YUSTF CDC-MP3
X BUFF AMP R 0857 88-108-822-080 0E C-RES,U 8.2K-1/16W J YUSTF CDC-MP3
X BUFF AMP R 0858 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
X BUFF AMP R 0859 88-118-391-080 0E C-RES,S 390-1/10W J YUSTF CDC-MP3
X BUFF AMP R 0860 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
X BUFF AMP R 0868 88-108-101-080 0E C-RES,U 100-1/16W J YUSTF CDC-MP3
X BUFF AMP R 0870 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
X BUFF AMP R 0887 88-108-221-080 0E C-RES,U 220-1/16W J YUSTF CDC-MP3
X BUFF AMP R 0888 88-108-221-080 0E C-RES,U 220-1/16W J YUSTF CDC-MP3
O CD 88-KC4-641-010 1A FF-CABLE, 20P 1.0 90MM YUSTF CDC-MP3
O CD 88-ZG5-317-010 0E S-SCREW,8ZG5S+2-4 W/O YUSTF CDC-MP3
O CD 8A-KC7-255-010 0E SPR-C,WIRE YUSTF CDC-MP3
X CD M8-AZK-E90-070 3M CDC02AW1 YUSTF CDC-MP3
O CD C 0803 87-A10-711-080 0E C-CAP,E 100-6.3 M MF YUSTF CDC-MP3
O CD C 0804 87-012-274-080 0E C-CAP,U 1000P-50 K B YUSTF CDC-MP3
O CD C 0805 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O CD C 0806 87-012-280-080 0E C-CAP,U 3300P-50 K B YUSTF CDC-MP3
O CD C 0808 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O CD C 0809 87-010-880-080 0E C-CAP,E 47-6.3 M MF YUSTF CDC-MP3
O CD C 0811 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O CD C 0813 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O CD C 0815 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O CD C 0816 87-010-880-080 0E C-CAP,E 47-6.3 M MF YUSTF CDC-MP3
O CD C 0831 87-012-199-080 0E C-CAP,U 220P-50 J CH YUSTF CDC-MP3
O CD C 0832 87-A10-504-080 0E C-CAP,U 0.047-16 K B YUSTF CDC-MP3
O CD C 0833 87-012-199-080 0E C-CAP,U 220P-50 J CH YUSTF CDC-MP3

PARTS LIST
-2-
! =! SAFTY PARTS
C=Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
K NO. =Only use japanese.
C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX
O CD C 0834 87-012-199-080 0E C-CAP,U 220P-50 J CH YUSTF CDC-MP3
O CD C 0835 87-016-669-080 0E C-CAP,S 0.1-25 K B YUSTF CDC-MP3
O CD C 0836 87-012-199-080 0E C-CAP,U 220P-50 J CH YUSTF CDC-MP3
O CD C 0837 87-012-282-080 0E C-CAP,U 4700P-50 K B YUSTF CDC-MP3
O CD C 0838 87-A10-504-080 0E C-CAP,U 0.047-16 K B YUSTF CDC-MP3
O CD C 0839 87-010-880-080 0E C-CAP,E 47-6.3 M MF YUSTF CDC-MP3
O CD C 0840 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O CD C 0841 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O CD C 0842 87-016-526-080 0E C-CAP,S 0.47-16 BK YUSTF CDC-MP3
O CD C 0843 87-012-198-080 0E C-CAP,U 180P-50 J CH YUSTF CDC-MP3
O CD C 0844 87-012-198-080 0E C-CAP,U 180P-50 J CH YUSTF CDC-MP3
O CD C 0845 87-012-273-080 0E C-CAP,U 820P-50 K B YUSTF CDC-MP3
O CD C 0846 87-012-273-080 0E C-CAP,U 820P-50 K B YUSTF CDC-MP3
O CD C 0861 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O CD C 0871 87-A10-419-080 0E C-CAP,TN 1-16 A TCF YUSTF CDC-MP3
O CD C 0872 87-A10-419-080 0E C-CAP,TN 1-16 A TCF YUSTF CDC-MP3
O CD C 0881 87-A12-424-080 0E C-CAP,E 220-10 M 4B SE1A221 YUSTF CDC-MP3
O CD C 0882 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O CD C 0883 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O CD C 0884 87-012-274-080 0E C-CAP,U 1000P-50 K B YUSTF CDC-MP3
O CD C 0885 87-A10-473-080 0E C-CAP,E 47-10 MF10FC(M) YUSTF CDC-MP3
O CD C 0886 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O CD C 0887 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O CD C 0888 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O CD C 0899 87-010-880-080 0E C-CAP,E 47-6.3 M MF YUSTF CDC-MP3
S CD D 0801 87-020-331-080 0E C-DIODE,DAN202K YUSTF CDC-MP3
S CD D 0861 87-020-331-080 0E C-DIODE,DAN202K YUSTF CDC-MP3
S CD IC 0801 87-A21-467-040 1C C-IC,CXA2581N YUSTF CDC-MP3
S CD IC 0831 87-A21-533-030 2M C-IC,CXD2587Q YUSTF CDC-MP3
S CD IC 0881 87-A21-161-040 1F C-IC,BA6392FP YUSTF CDC-MP3
S CD IC 0882 87-A20-712-040 1B C-IC,BA6417F YUSTF CDC-MP3
X CD JR 0802 88-108-000-080 0E C-JUMPER,U YUSTF CDC-MP3
X CD JR 0803 88-108-272-080 0E C-RES,U 2.7K-1/16W J YUSTF CDC-MP3
O CD L 0801 87-A50-536-080 1A C-COIL,10UH K LQH3C24 YUSTF CDC-MP3
O CD L 0802 87-A50-536-080 1A C-COIL,10UH K LQH3C24 YUSTF CDC-MP3
O CD L 0831 87-A50-536-080 1A C-COIL,10UH K LQH3C24 YUSTF CDC-MP3
O CD L 0832 87-A50-536-080 1A C-COIL,10UH K LQH3C24 YUSTF CDC-MP3
O CD L 0833 87-A50-536-080 1A C-COIL,10UH K LQH3C24 YUSTF CDC-MP3
O CD L 0881 87-A50-536-080 1A C-COIL,10UH K LQH3C24 YUSTF CDC-MP3
S CD Q 0801 87-A30-248-040 0E C-TR,2SB1197KQ YUSTF CDC-MP3
S CD Q 0802 87-A30-248-040 0E C-TR,2SB1197KQ YUSTF CDC-MP3
S CD Q 0803 87-A30-289-040 0E C-TR,2SA1037AK(R) YUSTF CDC-MP3
S CD Q 0804 87-A30-011-080 0E C-TR,DTB113ZK YUSTF CDC-MP3
S CD Q 0805 87-A30-273-040 0E C-TR,DTC124EKA YUSTF CDC-MP3
S CD Q 0861 87-A30-011-080 0E C-TR,DTB113ZK YUSTF CDC-MP3
S CD Q 0862 87-A30-273-040 0E C-TR,DTC124EKA YUSTF CDC-MP3
S CD Q 0863 87-026-210-040 0E C-TR,DTC144EK YUSTF CDC-MP3
X CD R 0801 88-108-101-080 0E C-RES,U 100-1/16W J YUSTF CDC-MP3
X CD R 0802 88-108-472-080 0E C-RES,U 4.7K-1/16W J YUSTF CDC-MP3
X CD R 0803 88-108-100-080 0E C-RES,U 10-1/16W J YUSTF CDC-MP3
X CD R 0805 88-108-000-080 0E C-JUMPER,U YUSTF CDC-MP3
X CD R 0806 88-108-000-080 0E C-JUMPER,U YUSTF CDC-MP3
X CD R 0808 88-108-153-080 0E C-RES,U 15K-1/16W J YUSTF CDC-MP3
X CD R 0809 88-108-153-080 0E C-RES,U 15K-1/16W J YUSTF CDC-MP3
X CD R 0811 88-108-823-080 0E C-RES,U 82K-1/16W J YUSTF CDC-MP3
X CD R 0813 88-108-154-080 0E C-RES,U 150K-1/16W J YUSTF CDC-MP3
X CD R 0814 88-108-682-080 0E C-RES,U 6.8K-1/16W J YUSTF CDC-MP3
X CD R 0815 88-108-392-080 0E C-RES,U 3.9K-1/16W J YUSTF CDC-MP3
X CD R 0818 88-108-822-080 0E C-RES,U 8.2K-1/16W J YUSTF CDC-MP3
X CD R 0820 88-108-104-080 0E C-RES,U 100K-1/16W J YUSTF CDC-MP3
X CD R 0821 88-108-682-080 0E C-RES,U 6.8K-1/16W J YUSTF CDC-MP3
X CD R 0822 88-108-102-080 0E C-RES,U 1K-1/16W J YUSTF CDC-MP3
X CD R 0824 88-108-682-080 0E C-RES,U 6.8K-1/16W J YUSTF CDC-MP3
X CD R 0825 88-108-272-080 0E C-RES,U 2.7K-1/16W J YUSTF CDC-MP3
X CD R 0831 88-108-223-080 0E C-RES,U 22K-1/16W J YUSTF CDC-MP3
X CD R 0832 88-108-124-080 0E C-RES,U 120K-1/16W J YUSTF CDC-MP3
X CD R 0833 88-108-223-080 0E C-RES,U 22K-1/16W J YUSTF CDC-MP3
X CD R 0834 88-108-223-080 0E C-RES,U 22K-1/16W J YUSTF CDC-MP3
X CD R 0838 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
X CD R 0839 88-108-472-080 0E C-RES,U 4.7K-1/16W J YUSTF CDC-MP3

PARTS LIST
-3-
! =! SAFTY PARTS
C=Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
K NO. =Only use japanese.
C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX
X CD R 0840 88-108-105-080 0E C-RES,U 1M-1/16W J YUSTF CDC-MP3
X CD R 0841 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
X CD R 0842 88-108-332-080 0E C-RES,U 3.3K-1/16W J YUSTF CDC-MP3
X CD R 0843 88-108-332-080 0E C-RES,U 3.3K-1/16W J YUSTF CDC-MP3
X CD R 0844 88-108-563-080 0E C-RES,U 56K-1/16W J YUSTF CDC-MP3
X CD R 0845 88-108-123-080 0E C-RES,U 12K-1/16W J YUSTF CDC-MP3
X CD R 0846 88-108-123-080 0E C-RES,U 12K-1/16W J YUSTF CDC-MP3
X CD R 0847 88-108-123-080 0E C-RES,U 12K-1/16W J YUSTF CDC-MP3
X CD R 0848 88-108-123-080 0E C-RES,U 12K-1/16W J YUSTF CDC-MP3
X CD R 0849 88-108-123-080 0E C-RES,U 12K-1/16W J YUSTF CDC-MP3
X CD R 0850 88-108-123-080 0E C-RES,U 12K-1/16W J YUSTF CDC-MP3
X CD R 0861 88-108-222-080 0E C-RES,U 2.2K-1/16W J YUSTF CDC-MP3
X CD R 0862 88-108-222-080 0E C-RES,U 2.2K-1/16W J YUSTF CDC-MP3
X CD R 0863 88-108-222-080 0E C-RES,U 2.2K-1/16W J YUSTF CDC-MP3
X CD R 0864 88-108-222-080 0E C-RES,U 2.2K-1/16W J YUSTF CDC-MP3
X CD R 0865 88-108-222-080 0E C-RES,U 2.2K-1/16W J YUSTF CDC-MP3
X CD R 0866 88-108-222-080 0E C-RES,U 2.2K-1/16W J YUSTF CDC-MP3
X CD R 0867 88-108-222-080 0E C-RES,U 2.2K-1/16W J YUSTF CDC-MP3
X CD R 0875 88-108-102-080 0E C-RES,U 1K-1/16W J YUSTF CDC-MP3
X CD R 0876 88-108-102-080 0E C-RES,U 1K-1/16W J YUSTF CDC-MP3
X CD R 0881 88-108-223-080 0E C-RES,U 22K-1/16W J YUSTF CDC-MP3
X CD R 0882 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
X CD R 0883 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
X CD R 0884 88-108-123-080 0E C-RES,U 12K-1/16W J YUSTF CDC-MP3
X CD R 0885 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
X CD R 0886 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
O CD S 0861 87-A91-627-080 1A SW,PUSH MPU10372MLBO YUSTF CDC-MP3
O CD X 0831 87-A70-261-080 1A C-VIB,CER 16.93MHZ CSTCW-MX03T YUSTF CDC-MP3
O D/A CONV C 0651 87-016-287-080 0E C-CAP,TN 3.3-6.3 M YUSTF CDC-MP3
O D/A CONV C 0652 87-012-286-080 0E C-CAP,U 0.01-25 K B YUSTF CDC-MP3
O D/A CONV C 0653 87-010-880-080 0E C-CAP,E 47-6.3 M MF YUSTF CDC-MP3
O D/A CONV C 0654 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O D/A CONV C 0655 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O D/A CONV C 0656 87-012-178-080 0E C-CAP,U 18P-50 J CH YUSTF CDC-MP3
O D/A CONV C 0657 87-012-178-080 0E C-CAP,U 18P-50 J CH YUSTF CDC-MP3
O D/A CONV C 0658 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O D/A CONV C 0659 87-016-317-080 0E C-CAP,TN 2.2-6.3 M YUSTF CDC-MP3
O D/A CONV C 0660 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O D/A CONV C 0661 87-010-880-080 0E C-CAP,E 47-6.3 M MF YUSTF CDC-MP3
O D/A CONV C 0662 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O D/A CONV C 0663 87-012-271-080 0E C-CAP,U 560P-50 K B YUSTF CDC-MP3
O D/A CONV C 0664 87-012-271-080 0E C-CAP,U 560P-50 K B YUSTF CDC-MP3
O D/A CONV C 0665 87-012-193-080 0E C-CAP,U 82P-50 J CH YUSTF CDC-MP3
O D/A CONV C 0666 87-012-193-080 0E C-CAP,U 82P-50 J CH YUSTF CDC-MP3
O D/A CONV C 0667 87-012-335-080 0E C-CAP,U 270P-50 J SL YUSTF CDC-MP3
O D/A CONV C 0668 87-012-335-080 0E C-CAP,U 270P-50 J SL YUSTF CDC-MP3
O D/A CONV C 0669 87-012-274-080 0E C-CAP,U 1000P-50 K B YUSTF CDC-MP3
O D/A CONV C 0670 87-012-274-080 0E C-CAP,U 1000P-50 K B YUSTF CDC-MP3
S D/A CONV IC 0651 87-A21-714-030 — C-IC,DAC3550A-C2 YUSTF CDC-MP3
O D/A CONV L 0651 87-A50-499-080 0E C-COIL,S 4.7UH K LQG21N YUSTF CDC-MP3
O D/A CONV L 0652 87-A50-536-080 1A C-COIL,10UH K LQH3C24 YUSTF CDC-MP3
X D/A CONV R 0652 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
X D/A CONV R 0653 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
X D/A CONV R 0654 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
X D/A CONV R 0655 88-108-822-080 0E C-RES,U 8.2K-1/16W J YUSTF CDC-MP3
X D/A CONV R 0656 88-108-822-080 0E C-RES,U 8.2K-1/16W J YUSTF CDC-MP3
X D/A CONV R 0657 88-108-822-080 0E C-RES,U 8.2K-1/16W J YUSTF CDC-MP3
X D/A CONV R 0658 88-108-822-080 0E C-RES,U 8.2K-1/16W J YUSTF CDC-MP3
X D/A CONV R 0659 88-108-822-080 0E C-RES,U 8.2K-1/16W J YUSTF CDC-MP3
X D/A CONV R 0660 88-108-822-080 0E C-RES,U 8.2K-1/16W J YUSTF CDC-MP3
X D/A CONV R 0661 88-108-153-080 0E C-RES,U 15K-1/16W J YUSTF CDC-MP3
X D/A CONV R 0662 88-108-153-080 0E C-RES,U 15K-1/16W J YUSTF CDC-MP3
X D/A CONV R 0663 88-108-223-080 0E C-RES,U 22K-1/16W J YUSTF CDC-MP3
X D/A CONV R 0664 88-108-223-080 0E C-RES,U 22K-1/16W J YUSTF CDC-MP3
O D/A CONV X 0651 87-A70-267-080 — C-VIB,XTAL 14.725MHZ CX-53F YUSTF CDC-MP3
O E-VOL C 0401 87-010-494-040 0E CAP,E 1-50 M 5L SRE YUSTF CDC-MP3
O E-VOL C 0402 87-010-494-040 0E CAP,E 1-50 M 5L SRE YUSTF CDC-MP3
O E-VOL C 0403 87-010-494-040 0E CAP,E 1-50 M 5L SRE YUSTF CDC-MP3
O E-VOL C 0404 87-010-494-040 0E CAP,E 1-50 M 5L SRE YUSTF CDC-MP3
O E-VOL C 0405 87-010-186-080 0E C-CAP,S 4700P-50 K B C2012 YUSTF CDC-MP3

PARTS LIST
-4-
! =! SAFTY PARTS
C=Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
K NO. =Only use japanese.
C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX
O E-VOL C 0406 87-010-186-080 0E C-CAP,S 4700P-50 K B C2012 YUSTF CDC-MP3
O E-VOL C 0407 87-010-494-040 0E CAP,E 1-50 M 5L SRE YUSTF CDC-MP3
O E-VOL C 0408 87-010-494-040 0E CAP,E 1-50 M 5L SRE YUSTF CDC-MP3
O E-VOL C 0409 87-010-498-040 0E CAP,E 10-16 M 5L SRE YUSTF CDC-MP3
O E-VOL C 0410 87-010-498-040 0E CAP,E 10-16 M 5L SRE YUSTF CDC-MP3
O E-VOL C 0411 87-010-494-040 0E CAP,E 1-50 M 5L SRE YUSTF CDC-MP3
O E-VOL C 0412 87-010-494-040 0E CAP,E 1-50 M 5L SRE YUSTF CDC-MP3
O E-VOL C 0413 87-010-498-040 0E CAP,E 10-16 M 5L SRE YUSTF CDC-MP3
O E-VOL C 0414 87-010-498-040 0E CAP,E 10-16 M 5L SRE YUSTF CDC-MP3
O E-VOL C 0415 87-010-498-040 0E CAP,E 10-16 M 5L SRE YUSTF CDC-MP3
O E-VOL C 0416 87-010-498-040 0E CAP,E 10-16 M 5L SRE YUSTF CDC-MP3
O E-VOL C 0417 87-010-498-040 0E CAP,E 10-16 M 5L SRE YUSTF CDC-MP3
O E-VOL C 0418 87-010-498-040 0E CAP,E 10-16 M 5L SRE YUSTF CDC-MP3
O E-VOL C 0419 87-010-498-040 0E CAP,E 10-16 M 5L SRE YUSTF CDC-MP3
O E-VOL C 0420 87-010-555-040 0E CAP,E 100-10 M 5L SRE YUSTF CDC-MP3
O E-VOL C 0421 87-010-805-080 0E C-CAP,S 1-16 Z F YUSTF CDC-MP3
O E-VOL C 0422 87-010-805-080 0E C-CAP,S 1-16 Z F YUSTF CDC-MP3
O E-VOL C 0423 87-010-805-080 0E C-CAP,S 1-16 Z F YUSTF CDC-MP3
O E-VOL C 0424 87-010-805-080 0E C-CAP,S 1-16 Z F YUSTF CDC-MP3
O E-VOL C 0425 87-012-140-080 0E C-CAP,S 470P-50 J CH YUSTF CDC-MP3
O E-VOL C 0426 87-012-140-080 0E C-CAP,S 470P-50 J CH YUSTF CDC-MP3
O E-VOL C 0427 87-012-140-080 0E C-CAP,S 470P-50 J CH YUSTF CDC-MP3
O E-VOL C 0428 87-012-140-080 0E C-CAP,S 470P-50 J CH YUSTF CDC-MP3
O E-VOL C 0429 87-010-498-040 0E CAP,E 10-16 M 5L SRE YUSTF CDC-MP3
O E-VOL C 0430 87-010-498-040 0E CAP,E 10-16 M 5L SRE YUSTF CDC-MP3
O E-VOL C 0431 87-010-184-080 0E C-CAP,S 3300P-50 K B C2012 YUSTF CDC-MP3
O E-VOL C 0432 87-010-184-080 0E C-CAP,S 3300P-50 K B C2012 YUSTF CDC-MP3
O E-VOL C 0433 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 YUSTF CDC-MP3
O E-VOL C 0434 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 YUSTF CDC-MP3
O E-VOL C 0435 87-A11-177-080 0E C-CAP,S 0.15-16 K B YUSTF CDC-MP3
O E-VOL C 0436 87-A11-177-080 0E C-CAP,S 0.15-16 K B YUSTF CDC-MP3
O E-VOL C 0437 87-A11-177-080 0E C-CAP,S 0.15-16 K B YUSTF CDC-MP3
O E-VOL C 0438 87-A11-177-080 0E C-CAP,S 0.15-16 K B YUSTF CDC-MP3
O E-VOL C 0439 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 YUSTF CDC-MP3
O E-VOL C 0440 87-012-141-080 0E C-CAP,S 0.22-16 Z F C2012 YUSTF CDC-MP3
O E-VOL C 0441 87-012-141-080 0E C-CAP,S 0.22-16 Z F C2012 YUSTF CDC-MP3
O E-VOL C 0461 87-012-358-080 0E C-CAP,S 0.47-10 Z F CM/CB YUSTF CDC-MP3
O E-VOL C 0462 87-012-358-080 0E C-CAP,S 0.47-10 Z F CM/CB YUSTF CDC-MP3
O E-VOL C 0463 87-012-358-080 0E C-CAP,S 0.47-10 Z F CM/CB YUSTF CDC-MP3
O E-VOL C 0464 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 YUSTF CDC-MP3
S E-VOL D 0481 87-A40-250-080 0E C-DIODE,DAN217 YUSTF CDC-MP3
S E-VOL D 0561 87-A40-250-080 0E C-DIODE,DAN217 YUSTF CDC-MP3
S E-VOL D 0562 87-A40-250-080 0E C-DIODE,DAN217 YUSTF CDC-MP3
S E-VOL D 0563 87-A40-250-080 0E C-DIODE,DAN217 YUSTF CDC-MP3
S E-VOL D 0564 87-A40-250-080 0E C-DIODE,DAN217 YUSTF CDC-MP3
S E-VOL IC 0401 8Z-KT1-622-010 2A C-IC,LC75374E YUSTF CDC-MP3
X E-VOL JR 0104 88-118-000-080 0E C-JUMPER,S YUSTF CDC-MP3
X E-VOL JR 0105 88-118-000-080 0E C-JUMPER,S YUSTF CDC-MP3
X E-VOL JR 0106 88-118-000-080 0E C-JUMPER,S YUSTF CDC-MP3
X E-VOL JR 0107 88-118-000-080 0E C-JUMPER,S YUSTF CDC-MP3
O E-VOL L 0401 87-003-143-080 0E COIL,4.7UH K LAL02 YUSTF CDC-MP3
O E-VOL L 0404 87-003-102-080 0E COIL,10UH J LAL02 YUSTF CDC-MP3
S E-VOL Q 0401 87-A30-279-040 0E C-TR,DTC314TK YUSTF CDC-MP3
S E-VOL Q 0402 87-A30-279-040 0E C-TR,DTC314TK YUSTF CDC-MP3
S E-VOL Q 0403 87-A30-279-040 0E C-TR,DTC314TK YUSTF CDC-MP3
S E-VOL Q 0404 87-A30-279-040 0E C-TR,DTC314TK YUSTF CDC-MP3
S E-VOL Q 0405 87-A30-287-040 0E C-TR,DTC114TKA YUSTF CDC-MP3
S E-VOL Q 0406 87-A30-287-040 0E C-TR,DTC114TKA YUSTF CDC-MP3
S E-VOL Q 0481 89-324-122-080 0E C-TR,2SC2412KR YUSTF CDC-MP3
X E-VOL R 0401 88-118-272-080 0E C-RES,S 2.7K-1/10W J YUSTF CDC-MP3
X E-VOL R 0402 88-118-272-080 0E C-RES,S 2.7K-1/10W J YUSTF CDC-MP3
X E-VOL R 0403 88-118-103-080 0E C-RES,S 10K-1/10W J YUSTF CDC-MP3
X E-VOL R 0404 88-118-103-080 0E C-RES,S 10K-1/10W J YUSTF CDC-MP3
X E-VOL R 0405 88-118-183-080 0E C-RES,S 18K-1/10W J YUSTF CDC-MP3
X E-VOL R 0406 88-118-183-080 0E C-RES,S 18K-1/10W J YUSTF CDC-MP3
X E-VOL R 0409 88-118-332-080 0E C-RES,S 3.3K-1/10W J YUSTF CDC-MP3
X E-VOL R 0410 88-118-332-080 0E C-RES,S 3.3K-1/10W J YUSTF CDC-MP3
X E-VOL R 0411 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X E-VOL R 0412 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X E-VOL R 0413 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3

PARTS LIST
-5-
! =! SAFTY PARTS
C=Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
K NO. =Only use japanese.
C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX
X E-VOL R 0414 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X E-VOL R 0419 88-128-102-080 0E C-RES, 1K-1/8W J YUSTF CDC-MP3
X E-VOL R 0420 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X E-VOL R 0421 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X E-VOL R 0422 88-128-102-080 0E C-RES, 1K-1/8W J YUSTF CDC-MP3
X E-VOL R 0423 88-118-103-080 0E C-RES,S 10K-1/10W J YUSTF CDC-MP3
X E-VOL R 0424 88-118-103-080 0E C-RES,S 10K-1/10W J YUSTF CDC-MP3
X E-VOL R 0425 88-118-103-080 0E C-RES,S 10K-1/10W J YUSTF CDC-MP3
X E-VOL R 0426 88-118-103-080 0E C-RES,S 10K-1/10W J YUSTF CDC-MP3
X E-VOL R 0431 88-118-223-080 0E C-RES,S 22K-1/10W J YUSTF CDC-MP3
X E-VOL R 0432 88-118-223-080 0E C-RES,S 22K-1/10W J YUSTF CDC-MP3
X E-VOL R 0433 88-118-223-080 0E C-RES,S 22K-1/10W J YUSTF CDC-MP3
X E-VOL R 0434 88-118-223-080 0E C-RES,S 22K-1/10W J YUSTF CDC-MP3
X E-VOL R 0435 88-118-332-080 0E C-RES,S 3.3K-1/10W J YUSTF CDC-MP3
X E-VOL R 0436 88-118-332-080 0E C-RES,S 3.3K-1/10W J YUSTF CDC-MP3
X E-VOL R 0437 88-118-223-080 0E C-RES,S 22K-1/10W J YUSTF CDC-MP3
X E-VOL R 0438 88-118-223-080 0E C-RES,S 22K-1/10W J YUSTF CDC-MP3
X E-VOL R 0439 88-118-223-080 0E C-RES,S 22K-1/10W J YUSTF CDC-MP3
X E-VOL R 0440 88-118-223-080 0E C-RES,S 22K-1/10W J YUSTF CDC-MP3
X E-VOL R 0441 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X E-VOL R 0442 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X E-VOL R 0443 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X E-VOL R 0444 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X E-VOL R 0445 88-118-104-080 0E C-RES,S 100K-1/10W J YUSTF CDC-MP3
X E-VOL R 0446 88-118-104-080 0E C-RES,S 100K-1/10W J YUSTF CDC-MP3
X E-VOL R 0447 88-118-104-080 0E C-RES,S 100K-1/10W J YUSTF CDC-MP3
X E-VOL R 0448 88-118-104-080 0E C-RES,S 100K-1/10W J YUSTF CDC-MP3
X E-VOL R 0477 88-118-105-080 0E C-RES,S 1M-1/10W J YUSTF CDC-MP3
X E-VOL R 0478 88-118-105-080 0E C-RES,S 1M-1/10W J YUSTF CDC-MP3
X E-VOL R 0481 88-118-104-080 0E C-RES,S 100K-1/10W J YUSTF CDC-MP3
X E-VOL R 0482 88-118-104-080 0E C-RES,S 100K-1/10W J YUSTF CDC-MP3
X E-VOL R 0483 88-118-105-080 0E C-RES,S 1M-1/10W J YUSTF CDC-MP3
X E-VOL R 0484 88-118-103-080 0E C-RES,S 10K-1/10W J YUSTF CDC-MP3
X E-VOL R 0485 88-118-472-080 0E C-RES,S 4.7K-1/10W J YUSTF CDC-MP3
X E-VOL R 0486 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X E-VOL R 0487 88-118-105-080 0E C-RES,S 1M-1/10W J YUSTF CDC-MP3
X E-VOL R 0491 88-118-470-080 0E C-RES,S 47-1/10W J YUSTF CDC-MP3
X E-VOL R 0501 88-118-472-080 0E C-RES,S 4.7K-1/10W J YUSTF CDC-MP3
X E-VOL R 0502 88-118-472-080 0E C-RES,S 4.7K-1/10W J YUSTF CDC-MP3
X E-VOL R 0503 88-118-273-080 0E C-RES,S 27K-1/10W J YUSTF CDC-MP3
X E-VOL R 0504 88-118-273-080 0E C-RES,S 27K-1/10W J YUSTF CDC-MP3
O ELECTRICAL 8A-KC7-611-010 0E F-CABLE,3P (AUX) YUSTF CDC-MP3
O ELECTRICAL C 0701 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 YUSTF CDC-MP3
O ELECTRICAL C 0702 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 YUSTF CDC-MP3
O ELECTRICAL C 0703 87-010-805-080 0E C-CAP,S 1-16 Z F YUSTF CDC-MP3
O ELECTRICAL C 0704 87-010-805-080 0E C-CAP,S 1-16 Z F YUSTF CDC-MP3
O ELECTRICAL C 0705 87-010-194-080 0E C-CAP,S 0.047-25 Z F YUSTF CDC-MP3
O ELECTRICAL C 0706 87-010-194-080 0E C-CAP,S 0.047-25 Z F YUSTF CDC-MP3
O ELECTRICAL C 0707 87-010-194-080 0E C-CAP,S 0.047-25 Z F YUSTF CDC-MP3
O ELECTRICAL C 0708 87-012-156-080 0E C-CAP,S 220P-50 J CH GRM YUSTF CDC-MP3
O ELECTRICAL C 0709 87-010-194-080 0E C-CAP,S 0.047-25 Z F YUSTF CDC-MP3
O ELECTRICAL C 0710 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 YUSTF CDC-MP3
O ELECTRICAL C 0711 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 YUSTF CDC-MP3
O ELECTRICAL C 0712 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 YUSTF CDC-MP3
O ELECTRICAL C 0713 87-A11-062-080 0E C-CAP,S 2.2-16 Z F YUSTF CDC-MP3
O ELECTRICAL CON0701 8Z-KT1-612-010 1B C-CONN,16P CAM-C73 YUSTF CDC-MP3
S ELECTRICAL D 0701 87-A40-817-040 0E C-ZENER,STZ6.8N YUSTF CDC-MP3
S ELECTRICAL D 0702 87-A40-817-040 0E C-ZENER,STZ6.8N YUSTF CDC-MP3
S ELECTRICAL D 0703 87-A40-817-040 0E C-ZENER,STZ6.8N YUSTF CDC-MP3
S ELECTRICAL D 0704 87-A40-817-040 0E C-ZENER,STZ6.8N YUSTF CDC-MP3
S ELECTRICAL D 0705 87-A40-817-040 0E C-ZENER,STZ6.8N YUSTF CDC-MP3
S ELECTRICAL D 0706 87-A40-817-040 0E C-ZENER,STZ6.8N YUSTF CDC-MP3
O ELECTRICAL D 0719 87-A40-813-140 1E C-LED,SEC1E01C BLU YUSTF CDC-MP3
O ELECTRICAL D 0720 87-A40-813-140 1E C-LED,SEC1E01C BLU YUSTF CDC-MP3
O ELECTRICAL D 0721 87-A40-813-140 1E C-LED,SEC1E01C BLU YUSTF CDC-MP3
O ELECTRICAL D 0725 87-017-827-070 0E C-LED,SEC1201C RED YUSTF CDC-MP3
O ELECTRICAL D 0726 87-017-827-070 0E C-LED,SEC1201C RED YUSTF CDC-MP3
O ELECTRICAL D 0727 87-017-827-070 0E C-LED,SEC1201C RED YUSTF CDC-MP3
S ELECTRICAL IC 0701 87-A21-532-030 2M C-IC,LC75817W-8720 YUSTF CDC-MP3
O ELECTRICAL IC 0702 87-A90-951-010 1C RCR UNIT,SBX1971-52 YUSTF CDC-MP3

PARTS LIST
-6-
! =! SAFTY PARTS
C=Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
K NO. =Only use japanese.
C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX
O ELECTRICAL J 0751 85-HRL-623-010 0E JACK,3.5 BLK ST BLK YUSTF CDC-MP3
O ELECTRICAL LCD0701 8A-KC6-610-010 2P LCD,AKC-6(DOT) YUSTF CDC-MP3
O ELECTRICAL PL 0701 8Z-KT1-651-010 1A LAMP,9V-85MA YUSTF CDC-MP3
O ELECTRICAL PL 0702 8Z-KT1-651-010 1A LAMP,9V-85MA YUSTF CDC-MP3
S ELECTRICAL Q 0702 89-324-122-080 0E C-TR,2SC2412KR YUSTF CDC-MP3
X ELECTRICAL R 0701 88-118-103-080 0E C-RES,S 10K-1/10W J YUSTF CDC-MP3
X ELECTRICAL R 0702 88-118-103-080 0E C-RES,S 10K-1/10W J YUSTF CDC-MP3
X ELECTRICAL R 0703 88-118-103-080 0E C-RES,S 10K-1/10W J YUSTF CDC-MP3
X ELECTRICAL R 0704 88-118-103-080 0E C-RES,S 10K-1/10W J YUSTF CDC-MP3
X ELECTRICAL R 0705 88-118-100-080 0E C-RES,S 10-1/10W J YUSTF CDC-MP3
X ELECTRICAL R 0706 88-118-333-080 0E C-RES,S 33K-1/10W J YUSTF CDC-MP3
X ELECTRICAL R 0708 88-118-153-080 0E C-RES,S 15K-1/10W J YUSTF CDC-MP3
X ELECTRICAL R 0709 88-118-222-080 0E C-RES,S 2.2K-1/10W J YUSTF CDC-MP3
X ELECTRICAL R 0710 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X ELECTRICAL R 0711 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X ELECTRICAL R 0712 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X ELECTRICAL R 0713 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X ELECTRICAL R 0714 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X ELECTRICAL R 0715 88-118-473-080 0E C-RES,S 47K-1/10W J YUSTF CDC-MP3
X ELECTRICAL R 0716 88-118-473-080 0E C-RES,S 47K-1/10W J YUSTF CDC-MP3
X ELECTRICAL R 0717 88-118-181-080 0E C-RES,S 180-1/10W J YUSTF CDC-MP3
X ELECTRICAL R 0720 88-118-391-080 0E C-RES,S 390-1/10W J YUSTF CDC-MP3
X ELECTRICAL R 0721 88-118-391-080 0E C-RES,S 390-1/10W J YUSTF CDC-MP3
X ELECTRICAL R 0722 88-118-391-080 0E C-RES,S 390-1/10W J YUSTF CDC-MP3
X ELECTRICAL R 0725 88-118-682-080 0E C-RES,S 6.8K-1/10W J YUSTF CDC-MP3
X ELECTRICAL R 0726 88-118-681-080 0E C-RES,S 680-1/10W J YUSTF CDC-MP3
O ELECTRICAL SW 0701 87-A90-001-080 1A C-SW,TACT SKQMAL YUSTF CDC-MP3
O ELECTRICAL SW 0702 87-036-251-080 0E SW,TACT SKQCAE YUSTF CDC-MP3
O ELECTRICAL SW 0703 87-036-251-080 0E SW,TACT SKQCAE YUSTF CDC-MP3
O ELECTRICAL SW 0704 87-036-251-080 0E SW,TACT SKQCAE YUSTF CDC-MP3
O ELECTRICAL SW 0705 87-A90-001-080 1A C-SW,TACT SKQMAL YUSTF CDC-MP3
O ELECTRICAL SW 0706 87-036-251-080 0E SW,TACT SKQCAE YUSTF CDC-MP3
O ELECTRICAL SW 0707 87-036-251-080 0E SW,TACT SKQCAE YUSTF CDC-MP3
O ELECTRICAL SW 0708 87-A90-001-080 1A C-SW,TACT SKQMAL YUSTF CDC-MP3
O ELECTRICAL SW 0709 87-036-251-080 0E SW,TACT SKQCAE YUSTF CDC-MP3
O ELECTRICAL SW 0710 87-036-251-080 0E SW,TACT SKQCAE YUSTF CDC-MP3
O ELECTRICAL SW 0711 87-036-251-080 0E SW,TACT SKQCAE YUSTF CDC-MP3
O ELECTRICAL SW 0712 87-036-251-080 0E SW,TACT SKQCAE YUSTF CDC-MP3
O ELECTRICAL SW 0713 87-A90-001-080 1A C-SW,TACT SKQMAL YUSTF CDC-MP3
O ELECTRICAL SW 0714 87-036-251-080 0E SW,TACT SKQCAE YUSTF CDC-MP3
O ELECTRICAL SW 0715 87-036-251-080 0E SW,TACT SKQCAE YUSTF CDC-MP3
O ELECTRICAL SW 0716 87-A91-597-010 1B SW,RTRY SIM-026MT YUSTF CDC-MP3
O KNOB 8A-KC7-004-010 1B BTN,FUNC-AC7 YUSTF CDC-MP3
O KNOB 8A-KC7-006-010 1C BTN,PRE.-AC YUSTF CDC-MP3
O KNOB 8A-KC7-007-010 1B BTN,SEESAW R -AC YUSTF CDC-MP3
O KNOB 8A-KC7-008-010 0E BTN,EJECT-AC7 YUSTF CDC-MP3
O KNOB 8A-KC7-009-010 1A BTN,LO-AC7 YUSTF CDC-MP3
O KNOB 8A-KC7-010-010 1C KNOB,RTRY RUBBER -AC YUSTF CDC-MP3
O KNOB 8A-KC7-011-010 0E BTN,CLEAR L -AC YUSTF CDC-MP3
O KNOB 8A-KC7-012-010 0E BTN,CLEAR MH -AC YUSTF CDC-MP3
O KNOB 8A-KC7-013-010 0E BTN,CLEAR ML -AC YUSTF CDC-MP3
O KNOB 8A-KC7-014-010 0E BTN,CLEAR S -AC YUSTF CDC-MP3
O KNOB 8A-KC7-015-010 0E BTN,SEL -AC YUSTF CDC-MP3
O KNOB 8Z-KC1-018-010 1A BTN,EJ F -C YUSTF CDC-MP3
X LBL,POP 8A-KT5-970-010 0E LBL,POP FLAP 4C YUSTF CDC-MP3
O MICON C 0495 87-010-498-040 0E CAP,E 10-16 M 5L SRE YUSTF CDC-MP3
O MICON C 0501 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 YUSTF CDC-MP3
O MICON C 0502 87-010-194-080 0E C-CAP,S 0.047-25 Z F YUSTF CDC-MP3
O MICON C 0503 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 YUSTF CDC-MP3
O MICON C 0504 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 YUSTF CDC-MP3
O MICON C 0601 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O MICON C 0602 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O MICON C 0603 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O MICON C 0604 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O MICON C 0907 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 YUSTF CDC-MP3
O MICON C 0908 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 YUSTF CDC-MP3
O MICON C 0909 87-010-315-080 0E C-CAP,S 27P-50 J CH GRM YUSTF CDC-MP3
O MICON C 0910 87-016-039-010 1B CAP,DL 0.022F-5.5 Z 70 YUSTF CDC-MP3
O MICON C 0911 87-010-315-080 0E C-CAP,S 27P-50 J CH GRM YUSTF CDC-MP3
O MICON C 0912 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 YUSTF CDC-MP3

PARTS LIST
-7-
! =! SAFTY PARTS
C=Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
K NO. =Only use japanese.
C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX
O MICON C 0913 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 YUSTF CDC-MP3
O MICON C 0914 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 YUSTF CDC-MP3
O MICON C 0915 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 YUSTF CDC-MP3
O MICON C 0916 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM YUSTF CDC-MP3
O MICON C 0917 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM YUSTF CDC-MP3
O MICON C 0918 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 YUSTF CDC-MP3
O MICON C 0919 87-010-498-040 0E CAP,E 10-16 M 5L SRE YUSTF CDC-MP3
O MICON C 0921 87-012-156-080 0E C-CAP,S 220P-50 J CH GRM YUSTF CDC-MP3
O MICON C 0922 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 YUSTF CDC-MP3
O MICON C 0923 87-010-178-080 0E C-CAP,S 1000P-50 K B C2012 YUSTF CDC-MP3
O MICON C 0924 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 YUSTF CDC-MP3
O MICON C 0925 87-010-498-040 0E CAP,E 10-16 M 5L SRE YUSTF CDC-MP3
O MICON C 0927 87-010-178-080 0E C-CAP,S 1000P-50 K B C2012 YUSTF CDC-MP3
O MICON C 0928 87-010-178-080 0E C-CAP,S 1000P-50 K B C2012 YUSTF CDC-MP3
S MICON D 0495 87-020-331-080 0E C-DIODE,DAN202K YUSTF CDC-MP3
S MICON D 0501 87-017-932-080 0E ZENER,MTZJ6.2B YUSTF CDC-MP3
S MICON D 0502 87-017-932-080 0E ZENER,MTZJ6.2B YUSTF CDC-MP3
S MICON D 0503 87-017-932-080 0E ZENER,MTZJ6.2B YUSTF CDC-MP3
S MICON D 0504 87-017-932-080 0E ZENER,MTZJ6.2B YUSTF CDC-MP3
S MICON D 0505 87-017-932-080 0E ZENER,MTZJ6.2B YUSTF CDC-MP3
S MICON D 0506 87-017-932-080 0E ZENER,MTZJ6.2B YUSTF CDC-MP3
O MICON D 0909 87-027-262-010 0E LED,TLR124 RED YUSTF CDC-MP3
S MICON D 0910 87-020-465-080 0E DIODE,1SS133 YUSTF CDC-MP3
S MICON D 0912 87-020-465-080 0E DIODE,1SS133 YUSTF CDC-MP3
S MICON D 0913 87-020-465-080 0E DIODE,1SS133 YUSTF CDC-MP3
S MICON D 0914 87-020-465-080 0E DIODE,1SS133 YUSTF CDC-MP3
S MICON D 0916 87-017-932-080 0E ZENER,MTZJ6.2B YUSTF CDC-MP3
S MICON D 0917 87-017-932-080 0E ZENER,MTZJ6.2B YUSTF CDC-MP3
S MICON D 0919 87-017-932-080 0E ZENER,MTZJ6.2B YUSTF CDC-MP3
S MICON D 0920 87-070-136-080 0E ZENER,MTZJ5.1B YUSTF CDC-MP3
S MICON D 0921 87-017-932-080 0E ZENER,MTZJ6.2B YUSTF CDC-MP3
S MICON D 0924 87-017-932-080 0E ZENER,MTZJ6.2B YUSTF CDC-MP3
S MICON D 0925 87-020-465-080 0E DIODE,1SS133 YUSTF CDC-MP3
S MICON D 0926 87-020-465-080 0E DIODE,1SS133 YUSTF CDC-MP3
S MICON D 0927 87-020-465-080 0E DIODE,1SS133 YUSTF CDC-MP3
S MICON D 0930 87-017-932-080 0E ZENER,MTZJ6.2B YUSTF CDC-MP3
S MICON D 0935 87-017-932-080 0E ZENER,MTZJ6.2B YUSTF CDC-MP3
S MICON D 0936 87-017-932-080 0E ZENER,MTZJ6.2B YUSTF CDC-MP3
S MICON D 0937 87-020-465-080 0E DIODE,1SS133 YUSTF CDC-MP3
S MICON IC 0601 87-A21-726-030 — C-IC,UPD78F4216AYGC-8EU(AKC-6) YUSTF CDC-MP3
S MICON IC 0602 87-A21-600-080 2M C-IC,LC36W1000CTLL-10X YUSTF CDC-MP3
S MICON IC 0901 87-A21-731-030 — C-IC,UPD178P018AGC-3B9(AKC-6) YUSTF CDC-MP3
S MICON IC 0902 88-KT1-606-080 1A IC,PST994D YUSTF CDC-MP3
S MICON IC 0903 87-020-784-080 1B C-IC,TC4053BF YUSTF CDC-MP3
O MICON L 0901 87-A50-079-080 0E COIL,22UH (CECS) YUSTF CDC-MP3
O MICON PL 0901 8Z-KT1-641-010 1A LAMP,T-3 YUSTF CDC-MP3
S MICON Q 0495 87-A30-282-040 0E C-TR,DTA114TKA YUSTF CDC-MP3
S MICON Q 0496 87-A30-287-040 0E C-TR,DTC114TKA YUSTF CDC-MP3
S MICON Q 0501 87-A30-289-040 0E C-TR,2SA1037AK(R) YUSTF CDC-MP3
S MICON Q 0502 87-026-235-080 0E C-TR,DTC114EK YUSTF CDC-MP3
S MICON Q 0903 89-211-323-080 1A C-TR,2SB1132R YUSTF CDC-MP3
S MICON Q 0904 89-324-122-080 0E C-TR,2SC2412KR YUSTF CDC-MP3
S MICON Q 0906 89-324-122-080 0E C-TR,2SC2412KR YUSTF CDC-MP3
X MICON R 0495 88-118-103-080 0E C-RES,S 10K-1/10W J YUSTF CDC-MP3
X MICON R 0496 88-118-222-080 0E C-RES,S 2.2K-1/10W J YUSTF CDC-MP3
X MICON R 0505 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X MICON R 0506 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X MICON R 0507 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X MICON R 0508 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X MICON R 0509 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X MICON R 0510 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X MICON R 0511 88-118-223-080 0E C-RES,S 22K-1/10W J YUSTF CDC-MP3
X MICON R 0512 88-118-222-080 0E C-RES,S 2.2K-1/10W J YUSTF CDC-MP3
X MICON R 0513 88-118-222-080 0E C-RES,S 2.2K-1/10W J YUSTF CDC-MP3
X MICON R 0601 88-108-000-080 0E C-JUMPER,U YUSTF CDC-MP3
X MICON R 0602 88-108-000-080 0E C-JUMPER,U YUSTF CDC-MP3
X MICON R 0603 88-108-000-080 0E C-JUMPER,U YUSTF CDC-MP3
X MICON R 0604 88-108-222-080 0E C-RES,U 2.2K-1/16W J YUSTF CDC-MP3
X MICON R 0605 88-108-222-080 0E C-RES,U 2.2K-1/16W J YUSTF CDC-MP3
X MICON R 0607 88-108-472-080 0E C-RES,U 4.7K-1/16W J YUSTF CDC-MP3

PARTS LIST
-8-
! =! SAFTY PARTS
C=Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
K NO. =Only use japanese.
C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX
X MICON R 0608 88-108-473-080 0E C-RES,U 47K-1/16W J YUSTF CDC-MP3
X MICON R 0609 88-108-473-080 0E C-RES,U 47K-1/16W J YUSTF CDC-MP3
X MICON R 0610 88-108-473-080 0E C-RES,U 47K-1/16W J YUSTF CDC-MP3
X MICON R 0611 88-108-473-080 0E C-RES,U 47K-1/16W J YUSTF CDC-MP3
X MICON R 0612 88-108-473-080 0E C-RES,U 47K-1/16W J YUSTF CDC-MP3
X MICON R 0902 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X MICON R 0909 88-148-101-080 0E C-RES, 100-1/2W J YUSTF CDC-MP3
X MICON R 0910 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X MICON R 0911 88-118-103-080 0E C-RES,S 10K-1/10W J YUSTF CDC-MP3
X MICON R 0913 88-118-104-080 0E C-RES,S 100K-1/10W J YUSTF CDC-MP3
X MICON R 0914 88-118-473-080 0E C-RES,S 47K-1/10W J YUSTF CDC-MP3
X MICON R 0915 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X MICON R 0916 88-118-104-080 0E C-RES,S 100K-1/10W J YUSTF CDC-MP3
X MICON R 0917 88-118-473-080 0E C-RES,S 47K-1/10W J YUSTF CDC-MP3
X MICON R 0918 88-118-473-080 0E C-RES,S 47K-1/10W J YUSTF CDC-MP3
X MICON R 0922 88-118-000-080 0E C-JUMPER,S YUSTF CDC-MP3
X MICON R 0924 88-118-224-080 0E C-RES,S 220K-1/10W J YUSTF CDC-MP3
X MICON R 0925 88-118-222-080 0E C-RES,S 2.2K-1/10W J YUSTF CDC-MP3
X MICON R 0926 88-118-104-080 0E C-RES,S 100K-1/10W J YUSTF CDC-MP3
X MICON R 0927 88-118-473-080 0E C-RES,S 47K-1/10W J YUSTF CDC-MP3
X MICON R 0928 88-118-222-080 0E C-RES,S 2.2K-1/10W J YUSTF CDC-MP3
X MICON R 0929 88-118-222-080 0E C-RES,S 2.2K-1/10W J YUSTF CDC-MP3
X MICON R 0930 88-118-222-080 0E C-RES,S 2.2K-1/10W J YUSTF CDC-MP3
X MICON R 0931 88-118-222-080 0E C-RES,S 2.2K-1/10W J YUSTF CDC-MP3
X MICON R 0932 88-118-222-080 0E C-RES,S 2.2K-1/10W J YUSTF CDC-MP3
X MICON R 0933 88-118-222-080 0E C-RES,S 2.2K-1/10W J YUSTF CDC-MP3
X MICON R 0934 88-118-222-080 0E C-RES,S 2.2K-1/10W J YUSTF CDC-MP3
X MICON R 0935 88-118-222-080 0E C-RES,S 2.2K-1/10W J YUSTF CDC-MP3
X MICON R 0936 88-118-223-080 0E C-RES,S 22K-1/10W J YUSTF CDC-MP3
X MICON R 0938 88-118-222-080 0E C-RES,S 2.2K-1/10W J YUSTF CDC-MP3
X MICON R 0941 88-118-104-080 0E C-RES,S 100K-1/10W J YUSTF CDC-MP3
X MICON R 0942 88-118-222-080 0E C-RES,S 2.2K-1/10W J YUSTF CDC-MP3
X MICON R 0943 88-118-222-080 0E C-RES,S 2.2K-1/10W J YUSTF CDC-MP3
X MICON R 0944 88-118-104-080 0E C-RES,S 100K-1/10W J YUSTF CDC-MP3
X MICON R 0945 88-118-104-080 0E C-RES,S 100K-1/10W J YUSTF CDC-MP3
X MICON R 0946 88-118-104-080 0E C-RES,S 100K-1/10W J YUSTF CDC-MP3
X MICON R 0947 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X MICON R 0948 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X MICON R 0950 88-118-104-080 0E C-RES,S 100K-1/10W J YUSTF CDC-MP3
X MICON R 0952 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X MICON R 0953 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X MICON R 0959 88-118-103-080 0E C-RES,S 10K-1/10W J YUSTF CDC-MP3
X MICON R 0960 88-118-472-080 0E C-RES,S 4.7K-1/10W J YUSTF CDC-MP3
X MICON R 0961 88-118-104-080 0E C-RES,S 100K-1/10W J YUSTF CDC-MP3
X MICON R 0962 88-118-222-080 0E C-RES,S 2.2K-1/10W J YUSTF CDC-MP3
X MICON R 0974 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X MICON R 0975 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X MICON R 0977 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X MICON R 0978 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X MICON R 0979 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X MICON R 0981 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X MICON R 0982 88-118-104-080 0E C-RES,S 100K-1/10W J YUSTF CDC-MP3
X MICON R 0983 88-118-272-080 0E C-RES,S 2.7K-1/10W J YUSTF CDC-MP3
X MICON R 0984 88-118-562-080 0E C-RES,S 5.6K-1/10W J YUSTF CDC-MP3
X MICON R 0987 88-118-473-080 0E C-RES,S 47K-1/10W J YUSTF CDC-MP3
X MICON R 0988 88-118-123-080 0E C-RES,S 12K-1/10W J YUSTF CDC-MP3
X MICON R 0991 88-118-104-080 0E C-RES,S 100K-1/10W J YUSTF CDC-MP3
X MICON R 0992 88-118-104-080 0E C-RES,S 100K-1/10W J YUSTF CDC-MP3
X MICON R 0993 88-118-223-080 0E C-RES,S 22K-1/10W J YUSTF CDC-MP3
X MICON R 0994 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
O MICON SW 0901 87-A91-070-010 0E SW,TACT SKHHLV YUSTF CDC-MP3
O MICON SW 0903 87-036-109-010 1A SW,MICRO SPPB61 YUSTF CDC-MP3
O MICON SW 0904 87-A91-152-010 1A SW,SL 1-1-2 SSSS212-11-A YUSTF CDC-MP3
O MICON X 0601 87-A70-266-080 1A C-VIB,CER 6.25MHZ CSTRC-MG05 YUSTF CDC-MP3
O MICON X 0901 87-A70-175-010 1B VIB,XTAL 4.5MHZ AT-49 YUSTF CDC-MP3
O MP3 C 0621 87-010-880-080 0E C-CAP,E 47-6.3 M MF YUSTF CDC-MP3
O MP3 C 0622 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O MP3 C 0623 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O MP3 C 0624 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O MP3 C 0625 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3

PARTS LIST
-9-
! =! SAFTY PARTS
C=Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
K NO. =Only use japanese.
C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX
O MP3 C 0626 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O MP3 C 0627 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O MP3 C 0628 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O MP3 C 0629 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O MP3 C 0630 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O MP3 C 0631 87-010-880-080 0E C-CAP,E 47-6.3 M MF YUSTF CDC-MP3
S MP3 IC 0621 87-A21-621-010 — C-IC,MAS3507D-G10 YUSTF CDC-MP3
S MP3 IC 0622 87-A21-624-080 1A C-IC,SN74AHC1G08 DCK YUSTF CDC-MP3
S MP3 IC 0623 87-A21-599-010 — C-IC,LC89513K YUSTF CDC-MP3
S MP3 IC 0624 87-A21-601-040 — C-IC,LC35W256ET-10W YUSTF CDC-MP3
O MP3 L 0621 87-A50-536-080 1A C-COIL,10UH K LQH3C24 YUSTF CDC-MP3
O MP3 L 0622 87-A50-536-080 1A C-COIL,10UH K LQH3C24 YUSTF CDC-MP3
X MP3 R 0621 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
X MP3 R 0622 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
X MP3 R 0623 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
X MP3 R 0624 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
X MP3 R 0625 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
X MP3 R 0626 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
X MP3 R 0627 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
X MP3 R 0628 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
X MP3 R 0629 88-108-472-080 0E C-RES,U 4.7K-1/16W J YUSTF CDC-MP3
X MP3 R 0630 88-108-000-080 0E C-JUMPER,U YUSTF CDC-MP3
X MP3 R 0631 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
X MP3 R 0632 88-108-000-080 0E C-JUMPER,U YUSTF CDC-MP3
X MP3 R 0633 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
X OTHERS 80-MQ1-209-010 0E CLOTH,20-7 YUSTF CDC-MP3
X OTHERS 8A-KC1-201-010 0E SH,LCD CORNER YUSTF CDC-MP3
X OTHERS 8A-KC5-201-010 — HLDR,STATIC SHIELD YUSTF CDC-MP3
X OTHERS 8A-KC5-202-010 — SH,HLDR STATIC YUSTF CDC-MP3
O OTHERS 8A-KC7-201-010 0E CASE,LCD LENS- AC7 YUSTF CDC-MP3
O OTHERS 8A-KC7-202-010 0E LENS,LCD-AC7 YUSTF CDC-MP3
X OTHERS 8A-KC7-203-010 0E SH,LCD-AC7 YUSTF CDC-MP3
O OTHERS 8A-KC7-204-010 0E HLDR,LCD-AC7 YUSTF CDC-MP3
O OTHERS 8A-KC7-205-010 0E LENS,ENCO-AC7 YUSTF CDC-MP3
O OTHERS 8A-KC7-206-010 0E LENS,R-AC7 YUSTF CDC-MP3
O OTHERS 8A-KC7-207-010 0E HLDR,HOOK R-AC7 YUSTF CDC-MP3
O OTHERS 8A-KC7-209-010 0E HLDR,BTN R1-AC7 YUSTF CDC-MP3
O OTHERS 8A-KC7-210-010 0E HLDR,BTN R2-AC7 YUSTF CDC-MP3
X OTHERS 8A-KC7-212-010 1A SH,ADH WINDOW -AC7 YUSTF CDC-MP3
X OTHERS 8A-KC7-213-010 0E SH,LCD PIN -AC7 YUSTF CDC-MP3
X OTHERS 8A-KC7-219-010 0E SH,INS BLACK YUSTF CDC-MP3
O OTHERS 8A-KC7-220-010 0E SPR-C,ROTARY -AC YUSTF CDC-MP3
O OTHERS 8A-KC7-224-010 0E HLDR,P-IC -AC YUSTF CDC-MP3
O OTHERS 8A-KC7-225-010 0E HLDR,CD-AC YUSTF CDC-MP3
O OTHERS 8A-KC7-230-110 1A HLDR,TR2 -AC YUSTF CDC-MP3
X OTHERS 8A-KC7-240-110 1E PANEL,HT-SINK -AC YUSTF CDC-MP3
X OTHERS 8A-KC7-245-010 0E SH,MIRROR-AC7 YUSTF CDC-MP3
X OTHERS 8A-KC7-248-010 0E SH,LED RED -AC7 YUSTF CDC-MP3
O OTHERS 8A-KC7-252-010 1B COVER, DUST-AC7 YUSTF CDC-MP3
O OTHERS 8A-KC7-259-010 1A HLDR,BTN PWR FUNC YUSTF CDC-MP3
X OTHERS 8A-KC7-260-010 0E SH,LAMP YUSTF CDC-MP3
X OTHERS 8A-KC7-261-010 0E SH,PRESET YUSTF CDC-MP3
X OTHERS 8A-KCH-212-010 0E SH,2.5-5-0.3 YUSTF CDC-MP3
O OTHERS 8Z-KC1-201-310 0E ARM,F-LOCK -C1 YUSTF CDC-MP3
O OTHERS 8Z-KC1-202-010 0E LEVER,F-OPEN -C1 YUSTF CDC-MP3
O OTHERS 8Z-KC1-203-010 0E GEAR,FLAP -C1 YUSTF CDC-MP3
O OTHERS 8Z-KC1-204-110 0E HLDR,F-HOOK L -C YUSTF CDC-MP3
O OTHERS 8Z-KC1-208-010 0E LENS,BASE -C YUSTF CDC-MP3
O OTHERS 8Z-KC1-210-210 1A CHAS,FRONT F -C1 YUSTF CDC-MP3
O OTHERS 8Z-KC1-211-010 1B COVER, TOP -C YUSTF CDC-MP3
O OTHERS 8Z-KC1-212-010 1B COVER, BOTTOM -C YUSTF CDC-MP3
O OTHERS 8Z-KC1-213-110 1A CHAS,SIDE L -C YUSTF CDC-MP3
O OTHERS 8Z-KC1-214-110 1A CHAS,SIDE R -C YUSTF CDC-MP3
O OTHERS 8Z-KC1-216-310 0E HLDR,DECK CDC-01 YUSTF CDC-MP3
O OTHERS 8Z-KC1-222-010 0E ARM,SENSOR F -C1 YUSTF CDC-MP3
X OTHERS 8Z-KC1-226-010 — HLDR,DAMPER F -C YUSTF CDC-MP3
X OTHERS 8Z-KC1-227-010 — HLDR,DFP F -C YUSTF CDC-MP3
X OTHERS 8Z-KC1-228-010 — SHAFT,FLAP -C YUSTF CDC-MP3
X OTHERS 8Z-KC1-228-010 — SHAFT,FLAP -C YUSTF CDC-MP3
O OTHERS 8Z-KC1-229-010 1A HLDR,DAMPER F ASS’Y-C YUSTF CDC-MP3

PARTS LIST
-10-
! =! SAFTY PARTS
C=Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
K NO. =Only use japanese.
C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX
O OTHERS 8Z-KC1-230-010 1A HLDR,DFP ASS’Y F-C YUSTF CDC-MP3
X OTHERS 8Z-KC1-234-110 1B SH,PWB YUSTF CDC-MP3
X OTHERS 8Z-KC1-237-010 0E SH,CONN. YUSTF CDC-MP3
X OTHERS 8Z-KC1-239-010 0E SH,SBX 1971 -F YUSTF CDC-MP3
O OTHERS 8Z-KC1-241-010 0E SPR-C,DFP HOOK F -C YUSTF CDC-MP3
O OTHERS 8Z-KC1-242-010 0E SPR-C,OPEN BTN F -C YUSTF CDC-MP3
O OTHERS 8Z-KC1-243-010 0E SPR-T,FLAP-C YUSTF CDC-MP3
O OTHERS 8Z-KC1-248-010 0E SPR-T,SENSOR F-C YUSTF CDC-MP3
O OTHERS 8Z-KC1-260-010 0E SPR-T,F.LOCK-C YUSTF CDC-MP3
X OTHERS 8Z-KC1-273-010 0E SH,DAMPER BLOCK YUSTF CDC-MP3
X OTHERS 8Z-KC2-227-010 0E SH,BLOCK YUSTF CDC-MP3
O OTHERS 8Z-KC7-201-010 0E COVER, ISO BLIND -C YUSTF CDC-MP3
O OTHERS 8Z-KT1-237-010 0E CAP,LAMP GRN YUSTF CDC-MP3
O OTHERS 8Z-KT1-239-010 0E CAP,LAMP BLU B YUSTF CDC-MP3
O OTHERS 8Z-KT1-250-010 1A OIL-DMPR,100 YUSTF CDC-MP3
O OTHERS C 0873 87-016-526-080 0E C-CAP,S 0.47-16 BK YUSTF CDC-MP3
O OTHERS C 0874 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O OTHERS C 0875 87-016-526-080 0E C-CAP,S 0.47-16 BK YUSTF CDC-MP3
O OTHERS C 0876 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O OTHERS C 0877 87-010-880-080 0E C-CAP,E 47-6.3 M MF YUSTF CDC-MP3
O OTHERS C 0878 87-A10-263-080 0E C-CAP,U 0.1-16 Z F YUSTF CDC-MP3
O OTHERS CN 0801 87-A61-125-080 1A C-CONN,16P H FLZ-SM1-TB YUSTF CDC-MP3
O OTHERS CN 0891 87-A61-220-080 1A C-CONN,20P H 52271-2090 YUSTF CDC-MP3
O OTHERS CON0201 8Z-KT1-611-010 1B CONN,16P CAM-B51 YUSTF CDC-MP3
O OTHERS CON0601 8Z-KT1-613-010 1C CONN,16P CAM-C74 YUSTF CDC-MP3
O OTHERS CON0602 87-A60-910-010 1A C-CONN,16P V TKC-F16X-H2 YUSTF CDC-MP3
O OTHERS CON0901 87-A60-861-080 1A C-CONN,20P 08-6224-020-001 YUSTF CDC-MP3
O OTHERS CON0902 87-A60-182-010 1A CONN,16P H TKC-F16P-E3 YUSTF CDC-MP3
O OTHERS D 0950 87-A40-641-010 0E LED,SLR-332MG GRN YUSTF CDC-MP3
S OTHERS IC 0871 87-A20-905-040 1B C-IC,BA033FP YUSTF CDC-MP3
S OTHERS IC 0872 87-A21-190-040 1B C-IC,PQ20WZ1U YUSTF CDC-MP3
S OTHERS IC 0873 87-A21-728-040 1B C-IC,SN74LVC07A YUSTF CDC-MP3
O OTHERS J 0101 8Z-KT1-614-010 1A ANT,AW-002 YUSTF CDC-MP3
O OTHERS J 0451 87-A61-224-010 1A JACK,PIN 4P XR-401 YUSTF CDC-MP3
O OTHERS J 0951 8A-KC7-620-010 1B JACK,DIN 13 P SKDS1302 YUSTF CDC-MP3
O OTHERS L 0871 87-A50-367-080 0E C-COIL, 10UH LQG21F YUSTF CDC-MP3
S OTHERS Q 0705 87-A30-287-040 0E C-TR,DTC114TKA YUSTF CDC-MP3
S OTHERS Q 0871 87-A30-273-040 0E C-TR,DTC124EKA YUSTF CDC-MP3
S OTHERS Q 0872 87-026-211-080 0E C-TR,DTA144EK YUSTF CDC-MP3
X OTHERS R 0871 88-108-102-080 0E C-RES,U 1K-1/16W J YUSTF CDC-MP3
X OTHERS R 0872 88-108-332-080 0E C-RES,U 3.3K-1/16W J YUSTF CDC-MP3
X OTHERS R 0891 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
X OTHERS R 0892 88-108-473-080 0E C-RES,U 47K-1/16W J YUSTF CDC-MP3
X OTHERS R 0893 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
X OTHERS R 0894 88-108-103-080 0E C-RES,U 10K-1/16W J YUSTF CDC-MP3
X OTHERS R 0895 88-108-562-080 0E C-RES,U 5.6K-1/16W J YUSTF CDC-MP3
X OTHERS R 0896 88-108-562-080 0E C-RES,U 5.6K-1/16W J YUSTF CDC-MP3
X OTHERS R 0897 88-108-104-080 0E C-RES,U 100K-1/16W J YUSTF CDC-MP3
O OTHERS SW 0950 87-A90-001-080 1A C-SW,TACT SKQMAL YUSTF CDC-MP3
O OTHERS W 1001 8Z-KC1-613-010 0E F-CABLE,3P (EJECT) YUSTF CDC-MP3
X OTHERS(RC UNIT) R8-AZR-190-040 2A AZR-1 RCKCGNF YUSTF CDC-MP3
X PACKING 87-B40-087-010 0E BAG,PV 0.04-250-350 PL YUSTF CDC-MP3
X PACKING 8A-KC1-853-110 1F BOX,A YUSTF CDC-MP3
X PACKING 8A-KC1-856-110 1C CUSHION,LEFT 2 AIS YUSTF CDC-MP3
X PACKING 8A-KC1-857-110 1C CUSHION,RIGHT 2 AIS YUSTF CDC-MP3
X PACKING 8A-KC6-853-010 1B CTN,PRINTED MP3 YUSTF YUSTF CDC-MP3
X PACKING 8A-KC6-854-010 1E CTN,OUTER MP3 YUSTF YUSTF CDC-MP3
X PLATE 87-B40-154-010 0E LBL,BAR-CODE CU YUSTF CDC-MP3
X PLATE 87-B40-282-010 0E LBL,BAR-CODE AU 35X8 YUSTF CDC-MP3
X PLATE 8A-KC6-021-010 0E LBL,SPEC.YU MP3 YUSTF CDC-MP3
X PLATE 8Z-KC5-013-010 0E LBL,FCC YUSTF CDC-MP3
X PLATE 8Z-KC5-014-010 0E LBL,DHHS YUSTF CDC-MP3
O POWER AMP C 0551 87-012-358-080 0E C-CAP,S 0.47-10 Z F CM/CB YUSTF CDC-MP3
O POWER AMP C 0552 87-012-358-080 0E C-CAP,S 0.47-10 Z F CM/CB YUSTF CDC-MP3
O POWER AMP C 0553 87-012-358-080 0E C-CAP,S 0.47-10 Z F CM/CB YUSTF CDC-MP3
O POWER AMP C 0554 87-012-358-080 0E C-CAP,S 0.47-10 Z F CM/CB YUSTF CDC-MP3
O POWER AMP C 0555 87-010-175-080 0E C-CAP,S 560P-50 J SL YUSTF CDC-MP3
O POWER AMP C 0556 87-010-175-080 0E C-CAP,S 560P-50 J SL YUSTF CDC-MP3
O POWER AMP C 0557 87-010-175-080 0E C-CAP,S 560P-50 J SL YUSTF CDC-MP3
O POWER AMP C 0558 87-010-175-080 0E C-CAP,S 560P-50 J SL YUSTF CDC-MP3

PARTS LIST
-11-
! =! SAFTY PARTS
C=Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
K NO. =Only use japanese.
C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX
O POWER AMP C 0559 87-010-498-040 0E CAP,E 10-16 M 5L SRE YUSTF CDC-MP3
O POWER AMP C 0560 8A-KC7-623-000 1B CAP,E 2200-16 125 BT YUSTF CDC-MP3
O POWER AMP C 0561 87-010-805-080 0E C-CAP,S 1-16 Z F YUSTF CDC-MP3
O POWER AMP C 0562 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 YUSTF CDC-MP3
O POWER AMP C 0563 87-010-074-040 0E CAP,E 4.7-35 M 5L SRE YUSTF CDC-MP3
O POWER AMP C 0564 87-010-182-080 0E C-CAP,S 2200P-50 K B C2012 YUSTF CDC-MP3
O POWER AMP C 0565 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 YUSTF CDC-MP3
O POWER AMP C 0571 87-012-368-080 0E C-CAP,S 0.1-50 Z F YUSTF CDC-MP3
O POWER AMP C 0572 87-012-368-080 0E C-CAP,S 0.1-50 Z F YUSTF CDC-MP3
O POWER AMP C 0573 87-012-368-080 0E C-CAP,S 0.1-50 Z F YUSTF CDC-MP3
O POWER AMP C 0574 87-012-368-080 0E C-CAP,S 0.1-50 Z F YUSTF CDC-MP3
O POWER AMP C 0591 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 YUSTF CDC-MP3
S POWER AMP D 0551 87-001-783-080 0E DIODE,1N4002 YUSTF CDC-MP3
S POWER AMP D 0552 87-001-783-080 0E DIODE,1N4002 YUSTF CDC-MP3
S POWER AMP D 0553 87-001-783-080 0E DIODE,1N4002 YUSTF CDC-MP3
S POWER AMP D 0554 87-001-783-080 0E DIODE,1N4002 YUSTF CDC-MP3
S POWER AMP D 0555 87-001-783-080 0E DIODE,1N4002 YUSTF CDC-MP3
S POWER AMP D 0556 87-001-783-080 0E DIODE,1N4002 YUSTF CDC-MP3
S POWER AMP D 0557 87-001-783-080 0E DIODE,1N4002 YUSTF CDC-MP3
S POWER AMP D 0558 87-001-783-080 0E DIODE,1N4002 YUSTF CDC-MP3
S POWER AMP D 0591 87-A40-650-080 0E ZENER,MTZJ6.8A YUSTF CDC-MP3
S POWER AMP D 0592 87-070-334-080 0E ZENER,MTZJ10B YUSTF CDC-MP3
S POWER AMP D 0593 87-020-331-080 0E C-DIODE,DAN202K YUSTF CDC-MP3
S POWER AMP IC 0551 87-A21-562-010 2M IC,LA4743B YUSTF CDC-MP3
S POWER AMP Q 0591 87-A30-282-040 0E C-TR,DTA114TKA YUSTF CDC-MP3
X POWER AMP R 0551 88-118-822-080 0E C-RES,S 8.2K-1/10W J YUSTF CDC-MP3
X POWER AMP R 0591 88-118-103-080 0E C-RES,S 10K-1/10W J YUSTF CDC-MP3
X POWER AMP R 0592 88-118-100-080 0E C-RES,S 10-1/10W J YUSTF CDC-MP3
O POWER SUPPLY C 0210 87-016-669-080 0E C-CAP,S 0.1-25 K B YUSTF CDC-MP3
O POWER SUPPLY C 0211 87-010-182-080 0E C-CAP,S 2200P-50 K B C2012 YUSTF CDC-MP3
O POWER SUPPLY C 0212 87-010-182-080 0E C-CAP,S 2200P-50 K B C2012 YUSTF CDC-MP3
O POWER SUPPLY C 0241 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 YUSTF CDC-MP3
O POWER SUPPLY C 0242 87-010-553-040 0E CAP,E 47-16 M 5L SRE YUSTF CDC-MP3
O POWER SUPPLY C 0251 87-010-182-080 0E C-CAP,S 2200P-50 K B C2012 YUSTF CDC-MP3
O POWER SUPPLY C 0252 87-010-182-080 0E C-CAP,S 2200P-50 K B C2012 YUSTF CDC-MP3
O POWER SUPPLY C 0260 87-010-498-040 0E CAP,E 10-16 M 5L SRE YUSTF CDC-MP3
O POWER SUPPLY C 0263 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 YUSTF CDC-MP3
O POWER SUPPLY C 0264 87-010-553-040 0E CAP,E 47-16 M 5L SRE YUSTF CDC-MP3
O POWER SUPPLY C 0265 87-010-498-040 0E CAP,E 10-16 M 5L SRE YUSTF CDC-MP3
O POWER SUPPLY C 0266 87-010-194-080 0E C-CAP,S 0.047-25 Z F YUSTF CDC-MP3
O POWER SUPPLY C 0267 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 YUSTF CDC-MP3
O POWER SUPPLY C 0268 87-010-498-040 0E CAP,E 10-16 M 5L SRE YUSTF CDC-MP3
O POWER SUPPLY C 0269 87-010-555-040 0E CAP,E 100-10 M 5L SRE YUSTF CDC-MP3
O POWER SUPPLY C 0270 87-010-555-040 0E CAP,E 100-10 M 5L SRE YUSTF CDC-MP3
O POWER SUPPLY C 0291 87-010-553-040 0E CAP,E 47-16 M 5L SRE YUSTF CDC-MP3
O POWER SUPPLY C 0292 87-010-498-040 0E CAP,E 10-16 M 5L SRE YUSTF CDC-MP3
S POWER SUPPLY D 0209 87-070-136-080 0E ZENER,MTZJ5.1B YUSTF CDC-MP3
S POWER SUPPLY D 0241 87-A40-523-080 0E ZENER,MTZJ9.1B YUSTF CDC-MP3
S POWER SUPPLY D 0251 87-A40-798-010 0E DIODE,1N5402 (3A/200V) YUSTF CDC-MP3
S POWER SUPPLY D 0253 87-A40-235-080 0E ZENER,MTZJ9.1C YUSTF CDC-MP3
S POWER SUPPLY D 0254 87-A40-624-080 0E ZENER,MTZJ10A YUSTF CDC-MP3
S POWER SUPPLY D 0255 87-A40-344-080 0E ZENER,MTZJ6.2C YUSTF CDC-MP3
S POWER SUPPLY D 0256 87-A40-189-080 0E DIODE,1SR139-400 YUSTF CDC-MP3
S POWER SUPPLY D 0257 87-A40-189-080 0E DIODE,1SR139-400 YUSTF CDC-MP3
S POWER SUPPLY D 0258 87-020-331-080 0E C-DIODE,DAN202K YUSTF CDC-MP3
S POWER SUPPLY D 0259 87-A40-624-080 0E ZENER,MTZJ10A YUSTF CDC-MP3
S POWER SUPPLY D 0261 87-A40-189-080 0E DIODE,1SR139-400 YUSTF CDC-MP3
S POWER SUPPLY D 0291 87-A40-871-080 0E ZENER,MTZJ5.6C YUSTF CDC-MP3
S POWER SUPPLY F 0281 8Z-KC1-621-010 1B FUSE,15A 32V YUSTF CDC-MP3
O POWER SUPPLY L 0201 8Z-KT1-615-010 1C FLTR,AMORPHOUS -CHOKE YUSTF CDC-MP3
O POWER SUPPLY L 0251 87-003-045-080 0E COIL,22UH K LAL04 YUSTF CDC-MP3
O POWER SUPPLY L 0252 87-003-149-080 0E COIL,47UH J LAL02 YUSTF CDC-MP3
S POWER SUPPLY Q 0241 87-A30-301-080 0E TR,2SD1862 YUSTF CDC-MP3
S POWER SUPPLY Q 0251 89-211-821-040 1A C-TR,2SB1182Q YUSTF CDC-MP3
S POWER SUPPLY Q 0252 89-324-122-080 0E C-TR,2SC2412KR YUSTF CDC-MP3
S POWER SUPPLY Q 0253 87-A30-299-080 1A TR,2SB1326 YUSTF CDC-MP3
S POWER SUPPLY Q 0254 87-026-235-080 0E C-TR,DTC114EK YUSTF CDC-MP3
S POWER SUPPLY Q 0258 87-A30-298-010 1A TR,2SD2396 YUSTF CDC-MP3
S POWER SUPPLY Q 0259 87-A30-302-040 1A C-TR,2SD1758-F5 YUSTF CDC-MP3
S POWER SUPPLY Q 0262 87-A30-298-010 1A TR,2SD2396 YUSTF CDC-MP3

PARTS LIST
-12-
! =! SAFTY PARTS
C=Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
K NO. =Only use japanese.
C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX
S POWER SUPPLY Q 0263 89-324-122-080 0E C-TR,2SC2412KR YUSTF CDC-MP3
S POWER SUPPLY Q 0264 87-A30-289-040 0E C-TR,2SA1037AK(R) YUSTF CDC-MP3
S POWER SUPPLY Q 0265 87-A30-287-040 0E C-TR,DTC114TKA YUSTF CDC-MP3
S POWER SUPPLY Q 0291 87-A30-302-040 1A C-TR,2SD1758-F5 YUSTF CDC-MP3
X POWER SUPPLY R 0201 88-118-222-080 0E C-RES,S 2.2K-1/10W J YUSTF CDC-MP3
X POWER SUPPLY R 0241 88-118-101-080 0E C-RES,S 100-1/10W J YUSTF CDC-MP3
X POWER SUPPLY R 0242 88-118-821-080 0E C-RES,S 820-1/10W J YUSTF CDC-MP3
X POWER SUPPLY R 0243 88-118-470-080 0E C-RES,S 47-1/10W J YUSTF CDC-MP3
X POWER SUPPLY R 0251 88-148-229-080 0E C-RES, 2.2-1/2W J YUSTF CDC-MP3
X POWER SUPPLY R 0252 88-118-472-080 0E C-RES,S 4.7K-1/10W J YUSTF CDC-MP3
X POWER SUPPLY R 0253 88-118-229-080 0E C-RES,S 2.2-1/10W J YUSTF CDC-MP3
X POWER SUPPLY R 0255 88-118-103-080 0E C-RES,S 10K-1/10W J YUSTF CDC-MP3
X POWER SUPPLY R 0256 88-148-681-080 0E C-RES, 680-1/2W J YUSTF CDC-MP3
X POWER SUPPLY R 0261 88-118-122-080 0E C-RES,S 1.2K-1/10W J YUSTF CDC-MP3
X POWER SUPPLY R 0262 88-118-472-080 0E C-RES,S 4.7K-1/10W J YUSTF CDC-MP3
X POWER SUPPLY R 0267 88-118-103-080 0E C-RES,S 10K-1/10W J YUSTF CDC-MP3
X POWER SUPPLY R 0268 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X POWER SUPPLY R 0269 88-118-273-080 0E C-RES,S 27K-1/10W J YUSTF CDC-MP3
X POWER SUPPLY R 0291 88-118-471-080 0E C-RES,S 470-1/10W J YUSTF CDC-MP3
X PRINTED DU 87-B40-085-010 0E BAG,PV 0.04-200-350 PL YUSTF CDC-MP3
X PRINTED DU 87-B50-055-010 1A WARR-CARD,USA CUST/CAR AUDIO YUSTF CDC-MP3
O PRINTED DU 8A-KC6-901-110 — IB,YU(3L) MP3 YUSTF CDC-MP3
O PRINTED DU 8A-KC6-902-010 0E IB,INST,YU,YL (3L,P)NN-I YUSTF CDC-MP3
X PRINTED DU 8A-KC7-904-010 1A SH,SCREW FLAP-14L (I) YUSTF CDC-MP3
X PRINTED DU 8A-KC7-905-010 1A SH,DEMO 1-8L (I) YUSTF CDC-MP3
X PRINTED DU 8A-KC7-907-010 0E SH,CD-R/RW YU,YL-4L (I) YUSTF CDC-MP3
X PWB 8A-KC6-601-010 2M PWB,MAIN (AKC-6) YUSTF CDC-MP3
X PWB 8A-KC6-602-010 1F PWB,COMB 3M FRONT (AKC-6) YUSTF CDC-MP3
X PWB 8A-KC6-603-010 — PWB,FRONT YUSTF CDC-MP3
X PWB 8A-KC6-604-010 — PWB,AUX YUSTF CDC-MP3
X PWB 8A-KC6-605-010 — PWB,CONN YUSTF CDC-MP3
X PWB 8A-KC6-606-010 — PWB,EJECT YUSTF CDC-MP3
X PWB 8A-KC6-608-010 2M PWB,MP3 (AKC-6) YUSTF CDC-MP3
O SCREW 87-251-073-410 0E U+2.6-6 YUSTF CDC-MP3
O SCREW 87-251-100-410 0E U+3-16 YUSTF CDC-MP3
O SCREW 87-253-034-410 0E U+2-5 BLK YUSTF CDC-MP3
O SCREW 87-432-903-010 0E WTE,2.6 YUSTF CDC-MP3
O SCREW 87-B10-216-010 0E U+2.6-4.0 ZINC BLK (BH M2.6) YUSTF CDC-MP3
O SCREW 87-B10-259-010 0E UT2+3.0-10.0 W/O SLOT (BH TAP) YUSTF CDC-MP3
O SCREW 8Z-KC1-246-010 0E S-SCREW,2.0-2.5 -10 YUSTF CDC-MP3
O SCREW 8Z-KC1-247-010 0E S-SCREW,GEAR2.0-1.8 -4.2 YUSTF CDC-MP3
O SCREW 8Z-KC1-251-010 0E S-SCREW,TH2.6-4.0-0.8 YUSTF CDC-MP3
O SCREW 8Z-KC1-253-010 0E S-SCREW,PT 2*8 BH+ BLK YUSTF CDC-MP3
O SCREW 8Z-KC1-254-010 0E S-SCREW,PT 2*5 BH+ BLK YUSTF CDC-MP3
X TUNER 8Z-KC1-614-010 0E WIRE,ANT YUSTF CDC-MP3
O TUNER C 0101 87-010-178-080 0E C-CAP,S 1000P-50 K B C2012 YUSTF CDC-MP3
O TUNER C 0102 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 YUSTF CDC-MP3
O TUNER C 0104 87-010-186-080 0E C-CAP,S 4700P-50 K B C2012 YUSTF CDC-MP3
O TUNER C 0105 87-010-244-040 0E CAP,E 22-16 M 5L SRE YUSTF CDC-MP3
O TUNER C 0106 87-010-322-080 0E C-CAP,S 100P-50 J CH GRM YUSTF CDC-MP3
O TUNER C 0107 87-010-498-040 0E CAP,E 10-16 M 5L SRE YUSTF CDC-MP3
O TUNER C 0109 87-010-555-040 0E CAP,E 100-10 M 5L SRE YUSTF CDC-MP3
O TUNER C 0110 87-010-185-080 0E C-CAP,S 3900P-50 K B YUSTF CDC-MP3
O TUNER C 0111 87-012-365-080 0E C-CAP,S 0.027-25 K B YUSTF CDC-MP3
O TUNER C 0112 87-012-365-080 0E C-CAP,S 0.027-25 K B YUSTF CDC-MP3
O TUNER C 0113 87-010-494-040 0E CAP,E 1-50 M 5L SRE YUSTF CDC-MP3
O TUNER C 0114 87-010-494-040 0E CAP,E 1-50 M 5L SRE YUSTF CDC-MP3
O TUNER C 0115 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 YUSTF CDC-MP3
O TUNER C 0116 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 YUSTF CDC-MP3
O TUNER C 0117 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 YUSTF CDC-MP3
O TUNER C 0118 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 YUSTF CDC-MP3
O TUNER C 0119 87-010-196-080 0E C-CAP,S 0.1-25 Z F C2012 YUSTF CDC-MP3
O TUNER C 0133 87-010-197-080 0E C-CAP,S 0.01-25 K B C2012 YUSTF CDC-MP3
O TUNER C 0134 87-010-495-040 0E CAP,E 2.2-50 M 5L SRE YUSTF CDC-MP3
O TUNER C 0135 87-010-198-080 0E C-CAP,S 0.022-25 K B C2012 YUSTF CDC-MP3
S TUNER D 0101 87-A40-250-080 0E C-DIODE,DAN217 YUSTF CDC-MP3
O TUNER L 0101 87-003-143-080 0E COIL,4.7UH K LAL02 YUSTF CDC-MP3
O TUNER L 0104 8Z-KT1-619-010 1A COIL,68MH K7-D YUSTF CDC-MP3
S TUNER Q 0101 87-026-235-080 0E C-TR,DTC114EK YUSTF CDC-MP3
S TUNER Q 0102 87-A30-289-040 0E C-TR,2SA1037AK(R) YUSTF CDC-MP3

PARTS LIST
-13-
! =! SAFTY PARTS
C=Components marked
All components used on this model at the production line are shown in this service manual.
However, please note that not all components will be available as spare parts for after-sales service.
Components marked S and O are designated as spare parts for service and will be stocked at the spare parts centers.
Components marked X and R are not designated as spare parts for after sales service, and will not be stocked at the spare parts centers.
K NO. =Only use japanese.
C UNIT NAME REF NO. MODEL NAME! DESCRIPTIONK NO.PARTS CODE SUFFIX
S TUNER Q 0103 89-324-122-080 0E C-TR,2SC2412KR YUSTF CDC-MP3
S TUNER Q 0104 87-026-235-080 0E C-TR,DTC114EK YUSTF CDC-MP3
S TUNER Q 0108 89-324-122-080 0E C-TR,2SC2412KR YUSTF CDC-MP3
S TUNER Q 0109 89-324-122-080 0E C-TR,2SC2412KR YUSTF CDC-MP3
S TUNER Q 0111 87-A30-218-080 0E TR,2SB1237Q YUSTF CDC-MP3
S TUNER Q 0112 87-A30-287-040 0E C-TR,DTC114TKA YUSTF CDC-MP3
X TUNER R 0101 88-118-105-080 0E C-RES,S 1M-1/10W J YUSTF CDC-MP3
X TUNER R 0102 88-118-330-080 0E C-RES,S 33-1/10W J YUSTF CDC-MP3
X TUNER R 0103 88-118-181-080 0E C-RES,S 180-1/10W J YUSTF CDC-MP3
X TUNER R 0104 88-118-100-080 0E C-RES,S 10-1/10W J YUSTF CDC-MP3
X TUNER R 0105 88-118-103-080 0E C-RES,S 10K-1/10W J YUSTF CDC-MP3
X TUNER R 0106 88-118-821-080 0E C-RES,S 820-1/10W J YUSTF CDC-MP3
X TUNER R 0107 88-118-100-080 0E C-RES,S 10-1/10W J YUSTF CDC-MP3
X TUNER R 0108 88-118-473-080 0E C-RES,S 47K-1/10W J YUSTF CDC-MP3
X TUNER R 0111 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X TUNER R 0115 88-118-103-080 0E C-RES,S 10K-1/10W J YUSTF CDC-MP3
X TUNER R 0116 88-118-821-080 0E C-RES,S 820-1/10W J YUSTF CDC-MP3
X TUNER R 0117 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X TUNER R 0118 88-118-223-080 0E C-RES,S 22K-1/10W J YUSTF CDC-MP3
X TUNER R 0119 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X TUNER R 0120 88-118-223-080 0E C-RES,S 22K-1/10W J YUSTF CDC-MP3
X TUNER R 0121 88-118-333-080 0E C-RES,S 33K-1/10W J YUSTF CDC-MP3
X TUNER R 0122 88-118-473-080 0E C-RES,S 47K-1/10W J YUSTF CDC-MP3
X TUNER R 0125 88-118-393-080 0E C-RES,S 39K-1/10W J YUSTF CDC-MP3
X TUNER R 0126 88-118-393-080 0E C-RES,S 39K-1/10W J YUSTF CDC-MP3
X TUNER R 0154 88-118-000-080 0E C-JUMPER,S YUSTF CDC-MP3
X TUNER R 0191 88-118-102-080 0E C-RES,S 1K-1/10W J YUSTF CDC-MP3
X TUNER R 0193 88-118-000-080 0E C-JUMPER,S YUSTF CDC-MP3
X TUNER R 0194 88-118-000-080 0E C-JUMPER,S YUSTF CDC-MP3
O TUNER TU 0101 8A-KC8-624-010 2C TU UNIT, FAE347-A16 YUSTF CDC-MP3

SCHEMATIC DIAGRAM_1(MAIN)

SCHEMATIC DIAGRAM_2(FRONT)

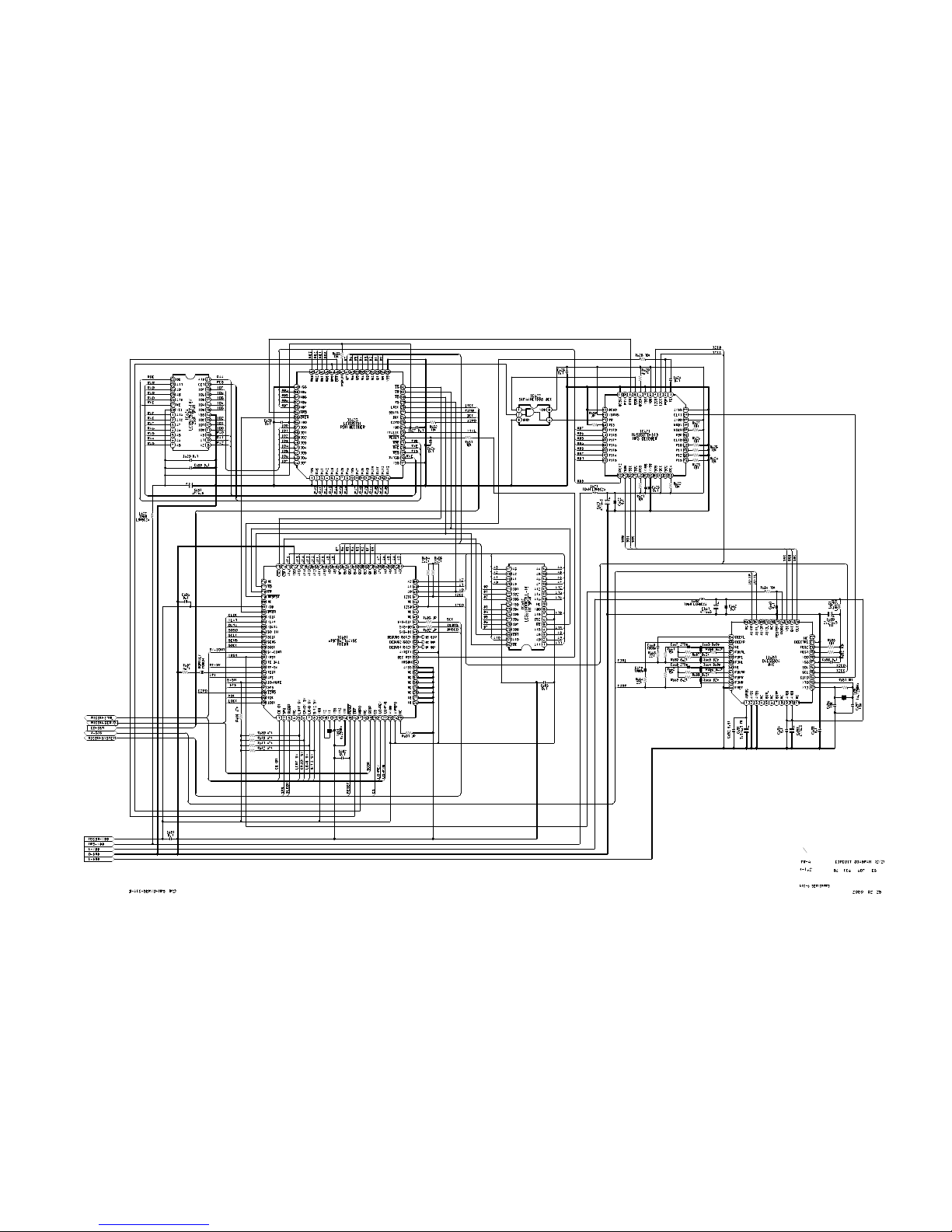

SCHEMATIC DIAGRAM_3(MP3(1/2))

SCHEMATIC DIAGRAM_4(MP3(2/2))

211, IKENOHATA 1CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (382 ) 3111
Printed in Singapore9620450
