FEATURES
1 ENGLISH
• Tracksfrom10CDsstoredinthediscmagazine
can be selected and played.
• Horizontal, vertical, slanted or suspended
installation can be made.
• Through the window at the top of the unit, you
can see a disc spinning as it plays.
• Since it is smaller in size, you will find it easier
to install the unit.
NOTE
This equipment has been tested and found to
complywiththelimitsforaClassBdigitaldevice,
pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference in a
residential installation.
Thisequipmentgenerates,uses,andcanradiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may
cause harmful interference to radio
communications.However,thereisnoguarantee
that interference will not occur in a particular
installation.Ifthisequipmentdoescauseharmful
interferencetoradioortelevisionreception,which
can be determined by turning the equipment off
and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
— Reorient or relocate the receiving antenna.
—Increase the separation between the
equipment and receiver.
— Connect the equipment into an outlet on
circuitdifferentfromthattowhichthereceiver
is connected.
— Consult the dealer or an experienced radio/
TV technician for help.
CAUTION
Modificationsoradjustmentstothisproduct,which
arenotexpresslyapprovedbythemanufacturer,
may void the user’s right or authority to operate
this product.
In addition to ordinary CDs, CD-Rs or CD-RWs
can be read by this unit. However, NEVER use
a CD-R or CD-RW that contains no data or data
in the wrong format, such as MP3 or other
computer files.
When you insert a CD-R/CD-RW, it may take
longer to start playing.
01ADCM105.YU.E 01.1.31, 3:53 PM2

PRECAUTIONS
• Do NOT install the unit in a location where it
may be subjected to:
— Directsunlightorothersourcesofexcessive
heat
— Fluid, rain or moisture
— Excessive dirt or dust
— Excessive vibration
• Thisunitisdesignedtobeoperatedona12-volt
DC negative-ground electrical system only.
• Choose the mounting location carefully so that
the unit will not interfere with normal driving
functions.
• Before making connections, disconnect the (
terminal of the car battery to avoid short
circuiting.
Notes on CDs
• A defective or soiled disc stored in the disc
magazine can cause the sound to drop out
during play.
• Always handle a disc by holding its inner and
outer edges.
• DoNOTtouchthesurfaceoftheunlabeledside
of the disc.
• Do NOT attach paper or tape etc. to a disc.
• Do NOT expose the discs to direct sunlight or
excessive heat.
• Clean the discs before inserting them into the
disc magazine. Always clean a disc from the
center outward with a cleaning cloth.
• There may be burrs left on the inner and outer
edges of a brand-new disc. The burr may
causethemalfunctionoftheunitorsounddrop-
out. To prevent these problems, if the burr is
left on the disc, be sure to remove them with a
ball-point pen, etc. as illustrated.
• NEVERusesolventssuchasbenzineoralcohol
to clean a disc.
• You cannot play an 8-cm (3-inch) CD — even
with the specially designed adaptor.
• Do NOT use irregular shape CDs (example:
heart-shaped, octagonal ones).
It may result in malfunction.
Notes on the disc magazine
• Do NOT leave the disc magazine in a place
subject to excessive temperature or humidity.
• Do NOT insert more than one disc per slot.
• Do NOT drop the disc magazine.
ENGLISH
ENGLISH 2
Ball-point pen
Burr
Ball-point pen
Burr
01ADCM105.YU.E 01.1.31, 3:53 PM3

UNPACKING
aBrackets (1 pair)
Supplied mounting kit
for the compact disc changer
The letters are keyed to those in the instructions.
Use only the supplied mounting hardware for safe and secure installation.
Compact disc changer
eAdhesive label
(1 sheet)
dNuts (4 ea.)cPlate brackets
(2 ea.)
bWasher screws
(4 ea.)
Compact disc magazine Connecting cable
3 ENGLISH
01ADCM105.YU.E 01.1.31, 3:53 PM4

INSTALLATIONS
Precautions
Select the mounting location very carefully,
referring to the following points.
• Make sure that there is no fuel tank, wiring or
pipingontheothersideofthemountingsurface.
• Makesurethattheinstallationoftheunitwillnot
hinderthemovementofthedecklidorinterfere
with the spare tire, etc.
• Useonly thesupplied mounting kitfor safe and
proper installation.
Removing the transport screws

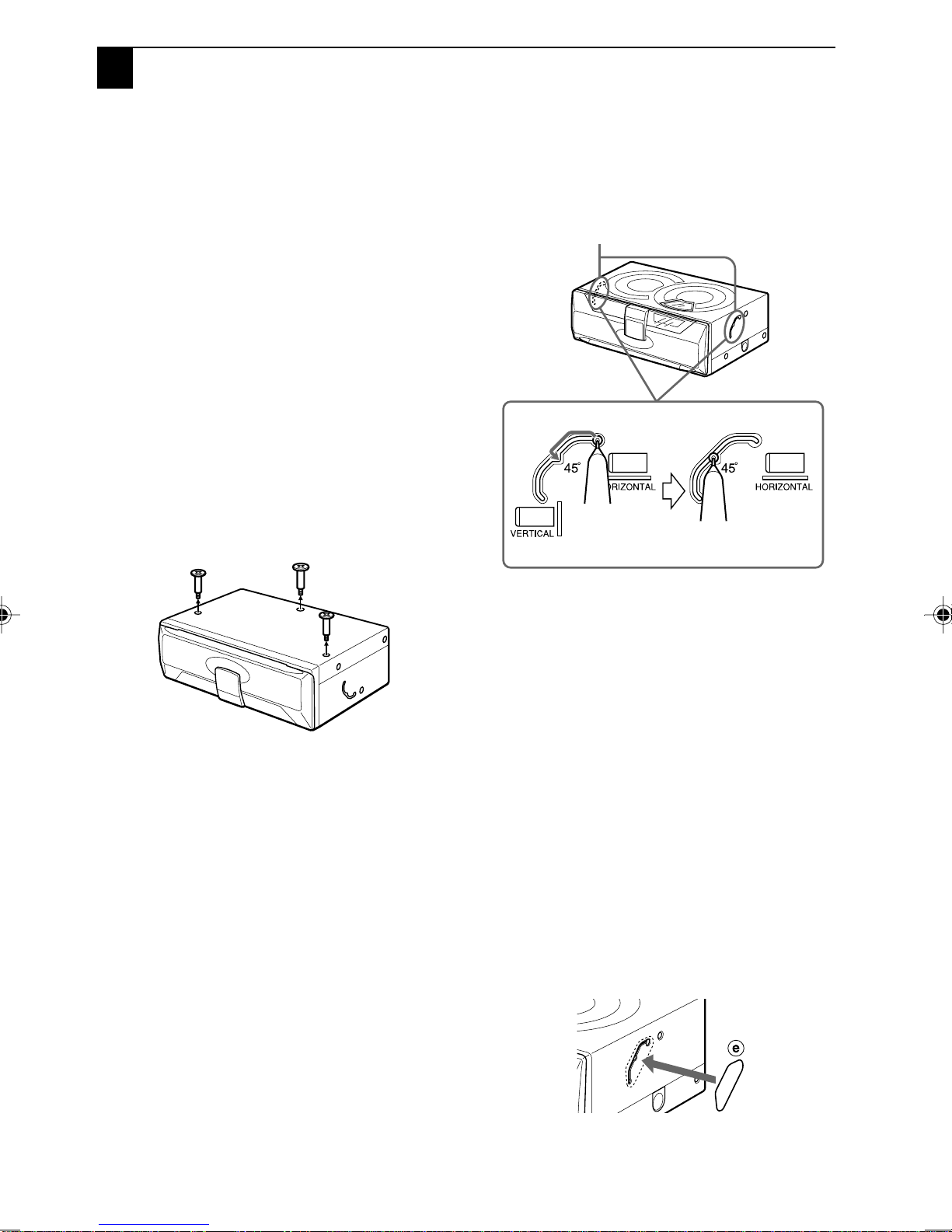

Find the three transport screws at the bottom of
theunit, which lock the unit’s mechanism during
transport. Remove these screws before
installation.
Retain these screws and replace them in the
original positions if the unit is transported for
service or maintenance.
Mounting angle setting levers
Be sure to change the position of both mounting
angle setting levers according to the angle at
which the unit is to be installed.
Notes
• Be sure to eject the disc magazine when you set the
levers.
• Be sure to set both levers to the same position.
• Besuretosettheleversexactlyattheposition(notch).
Ifthe leverisdeviatefromtheposition,thesoundmay
drop out.
• Care must be taken when you mount the unit at the
angleoflowerthanlevel. Thediscmagazinemaydrop
if you eject the magazine.
• Do NOT turn over the unit or slide the lever when the
unitisactivated. Doingsomaydamagethemechanism
or the discs in the unit.
• Themountingangle setting leversoneachside of the
unit are factory-set to the HORIZONTAL position.
• When you complete the setting, attach the supplied
adhesive labels eover the slots.
ENGLISH 4
Insert a pointed object such as a screw driver or
ball-point pen, etc. into the low spot of the lever
and slide the lever to the position from among
HORIZONTAL, 45°, and VERTICAL positions.
Mounting angle setting levers
01ADCM105.YU.E 01.1.31, 3:53 PM5

Horizontal installation
1Construction
For details on abc..., see page 3.
INSTALLATIONS
2Deciding the position
3Removing temporarily
4Making holes in the carpet
5Completion
5 ENGLISH
Note
If the mounting surface needs to be strengthened,
securetheplatebracketsctothebottomsurfaceofthe
car trunk, etc. with the tapping screws (not supplied).
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;;
;;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
The effective angle of the unit.
The position of the lever.
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
01ADCM105.YU.E 01.1.31, 3:53 PM6

2Deciding the position
3Removing temporarily
4Making holes in the carpet
5Completion
Vertical installation
1Construction
For details on abc..., see page 3.
Notes
• If the mounting surface needs to be strengthened,
secure the plate brackets cto the bottom surface
of the car trunk, etc. with the tapping screws (not
supplied).
ENGLISH 6
Cut the plate
bracket cif it
is too long.
• If installation space is narrow, bend the plate bracket
cbackandforthalongtheperforatedlinetobreakoff
the end.
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;;
;;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
The effective angle of
the unit. The position of the lever.
30˚
V
15˚
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
;
01ADCM105.YU.E 01.1.31, 3:53 PM7

2Making holes
Slanted installation Be sure to set the
mounting angle
setting levers to the
45°position.
Suspended installation

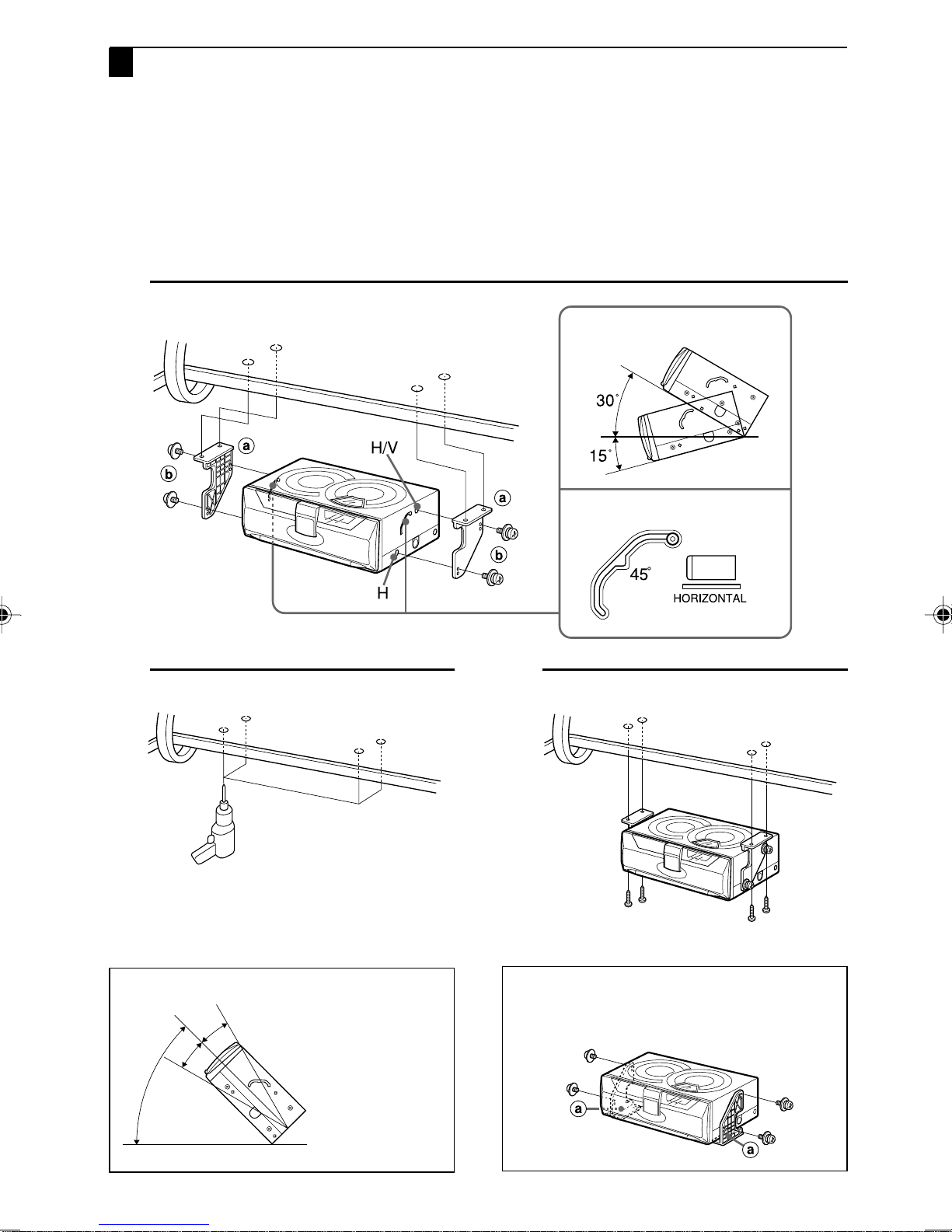

When installing the unit in the trunk below the
package tray, observe the following.
•Select the mounting location carefully so that
the unit does not hinder the movement of the
torsion bars of the deck lid.
INSTALLATIONS
1Construction
For details on abc..., see page 3.
Caution
Before drilling the holes, make sure that there is
nothingontheothersideofthemountingsurface.
3Completion
7 ENGLISH
15˚15˚
45˚
Tapping screws are not supplied.
Note on the brackets a
To save installation space, you can place the
brackets ainside out, as illustrated below.
The position of the lever.
The effective angle of the unit.
01ADCM105.YU.E 01.1.31, 3:53 PM8

Caution
Besuretodisconnectthegroundwireterminalof
the car battery before making a connection in
order to prevent short circuiting.
ENGLISH 8
This unit is designed only for AIWA brand car
stereo. Therefore you cannot use the unit with
other brand’s equipment.
CONNECTIONS
Compact disc changer
to AIWA brand car stereo
Connecting cable
(supplied)
Note
Use only the supplied connecting cable. Using an
unspecified connecting cable may cause background
noise.
01ADCM105.YU.E 01.1.31, 3:53 PM9

How to use a compact disc magazine
1
2
3
4
HOW TO USE
With the label side up, insert a disc all the way.
To remove a disc, pull part Ain the direction
of the arrow as illustrated.
Disc magazine
To remove the magazine, press the zbutton
and pull out the disc magazine.
Insert the magazine (which has been taken
out of the unit) firmly with the mark visible
on the top side.
9 ENGLISH
z(eject) button
Open the door.
Close the door.
10 discs, one in
each disc tray
Labeled side
Recorded side
01ADCM105.YU.E 01.1.31, 3:53 PM10

Notes on the disc magazine
•Be sure to place a disc on the disc tray with the
labelsideup. Ifadiscisnotsetproperly,itmay
cause damage to the unit.
•Thedisctraymaybetakenofffromthemagazine
if you pull the tray forcibly. If the tray is taken
out,putit backintothe magazineas illustrated.
Besurethatbothendsofthetrayarealignedto
the grooves of the magazine correctly.
ENGLISH 10
Disc magazine
Disc tray
Disc
Disc tray
SPECIFICATIONS
Compact disc changer
System Compact disc digital audio
system
Frequency response 5 Hz –20 kHz
Wow and flutter Below measurable limit
Signal to noise ratio 91 dB or more
Outputs Line output (for changer
connector only)
Operating temperature–10 °C to 55 °C
Dimensions 254 ×83 ×173 mm (w/h/d)
(10 ×3 3/8×6 7/8in.)
Weight 2.1 kg
(4.62 lbs.)
Power requirement 12 V DC car battery
(negative ground)
D/A converter 1 bit DAC, 8 times over
sampling
Sampling rate 44.1 kHz
Disc size 120 mm
Supplied accessories Disc magazine (1)
Mounting kit (1 set)
Connecting cable (5 m)
(16.4 ft.) (1)
Designandspecificationsaresubjecttochangewithout
notice.
Disc
magazine
Disc tray
Groove
Groove
•Be sure all the trays are set in the magazine
when using the unit.
01ADCM105.YU.E 01.1.31, 3:53 PM11

Printed in Indonesia
00ADCM105.YU.Cov 01.1.31, 3:52 PM2
