SERVICE MANUAL

DATA

• Replace this Service Manual with ”Revision Publishing” when it is issued.

COMPACTDISCPLAYER BASICCDMECHANISM:6ZG-1SRTDM

XC-37M

S/M Code No. 09-004-430-4T1

SIMPLE

ELECTRICAL MAIN PARTS LIST-1/2

NOTE: The characters in the suffix column indicate the part usage.

U ......................XX..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

88-906-351-110 FF-CABLE,6P 1.25 A...................

88-907-251-210 FF-CABLE,7P 1.25 250MM A...................

88-916-241-210 FF-CABLE,16P 1.25 240MM A...................

PT 301 87-AMB-607-010 PT,7AM-B U A...................

C 202 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 203 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 206 87-010-197-080 CAP,CHIP 0.01 DM A...................

C 201 87-010-263-080 CAP,ELECT 100-10V A...................

C 208 87-010-494-040 CAP,E 1-50 GAS A...................

C 209 87-010-496-040 CAP,E 3.3-50 GAS A...................

C 204 87-010-553-040 CAP,E 47-16 GAS A...................

C 205 87-010-553-040 CAP,E 47-16 GAS A...................

C 207 87-012-140-080 CAP,470P A...................

CN 202 87-099-033-010 CONN,16P 6216 H A...................

CN 201 87-099-200-010 CONN,7P 6216 H A...................

D 201 87-020-465-080 DIODE,1SS133 A...................

IC 202 87-NF8-614-010 IC,SPS-442-1-W A...................

IC 201 8A-AM1-605-010 C-IC,LC866440W-XXXX A...................

L 201 87-003-102-080 COIL,10UH A...................

Q 201 87-026-235-080 C-TR,DTC114EK A...................

Q 202 89-327-125-080 C-TR,2SC2712GR A...................

X 201 87-008-394-080 CERAMIC FILTER A...................

CN 501 88-803-031-050 CONN ASSY,3P 100MM A...................

FL 501 86-VMB-601-010 FL,25U48101TA A...................

LED 503 87-017-785-080 LED,SEL4214S A...................

LED 504 87-017-785-080 LED,SEL4214S A...................

LED 501 87-017-785-080 LED,SEL4214S A...................

LED 502 87-017-785-080 LED,SEL4214S A...................

LED 505 87-017-785-080 LED,SEL4214S A...................

LED 507 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................

LED 509 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................

LED 508 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................

LED 506 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................

LED 510 87-A40-380-180 LED,SEL6510C-TP5 GRN A...................

Q 506 87-026-608-080 C-TR,DTC123JK A...................

Q 507 87-026-608-080 C-TR,DTC123JK A...................

Q 502 87-026-608-080 C-TR,DTC123JK A...................

Q 508 87-026-608-080 C-TR,DTC123JK A...................

Q 504 87-026-608-080 C-TR,DTC123JK A...................

Q 509 87-026-608-080 C-TR,DTC123JK A...................

Q 501 87-026-608-080 C-TR,DTC123JK A...................

Q 505 87-026-608-080 C-TR,DTC123JK A...................

Q 503 87-026-608-080 C-TR,DTC123JK A...................

Q 510 87-026-608-080 C-TR,DTC123JK A...................

R 541 87-022-355-080 C-RES,S10K-1/10W F A...................

R 543 87-022-355-080 C-RES,S10K-1/10W F A...................

R 542 87-022-355-080 C-RES,S10K-1/10W F A...................

SW 519 87-A90-095-080 SW,TACT EVQ11G04M A...................

SW 517 87-A90-095-080 SW,TACT EVQ11G04M A...................

SW 513 87-A90-095-080 SW,TACT EVQ11G04M A...................

SW 518 87-A90-095-080 SW,TACT EVQ11G04M A...................

SW 515 87-A90-095-080 SW,TACT EVQ11G04M A...................

SW 514 87-A90-095-080 SW,TACT EVQ11G04M A...................

SW 516 87-A90-095-080 SW,TACT EVQ11G04M A...................

SW 512 87-A90-095-080 SW,TACT EVQ11G04M A...................

SW 526 87-A90-095-080 SW,TACT EVQ11G04M A...................

SW 525 87-A90-095-080 SW,TACT EVQ11G04M A...................

SW 520 87-A90-095-080 SW,TACT EVQ11G04M A...................

SW 522 87-A90-095-080 SW,TACT EVQ11G04M A...................

SW 527 87-A90-095-080 SW,TACT EVQ11G04M A...................

SW 524 87-A90-095-080 SW,TACT EVQ11G04M A...................

SW 523 87-A90-095-080 SW,TACT EVQ11G04M A...................

SW 521 87-A90-095-080 SW,TACT EVQ11G04M A...................

SW 528 87-A90-095-080 SW,TACT EVQ11G04M A...................

82-304-743-010 TERMINAL,1P A...................

C 308 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 307 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 303 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 302 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 306 87-010-236-080 CAP,E 1000-10 SME A...................

C 309 87-010-263-080 CAP,ELECT 100-10V A...................

C 305 87-010-322-080 C-CAP,S 100P-50 CH A...................

C 304 87-010-805-080 CAP,S 1-16 A...................

C 301 87-010-878-090 CAP,E6800-16 A...................

C 310 87-010-197-080 CAP,CHIP 0.01 DM A...................

C 311 87-010-805-080 CAP,S 1-16 A...................

C 322 87-010-178-080 CHIP CAP,1000P A...................

C 321 87-010-247-080 CAP,ELECT 100-50V A...................

C 323 87-010-247-080 CAP,ELECT 100-50V A...................

C 324 87-010-263-080 CAP,ELECT 100-10V A...................

ELECTRICAL MAIN PARTS LIST-2/2

C 325 87-010-405-080 CAP,ELECT 10-50V A...................

C 326 87-010-405-080 CAP,ELECT 10-50V A...................

CN 303 87-099-199-010 CONN,6P 6216 H A...................

CN 301 87-099-200-010 CONN,7P 6216 H A...................

D 304 87-A40-184-090 DIODE,RK34(F) A...................

D 301 87-A40-184-090 DIODE,RK34(F) A...................

D 303 87-A40-184-090 DIODE,RK34(F) A...................

D 302 87-A40-184-090 DIODE,RK34(F) A...................

D 325 87-017-083-080 ZENER,HZS4C2 A...................

D 321 87-A40-189-080 DIODE,1SR139-400 A...................

D 322 87-A40-189-080 DIODE,1SR139-400 A...................

D 324 87-A40-189-080 DIODE,1SR139-400 A...................

D 323 87-A40-189-080 DIODE,1SR139-400 A...................

F 302 87-A90-410-080 FUSE,0.5A 125V 251 A...................

F 301 87-A90-426-080 FUSE,3A 125V 251 A...................

IC 301 87-020-903-010 IC,NJM7805FA A...................

Q 308 87-026-608-080 C-TR,DTC123JK A...................

Q 309 87-026-608-080 C-TR,DTC123JK A...................

Q 303 89-111-625-080 TR,2SA1162 A...................

Q 301 89-213-702-010 TR,2SB1370 A...................

Q 305 89-327-125-080 C-TR,2SC2712GR A...................

Q 304 89-327-125-080 C-TR,2SC2712GR A...................

Q 322 89-111-625-080 TR,2SA1162 A...................

Q 321 89-213-302-080 TR,2SB1330 A...................

CN 503 87-009-345-010 CONN,2P PH H A...................

CN 504 88-803-020-840 CONN ASSY,2P 80MM A...................

SW 505 87-036-215-080 TACT SWITCH,EVQ-21404M A...................

SW 507 87-036-215-080 TACT SWITCH,EVQ-21404M A...................

SW 501 87-036-215-080 TACT SWITCH,EVQ-21404M A...................

SW 508 87-036-215-080 TACT SWITCH,EVQ-21404M A...................

SW 503 87-036-215-080 TACT SWITCH,EVQ-21404M A...................

SW 509 87-036-215-080 TACT SWITCH,EVQ-21404M A...................

SW 500 87-036-215-080 TACT SWITCH,EVQ-21404M A...................

SW 502 87-036-215-080 TACT SWITCH,EVQ-21404M A...................

SW 504 87-036-215-080 TACT SWITCH,EVQ-21404M A...................

SW 506 87-036-215-080 TACT SWITCH,EVQ-21404M A...................

SW 510 87-036-215-080 TACT SWITCH,EVQ-21404M A...................

SW 511 87-036-215-080 TACT SWITCH,EVQ-21404M A...................

C 401 87-010-178-080 CHIP CAP,1000P A...................

C 402 87-010-178-080 CHIP CAP,1000P A...................

C 409 87-010-178-080 CHIP CAP,1000P A...................

C 407 87-010-197-080 CAP,CHIP 0.01 DM A...................

C 403 87-010-503-040 CAP,E 220-4 GAS A...................

C 404 87-010-503-040 CAP,E 220-4 GAS A...................

C 408 87-010-549-040 CAP,E 47-6.3 GAS A...................

C 406 87-010-549-040 CAP,E 47-6.3 GAS A...................

C 410 87-010-178-080 CHIP CAP,1000P A...................

C 412 87-010-196-080 CHIP CAPACITOR,0.1-25 A...................

C 416 87-010-805-080 CAP,S 1-16 A...................

C 415 87-010-805-080 CAP,S 1-16 A...................

CN 411 87-AM1-632-010 CONN ASSY,7P HP A...................

CN 505 87-009-346-010 CONN,3P PH H A...................

IC 401 87-017-878-080 IC,TDA1308T A...................

J 401 87-099-580-010 JACK,6.3 ST/SW/4609G A...................

CN 401 87-AMB-611-010 CONN ASSY,3P PIN-JACK A...................

J 401 87-009-610-010 JACK PIN 2P H EARH A...................

86-VMB-205-010 GUIDE,FL A...................

87-067-001-010 FW,3.1-5.4-1 A...................

MECHANICAL PARTS LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

U ......................XX..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

82-AA1-029-110 FOOT (SG) A...................

87-AM1-003-010 CABI,STEEL A...................

87-B00-002-010 BADGE,AIWA 30 ABS SIL A...................

8A-AM1-001-010 CABI,FR 37U A...................

8A-AM1-002-010 PANEL,REAR(L) 37UBM A...................

8A-AM1-003-010 PANEL,REAR(R) 37UBM A...................

87-AM1-007-010 KEY,PLAY A...................

87-AM1-008-010 KEY,PBC A...................

87-AM1-009-010 KEY,POWER A...................

87-AM1-014-010 REFLECTOR,PLAY A...................

87-AM1-015-010 REFLECTOR,FF A...................

87-AMB-005-010 KEY,DISPLAY(U) A...................

87-AMB-006-010 KEY,DIRECT(U) A...................

8Z-AM1-004-010 KEY,TEN(35) A...................

87-MAT-009-010 WINDOW,TOP(U) A...................

8A-AM1-004-010 PANEL,CD DIR A...................

8Z-AM1-003-010 PANEL,TRAY(35) A...................

8Z-AM1-005-010 WINDOW,DISPLAY (SMK) A...................

84-ZG1-245-210 CAP,OPTICAL A...................

86-VMB-202-010 HLDR,PT A...................

86-VMB-206-010 HLDR,PCB A...................

87-067-058-010 FW 3.2-8-1 A...................

87-AM1-202-010 HLDR,CABI A...................

87-AM1-203-010 GUIDE,LED A...................

87-AM1-208-010 HLDR,SUB A...................

89-VP5-206-010 HLDR,IC A...................

81-MK1-210-010 S-SCREW,VFT2+3-16 A...................

87-067-584-010 TAPPING SCREW, BVT2+3-6 A...................

87-067-585-010 TAPPING SCREW, BVTT+4-6 A...................

87-067-641-010 UTT2+3-8(W/O SLOT)BL A...................

87-067-703-010 TAPPING SCREW, BVT2+3-10 A...................

87-591-094-410 TAPPING SCREW, QIT+3-6 A...................

87-B10-021-010 BVT2+3-8W/CONVEX BLK A...................

87-085-189-010 BUSHING, CORD (U) A...................

87-A80-110-010 AC CORD ASSY,U SPT-2W A...................

88-906-351-110 FF-CABLE, 6P 1.25 A...................

88-907-251-210 FF-CABLE, 7P 1.25 250MM R A...................

88-916-241-210 FF-CABLE, 16P 1.25 240MM A...................

PT 301 87-AMB-607-010 PT,7AM-B U A...................

82-304-743-010 TERMINAL, 1P A...................

86-VMB-205-010 GUIDE,FL A...................

87-067-001-010 FW,3.1-5.4-1 A...................

ACCESSORIES / PACKAGE LIST - 1/1

NOTE: The characters in the suffix column indicate the part usage.

U ......................XX..................................A...................

KANRI

REF.NO PARTS NO. NO. DESCRIPTION SUFFIX

8A-AM1-903-010 IB,U(ESF)M A...................

87-A80-032-010 CORD,PIN 2P RED-WHT A...................

8A-AM1-951-010 RC UNIT,7AC04(BLK) A...................

SCHEMATIC DIAGRAM_1(FRONT /PT)

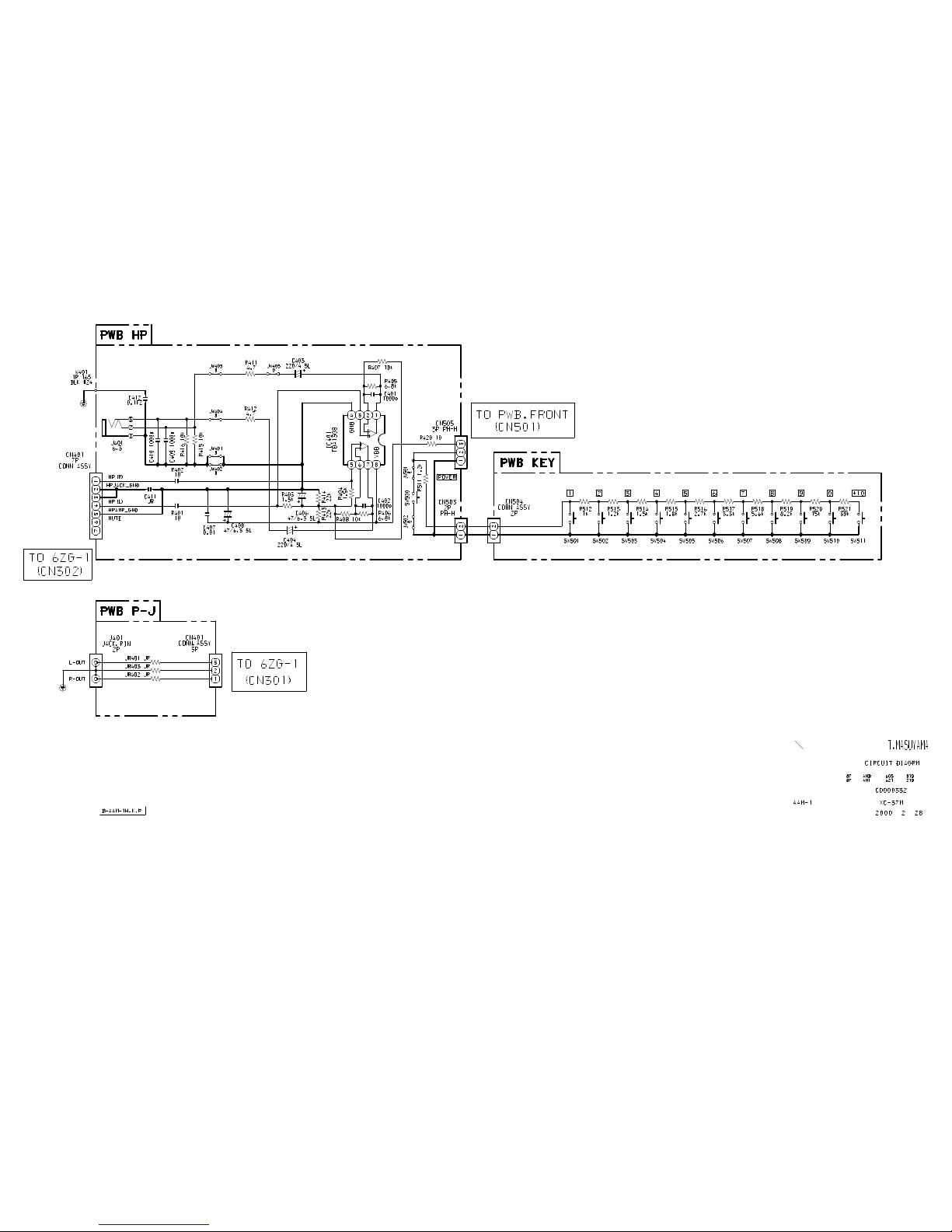

SCHEMATIC DIAGRAM _2 (KEY / HP / PJ)

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111

Printed in Singapore9420025

Other manuals for XC-37M

Table of contents

Popular CD Player manuals by other brands

Kenwood

Kenwood DPC-151 instruction manual

Sony

Sony CDX-2500R Operating instructions manual

Musical Fidelity

Musical Fidelity M1 CDT Instructions for use

Marantz

Marantz SA-7S1 user guide

Burmester

Burmester Reference 069 owner's manual

Sony

Sony Discman D-T405 operating instructions

Philips

Philips CDC771V user manual

NAD

NAD Classic 512 Specifications

Pioneer

Pioneer DEH-P700R Service manual

jWIN

jWIN JX-CD335 instruction manual

Philips

Philips AZ216 user manual

Akai

Akai A61007 instruction manual

Kenwood

Kenwood KDC-C467 Service manual

NAD

NAD 523 owner's manual

Tascam

Tascam CD-9010 owner's manual

Philips

Philips AZ 6880 Instructions for use

Sony

Sony CDP-761 operating instructions

Philips

Philips AZ 7260 Instructions for use

Aiwa XC-37M User manual

Popular CD Player manuals by other brands
