SERVICE MANUAL
DATA
COMPACT DISC PLAYER
XP-KM88 AHR, AHC
S/M Code No. 09-004-419-5S1
SUPPLEMENT
BASIC CD MECHANISM : KSM-542DBA
•This Service Manual is issued because of the changed in MAIN C.B, MONITOR
C.B, KEY C.B, SW C.B and BATT C.B.
•Refer to this Service Manual if the C.B’s partcodes are as above.
•If requiring the other information, see Service Manual of XP-KM88. (S/M Code
No. 09-99A-419-5R1).
C.B
MAIN,SW,BATT 88-HVB-601-11
PARTCODE
MONITOR 88-HVB-616-01
KEY 88-HVB-617-01

– 2 –
SPECIFICATIONS
Tracking system: 1-beam laser
Laser pickup: Semiconductor laser
D/A conversion: 8-times oversampling digital filter + 1-bit dual
Frequency response: 20 - 20,000 Hz (Line-out)
Video signal: NTSC/PAL color format (selectable)
Video data: MPEG 1
Audio data: MPEG 1, LAYER 2
Outputs: 1 W + 1 W (Max)
PHONES: stereo mini-jack
[12 mW + 12 mW, 16 ohms at 1kHz]
AV IN/OUT: stereo mini-jack,
IN/OUT switchable
[Line: 1.0 V (47 kohms)]
[Video: 1 Vp-p (75 ohms)]
Inputs: DC 12~16V for external power from
AC adaptor
MIC: 1.6 mV (20 kohms)
Power: DC 10.8 V from the supplied rechargeable
battery box
DC 15 V from the supplied AC adaptor
connected to household current
DC 12 V from automobile power system
(12 V DC car battery only) with use of the
supplied car battery cord
Rechargeable battery life:
Audio CD: Approx. 20 hours with the
display and speaker turned
off
Video CD: Approx. 3 hours
Dimensions: 143 (W) x 44 (H) x 174.5 (D) mm
(without battery box)
Weight: 620 grams without battery box
<AC Adaptor>
Rated voltage: AC-D1502W: AC 110 - 240V
50 / 60 Hz
• Design and specifications are subject to change without
notice.

– 3 –
ELECTRICAL MAIN PARTS LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
IC
88-HVB-613-010 C-IC,UPD78058GC-B92
87-A20-674-040 C-IC,S-80825ANNP-EDN
87-A21-541-010 IC,GP1UC81Q
87-A21-323-010 C-IC,CXD2585Q
87-017-945-040 IC,NJM2112
87-A20-963-040 C-IC,CXA1791N
87-A21-313-010 C-IC,SM5906AF
87-A21-140-040 C-IC,MSM51V17400D
87-A20-161-010 C-IC,BH6505K
87-A20-673-040 C-IC,S-81230SG-QB
87-A21-360-040 C-IC,S-8520B30MC-ARP-T2
87-A20-920-010 C-IC,CL680-D1
87-A21-043-040 C-IC,SM5605AFS
87-A21-107-040 C-IC,TC74LVX157FT
87-A20-962-040 C-IC,MSM54V16258B/BSL
8Z-HV3-621-010 C-IC,MSM534031E-21TS-K
87-A21-331-040 C-IC,LC74781JM
87-A21-073-040 C-IC,IR3Y29AM
87-A21-074-040 C-IC,HC4066PW
87-A21-206-040 C-IC,NJU7221U55
87-A21-070-040 C-IC,M62334FP
87-A21-069-040 C-IC,NJM2360AM
87-A21-077-040 C-IC,NJW1105M
87-A21-047-010 C-IC,TC9452F
87-017-853-040 IC,NJM2100V
87-A21-085-040 C-IC,TA2120FN
87-A21-413-040 C-IC,TK15405M
87-A20-114-040 C-IC,NJM072M
TRANSISTOR
87-026-266-080 CHIP-TR,RN2404
89-111-625-080 C-TR,2SA1162GR
87-026-264-080 C-TR,RN1411
87-026-268-080 C-TR,RN2411
89-113-695-680 C-TR,2SA1369G/H
89-214-123-080 C-TR,2SB1412 R
87-026-261-080 CHIP-TR,RN1404
87-026-414-080 C-TR RN1307
89-334-397-880 C-TR,2SC3439 (G/H)
87-026-678-080 C-TR,FMG5A
87-A30-244-080 C-TR,2SC3518Z
89-327-125-080 CHIP TR,2SC2712GR
87-026-476-080 C-TR,RN1610
87-026-298-080 C-TR,FMW1
87-A30-143-080 C-TR,2SA1576A
87-026-342-080 C-TR,DTC144EU
87-026-230-080 C-TR,DTA114YK
DIODE
87-020-339-080 CHIP DIODE,1SS226
87-A40-677-040 C-ZENER,UDZ16B
87-A40-675-040 C-DIODE,SBS004
87-A40-676-040 C-ZENER,UDZ11B
87-A40-469-080 C-DIODE,HSM2838 CTR
87-A40-412-040 C-DIODE,SB05-05CP
MAIN C.B
C101 87-A12-055-080 C-CAP,TN 22-6.3 MA
C103 87-A11-791-080 C-CAP,TN 10-4 M F93 A
C104 87-010-831-080 C-CAP,U,0.1-16F
C105 87-012-274-080 CHIP CAP,U 1000P-50B
C106 87-012-274-080 CHIP CAP,U 1000P-50B
C107 87-012-286-080 CAP, U 0.01-25
C201 87-A12-055-080 C-CAP,TN 22-6.3MA
C202 87-A12-055-080 C-CAP,TN 22-6.3MA
C203 87-010-831-080 C-CAP,U,0.1-16F
C204 87-010-831-080 C-CAP,U 0.1-16F
C205 87-012-279-080 CAP, U 2700P-50
C206 87-012-280-080 CAP, U 3300P-50
C207 87-A10-504-080 C-CAP,U 0.047-16 K B
C208 87-012-266-080 C-CAP,U 220P-50 B
C209 87-A10-827-080 C-CAP,U 0.47-6.3 K B
C210 87-012-286-080 CAP, U 0.01-25
C211 87-010-831-080 C-CAP,U 0.1-16 ZF
C212 87-010-831-080 C-CAP,U,0.1-16F
C213 87-010-831-080 C-CAP,U 0.1-16 ZF
C221 87-012-270-080 CAP, U 470P-50
C222 87-012-270-080 CAP, U 470P-50
C223 87-012-270-080 CAP, U 470P-50
C224 87-012-270-080 CAP, U 470P-50
C225 87-012-270-080 CAP, U 470P-50
C226 87-012-270-080 CAP, U 470P-50
C227 87-A10-262-080 C-CAP,U 1-10 ZF
C251 87-A12-055-080 C-CAP,TN 22-6.3 MA
C253 87-016-296-080 C-CAP,TN 22-4SV(A)
C254 87-016-296-080 C-CAP,TN 22-4SV(A)
C255 87-A12-055-080 C-CAP,TN 22-6.3 MA
C256 87-016-296-080 C-CAP,TN 22-4SV(A)
C257 87-012-274-080 CHIP CAP,U 1000P-50B
C258 87-012-266-080 C-CAP,U 220P-50 B
C259 87-012-266-080 C-CAP,U 220P-50 B
C260 87-012-182-080 C-CAP,U 27P-50 CH
C261 87-012-182-080 C-CAP,U 27P-50 CH
C262 87-010-831-080 C-CAP,U 0.1-16 ZF
C301 87-A12-055-080 C-CAP,TN 22-6.3 MA
C302 87-010-831-080 C-CAP,U,0.1-16F
C303 87-010-831-080 C-CAP,U,0.1-16F
C401 87-A12-055-080 C-CAP,TN 22-6.3 MA
C402 87-A12-055-080 C-CAP,TN 22-6.3 MA
C404 87-010-943-180 C-CAP,E 100-4 M MV
C405 87-012-270-080 CAP, U 470P-50
C406 87-012-270-080 CAP, U 470P-50
C407 87-012-270-080 CAP, U 470P-50
C408 87-012-270-080 CAP, U 470P-50
C409 87-012-266-080 C-CAP,U 220P-50 B
C410 87-012-286-080 CAP, U 0.01-25
C411 87-012-286-080 CAP, U 0.01-25
C412 87-012-274-080 CHIP CAP,U 1000P-50B
C413 87-012-274-080 CHIP CAP,U 1000P-50B
C414 87-A10-262-080 C-CAP,U 1-10 ZF
C415 87-012-281-080 C-CAP,U 3900P-50 B
C416 87-A10-262-080 C-CAP,U 1-10 ZF
C501 87-010-196-080 C-CAP,S 0.1-25 Z F
C502 87-A11-031-080 C-CAP,E 100-16 M WX
C503 87-A10-262-080 C-CAP,U 1-10 ZF
C511 87-010-831-080 C-CAP,U,0.1-16F
C512 87-A11-031-080 C-CAP,E 100-16 M WX
C513 87-010-831-080 C-CAP,U 0.1-16 ZF
C514 87-010-831-080 C-CAP,U 0.1-16 ZF
C531 87-A11-031-080 C-CAP,E 100-16 M WX
C532 87-010-831-080 C-CAP,U,0.1-16F
C533 87-010-831-080 C-CAP,U,0.1-16F
C542 87-016-558-080 C-CAP,TN47-6.3F93B
C543 87-010-943-180 C-CAP,E 100-4 M MV
C544 87-012-270-080 C-CAP,U 470P-50 KB
C547 87-010-831-080 C-CAP,U 0.1-16 ZF
C551 87-A10-262-080 C-CAP,U 1-10 ZF
C552 87-A11-793-080 C-CAP,TN 33-10 M F93 B
C553 87-A11-028-080 C-CAP,E 100-10 M ZS 4.5L
C554 87-012-270-080 C-CAP,U 470P-50 KB
C555 87-012-286-080 C-CAP,U 0.01-25 KB
C556 87-A11-811-080 C-CAP,TN 2.2-20 M F93A
C557 87-010-831-080 C-CAP,U 0.1-16 ZF
C562 87-A12-114-080 C-CAP,TN 22-16 M F93 B
C563 87-A11-028-080 C-CAP,E 100-10 M ZS 4.5L

– 4 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
C564 87-012-270-080 C-CAP,U 470P-50KB
C566 87-A11-811-080 C-CAP,TN 2.2-20 M F93A
C567 87-010-831-080 C-CAP,0.1-16 ZF
C601 87-A12-055-080 C-CAP,TN 22-6.3 MA
C602 87-012-286-080 CAP, U 0.01-25
C603 87-012-286-080 CAP, U 0.01-25
C604 87-012-286-080 CAP, U 0.01-25
C605 87-012-286-080 CAP, U 0.01-25
C606 87-012-286-080 CAP, U 0.01-25
C607 87-A12-055-080 C-CAP,TN 22-6.3 MA
C608 87-A12-055-080 C-CAP,TN 22-6.3 MA
C609 87-A12-055-080 C-CAP,TN 22-6.3 MA
C610 87-012-286-080 CAP, U 0.01-25
C614 87-012-266-080 C-CAP,U 220P-50 B
C621 87-012-178-080 CAPACITOR CHIP U 18P CH
C622 87-012-176-080 CAPACITOR CHIP U 15P CH
C623 87-010-831-080 C-CAP,U,0.1-16F
C624 87-010-831-080 C-CAP,U,0.1-16F
C631 87-A10-262-080 C-CAP,U 1-10 ZF
C641 87-A12-055-080 C-CAP,TN 22-6.3 MA
C642 87-010-831-080 C-CAP,U,0.1-16F
C643 87-010-831-080 C-CAP,U,0.1-16F
C651 87-A12-055-080 C-CAP,TN 22-6.3 MA
C652 87-A11-167-080 C-CAP,S 27P-50 F CH
C653 87-A11-167-080 C-CAP,S 27P-50 F CH
C654 87-012-286-080 CAP, U 0.01-25
C655 87-A12-055-080 C-CAP,TN 22-6.3 MA
C656 87-A10-827-080 C-CAP,U 0.47-6.3 K B
C657 87-A10-262-080 C-CAP,U 1-10 ZF
C658 87-012-196-080 C-CAP,U 120P-50 CH
C659 87-012-164-080 C-CAP,U 2P-50 CH
C661 87-016-289-080 C-CAP,TN 10-6.3 M F93
C662 87-016-289-080 C-CAP,TN 10-6.3 M F93
C663 87-012-266-080 C-CAP,U 220P-50 KB
C851 87-010-944-080 CHIP CAPACITOR ELECT 220-4
C853 87-016-296-080 C-CAP,TN 22-4SV(A)
C854 87-016-289-080 C-CAP,TN 10-6.3 M F93
C855 87-A10-262-080 C-CAP,U 1-10 ZF
C856 87-016-289-080 C-CAP,TN 10-6.3 M F93
C857 87-016-289-080 C-CAP,TN 10-6.3 M F93
C871 87-012-287-080 C-CAP,U 0.015-25 ZF
C872 87-012-287-080 C-CAP,U 0.015-25 ZF
C873 87-012-283-080 C-CAP,U 5600P-50 B
C874 87-012-283-080 C-CAP,U 5600P-50 B
C875 87-012-270-080 C-CAP,U 470P-50 B
C876 87-012-270-080 C-CAP,U 470P-50 B
C881 87-012-274-080 C-CAP,U 1000P-50 KB
C882 87-016-289-080 C-CAP,TN 10-6.3 F93
C884 87-016-296-080 C-CAP,TN 22-4SV(A)
C885 87-010-943-180 C-CAP,E 100-4 M MV
C891 87-A11-031-080 C-CAP,E 100-16 M WX
C892 87-A11-028-080 C-CAP,E 100-10 M ZS 4.5L
C901 87-A10-262-080 C-CAP,U 1-10 ZF
C902 87-A12-055-080 C-CAP,TN 22-6.3 MA
C903 87-010-831-080 C-CAP,U,0.1-16F
C904 87-012-174-080 C-CAP,U 12P-50 CH
C905 87-012-174-080 C-CAP,U 12P-50 CH
C906 87-010-831-080 C-CAP,U,0.1-16F
C907 87-010-831-080 C-CAP,U,0.1-16F
C908 87-010-943-180 C-CAP,E 100-4 M ZS
C909 87-A12-055-080 C-CAP,TN 22-6.3 MA
C910 87-010-831-080 C-CAP,U,0.1-16F
C911 87-A10-262-080 C-CAP,U 1-10 ZF
C912 87-A10-262-080 C-CAP,U 1-10 ZF
C913 87-012-270-080 CAP, U 470P-50
C914 87-012-282-080 CAP, U 4700P-50
C915 87-010-831-080 C-CAP,U,0.1-16F
C916 87-012-266-080 C-CAP,U 220P-50 B
C917 87-012-275-080 C-CAP,U 1200P-50 B
C918 87-A10-262-080 C-CAP,U 1-10 ZF
C919 87-012-266-080 C-CAP,U 220P-50 B
C920 87-012-275-080 C-CAP,U 1200P-50 B
C921 87-A10-262-080 C-CAP,U 1-10 ZF
C931 87-A11-791-080 C-CAP,TN 10-4 M F93 A
C932 87-016-296-080 C-CAP,TN 22-4SV(A)
C933 87-012-195-080 C-CAP,U 100P-50CH
C934 87-010-831-080 C-CAP,U,0.1-16F
C935 87-012-195-080 C-CAP,U 100P-50CH
C936 87-A10-262-080 C-CAP,U 1-10 ZF
C937 87-A11-791-080 C-CAP,TN 10-4 M F93 A
C938 87-010-831-080 C-CAP,U,0.1-16F
C939 87-012-274-080 CHIP CAP,U 1000P-50B
C940 87-012-274-080 CHIP CAP,U 1000P-50B
C951 87-A10-262-080 C-CAP,U 1-10 ZF
C952 87-A10-262-080 C-CAP,U 1-10 ZF
C953 87-A10-262-080 C-CAP,U 1-10 ZF
C954 87-016-296-080 C-CAP,TN 22-4SV(A)
C955 87-A11-791-080 C-CAP,TN 10-4 M F93 A
C956 87-016-296-080 C-CAP,TN 22-4SV(A)
C957 87-A11-791-080 C-CAP,TN 10-4 M F93 A
C961 87-010-831-080 C-CAP,U,0.1-16F
C962 87-010-831-080 C-CAP,U,0.1-16F
C963 87-010-944-080 CHIP CAPACITOR ELECT 220-4
C964 87-010-944-080 CHIP CAPACITOR ELECT 220-4
C965 87-012-274-080 CHIP CAP,U 1000P-50B
C966 87-012-274-080 CHIP CAP,U 1000P-50B
C971 87-A10-262-080 C-CAP,U 1-10 ZF
C972 87-A10-262-080 C-CAP,U 1-10 ZF
C973 87-012-188-080 C-CAP,U 47P-50 CH
C974 87-012-188-080 C-CAP,U 47P-50 CH
C975 87-A11-062-080 C-CAP,S 2.2-16 ZF
C976 87-A11-062-080 C-CAP,S 2.2-16 ZF
C981 87-016-289-080 C-CAP,TN 10-6.3 F93
C983 87-016-296-080 C-CAP,TN 22-4SV(A)
CN101 87-A60-467-080 C-CONN,4P V FMN-BMTR
CN401 87-A60-176-010 C-CONN,15P H IL-40215SB S1L-SA
CN402 87-099-440-080 C-CONN,2P ZR-SM3 WHT
CN403 87-099-440-280 C-CONN,2P ZR-SM3 RED
CN404 87-A60-868-080 C-CONN,2P H BLU ZR-SM3A-E-TF
CN851 87-A60-867-080 C-CONN,17P V FMN-BMTTR
FB933 83-XM1-617-080 C-COIL,BK2125HM601
FB963 83-XM1-617-080 C-COIL,BK2125HM601
FB983 83-XM1-617-080 C-COIL,BK2125HM601
FFC101 88-HV1-657-010 FF-CABLE,4P 1.0 48MM WHT
J501 87-099-399-010 JACK,DC TYPE-4 N-EIAJ
J901 87-099-386-010 JACK,3.5 ST-3 BLK
J902 85-HC5-616-010 JACK,3.5 ST W/R GRN
J903 87-A60-440-010 JACK,DIA3.5 YEL ST W/R HSJ1637
L101 87-A50-367-080 C-COIL, 10UH LQG21F
L201 87-A50-455-080 C-COIL,47UH-FSLB2520
L251 87-A50-367-080 C-COIL, 10UH LQG21F
L252 87-A50-367-080 C-COIL, 10UH LQG21F
L301 87-A50-367-080 C-COIL, 10UH LQG21F
L541 87-A50-331-080 C-COIL,68UH-D75F
L551 87-A50-331-080 C-COIL,68UH-D75F
L561 87-A50-330-080 C-COIL,100UH-D75C
L565 87-012-286-080 C-CAP,U 0.01-25 KB
L601 87-A50-536-080 C-COIL,10UH K LQH3C24
L602 87-A50-501-080 C-COIL,10UH-FSLB2520
L641 87-A50-367-080 C-COIL, 10UH LQG21F
L651 87-005-817-080 C-COIL, 33UH J FLC32
PR501 88-HVB-612-010 SNSR,THERMALPRO 10MM75S
R604 87-A00-408-080 C-RES,S 2K-1/10W D
S101 87-A90-703-080 C-SW,SL 1-1-3 SSSS813-B-2B
S102 87-A90-703-080 C-SW,SL 1-1-3 SSSS813-B-2B
S103 87-A90-095-080 TACT SWITCH,EVQ11G04M
S104 87-A90-095-080 TACT SWITCH,EVQ11G04M
S105 87-A90-095-080 TACT SWITCH,EVQ11G04M
S106 87-A90-095-080 TACT SWITCH,EVQ11G04M
S107 87-A90-095-080 TACT SWITCH,EVQ11G04M
!

– 5 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
!
S108 87-A90-095-080 TACT SWITCH,EVQ11G04M
S109 87-A90-095-080 TACT SWITCH,EVQ11G04M
S110 87-A90-095-080 TACT SWITCH,EVQ11G04M
S111 87-A90-095-080 TACT SWITCH,EVQ11G04M
S851 87-A90-968-080 C-SW,SL 1-2-2 SSSS82
X101 87-A70-172-040 C-VIB,5.00MHZ CSTCS
X601 87-A70-223-080 C-VIB,XTAL 27MHZ CX-11F(O.A.+-
X901 87-HV3-603-080 C-VIB,XTAL 16.9344MHZ FCX-02
MONITOR C.B
C701 87-A10-262-080 C-CAP,U 1-10 ZF
C702 87-012-286-080 CAP, U 0.01-25
C703 87-A10-504-080 C-CAP,U 0.047-16 K B
C704 87-012-286-080 CAP, U 0.01-25
C705 87-012-193-080 C-CAP,U 82P-50 CH
C706 87-012-286-080 CAP, U 0.01-25
C707 87-010-831-080 C-CAP,U,0.1-16F
C708 87-A10-262-080 C-CAP,U 1-10 ZF
C709 87-A10-262-080 C-CAP,U 1-10 ZF
C710 87-A10-262-080 C-CAP,U 1-10 ZF
C711 87-A10-262-080 C-CAP,U 1-10 ZF
C712 87-A10-262-080 C-CAP,U 1-10 ZF
C713 87-A10-262-080 C-CAP,U 1-10 ZF
C714 87-010-831-080 C-CAP,U,0.1-16F
C715 87-010-831-080 C-CAP,U,0.1-16F
C716 87-010-831-080 C-CAP,U,0.1-16F
C717 87-A10-262-080 C-CAP,U 1-10 ZF
C718 87-A10-262-080 C-CAP,U 1-10 ZF
C719 87-012-197-080 C-CAP,U 150P-50 CH
C720 87-012-286-080 CAP, U 0.01-25
C721 87-012-286-080 CAP, U 0.01-25
C722 87-012-286-080 CAP, U 0.01-25
C723 87-012-284-080 CAP, U 6800P-50
C724 87-A11-029-080 C-CAP,E 2.2-50 M ZS 4.5L
C725 87-010-831-080 C-CAP,U,0.1-16F
C726 87-012-272-080 C-CAP,U 680P-50 B
C727 87-A11-241-080 C-CAP,TN 22-6.3 M
C730 87-012-170-080 C-CAP,U 8P-50 CH
C731 87-A10-262-080 C-CAP,U 1-10 ZF
C732 87-012-170-080 C-CAP,U 8P-50 CH
C733 87-012-286-080 CAP, U 0.01-25
C734 87-A10-708-080 C-CAP,U 0.68U-10 F Z
C735 87-012-286-080 CAP, U 0.01-25
C736 87-A10-262-080 C-CAP,U 1-10 ZF
C737 87-010-831-080 C-CAP,U,0.1-16F
C738 87-010-831-080 C-CAP,U 0.1-16 ZF
C741 87-A11-028-080 C-CAP,E 100-10M
C742 87-A11-025-080 C-CAP,E 47-16 M ZS 4.5L
C743 87-016-558-080 C-CAP,TN 47-6.3 F93B
C744 87-016-558-080 C-CAP,TN 47-6.3 F93B
C745 87-A11-025-080 C-CAP,E 47-16 M ZS
C746 87-016-558-080 C-CAP,TN 22-6.3 F93B
C750 87-A10-262-080 C-CAP,U 1-10 ZF
C751 87-A10-262-080 C-CAP,U 1-10 ZF
C752 87-012-286-080 CAP, U 0.01-25
C753 87-012-286-080 CAP, U 0.01-25
C755 87-012-286-080 C-CAP,U 0.01-25
C756 87-A10-262-080 C-CAP,U 1-10 ZF
C757 87-A11-791-080 C-CAP,TN 10-4 M F93 A
C760 87-A10-262-080 C-CAP,U 1-10ZF
C771 87-010-805-080 C-CAP,S 1-16 ZF
C772 87-A10-262-080 C-CAP,U 1-10 ZF
C773 87-012-350-080 C-CAP,S 1-25 ZF
C795 87-A11-025-080 C-CAP,E 47-16 M ZS 4.5L
C801 87-A11-028-080 C-CAP,E 100-10 M ZS 4.5L
C802 87-A10-463-080 C-CAP,U 0.47-10 Z F
C803 87-A11-994-080 C-CAP,M/P 0.082 -100 MFC-RH
C804 87-A11-240-080 C-CAP,GHM1038 12P-3.15K J SL 4
CN703 87-A60-864-080 C-CONN,20P H IL-402-12S-S1L-SA
CN704 87-A60-863-080 C-CONN,12P H IL-402-12S-S1L-SA
CN801 88-HV1-646-080 C-CONN,2P H BH(8.0) SM02
FFC703 88-HV1-656-010 FF-CABLE, 20P 1.0 48MM WHT
L801 87-A50-330-080 C-COIL,100UH-D75C
LCD701 88-HV1-615-010 LCD,P50AN4(PRV)-TFT
LPF701 88-HV1-643-010 C-FLTR,P613BG 0304GW
LPF731 88-HV1-644-010 C-FLTR,4FS 8781(PAL)
LPF732 88-HV1-645-010 C-FLTR,4FS 8782(NTSC)
SFR701 87-024-411-080 C-SFR,47K RHO3A3A
SFR702 87-024-411-080 C-SFR,47K RHO3A3A
SFR703 87-024-411-080 C-SFR,47K RHO3A3A
SFR704 87-024-411-080 C-SFR,47K RHO3A3A
SFR705 87-024-411-080 C-SFR,47K RHO3A3A
SFR731 87-024-411-080 C-SFR,47K RHO3A3A
SFR751 87-024-411-080 C-SFR,47K RHO3A3A
SFR752 87-024-411-080 C-SFR,47K RHO3A3A
SFR753 87-024-411-080 C-SFR,47K RHO3A3A
SFR754 87-024-411-080 C-SFR,47K RHO3A3A
T801 88-HV1-667-010 C-TRANS,BLC210HP 866TN-1063-8V
X731 87-A70-162-080 C-VIB,XTAL 4.433619MHZ
X732 87-A70-161-080 C-VIB,XTAL 3.579545MHZ
KEY C.B
C781 87-010-805-080 C-CAP,E 1-16 ZF
C783 87-A11-156-080 C-CAP,E 22-25 M SE 3A
C785 87-012-156-080 C-CAP,S 220P-50 CH
C786 87-A12-151-080 C-CAP,E 47-6.3M SE 3A
C787 87-A12-151-080 C-CAP,E 47-6.3M SE 3A
C788 87-A11-156-080 C-CAP,E 22-25 M SE 3A
C789 87-A11-156-080 C-CAP,E 22-25M SE 3A
C793 87-A11-156-080 C-CAP,E 22-25M SE 3A
C797 87-012-156-080 C-CAP,S 220P-50 J CH
CN701 87-A60-865-080 C-CONN,12P H FMN-SMT
CN702 87-A60-866-080 C-CONN,17P H FMN-SMT
FFC701 88-HV1-655-010 FF-CABLE, 12P 1.0 48MM WHT
FFC702 88-HV1-654-010 FF-CABLE, 17P 1.0 60MM BLK
L791 87-A50-330-080 C-COIL,100UH-D75C
L792 87-A50-436-080 C-COIL,100UH-D74C
L793 87-A50-436-080 C-COIL,100UH-D73C
S811 87-A90-232-080 C-SW,TACT SKQRAA
S812 87-A90-232-080 C-SW,TACT SKQRAA
S813 87-A90-232-080 C-SW,TACT SKQRAA
S814 87-A90-232-080 C-SW,TACT SKQRAA
T781 88-HV1-647-080 C-TRANS,C5A 395GN-0784
SW C.B
CN131 87-A60-467-080 C-CONN,4P V FMN-BMTR
D131 88-HVB-611-010 LED,SEL 2215RLF67 RED
S131 87-036-264-080 SW,MICRO SPPB53
S132 87-036-264-080 SW,MICRO SPPB53
BATT C.B
88-HV1-650-110 BAT,10.8V 1500MAH

– 6 –

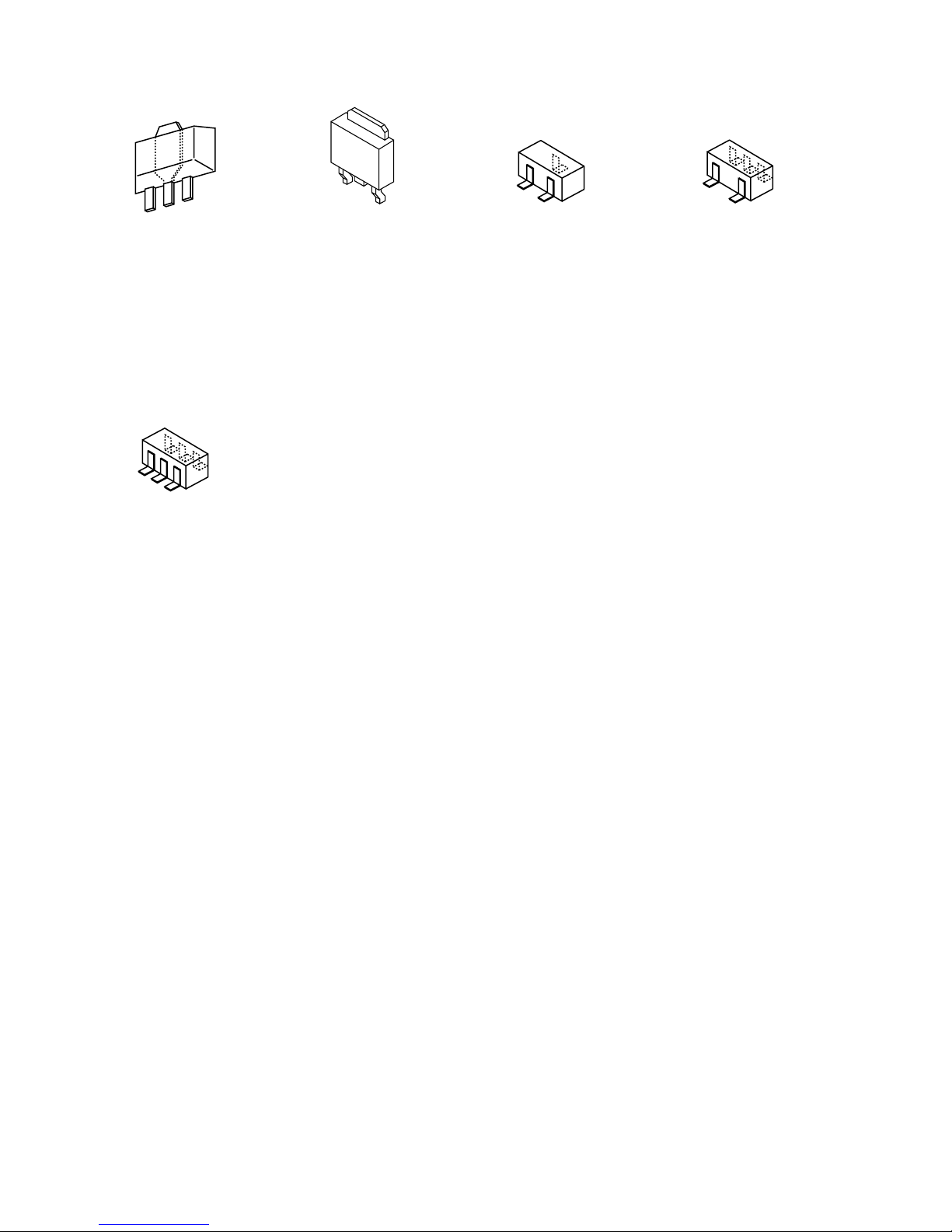

TRANSISTOR ILLUSTRATION
B
E
C
2SA1162GR
2SC2712GR
2SA1576A
DTA144YK
DTC144EU
C1
E2
B2
C2
B1
E1
B C E
RN1610
2SB1412R
2SC3518Z
2SA1369G/H
2SC3439(G/H)
B
C
E
C
B1
B2
E
C2
C1
FMG5A
FMW1
RN1307
RN1404
RN1411
RN2404
RN2411

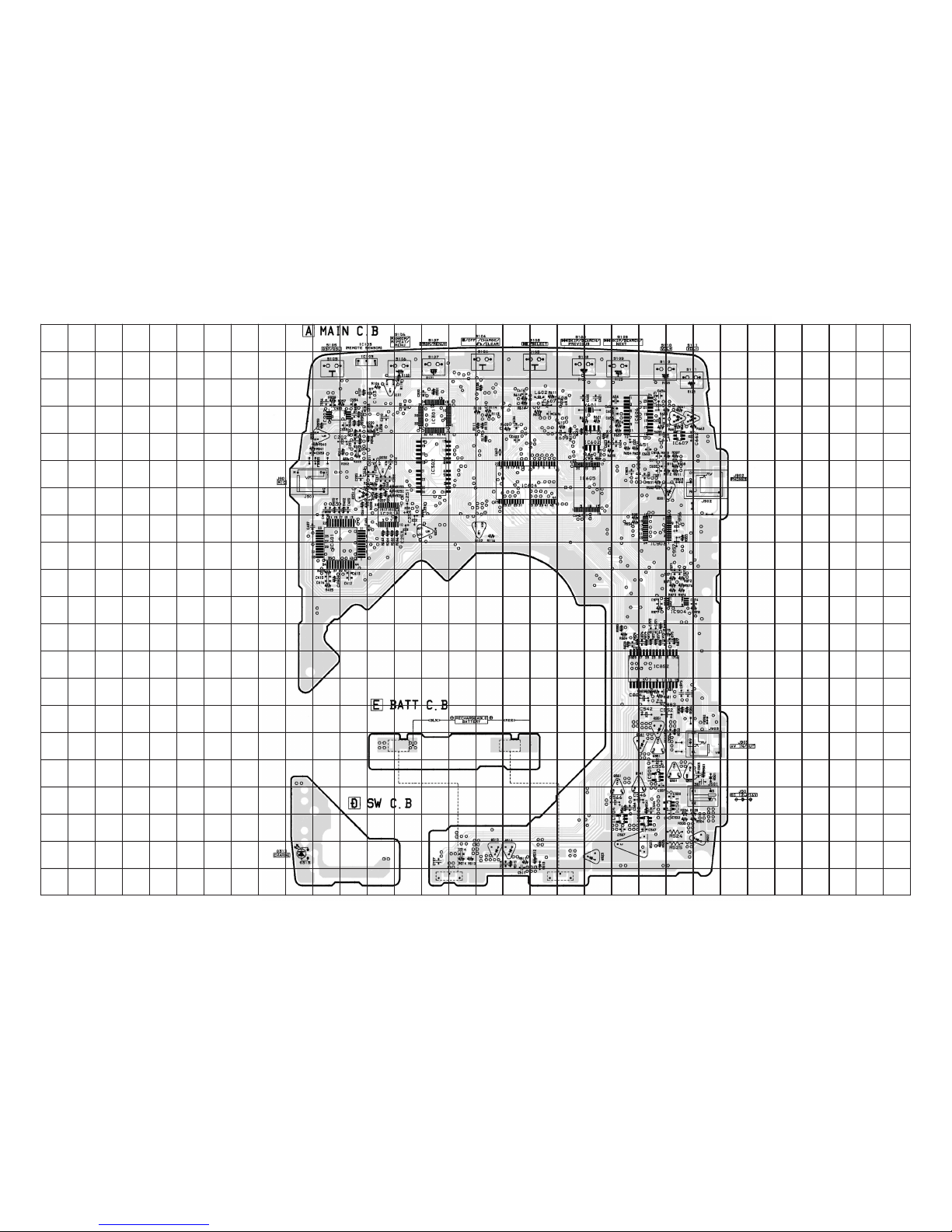

WIRING – 1 (MAIN / SW / BATT)
– 7 –
151413121110987654321
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

WIRING – 1 (MAIN / SW / BATT)
– 8 –
181920212223242526272829303132
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

– 9 –
SCHEMATIC DIAGRAM – 1 (MAIN 1/2 / SW / BATT)

– 10 –

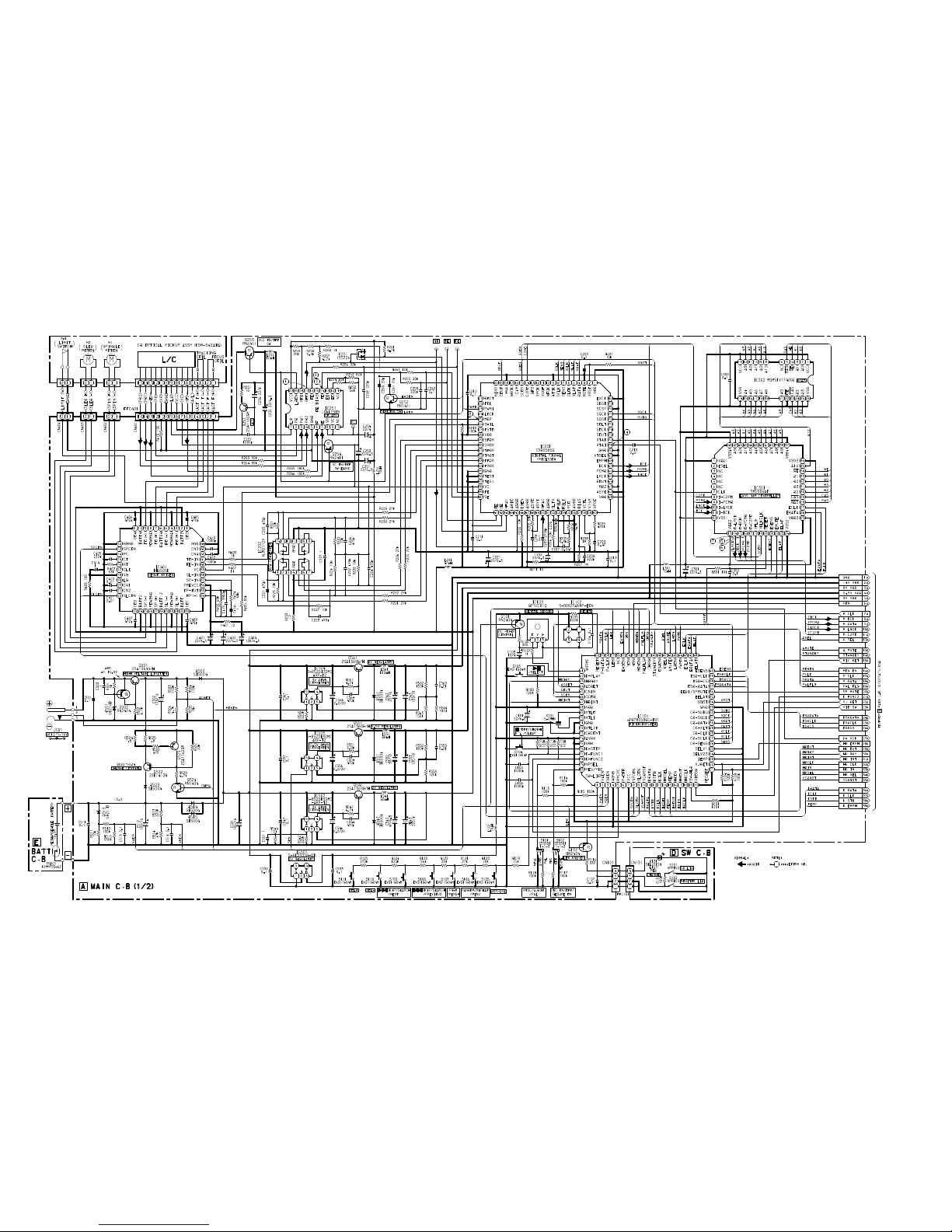

SCHEMATIC DIAGRAM – 2 (MAIN 2/2)

WIRING – 2 (MONITOR)
– 11–
101112131415161718192021222324
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
1234567892526272829303132

– 12 –

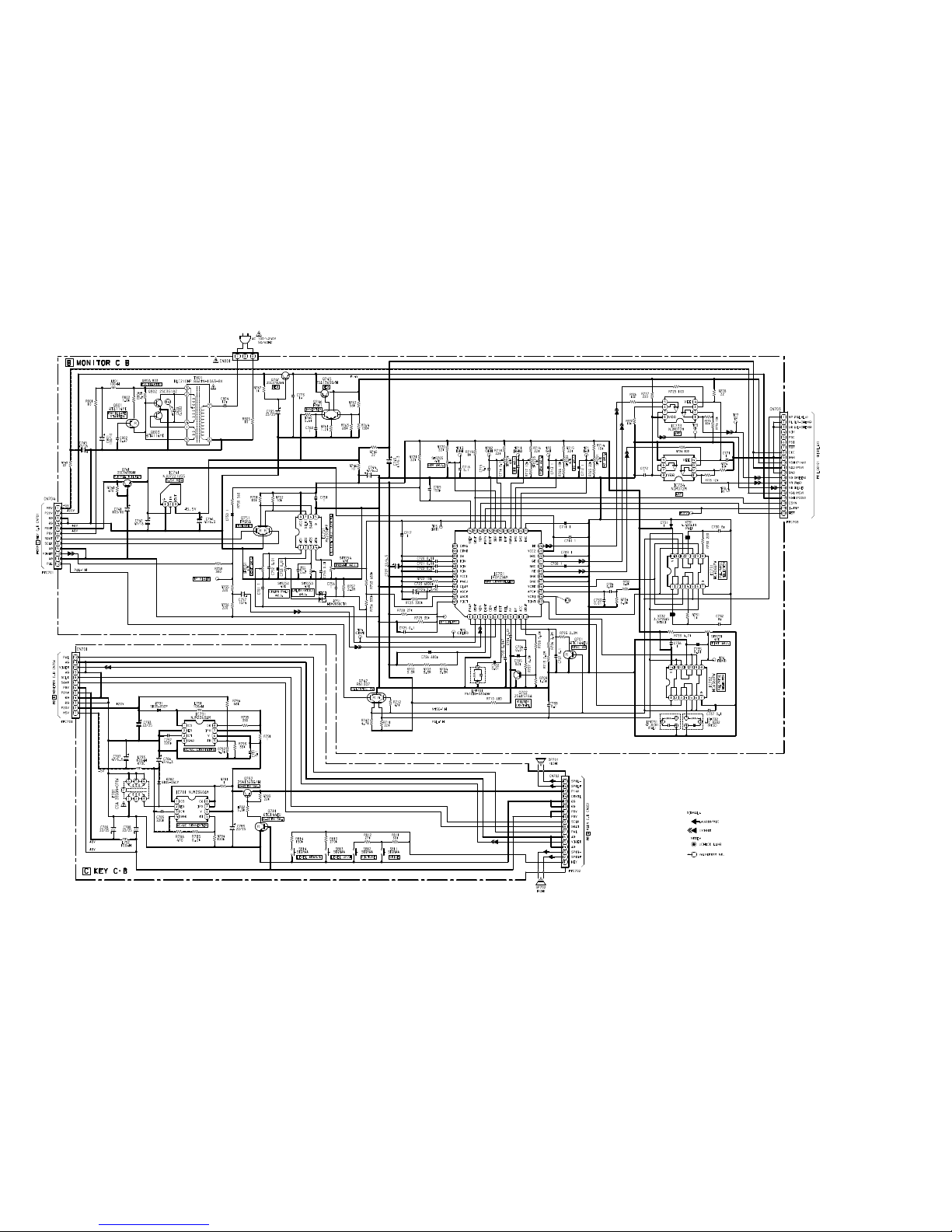

SCHEMATIC DIAGRAM – 3 (MONITOR / KEY)

WIRING – 3 (KEY)
– 13 –
123456789101112131415
J
I
H
G
F
E
D
C
B
A
A
B
C
D
E
F
G
H
I
J
123456789101112131415
161718192021 161718192021 2223242526272829303132 2223242526272829303132

– 14 –
LCD MONITOR adjustment
Be sure to perform this adjustment whenever the parts are changed on monitor or MONITOR CB.

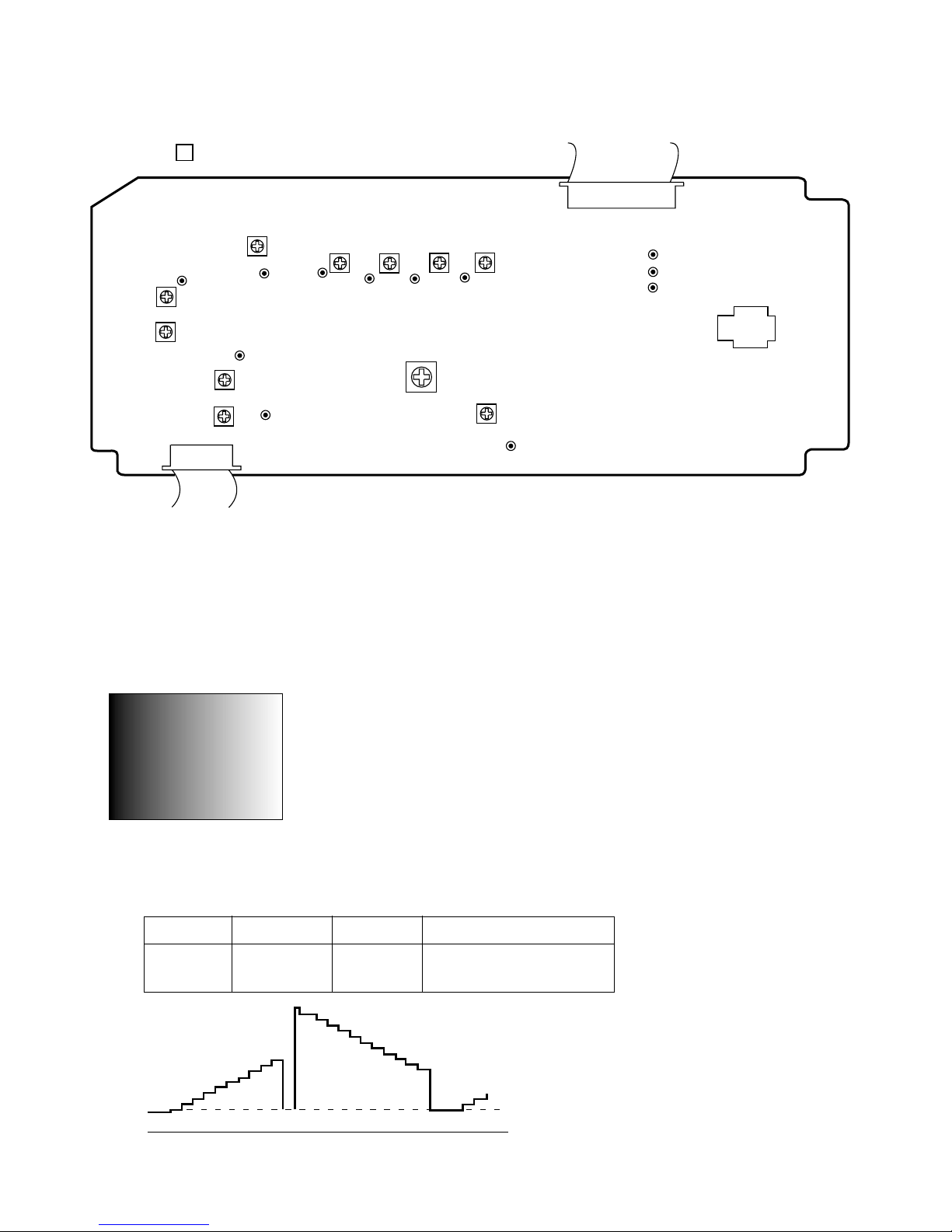

Fig.1 TEST POINT & ADJUSTMENT POINT
MEASURING INSTRUMENT : DIGITAL MULTI METER, OSCILLOSCOPE, AC ADAPTOR
Adjustment method
1) Set SW102(NTSC/AUTO/PAL) to PAL position.
2) Activate TEST MODE.
Press and hold the three keys (DSP/DSL, STOP, and PLAY keys), turn the power on. (Plug the AC socket to the DC outlet.)
3) Press PGRM KEY, and confirm the message, 11 STEP MONOTONE PICTURE (Fig. 2), is displayed on the monitor.
4) Observe the wave form at test point with osilloscope, and adjust SFR703
ADJ. ITEM ADJ. POINT TEST POINT ADJ. VALUE
RGB-A SFR703 G (TP7) ADJUST PEDESTAL LEVEL
TO 2V (Fig 3)
ADJUSTMENT
SFR705
(SBR)
MONITOR C.B
B
TP3 (BRT)
TP1
(G2)
TP11
(RGBA)
TP7(G)
TP2
(G0)
SFR703
(RGBA) SFR702
(G0)
SFR704
(SBB)
TP13
(SBR)
TP12
(SBB)
SFR752(COLOR / PAL)
SFR753
(COLOR / NTSC)
SFR754(BRT)
SFR751(CONT)
TP5(COLOR)
LPF701
(PAL BURST)
TP4(CONT)
SFR731
(TINT)
TP6(TINT)
SFR701
(G2)
TP8(R)
TP9(R)
T801
Fig. 2 11 STEP MONOTONE
GND
2.0 ± 0.1V
Fig 3 RGB-A

–15 –

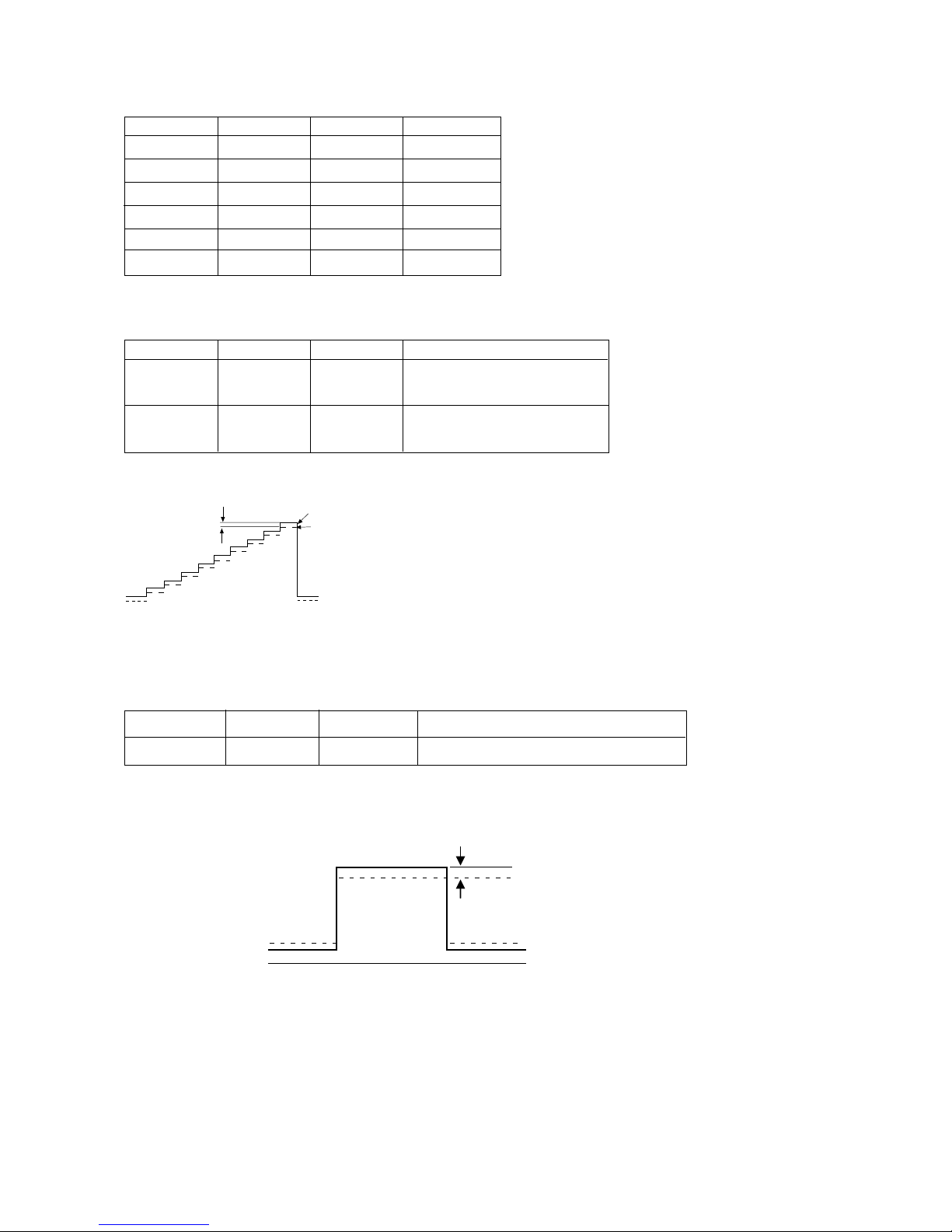

5) Measure DC voltage at each test point with digital multi-meter, and adjust SFR
ADJ. ITEM ADJ. POINT TEST POINT ADJ. VALUE
G2 SFR701 G2 (TP1) 1. 8 ± 0.05V
G0 SFR702 G0 (TP2) 0.75 ± 0.05V
BRT SFR754 BRT (TP3) 2.3 ± 0.05V
CONT SFR751 CONT (TP4) 2.95 ± 0.05V
COLOR(PAL) SFR752 COLOR (TP5) 3.00 ± 0.05V
TINT SFR731 TINT (TP6) 3.2 ± 0.05V
6) Observe the wave form at each test point with oscilloscope, and adjust SFR
ADJ. ITEM ADJ. POINT TEST POINT ADJ. VALUE
W-BAL (SBR) SFR705 G (TP7)/ ADJUST R (SFR705) AS SAME
R (TP8) LEVEL TO G. (Fig.4)
W-BAL (SBB) SFR704 G (TP7)/ ADJUST B (SFR704) AS SAME
B (TP9) LEVEL TO G (Fig.4)
7) Push the PRGM key and select all RED picture signal on the LCD
Observe the wave form at the test point with osilloscope, and adjust LPF701
ADJ. ITEM ADJ. POINT TEST POINT ADJ. VALUE
PAL BURST LPF701 B (TP9) ADJUST LPF701 AS SAME LEVEL. (Fig.5)
8) Turn the power off, and set SW102(NTSC/AUTO/PAL) to NTSC position
9) Activate TEST MODE, and display the 11 STEP MONOTONE PICTURE (Fig 2)
G-LEVEL
R-LEVEL &
B-LEVEL
0±0. 01V
Fig. 4 W-BAL (SBR & SBB)
THIS WIDTH BECOMES
NARROWEST
2.0 ± 0.1V
GND
Fig.5 PAL BURST

–16 –
10) Measure DC voltage at test point with digital multi-meter, and adjust SFR
ADJ. ITEM ADJ. POINT TEST POINT ADJ. VALUE
COLOR SFR753 COLOR (TP10) 2. 8 ± 0.05V
(NTSC)

– 17 –

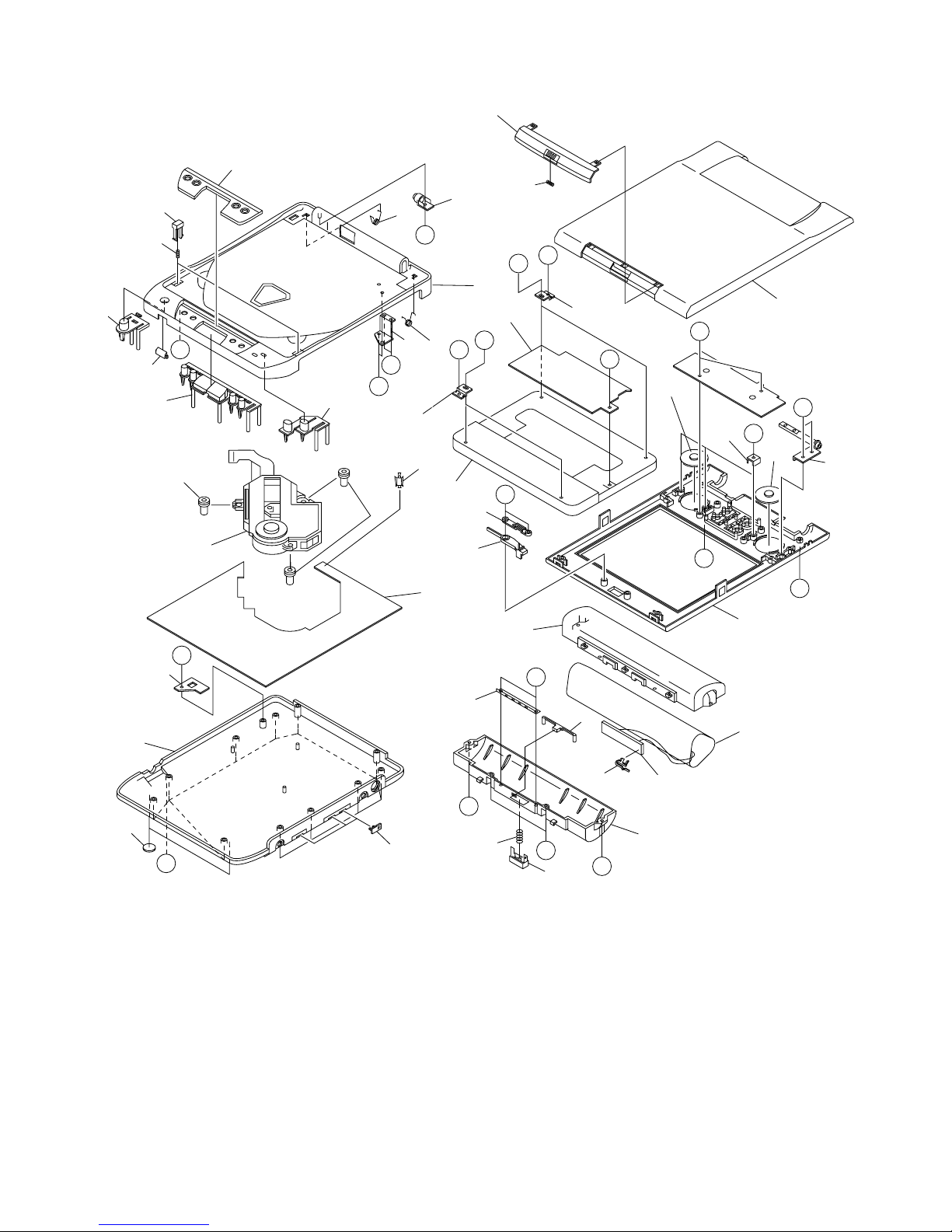

MECHANICAL EXPLODED VIEW 1 / 1
P.C.B
B
23
22
21
P.C.B
33
E
C
8
9
7
B
B
5
6
C
C
1
2
3
28
E
C
E
C
32
35
27
26
25
P.C.B
CA
C
P.C.B
4
HLDR,
MONITOR
HLDR,
MONITOR
D
D
KSM-542 DBA
24
24
E
F
20
19
18
16
17
14
15
10
E
11
34
12
13
29
29
31
30
C
G

– 18 –
DESCRIPTIONREF. NO. KANRI
NO.
MECHANICAL PARTS LIST 1 / 1
PART NO.
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange
COLOR NAME TABLE
1 88-HV1-205-010 SPR-C,KNOB
2 88-HV1-025-010 PANEL ASSY,MONITOR B
3 88-HV1-034-010 CABI ASSY,MONITOR T-88
4 88-HVB-615-010 LCD,P50AN4(PRV)-TFT
5 88-HV1-208-010 HLDR,SP
6 88-HV1-051-010 CABI ASSY,MNTR B-88(PV)
7 88-HV1-650-110 BAT,10.8V1500MAH
8 88-HV1-201-010 LEVER,OPEN
9 88-HV1-202-010 HLDR,OPEN
10 88-HV1-203-010 HLDR,HINGE
11 88-HV1-037-110 CABI ASSY,TOP-88
12 88-HV1-017-010 COVER, OPEN
13 88-HV1-206-010 SPR-C,OPEN
14 88-HV1-216-010 SPR-T,LID(L)
15 88-HV1-217-010 SPR-T,LID(R)
16 88-HV1-015-010 WINDOW,SENSOR
17 88-HV1-008-010 PANEL,TOP
18 88-HV1-011-010 KEY,VOLUME
19 88-HV1-012-010 KEY,DSL
20 88-HV1-213-010 HLDR,SHAFT
21 88-HC6-021-010 FOOT, DIA10
22 88-HV1-004-010 CABI,BOTTOM
23 88-HV1-014-010 KNOB,SL
24 8Z-HC1-225-010 DMPR,MECHA(SP)
25 88-HV1-225-010 SPR-C,BAT
26 88-HV1-033-010 BTN,BAT
27 88-HV1-032-010 CABI,BAT B
28 88-HV1-031-010 CABI,BAT T
29 87-A91-025-010 SPKR,28MM 8OHM 1W T028S21T0010
30 88-HV1-222-010 BAT-CONTACT,M
31 88-HV1-223-010 BAT-CONTACT,C
32 88-HV1-224-010 PLATE,BAT
33 88-HV1-209-010 SHAFT ASSY,HINGE
34 88-HV1-010-010 KEY,PLAY
35 88-HV1-221-010 LEVER,BAT
A 87-751-033-410 VT2+2-4 W/O SLOT
B 87-067-868-010 V+1.7-4 HL BLK
C 87-067-869-010 V+1.7-8 HL BLK
D 87-B10-201-010 BVT2+2.6-5 W/O SLOT (B-TIGHT)
E 87-067-659-010 BVT2+2.6-8W/O SLOT B
F 87-261-071-410 V+2.6-4
G 87-067-384-010 SCREWVT1.4-3.5HL
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.

– 19 –
ACCESORIES / PACKAGE LIST
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
1 88-HVB-902-010 IB,H(EC-H)S <AHR>
1 88-HVB-912-010 IB,H(EC-K)S <AHC>
2 87-B30-193-010 AC ADAPTOR,AC-D1502WNT
3 87-A80-089-010 AC CORD SET,HC <AHC>
3 87-050-076-010 AC CORD SET,E <AHR>
4 87-A90-312-010 PLUG,CONVERSION WTN-1157R1<AHR>
5 87-B30-265-010 HEADPHONE,HP-M043
6 87-HV3-612-010 CORD,1.5M 3.5-PIN AV
7 87-B30-220-010 CORD,CAR BATT 2.0M
8 88-HV1-701-110 RC UNIT,8AC01
!
!
!
!

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:[phone]
Printed in Singapore9620450 0251431
