SERVICE MANUAL
S/M Code No. 09-00A-423-6S9
SUPPLEMENT
DATA
XP-V511
AHT
COMPACT DISC PLAYER BASIC CD MECHANISM : DA23LN
•This Service Manual contains information about the difference between
XP-V511(AHT) and XP-V511(AHR).
If requiring the other information, see Service Manual of XP-V511(AHR,AU)/
XP-V513(AHK)/XP-V516C(AU), (S/M Code No.09-001-423-6R1).
•This Service Manual is for XP-V511(AHT1SF) Silver color and
XP-V511(AHT1LLF) Light Blue color.
COMPACT DISC PLAYER BASIC CD MECHANISM : DA23LN
•Note : For models using DA23LN CD mechanism specifications label indication is
different. Refer to illustration on page 2.
– 2 –
SPECIFICATIONS
Tracking system: 3-beam laser
Laser pickup: Semiconductor laser
D/A conversion: 4-times oversampling digital filter + 1-bit DAC
Frequency response: 20 - 20,000 Hz
Output: PHONES / LINE OUT jack (stereo mini-jack)
Maximum output: 12 mW + 12 mW (EIAJ 16 ohms at 1 kHz)
500 mV (47 kohms at 1 kHz)
Power supply: DC 3 V using two LR6 (size AA) alkaline
batteries
DC 2.4 V using two commercially available
(Ni-Cd 1.2 V 700 mAh) rechargeable
batteries
AC house current using the supplied AC
adaptor
Dimensions: 127.9 (W) x 28.4 (H) x 130.6 (D) mm
(5 1/8 x 1 1/8 x 5 1/4in.)
Weight: Approx. 202.3 g (7.1 oz.) excluding batteries
AC adaptor AC-D603: Rated voltage: 115 / 230 V AC, switchable,
50 / 60 Hz
PICK UP ASSY
: SOLDER
910 15161
•Design and specifications are subject to change without
notice.
Precaution to replace Optical block
1) After the connection, remove solder shown in
the right figure.
Body or clothes electrostatic potential could ruin
laser diode in the optical block. Be sure ground
body and workbench, and use care the clothes
do not touch the diode.
(SF-P200L)
Presence of "A" Markat lowerleftcorner of labelindicates
model isusing DA23LNCDmechanism.
DC −−−−−−−−−−−
−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−
CAUTION −−−−−−−−−−−−−−−−−−−−−−−−−
−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−
−−−−−−−−−−−−−−−−
AIWA CO.,LTD TOKYO JAPAN
A
MODEL NO. XP−______
COMPACT DISC PLAYER
"A" Mark
ELECTRICAL MAIN PARTS LIST
KANRI
NO.
IC
87-A21-448-040 C-IC,BH6554FV
8A-HCH-603-010 C-IC,MN101C439-AE
87-A21-446-010 C-IC,MN662782RPT1
87-A21-140-040 C-IC,MSM51V17400D
87-A21-578-040 C-IC,AN8838NSB
87-A21-543-040 IC,NJU7012
87-A21-449-040 C-IC,AN8746SA
87-A21-085-040 C-IC,TA2120FN
TRANSISTOR
87-A30-429-040 C-TR,DTC 123 JKA
87-A30-075-080 C-TR,2SA1235F
89-211-323-080 C-TR,2SB1132R
89-416-643-080 C-TR,2SD1664R
87-A30-076-080 C-TR,2SC3052F
89-113-695-680 C-TR,2SA1369G/H
87-A30-278-040 C-FET,2SK2980
87-A30-405-040 C-TR,DTC114TUA
87-A30-237-080 C-TR,UMG5N
87-A30-282-040 C-TR,DTA114TKA
87-A30-287-040 TR,DTC114TKA
DIODE
87-A40-270-080 C-DIODE,MC2838
87-017-520-080 C-DIODE,SFPB52
87-A40-570-080 C-ZENER,UDZ10B
87-A40-590-040 C-DIODE,HRW0202A
MAIN C.B
C202 87-016-422-080 C-CAP,E 22-6.3
C203 87-012-286-080 CAP, U 0.01-25
C204 87-016-429-080 C-CAP,E 100-4 5.5N
C205 87-010-805-080 C-CAP,S 1-16 Z F
C206 87-012-286-080 C-CAP, U 0.01-25
C207 83-HC3-635-080 C-CAP,E 220-6.3 WF
C208 87-016-426-080 C-CAP,E 47-4 5.5N
C209 87-010-831-080 C-CAP,U,0.1-16F
C210 87-A10-047-080 C-CAP,U 1-10 Z F
C211 87-010-787-080 CAP, U 0.022-25
C212 87-012-267-080 C-CAP,U 270P-50 B
C213 87-010-805-080 C-CAP,S 1-16 Z F
C303 87-010-831-080 C-CAP,U,0.1-16F
C304 87-010-831-080 C-CAP,U,0.1-16F
C305 87-012-286-080 CAP, U 0.01-25
C306 87-012-286-080 CAP, U 0.01-25
C307 87-012-286-080 CAP, U 0.01-25
C309 87-A11-241-080 C-CAP,TN 22-6.3 M F93A
C383 87-A10-260-080 C-CAP,U 0.1-16 K B
C401 87-016-429-080 C-CAP,E 100-4 5.5N
C403 87-016-558-080 C-CAP,TN 47-6.3 F93 B
C405 87-A10-260-080 C-CAP,U 0.1-16 K B
C406 87-012-271-080 C-CAP,U 560P-50 B
C407 87-010-787-080 CAP, U 0.022-25
C408 87-A10-353-080 C-CAP,U0.22-10KB
C409 87-A10-827-080 C-CAP,U 0.47-6.3 K B
C410 87-012-286-080 CAP, U 0.01-25
C411 87-010-831-080 C-CAP,U,0.1-16F
C412 87-016-558-080 C-CAP,TN 47-6.3 F93 B
C413 87-010-831-080 C-CAP,U,0.1-16F
C415 87-010-831-080 C-CAP,U,0.1-16F
C417 87-012-188-080 C-CAP,U 47P-50 CH
C421 87-010-831-080 C-CAP,U,0.1-16F
C422 87-010-831-080 C-CAP,U,0.1-16F
C423 87-010-831-080 C-CAP,U,0.1-16F
C451 87-010-831-080 C-CAP,U,0.1-16F
C501 87-016-429-080 C-CAP,E 100-4 5.5N
C502 87-010-831-080 C-CAP,U,0.1-16F
C504 87-010-831-080 C-CAP,U,0.1-16F
C505 87-A11-228-080 C-CAP,U 0.027-25 K B
C506 87-012-199-080 CAP 220P
C507 87-012-193-080 C-CAP,U 82P-50 CH
C508 87-012-193-080 C-CAP,U 82P-50 CH
C509 87-012-273-080 C-CAP,U 820P-50 B
C510 87-016-429-080 C-CAP,E 100-4 5.5N
C512 87-016-429-080 C-CAP,E 100-4 5.5N
C514 87-A11-228-080 C-CAP,U 0.027-25 K B
C515 87-A11-228-080 C-CAP,U 0.027-25 K B
C516 87-A10-260-080 C-CAP,U 0.1-16 K B
C518 87-012-176-080 C-CAP,U 15P-50
C519 87-012-176-080 C-CAP,U 15P-50
C520 87-016-426-080 C-CAP,E 47-4 5.5N
C521 87-012-274-080 CHIP CAP,U 1000P-50B
C530 87-A10-047-080 C-CAP,U 1-10 Z F
C601 87-016-430-080 C-CAP,E 100-6.3 5.5N
C602 87-012-286-080 CAP, U 0.01-25
C603 87-012-286-080 C-CAP, U 0.01-25
C701 87-016-558-080 C-CAP,TN47-6.3F93B
C702 87-012-271-080 C-CAP,U 560P-50 CH
C703 87-012-271-080 C-CAP,U 560P-50 CH
C706 87-010-831-080 C-CAP,U 0.1-16F
C707 87-A10-047-080 C-CAP,U 1-10 Z F
C708 87-A10-047-080 C-CAP,U 1-10 Z F
C709 87-A10-047-080 C-CAP,U 1-10 Z F
C710 87-016-561-080 C-CAP,E 10-6.3 MF
C711 87-A11-241-080 C-CAP,TN 22-6.3 M F93 A
C712 87-A10-353-080 C-CAP,U0.22-10KB
C713 87-010-831-080 C-CAP,U,0.1-16F
C714 87-A11-062-080 C-CAP,S 2.2-16 Z F
C715 87-016-561-080 C-CAP,E 10-6.3 MF
C716 87-010-831-080 C-CAP,U,0.1-16F
C717 87-010-831-080 C-CAP,U,0.1-16F
C718 87-016-431-080 C-CAP,E 220-4 5.5N
C719 87-016-431-080 C-CAP,E 220-4 5.5N
C720 87-012-274-080 CHIP CAP,U 1000P-50B
C721 87-012-274-080 CHIP CAP,U 1000P-50B
CN201 87-A61-147-080 C-CONN,7P V ZH-SM3
CN301 87-A60-756-080 C-CONN,24P V 24FLT-SM1TB
CN501 87-A61-305-080 C-CONN,16P H TOC-E
CN601 87-009-411-010 CONN,6P ZH V
FC301 8A-HC5-631-010 FF-CABLE, 24P 0.5MM
J701 87-A60-682-010 JACK,3.5 ST 7P
L201 87-A50-355-080 C-COIL,330UH LQH3C
L202 87-A50-330-080 C-COIL,100UH-D75C
L203 87-A50-355-080 C-COIL,330UH LQH3C
L302 87-A50-367-080 C-COIL, 10UH LQG21F
L401 87-A50-367-080 C-COIL, 10UH LQG21F
L402 87-A50-012-080 C-COIL,100UH LQH3C
L501 87-A50-117-080 C-COIL, 10UH LQH3C
L502 87-A50-367-080 C-COIL, 10UH LQG21F
S302 87-A90-494-080 C-SW,SL 1-1-3 SSSS81
S303 87-A90-494-080 C-SW,SL 1-1-3 SSSS81
VR701 87-A91-145-080 C-VR,RTRY 30KCX2 H RK14J12R
X401 87-A70-201-080 C-VIB,CER 16.93MHZ CSTCV-MXJ0C
JACK C.B
C102 87-010-060-010 CAP,E 100-16V
C103 87-012-286-080 CAP, U 0.01-25
C104 87-015-677-010 CAP,E 100-6.3V
C105 87-012-286-080 CAP, U 0.01-25
CN101 8A-HC4-633-010 CONN ASSY,7P V 1.5MM
J101 87-A61-447-010 JACK,DC DJ26B BLK 6
S101 87-A91-622-010 SW,MICRO PV1102
DESCRIPTIONREF. NO. PART NO. DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
– 3 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
LID C.B
C802 87-012-274-080 CHIP CAP 1000P
C803 87-010-831-080 C-CAP,U 0.1-16F
LCD801 8A-HC5-621-010 LCD,AHC-5 REFLEX
S801 87-A90-232-080 C-SW,TACT SKQRAA
S802 87-A90-232-080 C-SW,TACT SKQRAA
S803 87-A90-232-080 C-SW,TACT SKQRAA
S804 87-A90-232-080 C-SW,TACT SKQRAA
S805 87-A90-232-080 C-SW,TACT SKQRAA
S806 87-A90-232-080 C-SW,TACT SKQRAA
S807 87-A90-232-080 C-SW,TACT SKQRAA
88
A

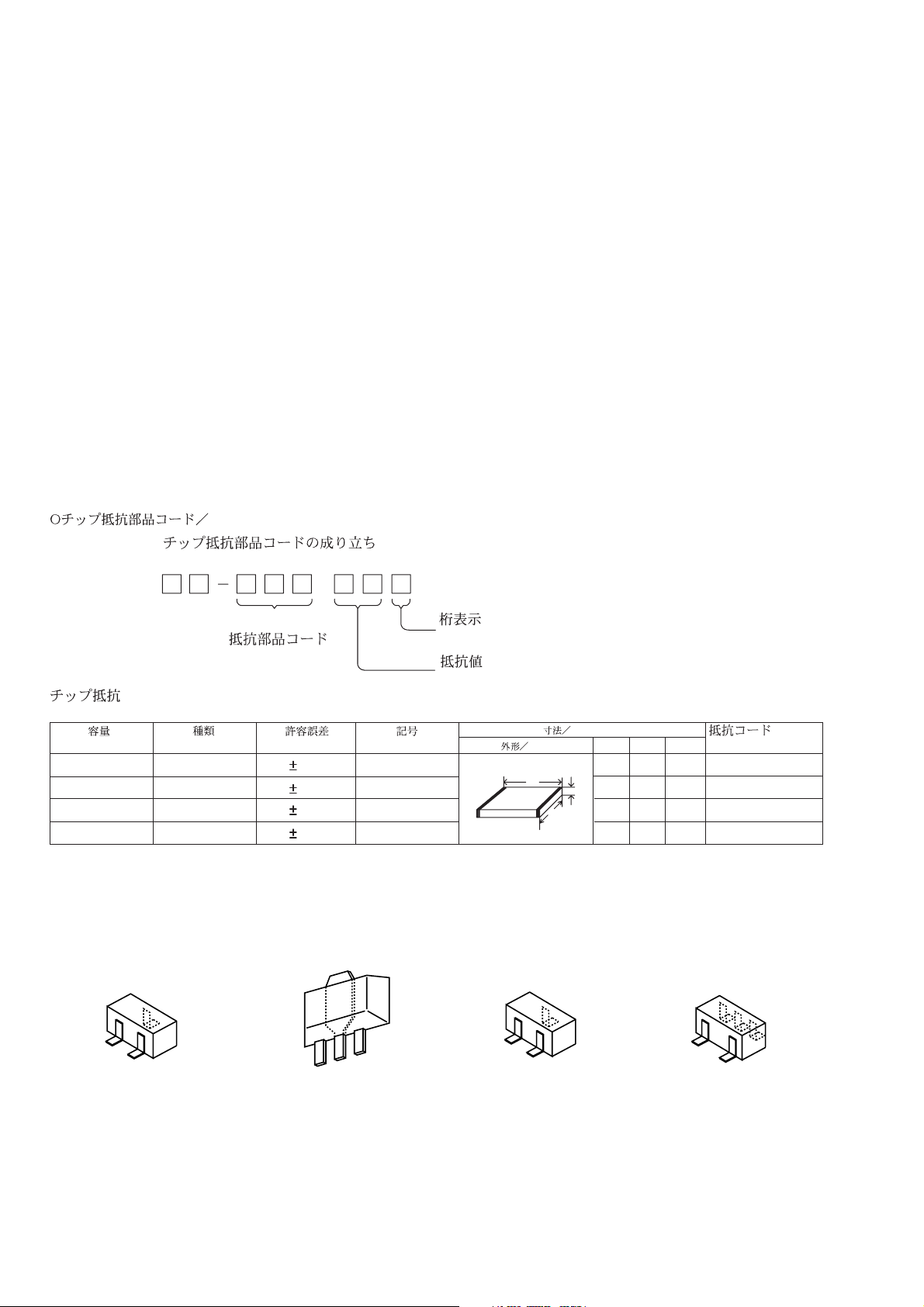

Resistor Code
Chip Resistor Part Coding
Figure
Value of resistor
Chip resistor
Wattage Type Tolerance
1/16W
1/10W
1/8W
1608
2125
3216
5%
5%
5%
CJ
CJ
CJ
Form
LW t
1.6 0.8 0.45
2 1.25 0.45
3.2 1.6
108
118
128
: A
: A
CHIP RESISTOR PART CODE
0.55
Resistor Code
Dimensions (mm)
Symbol
1/16W 1005 5% CJ
1.0 0.5 0.35 104
Lt
W
– 4 –
TRANSISTOR ILLUSTRATION
B
E
C
2SA1235
2SC3052
DTA114TKA
DTC114TKA
DTC114TUA
DTC123JKA
CBE
2SA1369
2SB1132
2SD1664
S
G
D
2SK2980
B1
B2
E
C2
C1
UMG5N

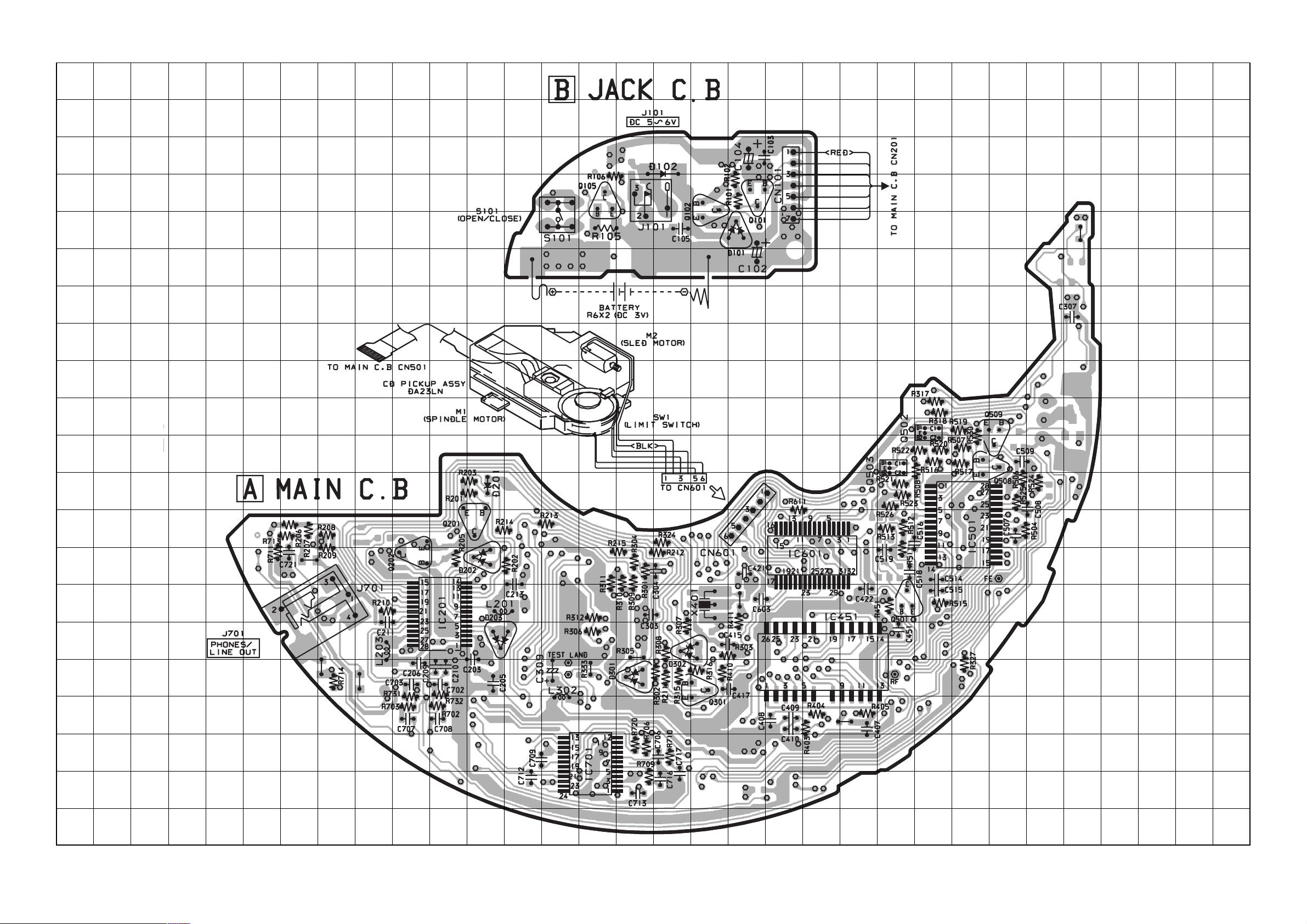

WIRING 1 ( MAIN / JACK ) <1 / 2>
32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
5
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
WIRING 1 ( MAIN / JACK ) <2 / 2>
1 2 3 4 5 6 7 8 9 1011121314151617181920212223242526272829303132
6
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U

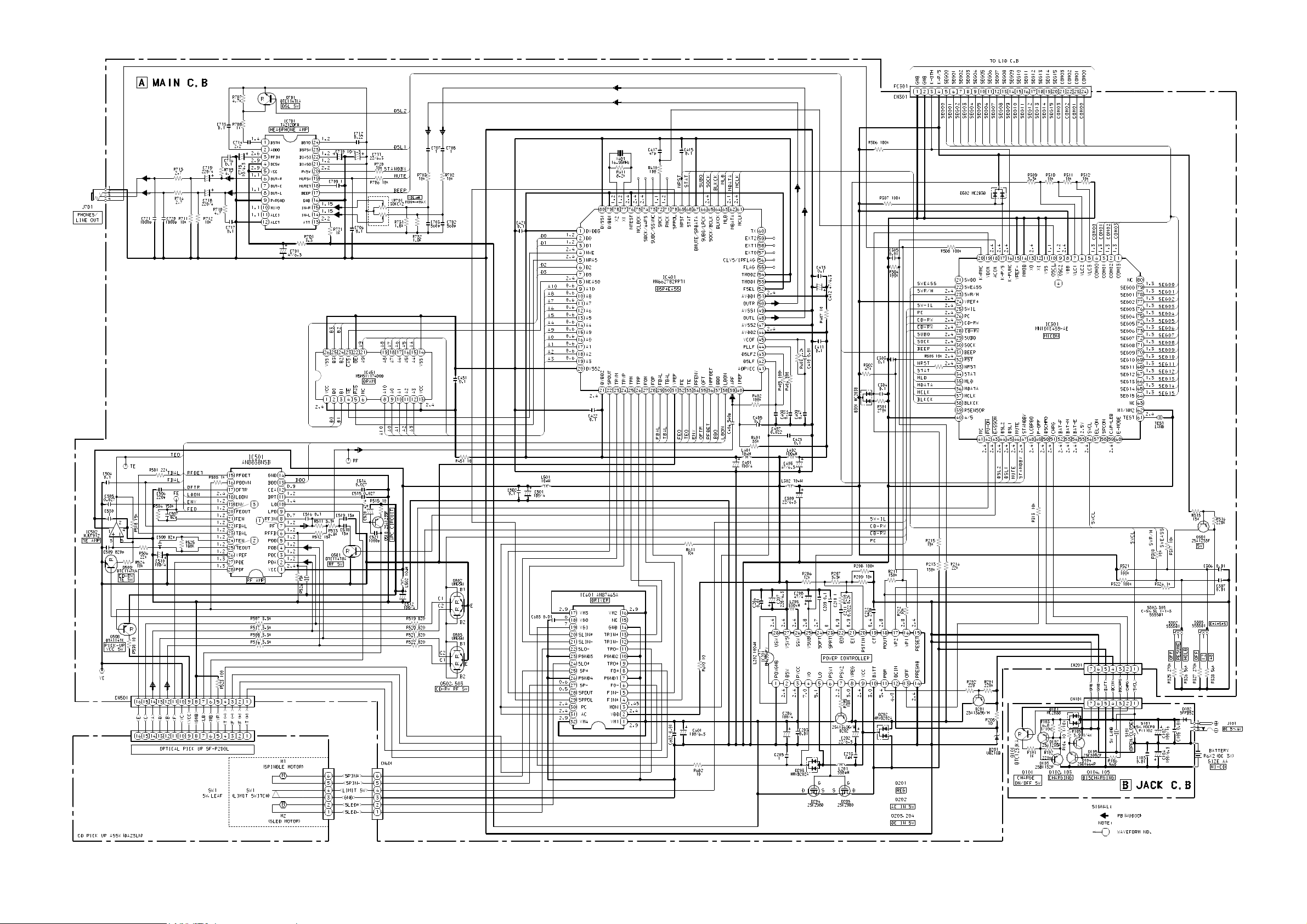

SCHEMATIC DIAGRAM _1 (MAIN / JACK)
– 7 –
WIRING 2 (LID)
151413121110987654321
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
8
SCHEMATIC DIAGRAM _2 (LID)
– 9 –
– 10 –
MECHANICAL EXPLODED VIEW 1 / 1
22 <[LL]AHT
23<[S]AHT>
– 11 –
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
MECHANICAL PARTS LIST 1 / 1
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
COLOR NAME TABLE
Basic color symbol Color Basic color symbol Color Basic color symbol Color
B Black C Cream D Orange
G Green H Gray L Blue
LT Transparent Blue N Gold P Pink
R Red S Silver ST Titan Silver
T Brown V Violet W White
WT Transparent White Y Yellow YT Transparent Yellow
LM Metallic Blue LL Light Blue GT Transparent Green
LD Dark Blue DT Transparent Orange GM Metallic Green
YM Metallic Yellow DM Metallic Orange PT Transparent Pink
LA Aqua Blue
1 8A-HC5-014-010 SH,DISPLAY AU(5)
2 8A-HC5-011-110 PANEL,CD (5)
3 8A-HC5-006-010 KEY,PLAY (5)
4 8A-HC5-007-110 KEY,DSL (5)
5 8A-HC5-016-210 LID,CD ASSY EZ(5)<[S]AHT>
5 8A-HC5-042-110 LID,CD ASSY LBLUE (V512)<[LL]AHT>
6 8A-HC4-208-010 PLATE,LCD
7 8A-HC5-202-010 JOINT,LCD AHC5
8 8A-HC5-012-110 HLDR,LID CD (5)
9 8A-HC4-204-110 SPR-T,LID
10 85-HC6-205-110 SHAFT,LID(300) HK
11 8A-HC4-015-110 CABI,CENTER AU(4)<[S]AHT>
11 8A-HC5-043-110 CABI,CENTER LBLUE (V512)<[LL]AHT>
12 8A-HC4-008-110 KNOB,SL OPEN
13 8A-HC4-205-010 SPR-T,KNOB
14 8A-HC4-206-110 LEVER,OPEN
15 8A-HC4-207-010 HLDR,OPEN
16 8Z-HC1-225-010 DMPR,MECHA(SP)
17 8A-HC4-202-010 BAT-CONTACT,(+)
18 8A-HC4-201-110 BAT-CONTACT,(-)
19 8A-HC4-203-110 BAT-CONTACT,(+-)
20 8A-HC4-019-210 CABI,BOTTOM ASSY AU(4)<[S]AHT>
20 8A-HC5-045-010 CABI,BOTTOM ASSY LBLUE (V512)<[LL]AHT>
21 88-HC6-021-010 FOOT, DIA10
22 8A-HC4-012-010 KNOB,SL EASS<[LL]AHT>
23 8A-HC4-009-010 KNOB,SL HOLD
A 87-067-736-010 SCREW,1.4-2 BLK NLOCK
B 87-067-732-010 TAPPING SCREW, VT1.4-3
C 87-067-869-010 V+1.7-8 HL BLK
– 12 –

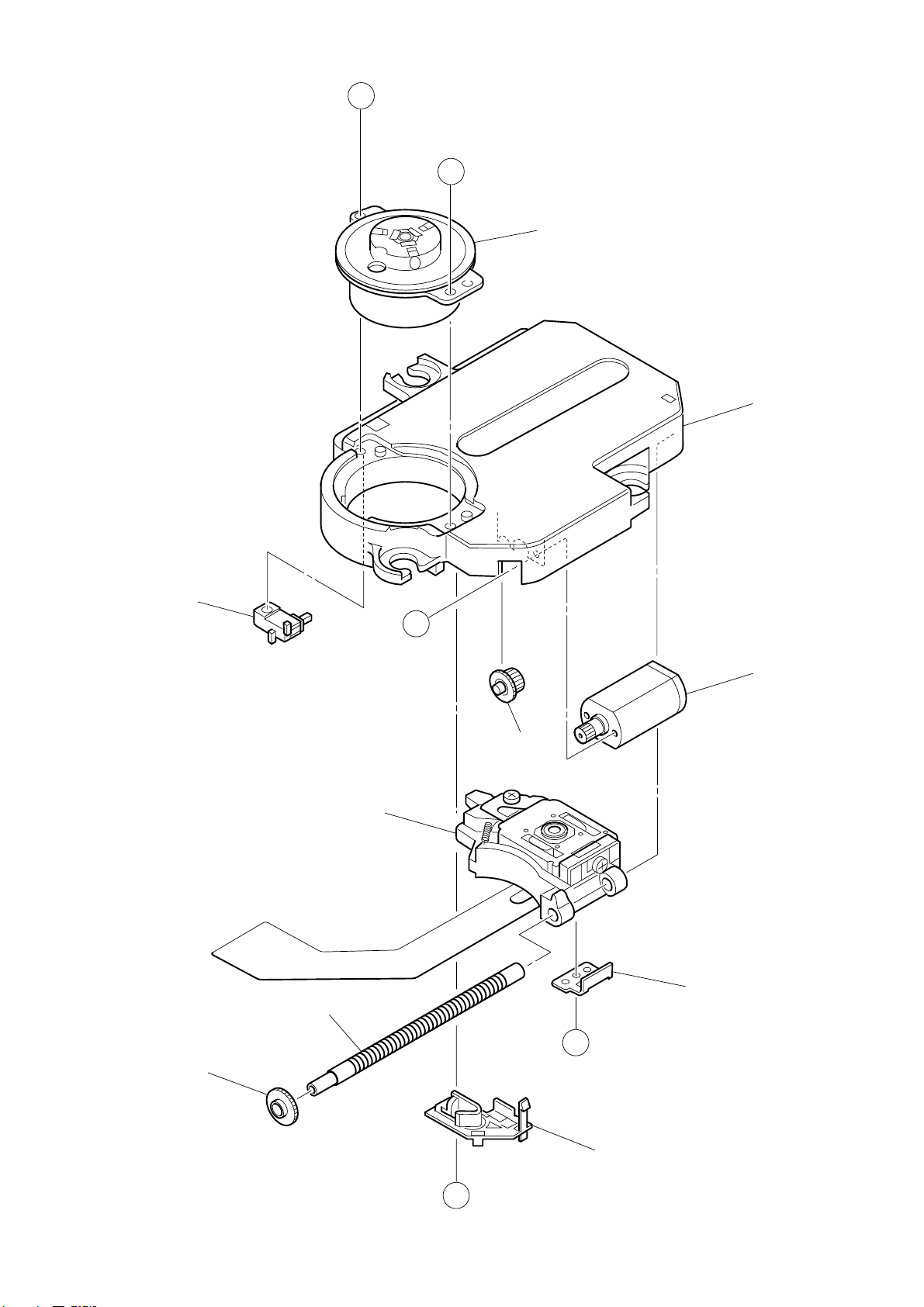

CD MECHANISM EXPLODED VIEW 1 / 1
2
4
5
9
3
1
8
7
10
D
D
A
C
B
6
– 13 –
CD MECHANISM PARTS LIST 1 / 1
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
1 S0-A41-A20-604 PICKUP ASSY LASER P200L
2 S0-M10-A10-800 MOTOR SPINDLE ASSY
3 S0-M10-A10-900 MOTOR SLED ASSY
4 S2-311-A12-200 CHASSIS
5 S2-511-A23-200 GEAR MIDDLE
6 S2-511-A23-100 GEAR,SCREW
7 S2-511-A23-400 GEAR,RACK
8 S2-511-A07-901 SPINDLE SCREW
9 S4-S13-A00-200 SW,LEAF
10 S2-451-A18-100 HOLDER GEAR
A SS-EXE-A04-000 SCR PAN PCS 1.4-2.2
B SS-GXE-A00-301 SPECIAL SCREW M1.7-6.0
C SS-EXE-A14-100 SPECIAL SCREW
D SS-GXE-A00-202 SPECIAL SCREW M1.7-4.0
ACCESSORIES / PACKAGE LIST
1 8A-HC5-927-110 IB,HR (ECA) V511-IN
2 87-B30-285-110 AC ADAPTOR,AC-D603HRNC
3 87-B30-326-110 HEADPHONE,HP-M048
4 87-A91-017-010 PLUG,CONVERSION JF 0476
!
!
DESCRIPTIONREF. NO. KANRI
NO.
PART NO.
2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111
Printed in Singapore2000058 9630472 0251431
Other manuals for XP-V511
2
Table of contents
Other Aiwa CD Player manuals
