S E R V I C E M A N U A L
SIMPLE MANUAL
•Replace this Service Manual with "Revision Publishing" when it is issued.
Z-L70
• TYPE: LH
S/M Code No. 09–994–406–4T3
COMPACT DISC STEREO
CASSETTE RECEIVER
ELECTRICAL MAIN PARTS LIST - 1/6
NOTE: The characters in the suffix column indicate the part usage.
LH .....................XX....................................C.................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 501 87-010-544-040 CAP,E 0.1-50 SME ....................
C 503 87-016-669-080 C-CAP,S 0.1-25 K B ....................
C 601 87-010-112-040 CAP,E 100-16 ABC.................
C 608 87-010-186-080 CAP,CHIP 4700P ABC.................
C 609 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 602 87-010-320-080 CHIP CAP 68P ABC.................
C 607 87-010-405-040 CAP,E 10-50 ABC.................
C 603 87-010-546-040 CAP,E 0.33-50 ABC.................
C 611 87-010-178-080 CHIP CAP 1000P ABC.................
C 610 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
CN 602 87-009-030-010 CONNECTOR 2P PH M _ ABC.................
FB 601 87-A50-190-080 C-COIL,S BLM21A102S ABC.................
J 601 87-099-659-010 JACK,6.3 JY-6314-01130 ABC.................
J 602 87-099-659-010 JACK,6.3 JY-6314-01130 ABC.................
Q 602 87-A30-075-080 C-TR,2SA1235F ABC.................
Q 603 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 605 87-A30-087-080 C-FET,2SK2158 ABC.................
VR 501 8Z-MA3-603-010 VR,SL 10KB RS15111-20 ....................
C 1 87-010-387-080 CAP,E 470-25 SME ABC.................
C 7 87-A10-479-080 CAP,CER 2200P-250 M E KH ABC.................
C 11 87-016-520-000 CAP,E 3300-65 M SMG ABC.................
C 10 87-016-520-000 CAP,E 3300-65 M SMG ABC.................
C 15 87-018-214-080 CAP TC U 0.1-50F ABC.................
C 13 87-018-214-080 CAP TC U 0.1-50F ABC.................
C 14 87-018-214-080 CAP TC U 0.1-50F ABC.................
C 12 87-018-214-080 CAP TC U 0.1-50F ABC.................
C 20 87-010-403-080 CAP, ELECT 3.3-50V ABC.................
CN 1 87-A60-851-010 CONN,9P V VH ABC.................
D 8 87-017-654-060 DIODE,GBU6J ABC.................
D 2 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 9 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 3 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 5 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 1 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 4 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 10 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
F 1 87-A91-276-080 FUSE,125MA 125V F 251 AB..................
PR 2 87-026-682-080 PROTECTOR,10A 60V491 ABC.................
PR 1 87-026-682-080 PROTECTOR,10A 60V491 ABC.................
PR 2 87-026-691-080 FUSE,10A 125V 251 ....................
PR 1 87-026-691-080 FUSE,10A 125V 251 ....................
PT 2 8Z-MAP-605-010 PT,SUB ZMA-P(U) ....................
PT 2 8Z-NF8-662-010 PT,SUB ZNF-8(E) AB..................
PT 2 8Z-NF8-663-010 PT,SUB ZNF-8(H) ..C.................
Q 1 87-026-245-080 TR,DTC114ES ABC.................
Q 2 87-A30-198-080 TR,KTC3199GR ABC.................
RY 2 87-A90-976-010 RELAY,AC12V SDT-S-112LMR AB..................
RY 1 87-A91-281-010 RELAY,AC DC12V OSA-SS-212DM5 ..C.................
S 1 87-A90-165-010 SW,SL 1-2-3 SWS2301 ..C.................
T 2 87-A60-317-010 TERMINAL, 1P MSC ABC.................
T 1 87-A60-317-010 TERMINAL, 1P MSC ABC.................
85-NF5-210-110 GUIDE,LED L ABC.................
85-NF5-211-110 GUIDE,LED R ABC.................
88-MA2-202-010 GUIDE,FL(2) ABC.................
C 102 87-010-178-080 CHIP CAP 1000P AB..................
C 106 87-010-313-080 CAP, CHIP 18P ABC.................
C 105 87-010-316-080 C-CAP,S 33P-50 CH ABC.................
C 108 87-010-405-040 CAP,E 10-50 ABC.................
C 107 87-012-157-080 C-CAP,S 330P-50 CH ABC.................
C 101 87-A10-189-040 CAP,E 220-10 ABC.................
C 110 87-010-183-080 C-CAP,S 2700P-50 B ABC.................
C 115 87-010-198-080 CAP, CHIP 0.022 ABC.................
C 111 87-010-213-080 C-CAP,S 0.015-50 B ABC.................
C 119 87-010-408-040 CAP,E 47-50 SME ABC.................
C 116 87-010-493-040 CAP,E 0.47-50 GAS ABC.................
C 117 87-010-498-040 CAP,E 10-16 GAS ABC.................
C 118 87-012-369-080 C-CAP,S 0.047-50F ABC.................
C 113 87-A10-189-040 CAP,E 220-10 ABC.................
C 122 87-010-194-080 CAP, CHIP 0.047 ABC.................
C 127 87-010-194-080 CAP, CHIP 0.047 ABC.................
C 120 87-010-421-040 CAP,E 4.7-50 5L ABC.................
C 121 87-010-421-040 CAP,E 4.7-50 5L ABC.................
C 128 87-012-156-080 C-CAP,S 220P-50 CH ABC.................
C 131 87-010-079-040 CAP,E 100-6.3 5L ABC.................
C 130 87-010-194-080 CAP, CHIP 0.047 ABC.................
C 207 87-010-322-080 C-CAP,S 100P-50 CH ABC.................
C 284 87-010-182-080 C-CAP,S 2200P-50 B ABC.................
C 283 87-010-182-080 C-CAP,S 2200P-50 B ABC.................
C 282 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 281 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 385 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 387 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 386 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 388 87-010-405-040 CAP,E 10-50 ABC.................
C 382 87-012-158-080 C-CAP,S 390P-50 CH ABC.................
C 950 87-012-145-080 CAP, CHIP S 270P CH ABC.................
ELECTRICAL MAIN PARTS LIST - 2/6
C 951 87-012-145-080 CAP, CHIP S 270P CH ABC.................
C 952 87-012-145-080 CAP, CHIP S 270P CH ABC.................
CN 104 87-099-017-010 CONN, 15P 6216 V ABC.................
CN 102 87-099-031-010 CONN,14P 6216 H ABC.................
CN 101 87-099-720-010 CONN,30P TYK-B(P) ABC.................
CN 301 87-A60-156-010 CONN,8P H FE ABC.................
D 109 87-A40-509-080 ZENER,MTZJ6.8C ABC.................
D 110 87-A40-269-080 C-DIODE,MC2836 ABC.................
D 111 87-A40-270-080 C-DIODE,MC2838 ABC.................
D 329 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 385 87-017-932-080 ZENER,MTJ6.2B ABC.................
FL 101 8Z-MA2-605-010 FL,BJ683GK ABC.................
IC 102 87-A20-914-010 IC,SPS-442-1-F ABC.................
IC 101 8Z-MA1-601-010 C-IC,LC876580W-5K53 ABC.................
IC 203 87-A21-021-040 C-IC,BU2099FV ABC.................
IC 202 87-A21-021-040 C-IC,BU2099FV ABC.................
IC 201 87-A21-021-040 C-IC,BU2099FV ABC.................
IC 380 87-A21-023-040 C-IC,BA3835F ABC.................
JW 145 87-005-847-080 COIL,2.2UH(CECS) ABC.................
L 101 87-A50-333-010 COIL,OSC 9.43MHZ ABC.................
LED 207 87-A40-496-040 LED,SLR-342MCT31 GRN ABC.................
LED 206 87-A40-496-040 LED,SLR-342MCT31 GRN ABC.................
LED 208 87-A40-496-040 LED,SLR-342MCT31 GRN ABC.................
LED 209 87-A40-496-040 LED,SLR-342MCT31 GRN ABC.................
LED 210 87-A40-496-040 LED,SLR-342MCT31 GRN ABC.................
LED 214 87-A40-496-040 LED,SLR-342MCT31 GRN ABC.................
LED 211 87-A40-496-040 LED,SLR-342MCT31 GRN ABC.................
LED 213 87-A40-496-040 LED,SLR-342MCT31 GRN ABC.................
LED 212 87-A40-496-040 LED,SLR-342MCT31 GRN ABC.................
LED 215 87-A40-496-040 LED,SLR-342MCT31 GRN ABC.................
LED 235 87-070-270-010 LED,SEL1510CM2 LF34 ABC.................
LED 234 87-070-270-010 LED,SEL1510CM2 LF34 ABC.................
LED 233 87-070-270-010 LED,SEL1510CM2 LF34 ABC.................
LED 236 87-070-270-010 LED,SEL1510CM2 LF34 ABC.................
LED 238 87-070-300-010 LED,SEL1250SM LF34 ABC.................
LED 237 87-070-300-010 LED,SEL1250SM LF34 ABC.................
LED 240 87-A40-317-080 LED,SLR-342VCT31 RED ABC.................
LED 241 87-A40-317-080 LED,SLR-342VCT31 RED ABC.................
LED 292 87-A40-619-040 LED,SLR-56PT-T31-W GRN ABC.................
LED 291 87-A40-619-040 LED,SLR-56PT-T31-W GRN ABC.................
PR 201 87-A90-393-080 PROTECTOR,0.5A 491SERISE 60V ABC.................
PR 201 87-A90-410-080 FUSE,0.5A 125V 251 ....................
Q 108 87-A30-073-080 C-TR,RT1N 141C ABC.................
Q 102 87-A30-087-080 C-FET,2SK2158 ABC.................
Q 101 87-A30-087-080 C-FET,2SK2158 ABC.................
Q 104 87-A30-087-080 C-FET,2SK2158 ABC.................
Q 105 87-A30-159-080 C-TR,KTA1298Y ABC.................
Q 106 87-A30-159-080 C-TR,KTA1298Y ABC.................
Q 103 87-A30-198-080 TR,KTC3199GR ABC.................
Q 107 89-112-965-080 TR,2SA1296 (0.75W) ABC.................
Q 262 89-112-965-080 TR,2SA1296 (0.75W) ABC.................
Q 301 87-A30-074-080 C-TR,RT1P 141C ABC.................
R 301 87-022-355-080 C-RES,S10K-1/10W F ABC.................
R 321 87-022-355-080 C-RES,S10K-1/10W F ABC.................
R 341 87-022-355-080 C-RES,S10K-1/10W F ABC.................
S 101 87-A90-471-010 SW,RTRY EC16B24304-25 NON ABC.................
S 102 87-A90-982-010 SW,RTRY REO121-30 ABC.................
S 329 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
C 802 87-010-176-080 C-CAP,S 680P-50 SL ..C.................
C 803 87-010-187-080 CAP CHIP S5600P ..C.................
C 807 87-010-196-080 CHIP CAPACITOR,0.1-25 ..C.................
C 804 87-010-213-080 C-CAP,S 0.015-50 B ..C.................
C 806 87-010-401-040 CAP,E 1-50 SME ..C.................
C 809 87-012-155-080 C-CAP 180P-50CH ..C.................
C 801 87-012-156-080 C-CAP,S 220P-50 CH ..C.................
C 810 87-010-263-040 CAP,E 100-10 ..C.................
C 812 87-010-378-040 CAP,E 10-16 ..C.................
C 811 87-010-382-010 CAP, ELECT 22-25SME ..C.................
D 801 87-017-931-080 ZENER,MTZJ5.6B ..C.................
IC 801 87-A21-051-040 C-IC,BU9990-03FS ..C.................
L 801 87-A50-093-010 COIL,CLOCK 5.76MHZ ..C.................
C 309 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 307 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 301 87-010-318-080 C-CAP,S 47P-50 CH ABC.................
C 302 87-010-318-080 C-CAP,S 47P-50 CH ABC.................
C 305 87-012-145-080 CAP, CHIP S 270P CH ABC.................
C 306 87-012-145-080 CAP, CHIP S 270P CH ABC.................
C 304 87-012-157-080 C-CAP,S 330P-50 CH ABC.................
C 303 87-012-157-080 C-CAP,S 330P-50 CH ABC.................
C 316 87-010-179-080 CAP,CHIP S B1200P ABC.................
C 315 87-010-179-080 CAP,CHIP S B1200P ABC.................
C 314 87-010-180-080 C-CER 1500P ABC.................
C 313 87-010-180-080 C-CER 1500P ABC.................
C 310 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 311 87-010-198-080 CAP, CHIP 0.022 ABC.................
C 312 87-010-198-080 CAP, CHIP 0.022 ABC.................
C 324 87-010-260-080 CAP, ELECT 47-25V ABC.................
C 325 87-010-370-080 CAP,E 330-6.3 SME ABC.................
C 328 87-010-404-080 CAP, ELECT 4.7-50V ABC.................
C 327 87-010-404-080 CAP, ELECT 4.7-50V ABC.................
C 321 87-012-142-080 CAP, S 0.33-16 ABC.................
C 322 87-012-142-080 CAP, S 0.33-16 ABC.................
ELECTRICAL MAIN PARTS LIST - 3/6
C 337 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 339 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 332 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 336 87-010-401-080 CAP, ELECT 1-50V ABC.................
C 335 87-010-401-080 CAP, ELECT 1-50V ABC.................
C 340 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 354 87-010-175-080 CAP 560P ABC.................
C 359 87-010-183-080 C-CAP,S 2700P-50 B ABC.................
C 358 87-010-183-080 C-CAP,S 2700P-50 B ABC.................
C 357 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 356 87-010-260-080 CAP, ELECT 47-25V ABC.................
C 351 87-012-140-080 CAP 470P ABC.................
C 352 87-012-140-080 CAP 470P ABC.................
C 355 87-012-349-080 C-CAP,S 1000P-50 CH ABC.................
C 360 87-010-183-080 C-CAP,S 2700P-50 B ABC.................
C 370 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 378 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 379 87-010-382-080 CAP, ELECT 22-25V ABC.................
C 373 87-016-083-080 C-CAP,S 0.15-16 RK ABC.................
C 374 87-016-083-080 C-CAP,S 0.15-16 RK ABC.................
C 386 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 380 87-010-382-080 CAP, ELECT 22-25V ABC.................
C 388 87-012-156-080 C-CAP,S 220P-50 CH ABC.................
C 394 87-010-319-080 C-CAP,S 56P-50 CH ABC.................
C 392 87-010-319-080 C-CAP,S 56P-50 CH ABC.................
C 393 87-010-319-080 C-CAP,S 56P-50 CH ABC.................
C 391 87-010-319-080 C-CAP,S 56P-50 CH ABC.................
CN 301 87-099-827-010 CONN,3P S2M-3W ABC.................
CN 351 87-099-832-010 CONN,8P S2M-8W ABC.................
D 352 87-A40-269-080 C-DIODE,MC2836 ABC.................
FB 301 87-008-372-080 FILTER, EMI BL OIRNI AB..................
IC 301 87-A20-455-010 IC,HA12211 ABC.................
L 301 87-A50-049-010 COIL,TRAP 85K(COI) ABC.................
L 302 87-A50-049-010 COIL,TRAP 85K(COI) ABC.................
L 351 87-007-342-010 COIL,OSC 85K BIAS ABC.................
Q 357 87-026-610-080 TR,KTC3198GR ABC.................
Q 358 87-026-610-080 TR,KTC3198GR ABC.................
Q 359 87-026-610-080 TR,KTC3198GR ABC.................
Q 356 87-A30-076-080 C-TR,2SC3052F AB..................
Q 351 87-A30-087-080 C-FET,2SK2158 ABC.................
Q 354 87-A30-087-080 C-FET,2SK2158 ABC.................
Q 353 87-A30-087-080 C-FET,2SK2158 ABC.................
Q 355 87-A30-105-080 C-TR,RT1P 441C ABC.................
Q 360 87-A30-087-080 C-FET,2SK2158 ABC.................
SFR 351 87-024-356-080 SFR,47K DIA6 H ABC.................
SFR 352 87-024-356-080 SFR,47K DIA6 H ABC.................
C 407 87-010-188-080 CAP,CHIP 6800P ABC.................
C 408 87-010-188-080 CAP,CHIP 6800P ABC.................
C 401 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 402 87-010-260-080 CAP, ELECT 47-25V ABC.................
C 403 87-010-404-080 CAP, ELECT 4.7-50V ABC.................
C 406 87-010-404-080 CAP, ELECT 4.7-50V ABC.................
C 405 87-010-404-080 CAP, ELECT 4.7-50V ABC.................
C 404 87-010-404-080 CAP, ELECT 4.7-50V ABC.................
C 409 87-012-140-080 CAP 470P ABC.................
C 415 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 416 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 419 87-010-260-080 CAP, ELECT 47-25V ABC.................
C 411 87-010-404-080 CAP, ELECT 4.7-50V ABC.................
C 414 87-010-404-080 CAP, ELECT 4.7-50V ABC.................
C 412 87-010-404-080 CAP, ELECT 4.7-50V ABC.................
C 413 87-010-404-080 CAP, ELECT 4.7-50V ABC.................
C 417 87-010-956-080 CHIP-CAP,S 0.068-25B ABC.................
C 418 87-010-956-080 CHIP-CAP,S 0.068-25B ABC.................
C 410 87-012-140-080 CAP 470P ABC.................
D 402 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 401 87-A40-269-080 C-DIODE,MC2836 ABC.................
IC 401 87-A21-022-040 C-IC,BA3880FS ABC.................
C 602 87-010-180-080 C-CER 1500P AB..................
C 601 87-010-180-080 C-CER 1500P AB..................
C 602 87-010-183-080 C-CAP,S 2700P-50 B ABC.................
C 601 87-010-183-080 C-CAP,S 2700P-50 B ABC.................
C 608 87-010-318-080 C-CAP,S 47P-50 CH ABC.................
C 619 87-010-185-080 C-CAP,S 3900P-50 B ABC.................
C 611 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 612 87-010-322-080 C-CAP,S 100P-50 CH ABC.................
C 613 87-016-081-080 C-CAP,S 0.1-16 RK ABC.................
C 614 87-016-081-080 C-CAP,S 0.1-16 RK ABC.................
C 620 87-010-185-080 C-CAP,S 3900P-50 B ABC.................
C 627 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 628 87-010-322-080 C-CAP,S 100P-50 CH ABC.................
C 622 87-010-401-080 CAP, ELECT 1-50V ABC.................
C 621 87-010-401-080 CAP, ELECT 1-50V ABC.................
C 625 87-010-405-080 CAP, ELECT 10-50V ABC.................
C 626 87-010-405-080 CAP, ELECT 10-50V ABC.................
C 630 87-010-213-080 C-CAP,S 0.015-50 B ABC.................
C 632 87-010-263-080 CAP, ELECT 100-10V ABC.................
C 633 87-010-263-080 CAP, ELECT 100-10V ABC.................
C 636 87-010-992-080 C-CAP,S 0.047-25 B ABC.................
C 677 87-010-178-080 CHIP CAP 1000P ABC.................
CN 604 87-099-570-010 CONN,13P TUC-P13P-B1 ..C.................
CN 601 87-099-719-010 CONN,30P TYK-B(X) ABC.................
ELECTRICAL MAIN PARTS LIST - 4/6
CN 602 87-A60-131-010 CONN,6P V FE ABC.................
CN 605 87-A60-189-010 CONN,16P V TUC-P16P-B1 AB..................
D 601 87-A40-002-080 ZENER,MTZJ5.1C ABC.................
D 603 87-A40-234-080 ZENER,MTZJ5.6A ABC.................
D 602 87-A40-438-080 ZENER,MTZJ4.7A ABC.................
IC 601 87-A21-011-040 C-IC,M62445FP-600D ABC.................
J 603 87-099-625-010 JACK PIN 4P,RVS (KM) ABC.................
JW 623 87-008-372-080 FILTER, EMI BL OIRNI AB..................
JW 625 87-008-372-080 FILTER, EMI BL OIRNI AB..................
Q 601 87-026-609-080 TR,KTA1266GR ABC.................
Q 604 87-A30-142-040 C-TR,DTA123EKA ABC.................
R 661 87-A50-190-080 C-COIL,S BLM21A102S AB..................
R 662 87-A50-190-080 C-COIL,S BLM21A102S AB..................
C 101 87-010-178-080 CHIP CAP 1000P ABC.................
C 102 87-010-178-080 CHIP CAP 1000P ABC.................
C 123 87-010-176-080 C-CAP,S 680P-50 SL AB..................
C 124 87-010-176-080 C-CAP,S 680P-50 SL AB..................
C 129 87-010-191-080 C-CAP,S 0.015-50 F AB..................
C 125 87-012-368-080 C-CAP,S 0.1-50 F ABC.................
C 126 87-012-368-080 C-CAP,S 0.1-50 F ABC.................
C 128 87-012-368-080 C-CAP,S 0.1-50 F ABC.................
C 127 87-012-368-080 C-CAP,S 0.1-50 F ABC.................
C 130 87-010-191-080 C-CAP,S 0.015-50 F AB..................
C 132 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 131 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 134 87-010-553-080 CAP,E 47-16 ABC.................
C 136 87-012-368-080 C-CAP,S 0.1-50 F ABC.................
L 102 87-003-383-010 COIL,1UH-S ABC.................
L 101 87-003-383-010 COIL,1UH-S ABC.................
Q 101 89-333-266-080 CHIP TR,2SC3326B ABC.................
Q 102 89-333-266-080 CHIP TR,2SC3326B ABC.................
Q 127 87-A30-075-080 C-TR,2SA1235F ABC.................
R 144 87-A00-440-050 RES,220-1/2W J RP ABC.................
R 146 87-A00-440-050 RES,220-1/2W J RP ABC.................
R 145 87-A00-440-050 RES,220-1/2W J RP ABC.................
R 143 87-A00-440-050 RES,220-1/2W J RP ABC.................
C 203 87-010-174-080 CAP CHIP SL470P (K) ABC.................
C 204 87-010-174-080 CAP CHIP SL470P (K) ABC.................
C 229 87-010-993-080 C-CAP,S 0.056-25 B ABC.................
C 234 87-010-190-080 S CHIP F 0.01 ABC.................
C 233 87-010-190-080 S CHIP F 0.01 ABC.................
C 232 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 239 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 231 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 238 87-010-322-080 C-CAP,S 100P-50 CH AB..................
C 237 87-010-322-080 C-CAP,S 100P-50 CH AB..................
C 230 87-010-993-080 C-CAP,S 0.056-25 B ABC.................
C 236 87-016-285-080 CAP,E 47-100SME ABC.................
C 235 87-016-285-080 CAP,E 47-100SME ABC.................
CN 201 87-A60-739-010 CONN,13P JL-BT ABC.................
D 212 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
J 203 87-033-240-010 TERMINAL,SP 4P32SV1-05 ABC.................
J 202 87-A60-483-010 JACK,DIA6.3 BLK ST W/S KM ABC.................
J 204 87-A60-750-010 JACK,PIN 4P R/W BLUE ABC.................
L 201 87-003-383-010 COIL,1UH-S ABC.................
L 202 87-003-383-010 COIL,1UH-S ABC.................
Q 201 89-333-266-080 CHIP TR,2SC3326B ABC.................
Q 202 89-333-266-080 CHIP TR,2SC3326B ABC.................
RY 201 87-045-382-010 RELAY,OUAZ-SH-112L ABC.................
87-067-579-010 TAPPING SCREW, BVT2+3-8 ABC.................
C 6 87-012-368-080 C-CAP,S 0.1-50 F ABC.................
C 5 87-012-368-080 C-CAP,S 0.1-50 F ABC.................
C 3 87-012-368-080 C-CAP,S 0.1-50 F ABC.................
C 4 87-012-368-080 C-CAP,S 0.1-50 F ABC.................
C 2 87-012-369-080 C-CAP,S 0.047-50F ABC.................
C 1 87-012-369-080 C-CAP,S 0.047-50F ABC.................
C 9 87-016-658-090 CAP,E 4700-35 SMG ABC.................
C 10 87-016-658-090 CAP,E 4700-35 SMG ABC.................
C 29 87-010-247-080 CAP, ELECT 100-50V ABC.................
C 24 87-010-247-080 CAP, ELECT 100-50V ABC.................
C 23 87-010-247-080 CAP, ELECT 100-50V ABC.................
C 21 87-010-385-080 CAP, ELECT 220-25V ABC.................
C 22 87-010-385-080 CAP, ELECT 220-25V ABC.................
C 25 87-010-430-080 CAP, ELECT 100-63 ABC.................
C 27 87-012-140-080 CAP 470P ABC.................
C 31 87-010-101-080 CAP, ELECT 220-16 ABC.................
C 30 87-010-112-080 CAP, ELECT 100-16V ABC.................
C 61 87-010-260-080 CAP, ELECT 47-25V ABC.................
C 62 87-010-496-080 CAP,E 3.3-50 5L ABC.................
C 92 87-010-263-080 CAP, ELECT 100-10V ABC.................
C 93 87-010-380-080 CAP, ELECT 47-16V ABC.................
C 91 87-010-401-080 CAP, ELECT 1-50V ABC.................
CN 1 87-A60-739-010 CONN,13P JL-BT ABC.................
CN 91 87-A60-109-010 CONN,2P V S2M-2W ABC.................
CNA 1 8Z-MA4-623-010 CONN ASSY,9P 480 VH ABC.................
D 1 87-017-654-060 DIODE,GBU6J ABC.................
D 4 87-070-274-080 DIODE,1N4003 SEM ABC.................
D 3 87-070-274-080 DIODE,1N4003 SEM ABC.................
D 5 87-070-274-080 DIODE,1N4003 SEM ABC.................
D 6 87-070-274-080 DIODE,1N4003 SEM ABC.................
D 7 87-A40-341-080 ZENER,MTZJ 36 A ABC.................
D 10 87-A40-345-080 ZENER,MTZJ10C ABC.................
ELECTRICAL MAIN PARTS LIST - 5/6
D 64 87-070-274-080 DIODE,1N4003 SEM ABC.................
D 63 87-A40-004-080 ZENER,MTZJ16A ABC.................
D 62 87-A40-269-080 C-DIODE,MC2836 ABC.................
D 61 87-A40-270-080 C-DIODE,MC2838 ABC.................
D 91 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 92 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
Q 7 87-026-230-080 CHIP-TR,DTA114YK ....................
Q 5 87-026-610-080 TR,KTC3198GR ABC.................
Q 8 87-A30-075-080 C-TR,2SA1235F ABC.................
Q 9 87-A30-234-080 TR,CSC4115BC ABC.................
Q 64 87-A30-075-080 C-TR,2SA1235F ABC.................
Q 66 87-A30-075-080 C-TR,2SA1235F ABC.................
Q 92 87-026-609-080 TR,KTA1266GR ABC.................
Q 91 87-A30-076-080 C-TR,2SC3052F ABC.................
R 20 87-A00-261-080 RES,M/F 0.56-1W J ....................
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P ABC.................
C 707 87-010-180-080 C-CER 1500P ABC.................
C 706 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 709 87-010-213-080 C-CAP,S 0.015-50 B ABC.................
C 708 87-010-213-080 C-CAP,S 0.015-50 B ABC.................
C 701 87-010-263-080 CAP, ELECT 100-10V ABC.................
C 704 87-010-319-080 C-CAP,S 56P-50 CH ABC.................
C 703 87-010-319-080 C-CAP,S 56P-50 CH ABC.................
C 716 87-010-071-080 CAP, ELECT 1-50 M 5L SRE ABC.................
C 715 87-010-071-080 CAP, ELECT 1-50 M 5L SRE ABC.................
C 711 87-010-181-080 CAP,CHIP S 1800P ABC.................
C 717 87-010-183-080 C-CAP,S 2700P-50 B ABC.................
C 718 87-010-183-080 C-CAP,S 2700P-50 B ABC.................
C 710 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 714 87-010-374-080 CAP, ELECT 47-10V ABC.................
C 713 87-010-544-080 CAP, ELECT 0.1-50V ABC.................
C 732 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 733 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 738 87-010-318-080 C-CAP,S 47P-50 CH ABC.................
C 731 87-010-415-080 CAP ELE SRE 10-50V ABC.................
C 734 87-012-156-080 C-CAP,S 220P-50 CH ..C.................
C 734 87-012-157-080 C-CAP,S 330P-50 CH AB..................
C 736 87-016-669-080 C-CAP,S 0.1-25 K B ....................
C 741 87-010-178-080 CHIP CAP 1000P ABC.................
D 701 87-A40-234-080 ZENER,MTZJ5.6A ABC.................
IC 701 87-A20-613-040 C-IC,BU9262AFS ABC.................
L 701 87-005-448-080 COIL 220UH,K ABC.................
Q 732 87-A30-075-080 C-TR,2SA1235F ABC.................
Q 731 87-A30-076-080 C-TR,2SC3052F ABC.................
CN 1 87-099-201-010 CONN,8P 6216 H ABC.................
LED 6 87-A40-317-080 LED,SLR-342VCT31 RED ABC.................
LED 9 87-A40-317-080 LED,SLR-342VCT31 RED ABC.................
LED 8 87-A40-317-080 LED,SLR-342VCT31 RED ABC.................
LED 7 87-A40-317-080 LED,SLR-342VCT31 RED ABC.................
LED 10 87-A40-317-080 LED,SLR-342VCT31 RED ABC.................
S 8 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 9 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 14 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 10 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 11 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 12 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
S 13 87-A90-095-080 SW,TACT EVQ11G04M ABC.................
C 458 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 457 87-010-196-080 CHIP CAPACITOR,0.1-25 ABC.................
C 452 87-010-401-080 CAP, ELECT 1-50V ABC.................
C 451 87-010-401-080 CAP, ELECT 1-50V ABC.................
C 461 87-010-544-080 CAP, ELECT 0.1-50V ABC.................
IC 451 87-A21-031-040 C-IC,BU4551BF ABC.................
C 205 87-010-183-080 C-CAP,S 2700P-50 B ABC.................
C 206 87-010-183-080 C-CAP,S 2700P-50 B ABC.................
C 204 87-010-405-080 CAP, ELECT 10-50V ABC.................
C 203 87-010-405-080 CAP, ELECT 10-50V ABC.................
C 207 87-010-408-080 CAP, ELECT 47-50V ABC.................
C 208 87-010-408-080 CAP, ELECT 47-50V ABC.................
C 213 87-A10-812-080 C-CAP,S 220P-200 J CH ABC.................
C 214 87-A10-812-080 C-CAP,S 220P-200 J CH ABC.................
C 221 87-010-178-080 CHIP CAP 1000P ABC.................
C 222 87-010-178-080 CHIP CAP 1000P ABC.................
C 299 87-010-197-080 CAP, CHIP 0.01 DM ABC.................
C 405 87-010-185-080 C-CAP,S 3900P-50 B ABC.................
C 409 87-010-322-080 C-CAP,S 100P-50 CH ABC.................
C 407 87-010-403-080 CAP, ELECT 3.3-50V ABC.................
C 403 87-010-403-080 CAP, ELECT 3.3-50V ABC.................
C 413 87-010-260-080 CAP, ELECT 47-25V ABC.................
C 419 87-012-368-080 C-CAP,S 0.1-50 F ABC.................
C 411 87-A10-946-080 C-CAP,S 220P-100 J CH ABC.................
C 421 87-010-186-080 CAP,CHIP 4700P ABC.................
C 501 87-016-299-080 CAP,E 10-100 SME ABC.................
C 503 87-016-299-080 CAP,E 10-100 SME ABC.................
CN 101 87-A60-727-010 CONN,13P JL-R ABC.................
CN 102 87-A60-727-010 CONN,13P JL-R ABC.................
D 212 87-020-331-080 CHIP-DIODE,DAN202K ABC.................
D 312 87-020-331-080 CHIP-DIODE,DAN202K ABC.................
D 401 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 405 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 409 87-020-465-080 DIODE,1SS133 (110MA) ABC.................
D 411 87-A40-488-080 DIODE,1SS244 ABC.................
ELECTRICAL MAIN PARTS LIST - 6/6
D 501 87-070-136-080 ZENER,MTZJ5.1B ABC.................
D 505 87-A40-184-090 DIODE,RK34(F) ABC.................
D 506 87-A40-184-090 DIODE,RK34(F) ABC.................
D 509 87-A40-345-080 ZENER,MTZJ10C ABC.................
D 503 87-A40-345-080 ZENER,MTZJ10C ABC.................
D 502 87-A40-438-080 ZENER,MTZJ4.7A ABC.................
Q 201 87-A30-268-040 C-TR,2SA1514K(S) ABC.................
Q 202 87-A30-268-040 C-TR,2SA1514K(S) ABC.................
Q 207 87-A30-268-040 C-TR,2SA1514K(S) ABC.................
Q 208 87-A30-268-040 C-TR,2SA1514K(S) ABC.................
Q 221 87-A30-106-070 C-TR,CMBT5551 ABC.................
Q 222 87-A30-106-070 C-TR,CMBT5551 ABC.................
Q 298 87-A30-268-040 C-TR,2SA1514K(S) ABC.................
Q 401 87-A30-075-080 C-TR,2SA1235F ABC.................
Q 407 87-A30-075-080 C-TR,2SA1235F ABC.................
Q 405 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 403 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 417 87-A30-119-080 C-TR,2SC3906K R ABC.................
Q 411 87-A30-190-080 TR,CC5551 ABC.................
Q 423 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 425 87-A30-076-080 C-TR,2SC3052F ABC.................
Q 503 87-A30-074-080 C-TR,RT1P 141C ABC.................
Q 506 87-A30-074-080 C-TR,RT1P 141C ABC.................
Q 501 87-A30-186-010 FET,2SK3053 ABC.................
Q 502 87-A30-186-010 FET,2SK3053 ABC.................
Q 507 87-A30-268-040 C-TR,2SA1514K(S) ABC.................
Q 601 87-A30-074-080 C-TR,RT1P 141C ABC.................
Q 602 87-A30-268-040 C-TR,2SA1514K(S) ABC.................
R 228 87-A00-262-080 RES,M/F 0.15-2W J ABC.................
R 226 87-A00-262-080 RES,M/F 0.15-2W J ABC.................
R 227 87-A00-262-080 RES,M/F 0.15-2W J ABC.................
R 225 87-A00-262-080 RES,M/F 0.15-2W J ABC.................
R 239 87-A00-262-080 RES,M/F 0.15-2W J ABC.................
R 242 87-A00-262-080 RES,M/F 0.15-2W J ABC.................
R 429 87-A00-258-080 RES,M/F 0.22-1W J ABC.................
R 427 87-A00-258-080 RES,M/F 0.22-1W J ABC.................
R 441 87-A00-258-080 RES,M/F 0.22-1W J ABC.................
TH 401 87-A91-042-080 C-THMS,100K 55001 ABC.................
NOTE: The characters in the suffix column indicate the part usage.
URTM ...................XX....................................C.................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
C 701 87-010-381-080 0E CAP, ELECT 330-16V ABC.................
C 702 87-010-404-080 0E CAP, ELECT 4.7-50V ABC.................
C 704 87-012-286-080 0E CAP, U 0.01-25 ABC.................
C 703 87-012-286-080 0E CAP, U 0.01-25 ABC.................
C 711 87-010-260-080 0E CAP, ELECT 47-25V ABC.................
C 711 87-010-553-080 0E CAP,E 47-16 ....................
C 712 87-010-831-080 0E C-CAP,U,0.1-16F ABC.................
C 718 87-012-179-080 0E C-CAP,U 20P-50 CH .BC.................
C 714 87-012-286-080 0E CAP, U 0.01-25 ABC.................
C 717 87-012-286-080 0E CAP, U 0.01-25 ABC.................
C 719 87-012-286-080 0E CAP, U 0.01-25 ABC.................
C 727 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABC.................
C 728 87-010-248-080 0E CAP, ELECT 220-10V ABC.................
C 721 87-012-176-080 0E CAP 15P ABC.................
C 722 87-012-176-080 0E CAP 15P ABC.................
C 720 87-012-195-080 0E C-CAP,U 100P-50CH ABC.................
C 729 87-012-274-080 0E CHIP CAP,U 1000P-50B ABC.................
C 725 87-018-131-080 0E CAP, CER 1000P-50V ....................
CN 701 87-A60-650-010 1A CONN,16P H GRY TUC-P16X-C1 ....................
CN 701 87-A60-700-010 0E CONN,13P H GRY TUC-P13X-C1 ABC.................
D 721 87-017-149-080 0E ZENER,HZS6A2L .BC.................
D 722 87-020-465-080 0E DIODE,1SS133 (110MA) ....................
D 721 87-A40-234-080 0E ZENER,MTZJ5.6A A...................
IC 721 87-070-127-110 1C IC,LC72131 D ABC.................
Q 713 87-A30-072-080 0E C-TR,RT1P 144C ....................
Q 712 87-A30-072-080 0E C-TR,RT1P 144C ....................
Q 711 87-A30-196-080 0E TR,2SC4115SRS A...................
Q 711 87-A30-234-080 0E TR,CSC4115BC .BC.................
X 721 87-A70-061-010 1A VIB,XTAL 4.500MHZ CSA-309 ABC.................
C 872 87-010-400-080 0E CAP, ELECT 0.47-50V AB..................
C 873 87-010-404-080 0E CAP, ELECT 4.7-50V AB..................
C 877 87-012-278-080 0E C-CAP,U 2200P-50 B AB..................
C 878 87-012-278-080 0E C-CAP,U 2200P-50 B AB..................
C 889 87-010-248-080 0E CAP, ELECT 220-10V AB..................
C 884 87-010-260-080 0E CAP, ELECT 47-25V AB..................
C 883 87-010-404-080 0E CAP, ELECT 4.7-50V AB..................
C 885 87-010-545-080 0E CAP, ELECT 0.22-50V A...................
C 886 87-010-545-080 0E CAP, ELECT 0.22-50V A...................
C 888 87-010-787-080 0E CAP, U 0.022-25 AB..................
C 881 87-012-141-080 0E CHIP-CAPACITOR,0.22-16F AB..................
C 882 87-012-172-080 0E CAPACITOR CHIP U 10P CH AB..................
C 887 87-012-286-080 0E CAP, U 0.01-25 AB..................
C 885 87-016-460-080 0E C-CAP,S 0.22-16 B .B..................
C 886 87-016-460-080 0E C-CAP,S 0.22-16 B .B..................
IC 871 87-070-060-040 1F IC,TA2040AF AB..................
Q 873 87-026-226-080 0E CHIP-TR,DTA143EK AB..................
X 891 87-030-394-010 1B VIB,CER CSA3.6MGF228 AB..................
C 705 87-010-213-080 0E C-CAP,S 0.015-50 B ....................
C 706 87-010-213-080 0E C-CAP,S 0.015-50 B ....................
C 705 87-A10-592-080 0E C-CAP,S 0.015-50 J B .BC.................
C 706 87-A10-592-080 0E C-CAP,S 0.015-50 J B .BC.................
C 733 87-010-180-080 0E C-CER 1500P ....................
C 738 87-010-180-080 0E C-CER 1500P ....................
C 737 87-010-180-080 0E C-CER 1500P ....................
C 734 87-010-180-080 0E C-CER 1500P ....................
C 735 87-010-213-080 0E C-CAP,S 0.015-50 B ....................
C 736 87-010-213-080 0E C-CAP,S 0.015-50 B ....................
C 736 87-010-987-080 0E C-CAP,S 1500P-50 CH .BC.................
C 733 87-010-987-080 0E C-CAP,S 1500P-50 CH .BC.................
C 735 87-010-987-080 0E C-CAP,S 1500P-50 CH .BC.................
C 734 87-010-987-080 0E C-CAP,S 1500P-50 CH .BC.................
C 734 87-012-280-080 0E CAP, U 3300P-50 ....................
C 733 87-012-280-080 0E CAP, U 3300P-50 ....................
C 738 87-A10-592-080 0E C-CAP,S 0.015-50 J B .BC.................
C 737 87-A10-592-080 0E C-CAP,S 0.015-50 J B .BC.................
C 752 87-010-220-080 0E C-CAP,S 0.018-25 B .B..................
C 751 87-010-220-080 0E C-CAP,S 0.018-25 B .B..................
C 758 87-012-167-080 0E C-CAP,U 5P-50 CH ABC.................
C 757 87-012-188-080 0E C-CAP,U 47P-50 CH ABC.................
C 753 87-012-195-080 0E C-CAP,U 100P-50CH ....................
C 752 87-012-282-080 0E CAP, U 4700P-50 ....................
C 756 87-012-286-080 0E CAP, U 0.01-25 ABC.................
C 751 87-012-365-080 0E C-CAP,S 0.027-25VBK ..C.................
C 752 87-012-365-080 0E C-CAP,S 0.027-25VBK ..C.................
C 766 87-010-197-080 0E CAP, CHIP 0.01 DM ....................
C 769 87-010-260-080 0E CAP, ELECT 47-25V ABC.................
C 768 87-012-286-080 0E CAP, U 0.01-25 ABC.................
C 765 87-012-286-080 0E CAP, U 0.01-25 ABC.................
C 764 87-012-337-080 0E C-CAP,U 56P-50 CH ABC.................
C 774 87-010-263-080 0E CAP, ELECT 100-10V ABC.................
C 771 87-010-383-080 0E CAP, ELECT 33-25V ABC.................
C 777 87-010-400-080 0E CAP, ELECT 0.47-50V ABC.................
C 775 87-010-404-080 0E CAP, ELECT 4.7-50V ABC.................
C 777 87-010-493-040 0E CAP,E 0.47-50 GAS ....................
C 777 87-010-493-080 0E CAP,E 0.47-50 GAS ....................
C 770 87-010-829-080 0E CAP, U 0.047-16 ABC.................
C 780 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABC.................
ELECTRICAL MAIN PARTS LIST - 1/3 (TUNER: ZZA-1)
C 786 87-010-401-080 0E CAP, ELECT 1-50V ABC.................
C 785 87-010-401-080 0E CAP, ELECT 1-50V ABC.................
C 786 87-010-405-080 0E CAP, ELECT 10-50V ABC.................
C 785 87-010-405-080 0E CAP, ELECT 10-50V ABC.................
C 785 87-010-494-080 0E CAP ELECT GAS 1/50 ....................
C 786 87-010-494-080 0E CAP ELECT GAS 1/50 ....................
C 787 87-012-275-080 0E C-CAP,U 1200P-50 B ABC.................
C 788 87-012-275-080 0E C-CAP,U 1200P-50 B ABC.................
C 784 87-012-286-080 0E CAP, U 0.01-25 ABC.................
C 796 87-010-403-080 0E CAP, ELECT 3.3-50V ABC.................
C 794 87-010-406-080 0E CAP, ELECT 22-50 ABC.................
C 795 87-010-596-080 0E CAP, S 0.047-16 ..C.................
C 793 87-012-273-080 0E C-CAP,U 820P-50 B ABC.................
C 797 87-012-276-080 0E CAP, CHIP SS 1500 PBK A...................
C 798 87-012-276-080 0E CAP, CHIP SS 1500 PBK A...................
D 771 87-020-465-080 0E DIODE,1SS133 (110MA) ABC.................
D 773 87-A40-291-080 0E DIODE,1N4148 (CPT) ....................
IC 771 87-A20-913-010 1D IC,LA1837NL ABC.................
L 771 87-A50-266-010 1A COIL,FM DET-2N(TOK) ABC.................
L 772 87-A90-052-010 1C FLTR,CFMT-450A(TOK) ....................
L 772 87-A90-053-010 1C FLTR,PCFMT-060(TOK) AB..................
L 772 87-A90-733-010 1A FLTR,PCFAZH-450 (TOK) ....................
L 772 87-A91-110-010 FLTR,PCFJZH-450 (TOK) ..C.................
L 781 87-005-847-080 0E COIL,2.2UH(CECS) ....................
L 792 87-A50-027-010 1A COIL,1 POLE MPX(TOK) ....................
L 791 87-A50-027-010 1A COIL,1 POLE MPX(TOK) ....................
X 771 87-030-354-010 1A VIB,CF BFU 450C ....................
C 859 87-012-286-080 0E CAP, U 0.01-25 ....................
C 865 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ....................
C 866 87-010-405-080 0E CAP, ELECT 10-50V ....................
C 864 87-010-405-080 0E CAP, ELECT 10-50V ....................
C 869 87-012-180-080 0E C-CAP,U 22P-50 CH ....................
C 868 87-012-184-080 0E C-CAP,U 33P-50 CH ....................
C 862 87-012-199-080 0E CAP 220P ....................
C 861 87-012-199-080 0E CAP 220P ....................
C 863 87-012-270-080 0E CAP, U 470P-50 ....................
C 867 87-012-286-080 0E CAP, U 0.01-25 ....................
IC 851 87-A20-440-040 1H C-IC,BU1920FS ....................
L 851 87-005-847-080 0E COIL,2.2UH(CECS) ....................
Q 853 87-A30-076-080 0E C-TR,2SC3052F ....................
X 851 87-A70-091-010 1B VIB,XTAL 4.332MHZ CSA-309 ....................
C 820 87-010-260-080 0E CAP, ELECT 47-25V ABC.................
C 942 87-012-172-080 0E CAPACITOR CHIP U 10P CH ....................
C 941 87-012-180-080 0E C-CAP,U 22P-50 CH ....................
C 947 87-012-286-080 0E CAP, U 0.01-25 ABC.................
C 940 87-012-286-080 0E CAP, U 0.01-25 ABC.................
C 944 87-014-049-080 0E CAP,PP 470P-100 J ....................
C 944 87-014-051-080 0E CAPACITOR (PP), 560P ....................
C 949 87-A10-039-080 0E C-CAP,U 470P-50 J CH ....................
C 958 87-010-197-080 0E CAP, CHIP 0.01 DM ....................
C 956 87-010-263-080 0E CAP, ELECT 100-10V ....................
C 959 87-010-831-080 0E C-CAP,U,0.1-16F ....................
C 952 87-012-286-080 0E CAP, U 0.01-25 ABC.................
C 954 87-012-358-080 0E C-CAP,S 0.47-10 F Z ....................
C 950 87-014-073-080 0E CAP,PP 4700P-100 J ....................
C 963 87-010-196-080 0E CHIP CAPACITOR,0.1-25 ABC.................
C 962 87-010-401-080 0E CAP, ELECT 1-50V ....................
C 964 87-012-170-080 0E C-CAP,U 8P-50 CH A...................
C 961 87-012-174-080 0E CAP CHIP CERA SS 12P CHJ .BC.................
C 960 87-012-350-080 0E C-CAP,1-25 F ....................
CF 802 82-785-747-010 1A CF MS2 GHY R ....................
CF 802 87-008-261-010 1A FILTER, SFE10.7MA5-A ABC.................
CF 801 87-008-261-010 1A FILTER, SFE10.7MA5-A ABC.................
CF 801 87-008-423-010 1A CERAMIC FILTER, SFE10.7 ....................
D 944 87-020-465-080 0E DIODE,1SS133 (110MA) ....................
D 942 87-A40-270-080 0E C-DIODE,MC2838 ....................
FFE 801 A8-6ZA-190-030 0E 6ZA-1 FEUNM ....................
FFE 801 A8-6ZA-191-130 6ZA-1 FEENM ....................
FFE 801 A8-6ZA-192-030 2Y 6ZA-1 FEJNM .B..................
FFE 801 A8-6ZA-199-170 6ZA-1 FEENC ....................
FFE 801 A8-6ZA-19A-070 6ZA-1 FEJNC ....................
FFE 801 A8-6ZA-19D-070 1H 6ZA-1 YFEJNC A...................
FFE 801 A8-8ZA-190-030 8ZA-1 FEUNM ..C.................
FFE 801 A8-8ZA-192-070 8ZA-1 FEUNC ....................
FFE 801 A8-8ZA-193-070 1E 8ZA-1 YFEUNC ....................
J 801 87-033-241-010 1B TERMINAL,ANT AJ-2039 ....................
J 801 87-A60-702-010 1B TERMINAL,ANT 4P CJ-9036 ABC.................
J 801 87-A60-703-010 1A TERMINAL,ANT 3P CJ-9037 ....................
J 940 81-754-629-010 0E CONNECTOR, 2P ....................
L 832 87-005-847-080 0E COIL,2.2UH(CECS) ....................
L 943 87-005-372-080 0E COIL S 1MHM ....................
L 942 87-A50-019-010 0E COIL,OSC LW(COI) ....................
L 941 87-A50-020-010 0E COIL,ANT LW(COI) ....................
L 941 87-A50-022-010 0E COIL,ANT SW(COI) ....................
L 944 87-A50-159-010 0E COIL,10MH K C2B ....................
L 942 87-A50-173-010 0E COIL,OSC SW-N(COI) ....................
L 943 87-A50-432-010 COIL,1MH K CW ....................
L 981 87-A50-430-010 COIL,ANT MW(3BSW) ....................
L 982 87-A50-431-010 COIL,OSC MW(3BSW) ....................
L 981 87-NF4-650-010 1D COIL,AM PACK 4N(TOK) A...................
L 981 87-NF4-651-010 1C COIL,AM PACK2N(TOM) ....................
L 981 88-NF8-625-110 1D COIL,AM PACK3N(TOK) ....................
ELECTRICAL MAIN PARTS LIST - 2/3 (TUNER: ZZA-1)
L 981 8Z-ZA1-664-010 COIL,AM PACK 4(TOK) .BC.................
L 981 8Z-ZA1-665-010 COIL,AM PACK 2(TOK) ....................
Q 712 87-A30-072-080 0E C-TR,RT1P 144C ABC.................
Q 805 89-327-143-080 0E TR,2SC2714 (0.1W) ABC.................
Q 943 87-A30-075-080 0E C-TR,2SA1235F ....................
Q 942 87-A30-075-080 0E C-TR,2SA1235F ....................
Q 949 87-A30-076-080 0E C-TR,2SC3052F ....................
Q 945 87-A30-076-080 0E C-TR,2SC3052F ....................
Q 944 87-A30-076-080 0E C-TR,2SC3052F ....................
Q 948 87-A30-086-070 0E C-TR,CSD1306E ....................
Q 947 89-503-602-080 1A C-FET,2SK360E ....................
Q 947 89-505-434-540 0E C-FET,2SK543(4/5) ....................
Q 951 87-A30-074-080 0E C-TR,RT1P 141C ....................
SCR 981 87-A40-618-080 VARI-CAP,SVC 348(S/T) ....................
TC 942 87-011-164-010 0E CAPACITOR,TRIMMER 30P ....................
TC 941 87-011-173-010 1A CERAMIC TRIMMER 20P ....................
TC 941 87-011-220-080 1A TRIMMER CAP 20P VTC ....................
TC 943 87-011-221-080 1A CAP, TRIMMER 30P ....................
ELECTRICAL MAIN PARTS LIST - 3/3 (TUNER: ZZA-1)
MECHANICAL PARTS LIST - 1/2
NOTE: The characters in the suffix column indicate the part usage.
LH .....................XX....................................C.................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
82-NE6-067-010 BADGE,AIWA 30N ABC.................
8Z-MA1-006-010 BOX,CASS L ABC.................
8Z-MA1-007-010 BOX,CASS R ABC.................
8Z-MA3-001-010 CABI,FR(A3) LH ..C.................
8Z-MA3-002-010 CABI,FR(A3) U ....................
8Z-MA3-003-010 CABI,FR(A3) EZ AB..................
8Z-MA3-004-010 CABI,FR(A3) HE ....................
8Z-MA3-006-010 CABI,REAR(A3) LH ..C.................
8Z-MA3-007-010 CABI,REAR(A3) USTNM ....................
8Z-MA3-008-010 CABI,REAR(A3) EZ AB..................
8Z-MA4-028-010 PANEL,SIDE L ABC.................
8Z-MA4-029-010 PANEL,SIDE R ABC.................
8Z-MA4-048-010 PANEL,SIDE L(U) ....................
8Z-MA4-049-010 PANEL,SIDE R(U) ....................
8Z-MA4-057-010 PANEL,TOP ABC.................
8Z-MA4-058-010 PANEL,TOP U ....................
8Z-MA1-017-010 KEY,DIRECT ABC.................
8Z-MA1-018-010 REFLECTOR,CD ABC.................
8Z-MA1-025-010 REFLECTOR,JOG ABC.................
8Z-MA1-027-010 KNOB,RTRY JOG ABC.................
8Z-MA1-028-010 KEY,FUN ABC.................
8Z-MA1-030-010 KEY,ASSY PLAY AB..................
8Z-MA1-039-010 KNOB,RTRY MAIN ABC.................
8Z-MA1-040-010 KEY,T-BASS ABC.................
8Z-MA1-041-010 KEY,RDS AB..................
8Z-MA1-042-010 KEY,VF ..C.................
8Z-MA1-043-010 KEY,PAD ..C.................
8Z-MA1-044-010 KEY,DEMO ABC.................
8Z-MA1-055-010 KEY,ASSY POWER ABC.................
8Z-MA2-010-010 KEY,DSP(A2) ABC.................
8Z-MA2-011-010 KEY,GEQ(A2) ABC.................
8Z-MA3-022-010 KEY,GEQ(MANU) ....................
8Z-MA3-023-010 KEY,GEQ(PRGM) ....................
8Z-MA3-028-010 KEY,JOG(A3) AB..................
8Z-MA3-033-010 KEY,JOG(3) ..C.................
8Z-MA3-034-010 KEY,MIC(A3) ABC.................
8Z-MA3-035-010 KEY,TIMER(A3) ABC.................
8Z-MA3-036-010 KEY,ASSY PLAY(A3) ..C.................
8Z-MA3-037-010 KEY,ASSY POWER(A3) ....................
81-532-080-010 LABEL, CASS. COMPT ABC.................
86-MA3-042-010 WINDOW,TOP ABC.................
86-NF6-061-010 REFLECTOR,CASS ABC.................
87-MAT-009-010 WINDOW,TOP(U) ....................
8Z-MA1-010-010 PANEL,TRAY ABC.................
8Z-MA1-012-010 PANEL,CD ABC.................
8Z-MA1-014-010 WINDOW,FUN LH ..C.................
8Z-MA1-015-010 WINDOW,CASS L ABC.................
8Z-MA1-016-010 WINDOW,CASS R ABC.................
8Z-MA1-047-010 WINDOW,FUN EZ AB..................
8Z-MA3-010-010 WINDOW,AMP(A3) LH ..C.................
8Z-MA3-024-010 PANEL,CASS(A3) L ABC.................
8Z-MA3-025-010 PANEL,CASS(A3) R ABC.................
8Z-MA3-026-010 PLATE,GEQ(A3) ABC.................
8Z-MA3-027-010 PLATE,GEQ(A3) U ....................
8Z-MA3-029-010 WINDOW,AMP(A3) U ....................
8Z-MA3-031-010 PLATE,FUN(A3) ABC.................
8Z-MA3-032-010 WINDOW,AMP(A3) EZ AB..................
84-ZG1-245-210 CAP,OPTICAL ABC.................
82-NF5-218-010 SPR-T,EJECT 1 (SIN) ABC.................
82-NF5-219-010 SPR-T,EJECT 2 (SIN) ABC.................
82-NF5-229-010 PLATE,LOCK ABC.................
86-NF9-224-010 SPR-C,LOCK ABC.................
87-064-185-010 HLDR,WIRE ABC.................
87-MA3-062-010 FOOT, H17 ABC.................
87-NF4-216-010 HLDR,LOCK 1 ABC.................
87-NF4-217-110 HLDR,LOCK 2 ABC.................
87-NF4-221-010 HLDR,CABLE ABC.................
87-NF8-220-010 DMPR,150 ABC.................
88-MA1-208-110 JOINT,CABI ABC.................
8Z-MA1-201-010 GUIDE,LED PLAY ABC.................
8Z-MA1-204-010 HLDR,HT-SINK A ABC.................
8Z-MA1-205-010 HLDR,HT-SINK B ABC.................
8Z-MA1-206-010 GUIDE,CD ABC.................
8Z-MA1-210-010 HLDR,FAN ABC.................
81-MK1-210-010 S-SCREW,VFT2+3-16 ABC.................
87-067-579-010 TAPPING SCREW, BVT2+3-8 ABC.................
87-067-641-010 UTT2+3-8(W/O SLOT)BL ABC.................
87-067-688-010 BVTT+3-6 ABC.................
87-067-703-010 TAPPING SCREW, BVT2+3-10 ABC.................
87-067-758-010 BVT2+3-12 W/O SLOT ABC.................
87-067-822-010 BVT2+3-20 W/O SLOT ABC.................
87-078-060-010 BVIT3PB+3-10 ABC.................
87-078-191-010 S-SCREW,IT+4-10 ABC.................
87-591-095-410 TAPPING SCREW, QIT+3-8 (GLD) ABC.................
87-NF4-224-010 S-SCREW,IT3B+3-8 CU ABC.................
83-NEG-608-010 CONN ASSY 8P-RPB ABC.................
MECHANICAL PARTS LIST - 2/2
85-MA2-602-010 CABLE,FFC 15P-1.25 ABC.................
87-010-318-080 C-CAP,S 47P-50 CH ABC.................
87-085-185-010 BUSHING, AC CORD (E) ABC.................
87-085-189-010 BUSHING, CORD (U) ....................
87-099-811-010 PLUG,ADPTR CONV(K) A...................
87-A90-796-010 FAN,F614R-12MC-15-300MM ABC.................
88-906-281-110 FF-CABLE, 6P 1.25 280MM ABC.................
88-908-231-110 FF-CABLE,8P 1.25 ABC.................
88-914-251-110 FF-CABLE,14P 1.25 250 ABC.................
C 31 87-010-101-010 CAP, ELECT 220-16V ABC.................
C 251 87-010-235-010 ELECTROLYTIC, 470-16 ABC.................
PT 101 8Z-MA3-606-010 PT,ZMA-3 HE ....................
PT 101 8Z-MA3-607-010 PT,ZMA-3 LH ..C.................
PT 101 8Z-MA3-608-010 PT,ZMA-3 EZ AB..................
PT 101 8Z-MA3-610-010 PT,ZMA-3 U ....................
Q 102 89-213-702-010 TR,2SB1370 (1.8W) ABC.................
Q 101 89-213-702-010 TR,2SB1370 (1.8W) ABC.................
Q 219 87-A30-097-010 TR,FN 1016 ABC.................
Q 214 87-A30-098-010 TR,FP 1016 ABC.................
Q 213 87-A30-098-010 TR,FP 1016 ABC.................
Q 220 87-A30-097-010 TR,FN 1016 ABC.................
Q 413 87-A30-214-010 TR,2SB1344 ABC.................
Q 415 87-A30-215-010 TR,2SD2025 ABC.................
W 101 87-050-079-010 AC-CORD ASSY,E ABC.................
W 101 87-A80-110-010 AC CORD ASSY,U SPT-2W ....................
85-NF5-210-110 GUIDE,LED L ABC.................
85-NF5-211-110 GUIDE,LED R ABC.................
88-MA2-202-010 GUIDE,FL(2) ABC.................
87-067-579-010 TAPPING SCREW, BVT2+3-8 ABC.................
WH 1 87-A90-510-010 HLDR,WIRE 2.5-9P ABC.................
ACCESSORIES / PACKAGE LIST - 1/1
NOTE: The characters in the suffix column indicate the part usage.
LH .....................XX....................................C.................
KANRI
REF.NO PARTS NO. NO. DESCRIPTION SUFFIX
8Z-MA3-901-010 IB,H(ECA)M ....................
8Z-MA3-902-010 IB,LH(ESP)M ..C.................
8Z-MA3-903-110 IB,U(ESF)M ....................
8Z-MA3-905-010 IB,K(E)M A...................
8Z-MA3-906-010 IB,EZ(9L)M .B..................
87-043-115-010 ANT,FEEDER FM ..C.................
87-099-789-010 PLUG,ADPTR IR44 ..C.................
87-A90-030-010 ANT,LOOP AM-NC C ABC.................
87-A90-118-010 ANT,WIRE FM (Z) AB..................
8Z-MA1-702-010 RC UNIT,ZAS12 ABC.................

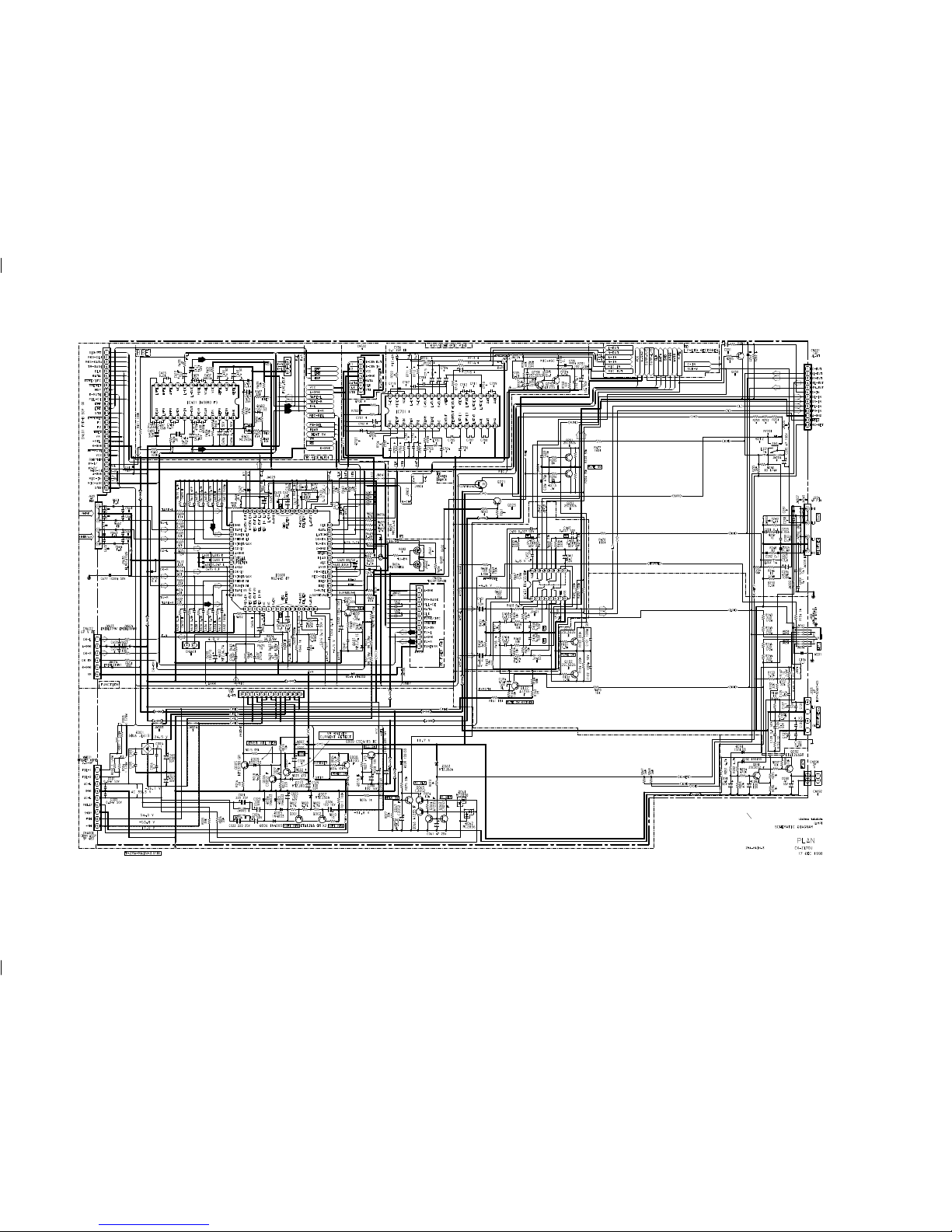

SCHEMATIC DIAGRAM _1 (MAIN 1/2)
SCHEMATIC DIAGRAM _2 (MAIN 2/2)
SCHEMATIC DIAGRAM _3 (FRONT)
SCHEMATIC DIAGRAM _4 (PRO)

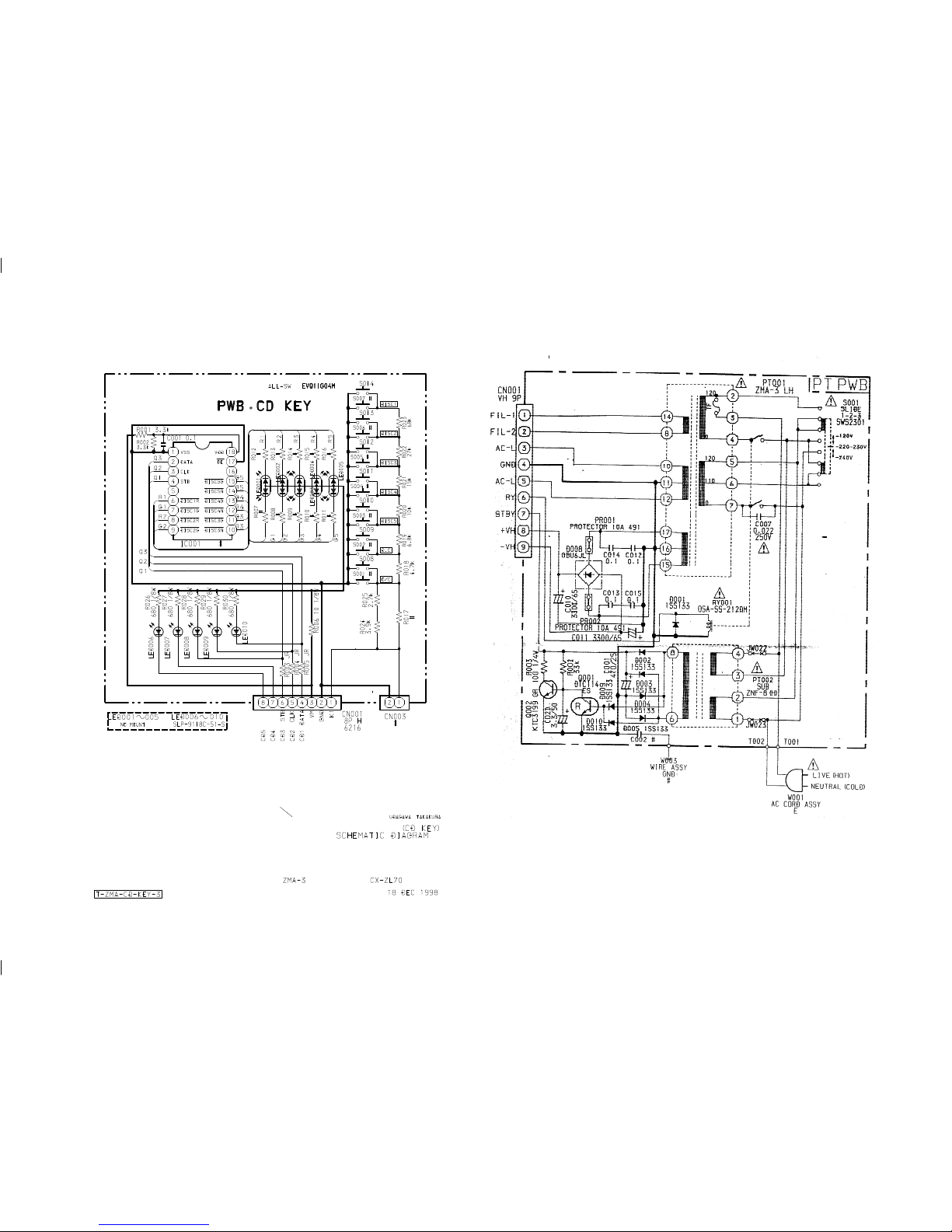

SCHEMATIC DIAGRAM _5 (CD KEY/AC)
SCHEMATIC DIAGRAM _6 (TUNER)
PrintedinSingapore
Tokyo Japan
4
9420208
Other manuals for Z-L70
2
Table of contents
Other Aiwa CD Player manuals
